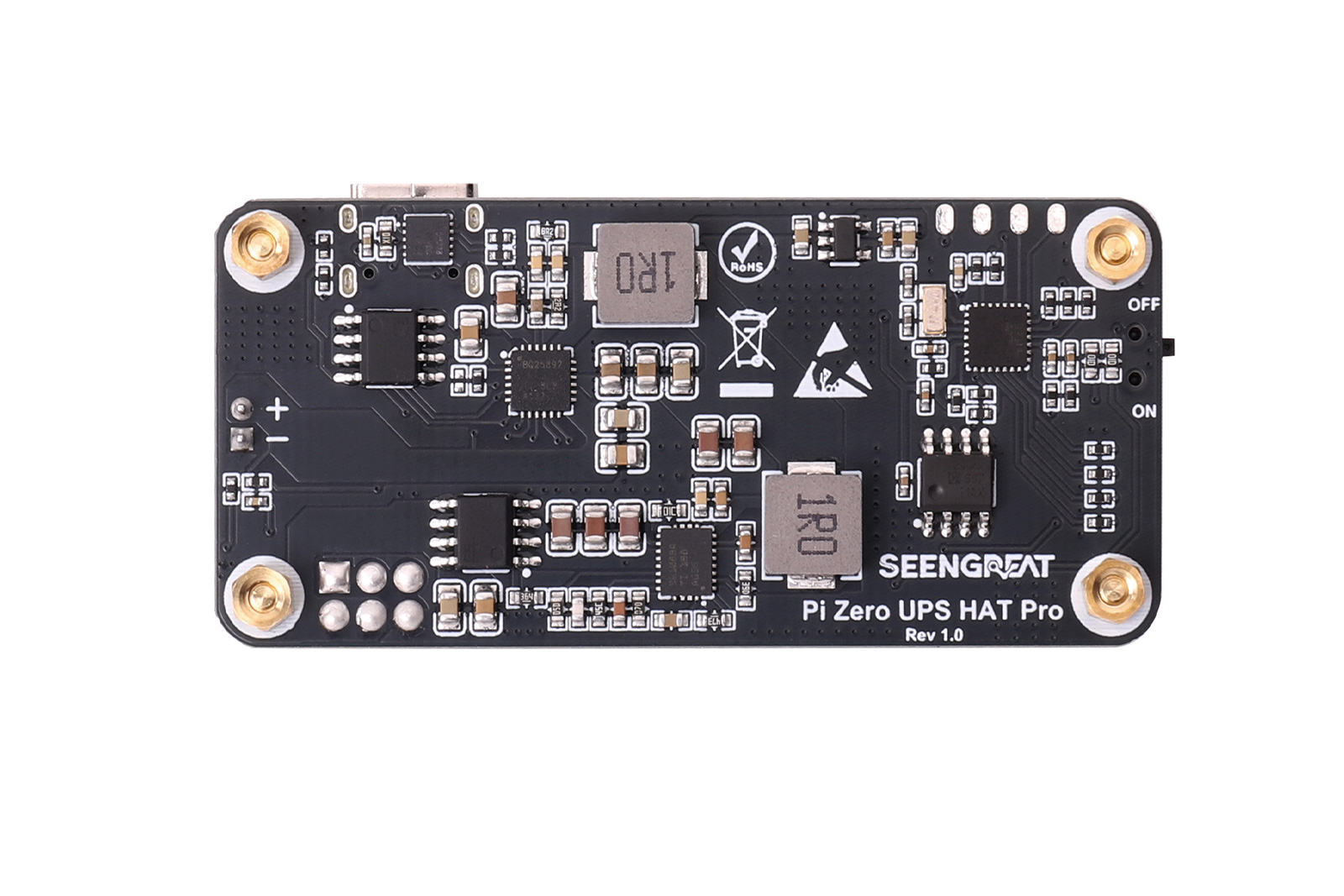

I. Product Overview
The Pi Zero UPS HAT Pro is an intelligent lithium battery uninterruptible power supply (UPS) expansion board designed specifically for the Raspberry Pi Zero series. It integrates battery charging, power management, battery monitoring, and 5V regulated output, providing external power and battery backup power for the Raspberry Pi.
The product supports USB-C power input and can negotiate 5V, 9V, or 12V input voltages with compatible power adapters to meet usage requirements in different power supply environments.
Through the IIC communication interface, users can directly view operating data such as battery voltage, current, and battery percentage in the Raspberry Pi terminal or web management interface. Users can also adjust the charging current and full-charge voltage according to the actual battery specifications used, achieving flexible battery charging management.
The onboard four LED battery indicators can visually display the current battery level and indicate the charging status through dynamic lighting effects. Users can quickly understand the basic battery status without logging into the management interface.
II. Features
- Intelligent UPS Backup Power: Integrates battery charging, power path management, and 5V boost output.
- USB-C PD Input Support: Can negotiate 5V, 9V, and 12V input voltages, compatible with USB-C PD power adapters that provide corresponding voltage levels.
- IIC Communication & Real-time Monitoring: Communicates with the Raspberry Pi via the IIC interface, supporting the reading of operating data such as battery voltage and current.
- Four LED Battery Indicators: Intuitively view the current battery capacity status.
- Programmable Power Management: Battery status queries and parameter configuration can be performed via Raspberry Pi terminal commands or the web interface.
III. Specifications
| Parameter | Specification |
|---|---|
| Model | Pi Zero UPS HAT Pro |
| Battery Interface | PH 2.0 2-Pin, single-cell 3.7V lithium battery interface |
| Input Interface | USB Type-C (Supports 5V, 9V, 12V) |
| Output Voltage | External power + battery power: Peak output 5V 3APure battery power: Max output 5V 1.5A |
| Battery Full Charge Voltage | Default 4.096V; Adjustable: 3.840V - 4.096V |
| Charging Current | Default 960mA; Adjustable: 64mA - 1496mA |
| Max Quiescent Current (Non-charging/discharging state) | 6.3mA |
| Sleep Current (Sleep state) | 2.1mA |
| Battery Specification | 803040 specification polymer lithium battery |
| Through-Hole Diameter | 2.5mm |

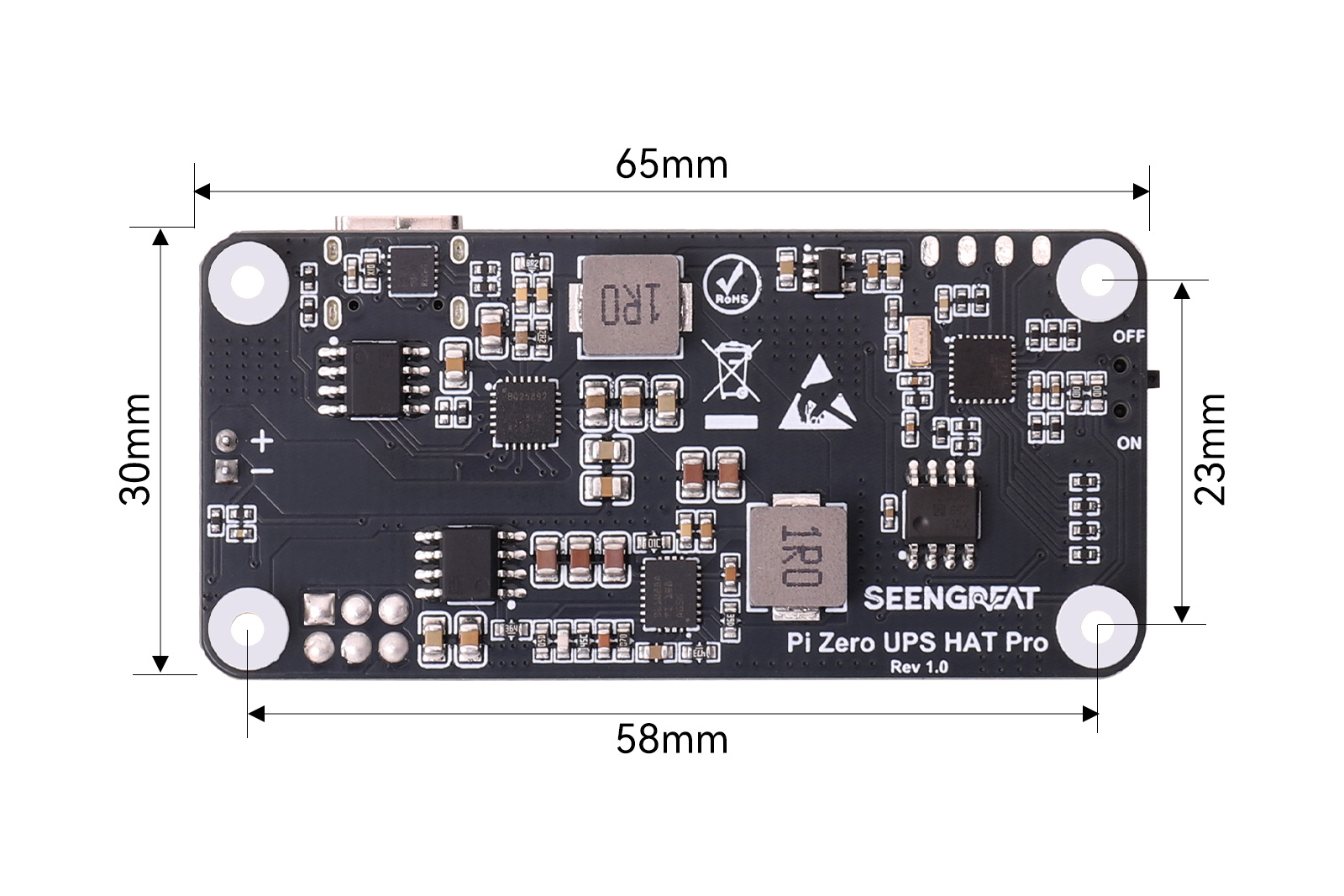

| Dimensions | 65mm (L) x 30mm (W) |

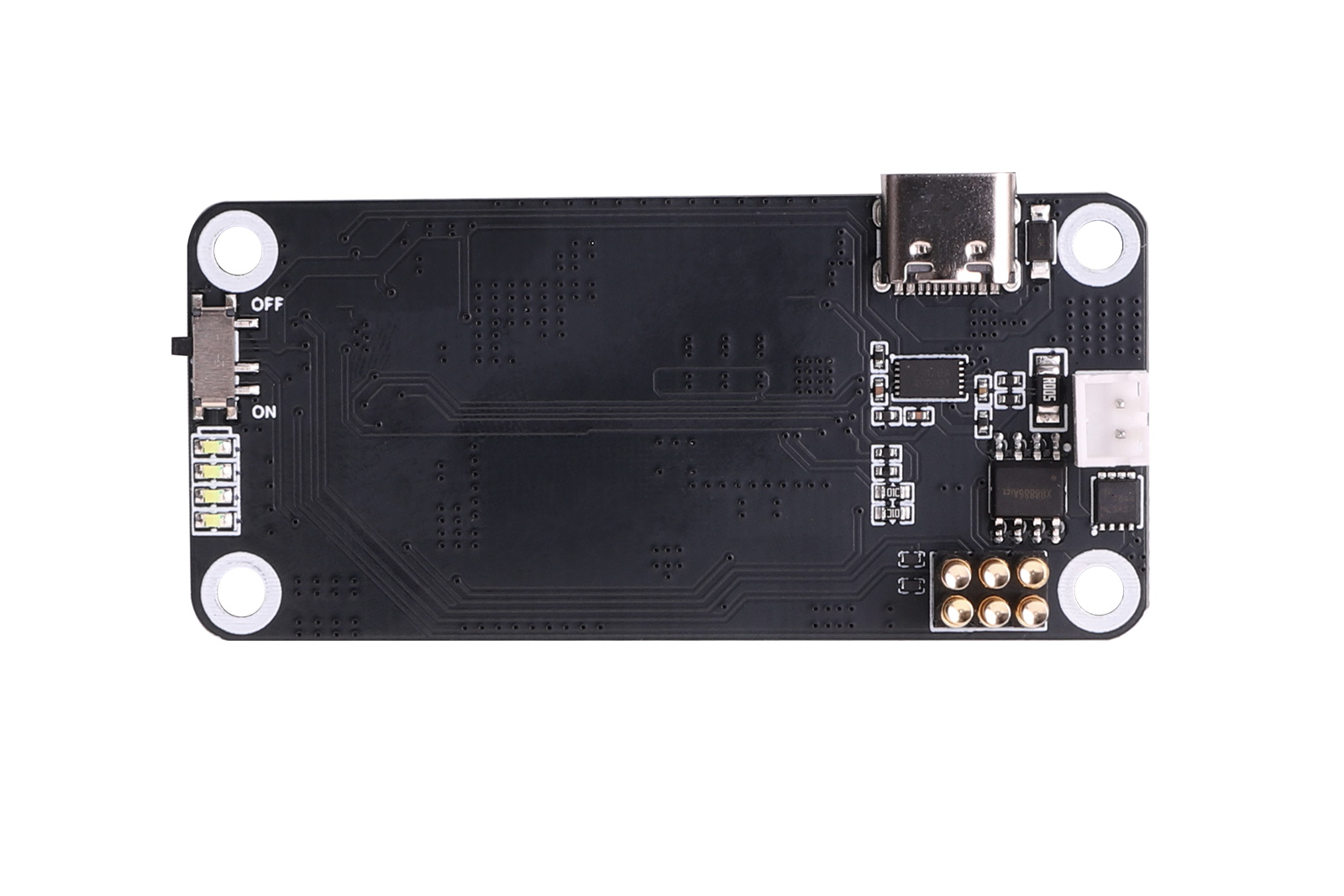

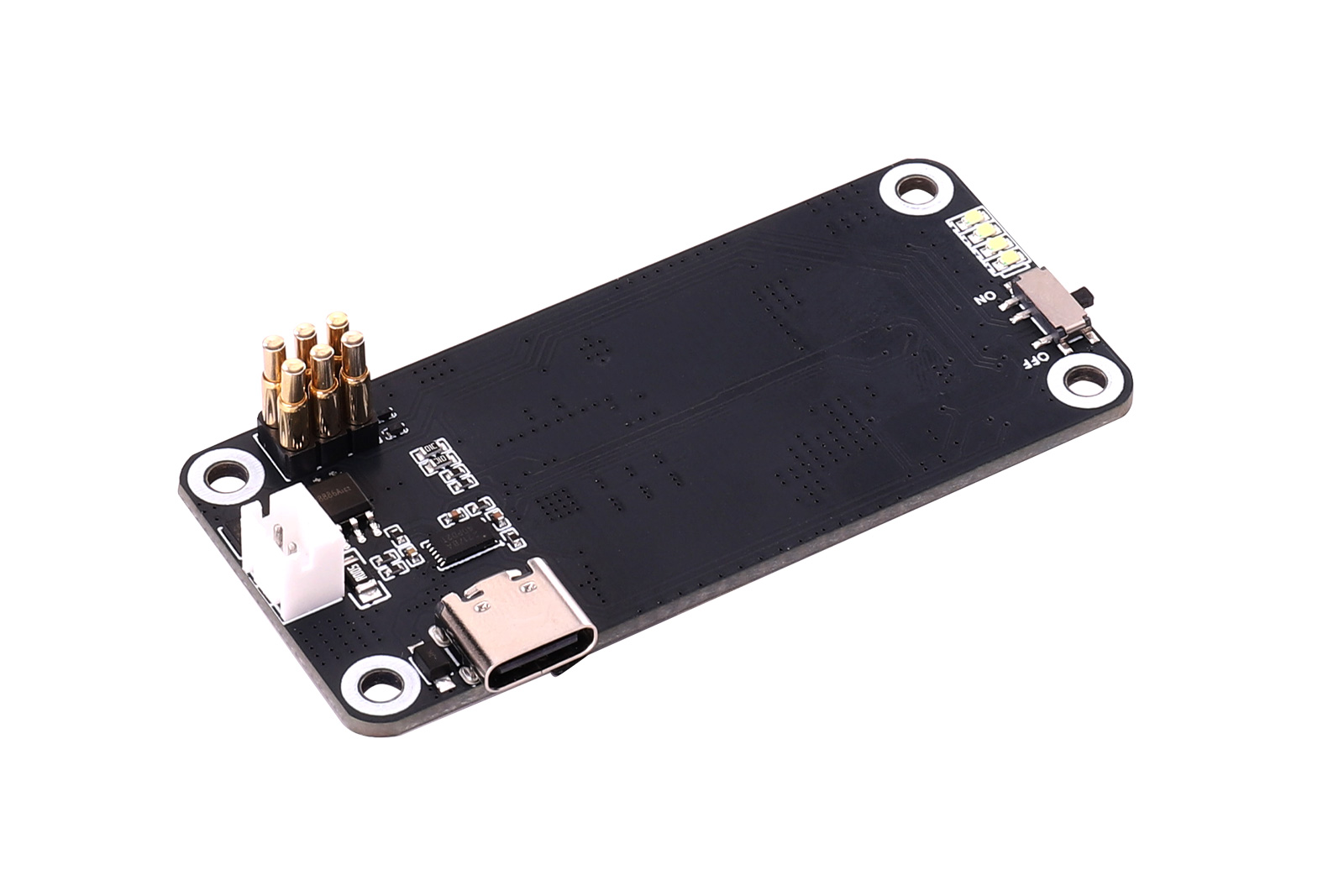

IⅤ. Resource Overview

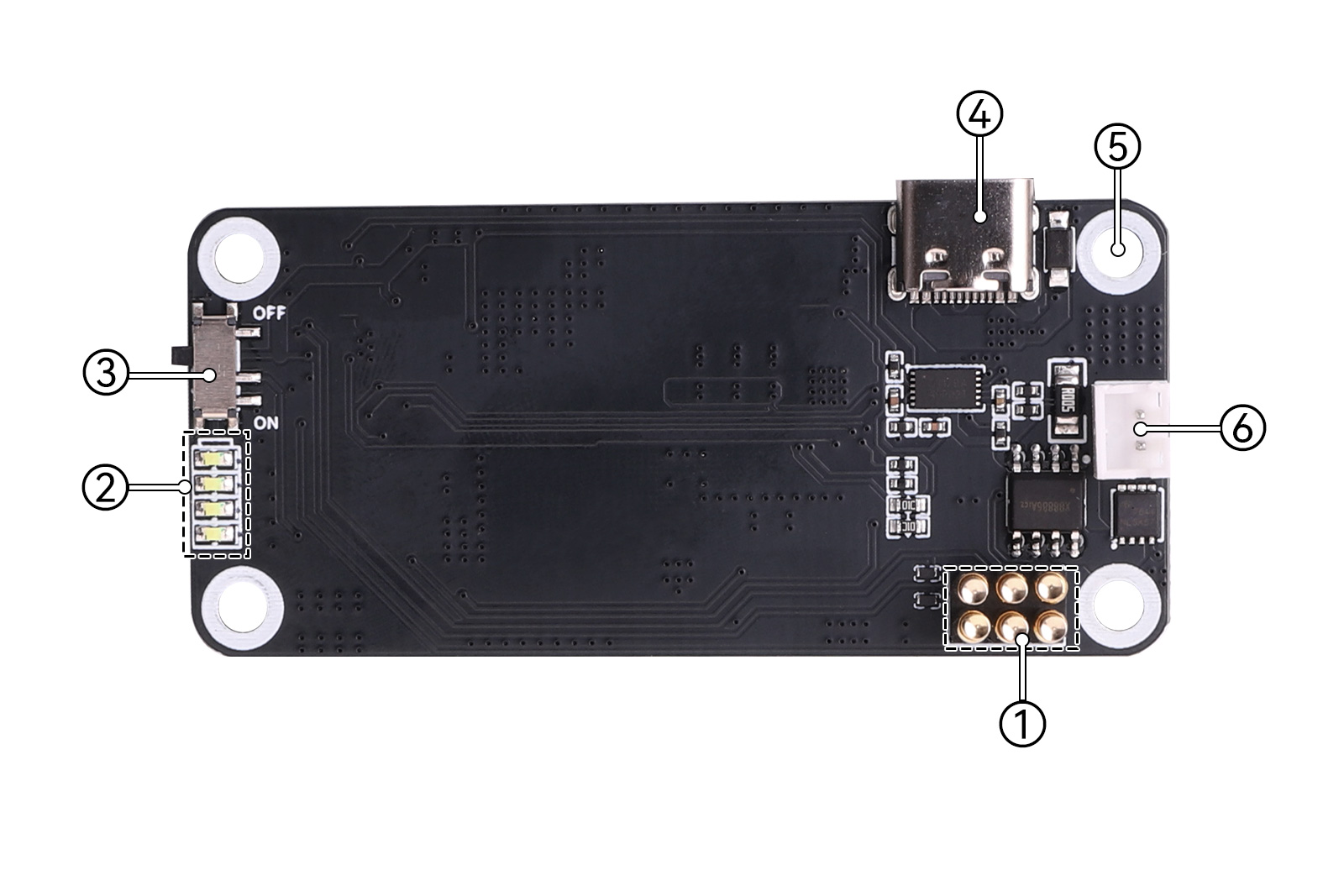

① Power & Communication Pins
② Battery Level Indicators
③ Output Power Switch
④ USB-C Connector (Supports USB PD input, negotiates 5-12V)
⑤ M2.5 Mounting Holes
⑥ PH2.0-2P Battery Connector (Pay attention to battery polarity when installing)
WIKI
https://seengreat.com/wiki/224/

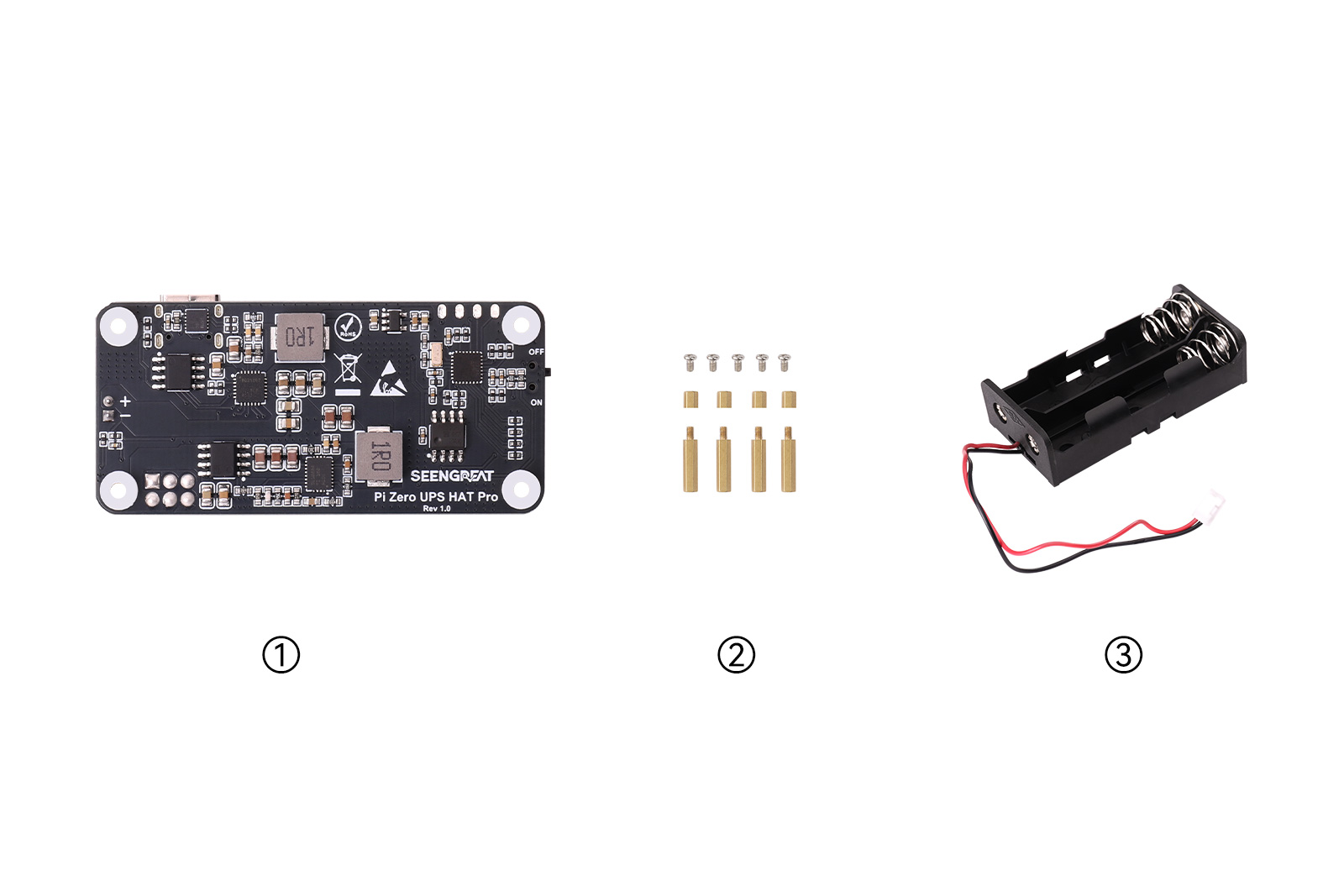

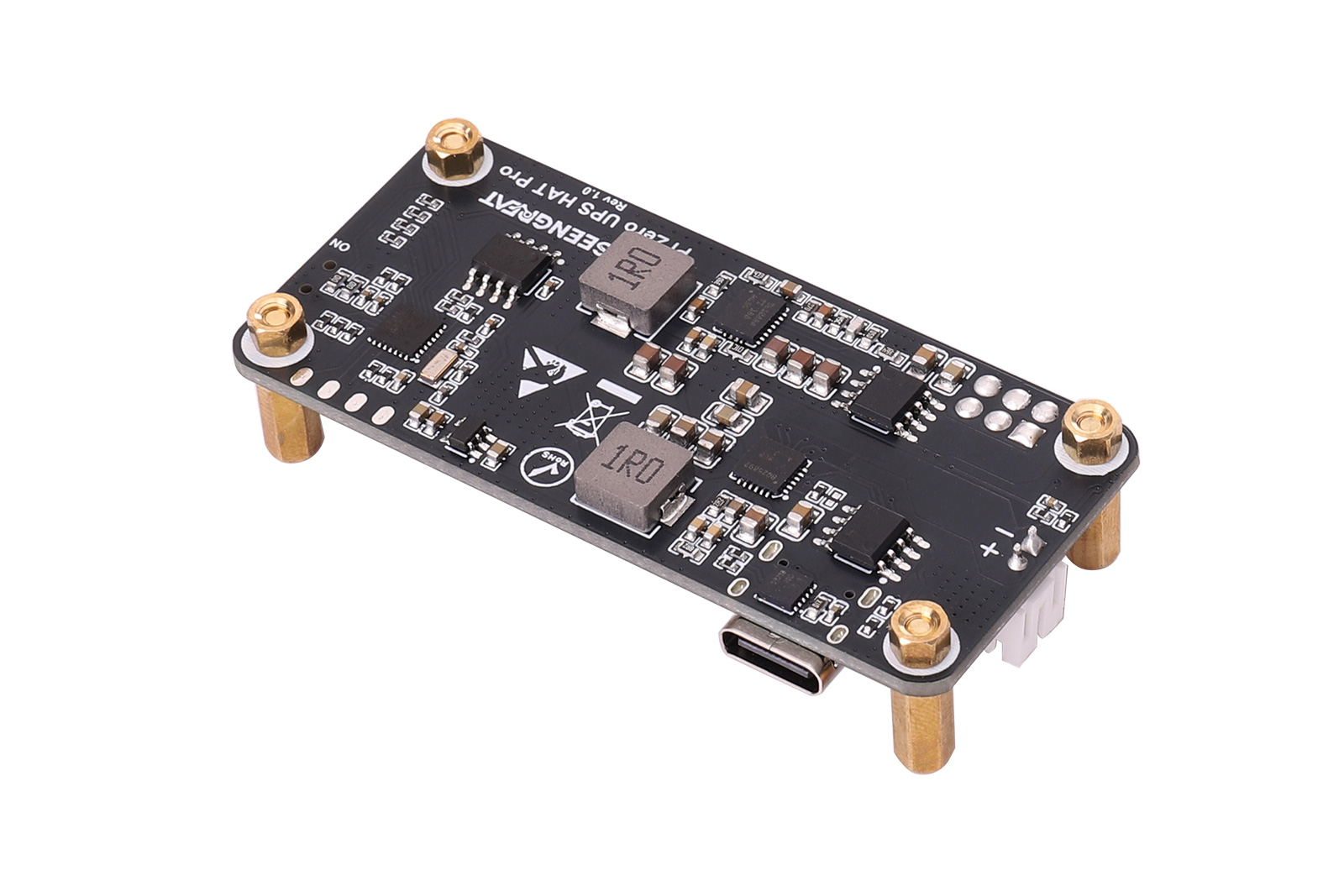

Package Contents
① Pi Zero UPS HAT Pro x 1
② Screw Pack
1. M2.5 Screws x 5
2. M2.5 x 3mm Double-pass Copper Standoffs x 4
3. M2.5 x 10 + 4mm Copper Standoffs x 4

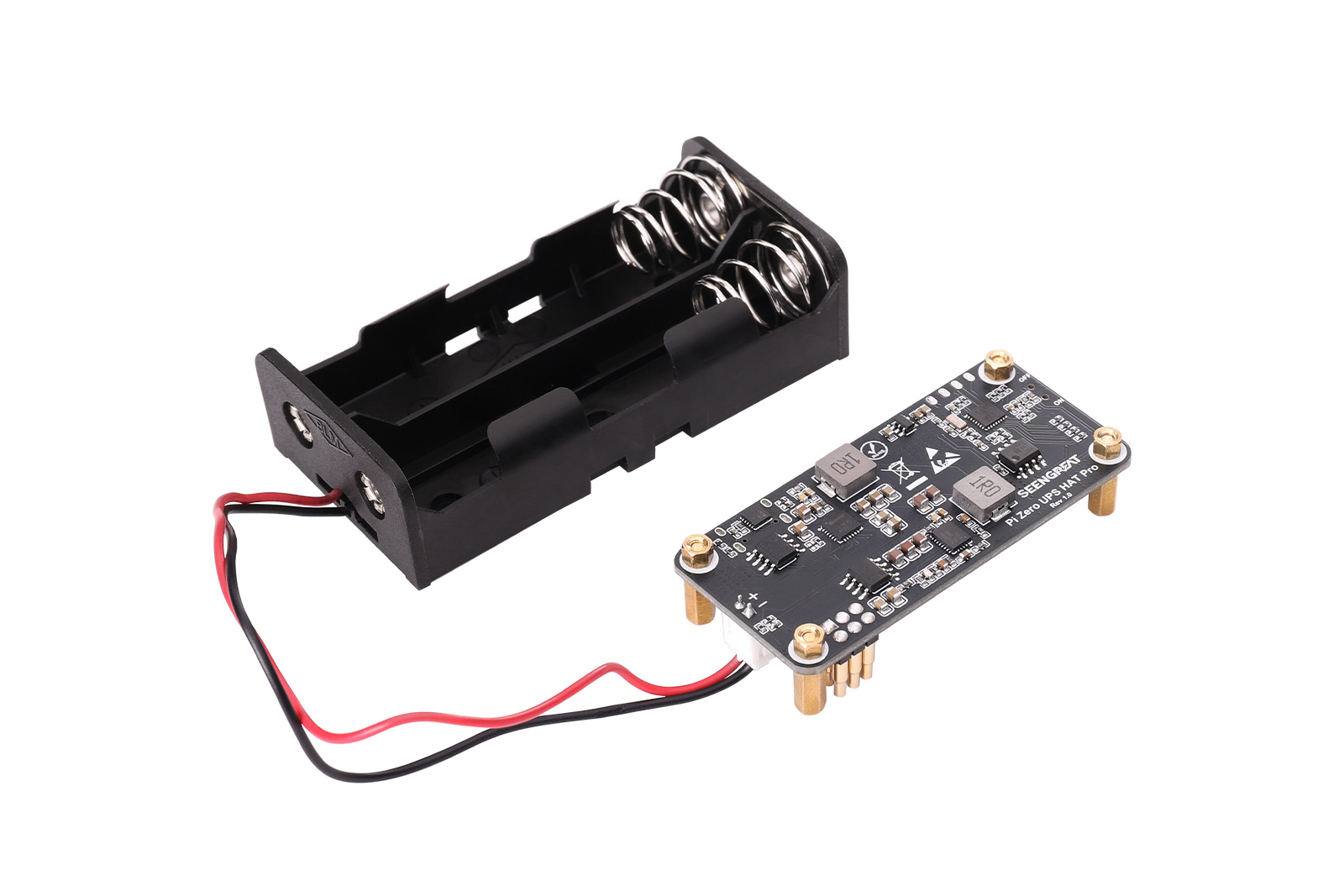

③ Battery Holder x 1
