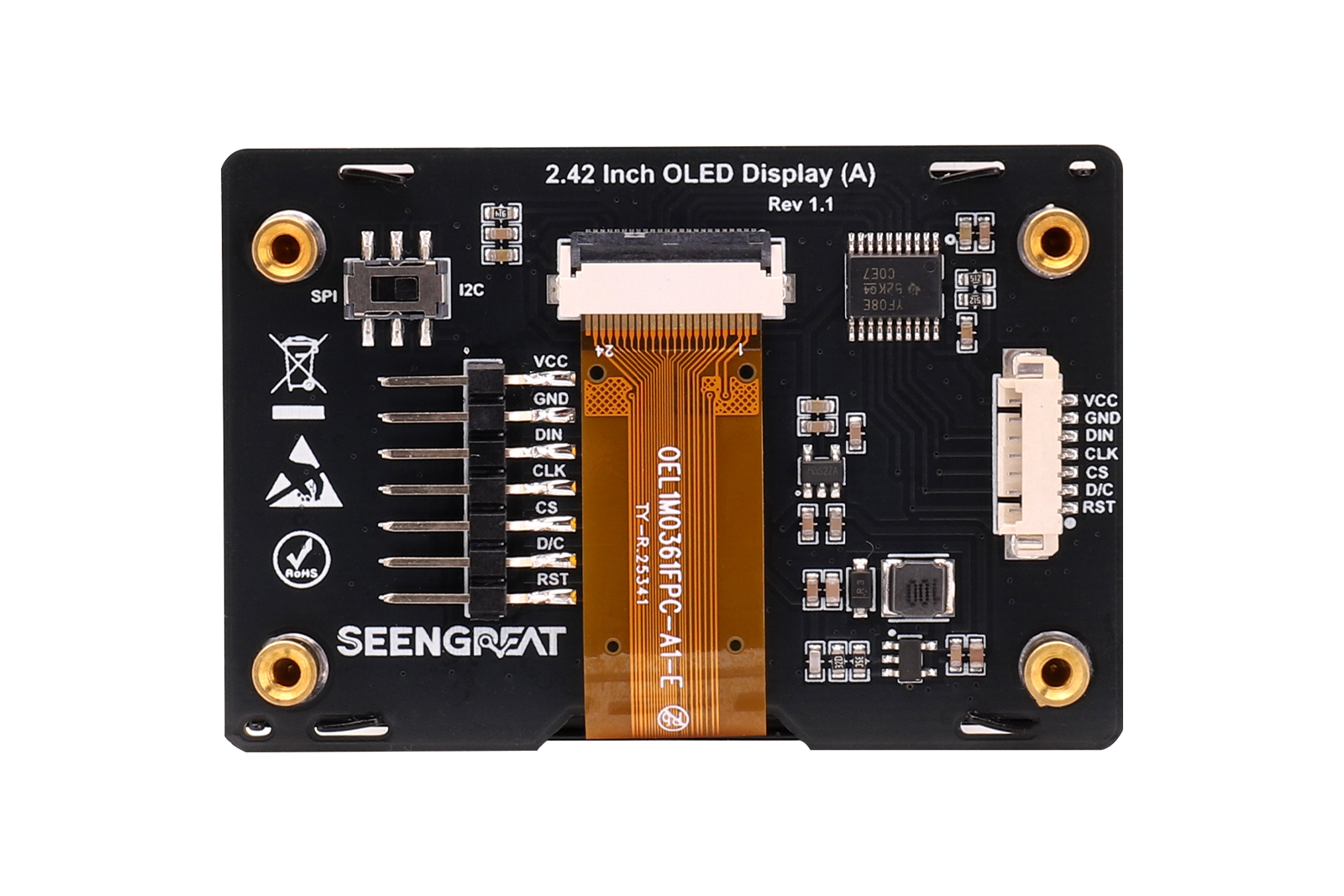

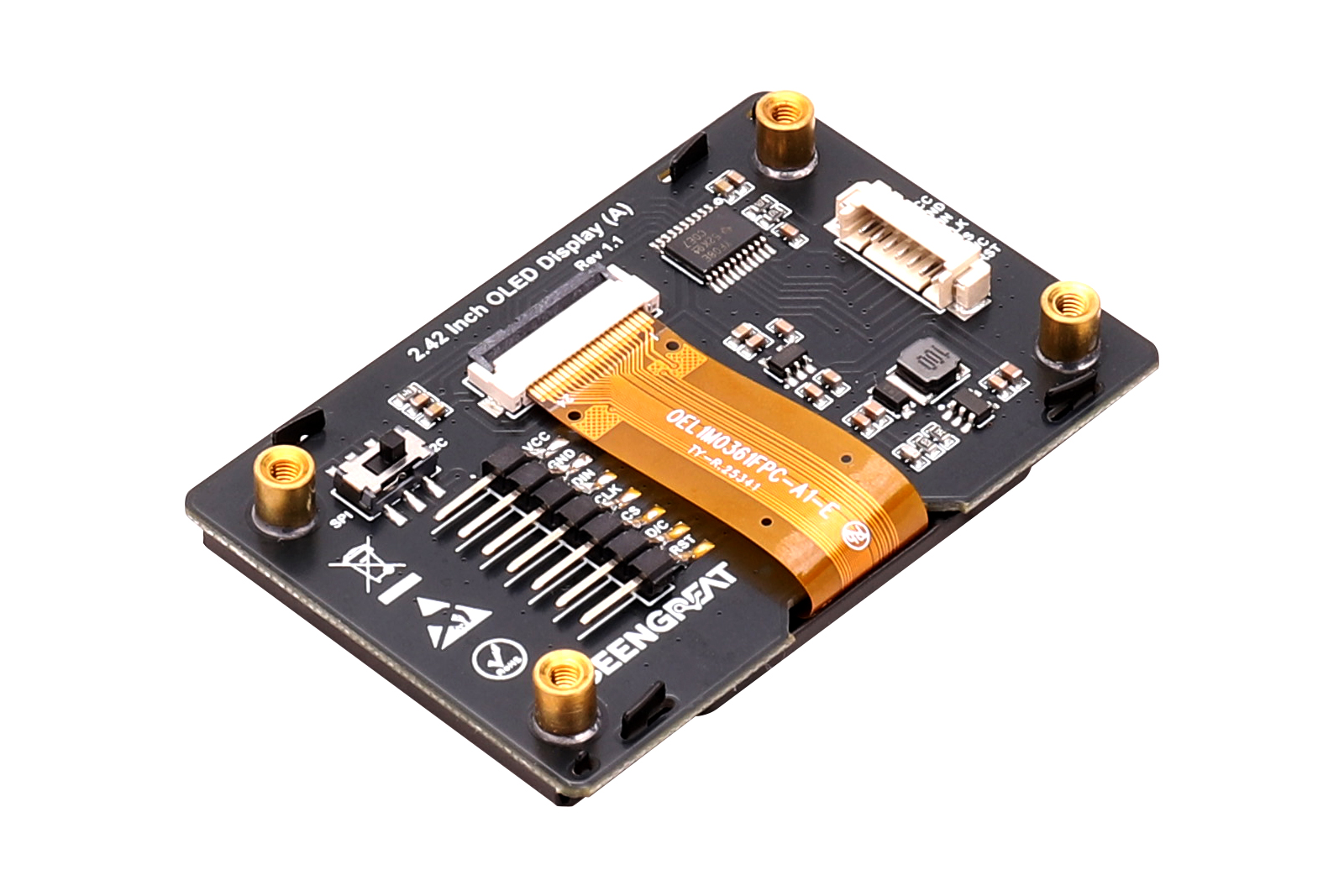

2.42 Inch OLED Display 128 x 64 Pixels Black and White Supports SPI/ I2C Communication

SKU: 410251

Model: 2.42 Inch OLED Display (A)-White

Brand: Seengreat

Category: OLED Displays

$12.99

Quantity

ADD TO CART

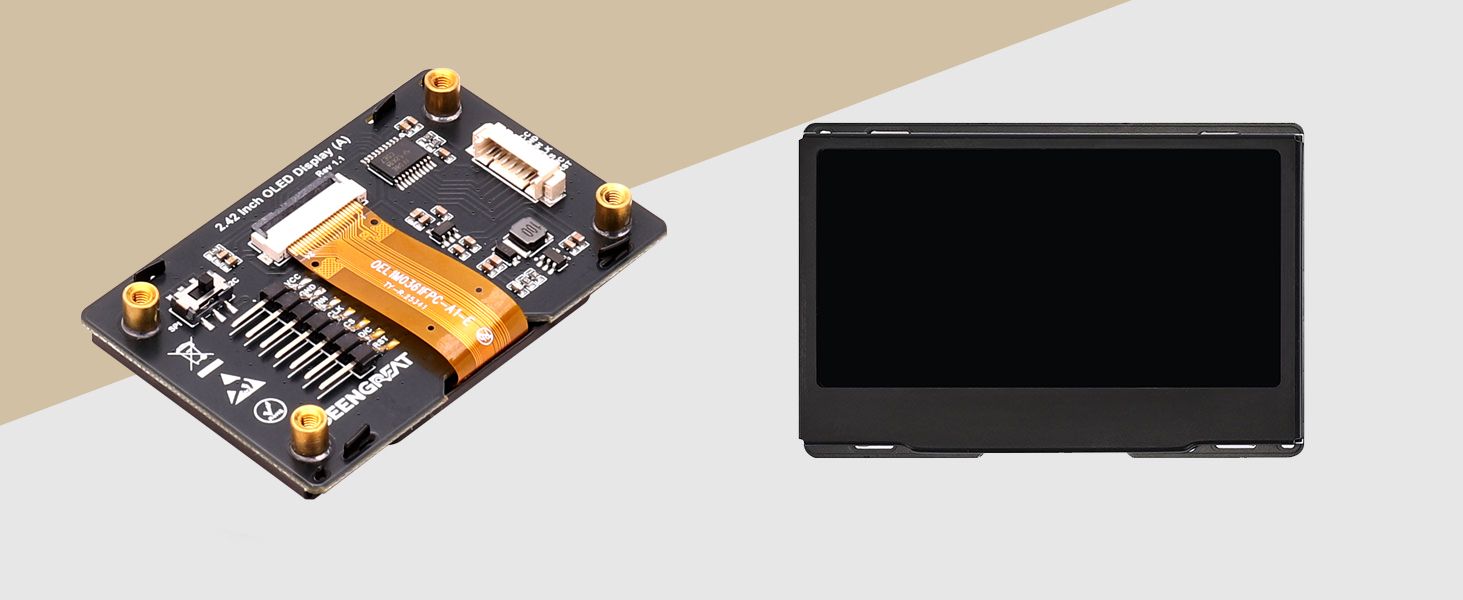

2.42 Inch OLED Display Module

Embedded SSD1309 driver chip; Compatible with 3.3V and 5V MCU; Supports SPI / I2C Communication

This product is a 2.42inch display expansion module, compatible with Raspberry Pi series boards, Arduino, STM32, ESP32 and more. We offer Raspberry Pi example codes in both C and Python, as well as Arduino, STM32 and ESP32 example codes. These codes enable drawing of points, lines, rectangles, and circles, and also support displaying alphanumeric characters and images.

Product Features

128 x 64 pixels
Supports SPI/I2C communication, with a selector switch for easy switching.
Onboard Voltage Translator, which can be compatible with 3.3V and 5V MCU
Open source demo codes available for Raspberry Pi, Arduino, STM32, ESP32 development boards

Specifications

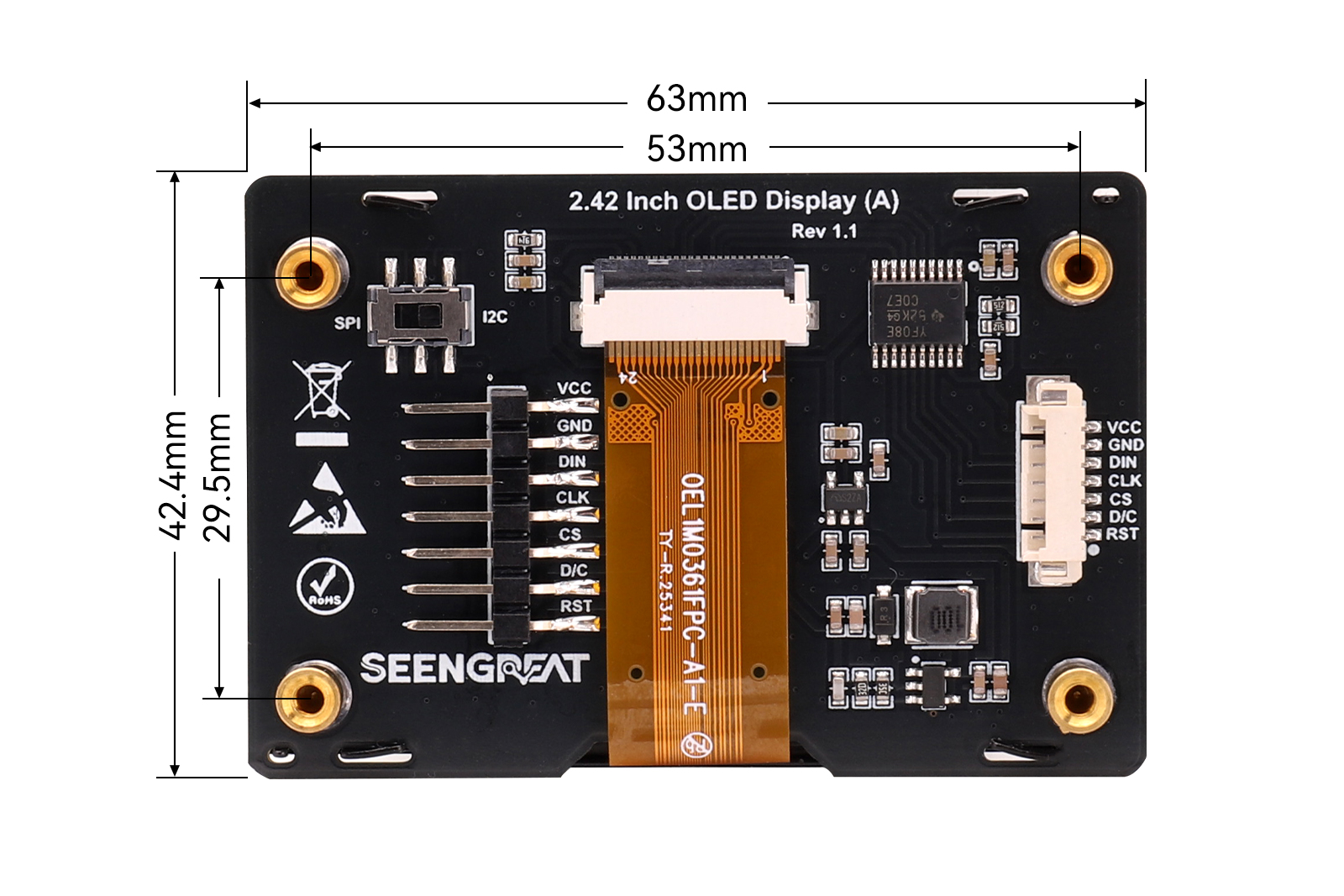

Size	Style A:63mm(Length) x 42.4mm(width) Style B:62.1mm(Length) x 39.2mm(width)
Pixels	128 x 64
Display Color	Black and White/Black and Yellow/ Black and Blue/Black and Green
Voltage Translator	TXS0108EPWR
Signal interface	SPI / I2C
Supply voltage	3.3V/5V
OLED display area	55.01mm (W) x 27.49mm (H)
Driver chip	SSD1309

Various types are available

The display screens come in four models: white, yellow, blue, and green. You can make a purchase according to your requirements.

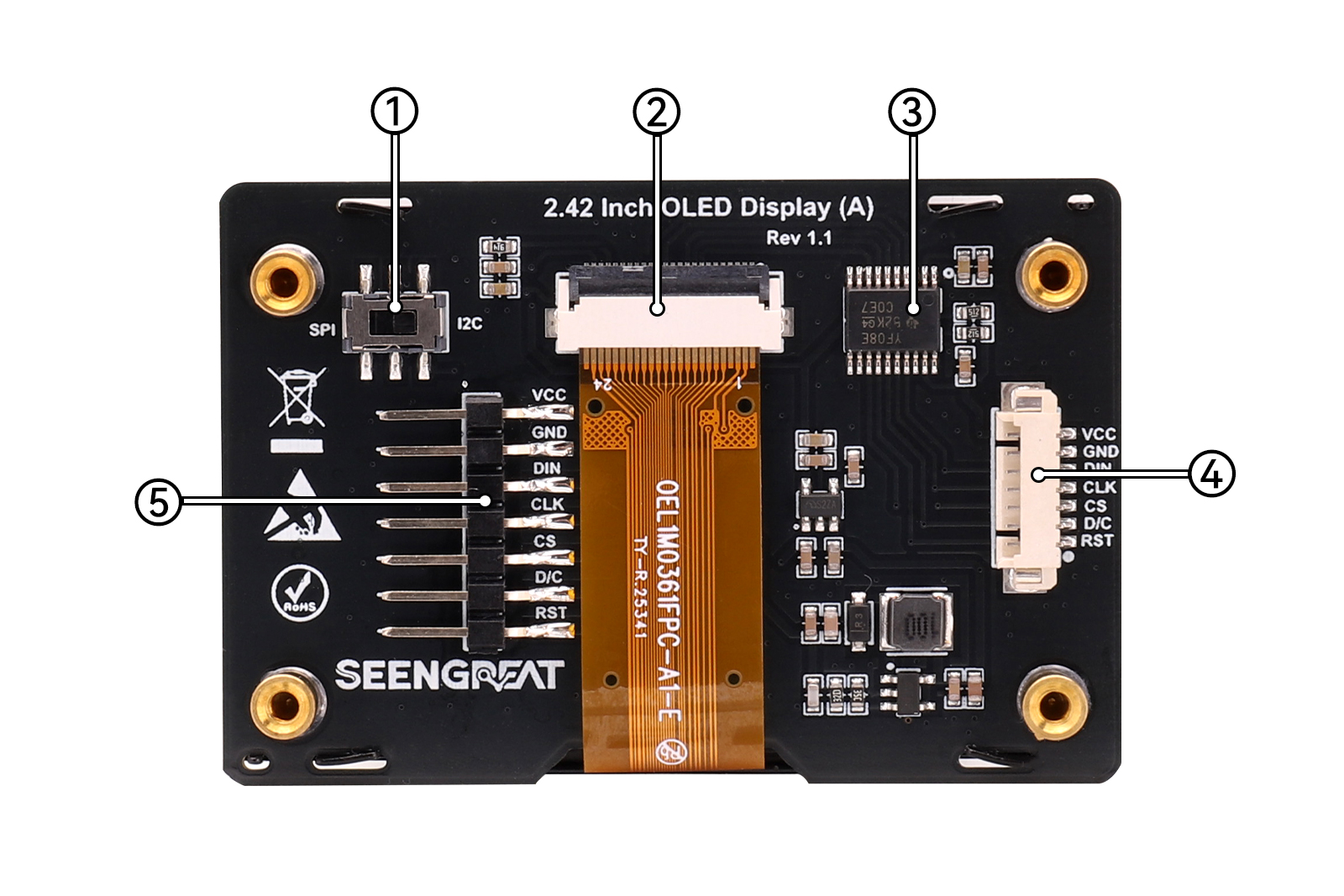

Interface Definition

VCC	Power supply positive (3.3V/5V)
GND	Power supply ground
DIN	SPI master output slave input/ I2C data line
CLK	SPI serial clock/ I2C clock line
CS	SPI chip selection pin (active at low level)
D/C	Data/command control pin (high level represents data, low level represents command)
RST	External reset pin (low level reset)
