I. Product Overview

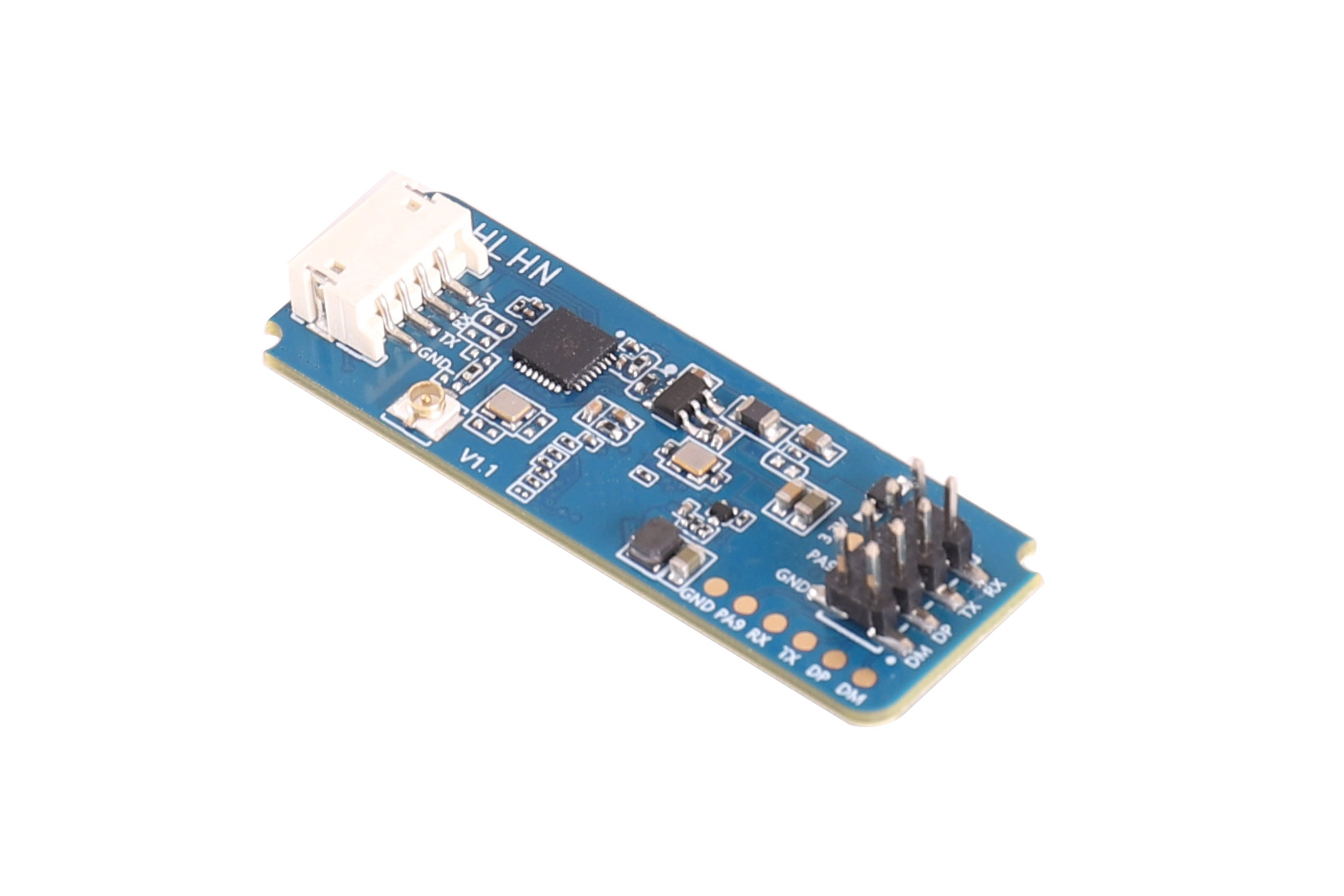

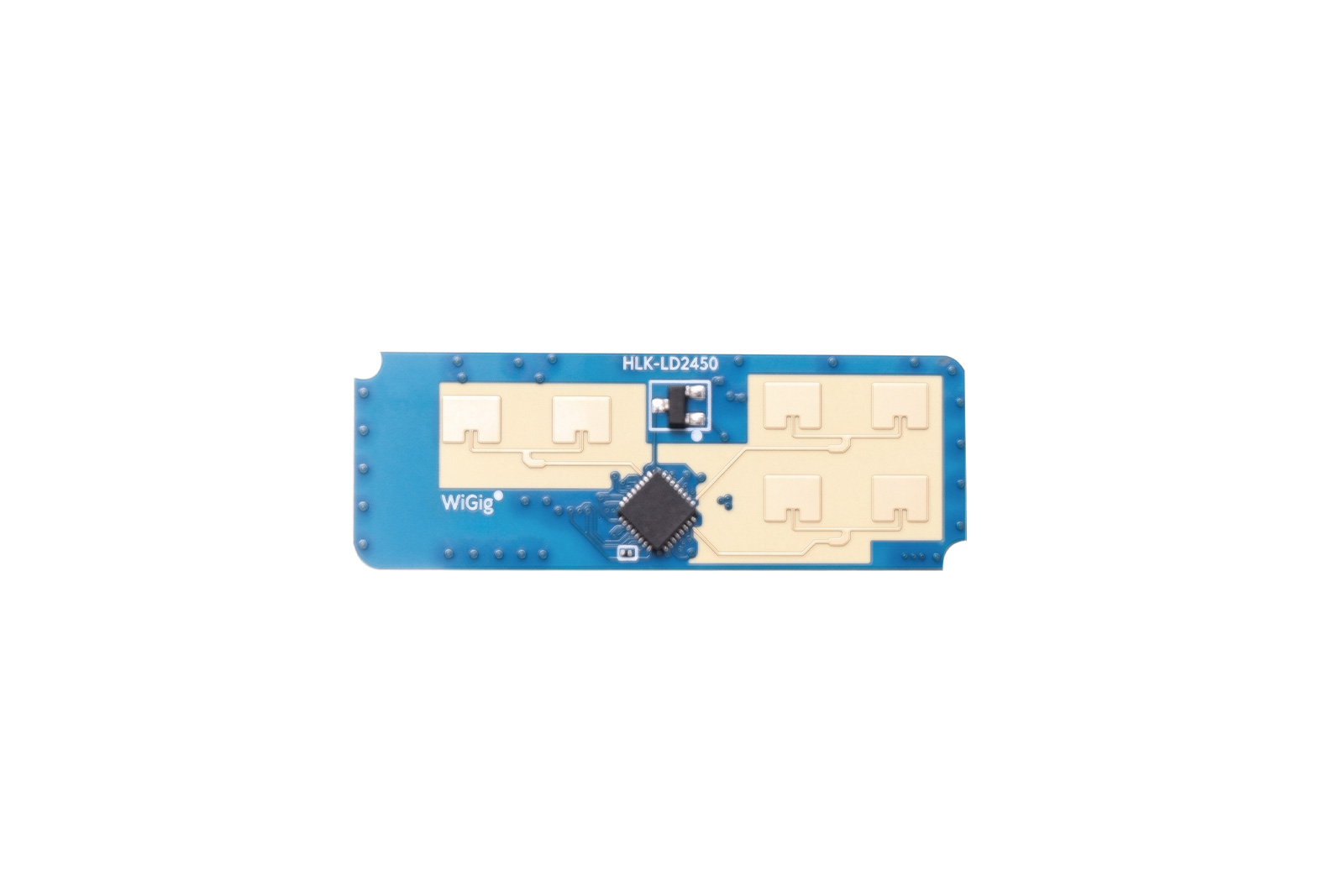

Moving target tracking refers to tracking the position of a moving target in real time within an area, enabling distance, angle, and speed measurement of the moving target in that area. The LD2450 is a moving target tracking sensor module, comprising minimalist 24GHz radar sensor hardware and intelligent algorithm firmware. This product is mainly used in ordinary indoor scenarios such as homes, offices, and hotels to achieve positioning and tracking of moving human bodies. The sensor hardware consists of an AIoT mmWave radar chip, a high-performance one-transmit-two-receive microstrip antenna, a low-cost MCU, and peripheral auxiliary circuits. The intelligent algorithm firmware adopts FMCW waveform and the radar chip's proprietary advanced signal processing technology. It supports serial port output of detection data, is plug-and-play, and can be flexibly applied to different smart scenarios and terminal products.

II. Features

24GHz ISM band
Integrated intelligent mmWave radar chip and intelligent algorithm firmware
Precise moving target positioning and tracking
Maximum detection distance: 6 m
Ultra-small module size: 15 mm × 44 mm
Wall-mounted installation
Azimuth angle: ±60°, elevation angle: ±35°
Ultimate cost-effectiveness

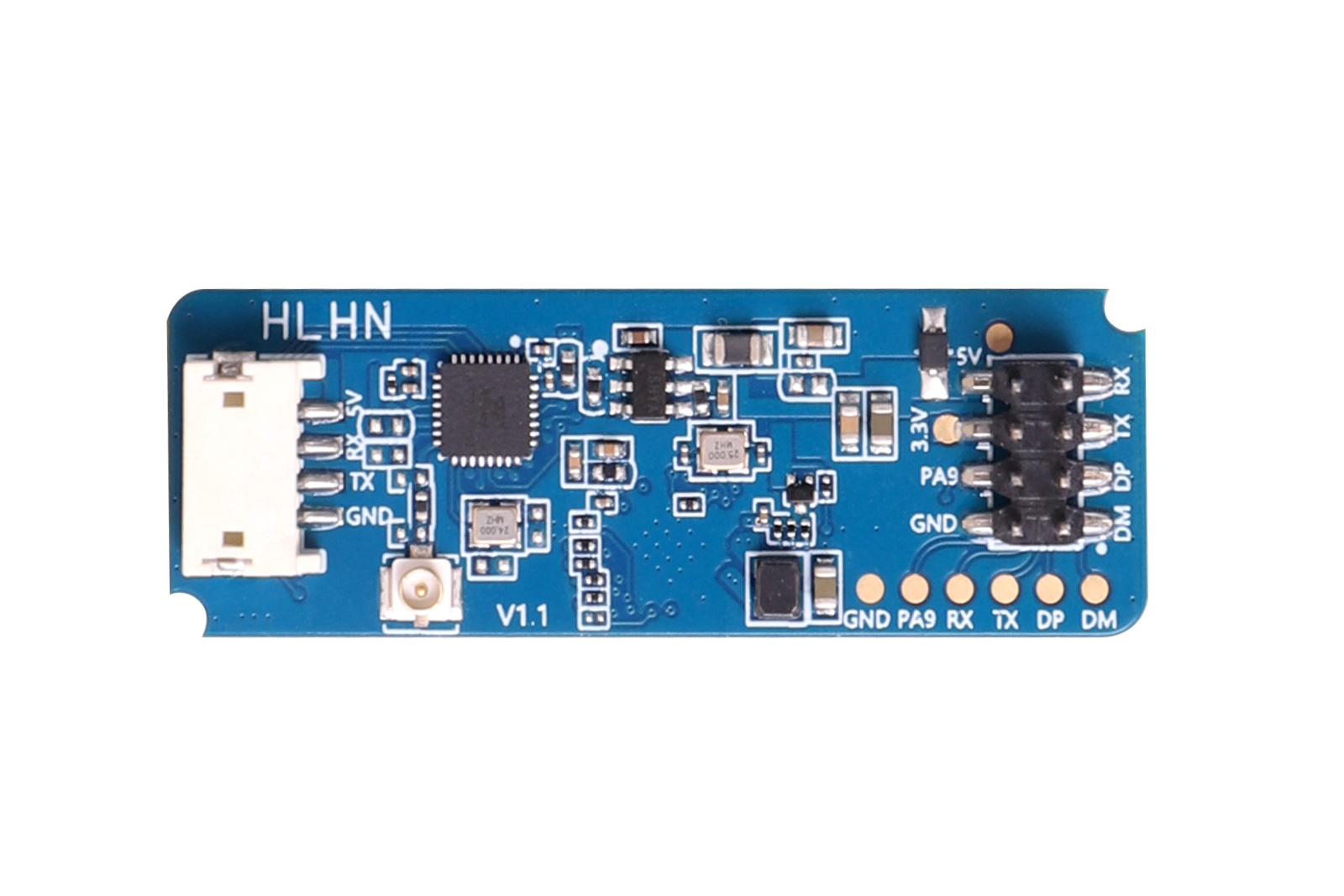

Multiple connection methods, with pin and socket interfaces

2.2 Product Advantages

The LD2450 human presence sensing module adopts 24GHz mmWave radar sensor technology. Compared with other products in the same series, it has obvious advantages in human presence sensing applications:

In addition to being sensitive to moving human bodies, it can also sensitively detect micro-movements of the human body, which traditional solutions cannot recognize.
It has good environmental adaptability. Its sensing performance is not affected by temperature, brightness, humidity, light fluctuations, or other surrounding environmental factors.
It has good enclosure penetration. It can work hidden inside an enclosure without the need to open holes on the product surface, improving product aesthetics.

2.3 Application Scenarios

The LD2450 moving target tracking sensor can perform precise positioning and tracking of targets and is widely used in various AIoT scenarios, covering the following types:

Smart Home

Senses the distance and angle of the human body and reports detection results, so that the main control module can intelligently control air conditioners, fans, and other home appliances.

Smart Commercial

Position sensing: identifies whether a person is approaching or moving away within a set position interval, and promptly turns on or off the screen.

Sanitary Ware

Smart toilet: accurately controls the automatic opening and closing of the toilet lid.

Smart Lighting

Identifies and senses the human body with precise position detection. It can be used in household lighting equipment such as sensor lights and desk lamps.

III. Specifications

Parameter	Specification
Operating frequency band	24GHz–24.25GHz; compliant with FCC, CE, and SRRC certification standards
Power supply requirement	DC 5V, power supply capability >200mA
Average operating current	120 mA
Modulation method	FMCW
Interface	One UART
Target application	Detection and tracking of up to three targets
Detection distance	6 m
Detection angle	±60°
Data refresh rate	10 Hz
Sweep bandwidth	250MHz; compliant with FCC, CE, and SRRC certification standards
Ambient temperature	-40–85°C

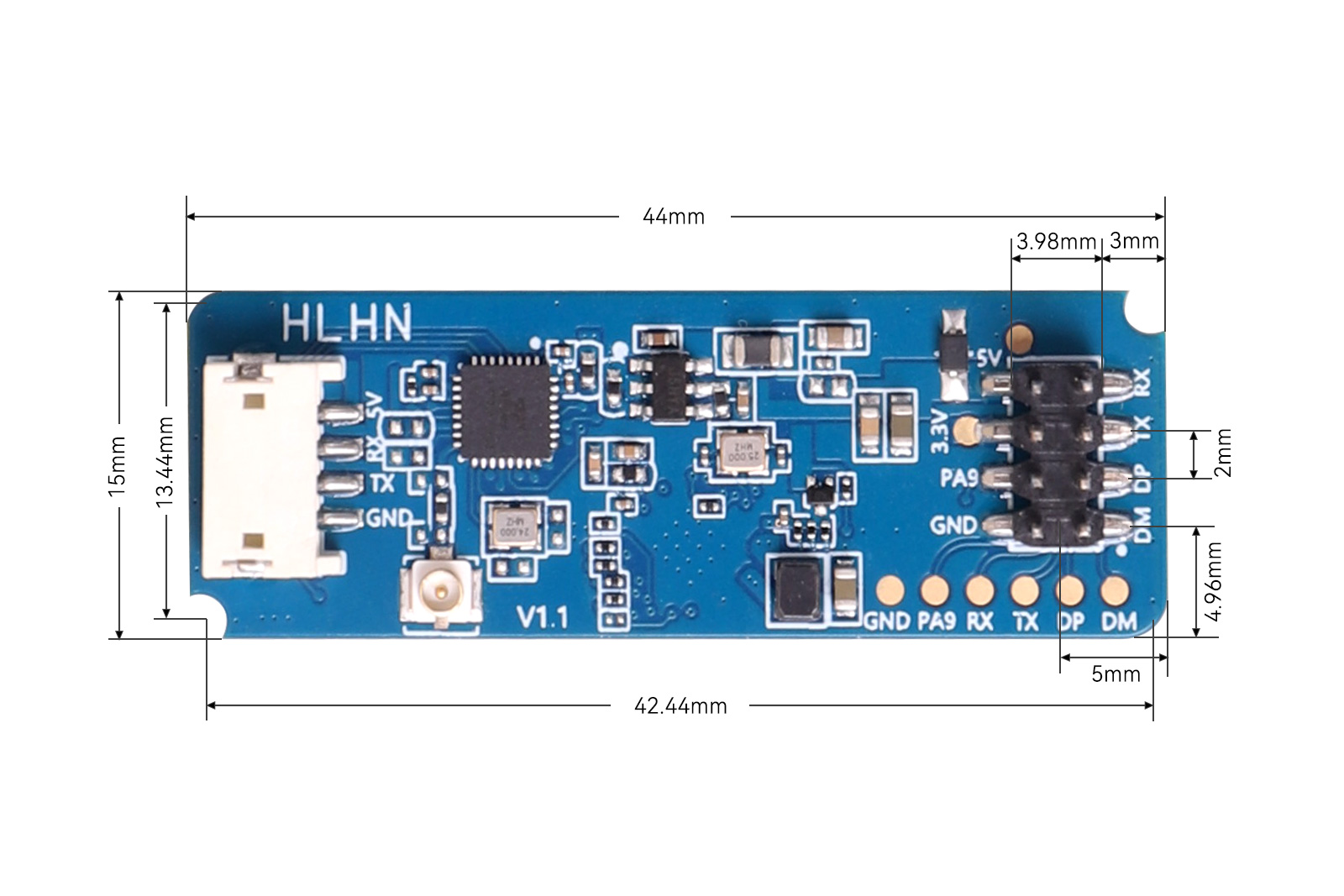

Dimensions	15 mm × 44 mm
