Pi 5 PCIe to M.2 & SFP Gigabit Ethernet Adapter, Supports 2280/2260/2242/2230 NVMe SSD, HAT+ Standar

I Product Overview

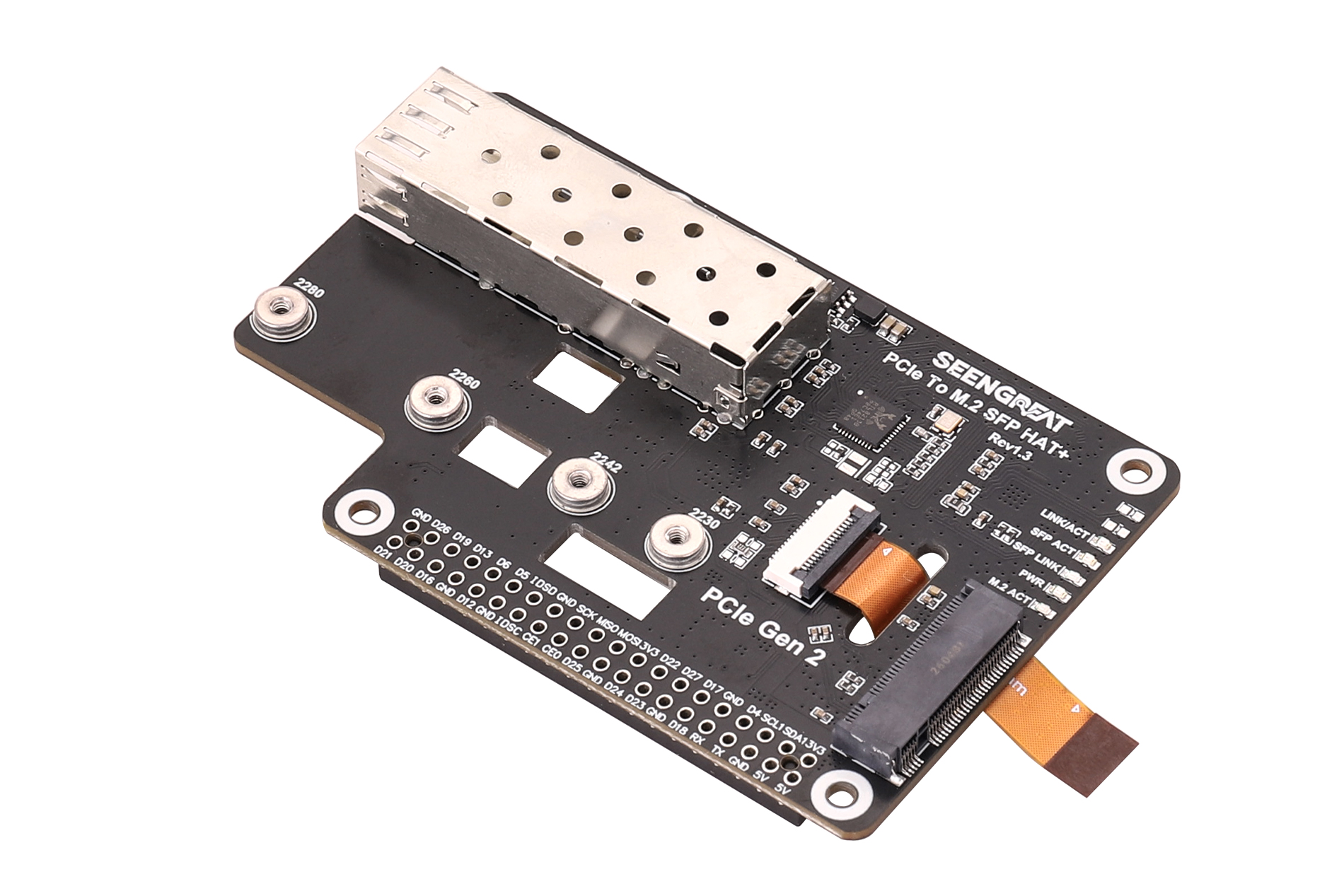

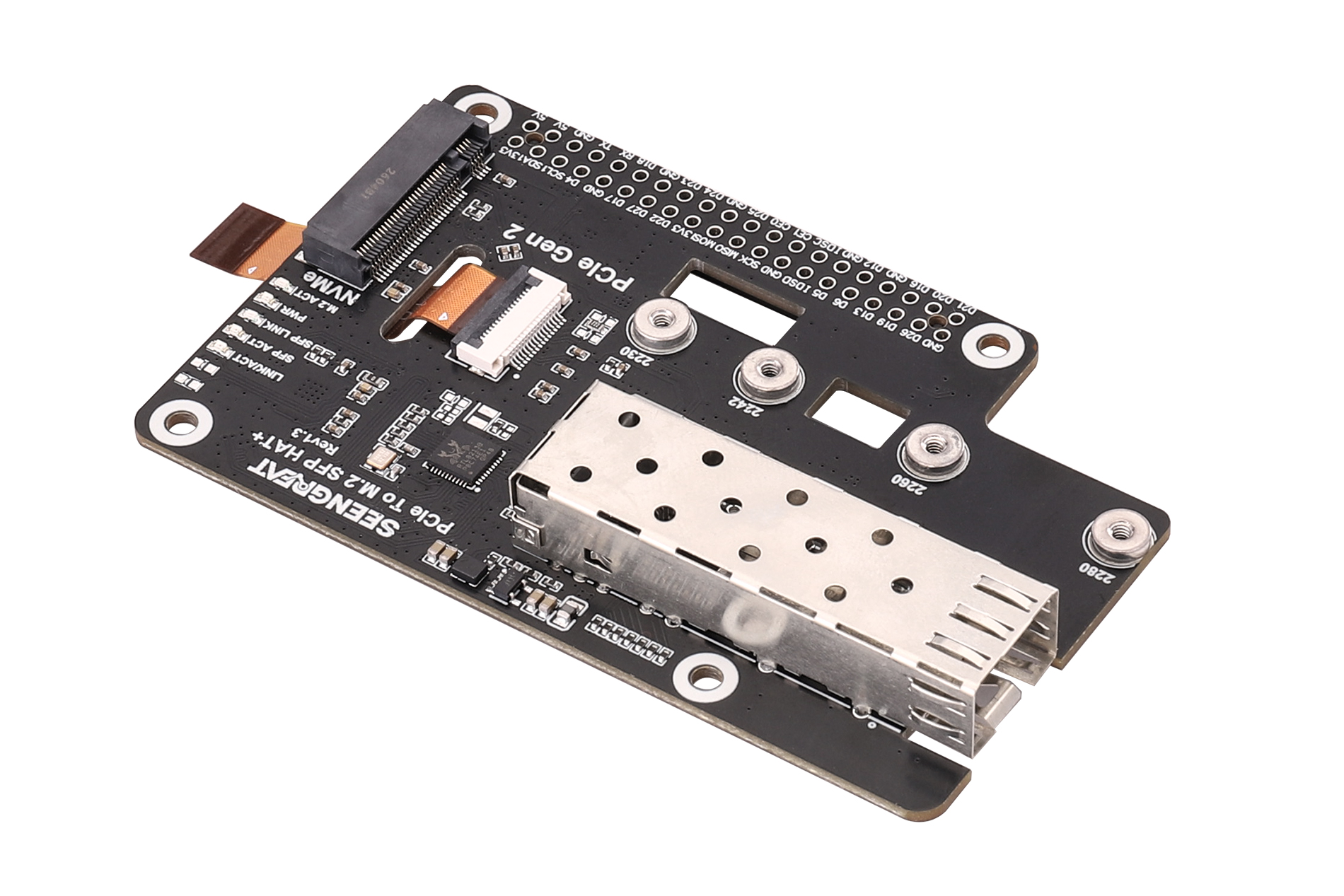

Raspberry Pi 5 PCIe to M.2 & SFP Gigabit OpticalAdapter Board Compatible with 2280/2260/2242/2230 Size NVMe SSDs, HAT+ Standard

This is a multi-functional PCIe HAT+ expansion board specially designed for Raspberry Pi 5. Equipped with the ASM1182e PCIe expansion chip, it splits the single PCIe interface of Raspberry Pi 5 into two independent PCIe lanes, which are used for connecting M.2 NVMe SSD and Gigabit Ethernet controller respectively, enabling dual functions of M.2 solid-state drive expansion and Gigabit SFP fiber communication.

It supports M.2 NVMe SSDs in multiple form factors including 2280, 2260, 2242 and 2230. It is widely applicable for system boot drives, data storage, lightweight NAS, edge computing gateways, industrial communication and long-distance network transmission scenarios.

For network connection, it adopts RTL8111H + RTL8213B solution, and supports Gigabit fiber network communication via standard SFP port with optical modules installed. Onboard EEPROM chip and 2×20Pin header are designed in compliance with Raspberry Pi HAT+ specifications, allowing Raspberry Pi 5 to automatically recognize the board and complete relevant configurations easily.

II Features

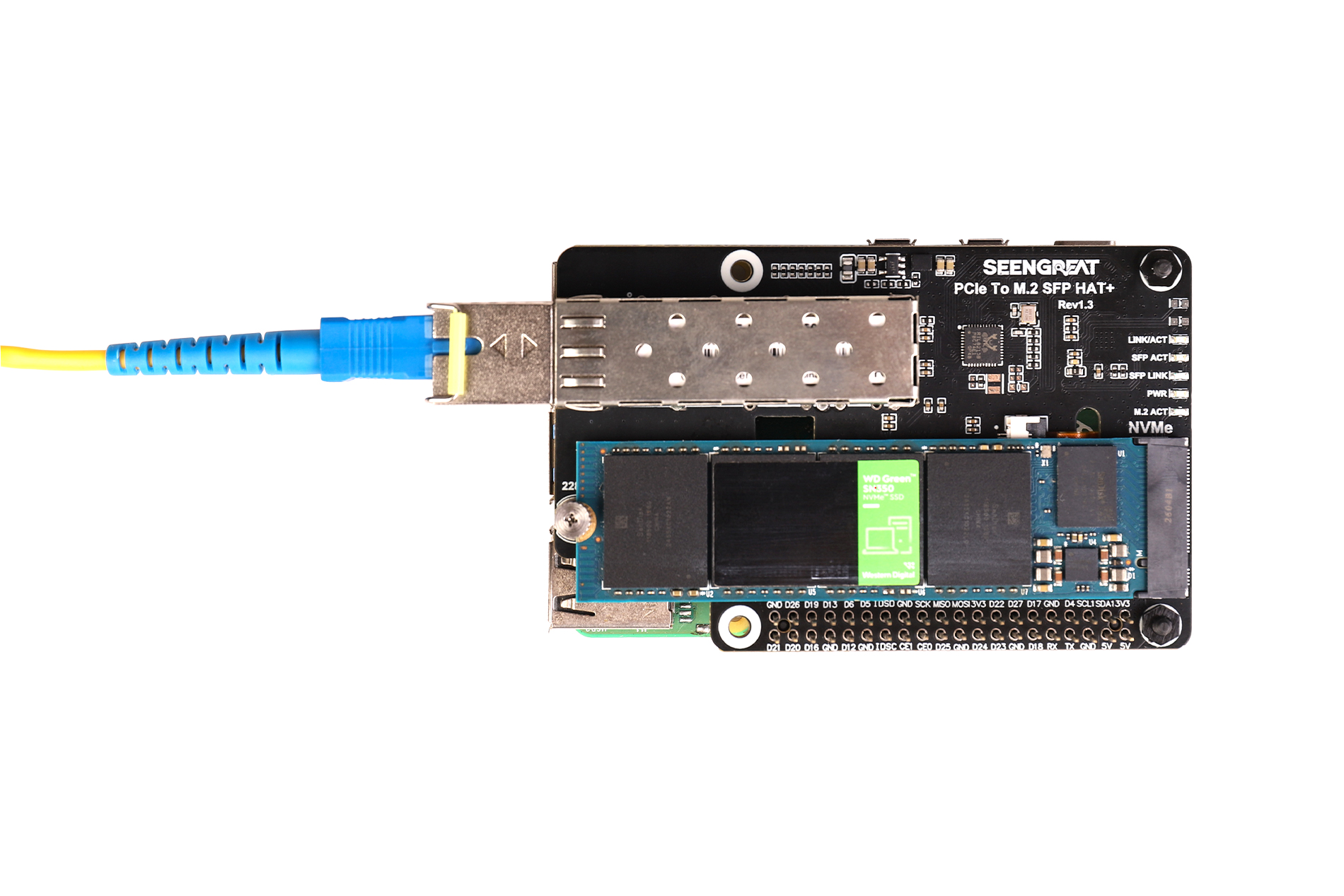

• Supports simultaneous M.2 NVMe SSD expansion and Gigabit SFP fiber network communication via PCIe interface.
• Equipped with standard onboard SFP port for Gigabit fiber network connection.
• Compatible with NVMe SSDs in 2230, 2242, 2260 and 2280 form factors.
• Compliant with HAT+ standard, enabling automatic detection by Raspberry Pi software and firmware.
• Built-in LED status indicator.

III Specifications

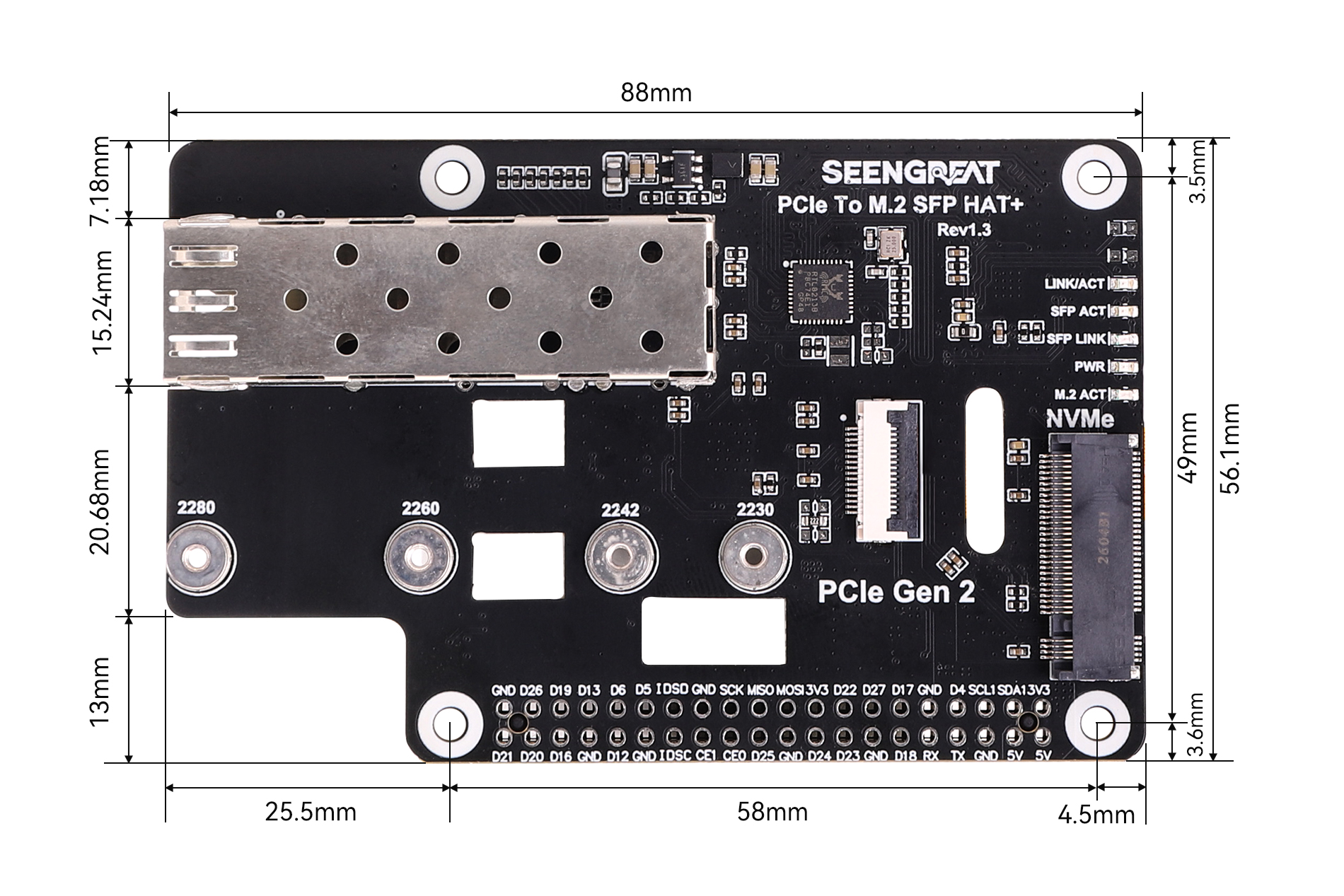

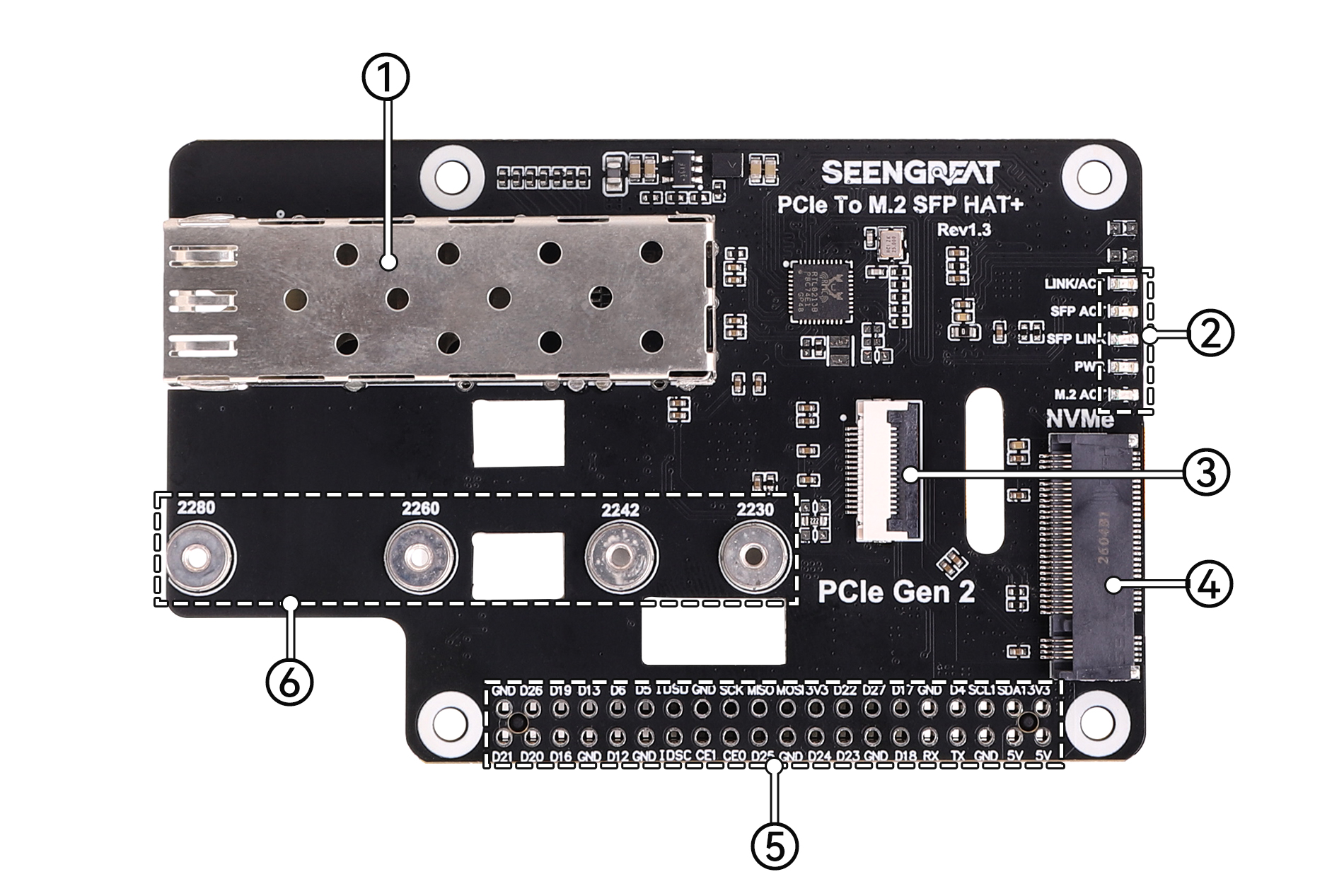

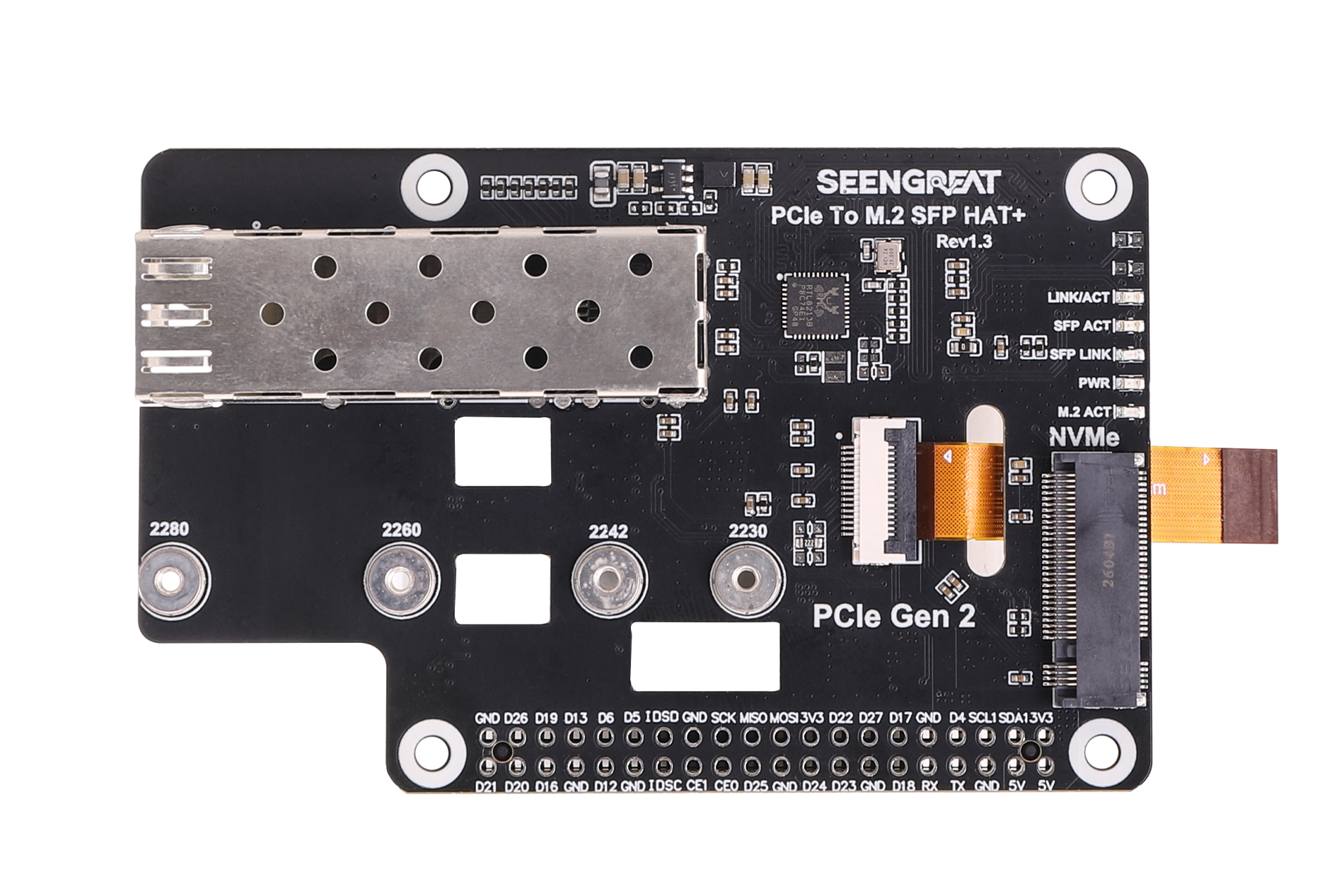

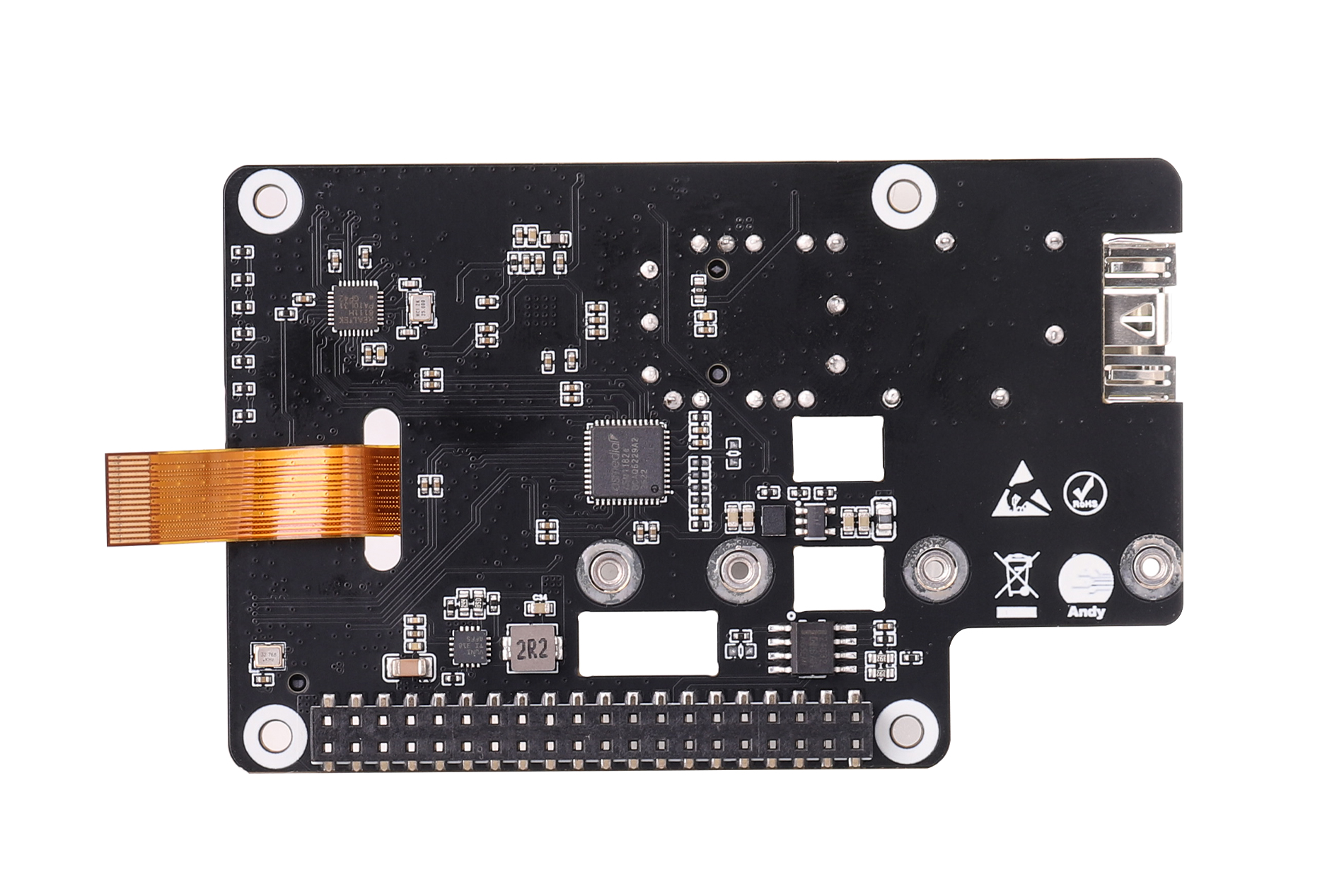

IV Resource Overview

① SFP Gigabit Optical Port Connector

② Network Status LED Indicator

③ PCIe 16P FPC Connector

④ NVMe M-Key Slot

⑤ Raspberry Pi 40-Pin Expansion Header Through-Hole Female Header

⑥ NVMe SSD Mounting Holes

Wiki

https://seengreat.com/wiki/211/

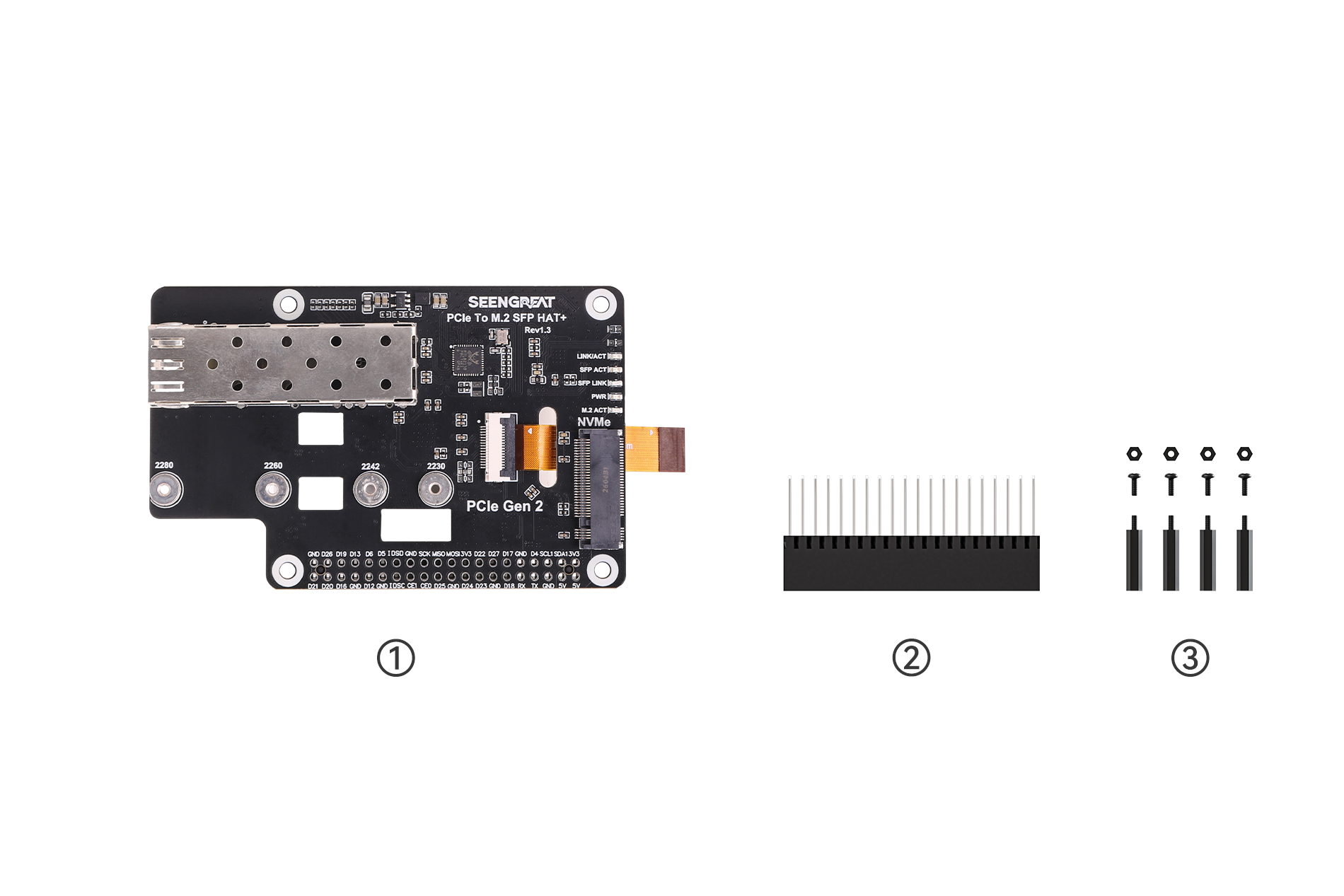

Package Contents

1. PCIe To M.2 SFP HAT+(16P Flexible Flat Cable is pre-installed) x1
2. 2x20P Extended Pin Female Header x1
3. Nylon Screw Kit x1
