I. Product Introduction

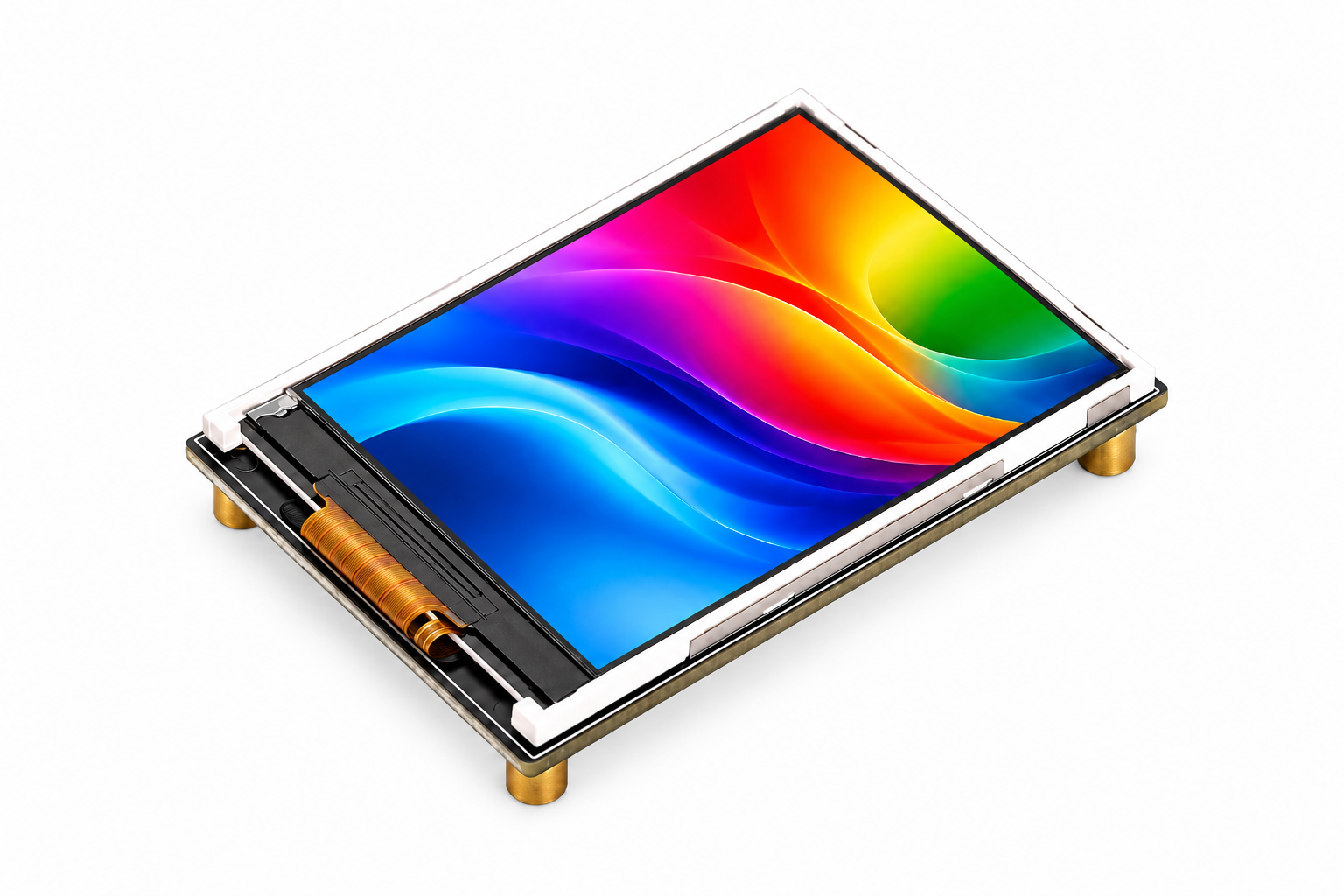

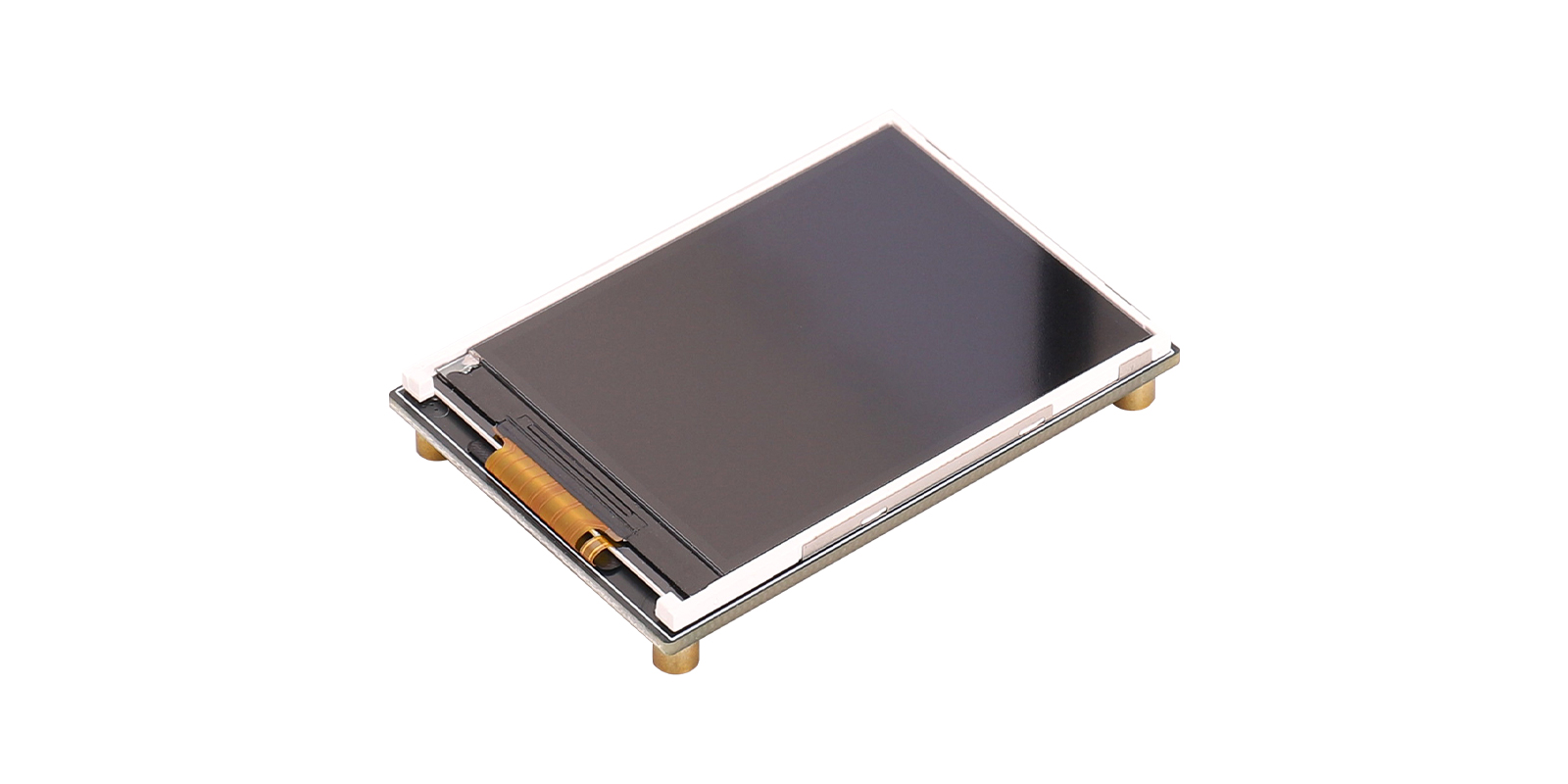

2.4-inch Display, ILI9341 Driver, 320×240 Resolution
This 2.4-inch LCD display features a resolution of 320×240, delivering clear and stable image quality suitable for various small-size display interface applications. The product utilizes the ILI9431 display driver IC, facilitating system development and rapid integration to meet the application requirements of embedded devices for display modules. The overall board dimensions align with the screen size, offering a compact structure that optimizes internal space within the final product, making it particularly suitable for designs with strict volume and mounting layout requirements. The interface uses an 8-pin connector with a 1.25mm pitch, providing a simple, reliable, and convenient connection.
II. Product Features
- 2.4-inch LCD display, 320×240 resolution
- Control connection via 8-pin connector with 1.25mm pitch
- SPI communication interface
- Built-in ILI9341 controller
III. Product Specifications

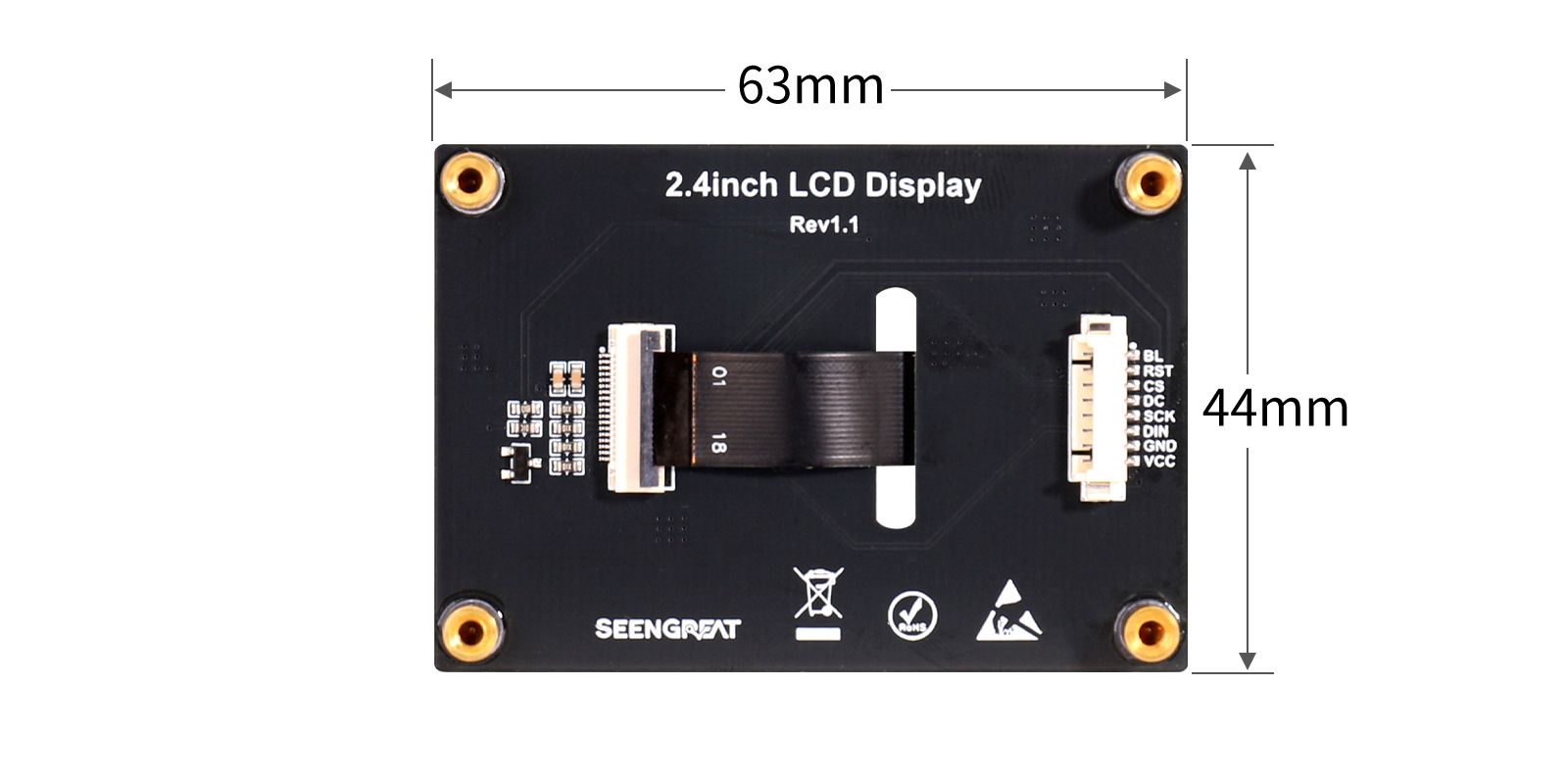

| Dimensions | 63mm (Length) × 44mm (Width) |
| Resolution | 320 × 240 |
| Communication Interface | SPI |
| Active Area (Viewing Area) | 48.96mm × 36.72mm |
| Display Colors | RGB 262K |
| Driver IC | ILI9341 |
| Supply Voltage | 3.3V / 5V |

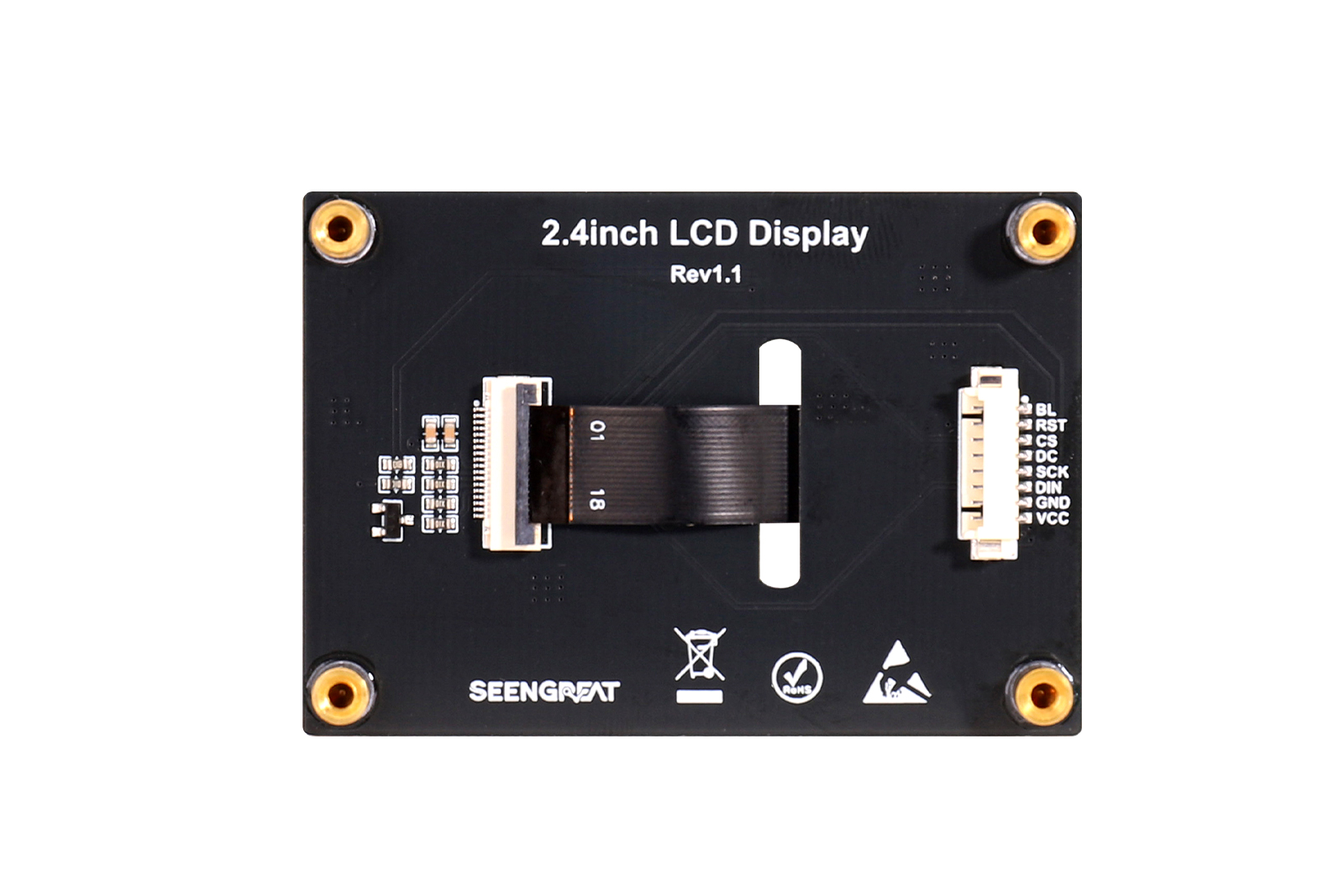

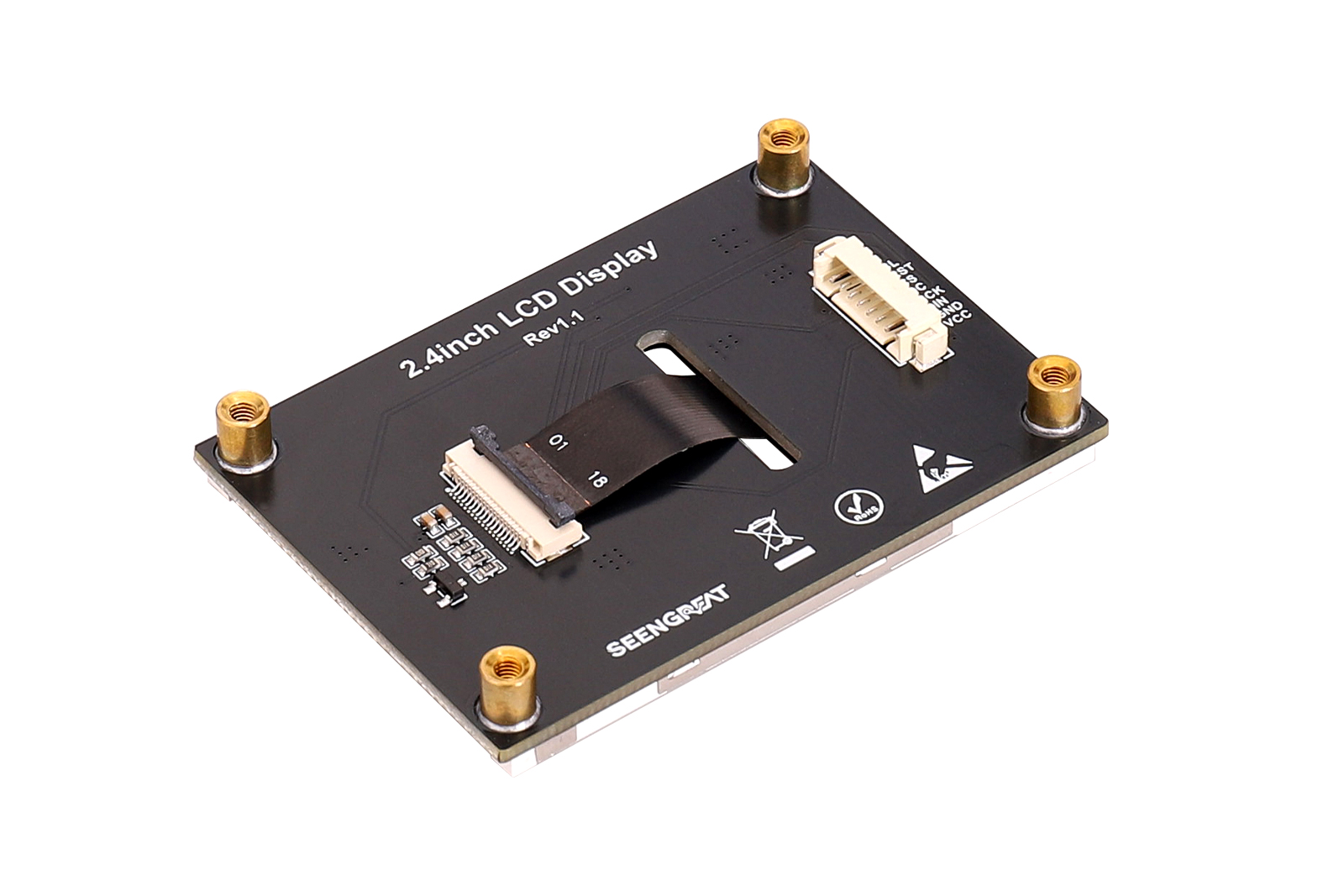

Module Resources

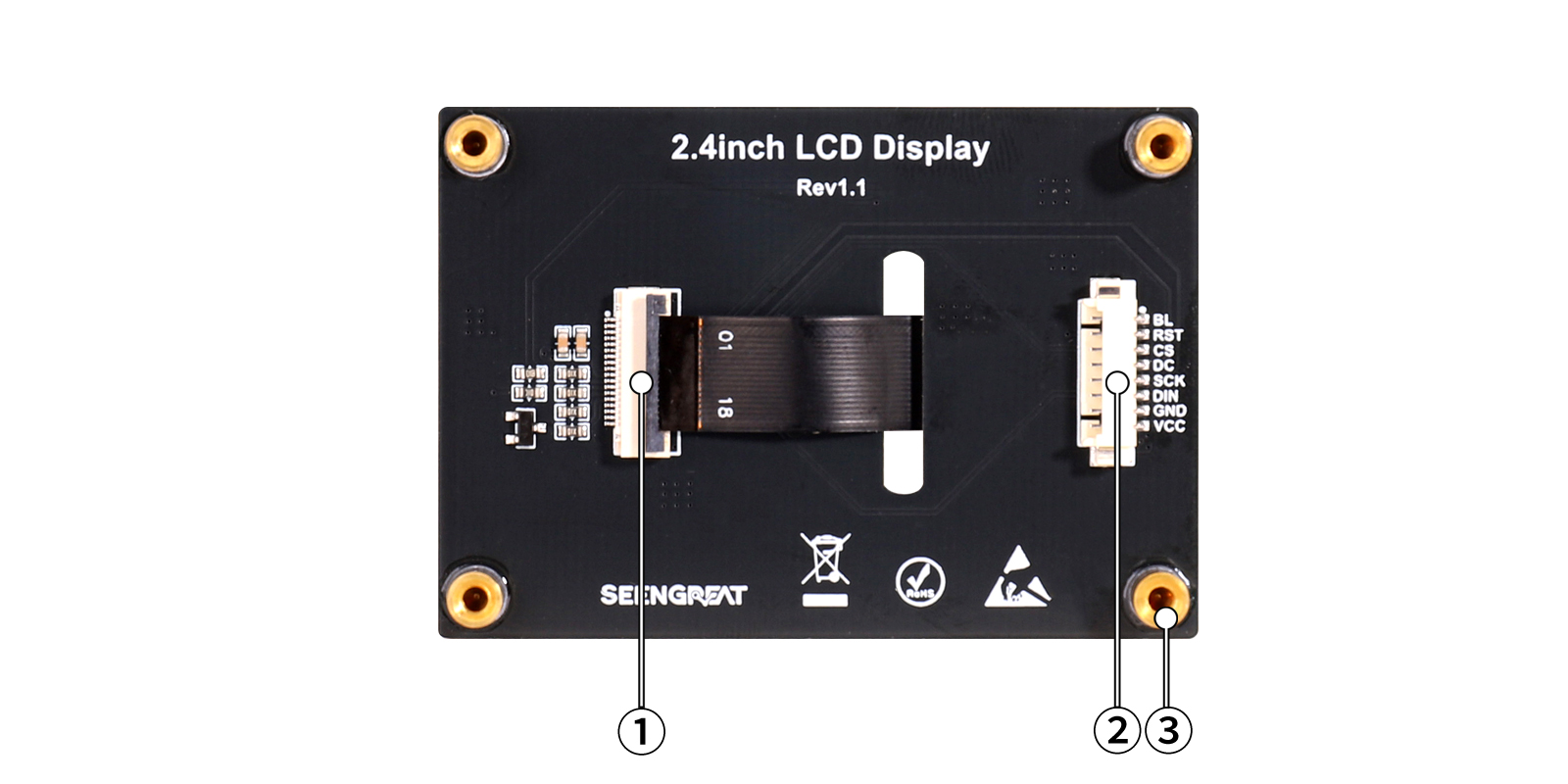

①LCD screen connector
②Control interface: 8-pin, 1.25mm pitch connector
③M2.5 SMT brass standoff
Pin Definition
Pin Name | Description |
VCC | Power Positive |
GND | Power Ground |
DIN | SPI Data Input |
SCK | SPI Clock Signal |
CS | LCD Chip Select |
DC | LCD Data/Command Select |
RST | LCD Reset Signal |
BL | LCD Backlight Control |
Wiki
https://seengreat.com/wiki/209
Package Contents

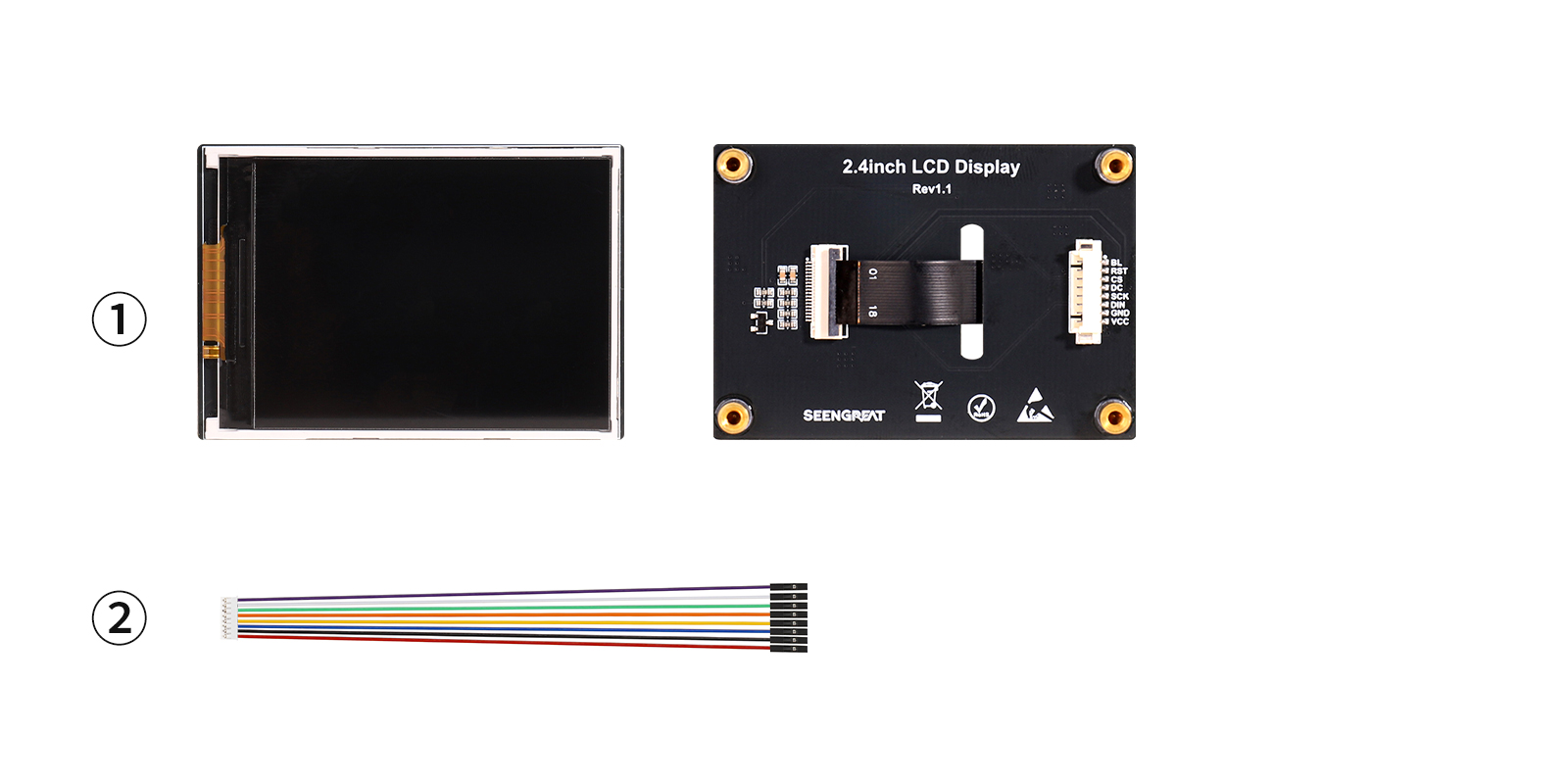

① 2.4inch LCD Display (with M2.5*5 SMT nuts pre-soldered, featuring a 2.4-inch resistive touch screen as shown) × 1

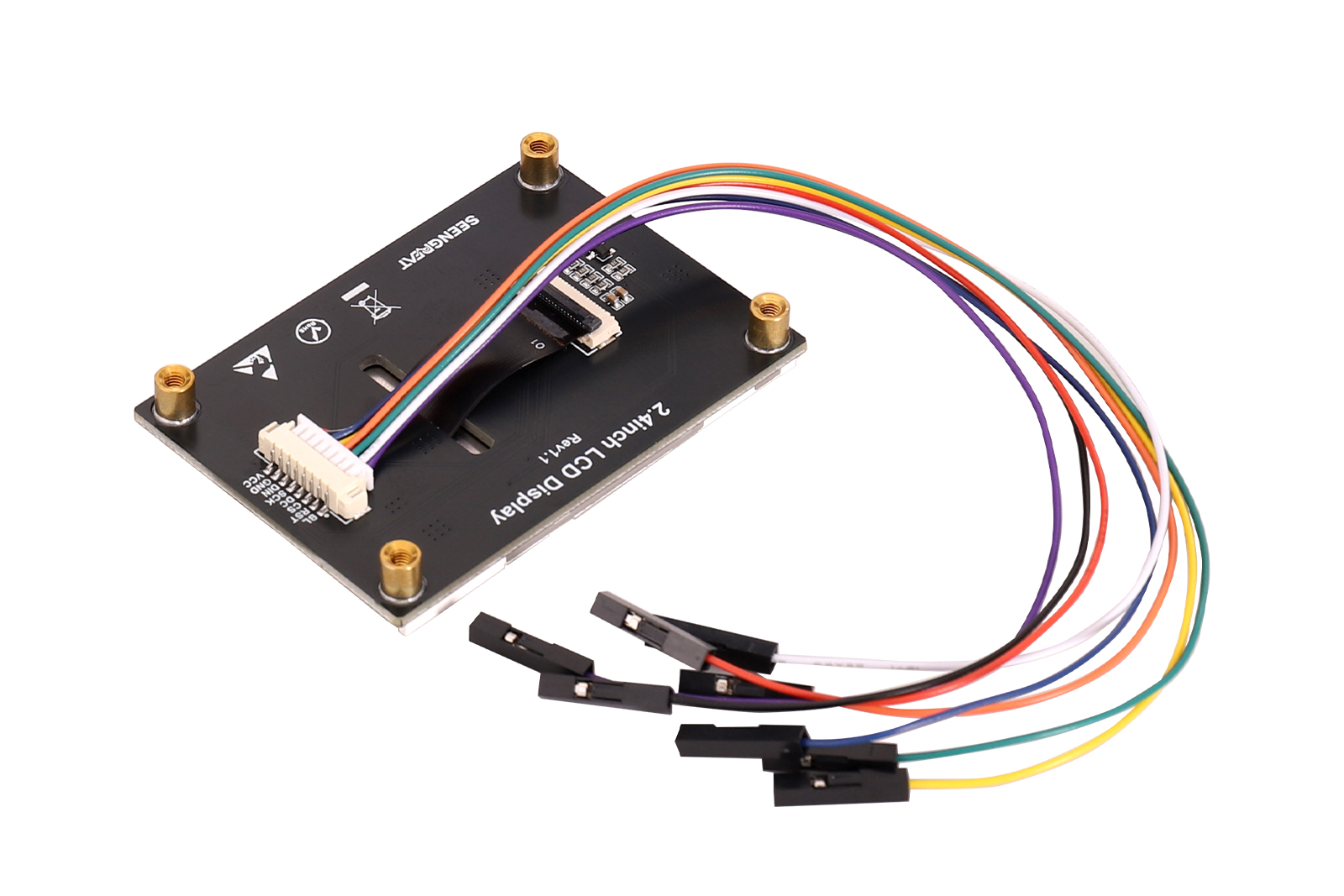

② 8-pin 1.25mm pitch to female Dupont cable, 20cm × 1
