2.4inch LCD Display

I.Description

1.1. Product Introduction

2.4-inch Display, ILI9341 Driver, 320×240 Resolution

This 2.4-inch LCD display features a resolution of 320×240, delivering clear and stable image quality suitable for various small-size display interface applications. The product utilizes the ILI9431 display driver IC, facilitating system development and rapid integration to meet the application requirements of embedded devices for display modules. The overall board dimensions align with the screen size, offering a compact structure that optimizes internal space within the final product, making it particularly suitable for designs with strict volume and mounting layout requirements. The interface uses an 8-pin connector with a 1.25mm pitch, providing a simple, reliable, and convenient connection.

1.2. Product Features

2.4-inch LCD display, 320×240 resolution
Control connection via 8-pin connector with 1.25mm pitch
SPI communication interface
Built-in ILI9341 controller

1.3. Product Specifications

Dimensions	63mm (Length) × 44mm (Width)
Resolution	320 × 240
Communication Interface	SPI
Active Area (Viewing Area)	48.96mm × 36.72mm
Display Colors	RGB 262K
Driver IC	ILI9341
Supply Voltage	3.3V / 5V

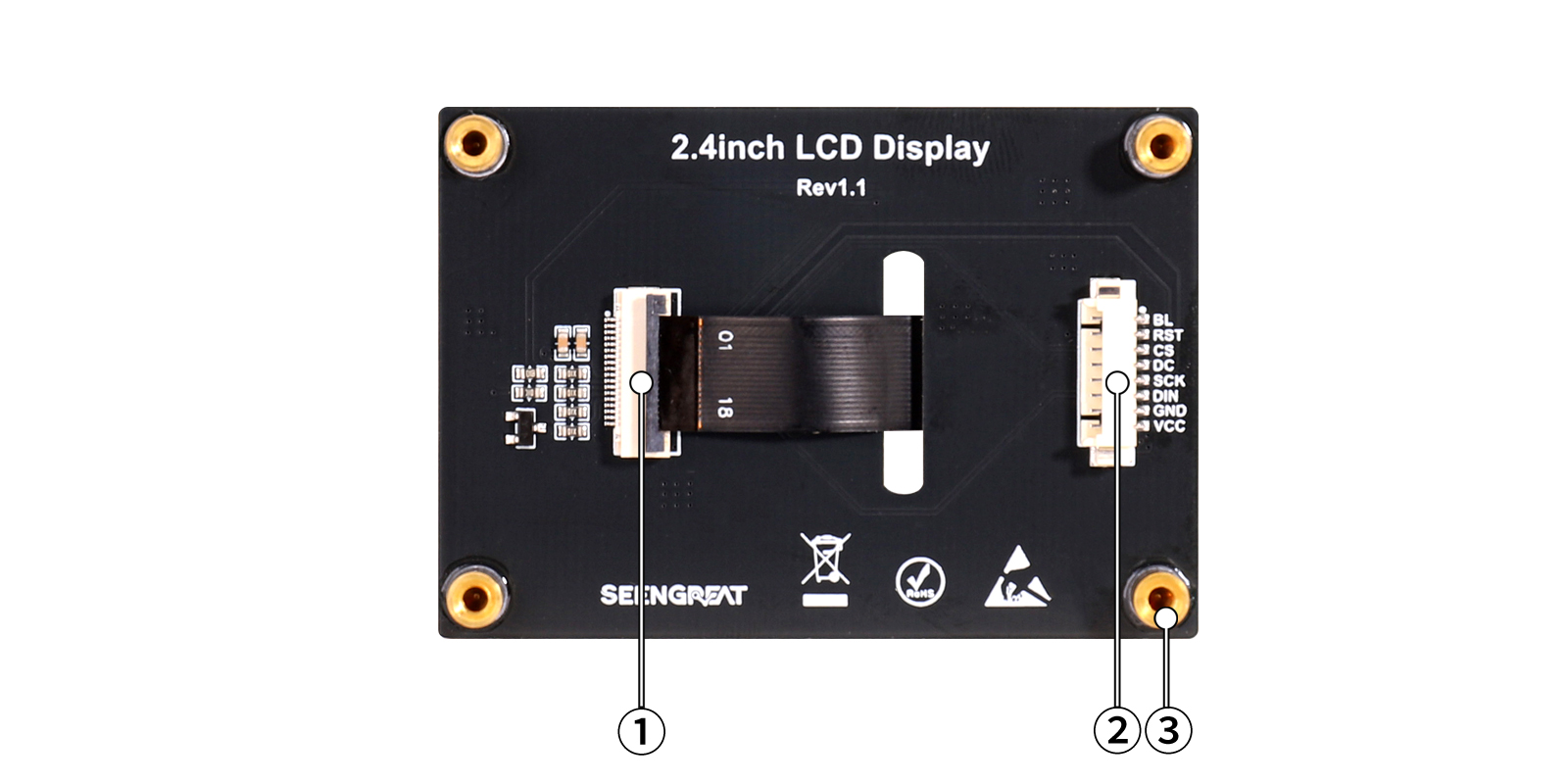

1.4.Module Resources

①LCD screen connector

②Control interface: 8-pin, 1.25mm pitch connector

③M2.5 SMT brass standoff

II. Usage

2.1 Hardware Description

2.1.1 Interface Definition

Pin Name	Description
VCC	Power Positive
GND	Power Ground
DIN	SPI Data Input
SCK	SPI Clock Signal
CS	LCD Chip Select
DC	LCD Data/Command Select
RST	LCD Reset Signal
BL	LCD Backlight Control

2.2 Raspberry Pi Demo Code

2.2.1 Raspberry Pi Hardware Connection

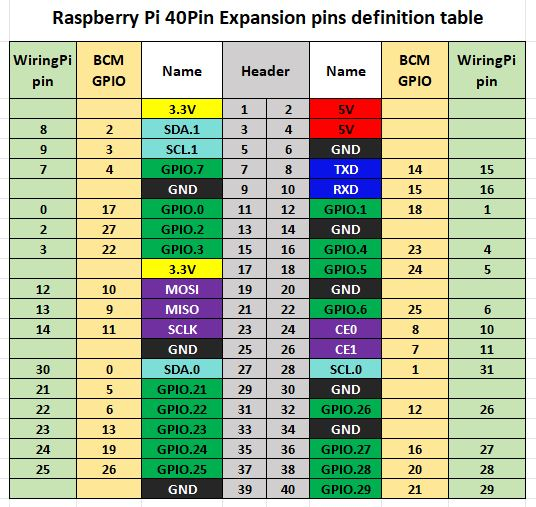

The demo code for the Raspberry Pi motherboard uses the wiringPi pin numbering. For the Bookworm system, BCM pin numbering is used. Connections to the Raspberry Pi are defined in the table below:

LCD Interface	BCM	wiringPi
VCC	3.3V	3.3V
GND	GND	GND
DIN	MOSI	12
SCK	SCLK	14
CS	CE0	10
RST	22	3
DC	25	6
BL	24	5

2.2.2 Installing Wiringpi Library

sudo apt-get install wiringpi
Wget https://project-downloads.drogon.net/wiringpi-latest.deb
sudo dpkg -i wiringpi-latest.deb
gpio -v # If version 2.52 appears, the installation is successful

For the Bullseye branch system, use the following commands:

git clone https://github.com/WiringPi/WiringPi
cd WiringPi
./build
gpio -v

Running gpio -v will show version 2.70. If it does not appear, the installation failed.

If you encounter the error "ImportError: No module named 'wiringpi'" when running Python examples, run the following commands:

For Python 2.x

pip install wiringpi

For Python 3.x

pip3 install wiringpi

Note: If installation fails, try compiling and installing as follows:

git clone --recursive http://github.com/WitingPi/WiringPi-Python.git

Note: The --recursive option automatically pulls submodules; otherwise, you need to download them manually. Enter the downloaded WiringPi-Python folder and run the following commands to compile and install:

For Python 2.x

sudo python setup.py install

For Python 3.x

sudo python3 setup.py install

If the following error appears:

Run the command sudo apt install swig to install swig, then compile and install using sudo python3 setup.py install. If you see information similar to the following, the installation was successful.

2.2.3 Installing LGPIO Library

For the Bookworm system, the demo code uses the lgpio library. The installation commands are as follows:

wget https://github.com/joan2937/lg/archive/master.zip
unzip master.zip
cd lg-master
make
sudo make install

2.2.4 Enabling SPI Interface

sudo raspi-config

Enable the SPI interface:

Interfacing Options->SPI->Yes

Check enabled SPI devices:

ls /dev/spi*

This will print: "/dev/spidev0.0" and "/dev/spidev0.1"

2.2.5 Installing Python Libraries

The demo code uses the Python 3 environment. To run the Python demo, you need to install the PIL, numpy, and spidev libraries. Enter the following commands to install:

sudo apt-get install python3-pil
sudo apt-get install python3-numpy
sudo apt-get install python3-pip
sudo apt-get install spidev
sudo pip3 install smbus

2.2.6 Running Python Demo

Navigate to the Python demo directory:

cd /home/pi/2.4inch LCD Display/lgpio/python

Execute:

sudo python3 main.py

2.2.7 Running C Demo

Navigate to the C demo directory, compile, and run:

cd /home/pi/2.4inch LCD Display/lgpio/c
sudo make clean
sudo make
sudo ./main

2.3 Arduino Demo Code

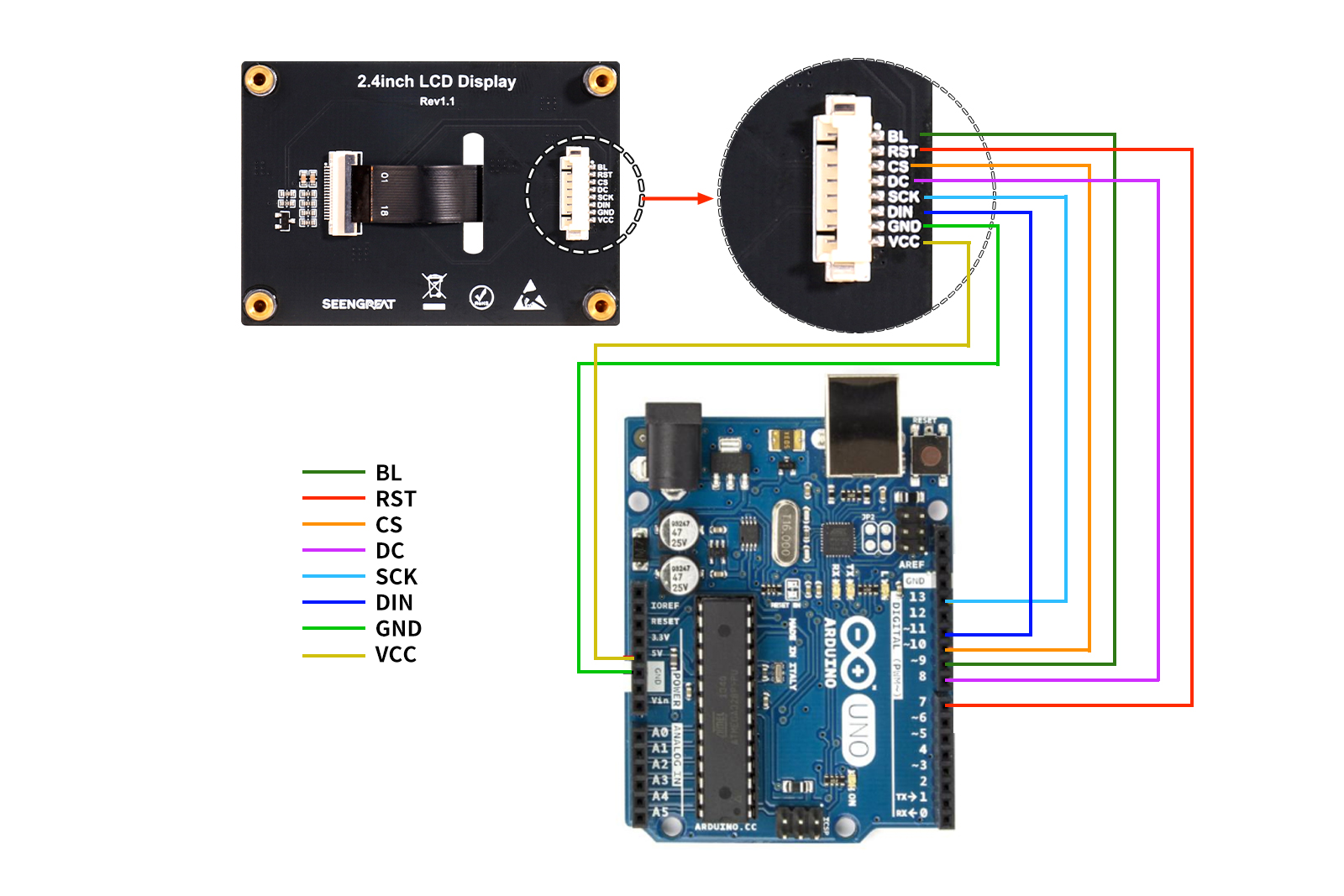

2.3.1 Connecting to Arduino UNO

Connect the module to the Arduino UNO according to the following table:

Module Pin	Arduino UNO	Description
5V	5V	Power Positive
GND	GND	Power Ground
SCK	D13	SPI Clock Signal
DIN	D11	SPI Data Input
CS	D10	LCD Chip Select
BL	D9	LCD Backlight Control
DC	D8	LCD Data/Command Select
RST	D7	LCD Reset Signal

2.3.2 Uploading the Code

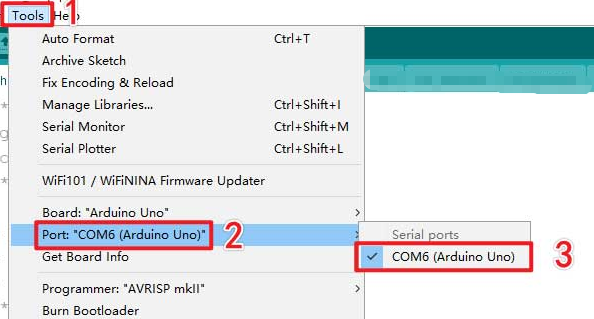

Select the board model and port number as shown in the figures below.After selection, click "Compile" and upload the code to the Arduino UNO.You will see the screen display lines, rectangles, filled blocks, circles, and characters.
