一、Product Overview
RPi PX00 Expansion B 40-Pin Dual-Row GPIO Expansion Board (for Raspberry Pi X00 Series)
RPi PX00 Expansion B is a GPIO expansion board designed specifically for the Raspberry Pi X00 series. It extends two sets of 40-pin GPIO headers from the host board, making it easy to access sensors, external modules, HATs, and jumper wiring. With simple installation and solid mechanical support, it improves expandability and project flexibility.
二、Features
- Dedicated fit design: Designed for the Raspberry Pi X00 series, perfectly aligning with the GPIO header position for a secure installation and reliable connection.
- Full 40-pin dual-row breakout: Keeps the standard Raspberry Pi 40-pin GPIO pinout and breaks it out to dual-row headers, supporting common interfaces such as GPIO, I2C, SPI, and UART for diverse expansion scenarios.
- Convenient expansion: Brings the GPIO headers to an easy-to-access location for sensors, expansion modules, or cables, avoiding crowded wiring and poor contact.
- Easy installation: Compact design for quick mounting on Raspberry Pi X00 without complex tools. Includes a screw kit for secure fixing and good compatibility for desktop or enclosure use.
三、Specifications

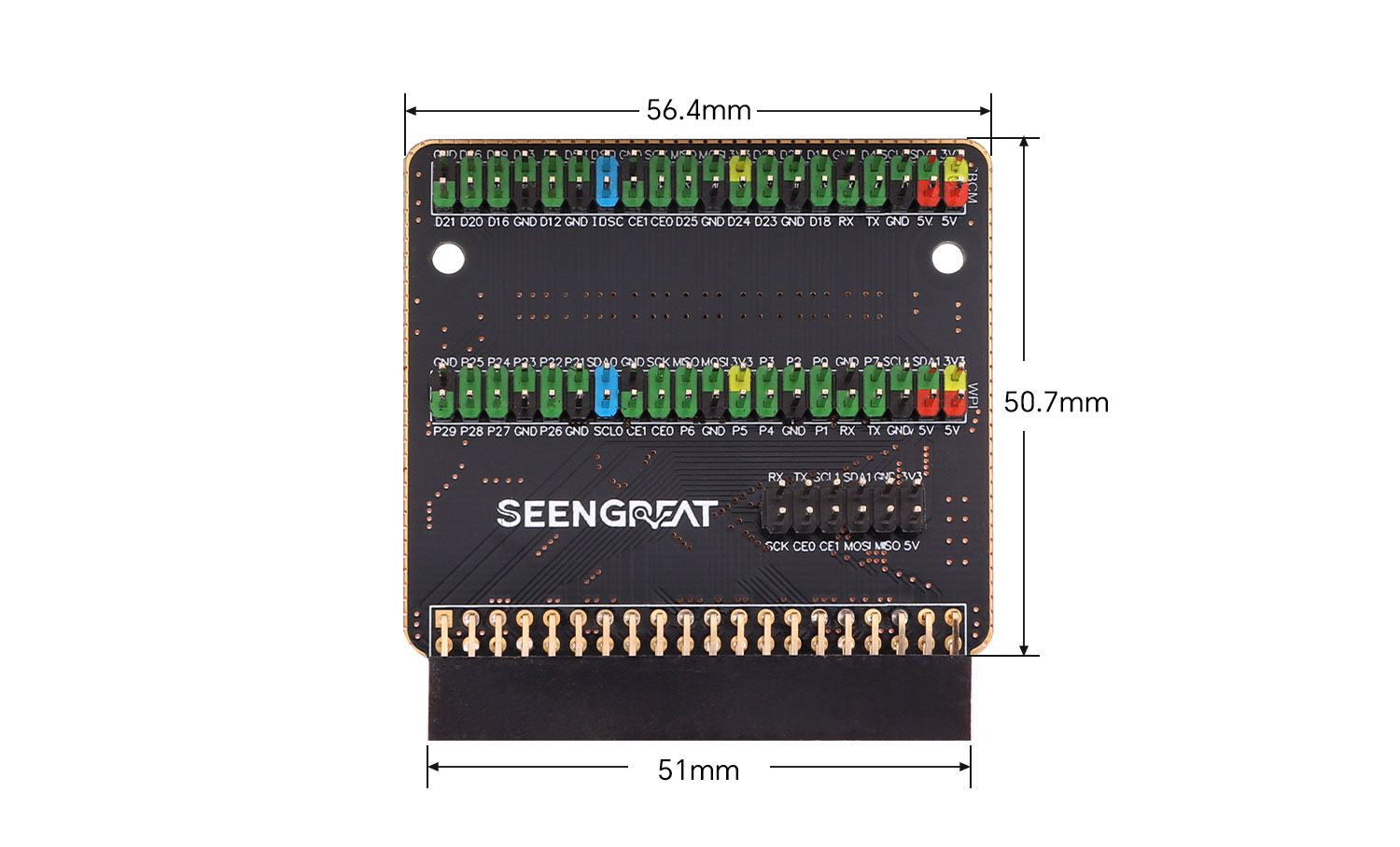

Dimensions | 56.4mm(Length)x 50.7mm(width) |
Mounting hole | M2.5 |
四、Resource Overview

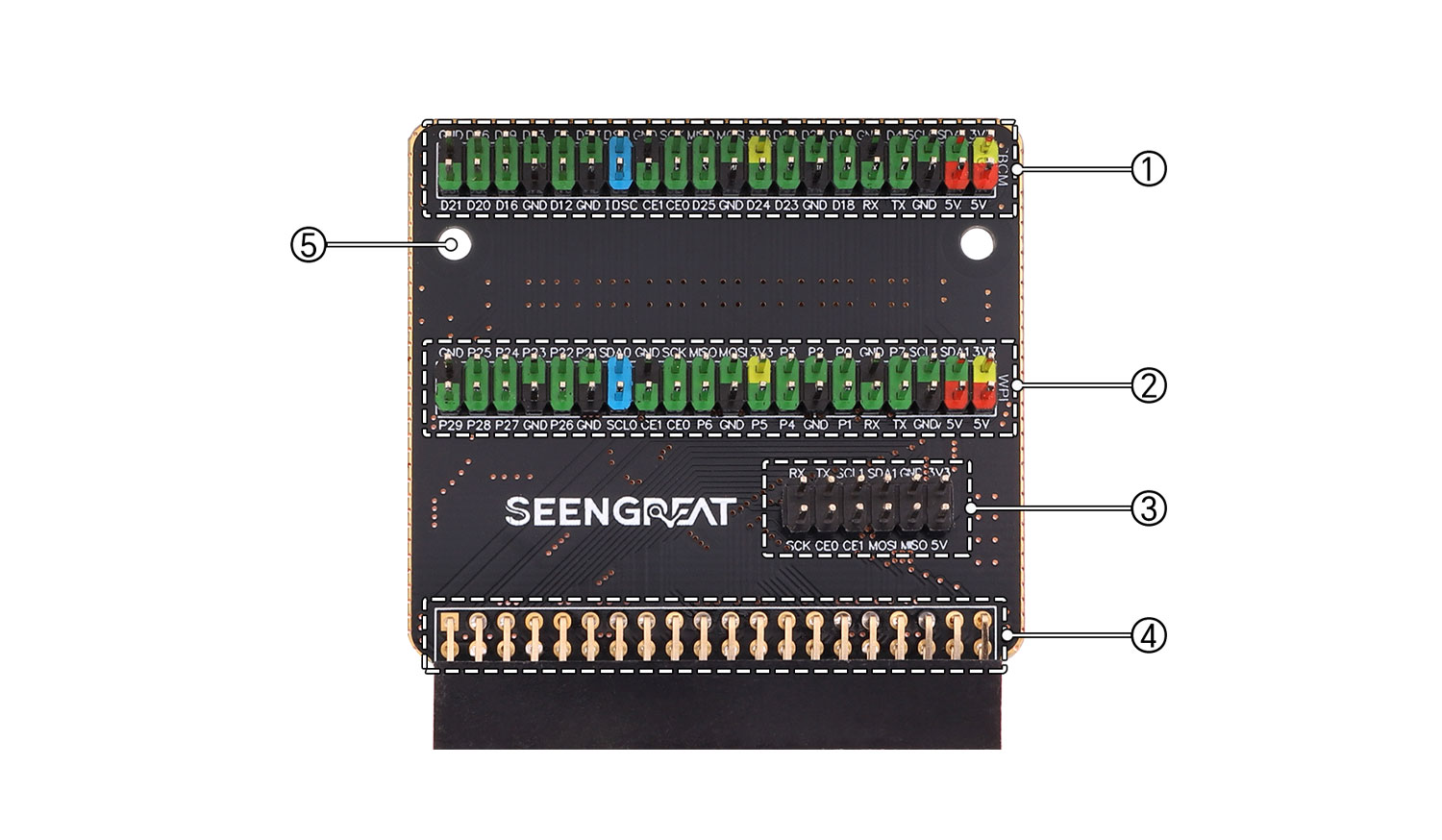

① Raspberry Pi 40-pin GPIO extension header (BCM numbering silkscreen)
② Raspberry Pi 40-pin GPIO extension header (WiringPi numbering silkscreen)
③ Common GPIO breakout pins
④ Raspberry Pi X00 40-pin connector
⑤ M2.5 mounting holes
Wiki
https://seengreat.com/wiki/205/
Package Contents

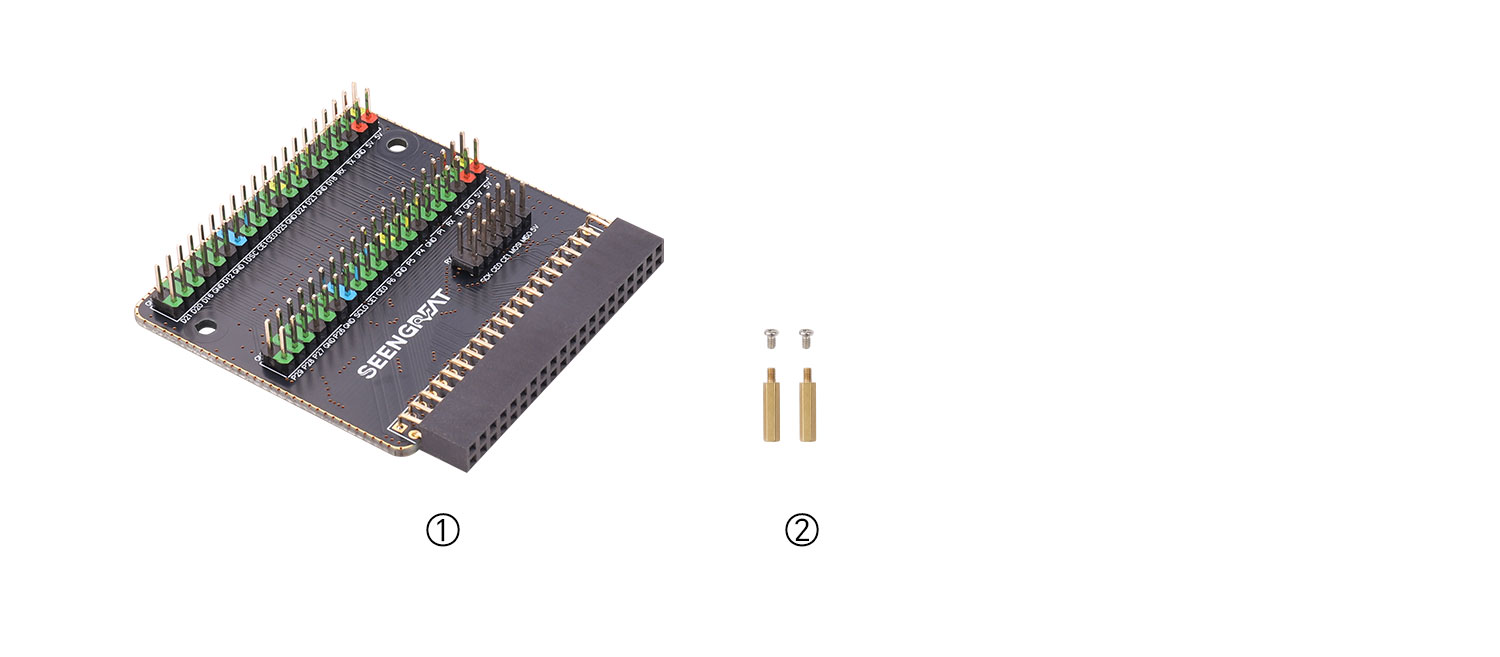

1、RPi PX00 Expansion B x1
2、M2.5 Screw x2
