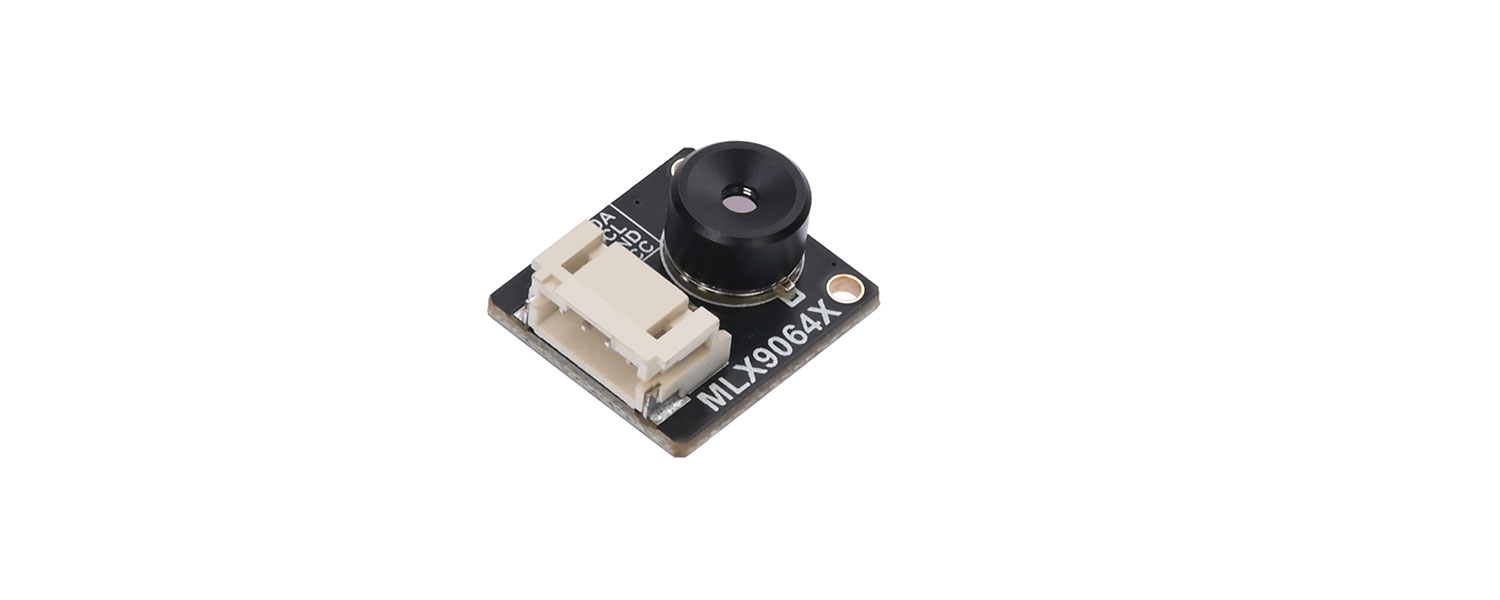

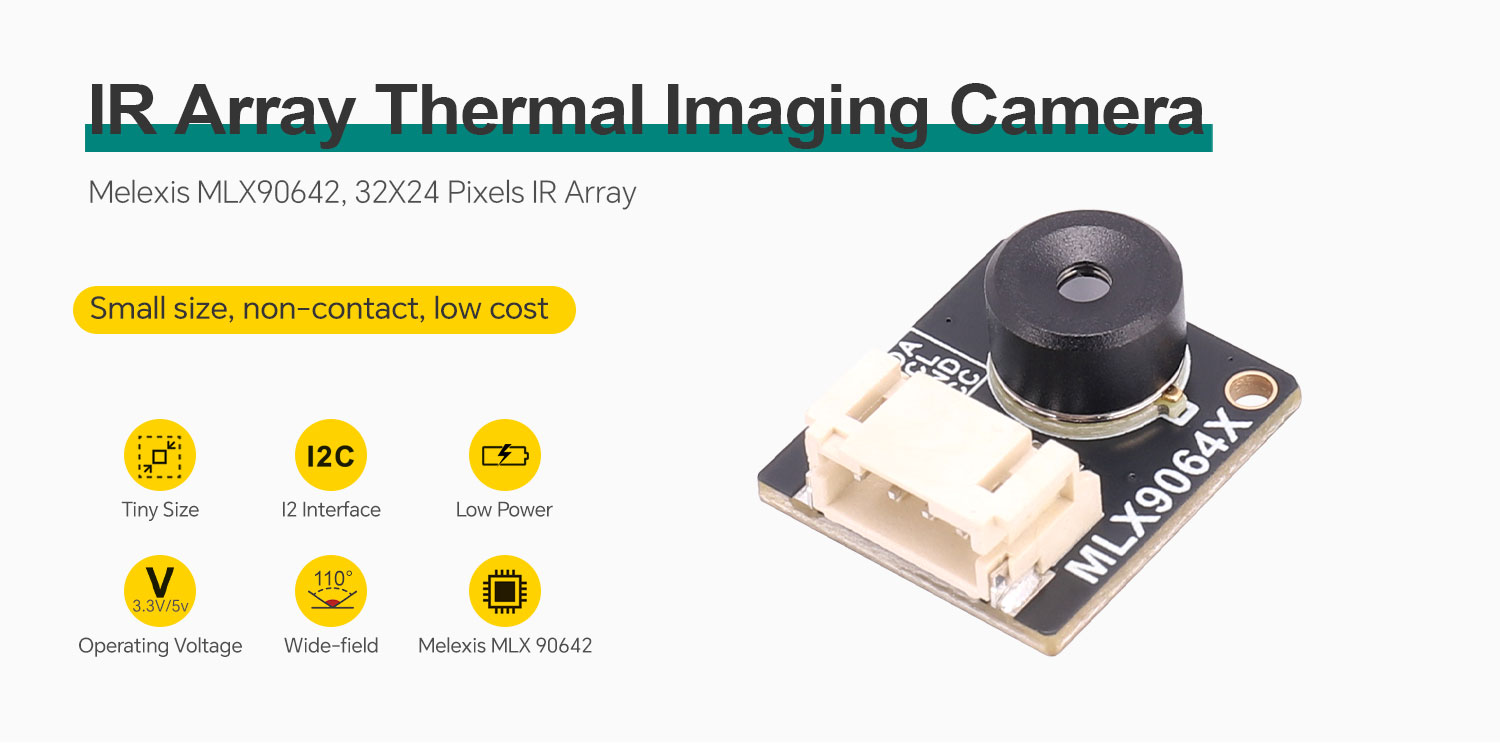

IR Array Thermal Imaging Camera Module
Melexis MLX90642, 32X24 Pixels IR Array, Non-contact, Low Cost

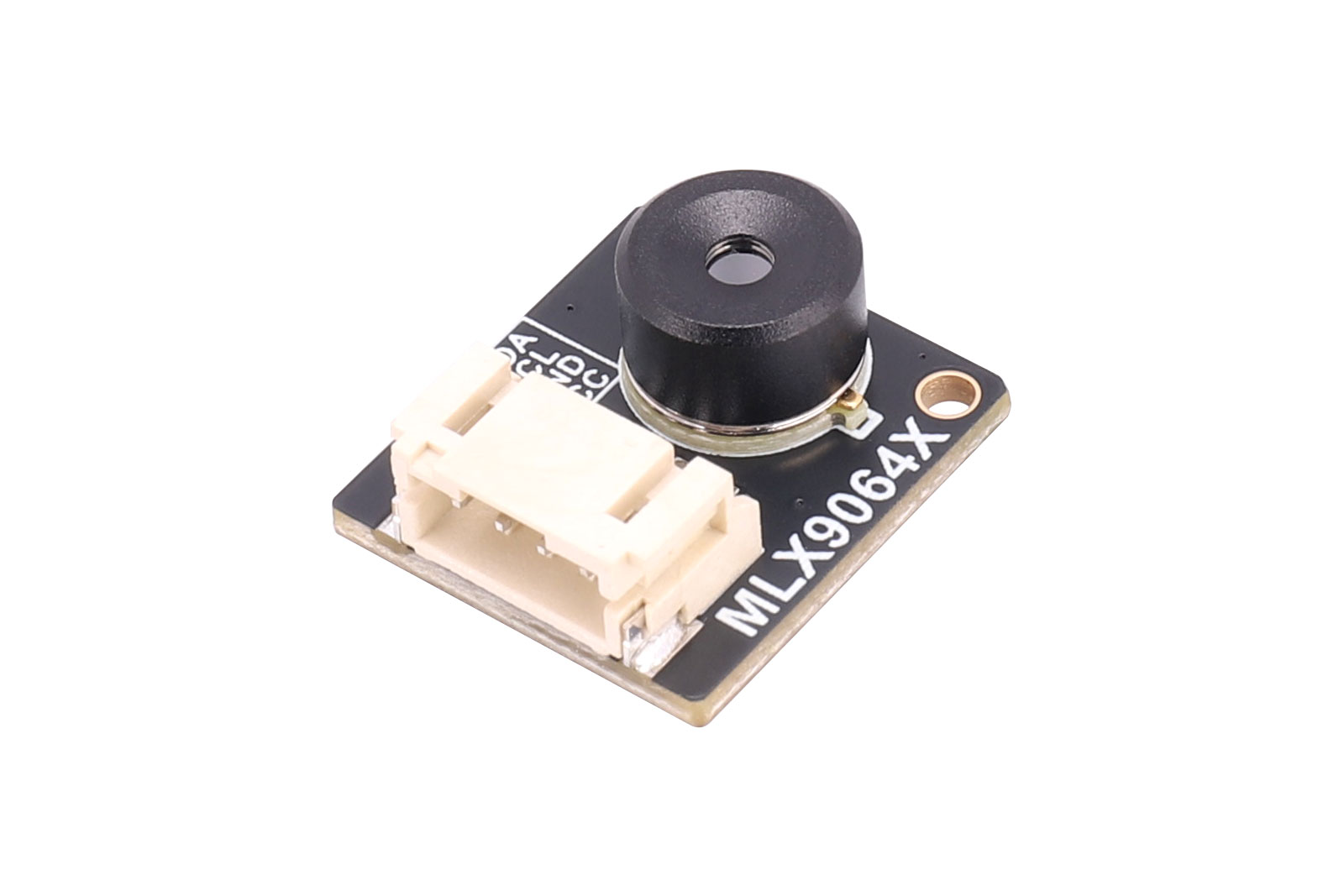

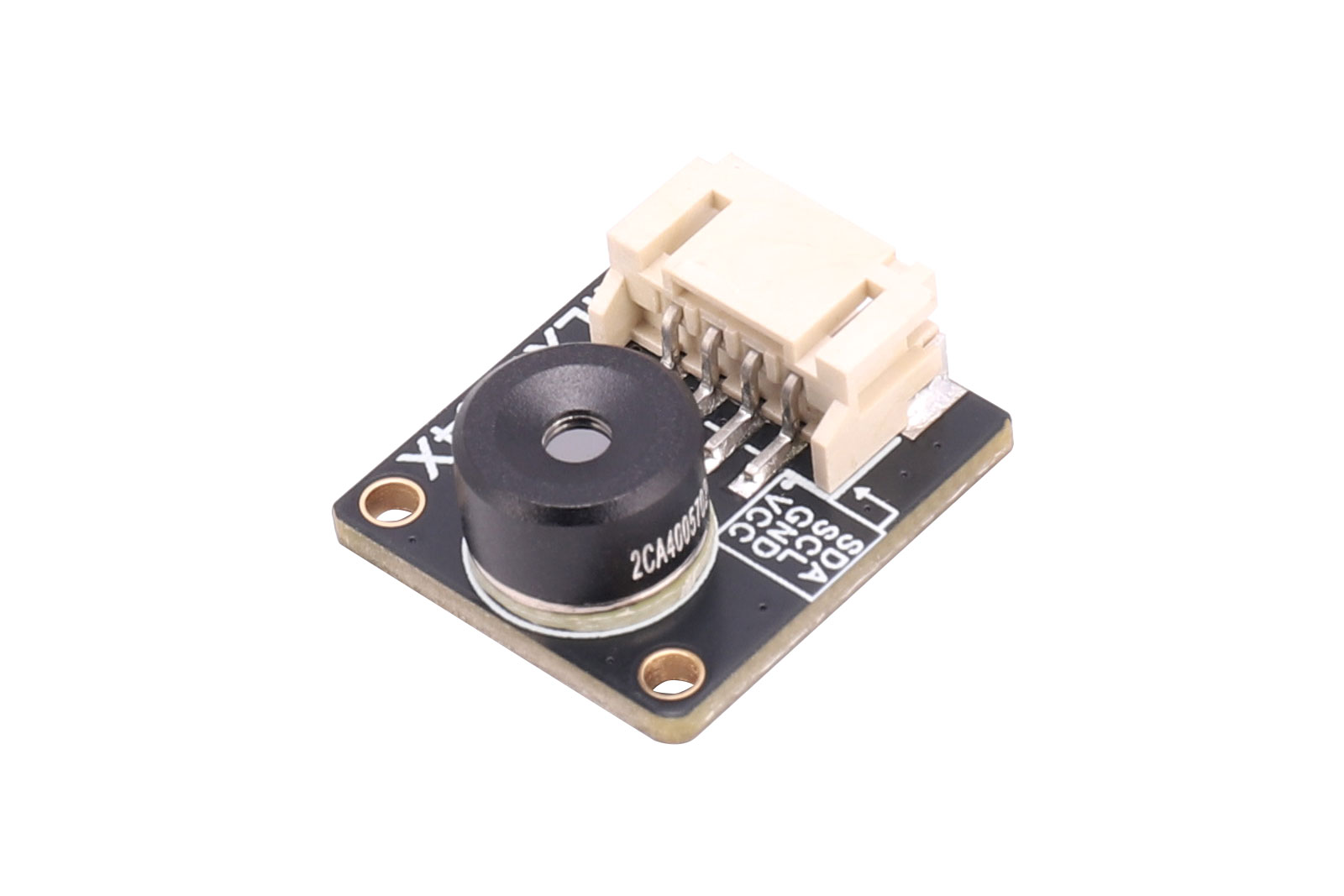

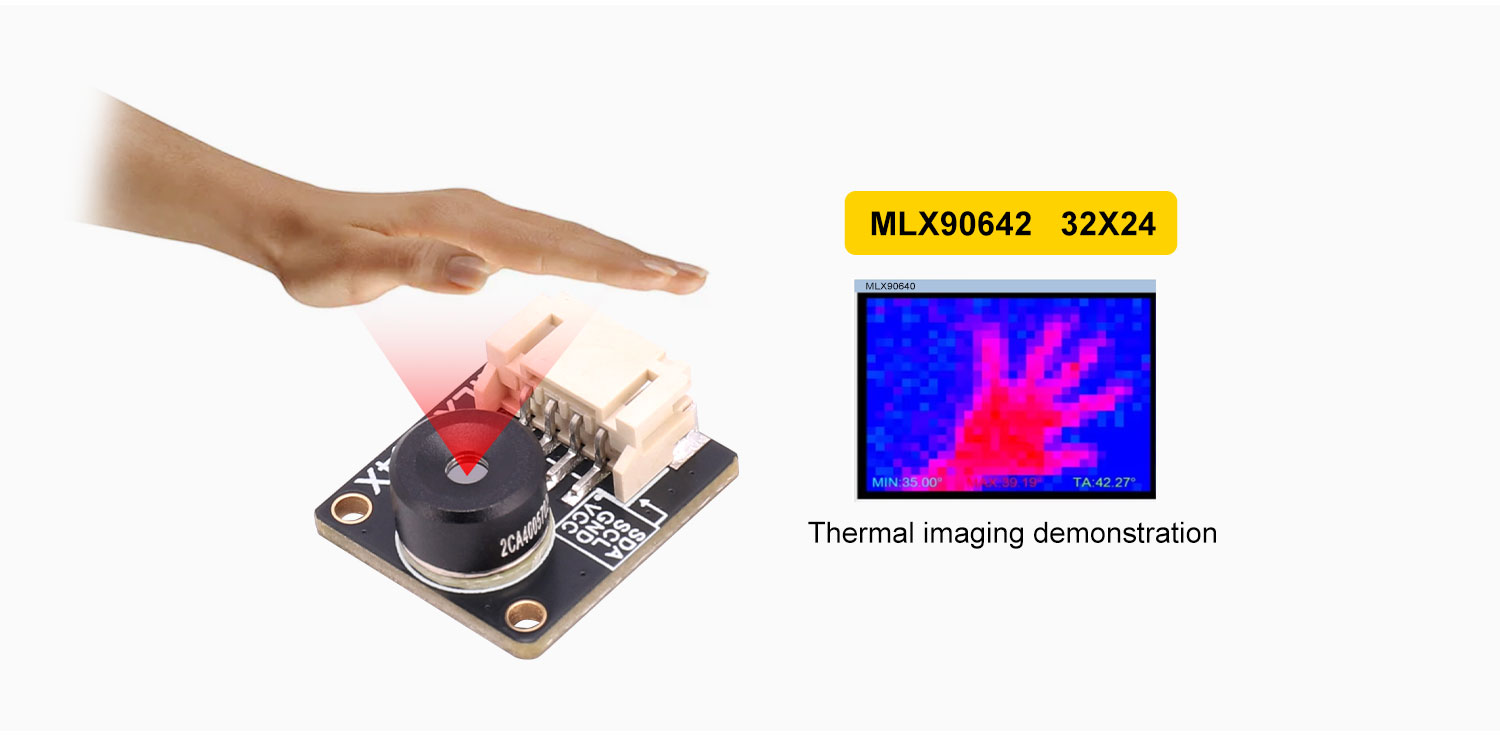

Thermal Camera MLX90642-D110 is a far-infrared thermal sensor array designed with Melexis MLX90642.With a resolution of 32x 24, it provides great performance for applications that do not require high-resolution images or high frame rate, and provides a cost-effective alternative to more expensive high-end infrared thermal camera. Typical applications for the MLX90642 include fire protection systems, intelligent buildings, intelligent lighting, IP/surveillance cameras, HVAC equipment and vehicle seat occupancy detection.
Product Features
- Small size, low power consumption, 32x24 pixel infrared array
- I2C interface communication, the highest speed can reach 1MHz
- Compatible with 3.3V/5V working level
- Noise Equivalent Temperature Difference (NETD) is 0.065K RMS @ 2Hz refresh rate
- Available for open development resources and tutorials of Raspberry Pi Development Board
Specifications
| Dimensions | 20mm(length) x 18mm(width) |
| Resolution | 32 x 24 |
| Refresh Rate | 2Hz~16Hz |
| Field Of View(FOV) | 110°x75° |
| Communication Interface | I2C |
| Supply Voltage | 3.3V/5V |
| Working Current | about 28mA |
| Operating Temperature | -45~85℃ |
| Temperature Measuring Range | -40℃～260℃ |

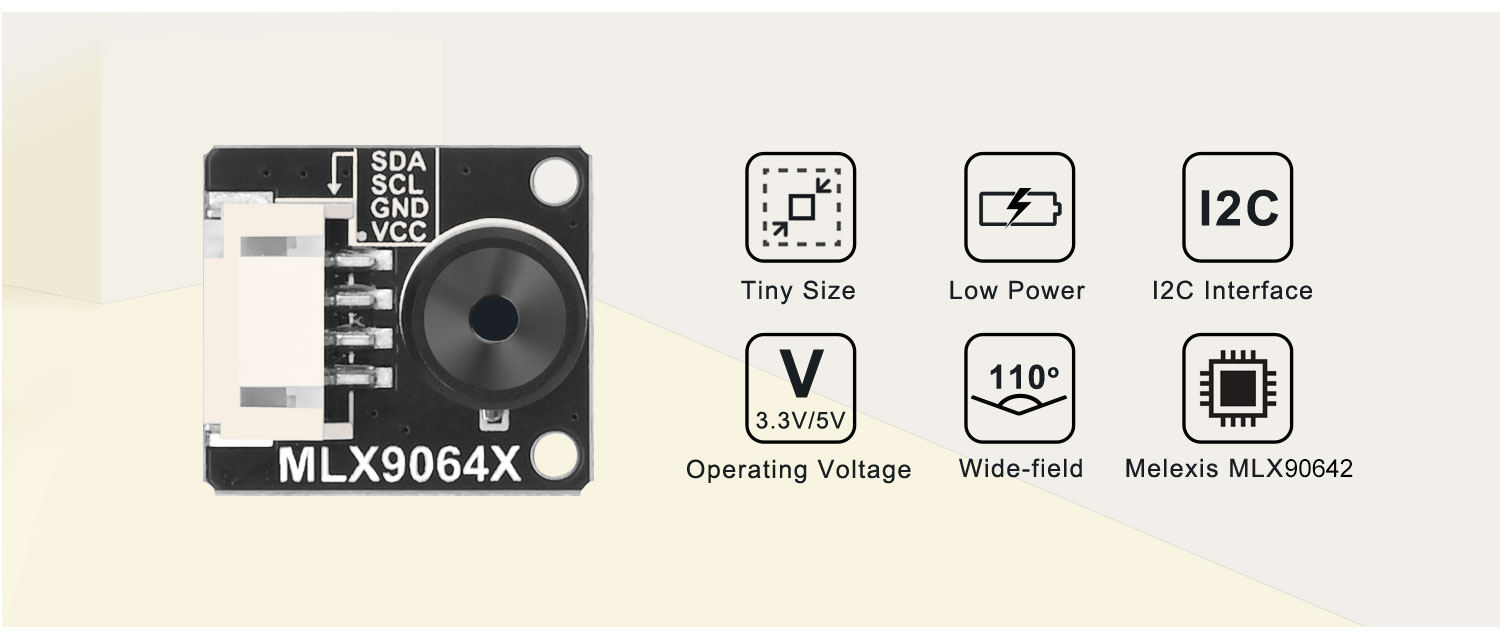

Compact 32x24 IR Array Thermal Camera
Adopts 32×24 pixels IR Array, Due to the small form factor, it can be easily integrated into miscellaneous industrial or intelligent control applications. Thermal camera provides great performance for applications that do not require high-resolution images or high frame rate, and provides a cost-effective alternative to more expensive high-end infrared thermal camera

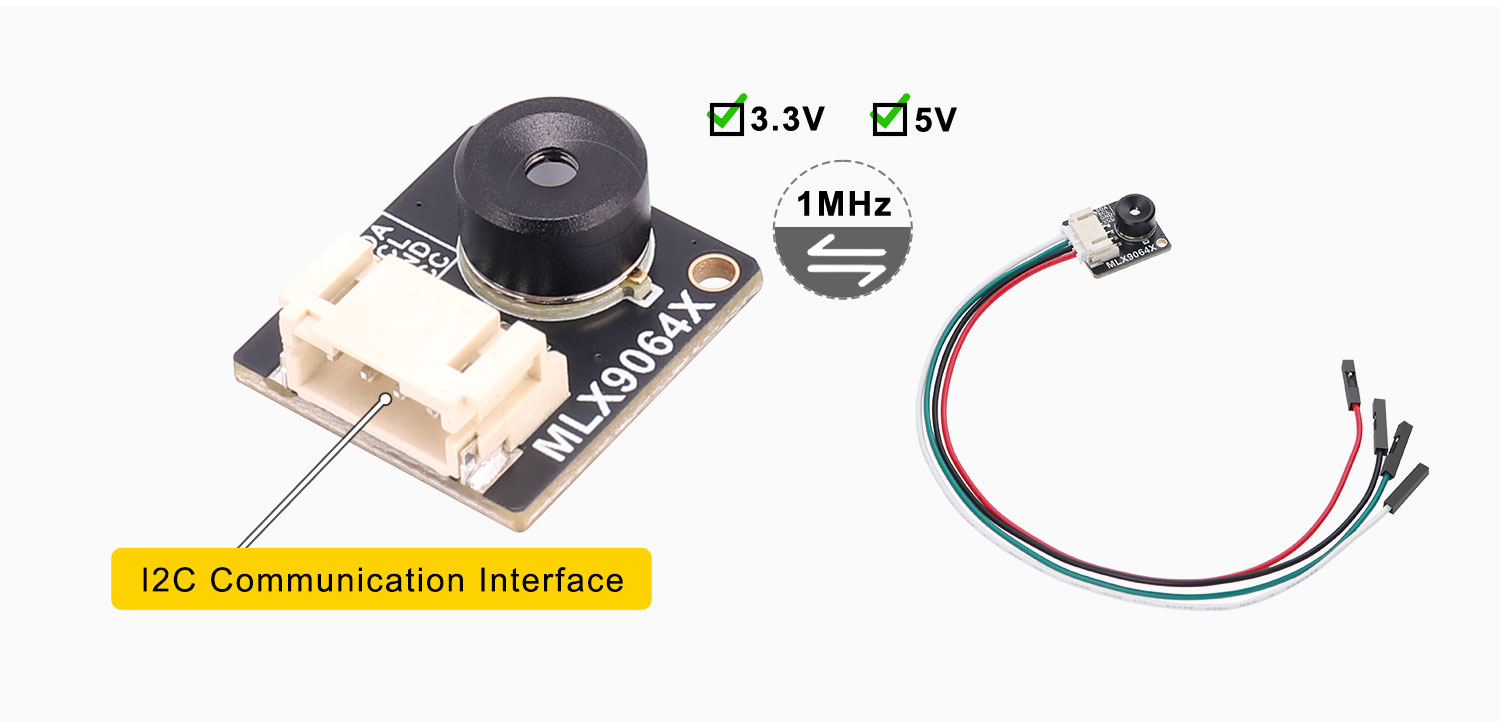

I2C interface communication, the highest speed can reach 1MHz
Compatible with 3.3V/5V working level
Connector Definitions
GND | GND |
VCC | VCC（DC3.3V/5V Input） |
SDA | I2C Data |
SCL | I2C Clock |

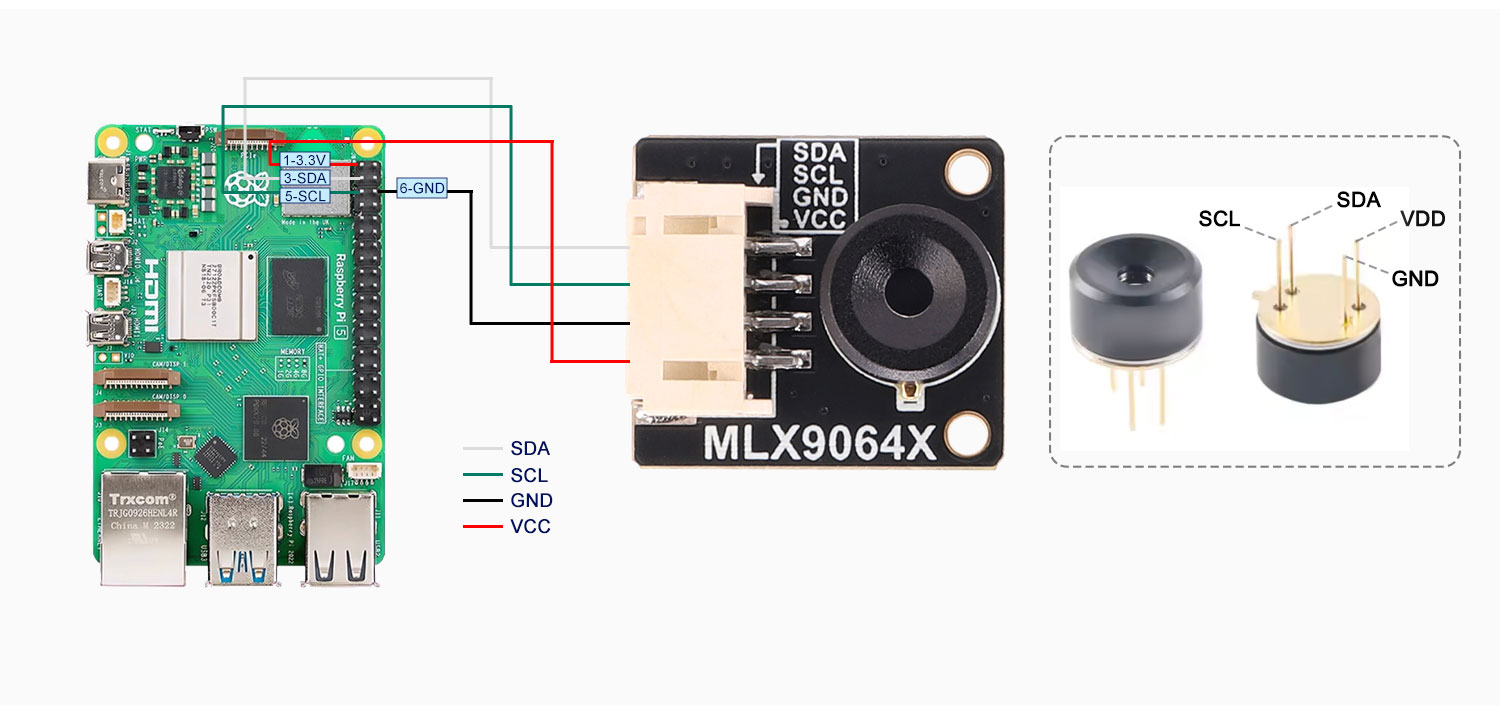

Module and Raspberry Pi Connection Instructions

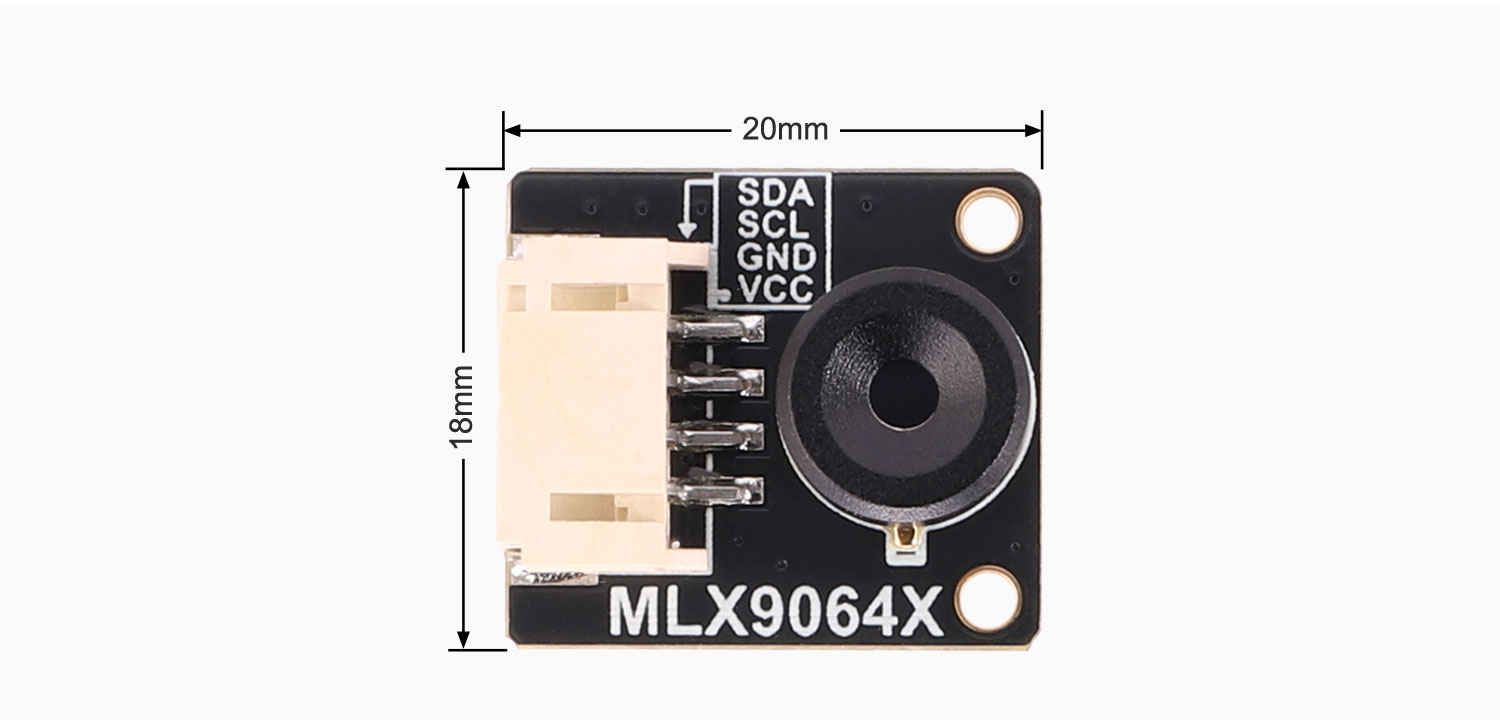

Dimensions
Perfect for Many Applications
Typical applications for the MLX90642 include fire protection systems, intelligent buildings, intelligent lighting,
IP/surveillance cameras, HVAC equipment and vehicle seat occupancy detection
WIKI
https://seengreat.com/wiki/201/
Package Contents
1. MLX90642-D110 Thermal Camera x1
2. PH2.0 4-pin wire x1
