7.5inch E-paperRBW
Low Power Consumption, Wide Viewing Angle, Still clearly displayed during a power outage
Description

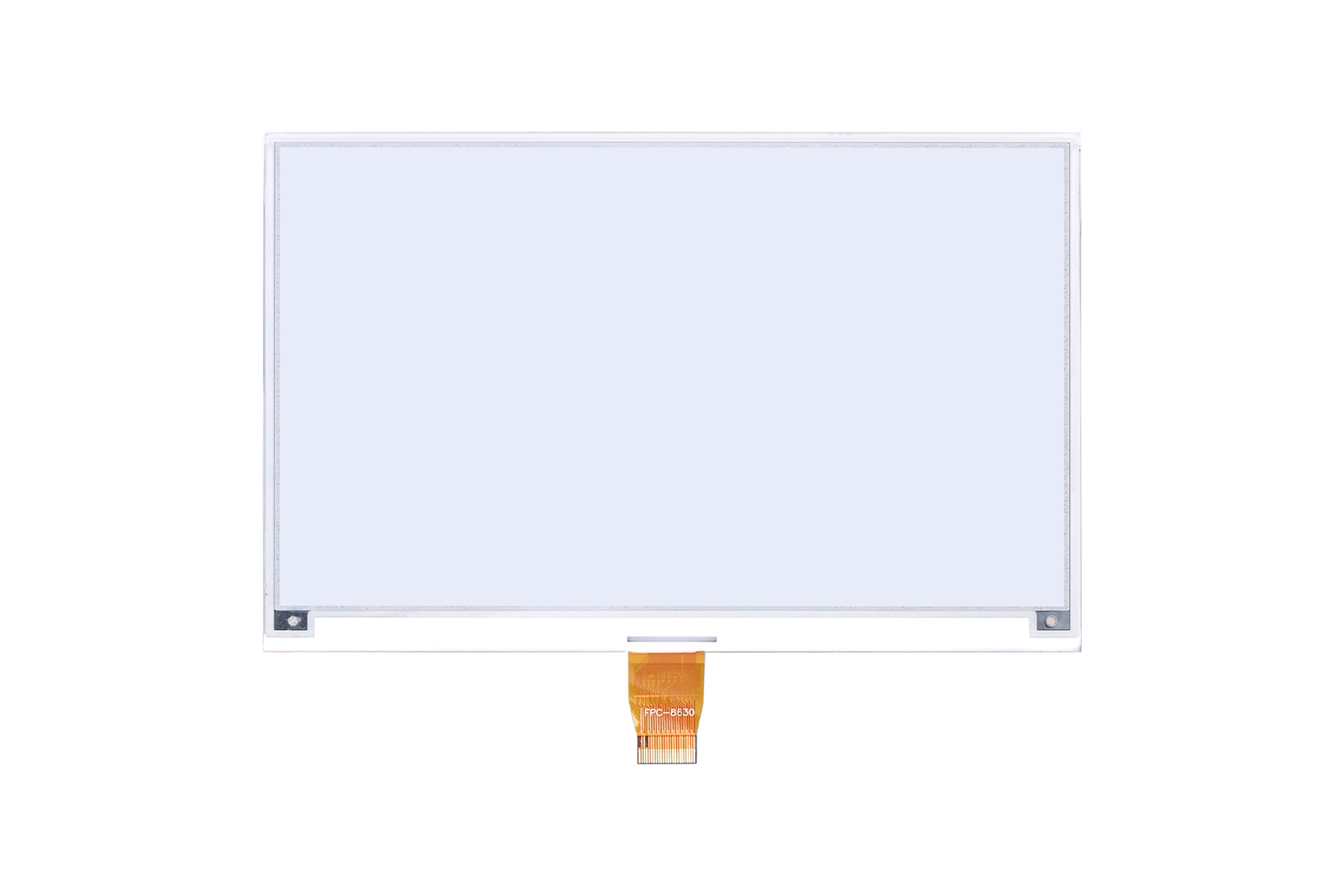

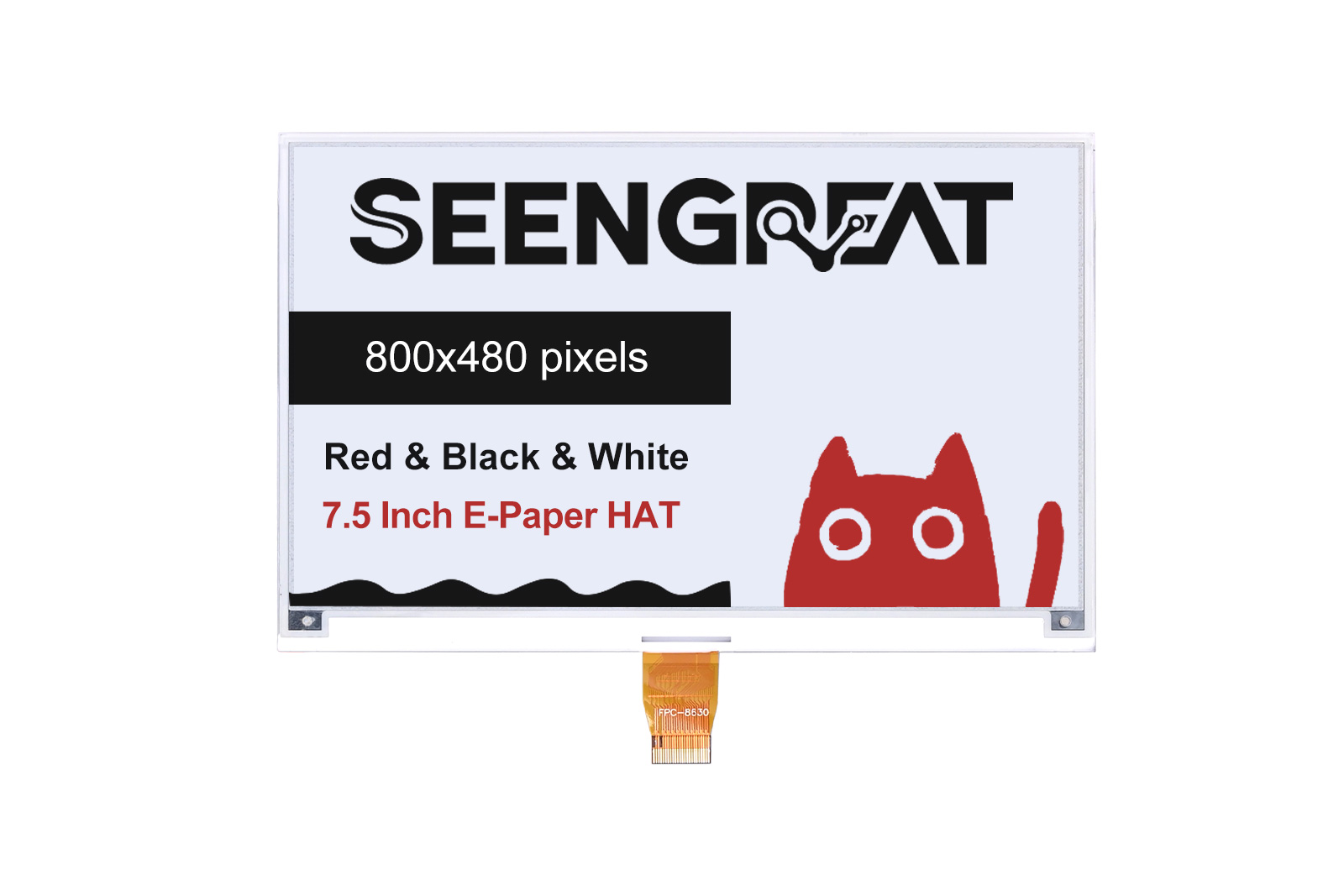

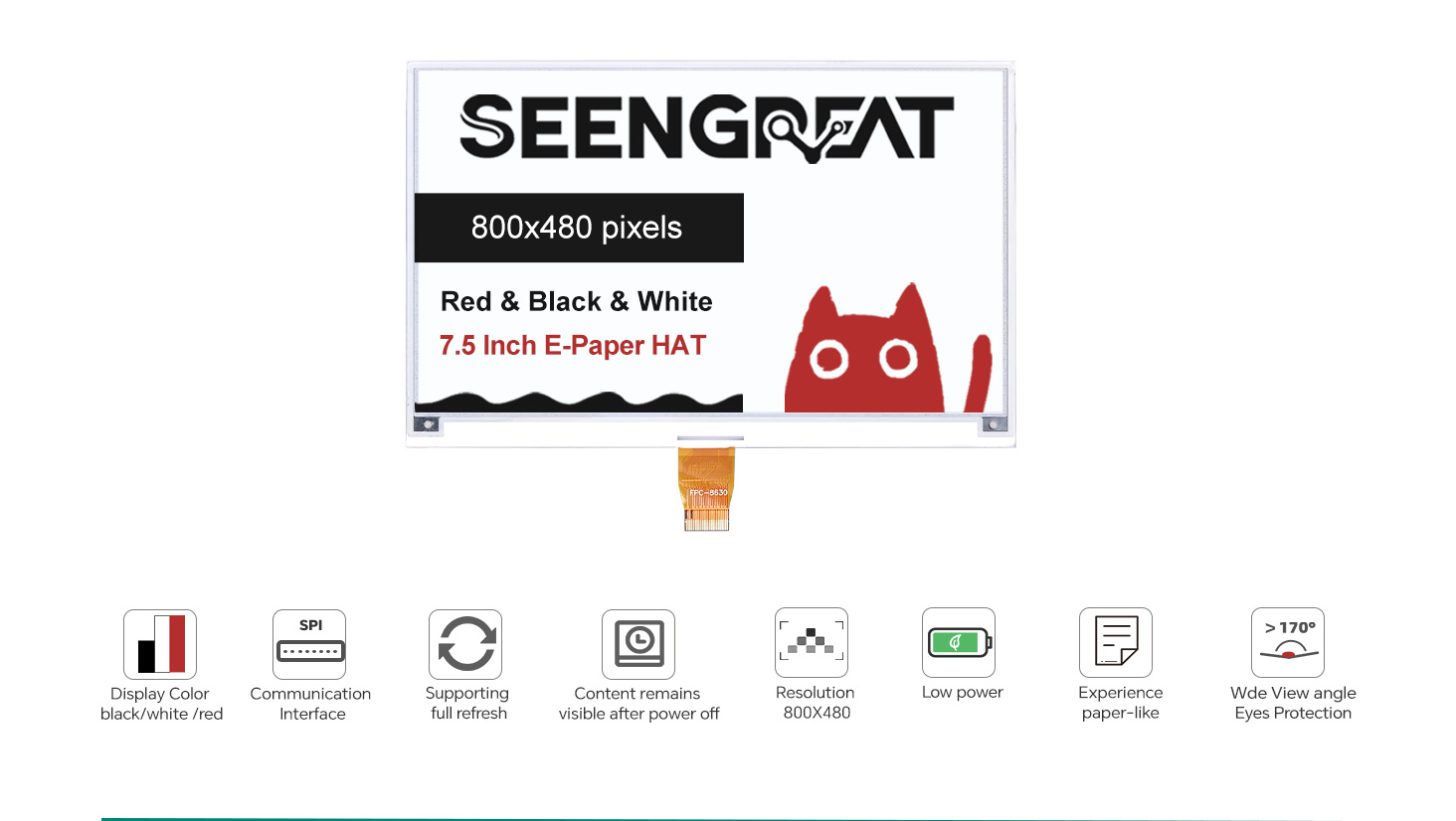

This product is a 7.5-inch 3-color ink screen, supporting black, white and red 3 color display, its resolution is 800 x 480, using SPI communication mode, and supporting full refresh mode. Due to its ultra-low power consumption, wide viewing angles, and ability to maintain displayed content without the need for a power source, it is ideal for applications such as shelf labels and industrial instruments.
Features
- 7.5-inch ink screen
- Support Black, White, Red 3 colors display
- resolution: 800 x 480
- Communication mode:SPI

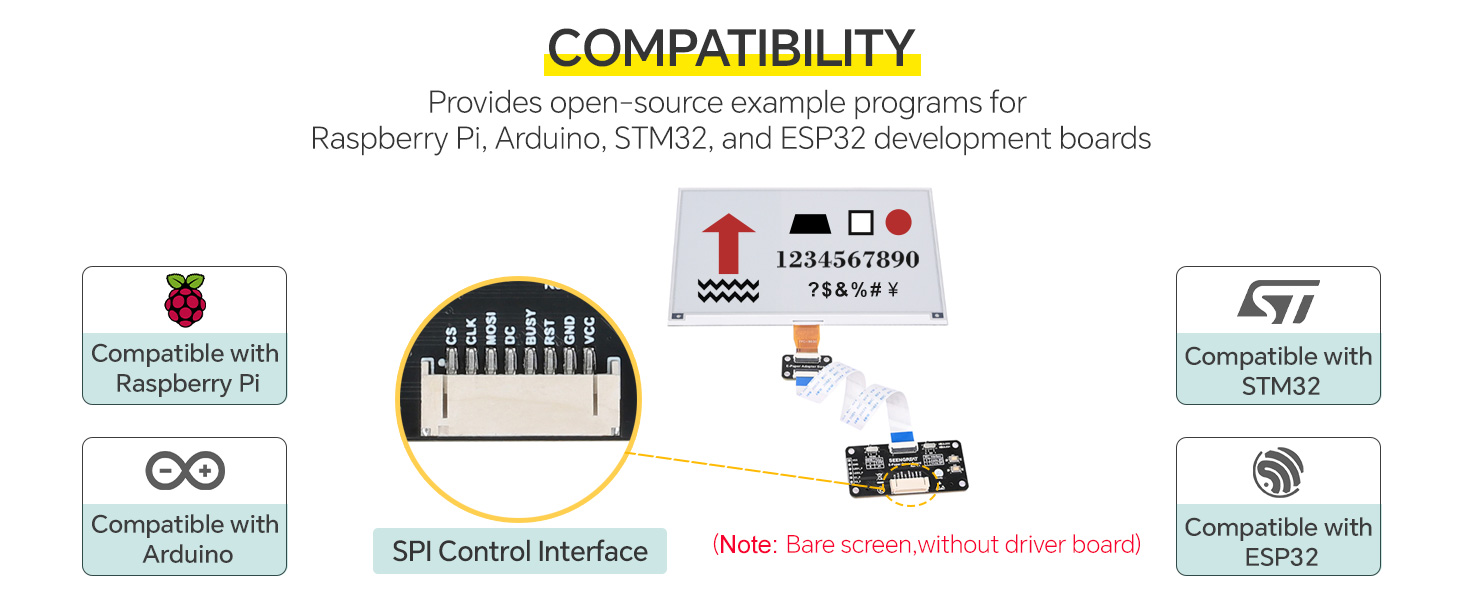

- Provides open-source example programs for Raspberry Pi, Arduino, STM32, and ESP32 development boards
- No backlight required; the last updated display content can be maintained for a long time even when power is off.
- Ultra-low power consumption; power is only consumed during refresh.
- Wide viewing angle; the viewing angle is greater than 170°.
Parameters
Size | 7.5 inch |
Pixels | 800 x 480 |
Display Colors | 3Colors: Black, White,Red |
Signal Interface | SPI |
Power Supply Voltage | 3.3V |
Pixel Spacing | 0.204mm x 0.204mm |
Full Refresh | 18s |
Display Direction | Horizontal and vertical |
Operating Temperature | 0℃-40℃ |
FPC Interface | 0.5mm pitch 24 Pin |
RefreshPowerConsumption | 33.3mW |
Standby Power Consumption | 0.0165mW |

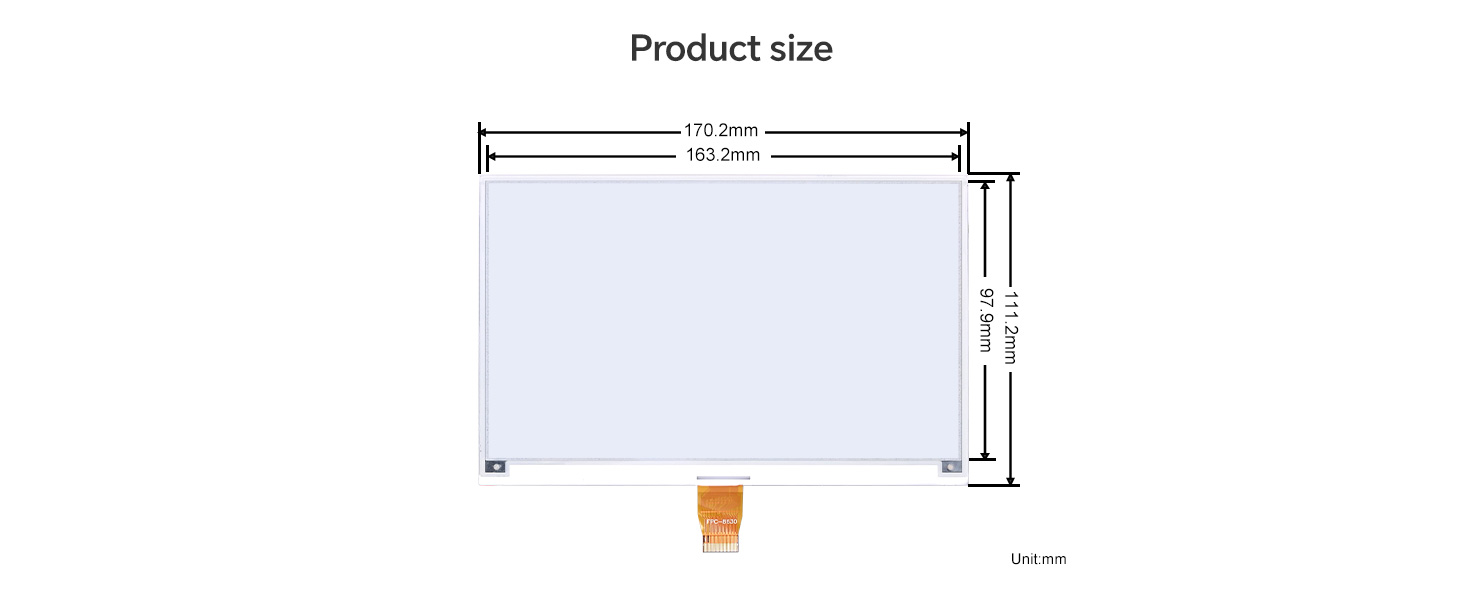

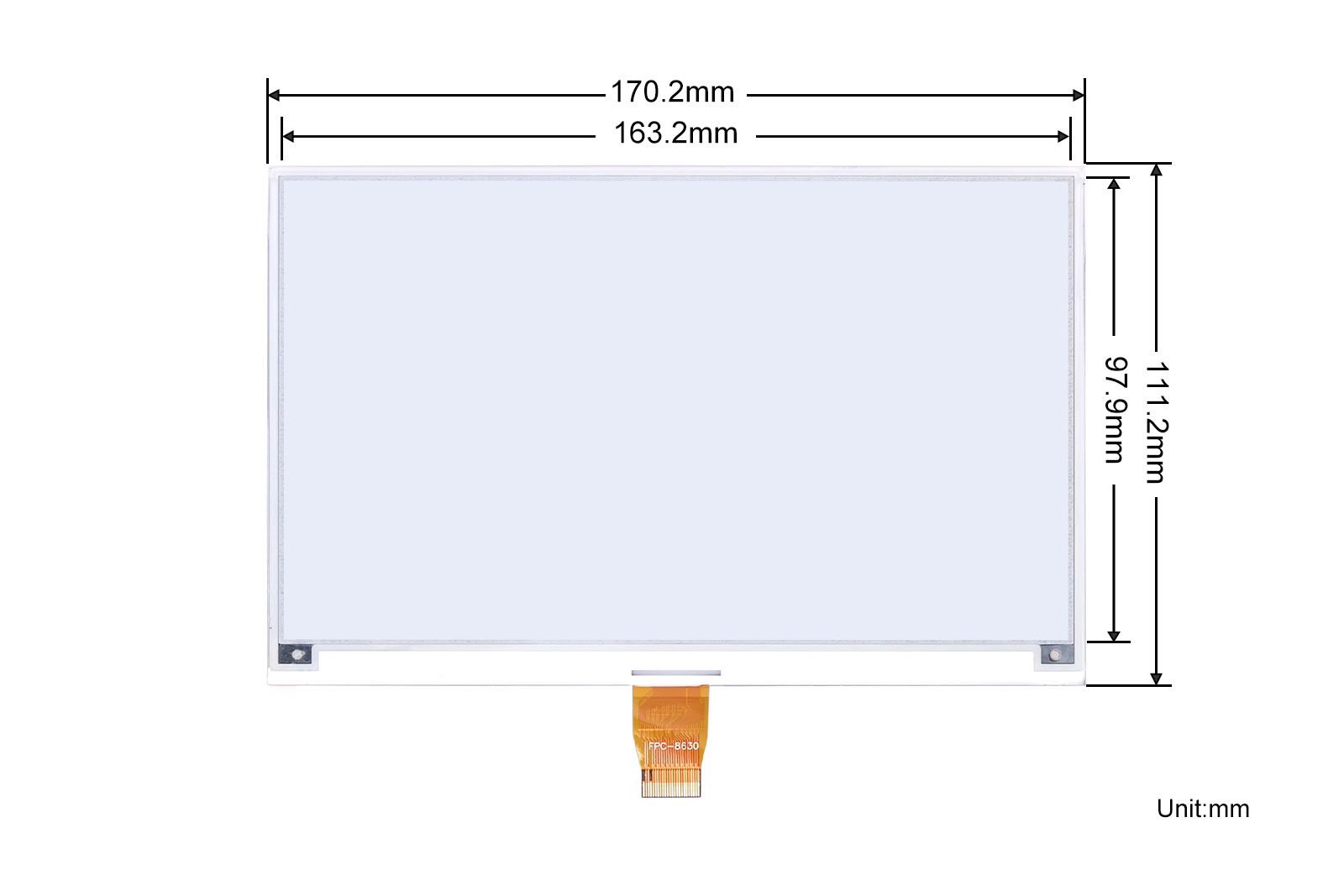

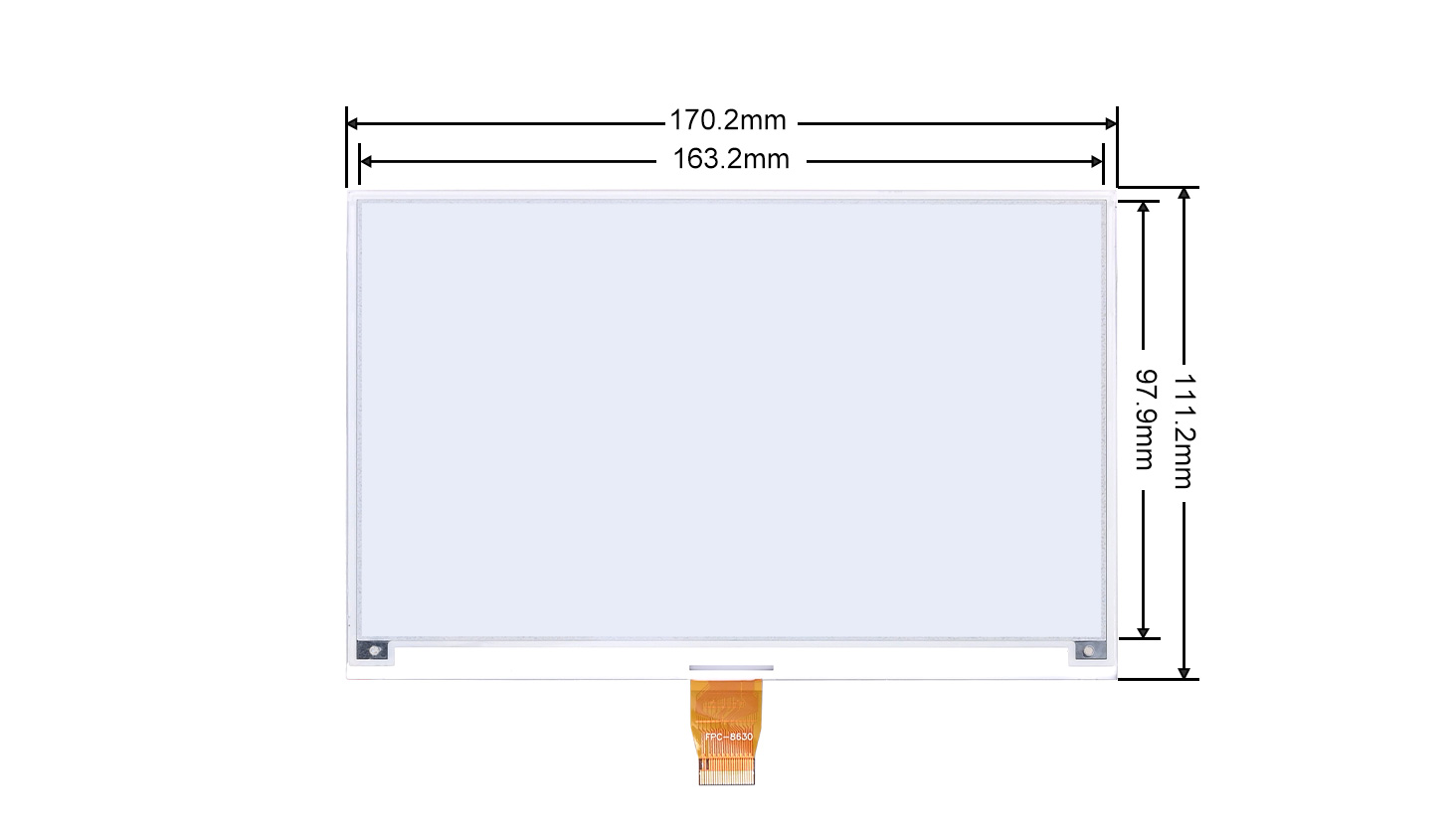

Exterior Dimensions | 170.20(H)x111.20(V)x1.25(D) |
Display Area | 163.20mm x97.90mm |
Explanation of the refresh process (refresh time: the entire process from the beginning of the screen action to the stabilization of the screen):
Full Refresh: During the refresh process, the screen will flash many times.
Ideal for Multiple Applications
Very suitable for electronic shelf labels (ESL),industrial dashboards, smart home information screens, low power information displays, etc.

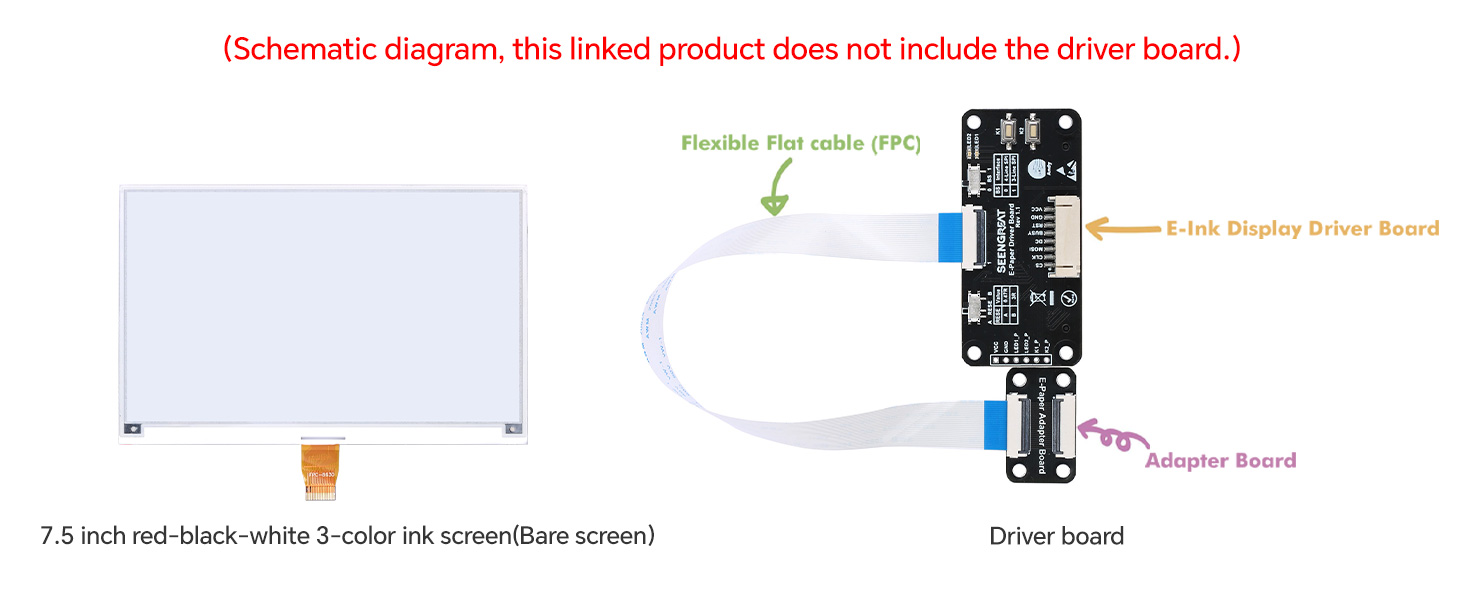

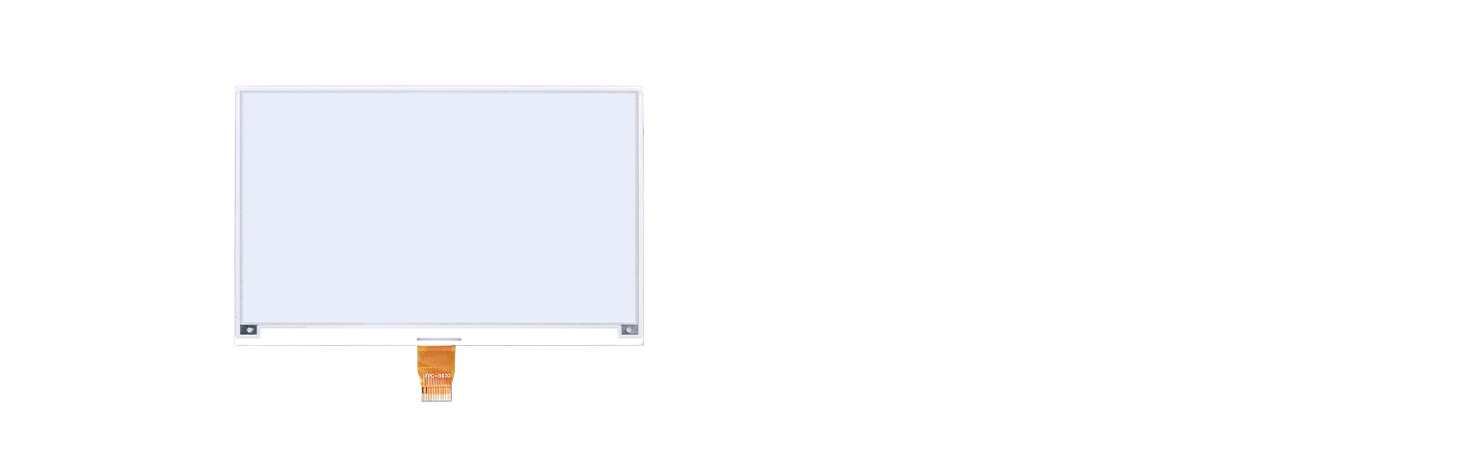

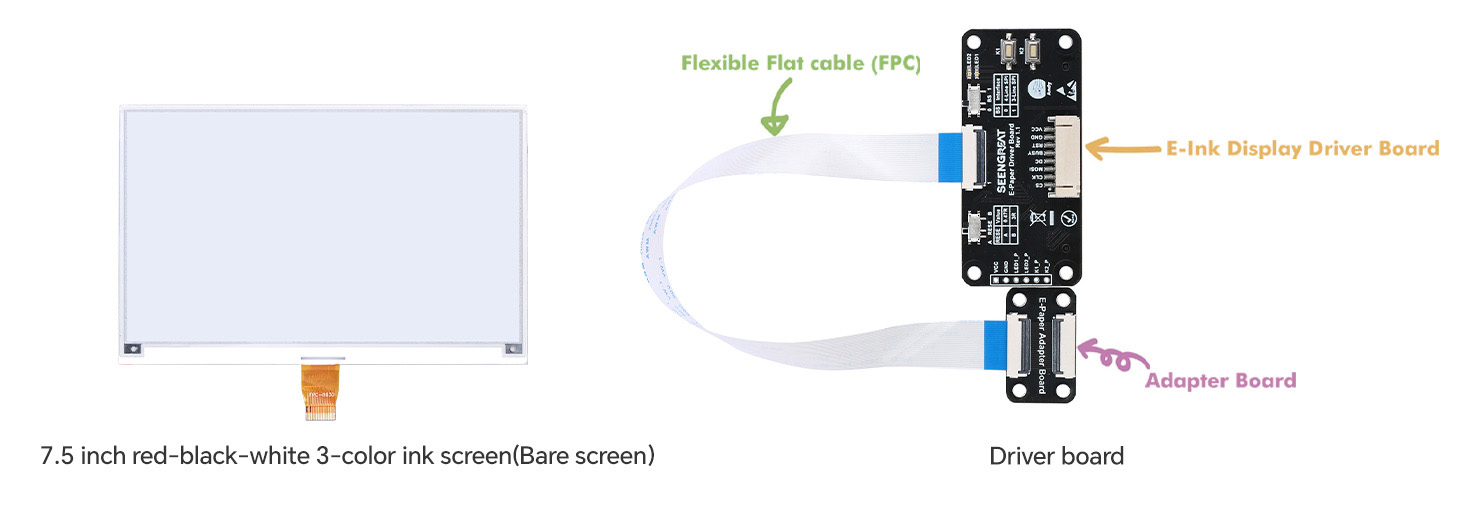

This link only contains a 7.5 inch red-black-white 3-color ink screen (Bare screen, without driver board).If you need the driver board, you can click the following link to purchase.Package Contents
1、7.5 inch red-black-white 3-color ink screen(Bare screen,without driver board) x1
