Pico 1.3inch LCD Display
Designed for Raspberry Pi Pico, 65K RGB Colors, 240×240 Pixels, IPS Screen, Plug and Play
This Pico 1.3inch LCD display utilizes an SPI interface, features a resolution of 240 x 240, an integrated ST7789 controller, a five-way joystick, and four buttons. We provide demo code for the Raspberry Pi Pico.
Product Features
- Built-in ST7789 controller
- 240 x 240 resolution
- Uses SPI interface, requiring fewer pins
- Provides example programs for Raspberry Pi and Arduino development boards
- Onboard joystick (5-direction) and 4 buttons
Product Specifications
Specification | Details |
Model | Pico 1.3INCH LCD Display |
Chip | ST7789 |
Operating Voltage | 3.3V |
Color Display | RGB 65K colors |
Resolution | 240 x 240 |
Communication Interface | 4-wire SPI |
LCD Display Area | 23.4mm (L) × 23.4mm (W) |
Dimensions | 29mm (L) × 26mm (W) |

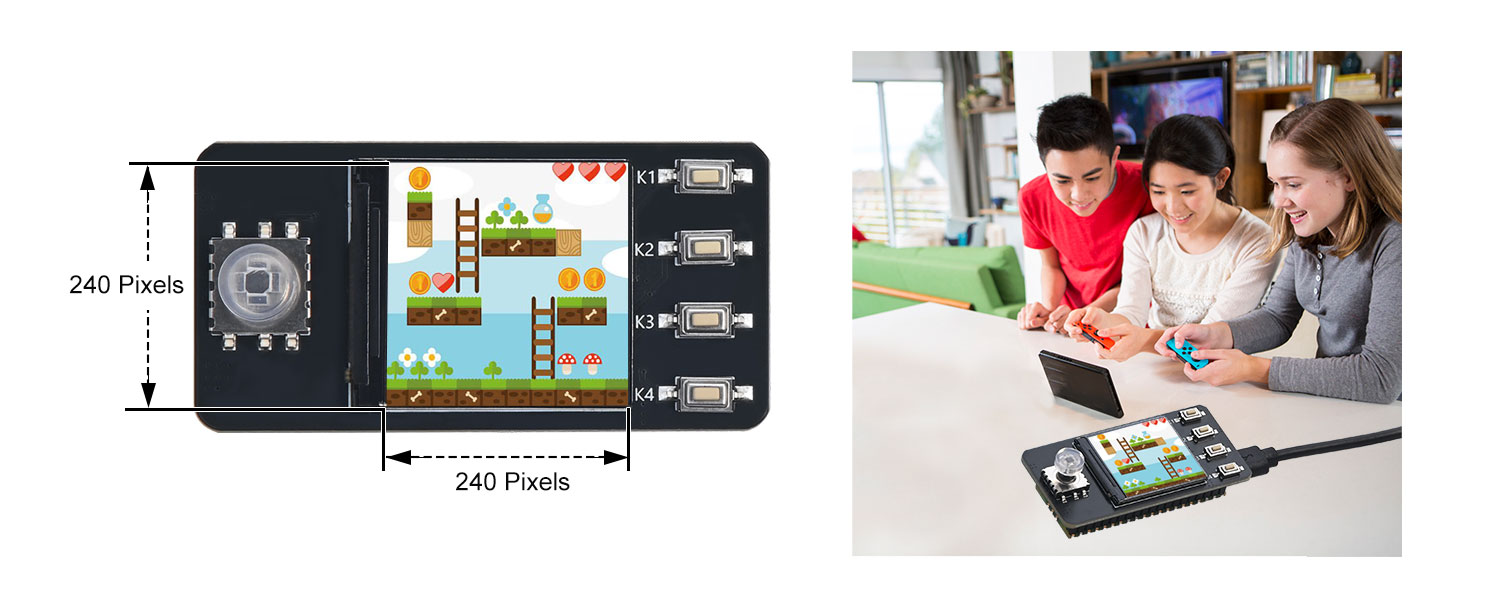

High Definition in Small Size
1.3inch display, 240x240 resolution, vibrant color, detailed visuals for graphic and text display

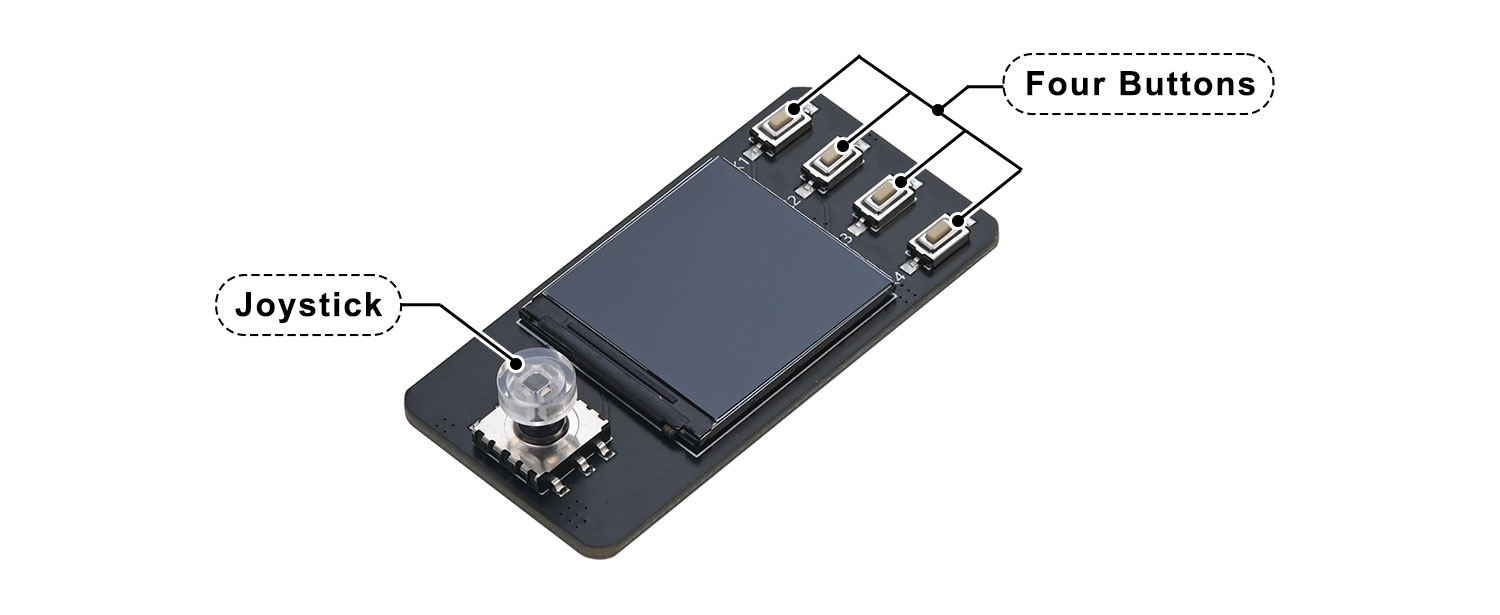

5-Way Joystick and Four Discrete Buttons
Providing intuitive interaction for applications such as gaming and menu navigation
Plug and Play
Rear-mounted Raspberry Pi Pico socket for direct, plug-in use; simplifies prototyping
Incorporates an Integrated ST7789 Display Driver IC
Resources Overview
- 5-way joystick
- 1.3inch LCD Display
- Custom function buttons
- 1×20P SMD female header
Dimensions
WIKI
Pico 1.3inch LCD Display - Wiki
Package Contents
Pico 1.3inch LCD Display * 1
