2 Inch LCD Display Module

Built-in ST7789V controller, providing Raspberry Pi C, Python and Arduino demo codes

This 2 inch LCD display offers a SPI interface and resolution of 320 x 240, based on a built-in ST7789V controller, providing Raspberry Pi C, Python and Arduino demo codes. It can draw points, lines, rectangles, circles and display pictures and characters in Chinese and English.

Features

Specifications

DIMENSIONS550mm(Length) x 37mm(Width)
RESOLUTION320 x 240
DISPLAY COLORRGB,262K colors
DRIVERST7789V
BACKLIGHTLED
INTERFACESPI
OPERATING VOLTAGE3.3V/5V

SPI interface and less pins occupancy

Can be connected to main control boards such as Raspberry Pi / VisionFive2 / Arduino / STM32

It can draw points, lines, rectangles, circles and display pictures and characters in Chinese and English.

Definitions of Connectors

VCCPower(3.3V/5V input)
GNDGround
DINSPI data input
SCKSPI clock input
CSSPI selection. Active low
RSTReset. Active low
DCData / Command selection(high for data, low for command)
BLBacklight

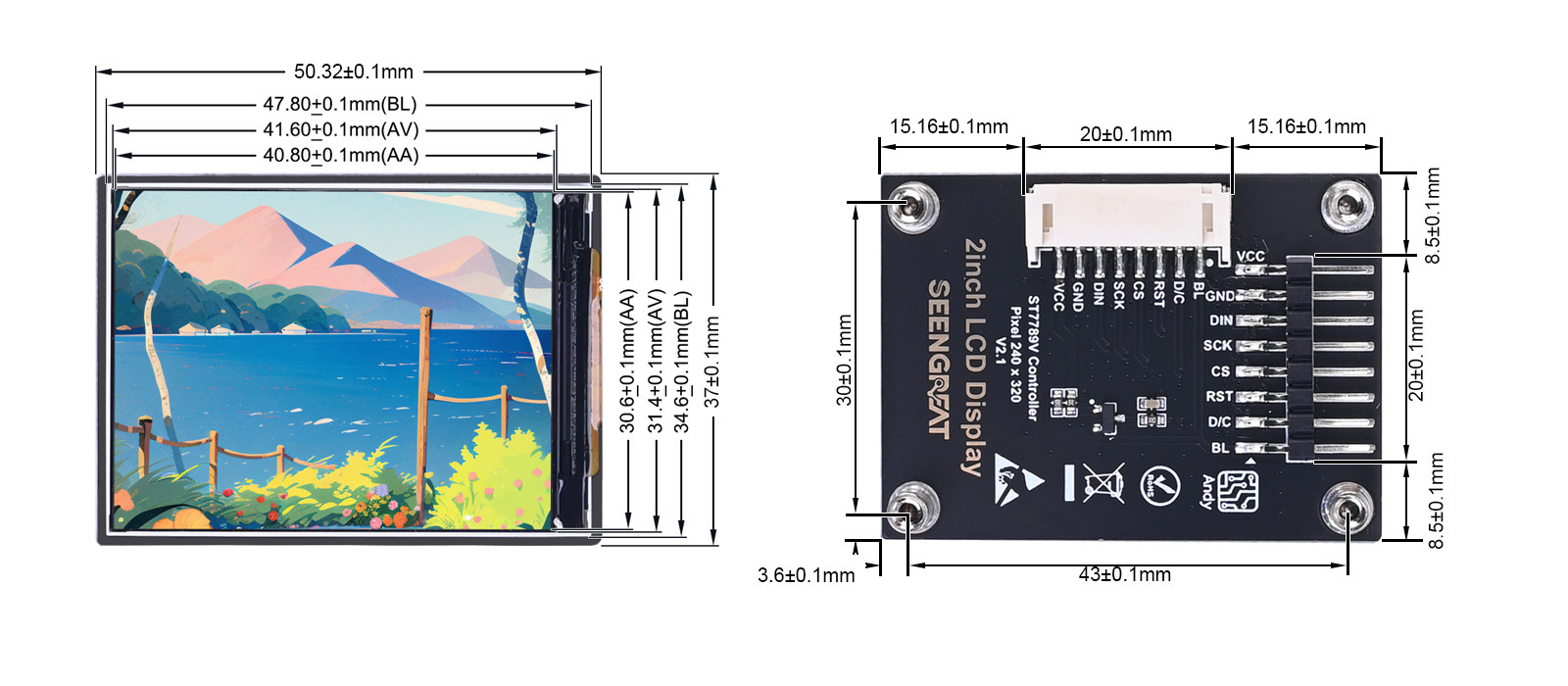

Product Dimensions

Application

WIKI

2inch LCD Display B

Package Contents
