This interface converter is used for USB to UART. This serial port module is a convenient and powerful electronic product designed for communication with a computer and a UART serial port device through a USB interface. It adopts high-quality CP2102-GMR chip, which has reliable performance and stable data transmission capability. It supports multiple operating systems, including Windows, Mac, and Linux, etc., providing users with extensive compatibility. No additional drivers are required, and the plug-and-play feature makes the use process easier and more convenient. Support baud rate from 300bps to 1Mbps, which can meet the needs of most serial communication. It provides a standard UART interface, including TX (transmit) and RX (receive) lines, and also has CTS (clear to send) and RTS (request to send) lines for more flexible control of data flow.
Features
- The module adopts a convenient and flexible Type-C connector.
- The module has wide compatibility and can be used with a variety of operating systems, including Windows, Mac and Linux, and is suitable for different computers and devices.
- Onboard power supply, TXD, RXD indicators, used to indicate the use status.
- Onboard voltage output level switching switch, which can be switched between 3.3V/5V conveniently and quickly.
- The hardware flow control pins CTS and RTS are derived to meet more applications.
Product parameters
| Size | 45mm (L) x 20mm (H) |
| Supply voltage | 5V(from USB Type-C) |
| Logic voltage | 3.3V |
| Serial communication interface chip | CP2102-GMR |
| Baudrate | 300bps ~ 1Mbps |
Resource Profile
① Onboard power indicator
②&⑥ Reserve 2.54mm pitch control pin pad
③ TXD LED indicator
④ UART(TTL) interface pin header
⑤ RXD LED indicator
⑦ 3.3V/5V voltage output level switching slide switch
⑧ USB Type-C connector
WIKI
Package Contents

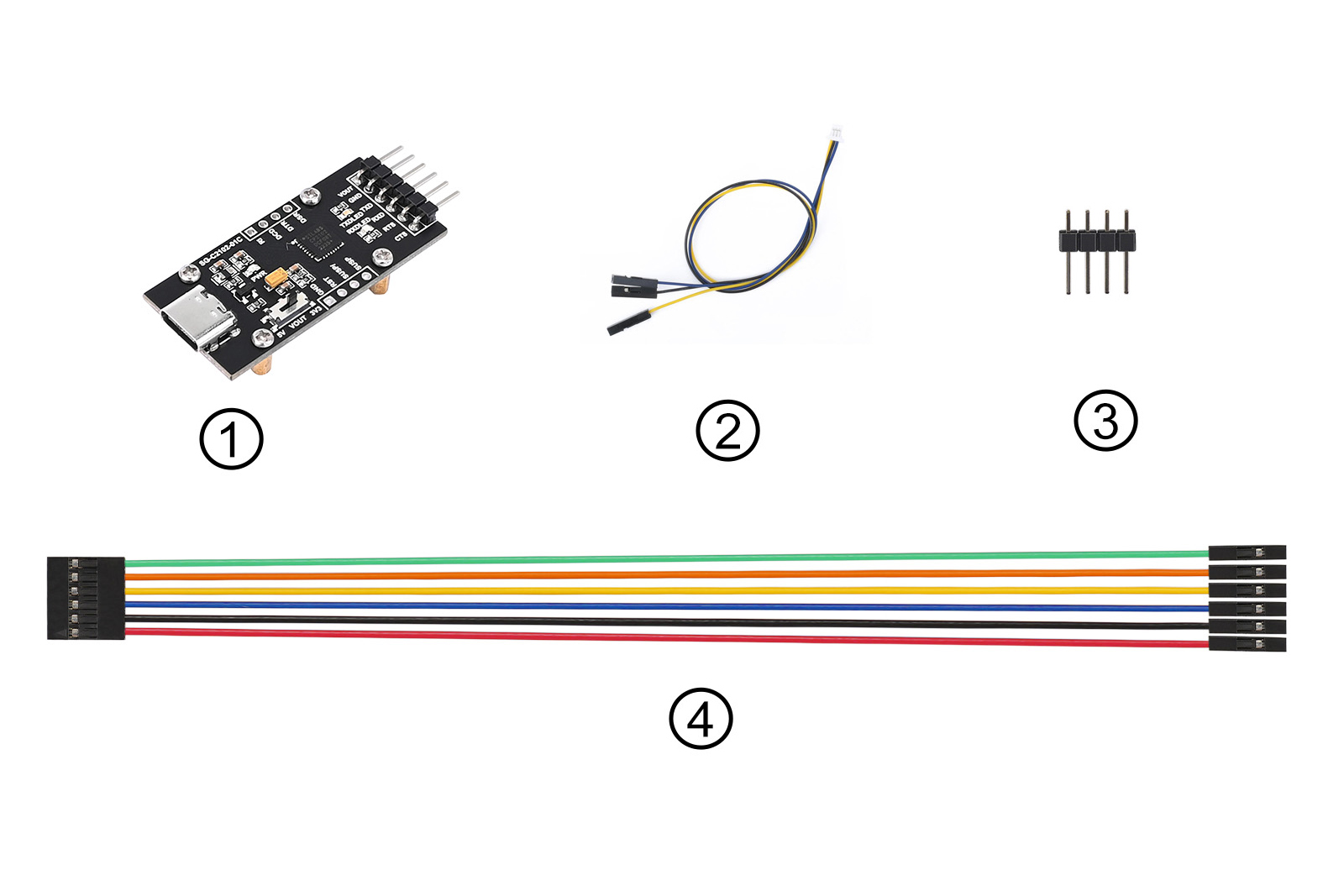

- SG-C2102-01C *1
- Type-C male to USB male *1
- PH1.0-3P Dupont *1
- 4-pin male pinheader *2
- 6-pin custom connector jumper wire *1
