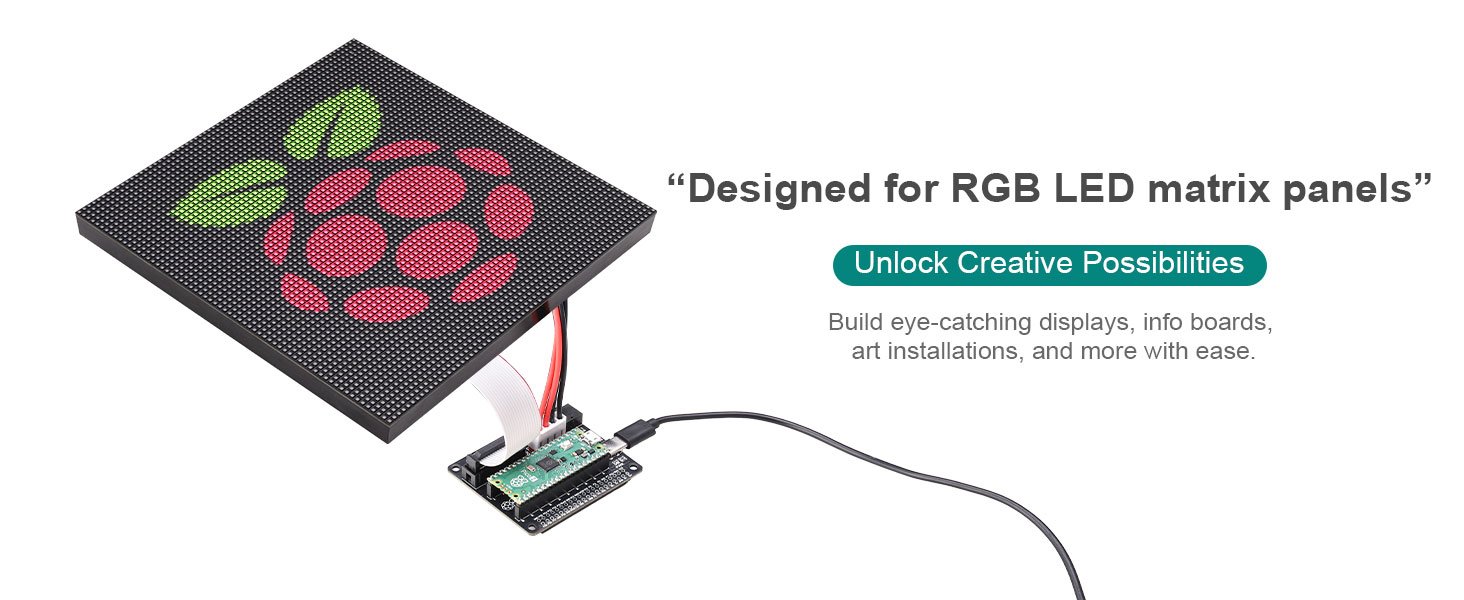

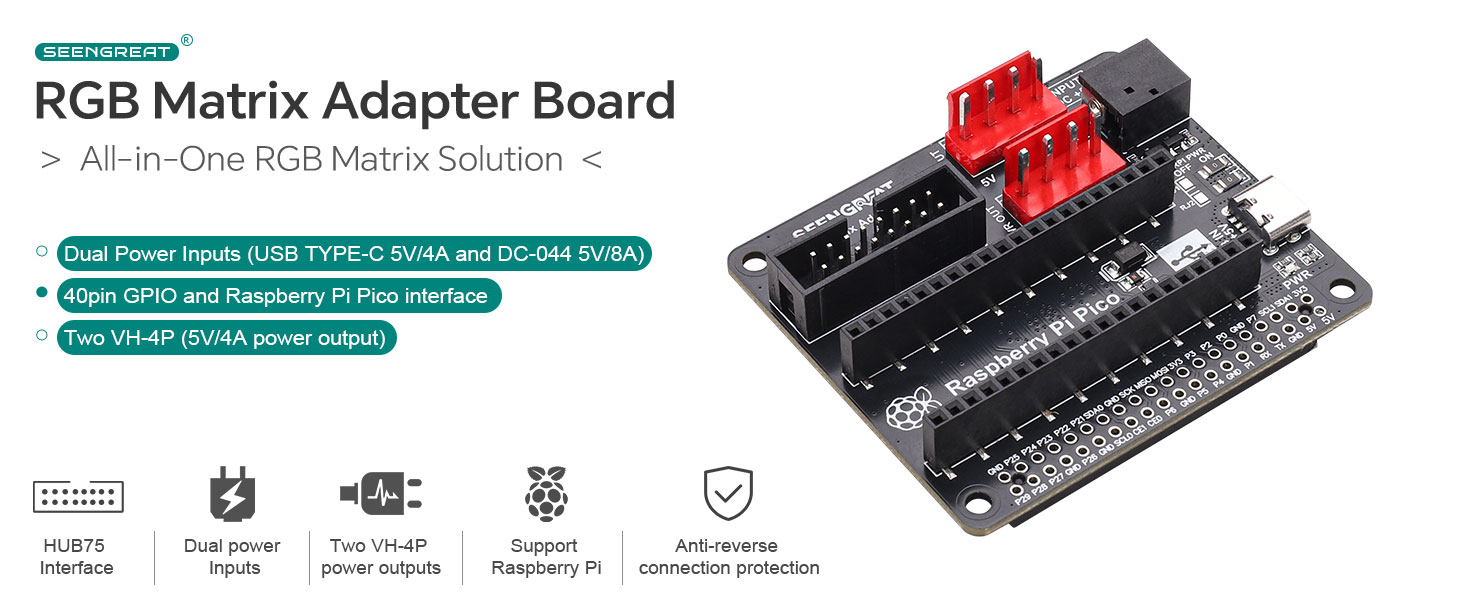

Product features:
- A set of 40pin GPIO connectors for motherboards of Raspberry Pi series
- A set of Raspberry Pico connectors for Raspberry Pi Pico
- Dual power input ports , 1. USB TYPE-C 5V/4A 2.DC-044 5V/8A
- Two VH-4P(3.96mm pitch) power supply connectors for RGB LED matrix panel
- One HUB75 interface
Compatibility Showcase

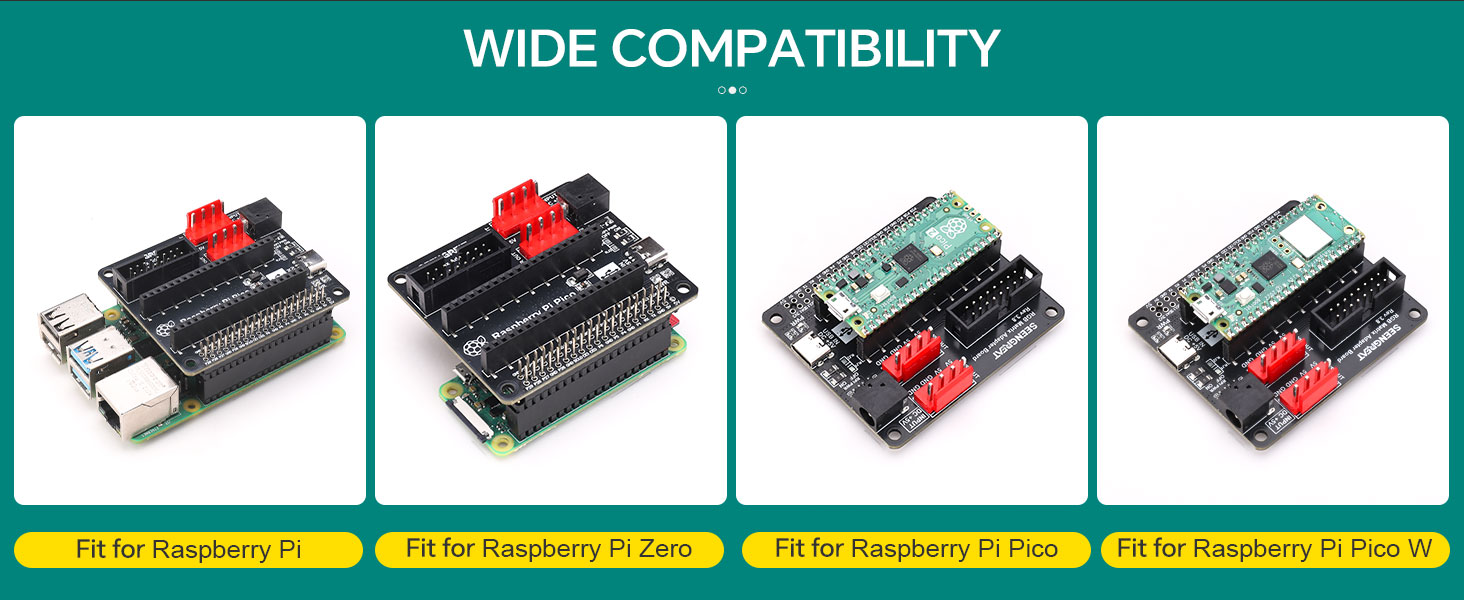

Perfect Fit for Raspberry Pi 4B/3B+,Plug & Play with Raspberry Pi Pico
Note: Connection diagram Raspberry Pi board is not included
Power Solution Showcase

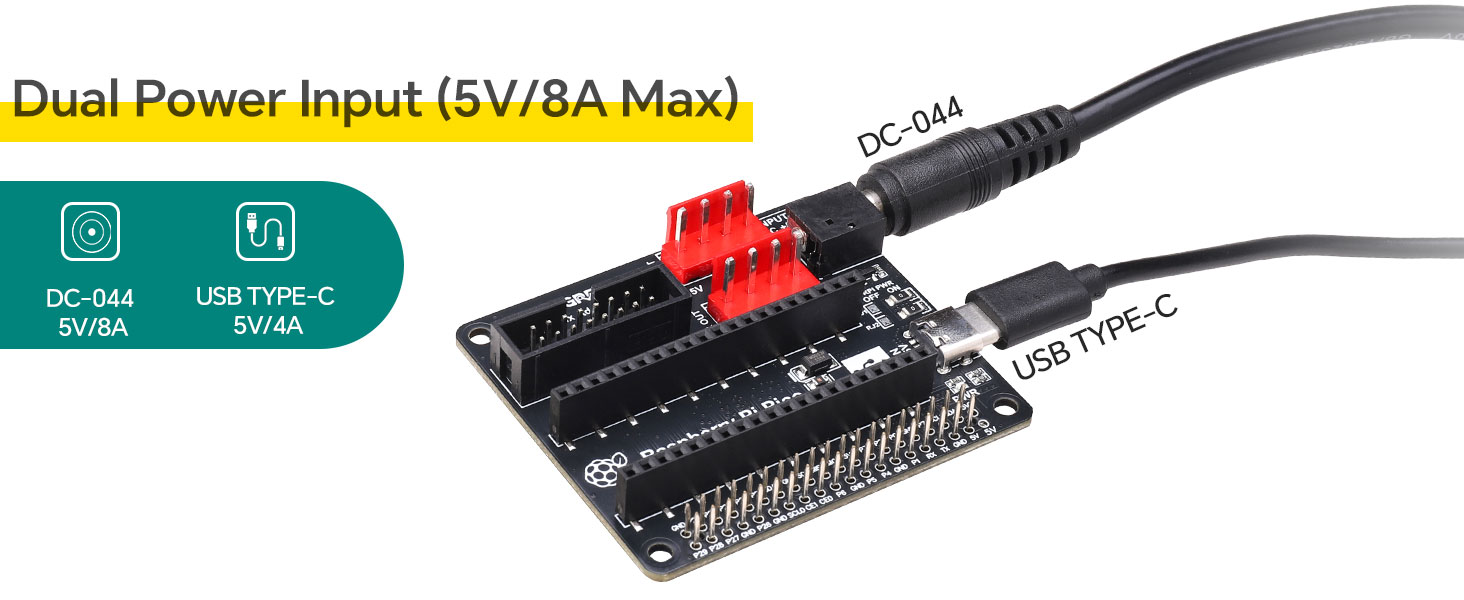

Dual power input ports： 1. USB TYPE-C 5V/4A 2.DC-044 5V/8A
Choose USB-C or DC jack. Deliver stable power for large panels & Pi simultaneously.
Easily connect to RGB screens
Dual Inputs: Use either a USB-C cable or a DC-044 jack (5V/8A max) for flexibility.

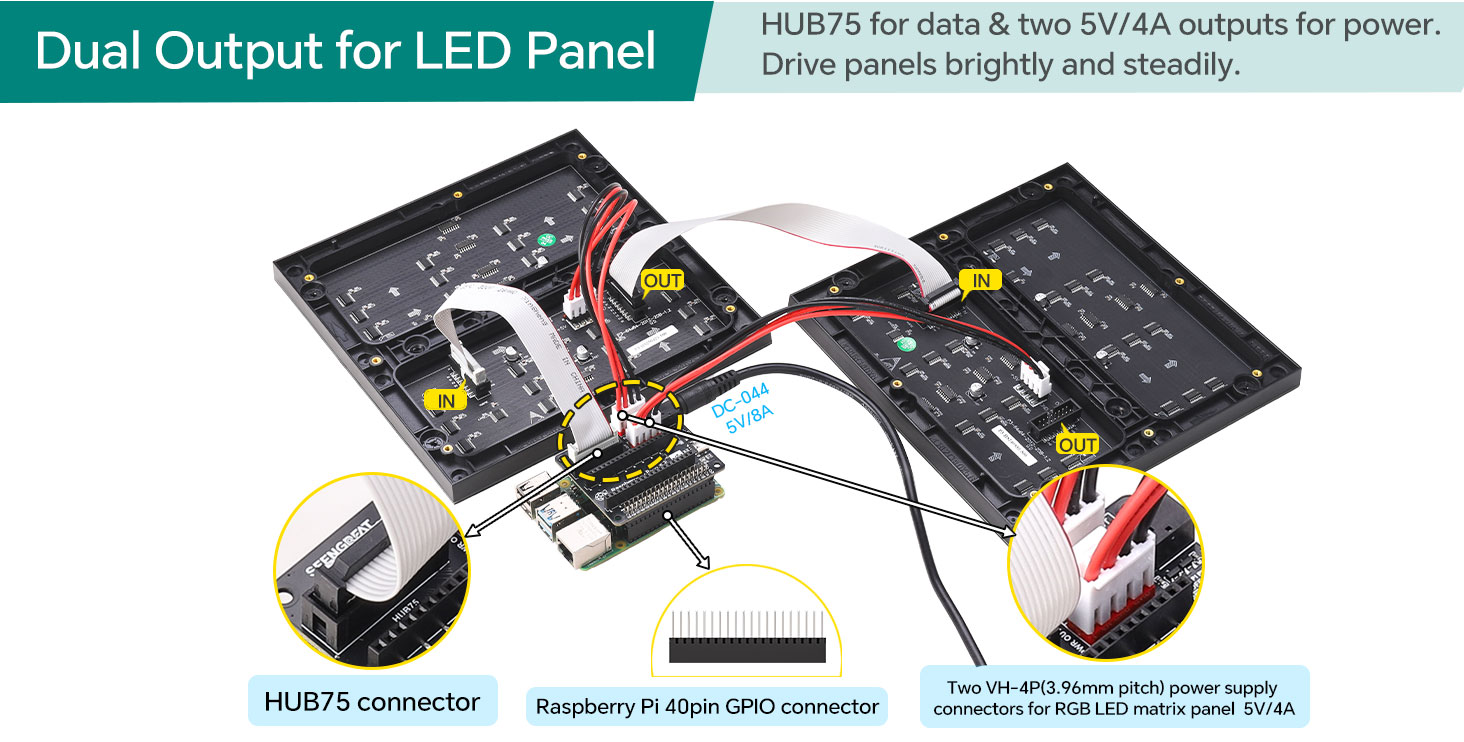

Dual Outputs:Two dedicated VH-4P connectors deliver stable 5V/4A power directly to your LED panel, preventing voltage drop.A set of 40pin GPIO connectors for motherboards of Raspberry Pi series
Simple Connection Guide
Direct connection without messy wires. Ideal for compact and portable projects.

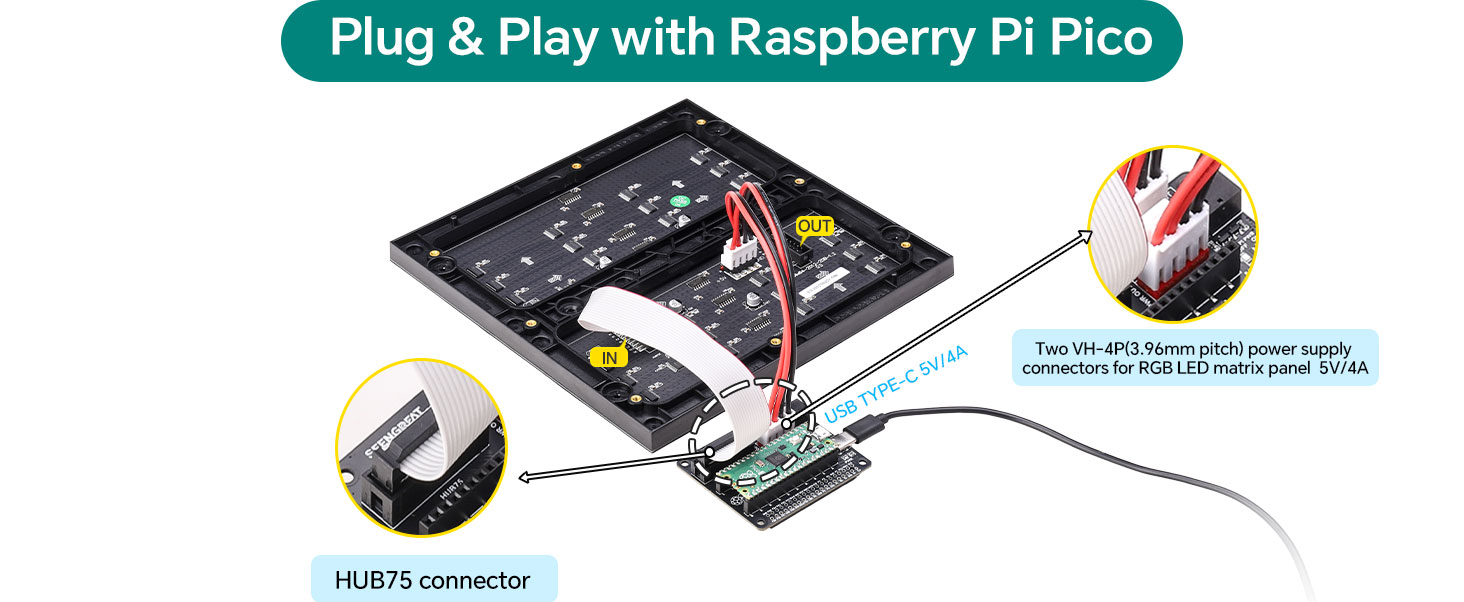

For Pico: Plug it directly into the designated headers. Clear pin labels make wiring foolproof.
Correspondence Relationship between HUB75 and Raspberry Pi Series Motherboard Connectors
| Mark | Pin Description | BCM Number | Mark | Pin Description | BCM Number |
|---|---|---|---|---|---|
| R1 | R higher bit data | 11 | G1 | G higher bit data | 27 |
| B1 | B higher bit data | 7 | GND | Ground | GND |
| R2 | R lower bit data | 8 | G2 | G lower bit data | 9 |
| B2 | B lower bit data | 10 | E | E line selection | 15 |
| A | A line selection | 22 | B | B line selection | 23 |
| C | C line selection | 24 | D | D line selection | 25 |
| CLK | Clock input | 17 | LAT | Latch pin | 4 |
| OE | Output enable | 18 | GND | Ground | GND |
Correspondence Relationship between HUB75 and Raspberry Pi Pico Connectors
| Mark | Pin Description | Pico Pin | Mark | Pin Description | Pico Pin |
|---|---|---|---|---|---|
| R1 | R higher bit data | GP02 | G1 | G higher bit data | GP03 |
| B1 | B higher bit data | GP04 | GND | Ground | GND |
| R2 | R lower bit data | GP05 | G2 | G lower bit data | GP08 |
| B2 | B lower bit data | GP09 | E | E line selection | GP22 |
| A | A line selection | GP10 | B | B line selection | GP16 |
| C | C line selection | GP18 | D | D line selection | GP20 |
| CLK | Clock input | GP11 | LAT | Latch pin | GP12 |
| OE | Output enable | GP13 | GND | Ground | GND |
Specifications

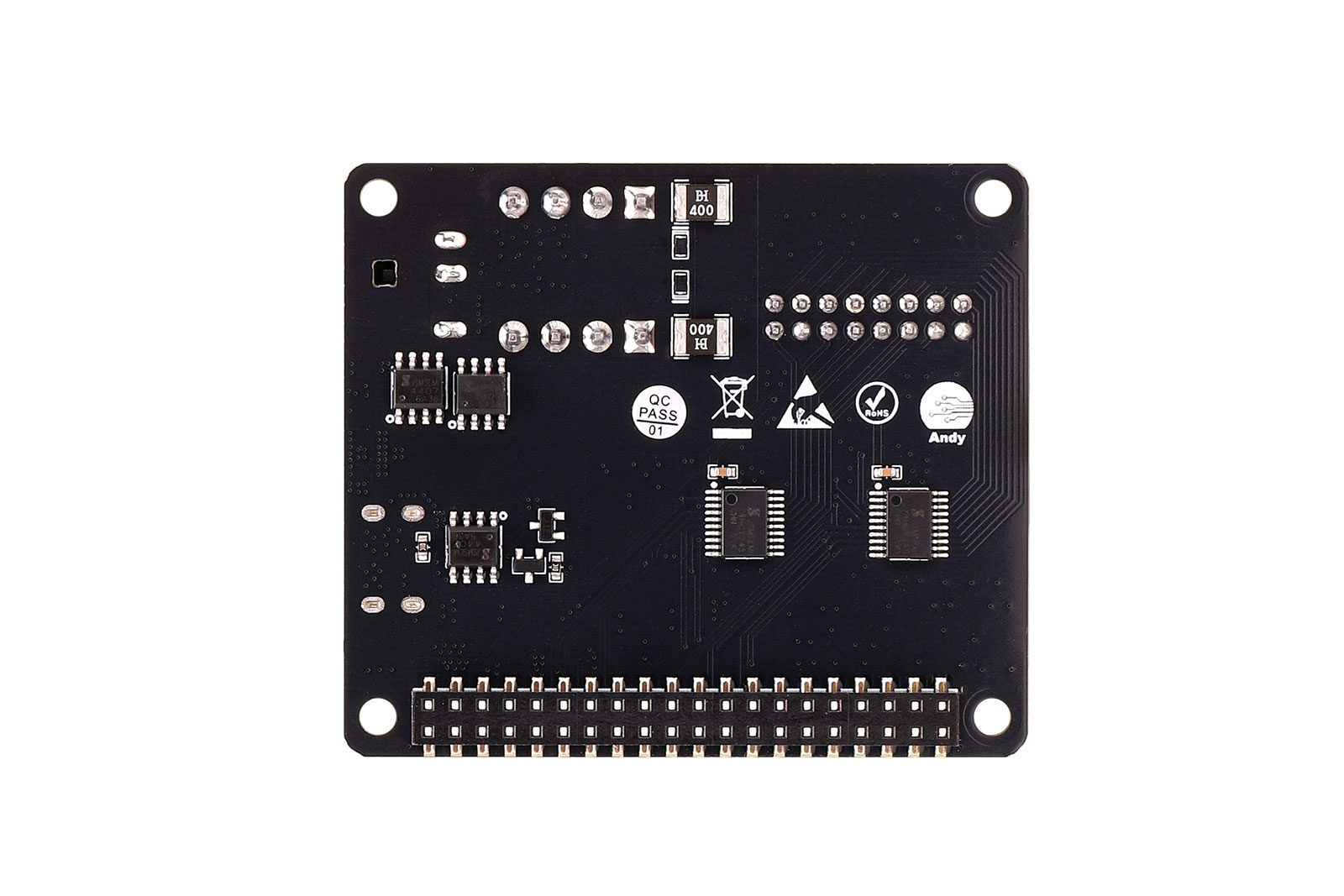

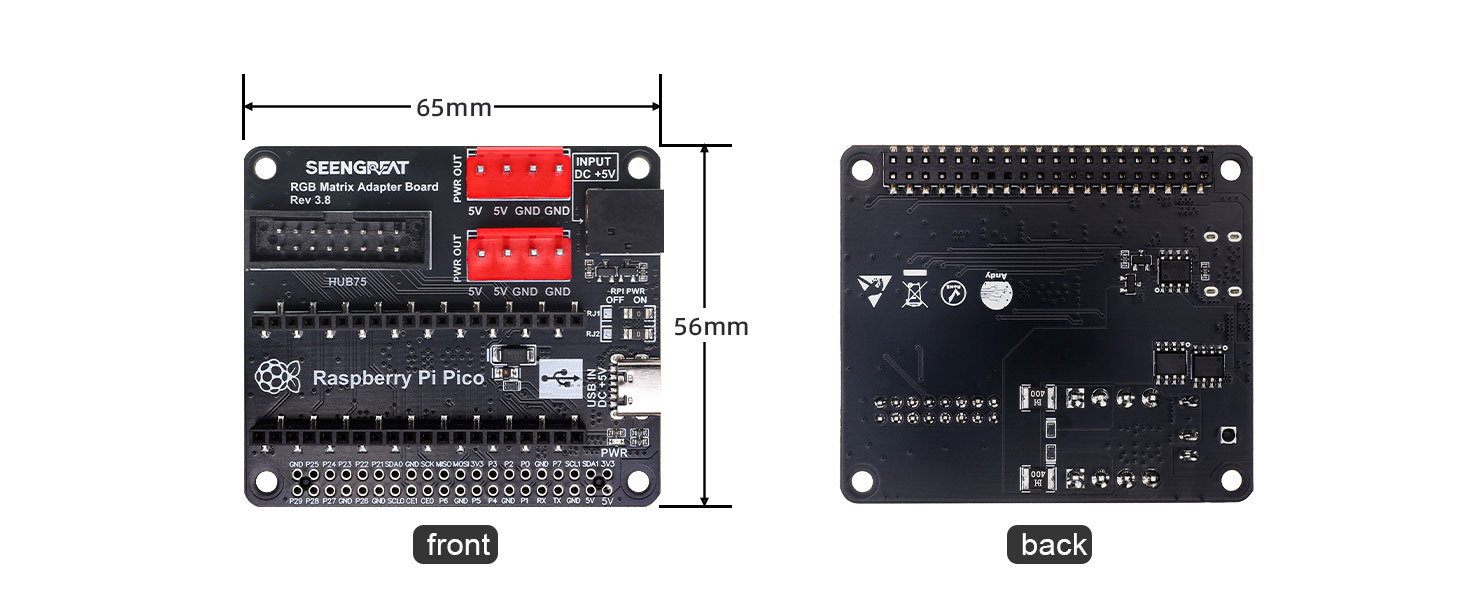

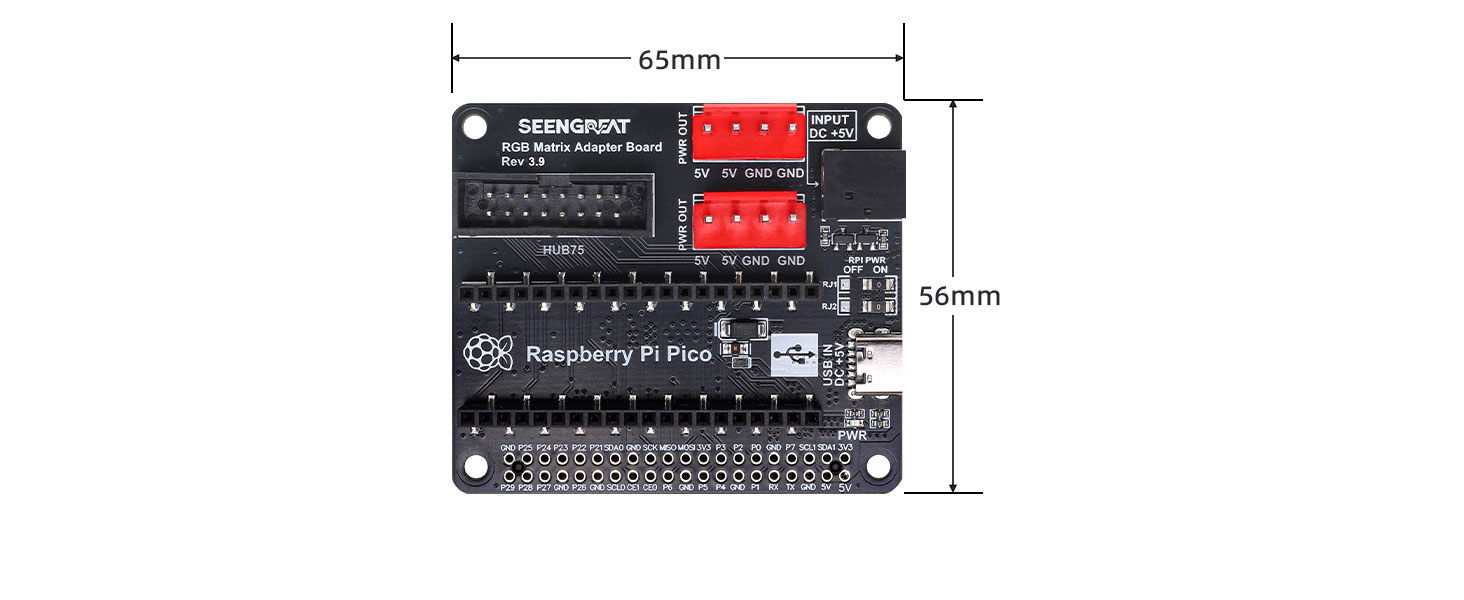

| Dimensions | 65mm(Length) x 56.5mm(Width) |
| Power Input Connector | USB TYPE-C 5V/4A or DC-044 5V/8A |
| Power Output Connector | Two VH-4P(3.96mm pitch) power supply connectors for RGB LED matrix panel 5V/4A |
| RGB LED Matrix Panel Interface | HUB75 |
| Data Interface | Raspberry Pi 40pin GPIO or Raspberry Pi Pico headers |
Product Parameters

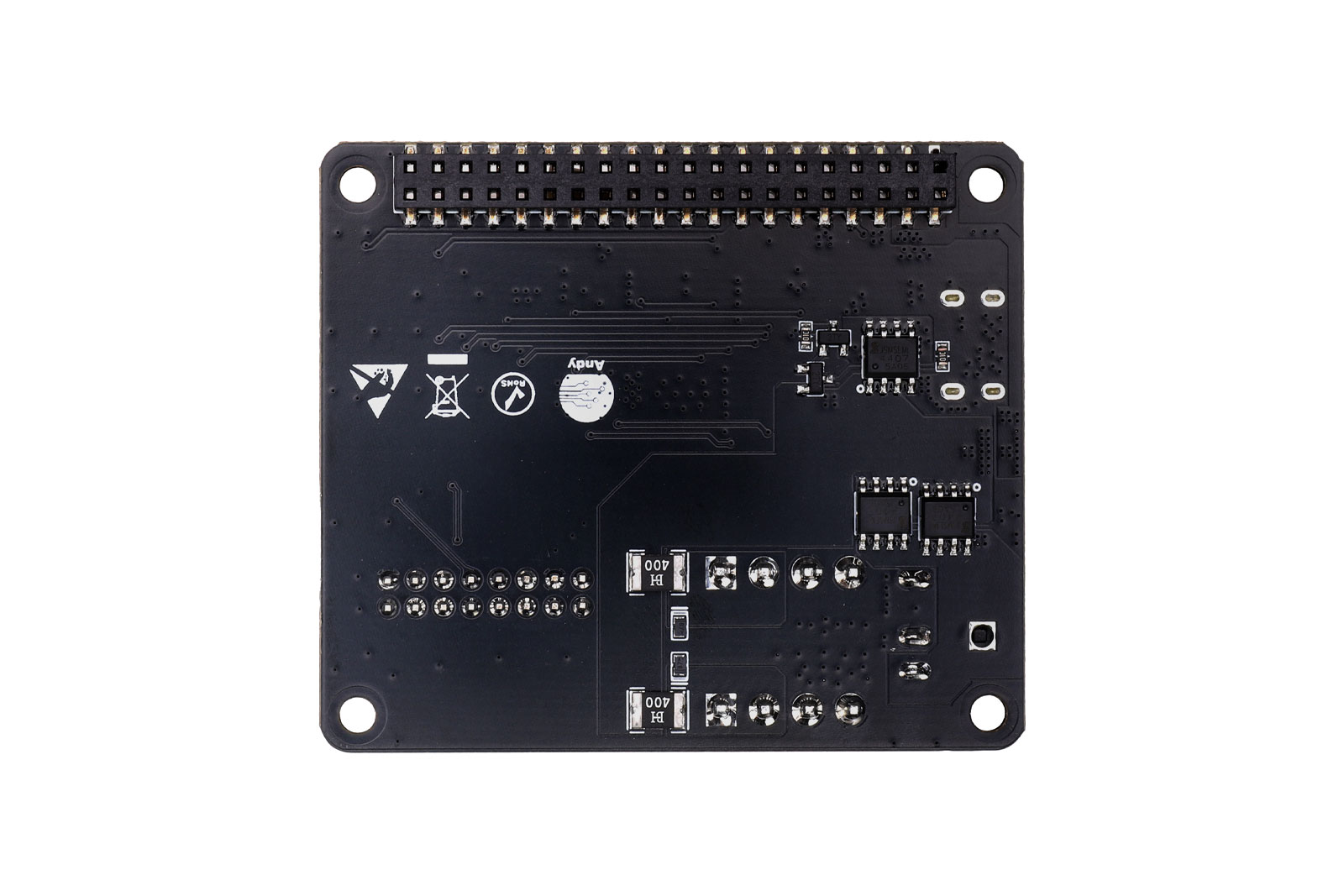

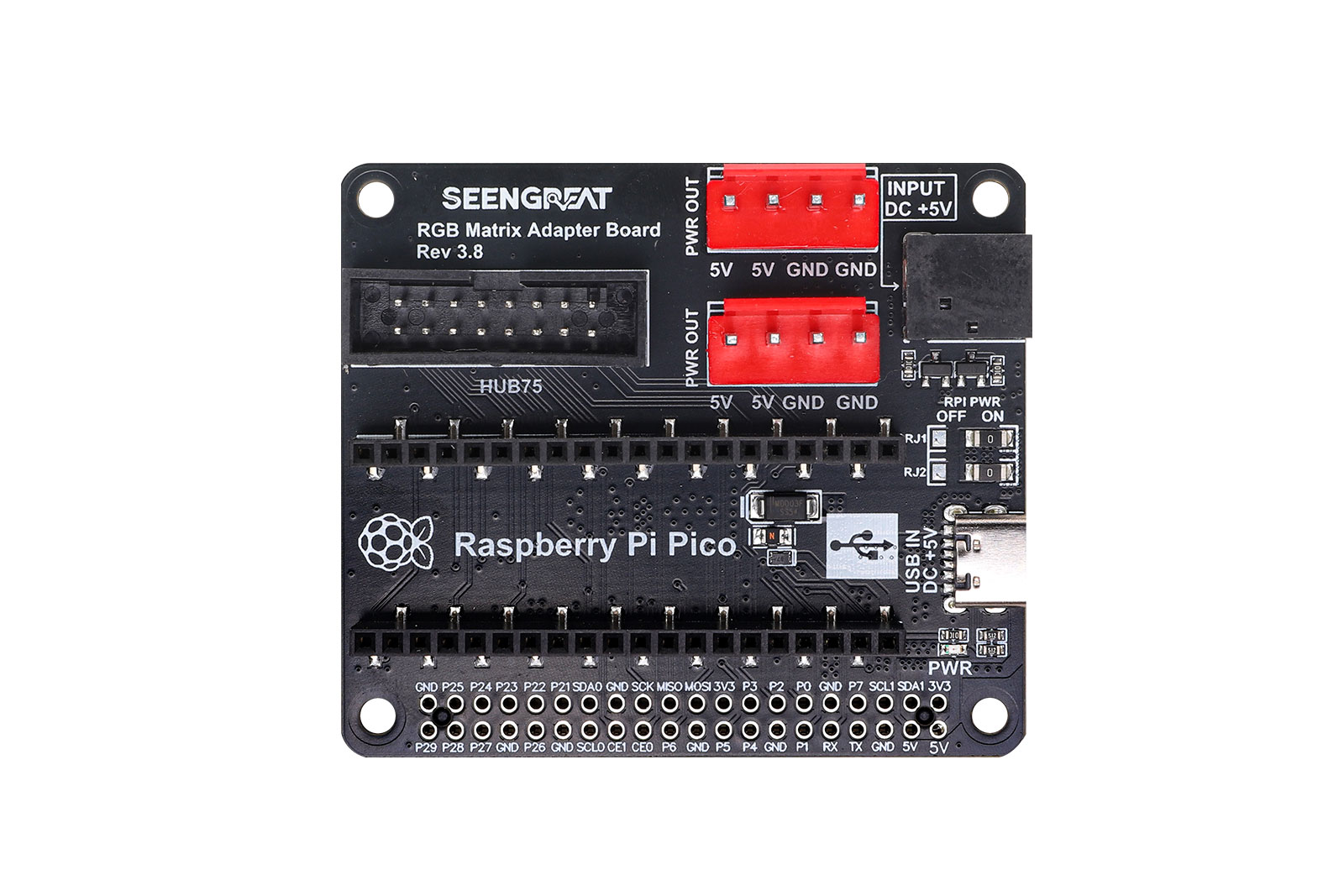

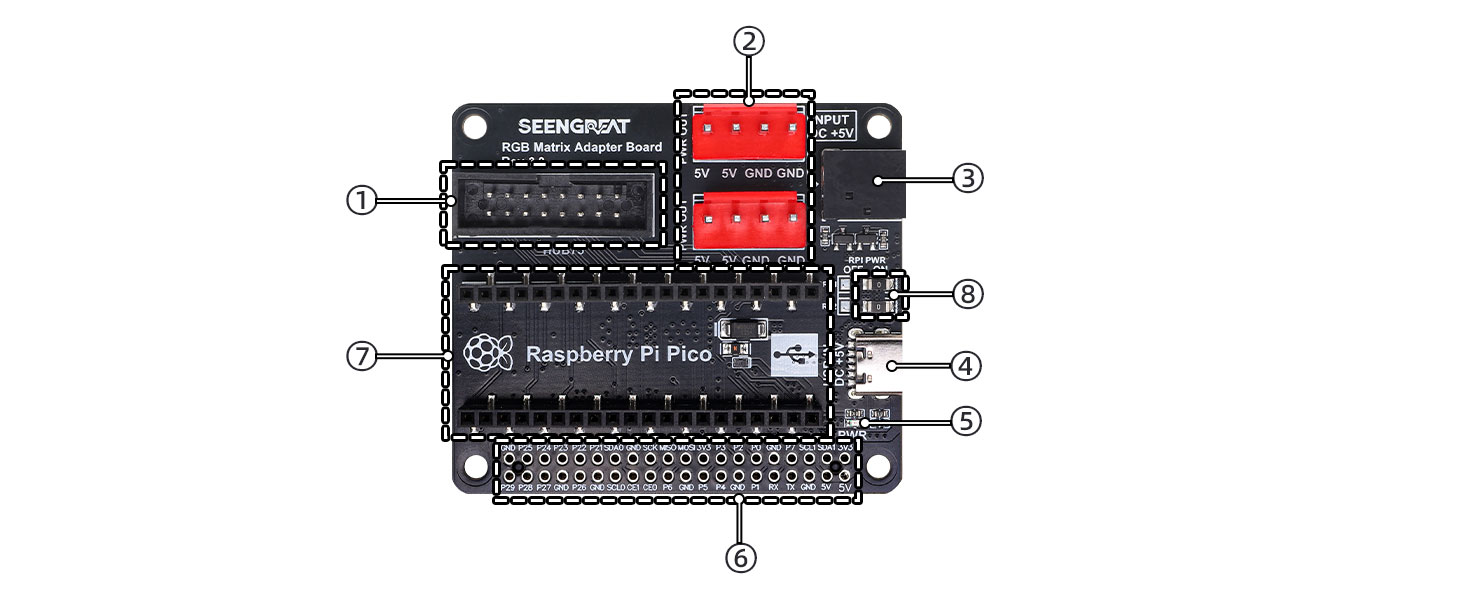

Resource Overview
1. HUB75 interface
2. 2 sets of VH-4P RGB LED matrix panel power supply connector
3. DC-044 5V power input connector
4. USB TYPE-C 5V power input connector
5. Power Indicator
6. Raspberry Pi 40pin GPIO connector
7. Raspberry Pi Pico connector
8. Raspberry Pi 5V power supply 0R resistor
WIKI:
Package Contents
- 1. RGB Matrix Adapter Board x1
- 2. 40pin header receptacle x1
- 3. Signal wire x1
- 4. Power supply wire x2
- 5. Accessory pack x1
- 6.Type-C cable x1
