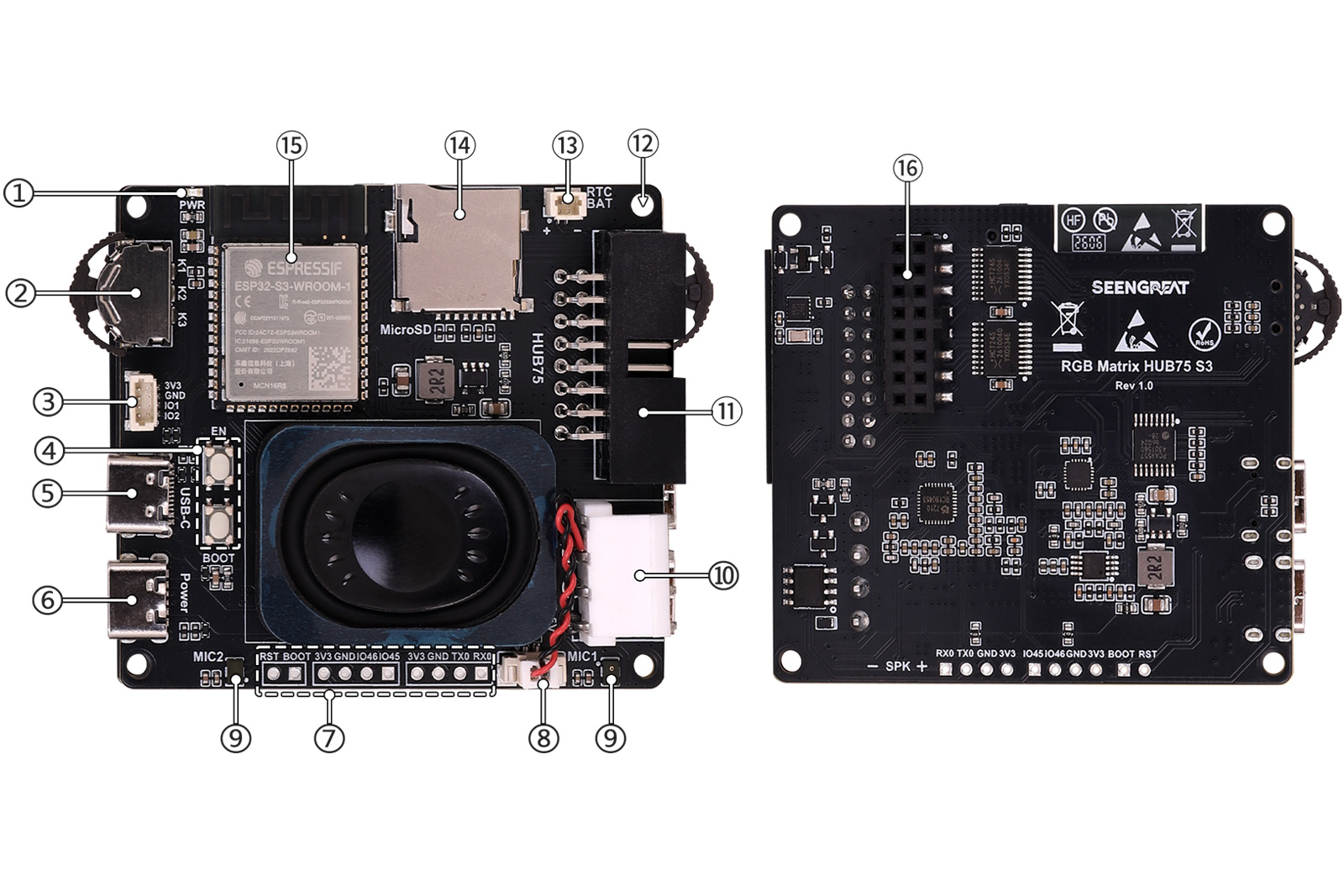

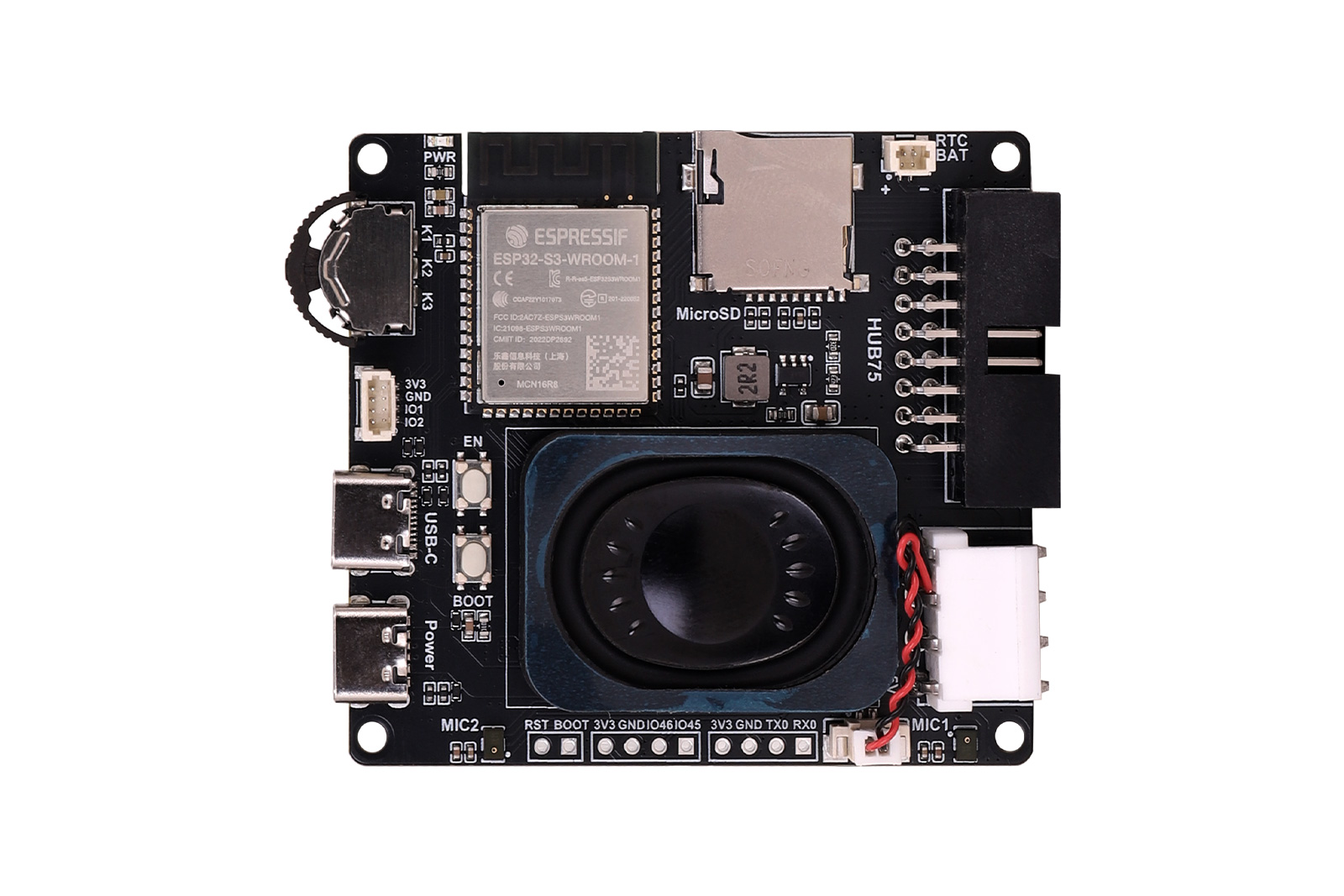

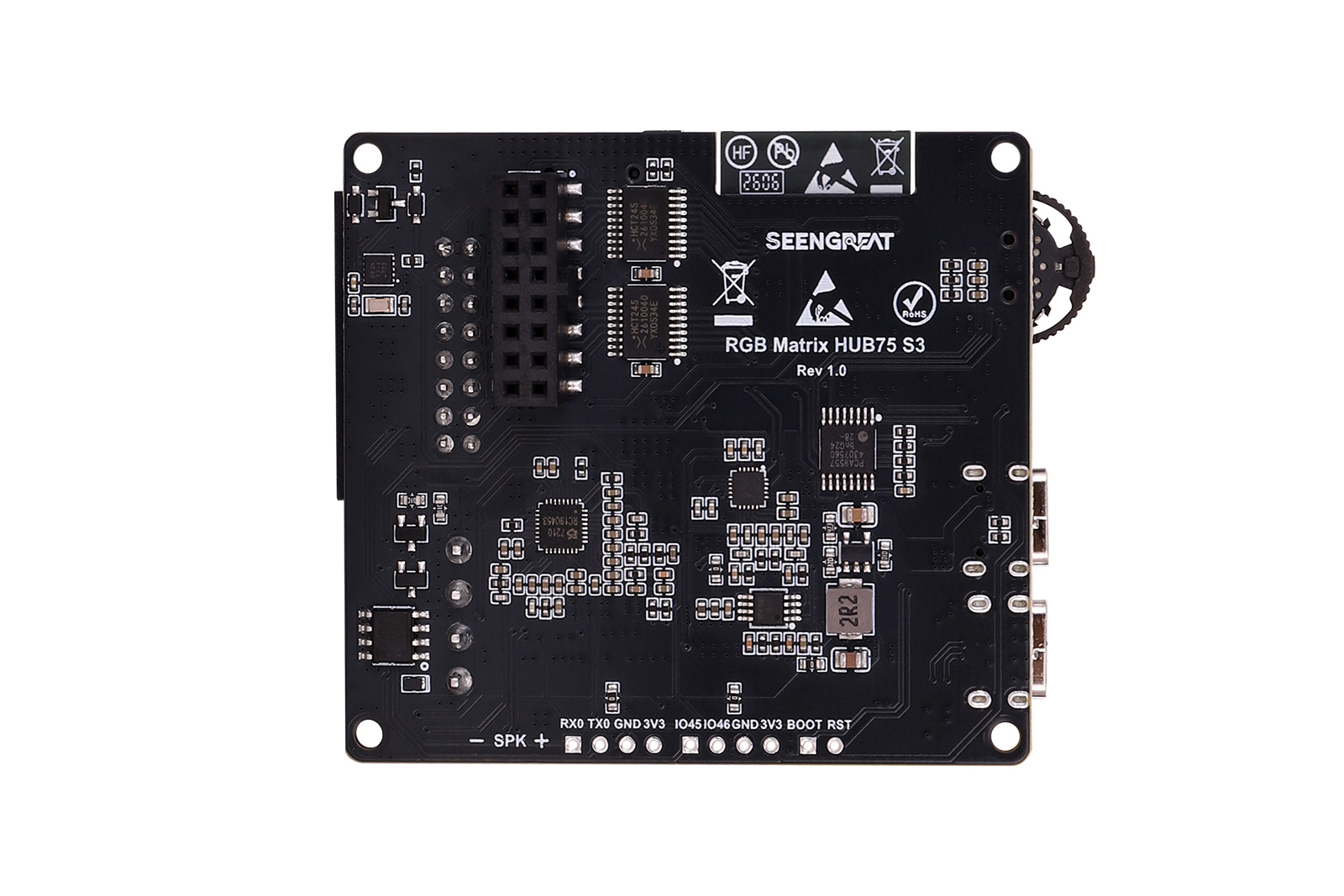

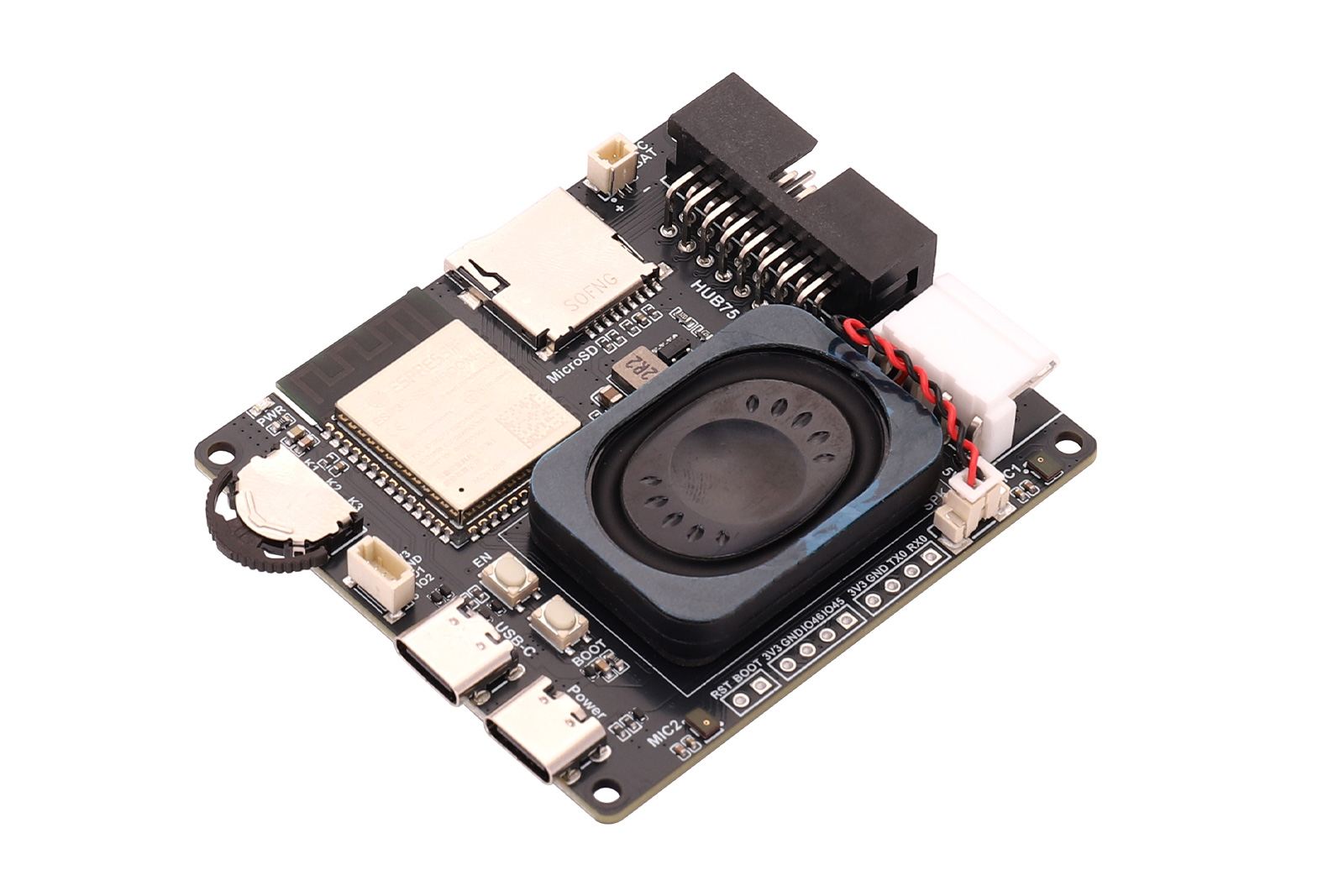

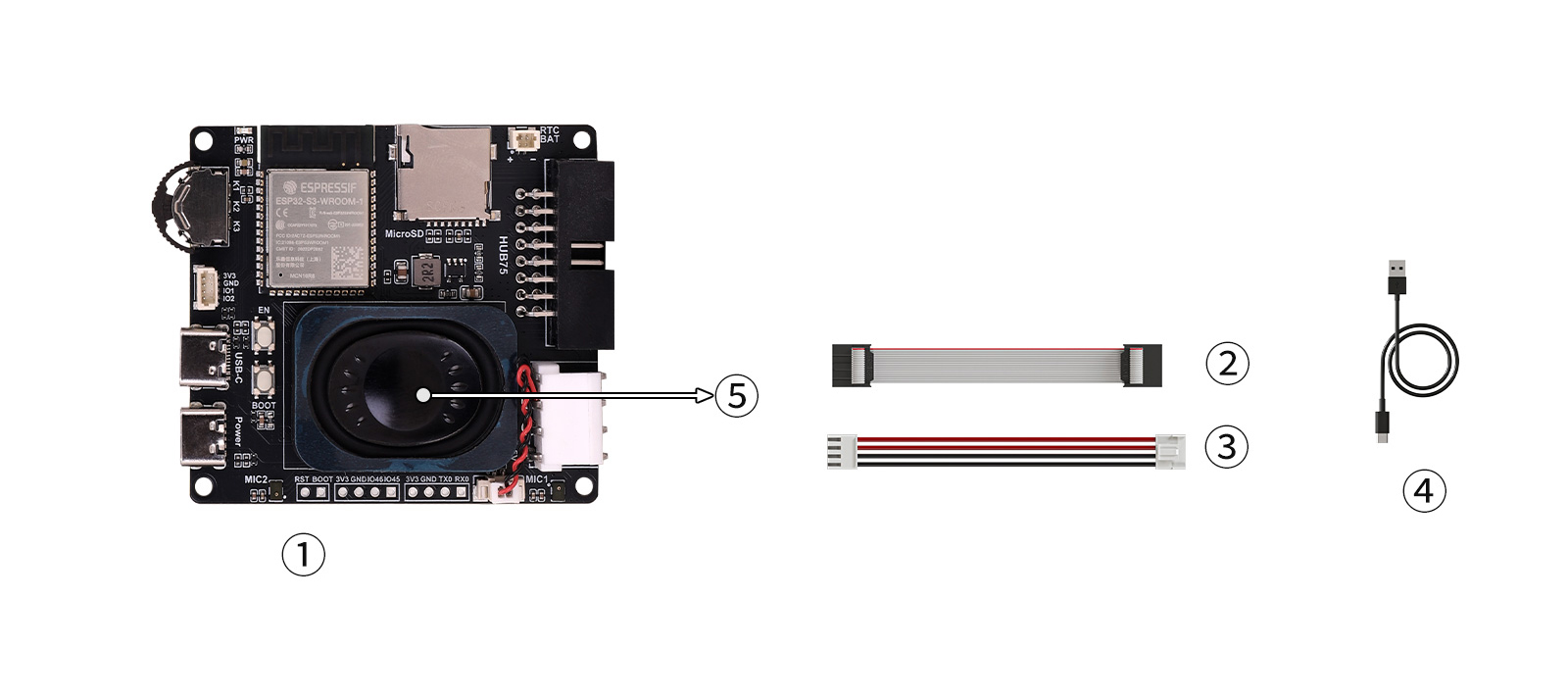

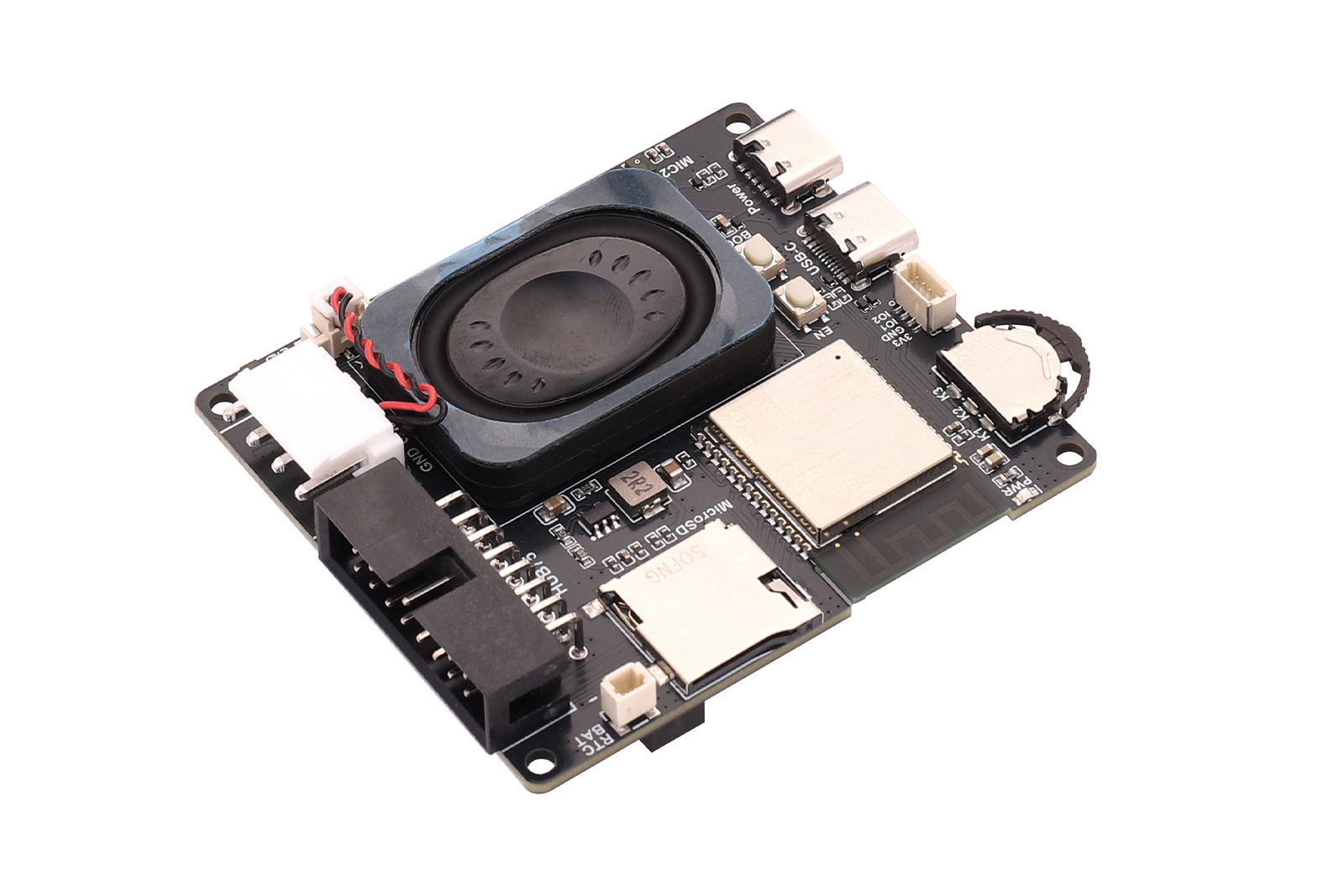

RGB Matrix HUB75 S3 – ESP32-S3 Based LED Matrix Controller Board with Audio, RTC, SD Card Slot, And

SKU: 20260612

Model: RGB Matrix HUB75 S3

Brand: Seengreat

Category: Expansions Boards

$26.90

Quantity

ADD TO CART

Price of quantity discount

Quantity	10 - 49	50 - 99	100 and above
Discount	$25.56	$25.02	$24.48

Ask a question about this product

I. Product Overview

This product uses the ESP32-S3 as the main controller, features an onboard HUB75 interface, and can directly connect to HUB75 RGB LED matrices for display control. It also includes a Micro SD card slot for storing images, audio, and other files, enabling offline content playback. The onboard ES7210 audio ADC chip enhances voice processing, while the ES8311 low-power audio codec supports high-quality audio input/output. Dual silicon microphones and a speaker interface enable voice interaction applications. The onboard RTC real-time clock chip and reserved SH1.0 connector for a battery support time retention after power-off. Reserved ESP32-S3 debug and expansion pins (TX0, RX0, IO45, IO46, RST, BOOT) facilitate serial debugging, firmware download, function expansion, and system reset control.

II.Product Features

Onboard ESP32-S3-WROOM-1-N16R8 module with Xtensa® 32-bit LX7 dual-core processor, up to 240MHz, supporting 2.4GHz Wi-Fi and Bluetooth 5 LE; 16MB Flash and 8MB PSRAM – ideal for RGB LED matrix display, image/animation caching, audio interaction, and IoT applications.
Two HUB75 interfaces: one for ribbon cable connection, one for direct plug-in – flexible connection options for displaying text, images, animations, clocks, status info, etc.
Two Type-C ports: one for board power, matrix power, and program download/debugging; another (Power Type-C) dedicated for powering the HUB75 RGB LED matrix only.
VH-4P terminal for supplying 5V power to the RGB LED matrix.
ES7210 chip for enhanced voice processing.
ES8311 low-power audio codec for high-quality audio input/output.
Dual silicon microphones and speaker interface for sound capture, playback, and voice interaction.
Micro SD card slot for storing images and audio files – supports offline display, media playback, and local data logging.

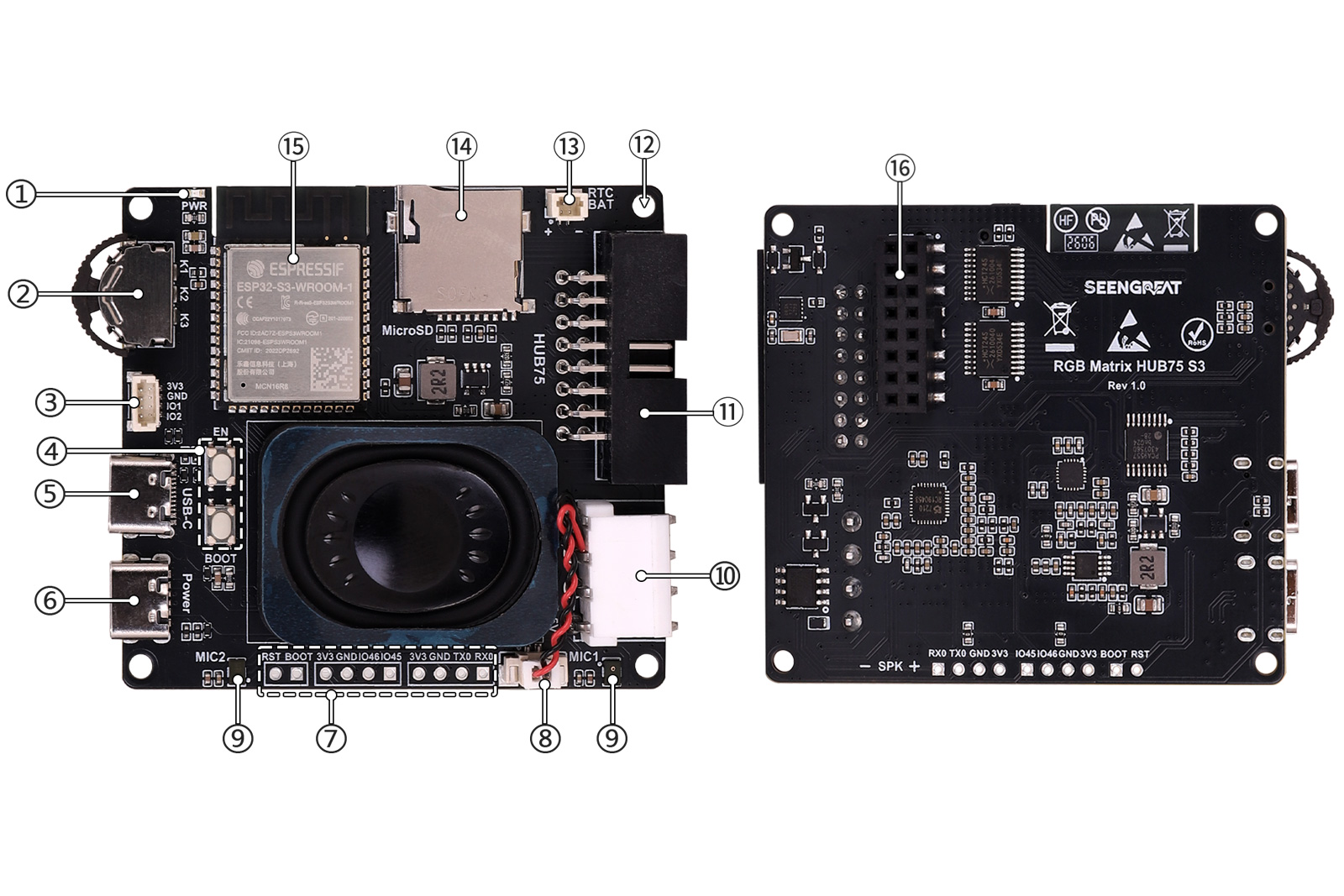

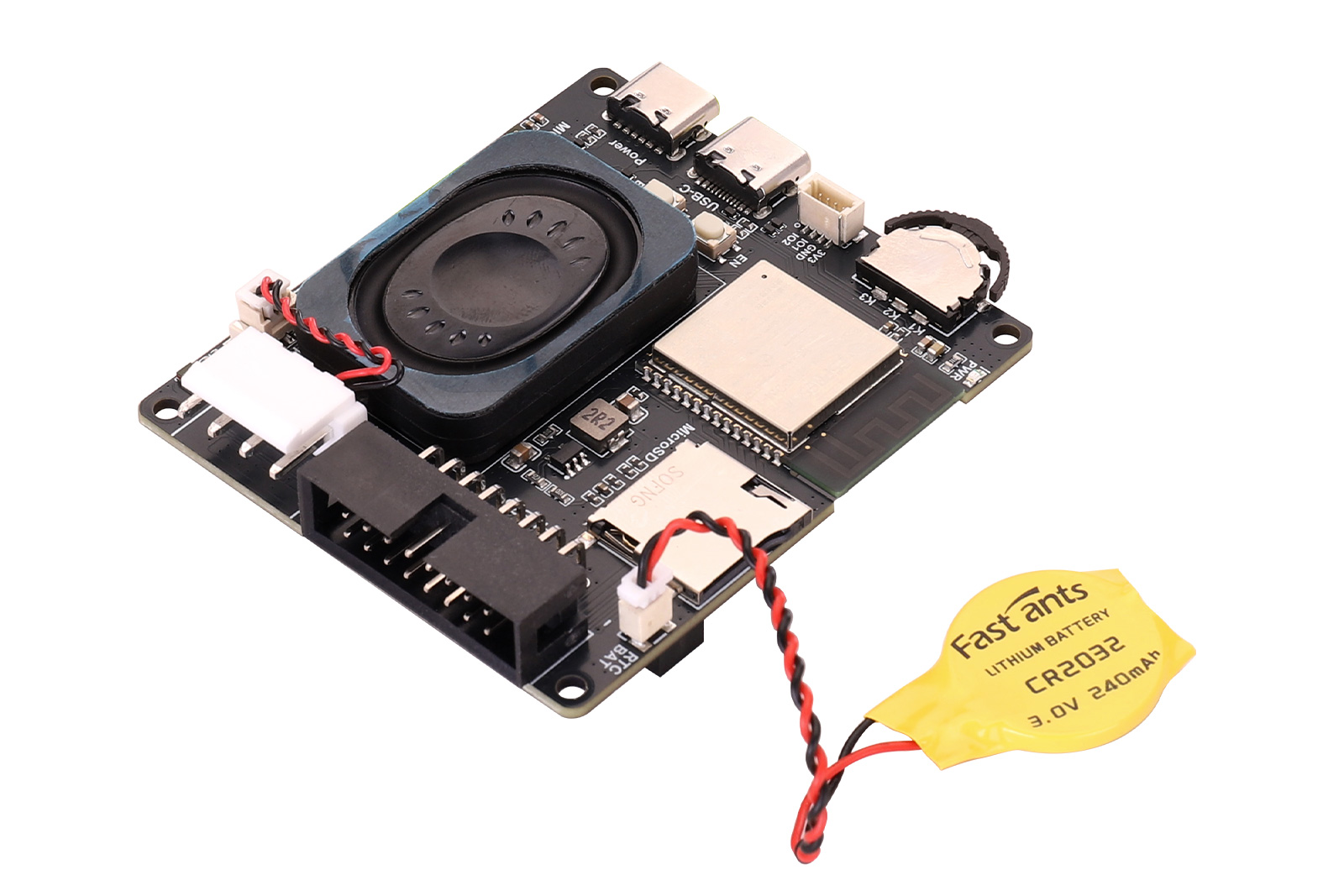

PCF85063 RTC real-time clock chip with battery connector for time retention after power-off.
I2C expansion interface for additional functionality.
3-way thumb wheel switch, EN/BOOT buttons, and breakout pins for BOOT, RST, IO45, IO46, TXD, RXD – easy debugging, expansion, and project integration.

III.Product Parameters

Parameter	Description
Model	RGB Matrix HUB75 S3
Supply Voltage	5V
Power Input Interfaces	Two Type-C 5V inputs (one for board, one dedicated for matrix)
Power Output Interface	VH-4P (3.96mm pitch), max 5V/4A
RGB LED Matrix Interface	HUB75
Mounting Hole Diameter	2.5mm

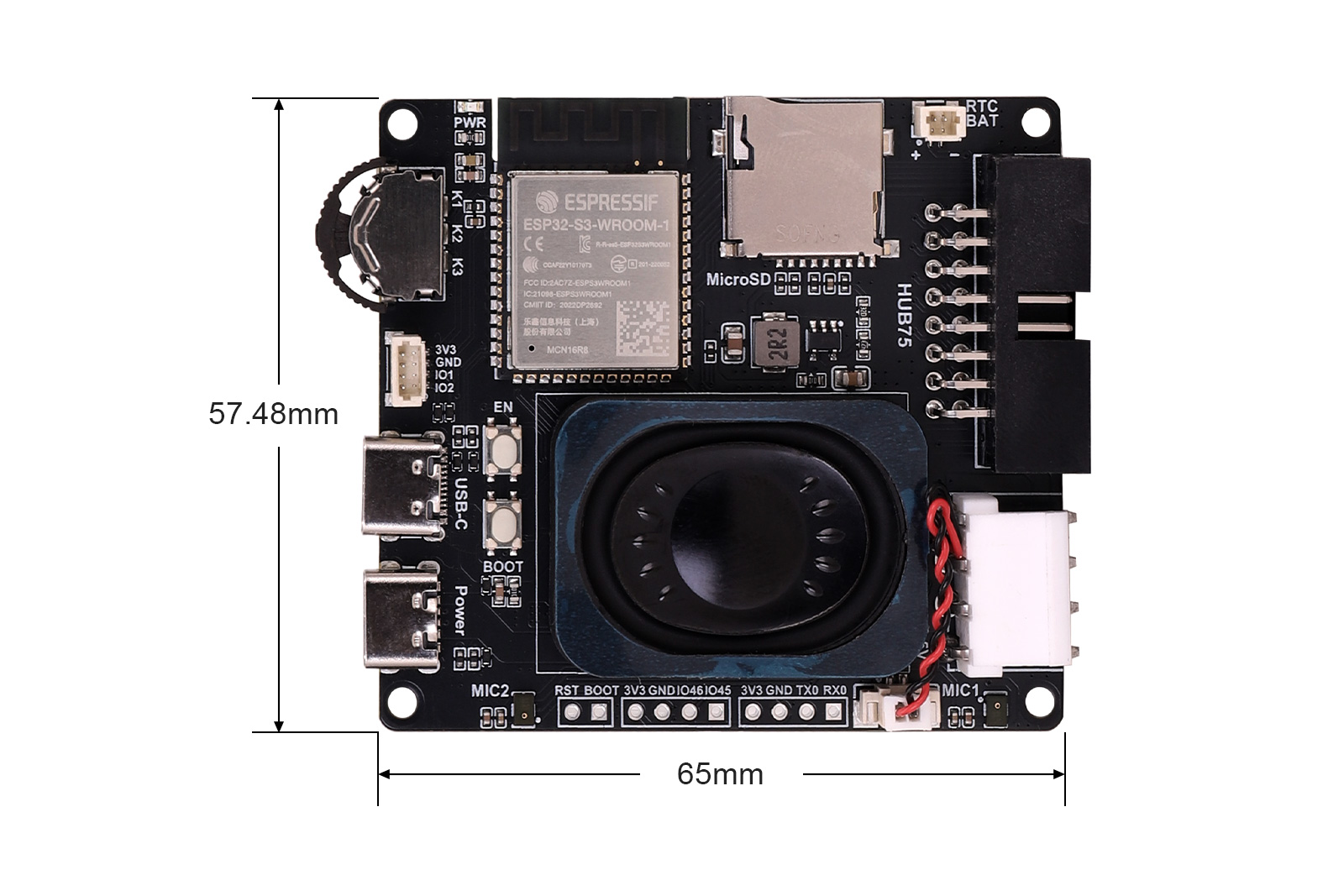

Dimensions	65mm(L) x 57.5mm(W)
