I. Product Overview

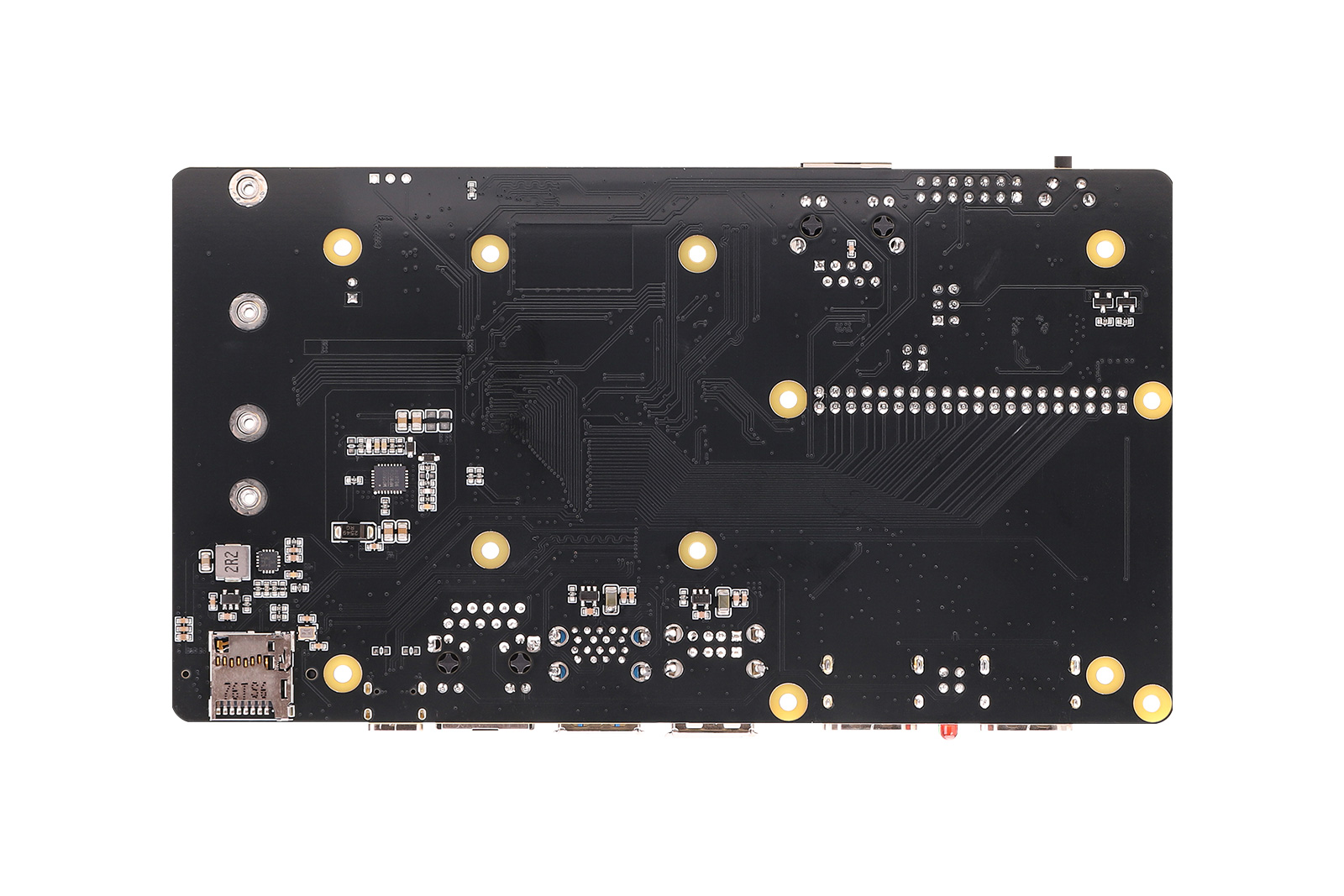

The CM5 PoE 2ETH Carrier is a multifunctional carrier board designed for the Raspberry Pi Compute Module 5. It integrates PoE power supply, dual Ethernet ports, M.2 NVMe SSD, dual HDMI, USB expansion, MIPI camera/display interfaces, RTC battery holder, fan interface, and 40-pin GPIO. It is suitable for industrial control, edge computing, network gateways, video capture, dual Ethernet communication, and embedded terminals. The onboard Gigabit RJ45 port supports PoE, enabling both network communication and power input via a single Ethernet cable, providing 5V system power and 12V power output. Another 100M RJ45 port is also provided for dual-network applications. The board supports M.2 M-Key NVMe SSDs for high-speed storage and system boot. It also retains CM5 peripheral interfaces, including two CAM/DISP connectors, dual HDMI outputs, USB3.0/USB2.0 ports, RTC battery holder, and fan interface, allowing users to quickly build a stable, compact, and feature-rich CM5 application platform.
II.Product Features
- Designed specifically for Raspberry Pi CM5: Provides complete interface expansion for Compute Module 5.
- PoE support: Gigabit RJ45 port supports PoE input, powers the entire board via Ethernet cable, ideal for network cabinets, gateways, surveillance, industrial deployment.
- Dual Ethernet ports: One Gigabit and one 100M RJ45 port for routing, gateway, network isolation, data acquisition.
- M.2 M-Key interface for NVMe SSD, supports high-speed storage and system boot.
- Dual HDMI outputs: HDMI0 and HDMI1 for display or debugging.
- Rich USB interfaces: Dual-stack USB3.0 Type-A and dual-stack USB2.0 Type-A for mouse, keyboard, USB drive, camera, wireless adapter.

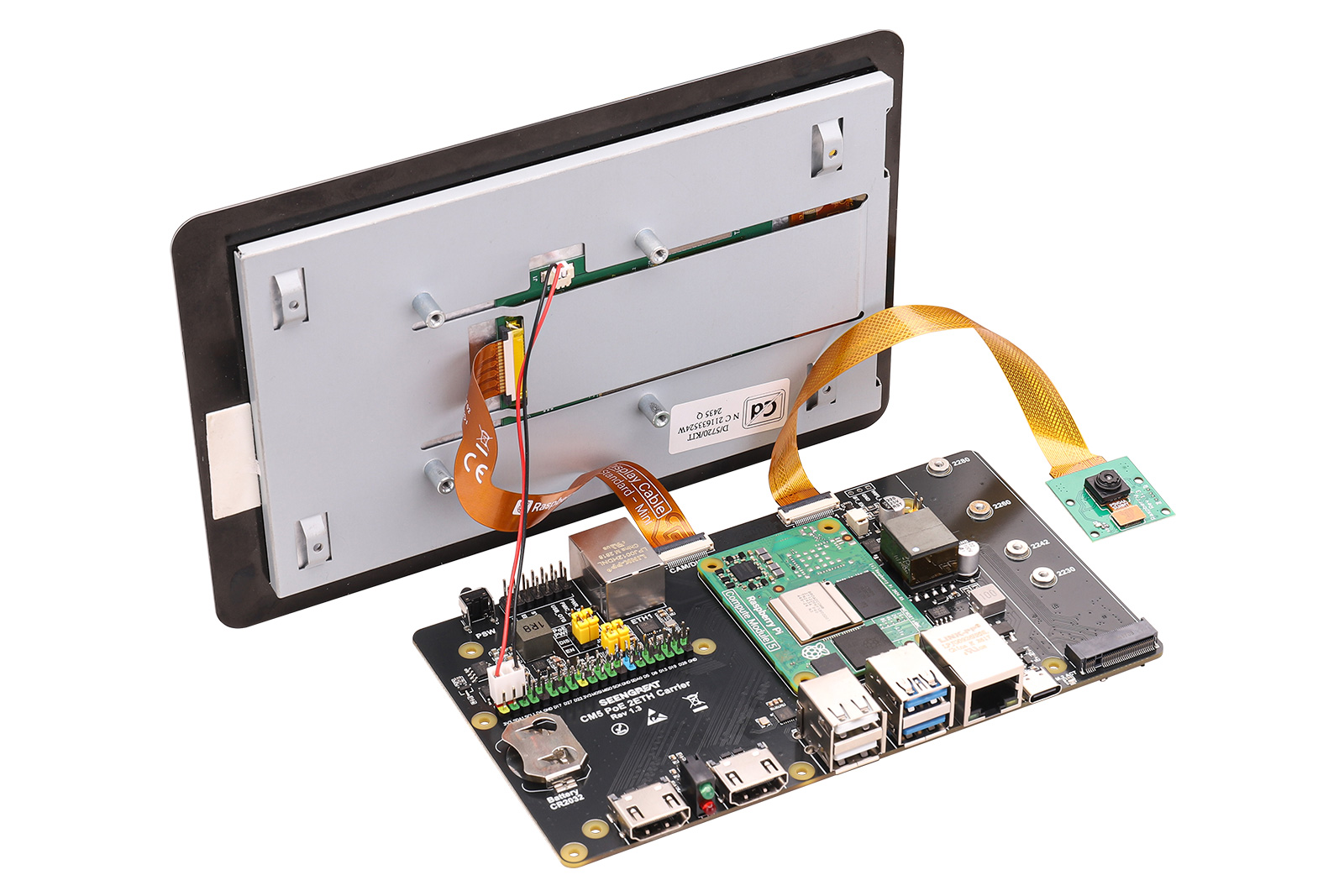

- Dual MIPI camera/display interfaces: CAM/DISP 0 and CAM/DISP 1 for camera or DSI display, suitable for image capture and display.
- 40-pin GPIO header: Standard Raspberry Pi 40-pin GPIO for sensors, HATs, or custom peripherals.
III.Product Parameters
| Parameter | Description |
|---|---|
| Compatible Core Module | Raspberry Pi Compute Module 5 |
| Power Supply | PoE / USB-C |
| Network Interfaces | 1× Gigabit RJ45 (PoE input)1× 100M RJ45 |
| USB Interfaces | 2× USB3.0 Type-A2× USB2.0 Type-A |
| Display Interfaces | 2× HDMI |
| Storage Expansion | MicroSD card slot (for non-eMMC version)M.2 M-Key NVMe SSD interface |
| MIPI Interfaces | 2× CAM/DISP interfaces |
| Fan Interface | 5V, 4-pin JST-SH PWM fan connector |
| RTC BAT | CR2032 RTC battery holder |

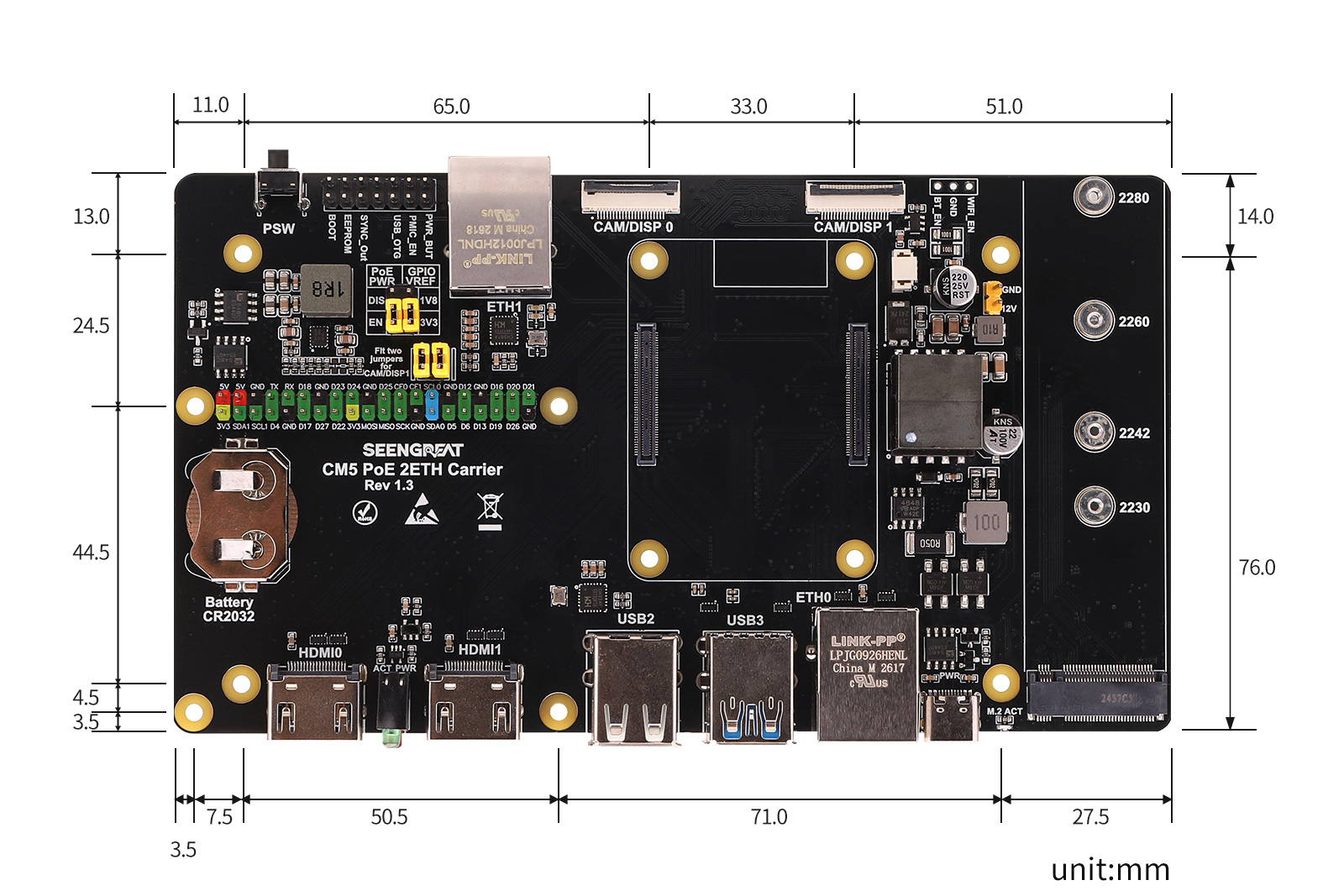

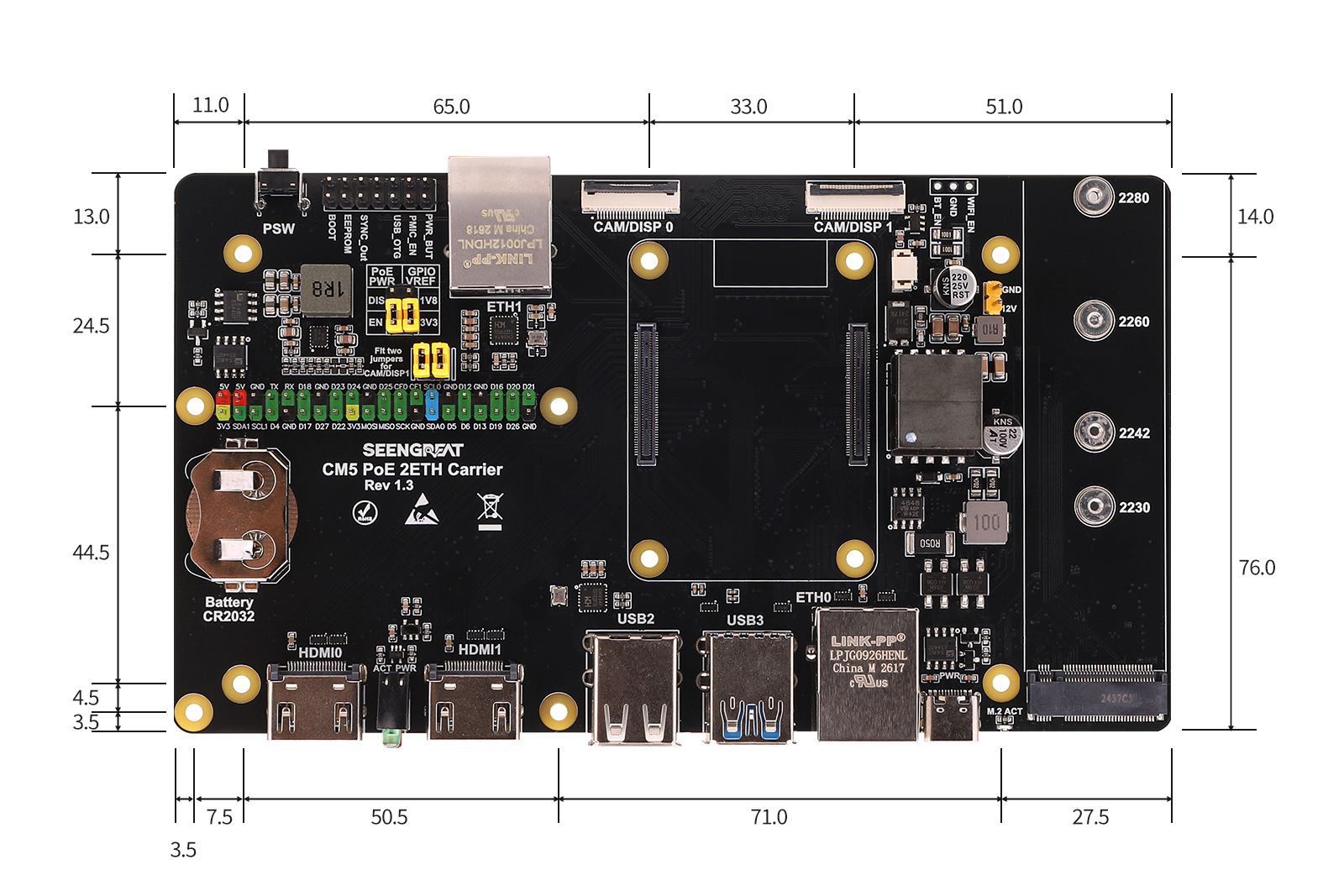

| Dimensions | 160mm × 90mm |

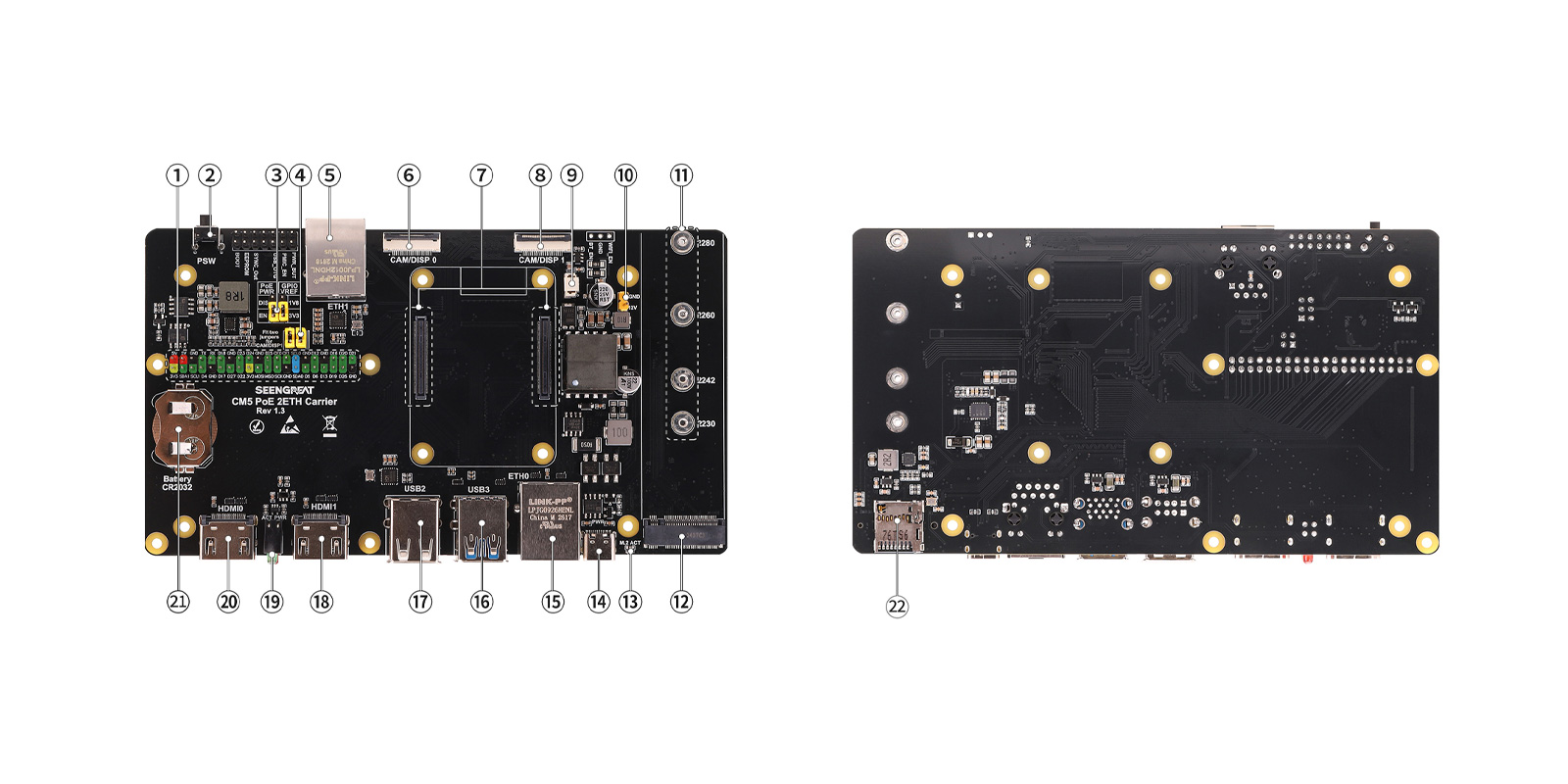

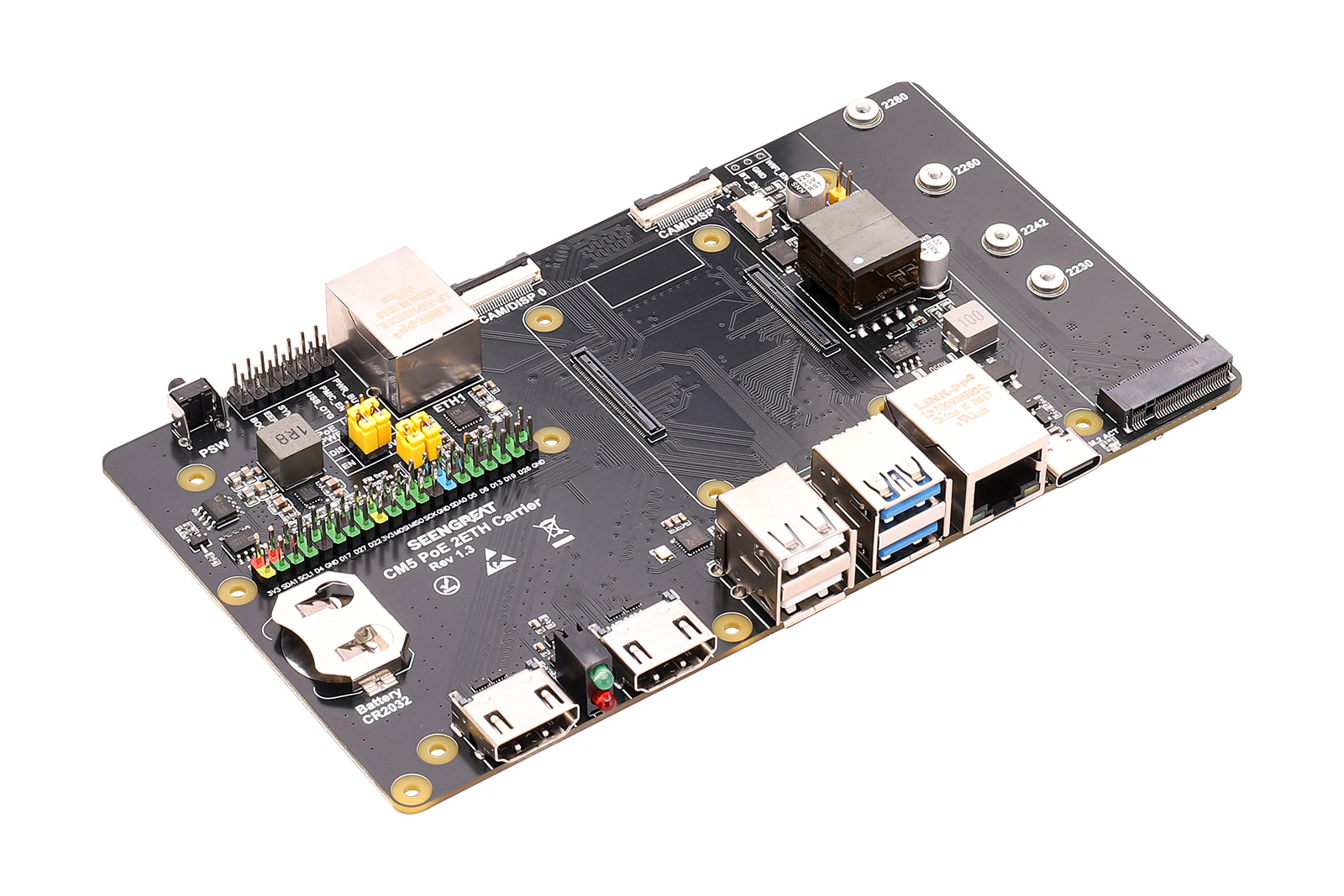

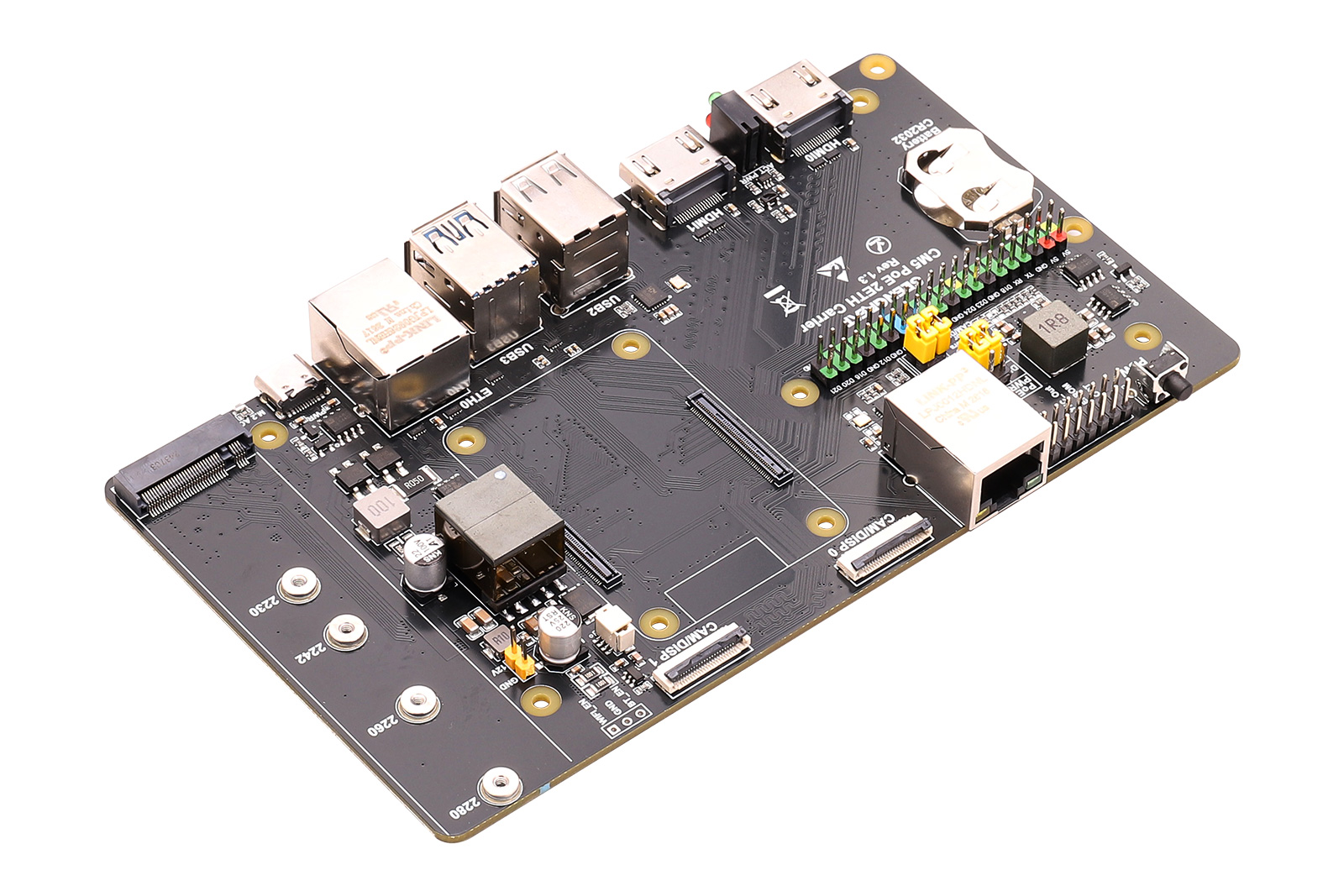

3.1 Module Resources
- Raspberry Pi 40-pin GPIO header
- CM5 power button
- PoE power enable and CM5 GPIO voltage selection jumper
- CAM/DISP 1 I2C pin selection jumper
- 100M RJ45 connector
- CAM/DISP 0 connector
- CM5 core module connector
- CAM/DISP 1 connector
- Fan connector
- PoE 12V power output
- M.2 NVMe SSD mounting hole
- M.2 M-Key connector
- M.2 NVMe activity LED (green)
- CM5 USB-C power input
- Gigabit RJ45 connector (PoE)
- Dual-stack USB3.0 Type-A
- Dual-stack USB2.0 Type-A
- HDMI 1 connector
- CM5 power status LED (red/green)
- HDMI 0 connector
- RTC battery connector
- MicroSD card slot (for CM5 Lite)
Wiki
https://seengreat.com/wiki/213/

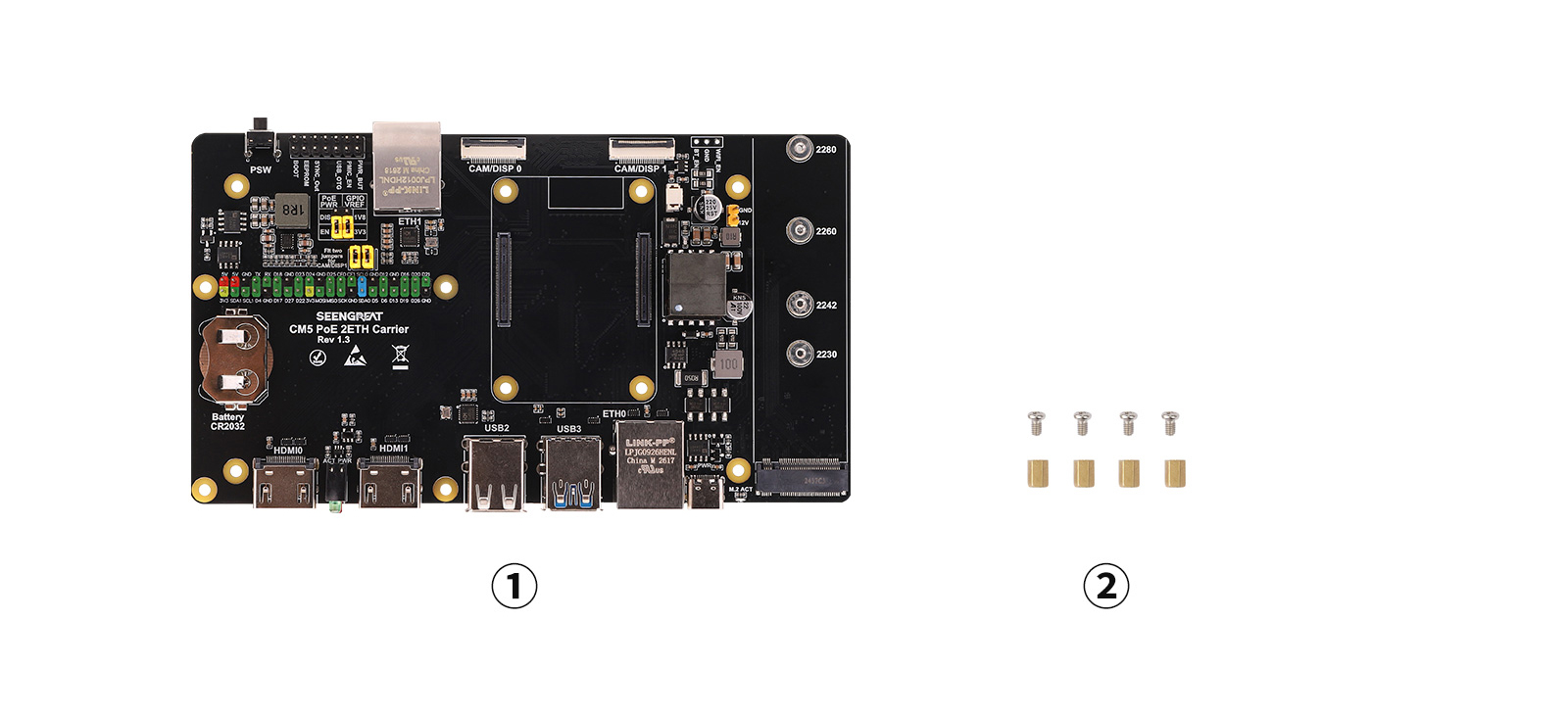

Package Contents
①CM5 PoE 2ETH Carrier x1
②Copper post pack x1
