1. Product Overview
This USB expansion board provides three USB 2.0 ports and a 10/100M USB Ethernet adapter.

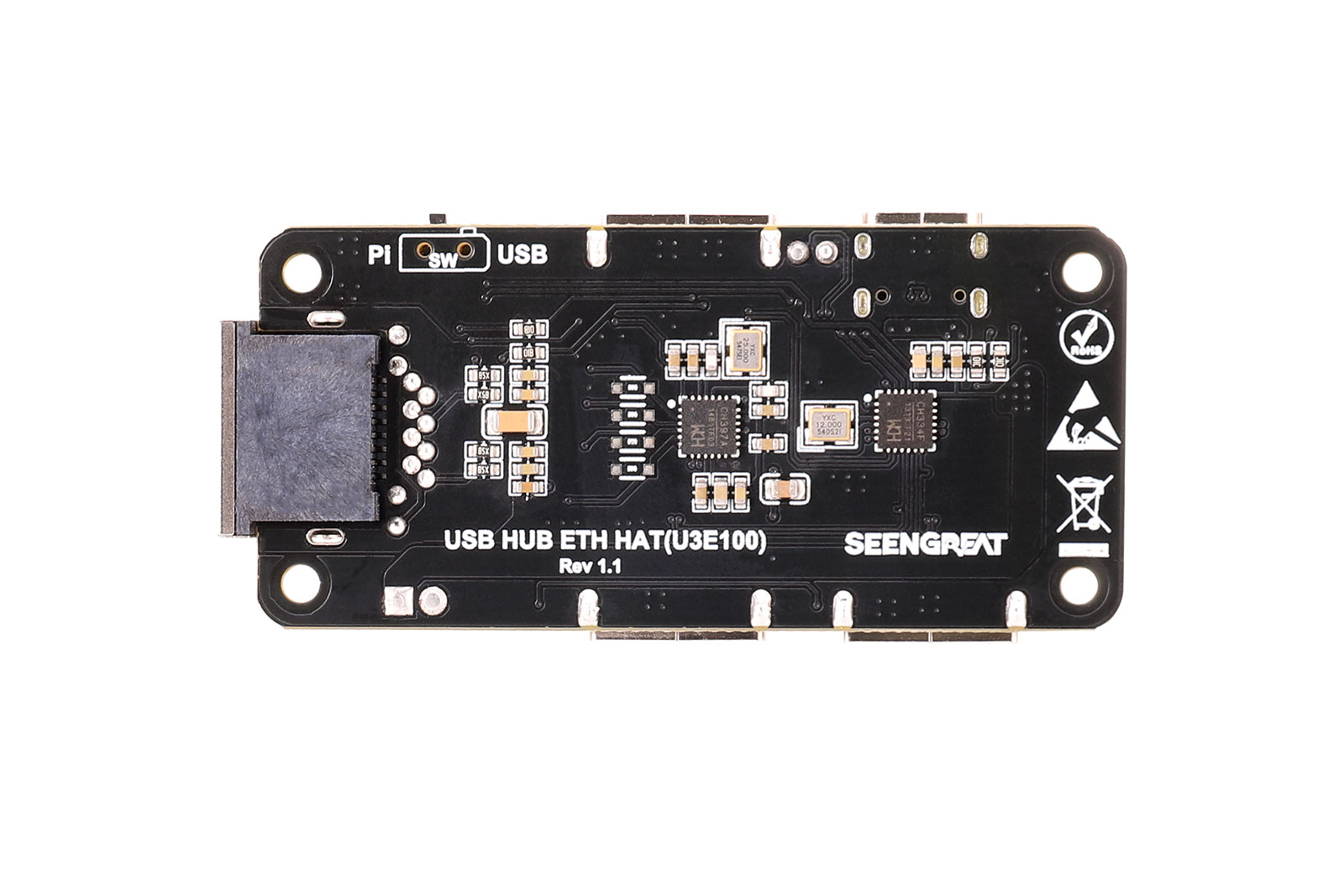

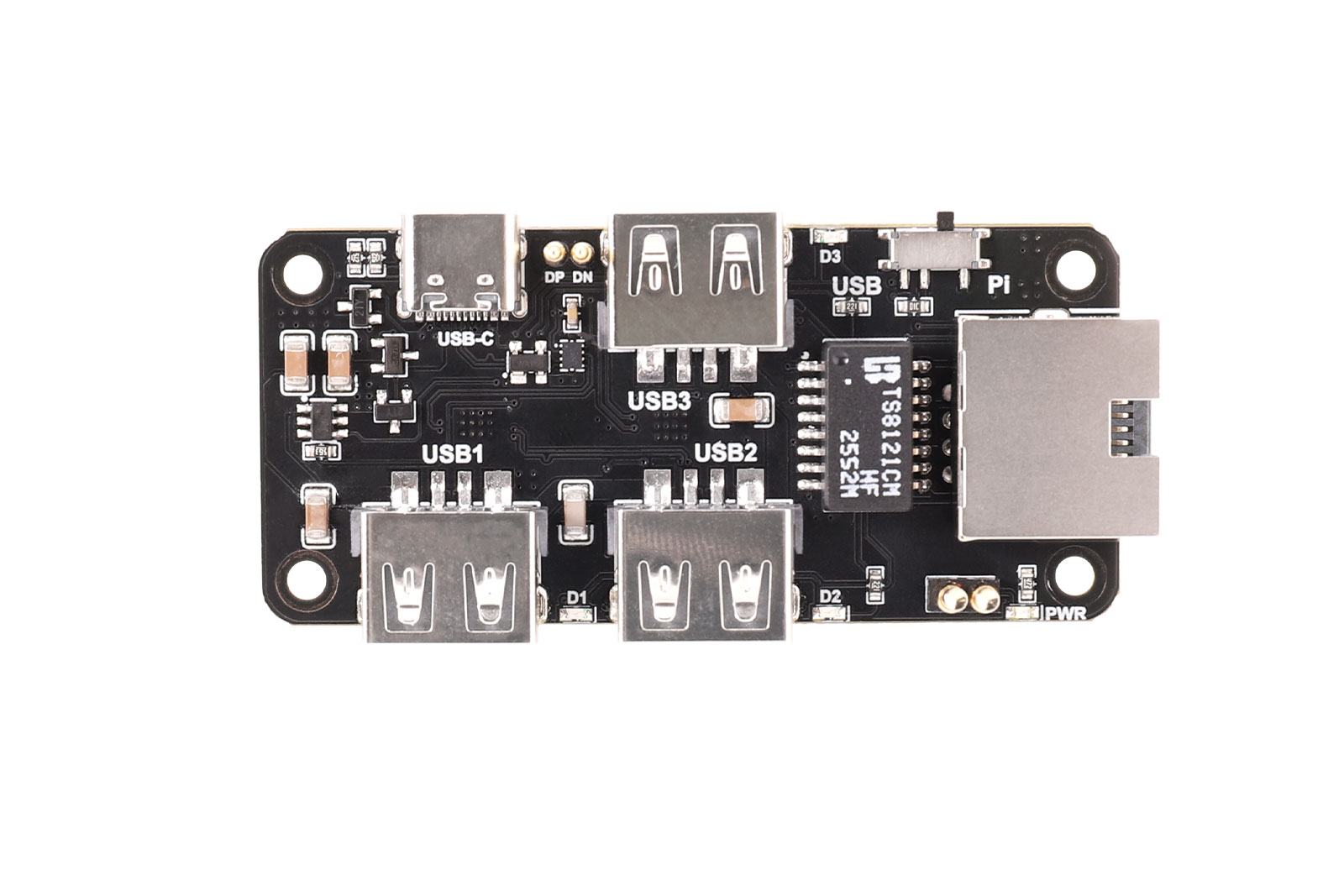

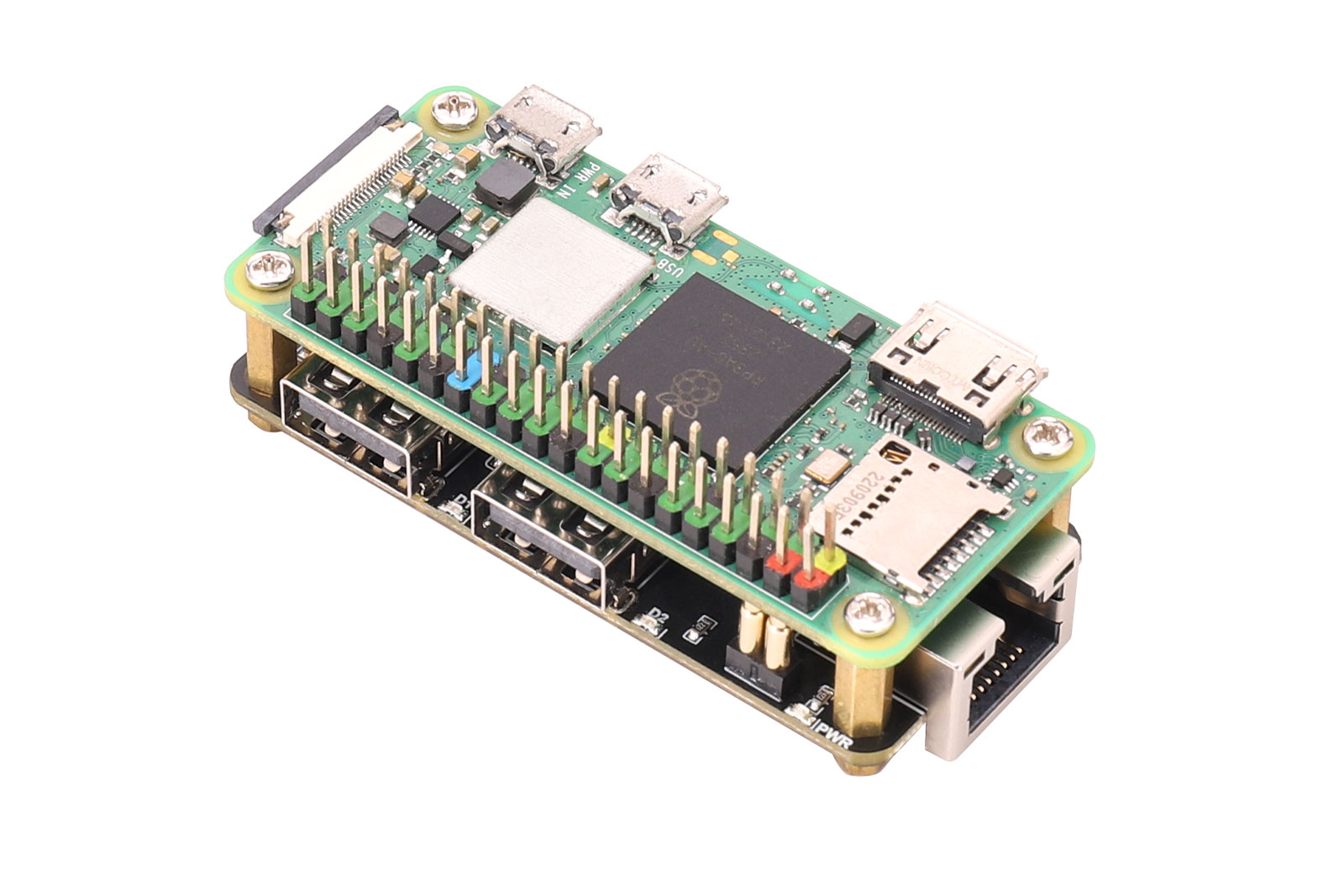

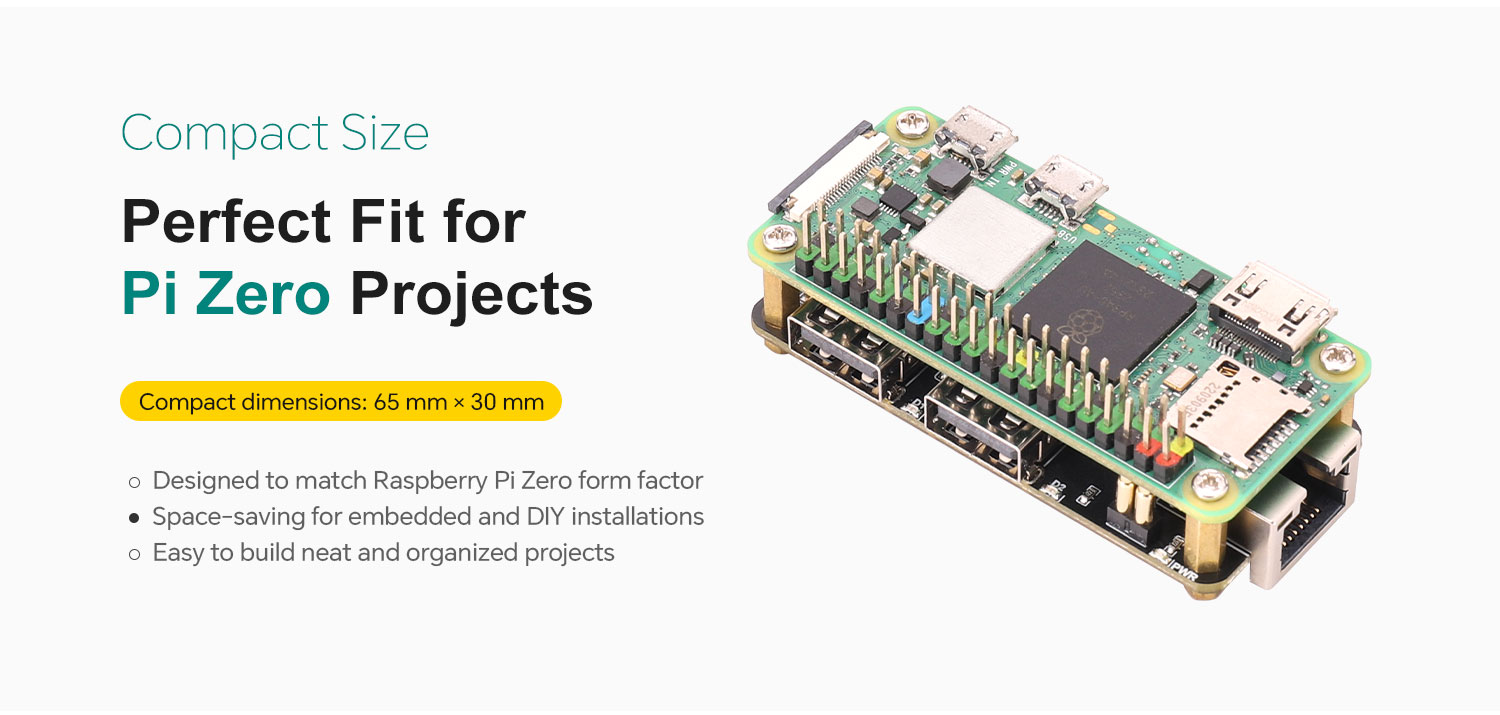

This USB HUB ETH HAT is specially designed for the Raspberry Pi Zero series. It offers strong expansion capability in a compact form factor that matches the Raspberry Pi Zero very well. With simple installation, it expands the Raspberry Pi USB interfaces and also adds 10/100M wired network connectivity, making it suitable for applications that require multiple USB peripherals and Ethernet access.

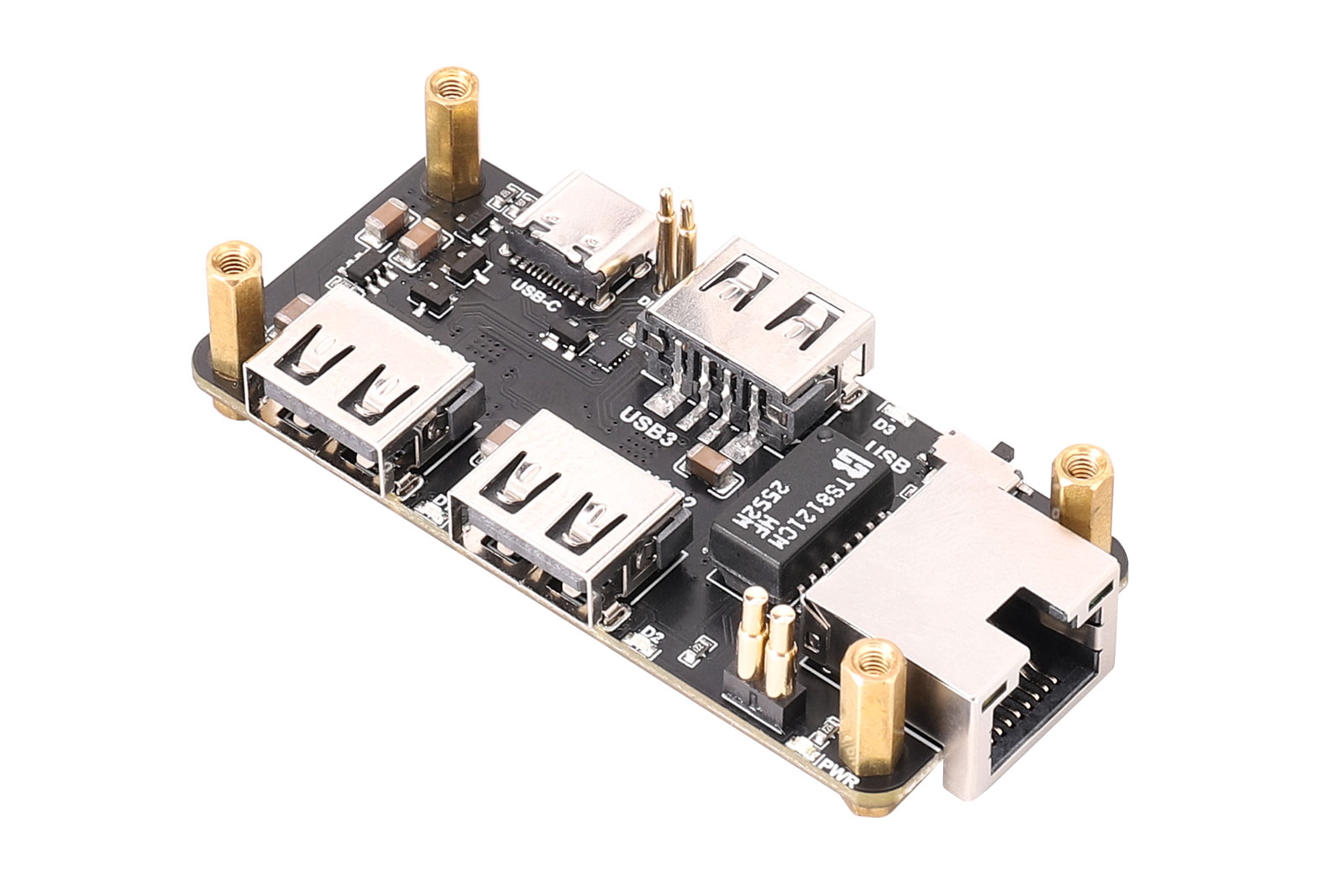

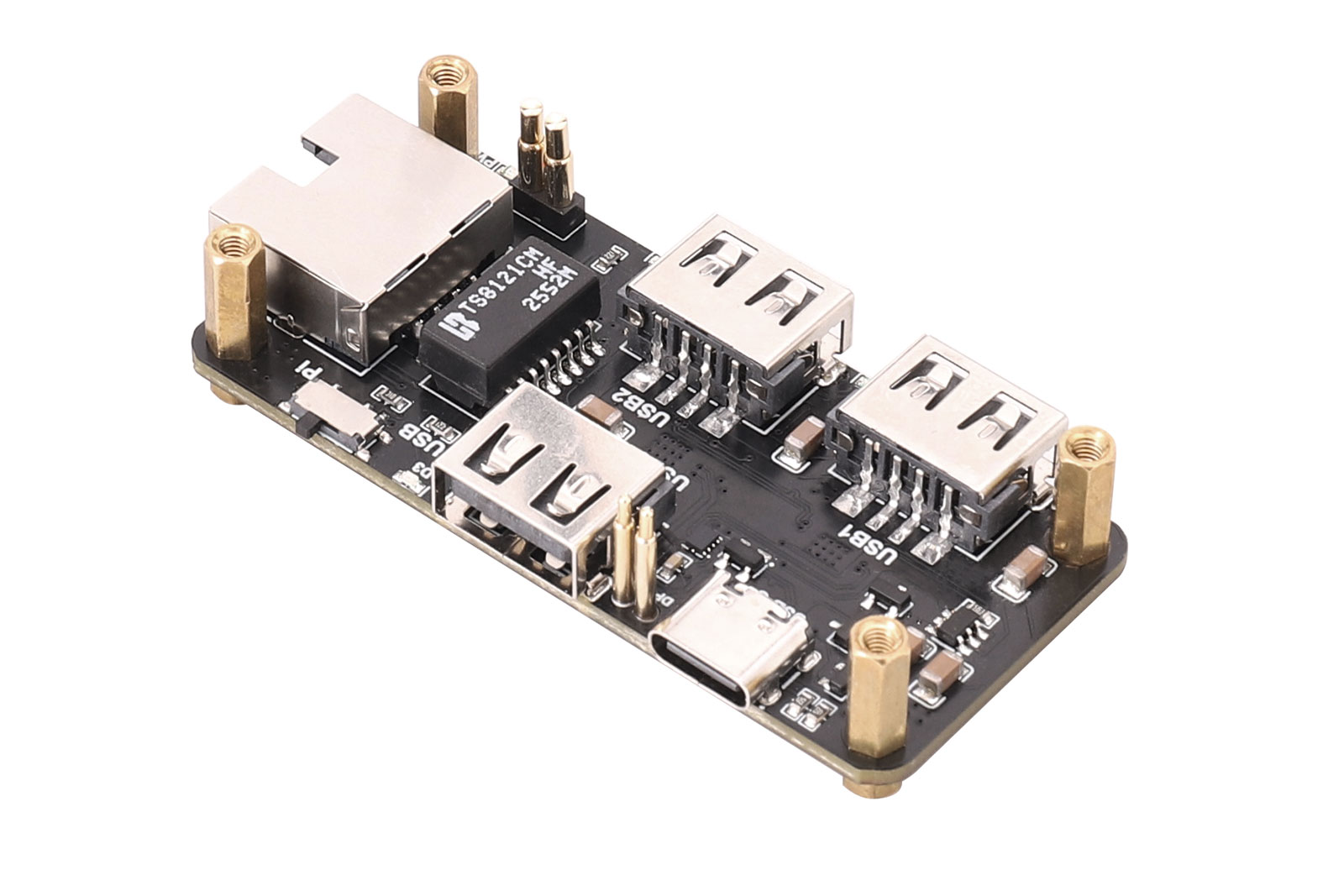

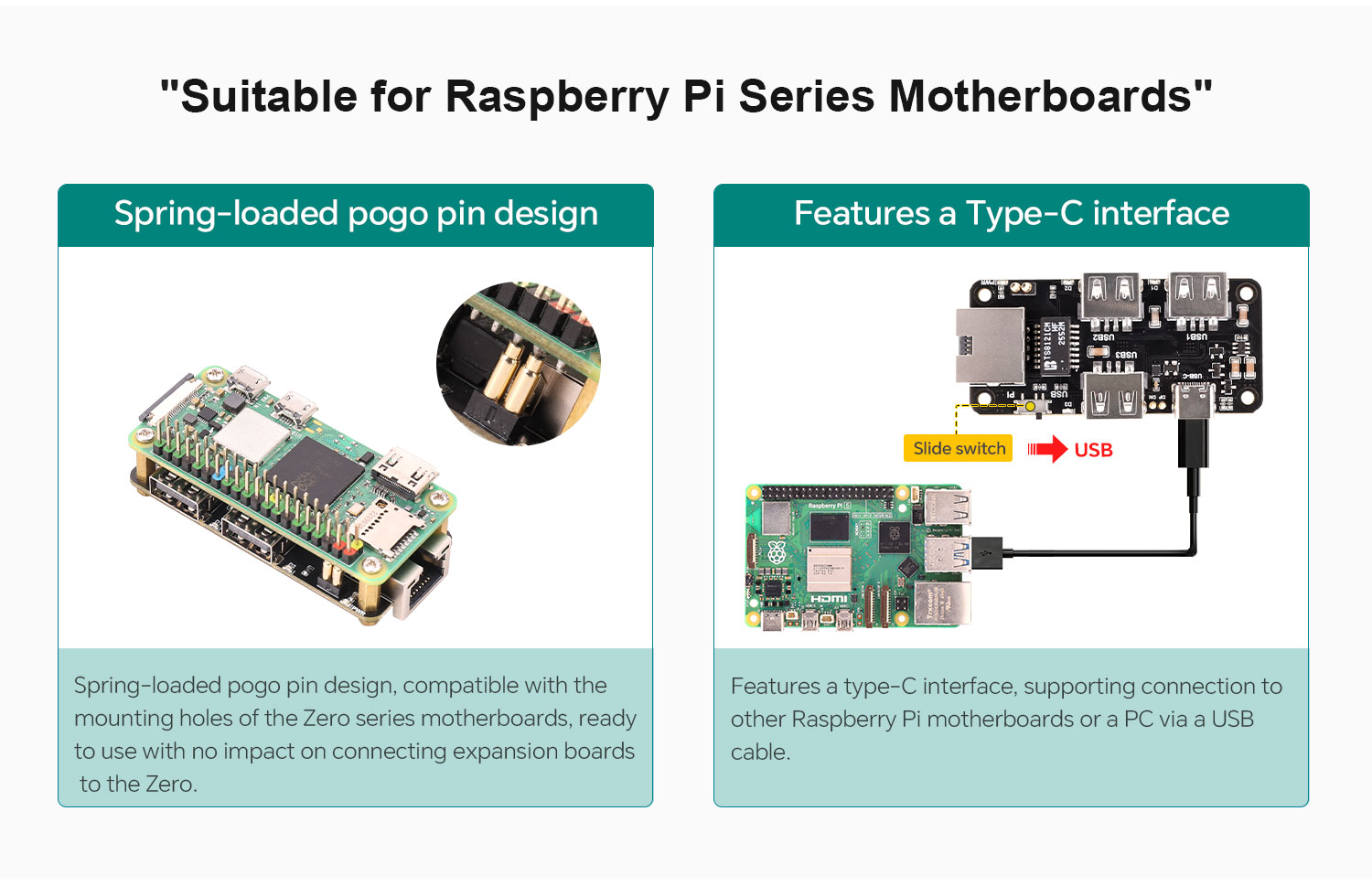

It integrates three USB 2.0 Type-A ports and one RJ45 Ethernet port, allowing convenient connection of peripheral devices and network equipment. The onboard slide switch lets users switch the USB upstream source as needed for greater flexibility. The Type-C port can either connect to a power adapter to power the Raspberry Pi Zero, or connect to a computer to provide USB expansion and USB-to-Ethernet functions.

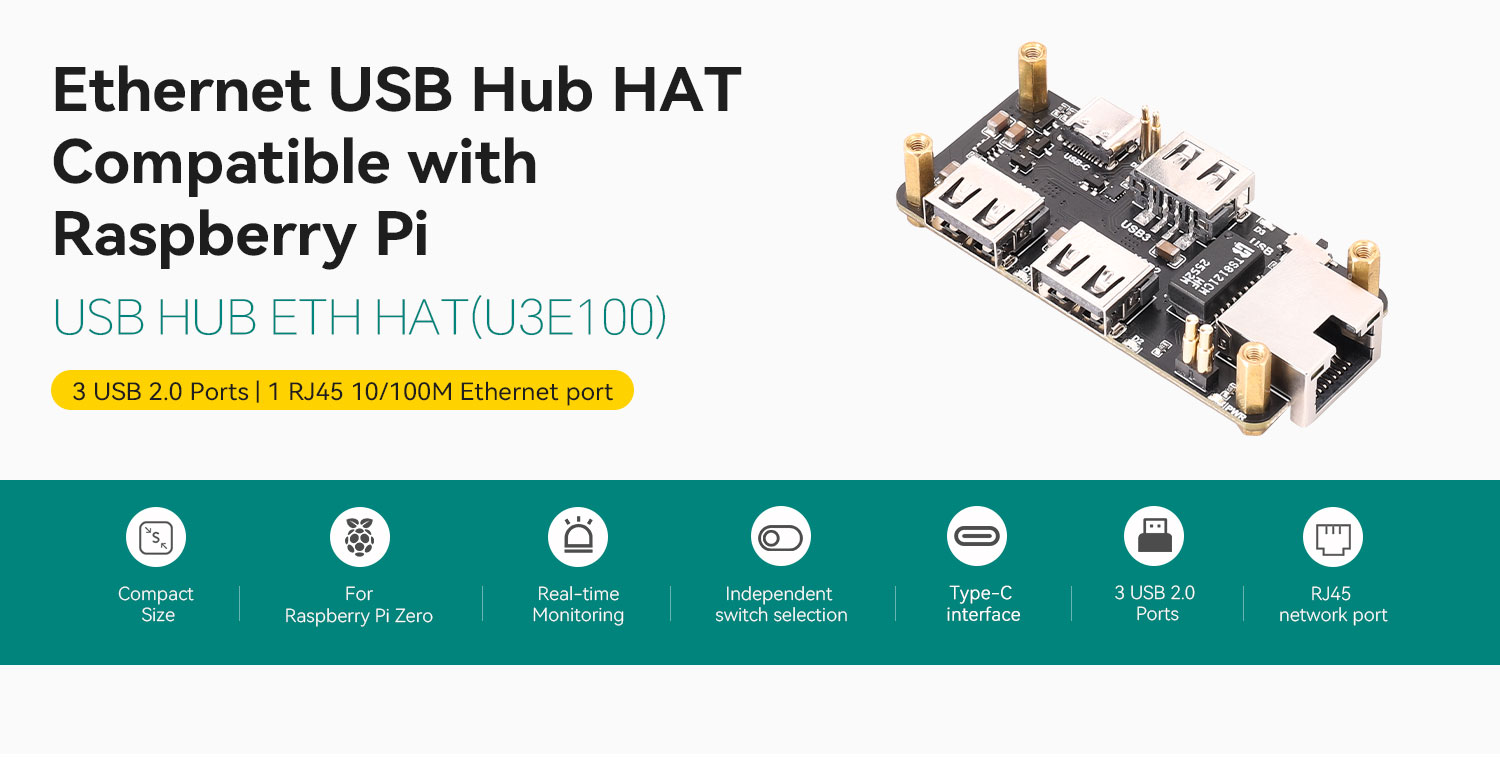

2. Product Features

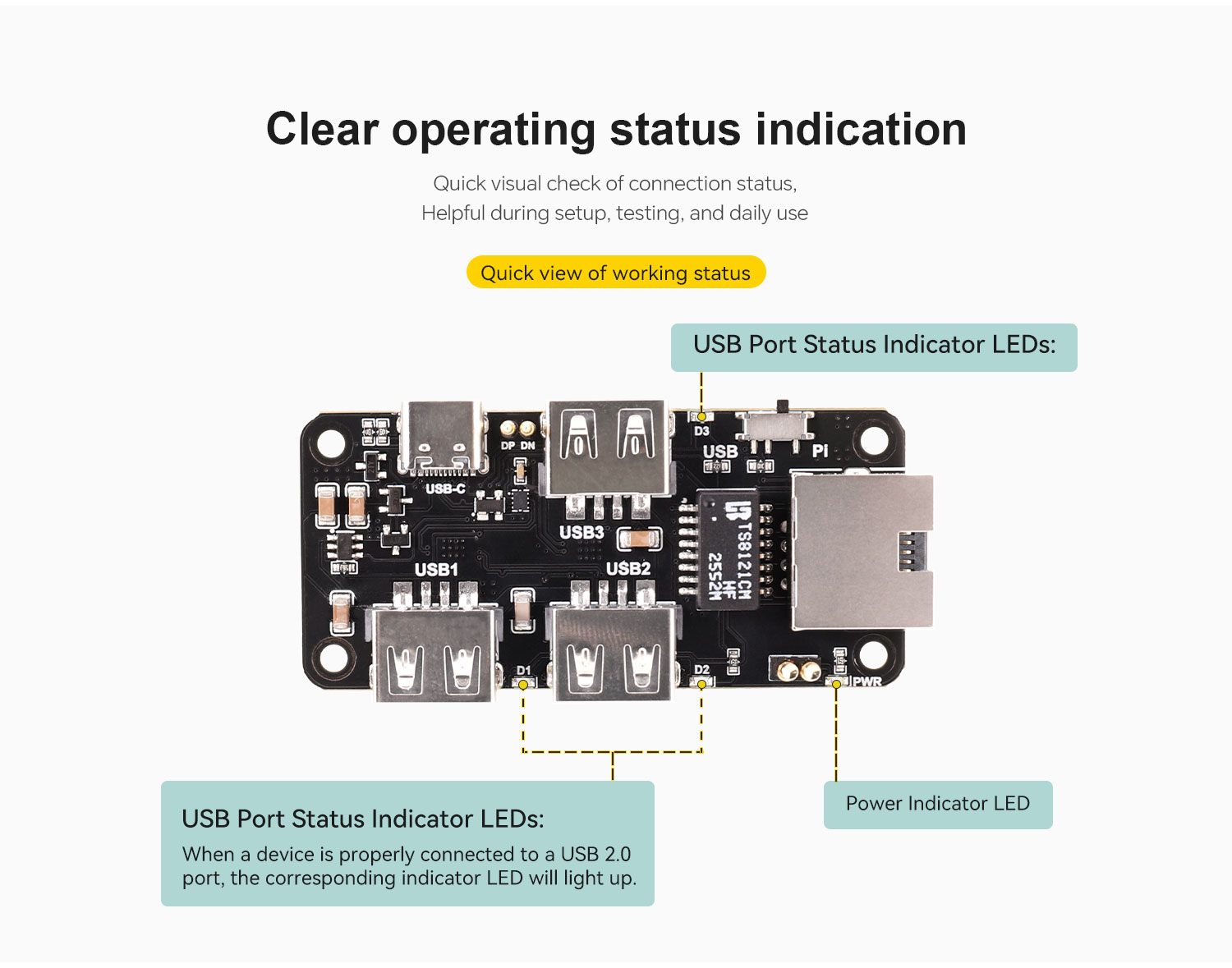

- Onboard 1 power LED and 3 USB status LEDs for clear operating status indication.

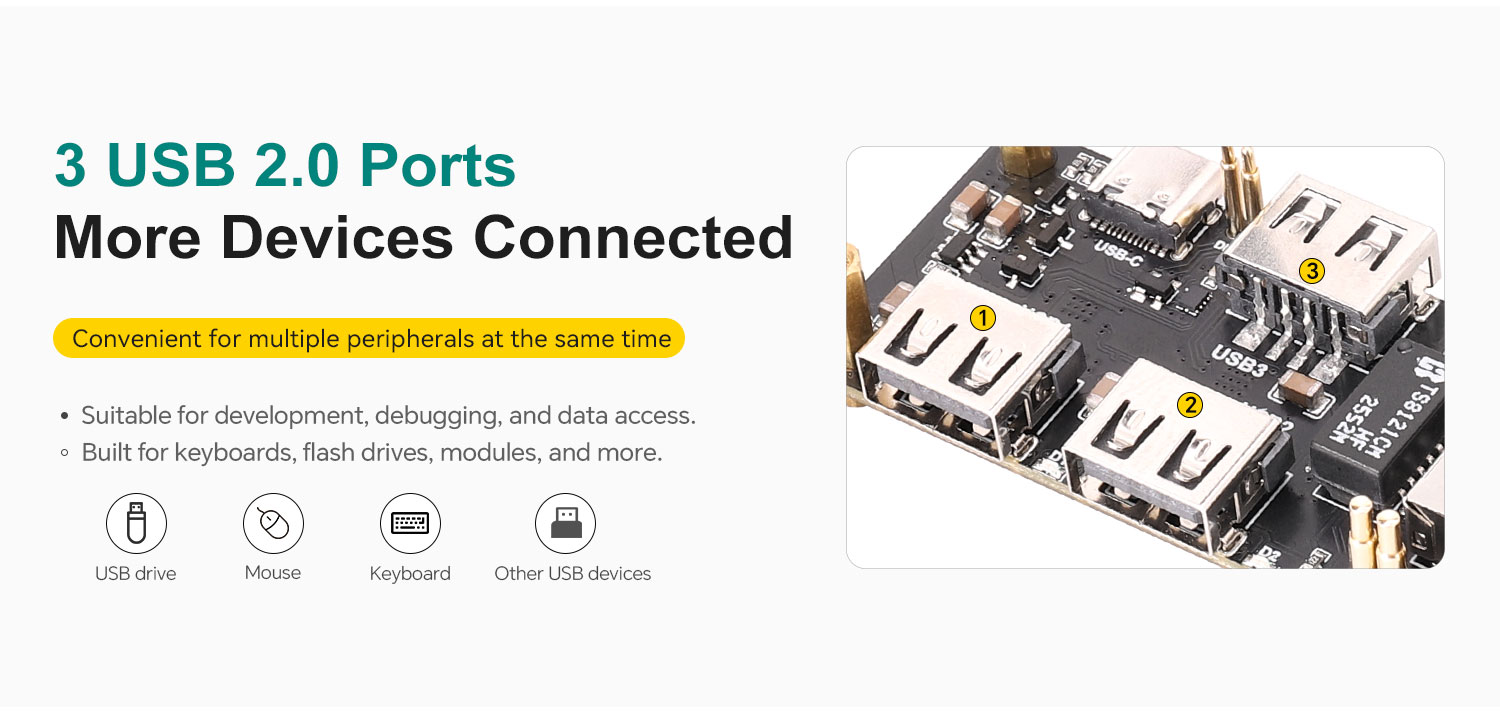

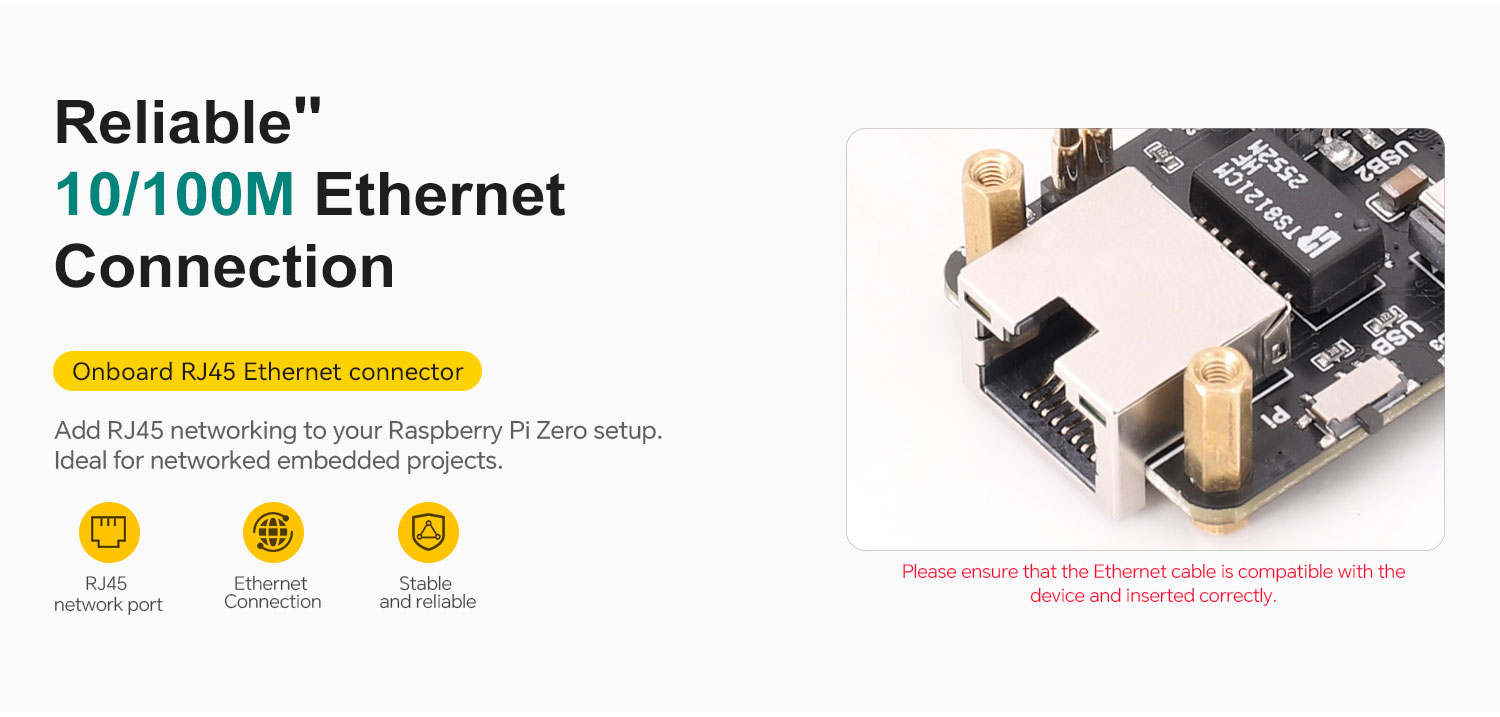

- Onboard 3 USB 2.0 expansion ports and 1 RJ45 10/100M Ethernet port.

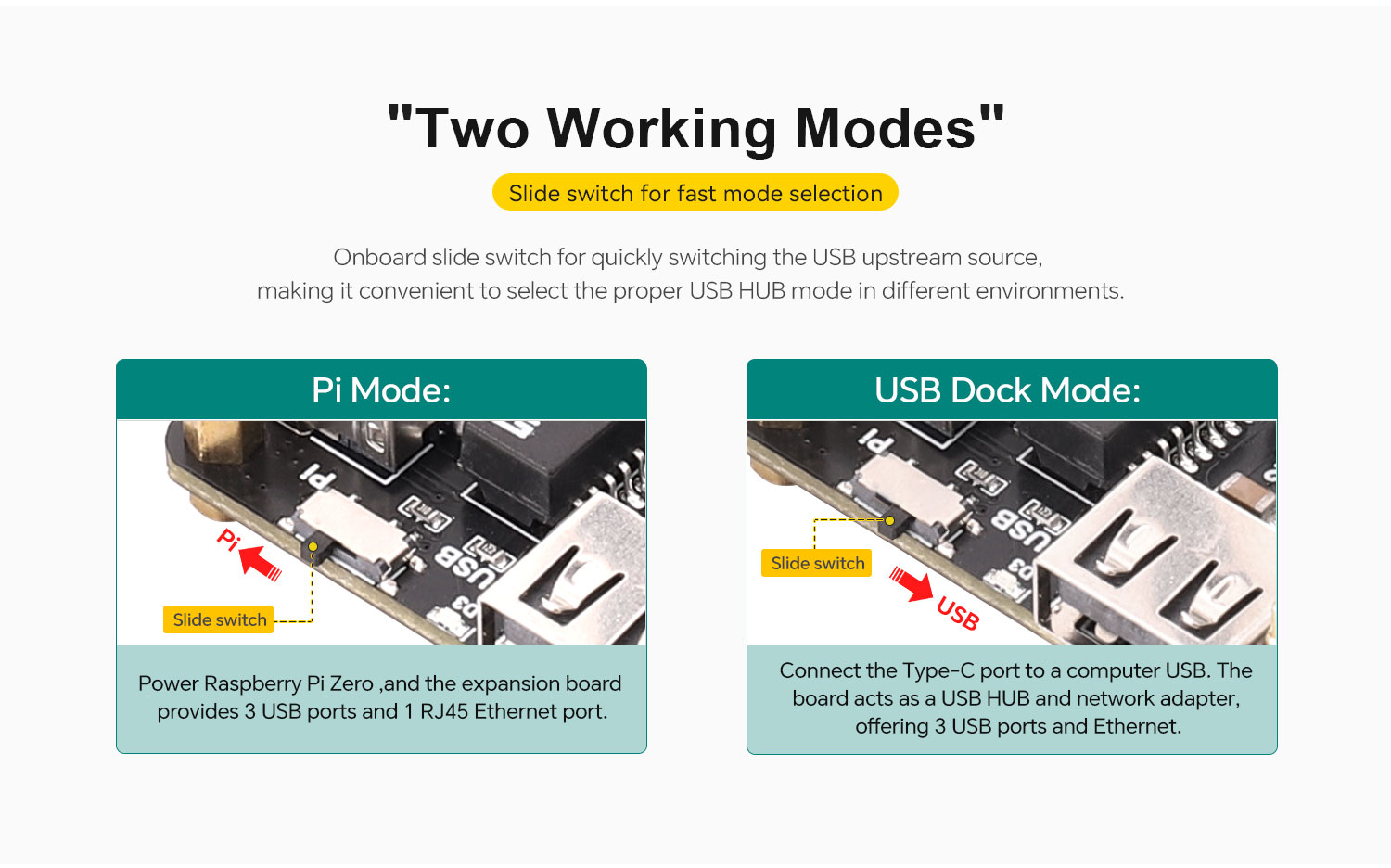

- Onboard slide switch for fast USB upstream source selection and convenient mode switching in different use scenarios.
- Stable USB 2.0 data transmission and 10/100M Ethernet connectivity for everyday applications and peripheral networking needs.
3. Product Specifications
Parameter | Description |
Model | USB HUB ETH HAT (U3E100) |
Supply Voltage | 5V |
USB Interface | USB 2.0 |
Ethernet Connector | RJ45 |
Ethernet Speed | 10/100 Mbps |
Mounting Hole Diameter | 2.5 mm |

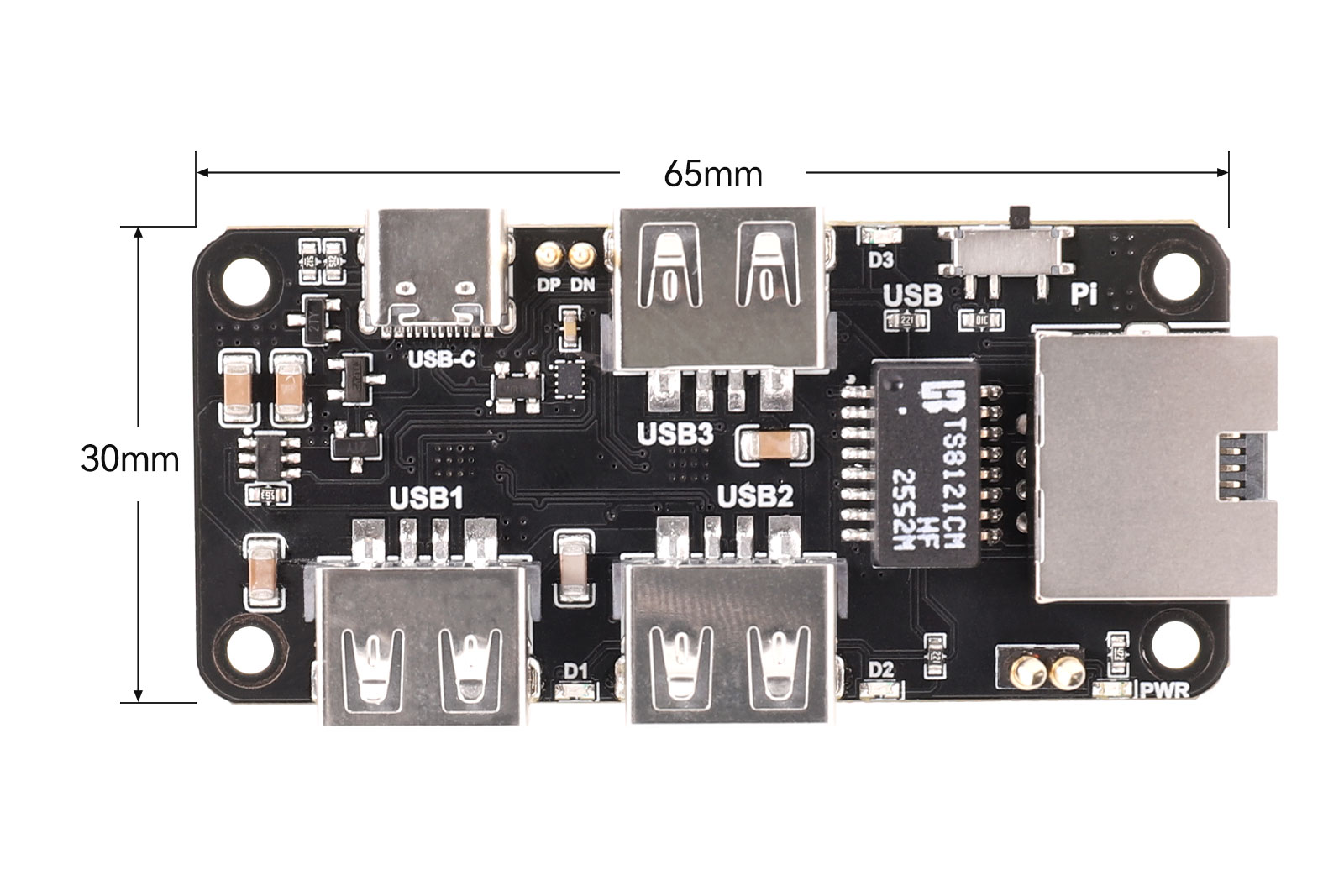

Dimensions | 65 mm × 30 mm |

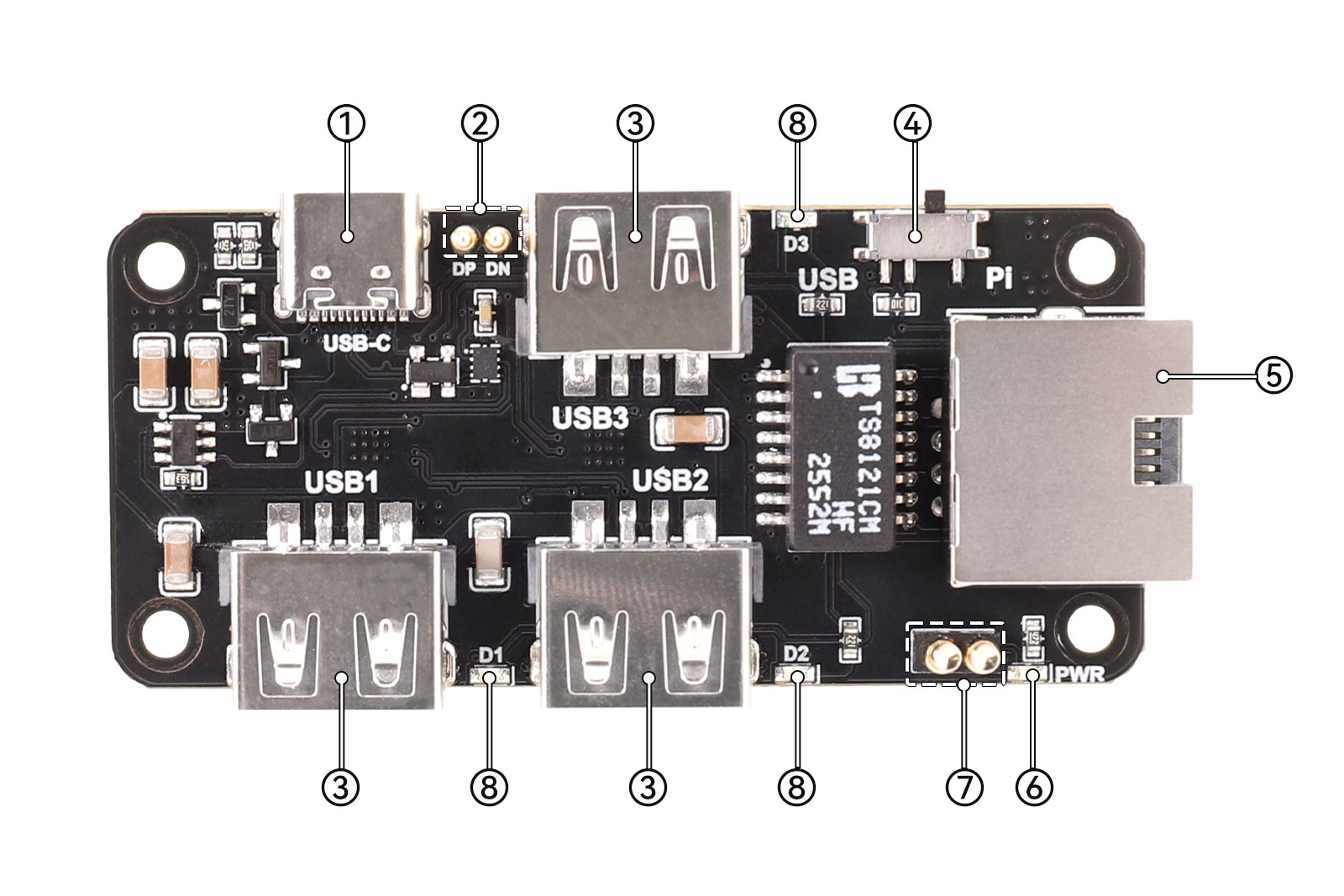

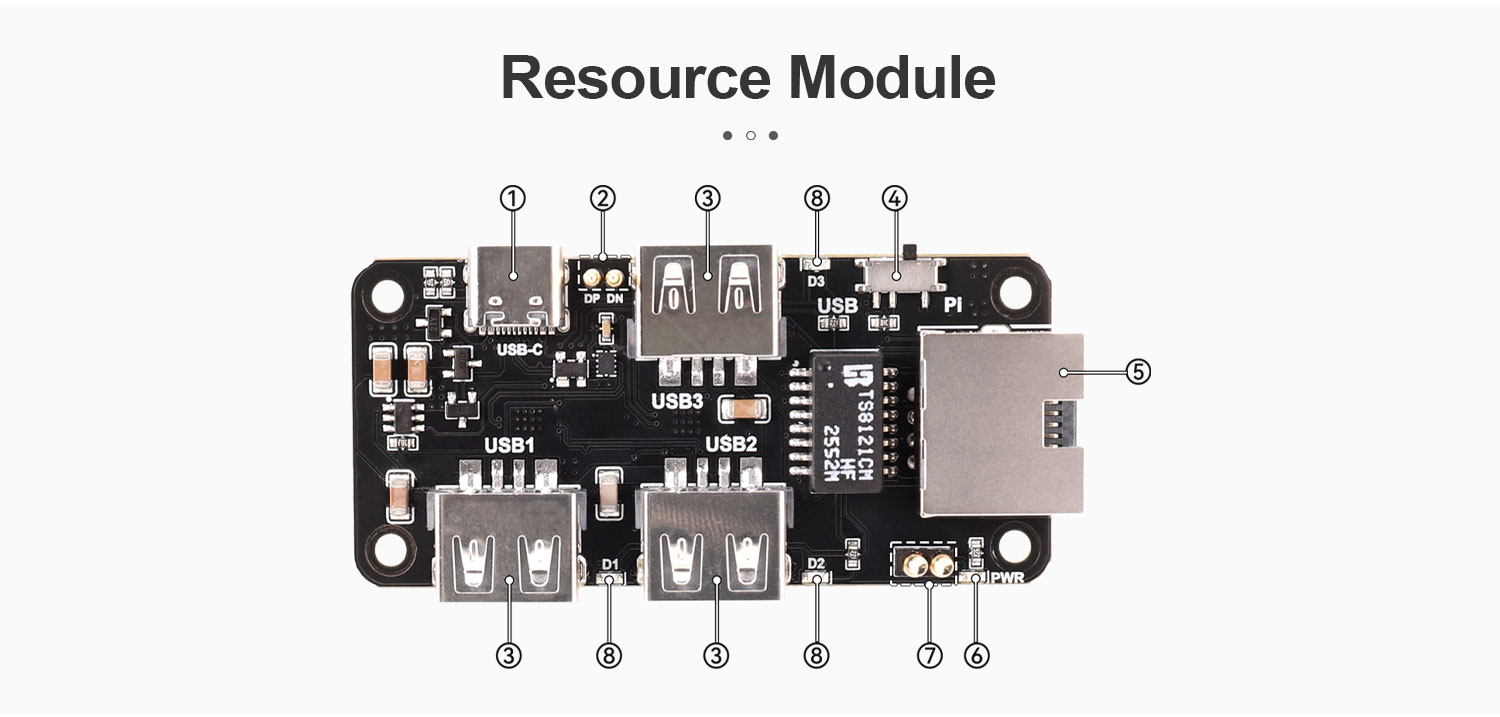

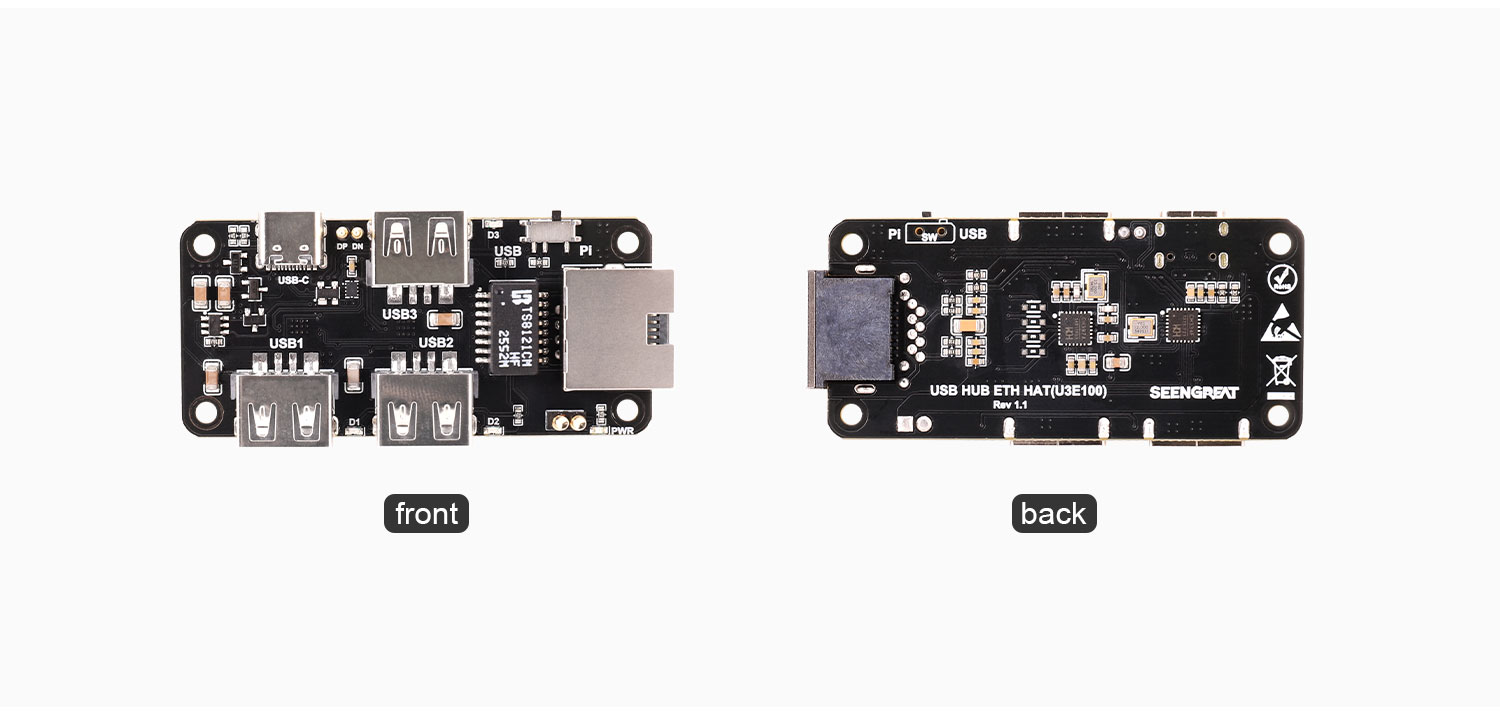

4. Module Resources
1. Type-C connector: used either to power the Raspberry Pi Zero or to enable the USB HUB ETH function
2. Raspberry Pi Zero USB header
3. USB 2.0 ports
4. Mode selection switch
5. RJ45 Ethernet connector
6. Power indicator LED
7. Power pins
8. USB port status LEDs
Precautions
· After connecting a USB device, check whether the corresponding indicator LED is lit to confirm that the USB device is connected correctly.
· Do not assemble the board while it is powered on.
Wiki
https://seengreat.com/wiki/207/

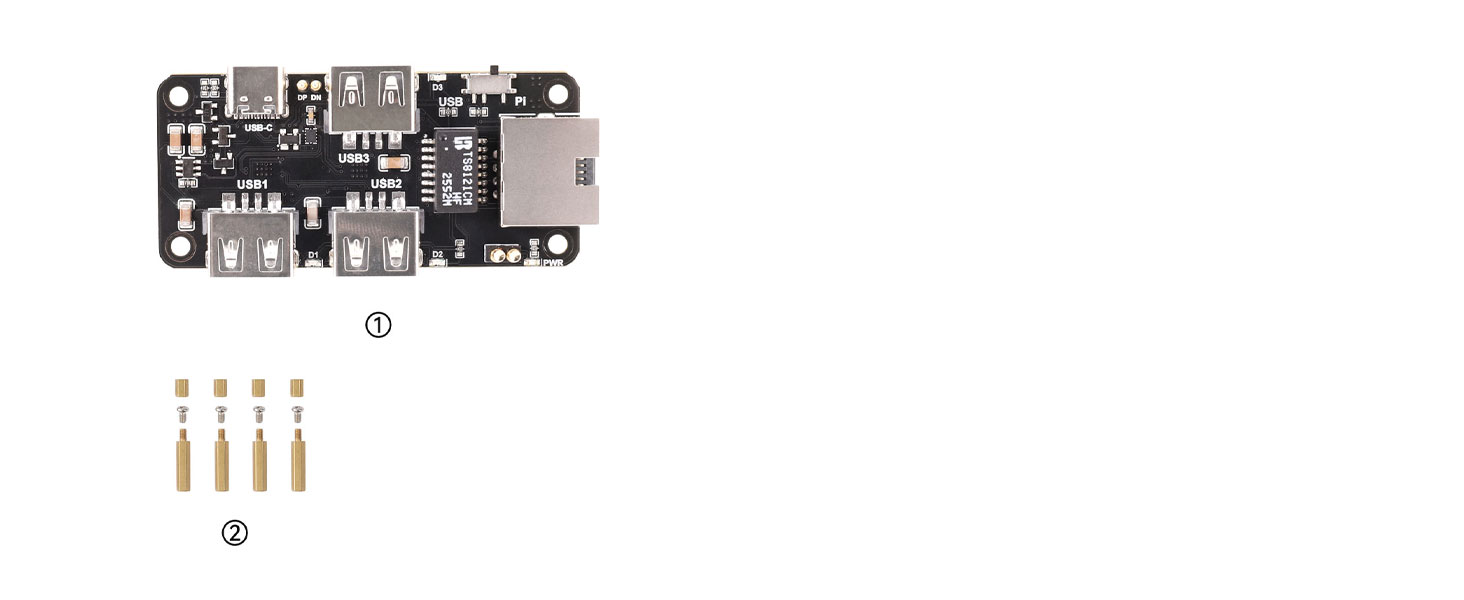

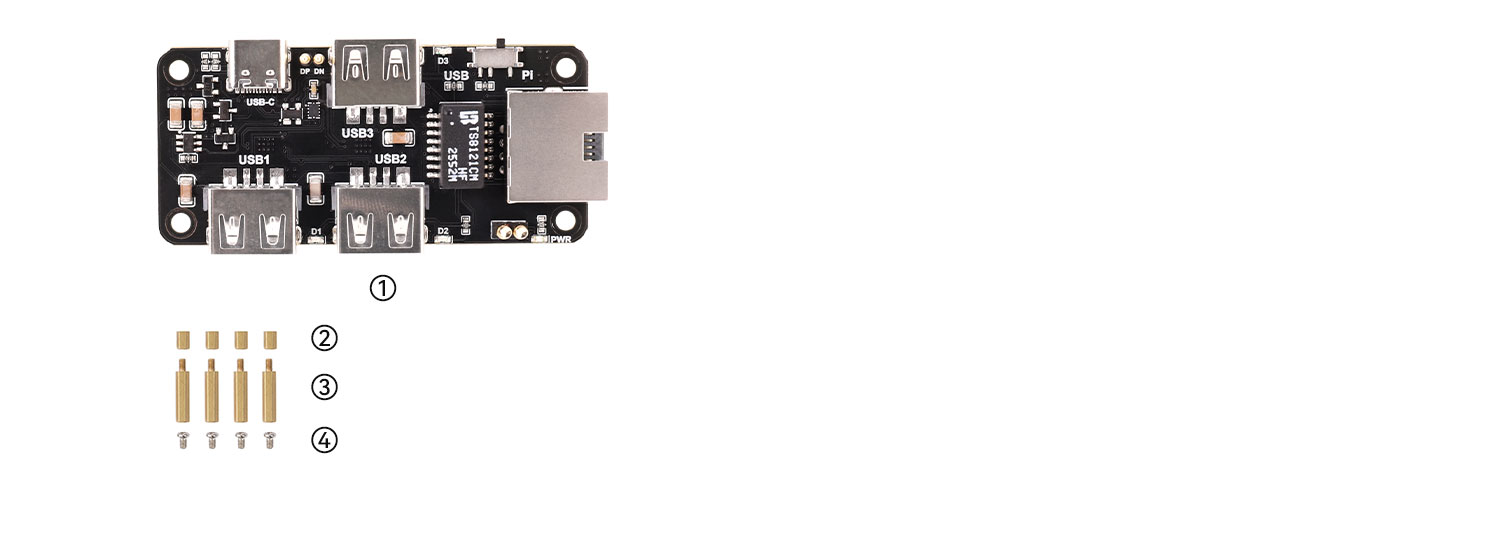

Package Contents
1. USB HUB ETH HAT(U3E100) Module X1
2.M2.5 3 mm female-female brass standoff × 4
3.M2.5 10+4 mm brass standoff × 4
4.M2.5 screws × 4
