1. Product Introduction

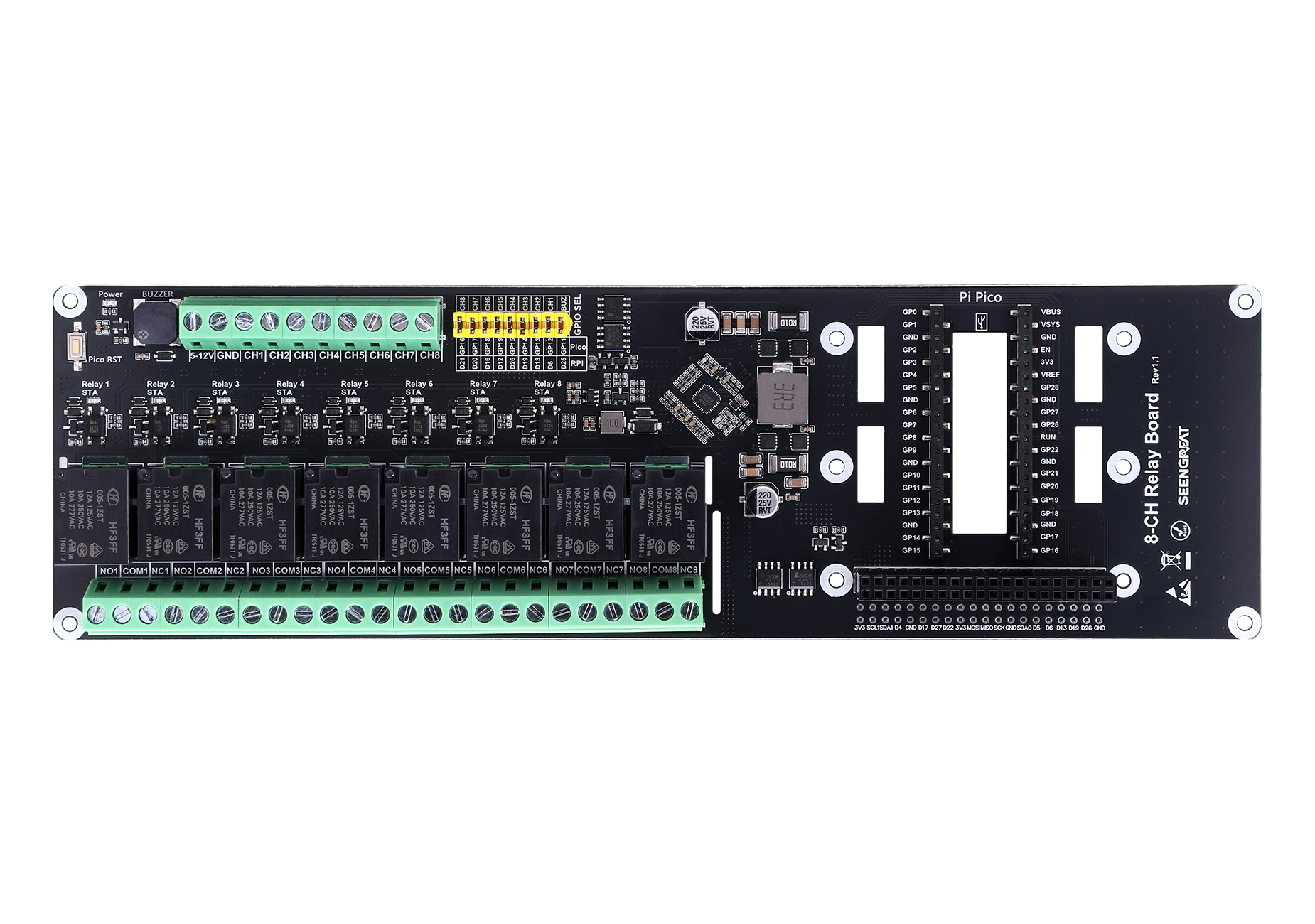

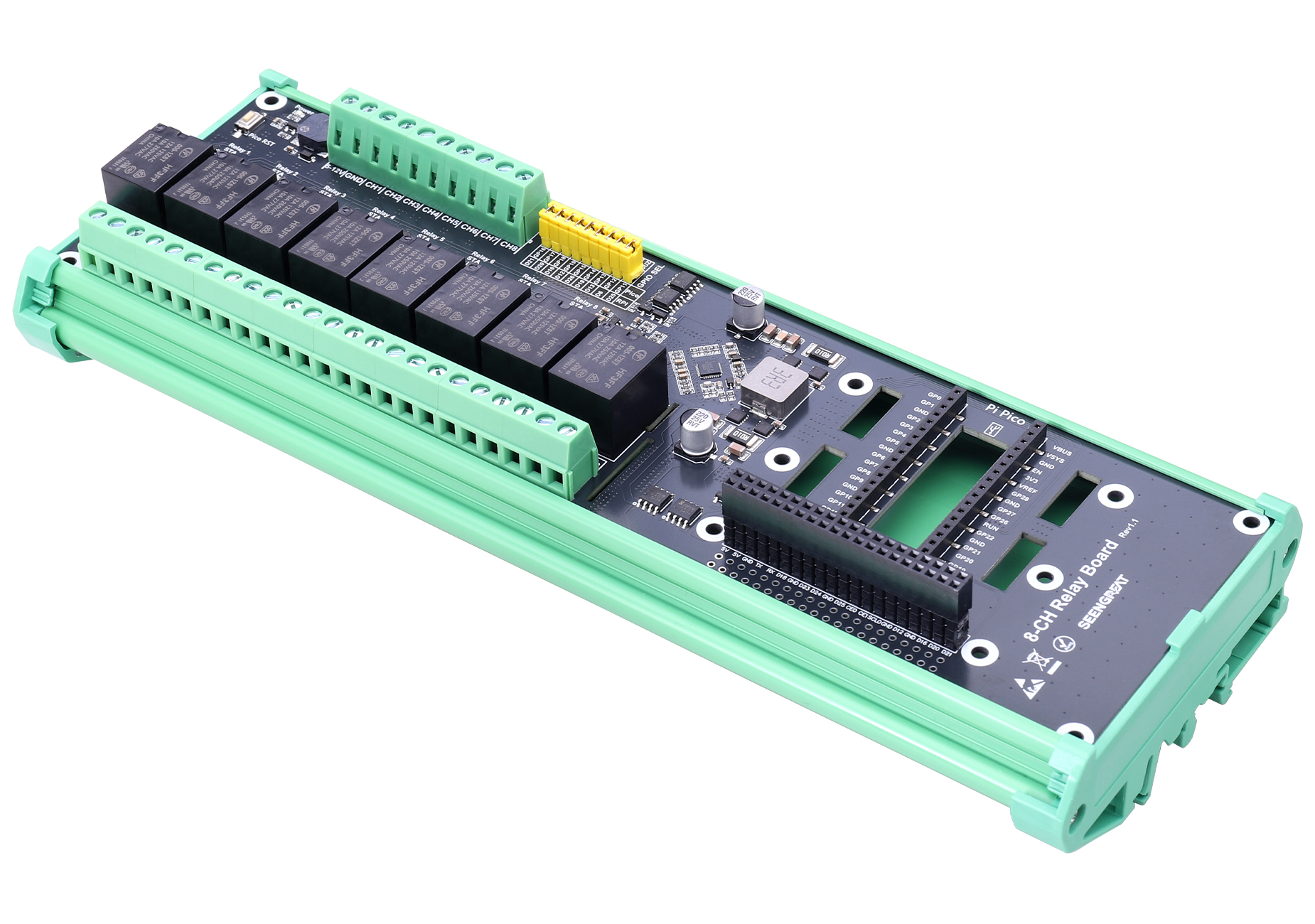

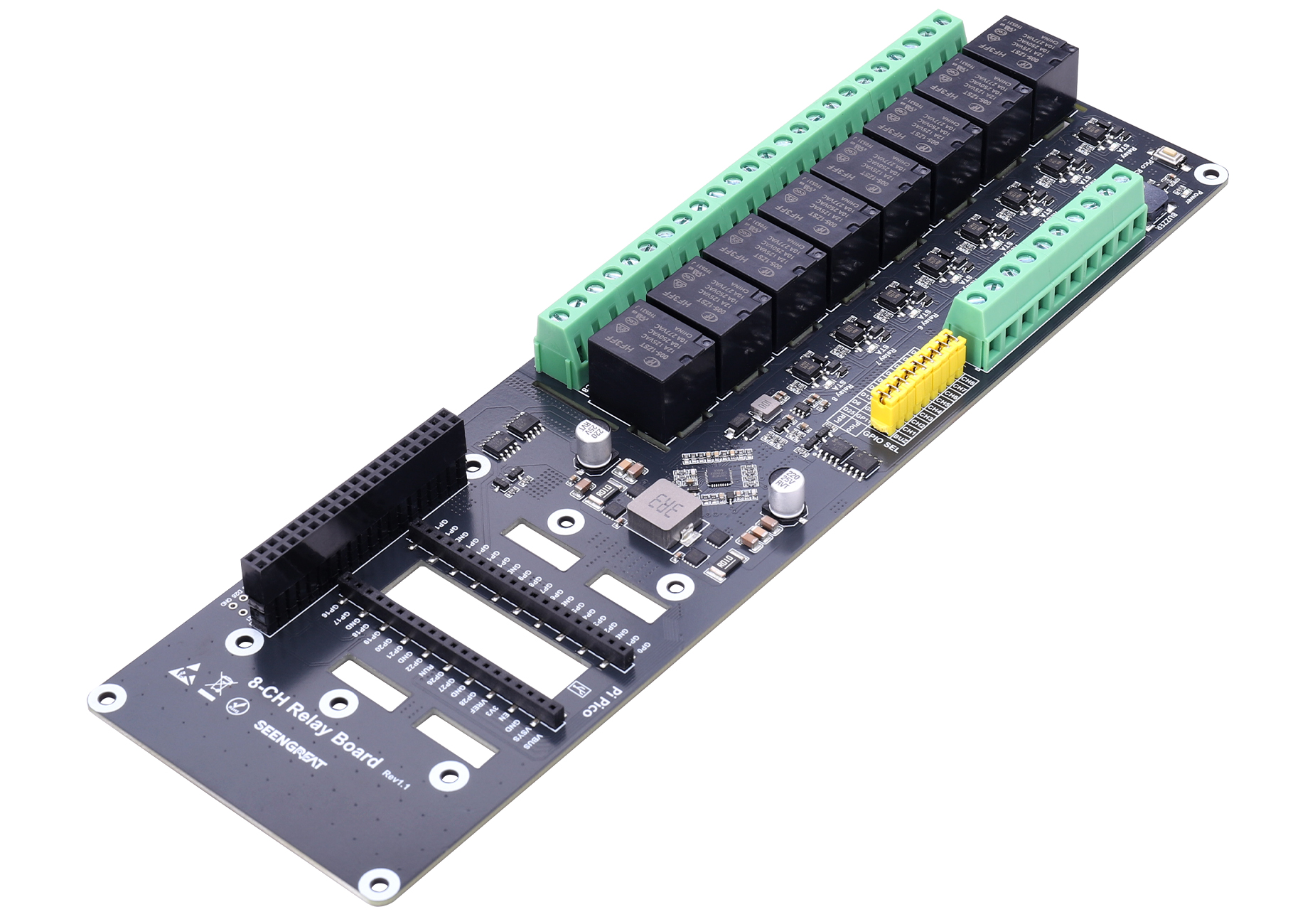

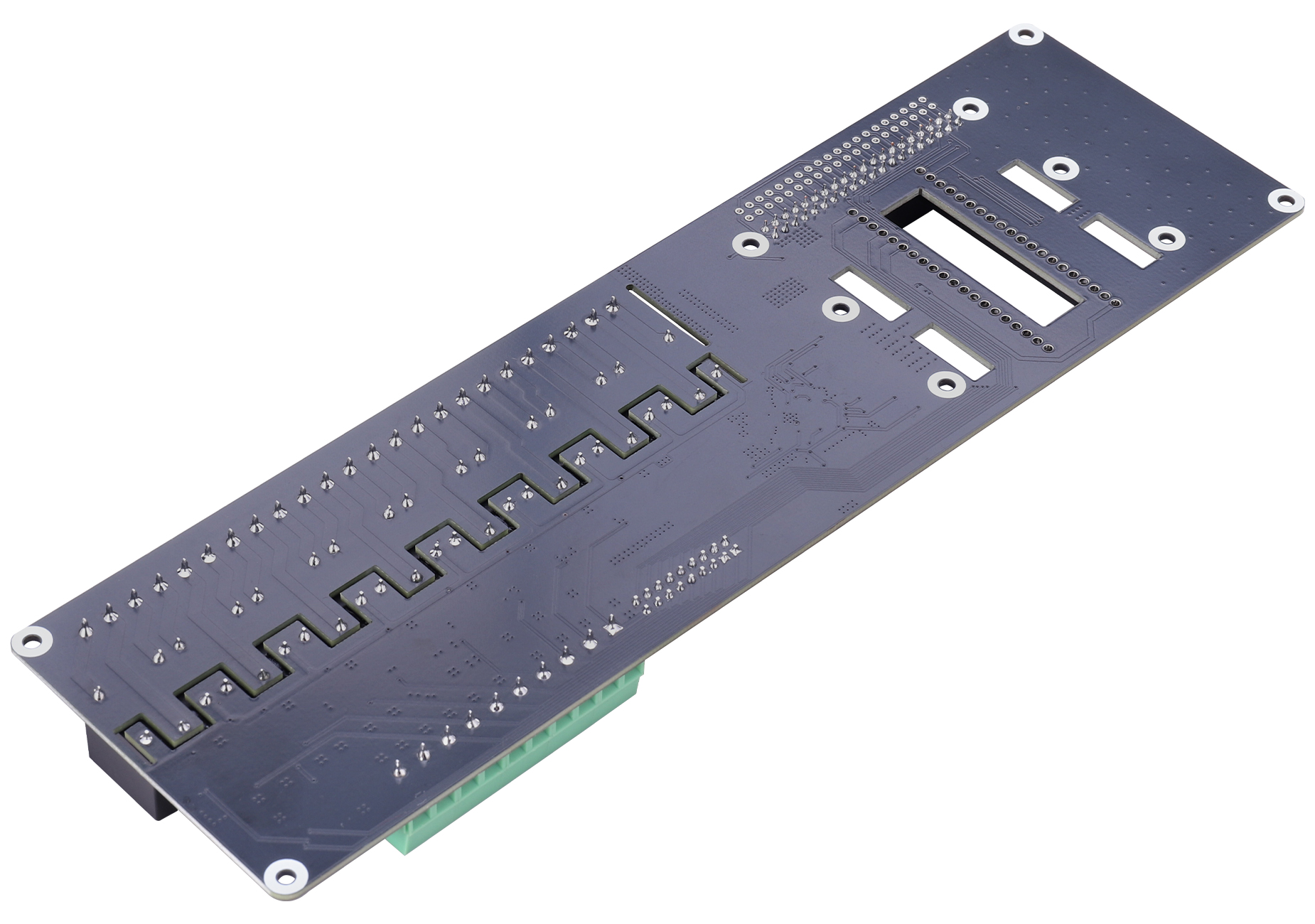

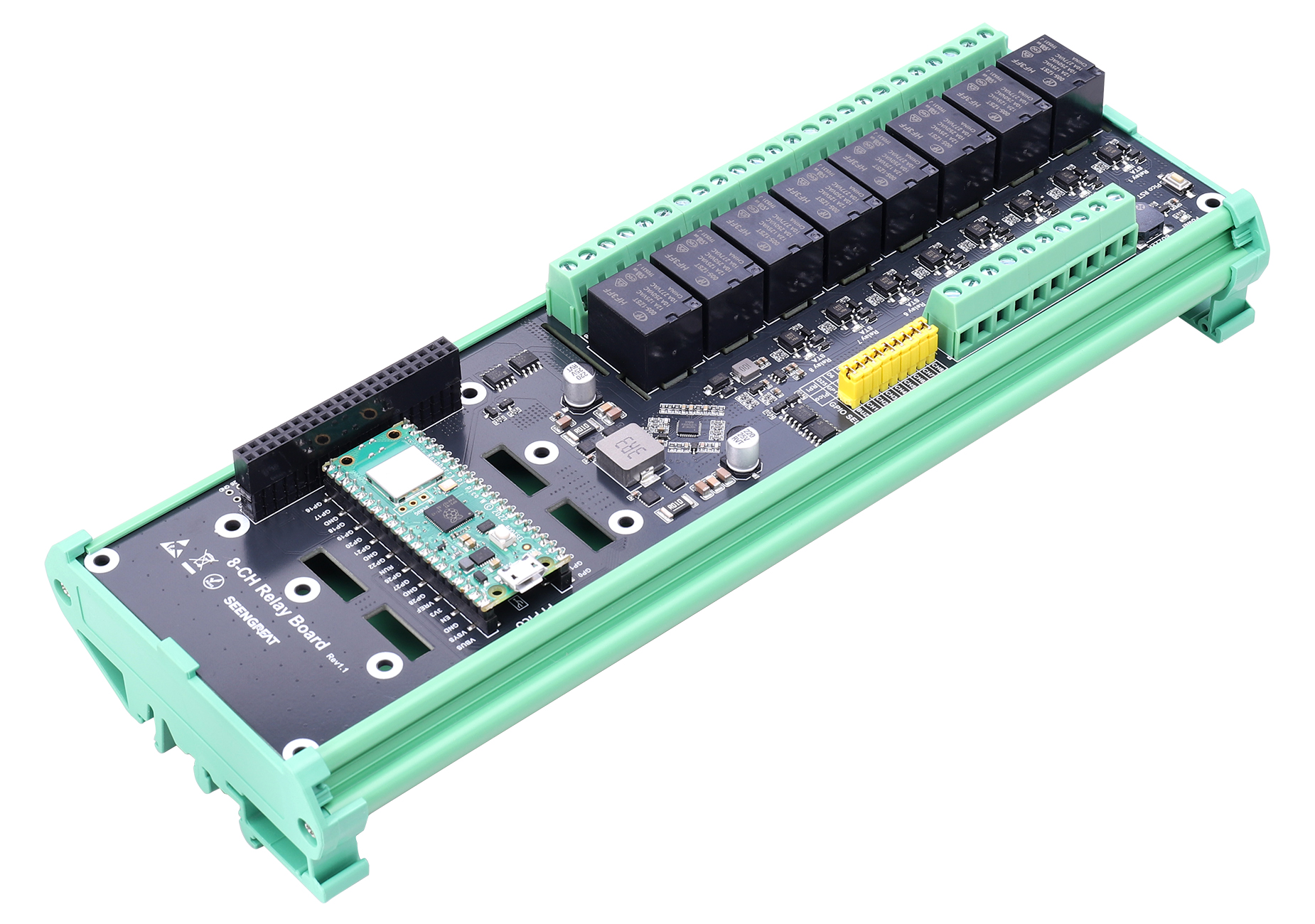

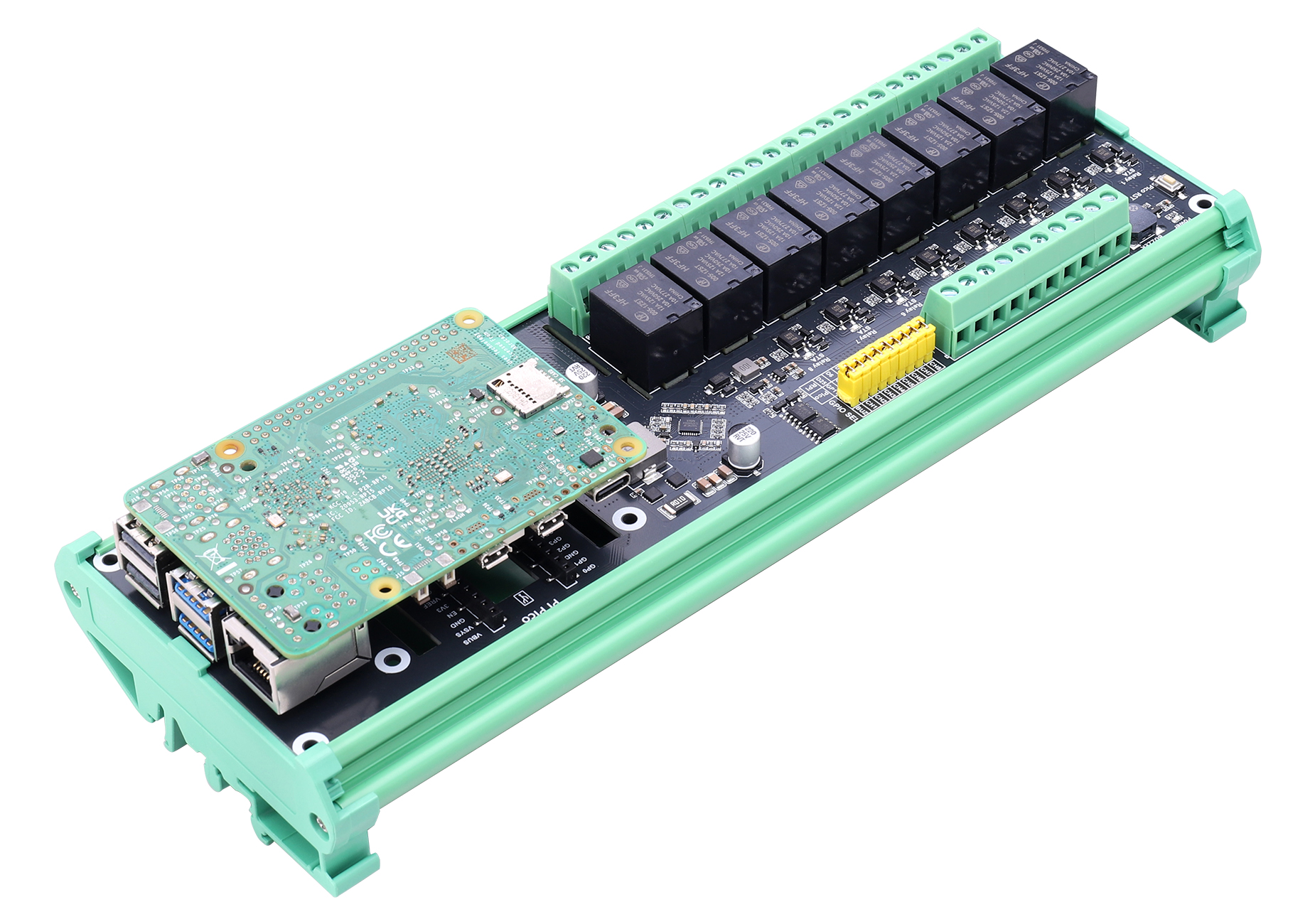

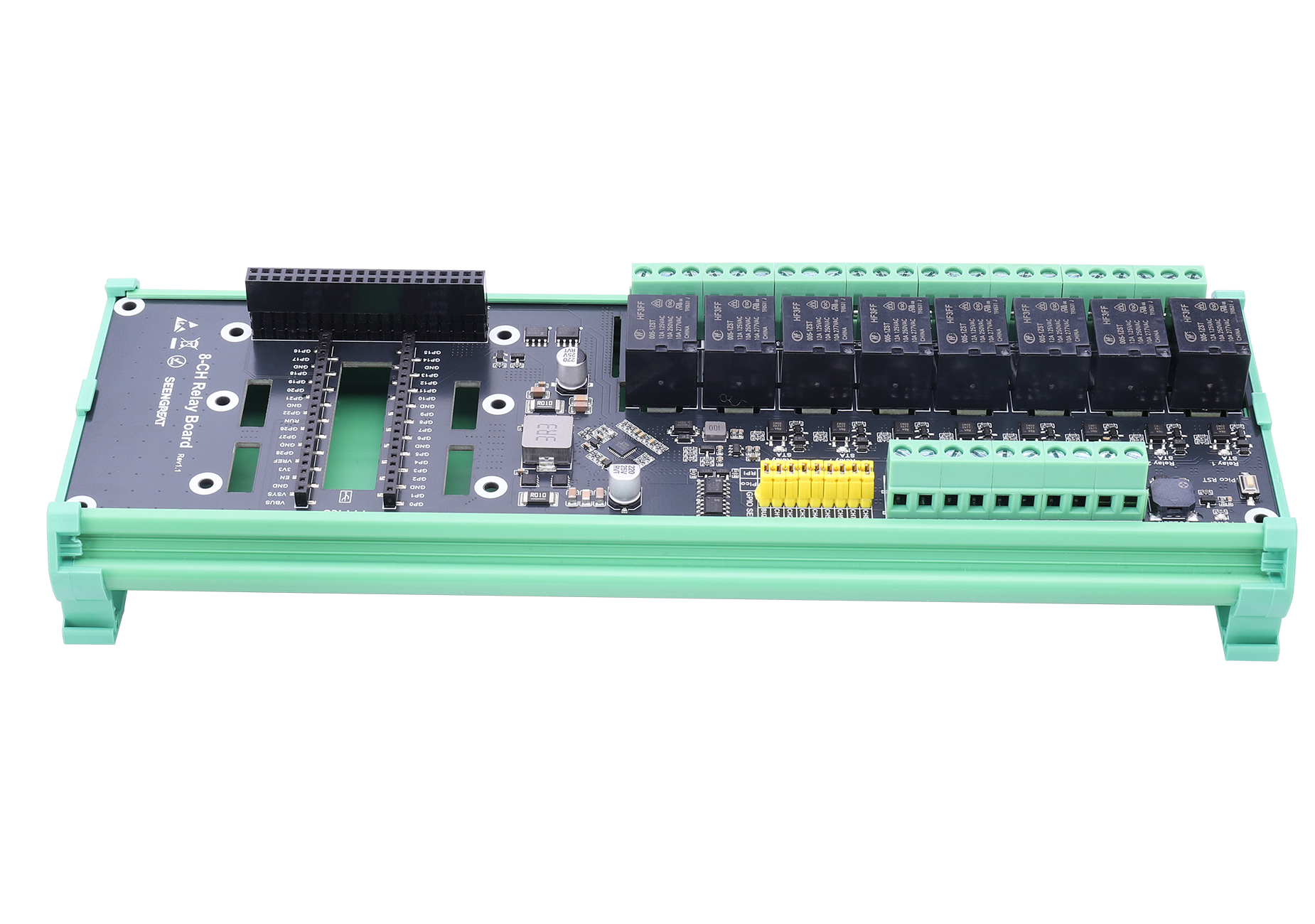

8-CH Relay, Relay Expansion Board, Compatible with Raspberry Pi / Raspberry Pi Pico

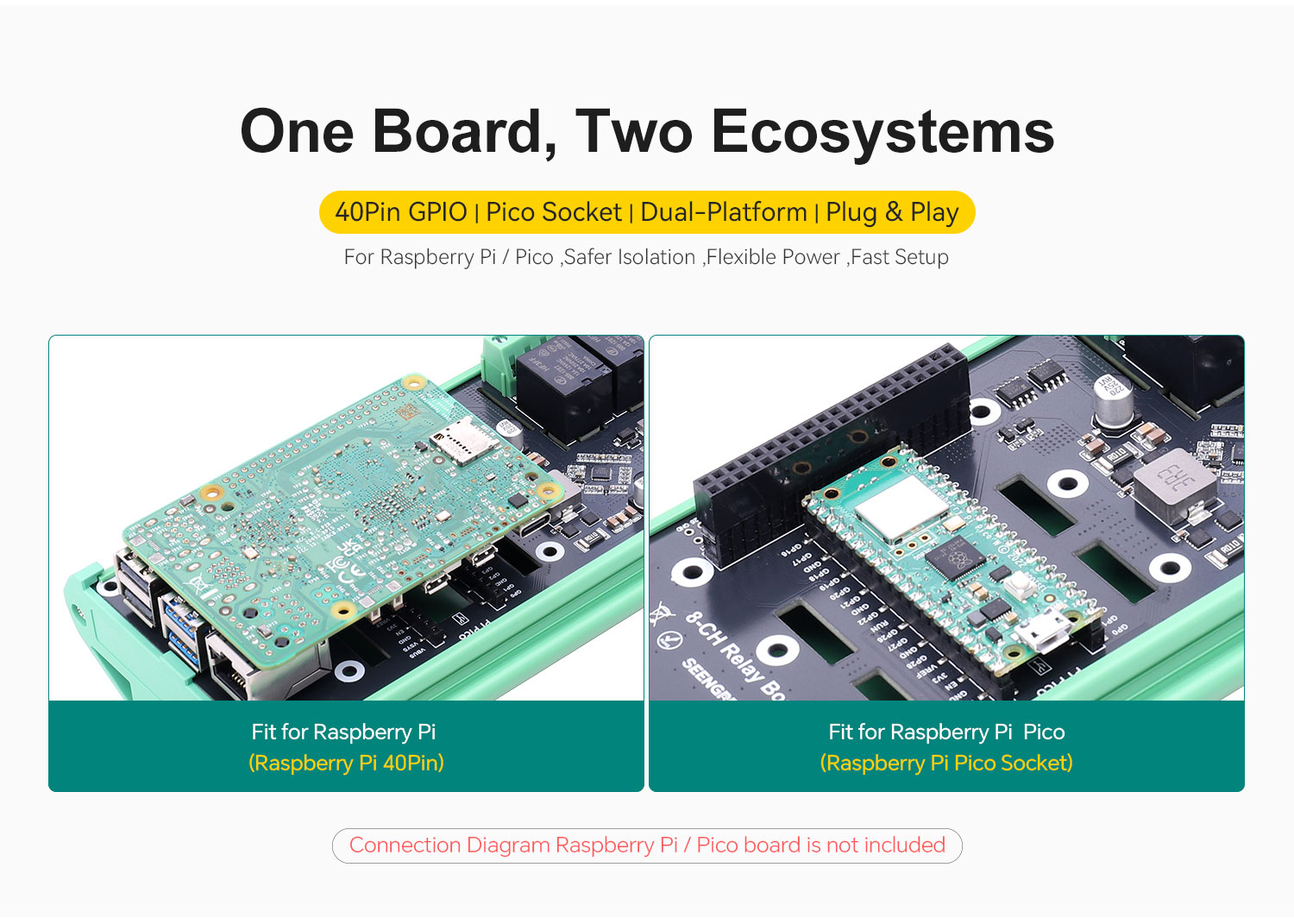

This 8-channel relay expansion board is designed for the Raspberry Pi / Raspberry Pi Pico series. It features a Raspberry Pi 40-pin GPIO header, making it suitable for Raspberry Pi mainboards and offering excellent versatility across multiple Raspberry Pi platforms. The board includes eight high-quality relays, each independently controllable, enabling precise ON/OFF switching of connected devices, making it ideal for home automation, robotics, and other IoT applications.
Key advantages:
· Onboard optocoupler isolation for strong immunity against high-voltage interference, protecting your Raspberry Pi
· Flexible and easy-to-use GPIO assignment via jumpers, adaptable to different programming needs
· Wide input voltage support (5-12V), plus short-circuit protection on the 5V output to protect your equipment
· Open-source support with demo code and technical support for faster troubleshooting
2. Product Features
· Wide voltage input: supports 5-12V input

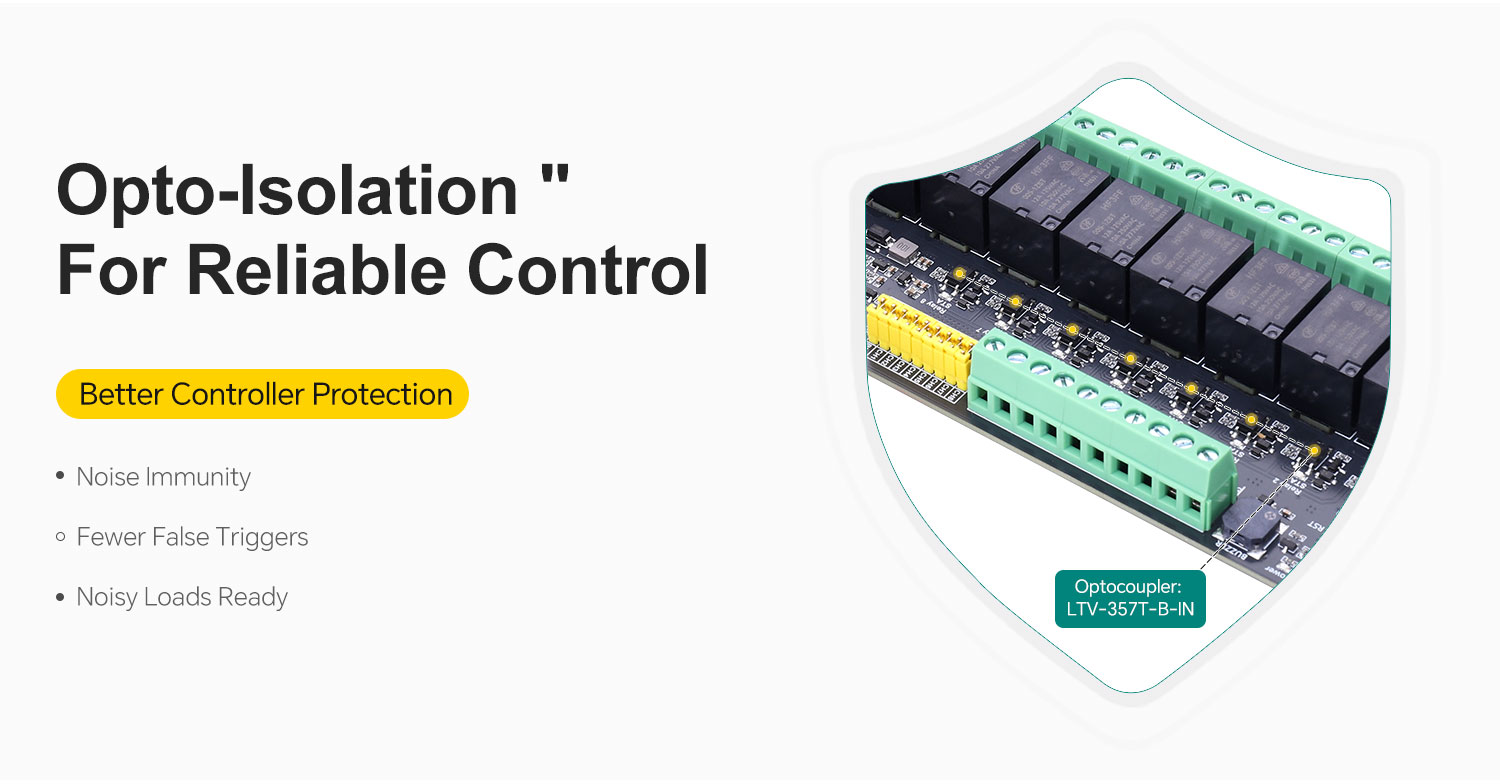

· Isolation protection: optocoupler isolation helps protect the board from high-voltage circuit interference, ensuring stable and safe operation in harsh environments
· Relay load rating: AC 125V/12A, AC 250V/10A, AC 277V/10A, DC 28V/5A

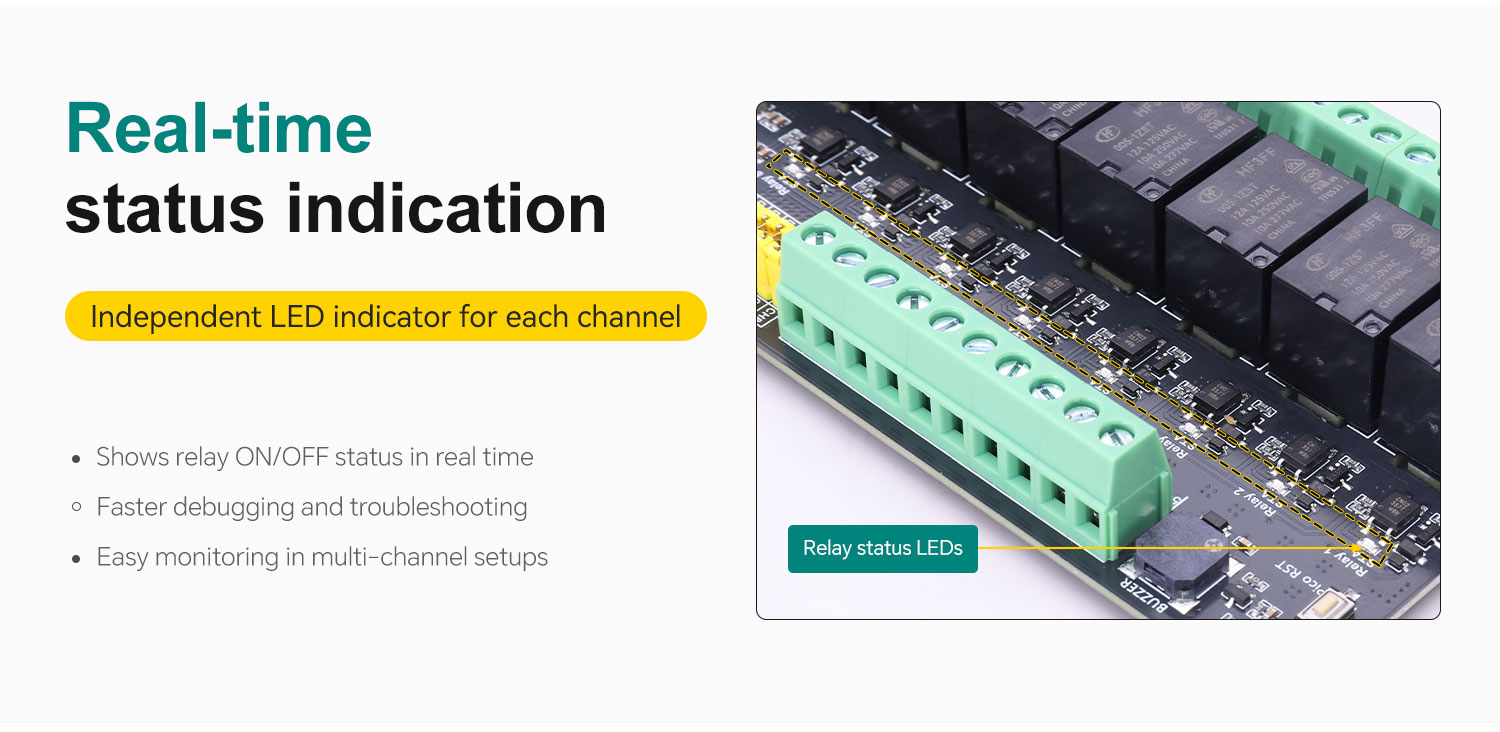

· Clear working status: each relay includes an LED status indicator for real-time visual feedback

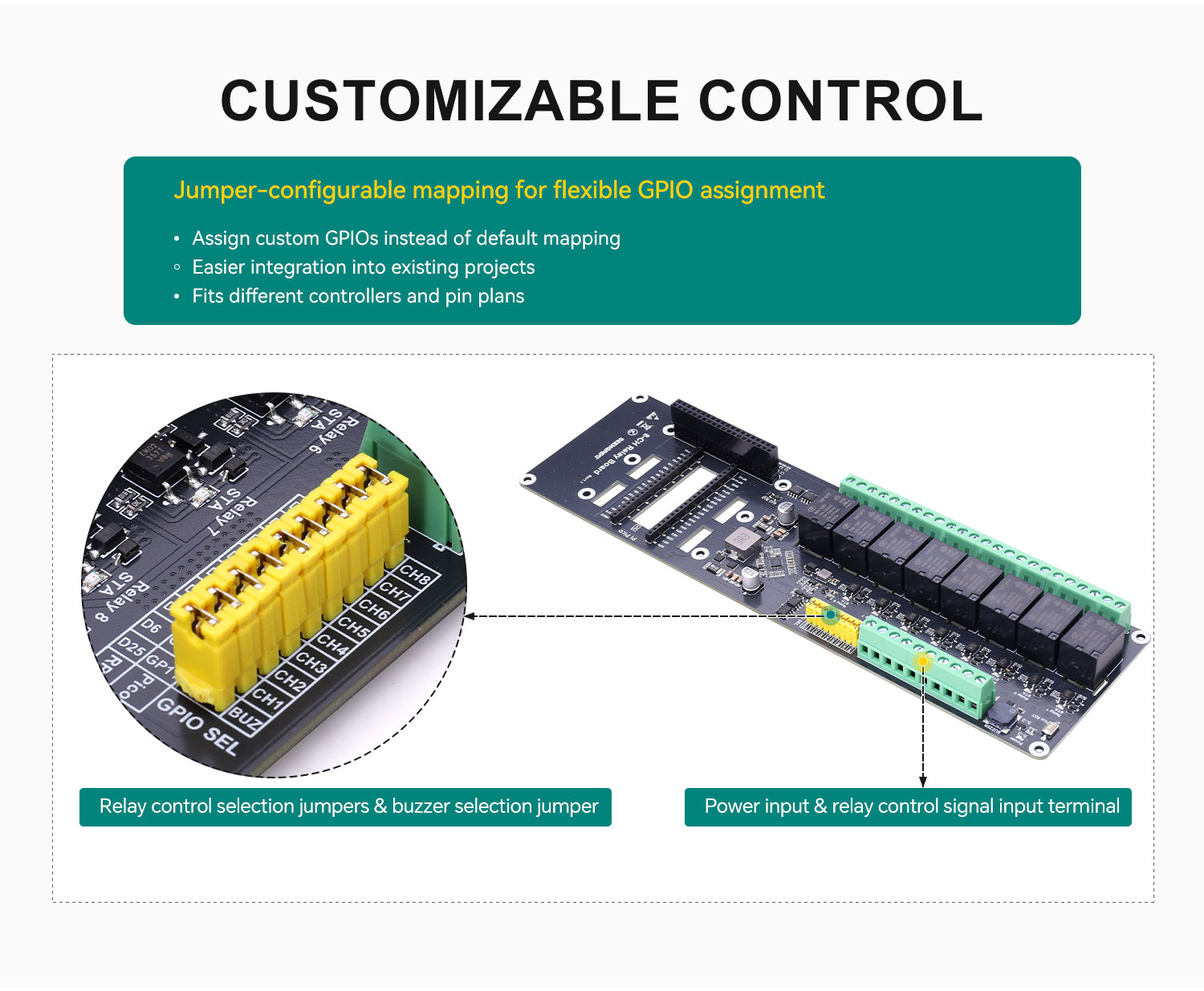

· Customizable control: relay control jumpers allow you to assign custom GPIO pins instead of fixed default settings
3. Product Specifications
Item | Specification |
Model | 8-CH Relay Board |
Optocoupler | LTV-357T-B-IN |
Input Supply Voltage | 5V-12V |
Relay Trigger Signal | 3.3V / 5V |
Trigger Mode | Active-Low (Low-level trigger) |
Status Indication | Independent LED indicator for each relay channel |
Dimensions | 244 mm (L) x 72 mm (W) |

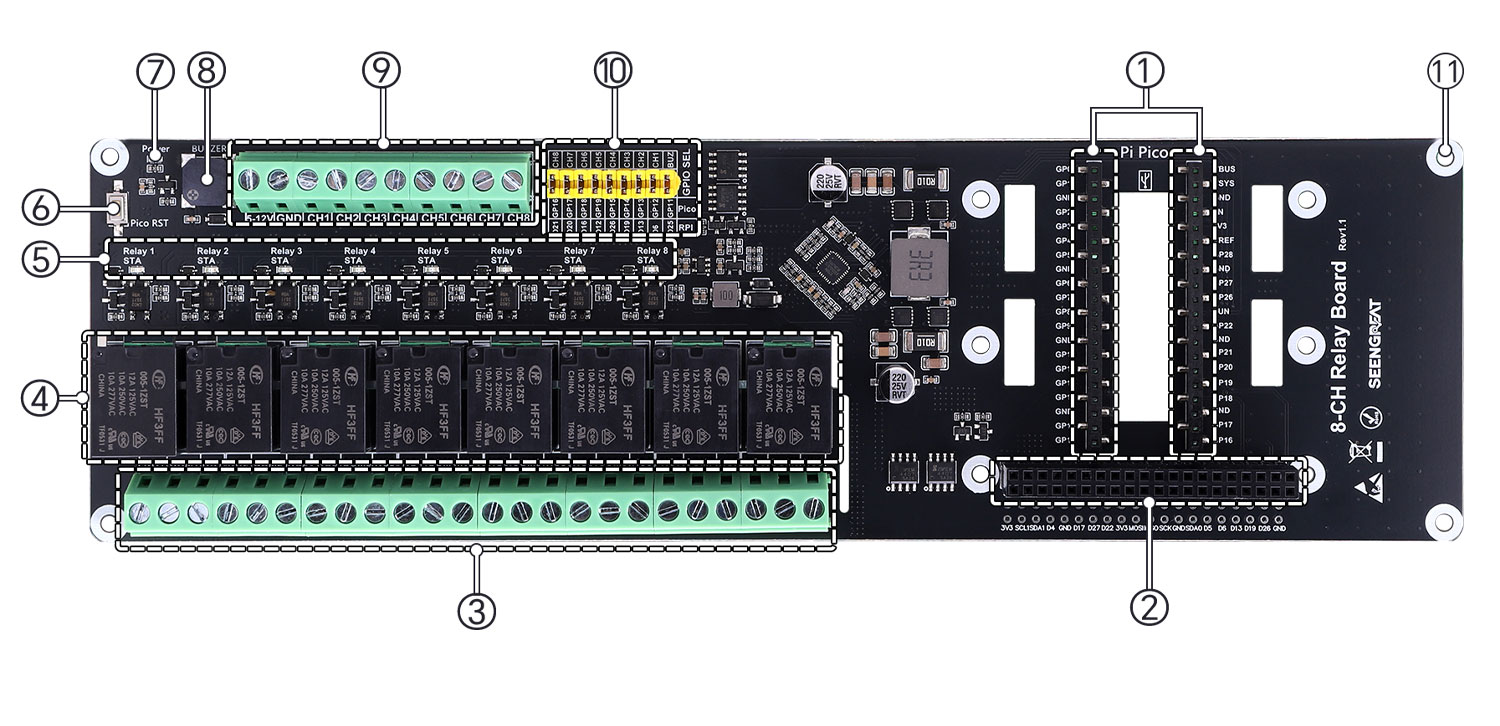

4. Resource Overview
①Raspberry Pi Pico female socket
②Raspberry Pi 40-pin header
③Relay output terminals
④High-quality relays
⑤Relay status LEDs (LED lights when the relay is energized)
⑥Raspberry Pi Pico reset button
⑦Power indicator LED
⑧Buzzer
⑨Power input & relay control signal input terminal
⑩Relay control selection jumpers & buzzer selection jumper
⑪M2.5 mounting holes

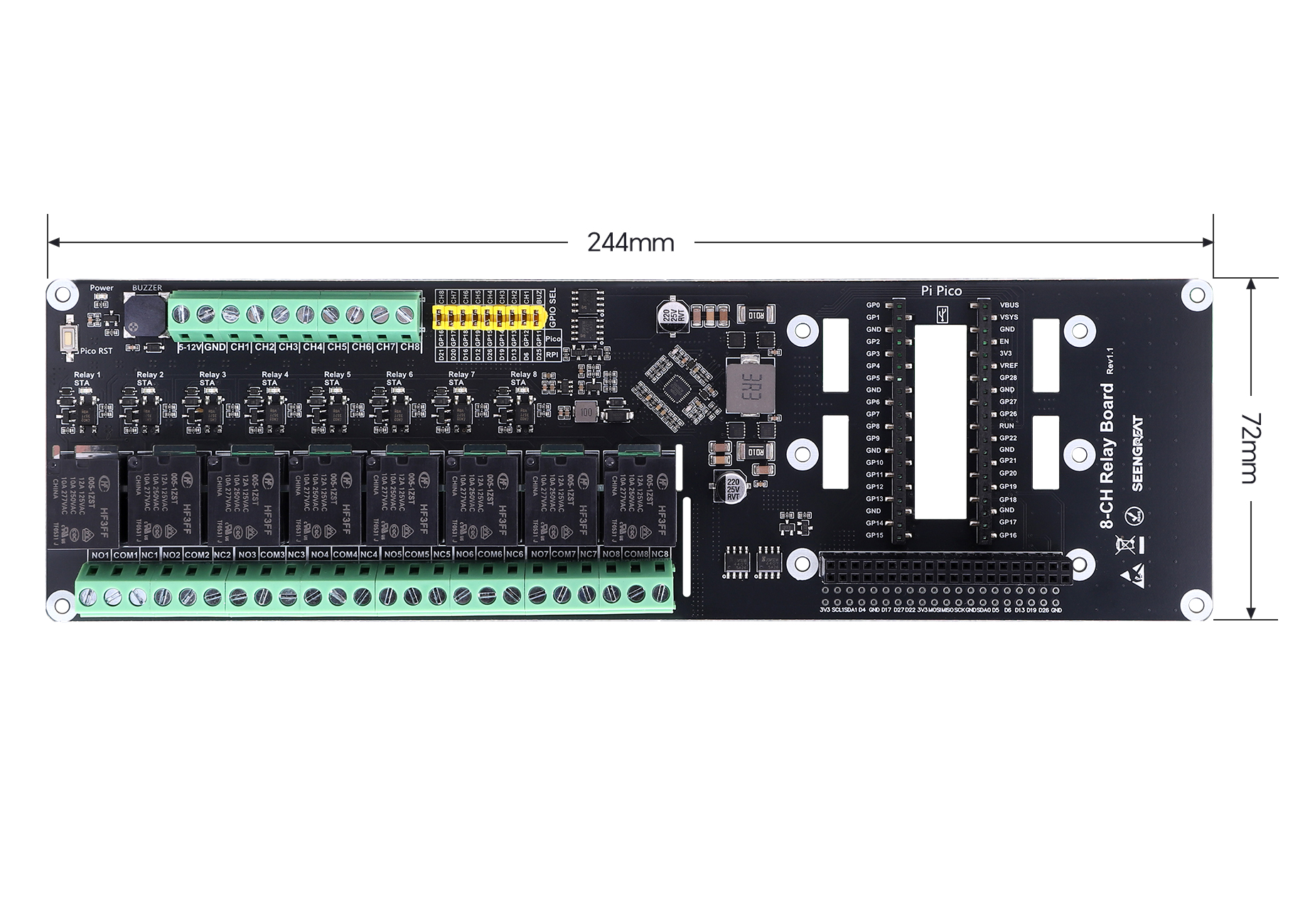

Product Size
Wiki
https://seengreat.com/wiki/199/

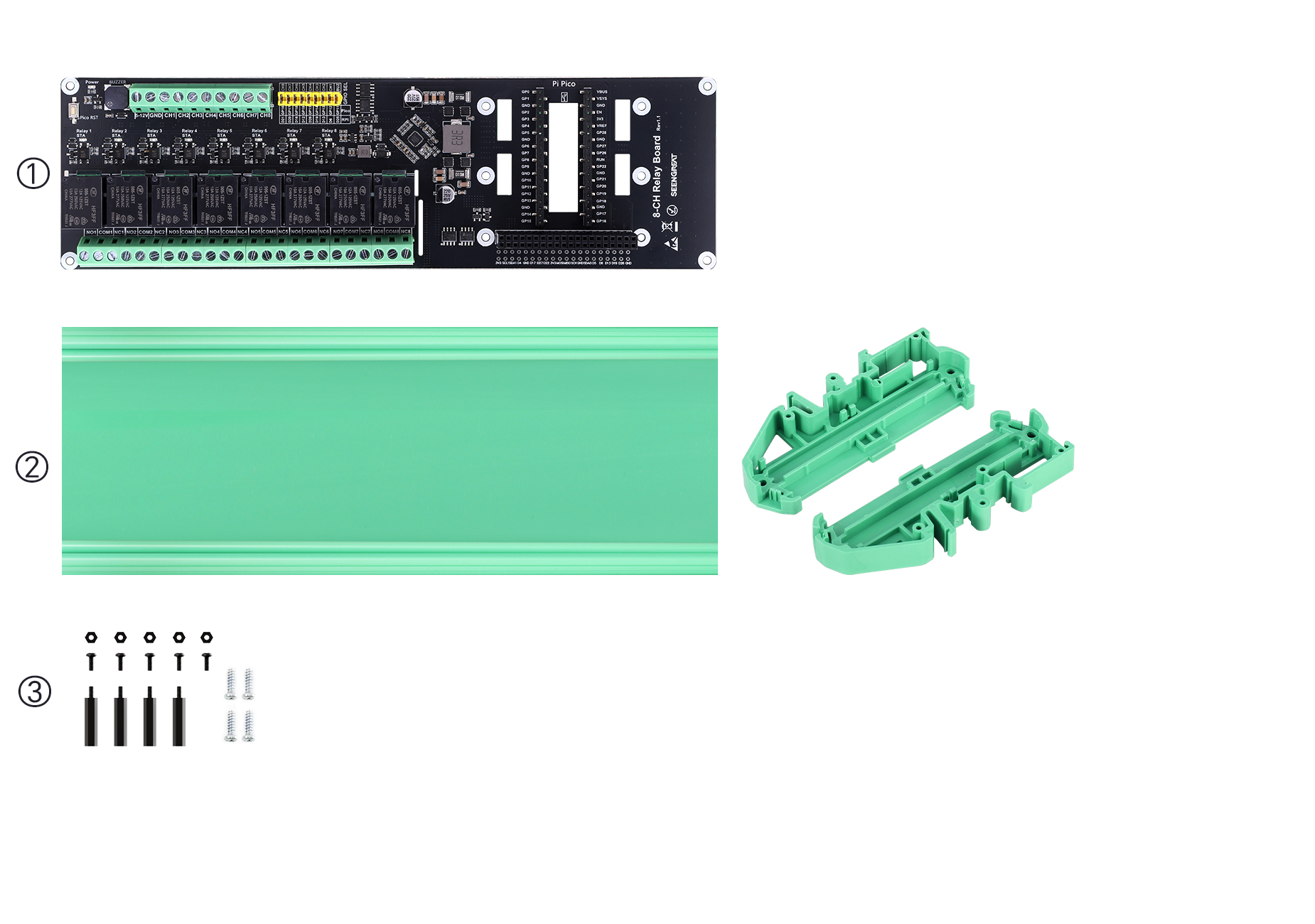

Package Contents
