Raspberry Pi 5 PCIe to Dual M.2 Adapter Board
Compatible with 2280/2260/2242/2230 NVMe SSDs, HAT+ Standard

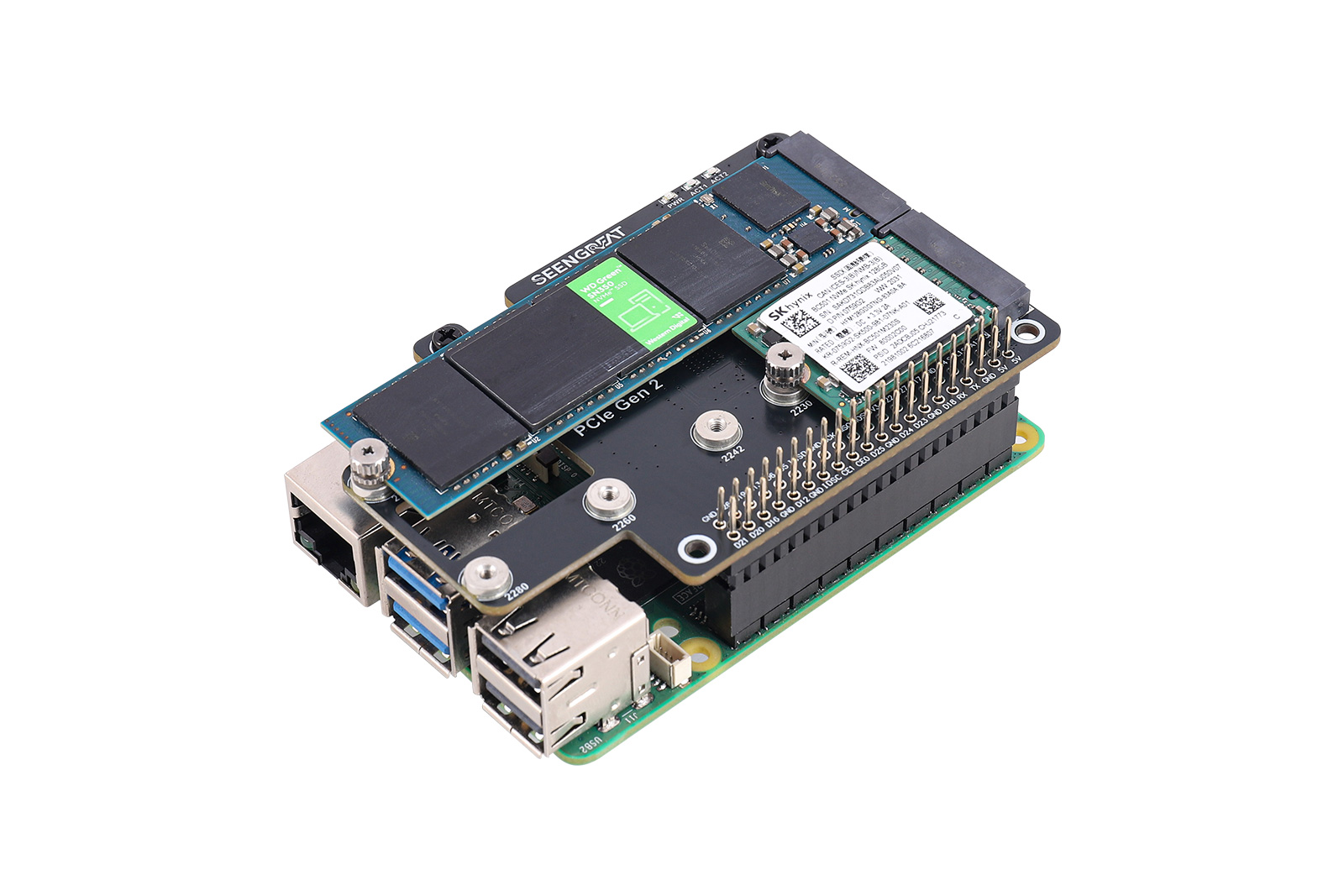

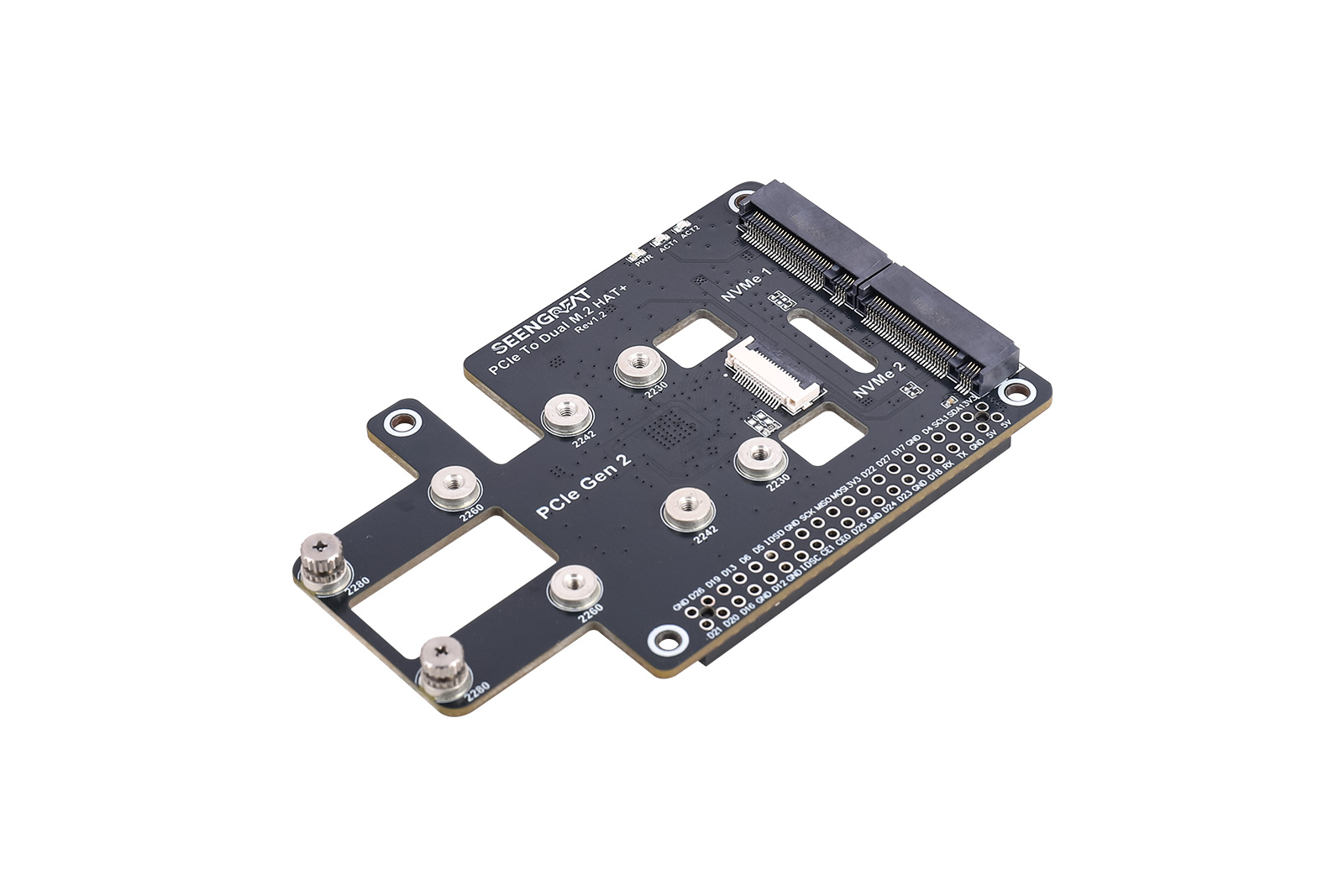

1.1 Product Overview
This PCIe-to-Dual-M.2 Adapter Board is specially designed for the Raspberry Pi 5. It is based on the Pi 5's onboard 16‑pin PCIe interface and provides two M.2 NVMe SSD slots, supporting simultaneous installation of two NVMe‑protocol SSDs. It is compatible with M.2 drives of size 2230/2242/2260/2280. The board operates with PCIe x1 Gen2 specification, delivering transfer speeds far exceeding the Raspberry Pi's native Micro SD interface. This greatly improves system and file read/write efficiency and enhances workflow. It also supports booting the Raspberry Pi 5 directly from an NVMe SSD. The onboard EEPROM stores the HAT ID and product information. When used with the Raspberry Pi mainboard and SSDs, it can fully unlock the hardware performance.

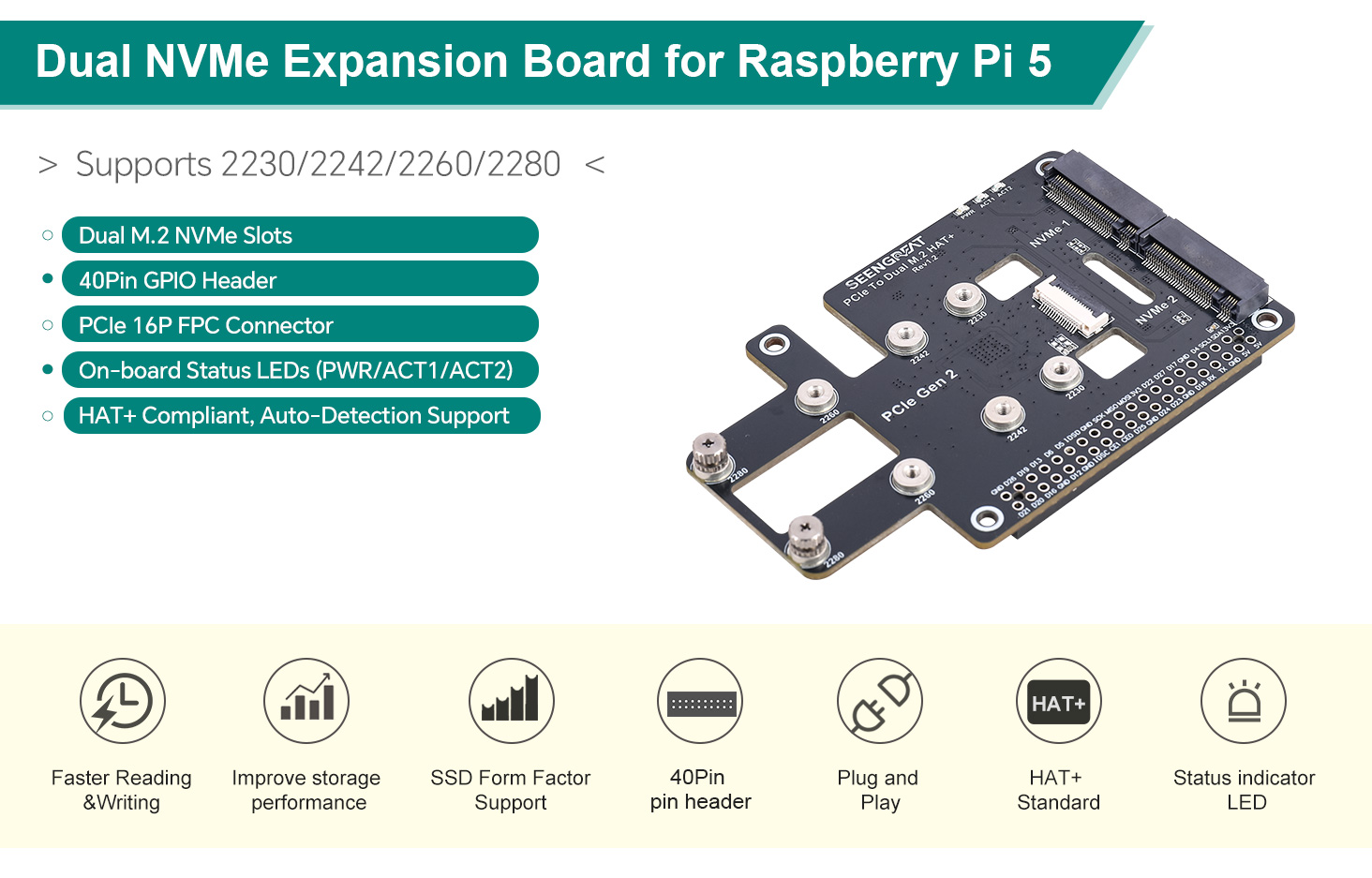

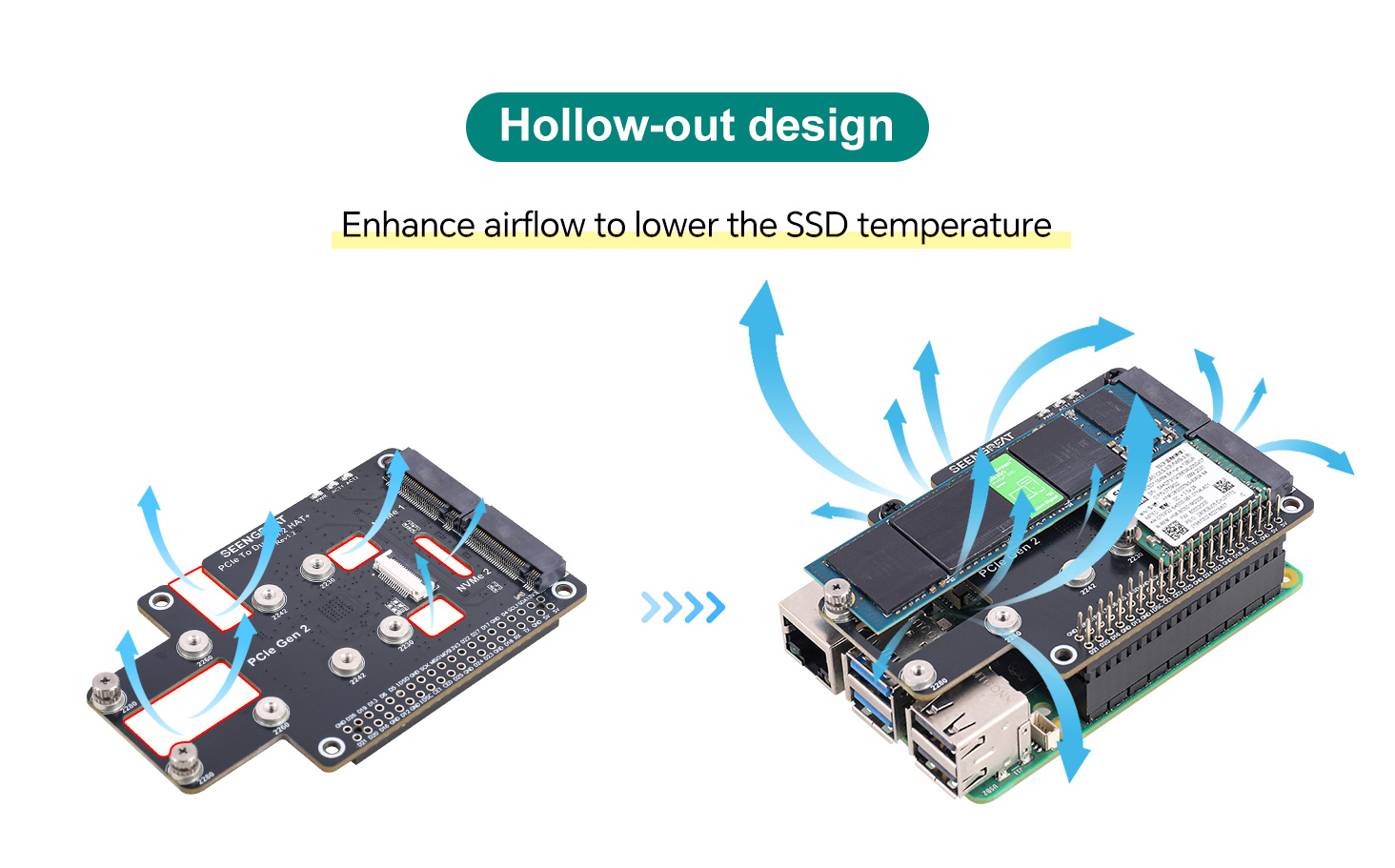

1.2 Product Features
- Supports NVMe‑protocol dual‑channel M.2 SSDs with high‑speed read/write performance
- Designed for the Raspberry Pi 5 16‑pin PCIe interface; supports PCIe x1 Gen2 only

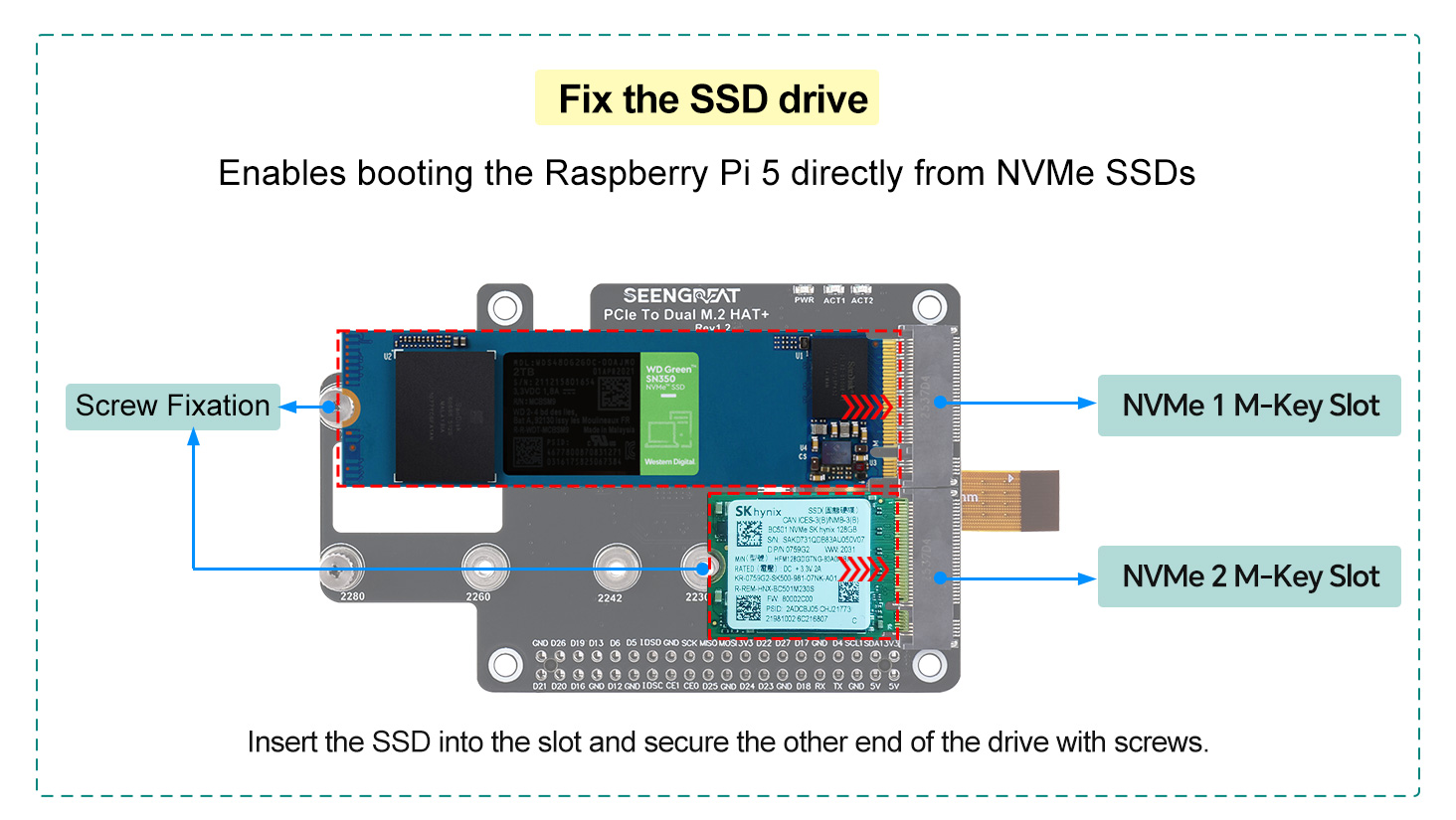

- Supports Raspberry Pi 5 NVMe SSD boot

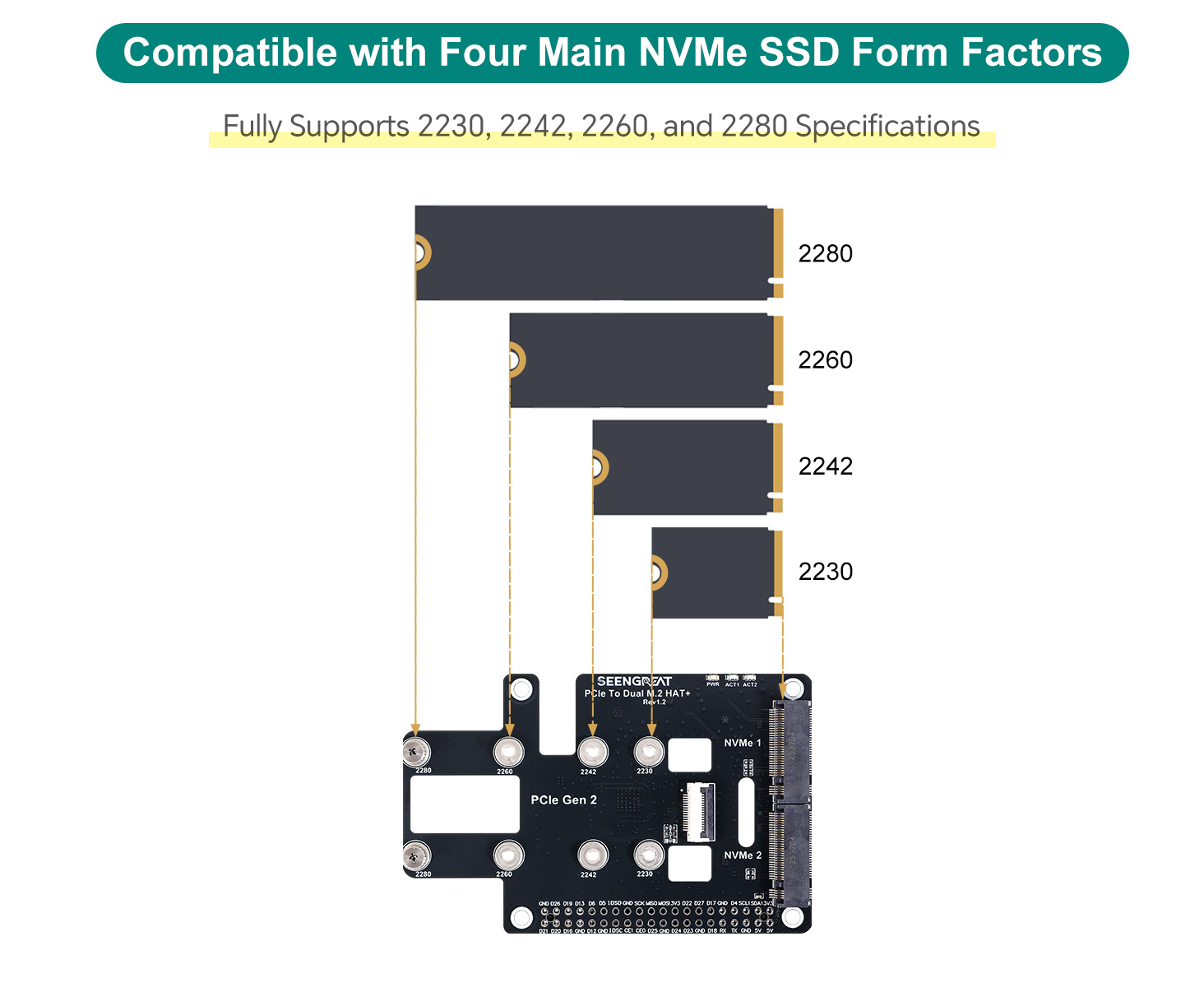

- Supports M.2 SSD size formats: 2230 / 2242 / 2260 / 2280
- Complies with HAT+ standard; supports Raspberry Pi firmware/software auto‑detection
- Onboard LED status indicators
1.3 Product Parameters
PCIe Speed | PCIe Gen 2.0 |
PCIe Switch Chip | ASM1182e |
Supported SSD Sizes | 2230 / 2242 / 2260 / 2280 |
Operating Voltage | 5V |
PCB Dimensions | 88 mm × 56.1 mm |
Weight | 20.5 g |

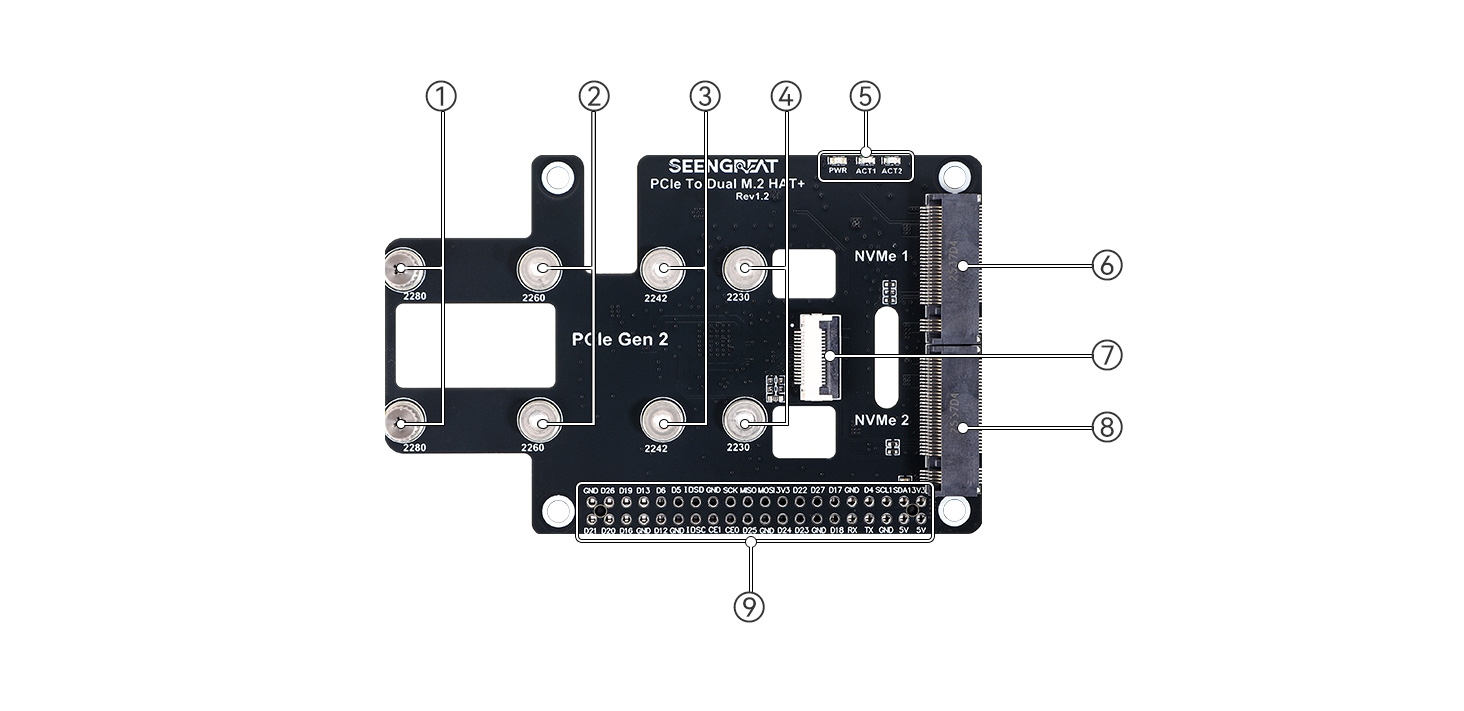

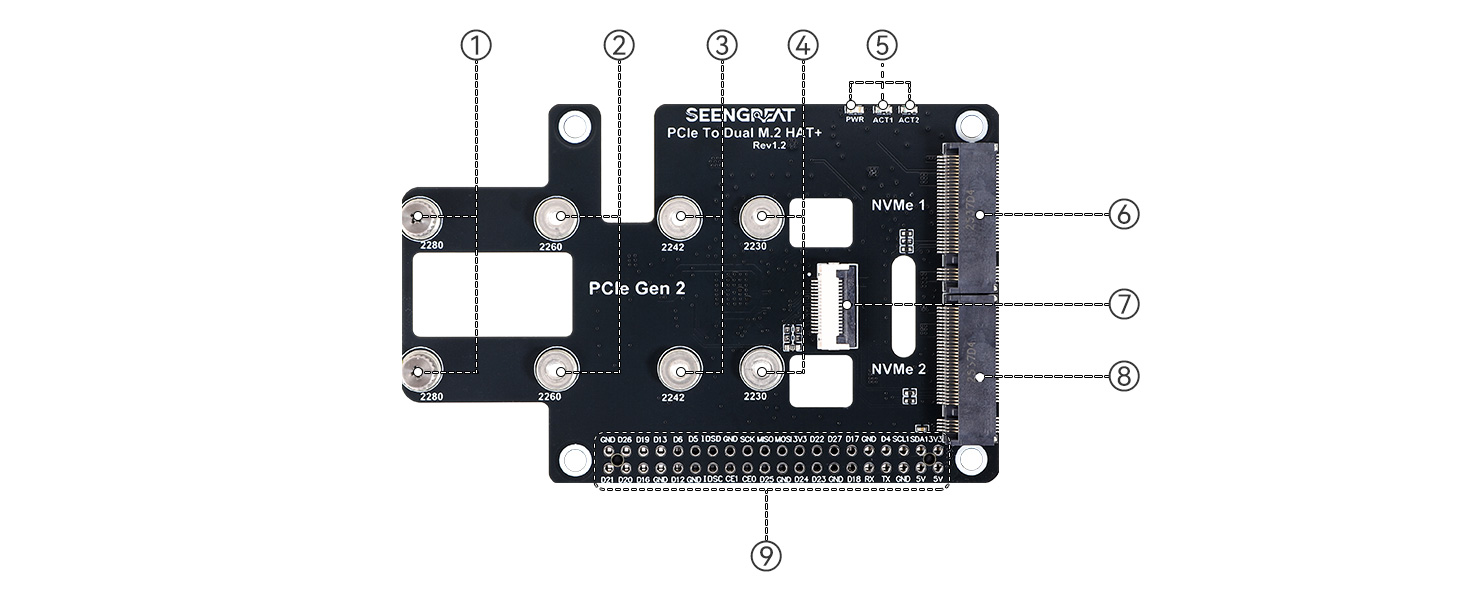

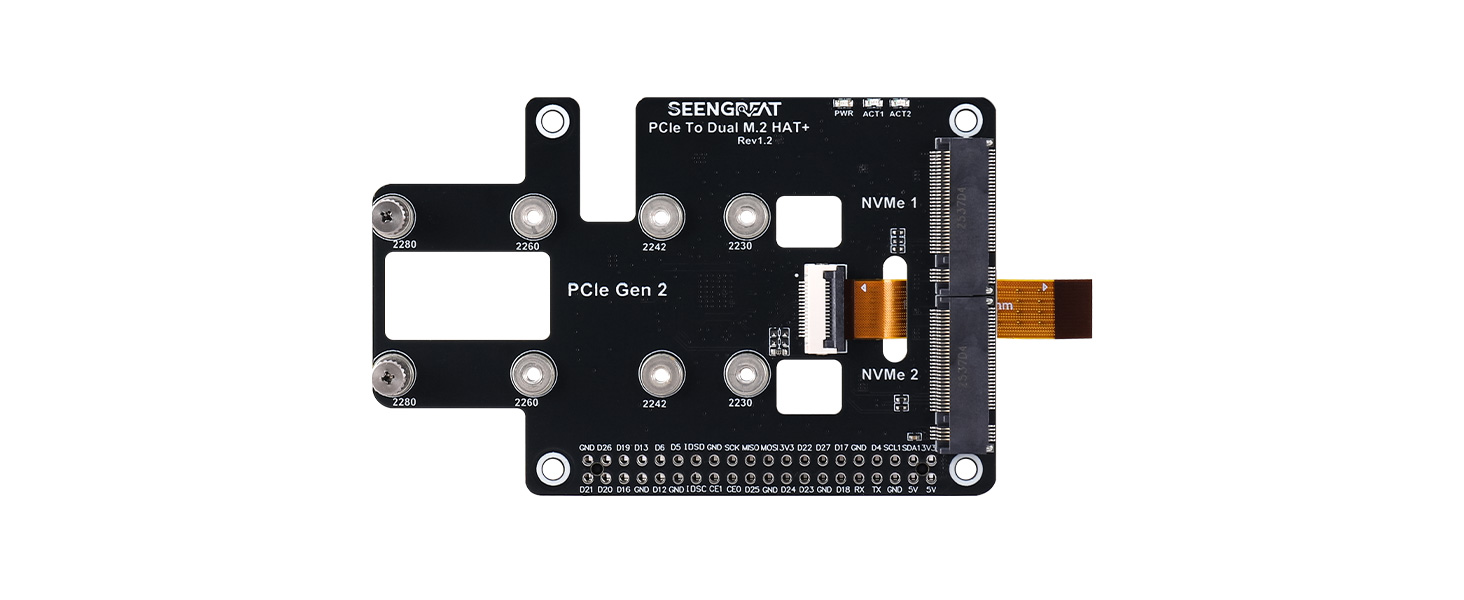

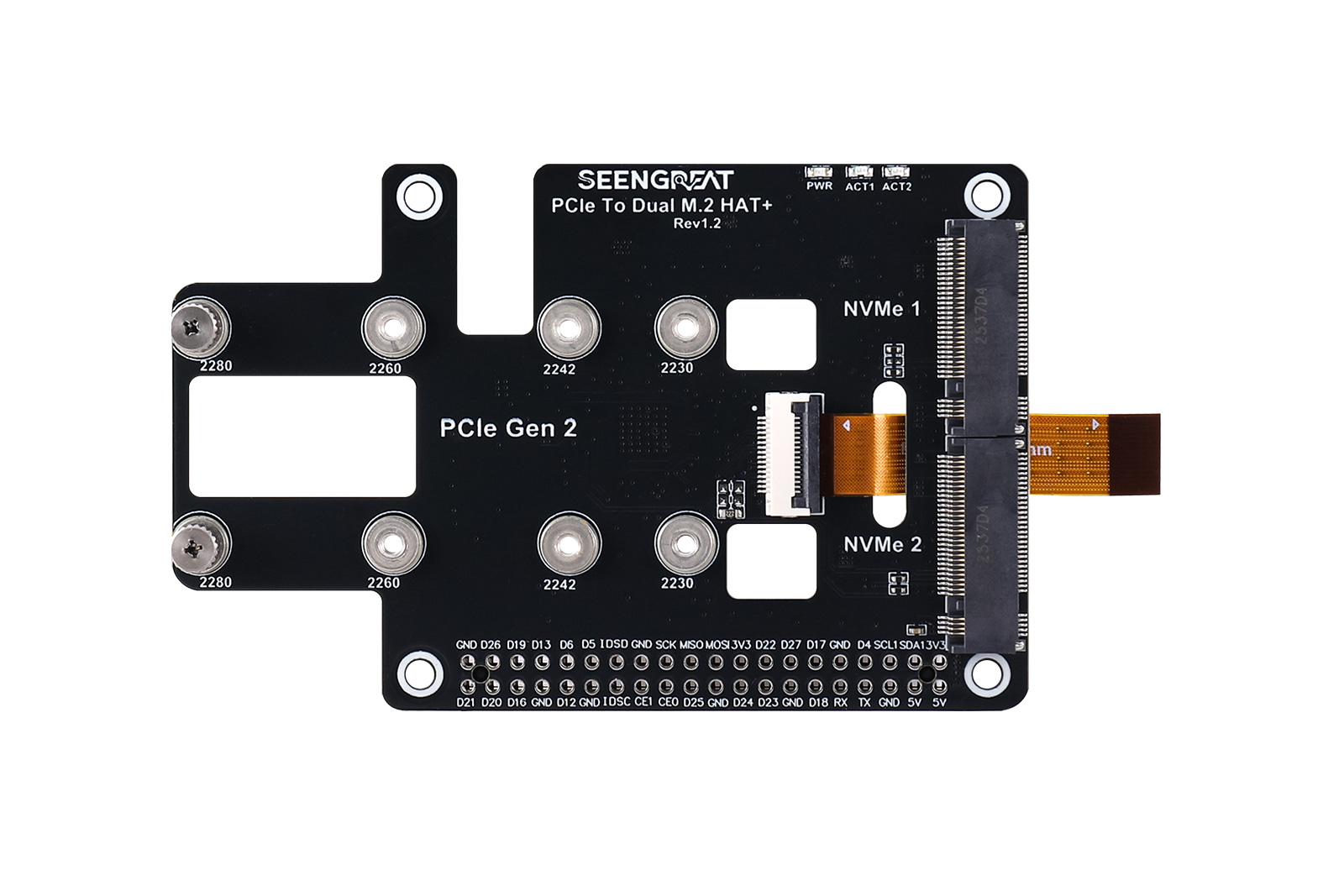

1.4 Resource Overview
①2280 SSD mounting hole
② 2260 SSD mounting hole
③ 2242 SSD mounting hole
④2230 SSD mounting hole
⑤ Indicators: PWR (power), ACT1 (NVMe1 activity), ACT2 (NVMe2 activity)
⑥ NVMe 1 M‑Key Slot

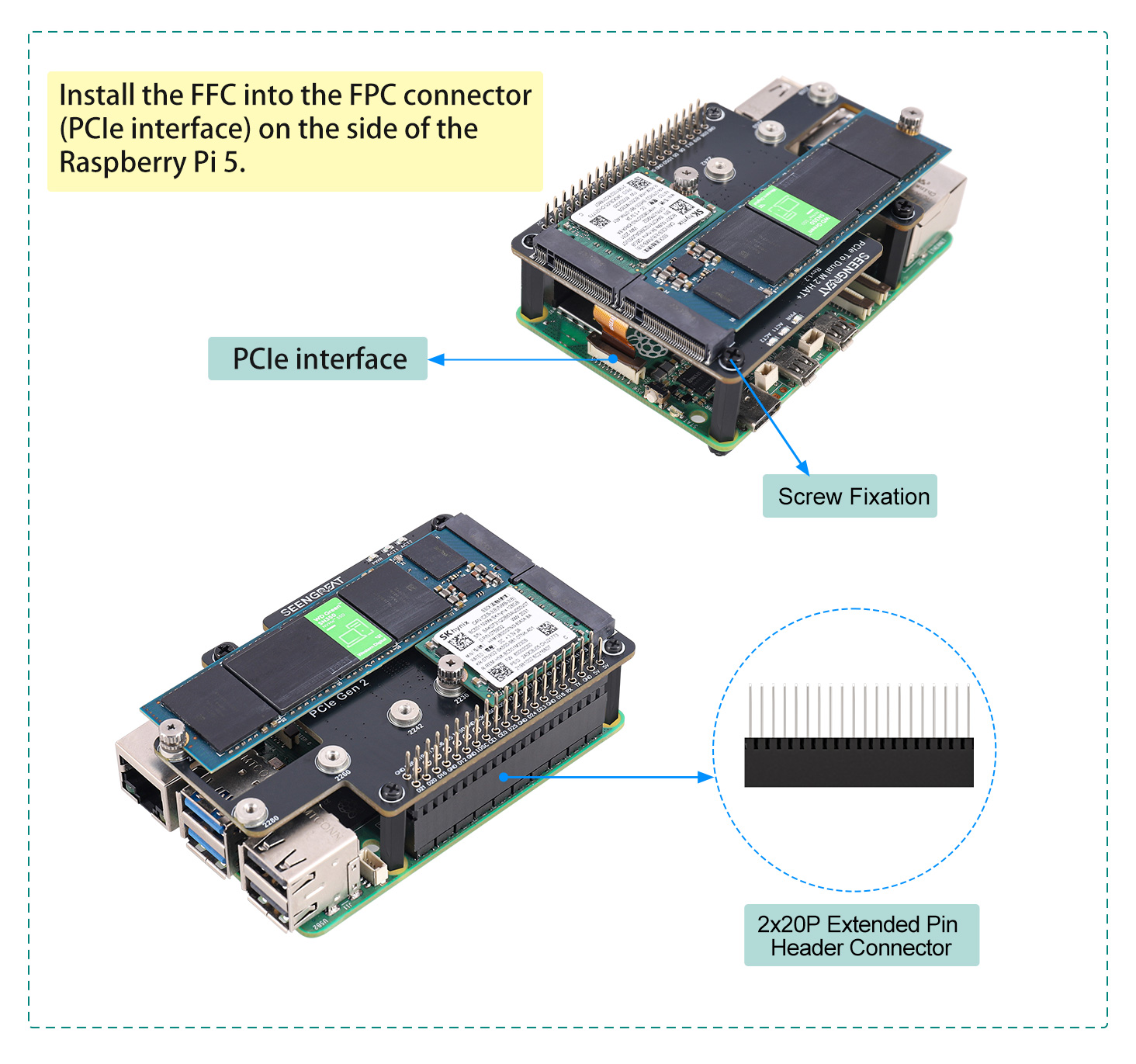

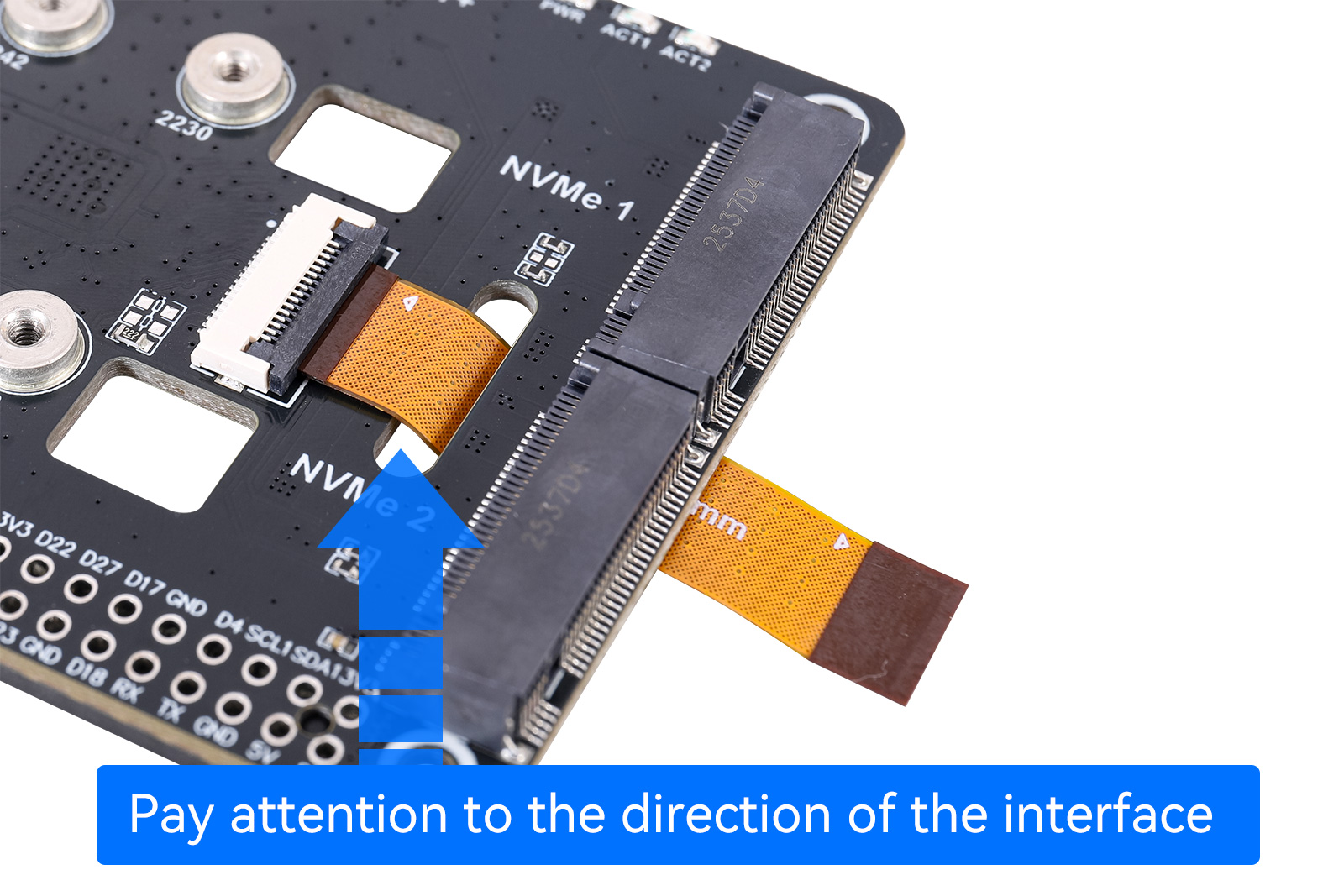

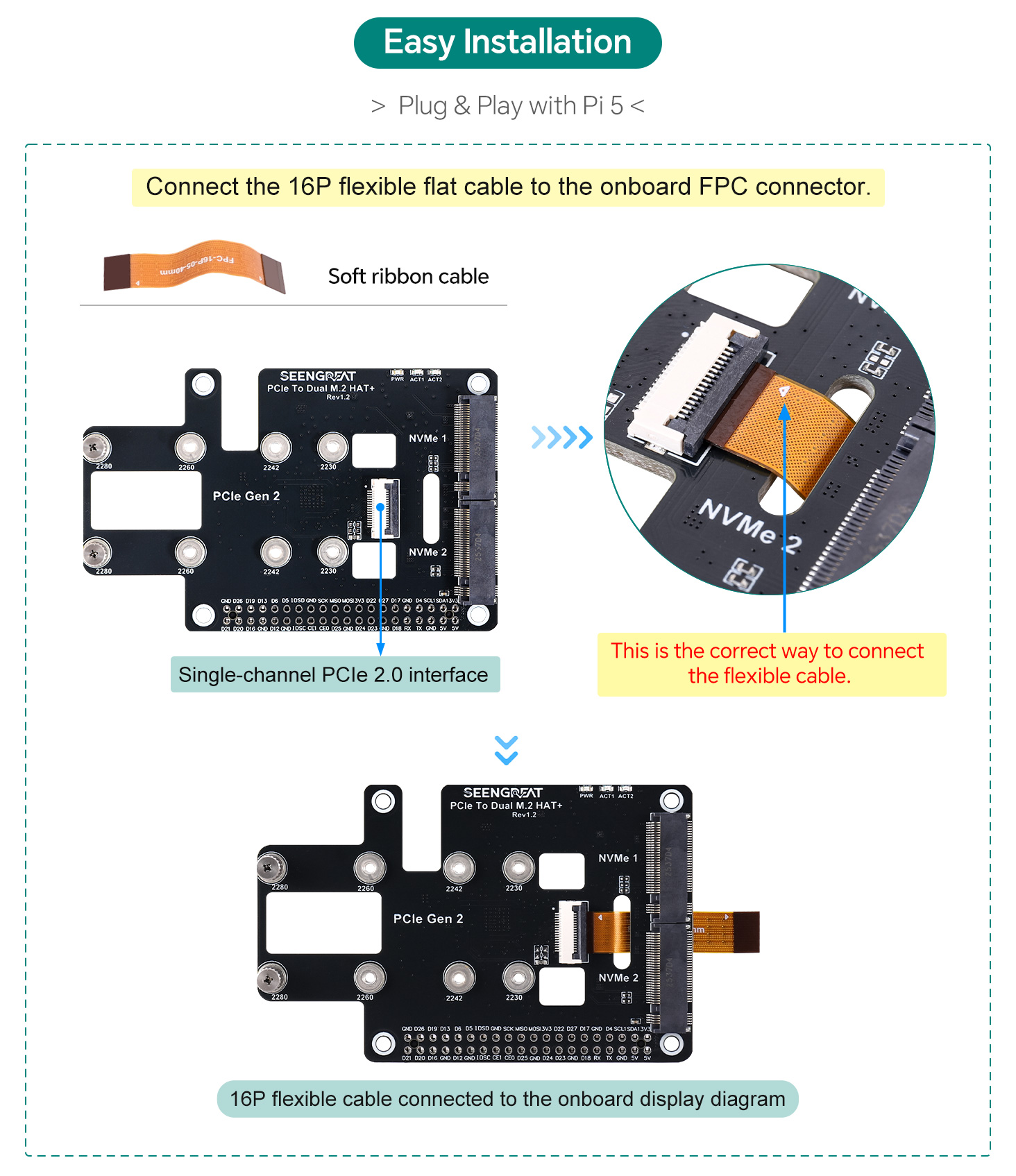

⑦ PCIe 16‑pin FPC Connector
⑧NVMe 2 M‑Key Slot
⑨ Raspberry Pi 40‑pin expansion header pass‑through

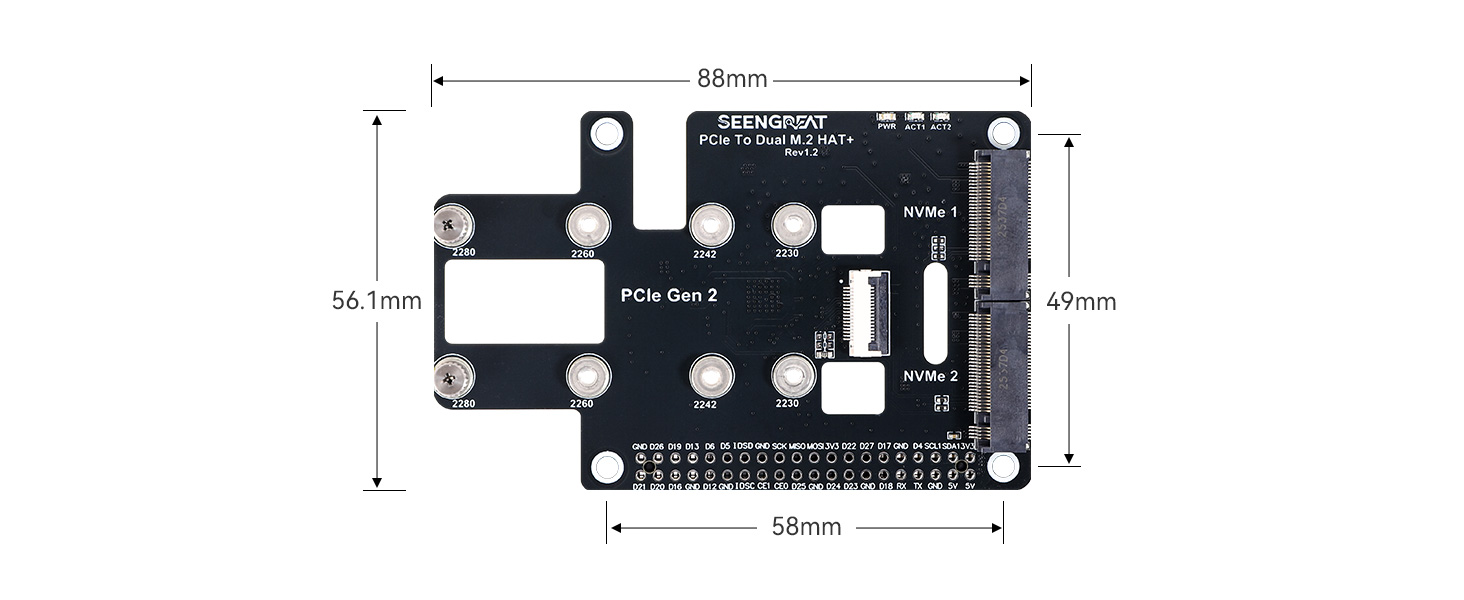

Product Size
Wiki
https://seengreat.com/wiki/196/

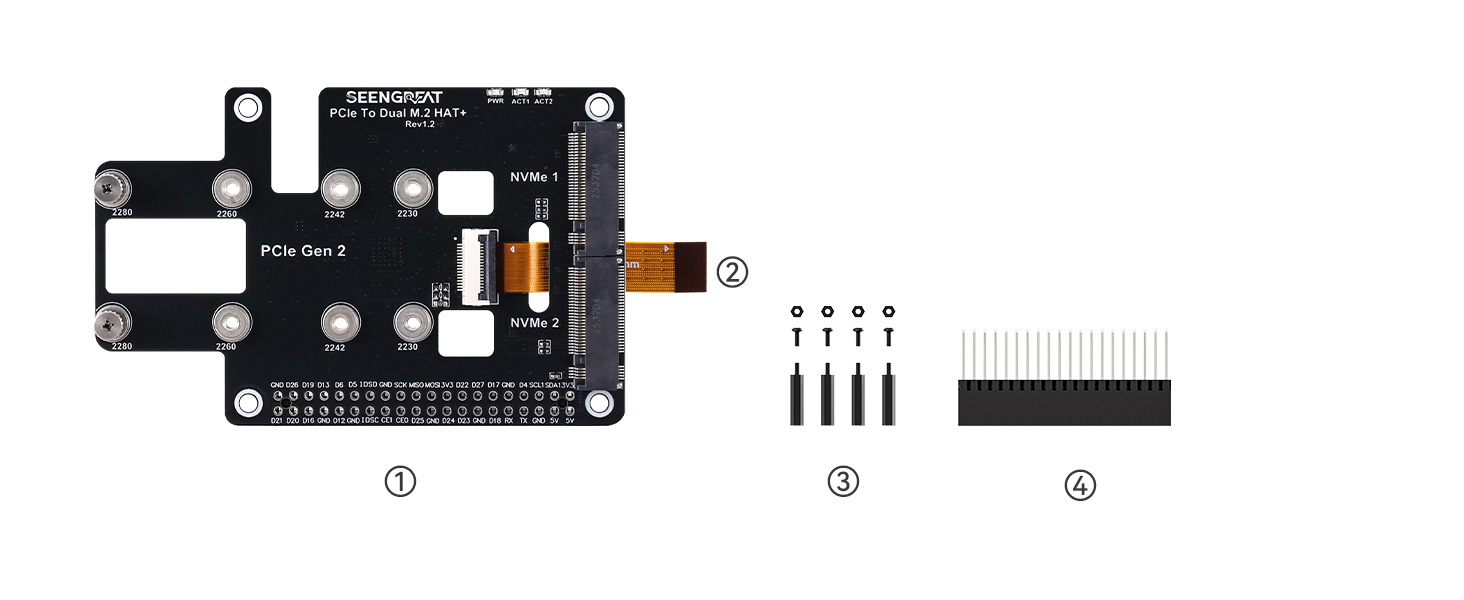

Package Contents
①PCIe To Dual M.2 HAT+ ×1
② 16‑pin FPC ribbon cable ×1
③Nylon screw pack ×1
④2×20 extended pin header ×1
