Pico Expansion LED Expansion Board
GPIO Status & Reset Extension for Raspberry Pi Pico
1. Overview

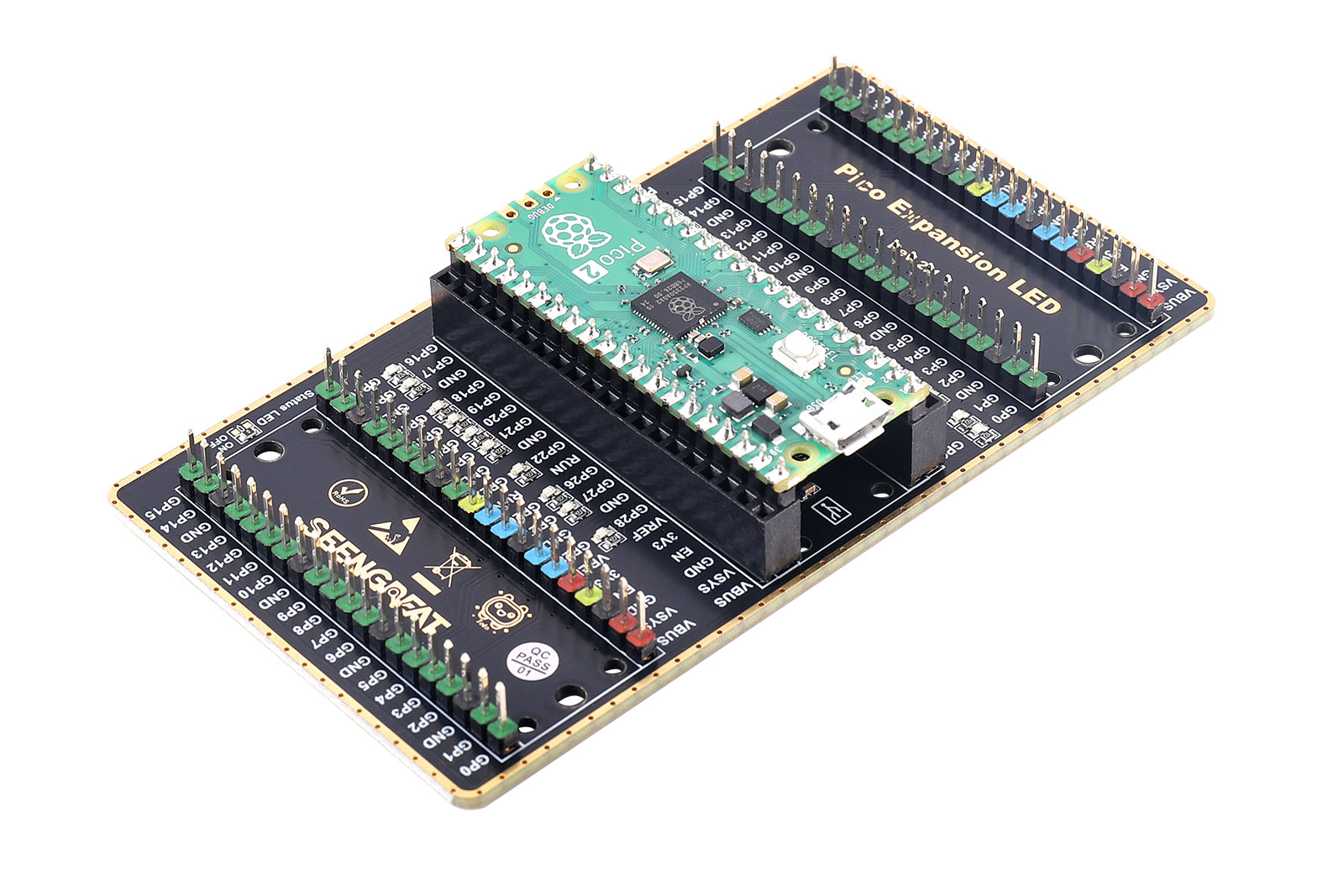

The Pico Expansion LED is an extension board designed for the Raspberry Pi Pico. It provides two sets of 2×20 external expansion pin headers, a reset button, and IO status indicator LEDs. The dual 2×20-pin headers make it easy to connect Pico expansion modules or link Dupont wires to external peripherals, while the IO status LEDs display the logic status of each IO pin in real time.
Since the Raspberry Pi Pico itself does not include an onboard reset button, this expansion board adds a dedicated reset key. This allows users to reset the Pico during debugging or programming without repeatedly unplugging and re-plugging the USB cable.
2. Key Features

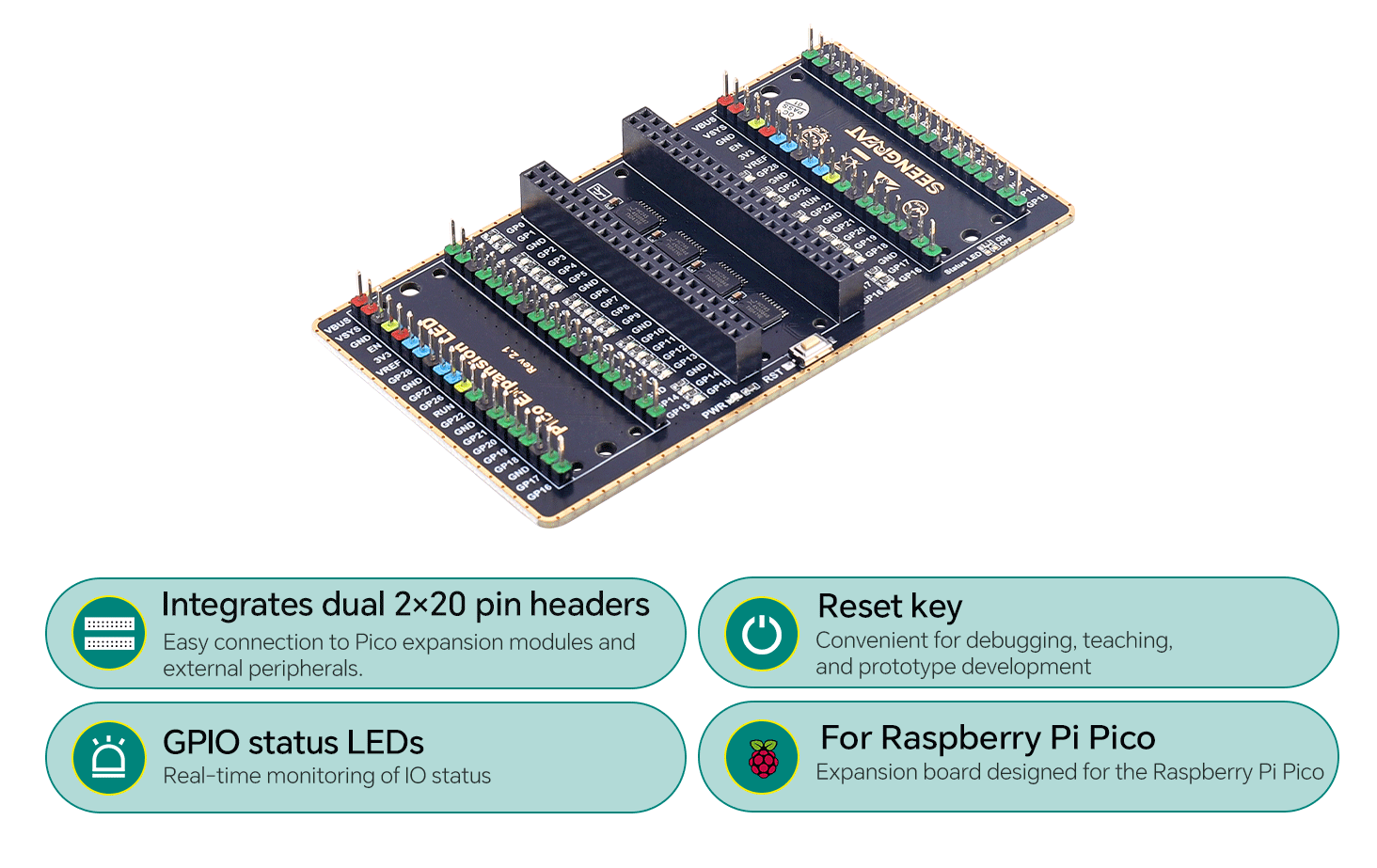

• Two sets of 2×20-pin expansion headers for easy stacking and wiring.
• IO status indicator LEDs corresponding to each IO pin.
• Selectable IO status LED enable/disable resistors.
• Onboard reset button for the Raspberry Pi Pico.
• Power indicator LED.

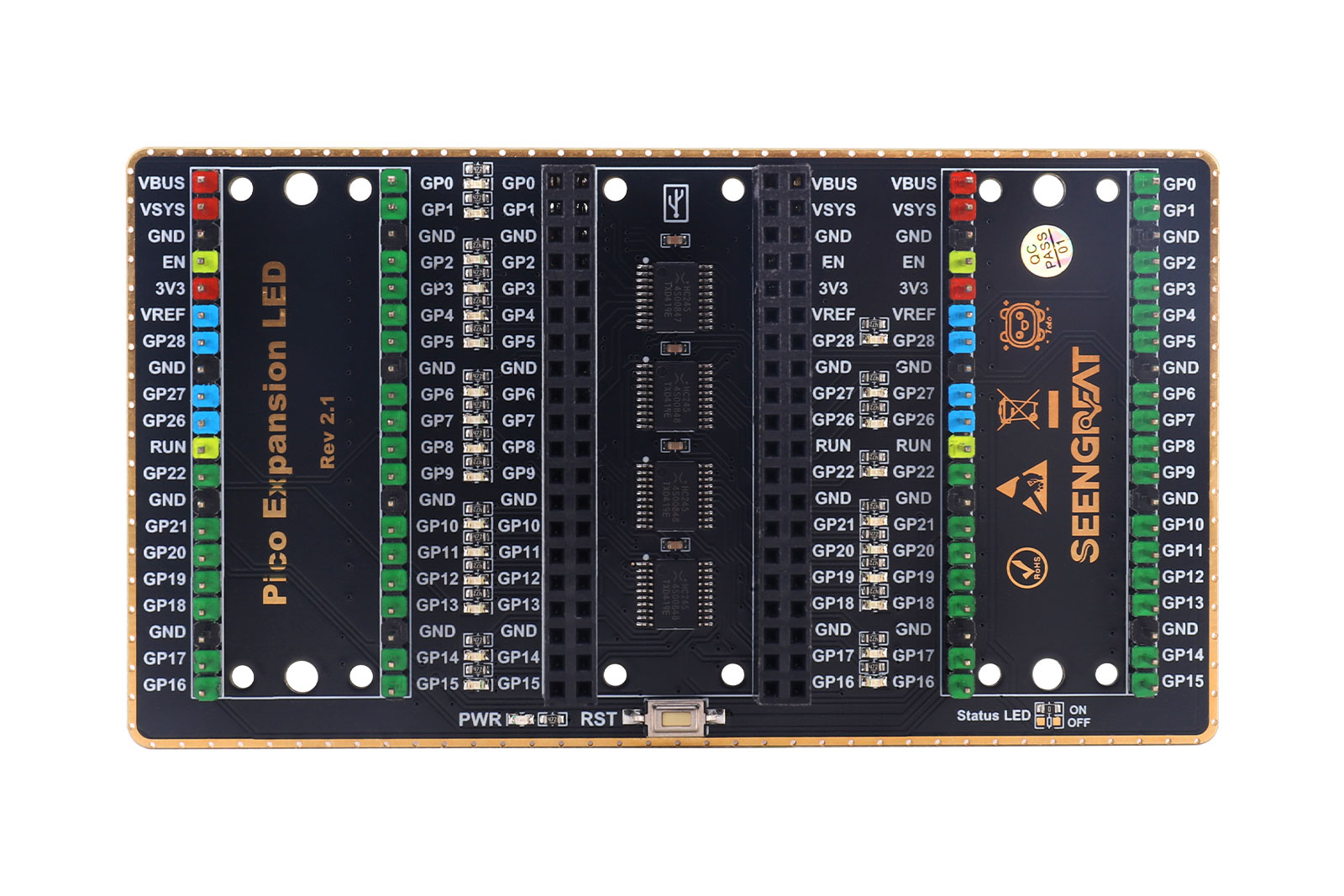

• Clear pin function silkscreen on the PCB.
3. Specifications
Board Name | Pico Expansion LED |
Compatible MCU | Raspberry Pi Pico |
Supply Voltage | 5 V (provided by the Pico) |

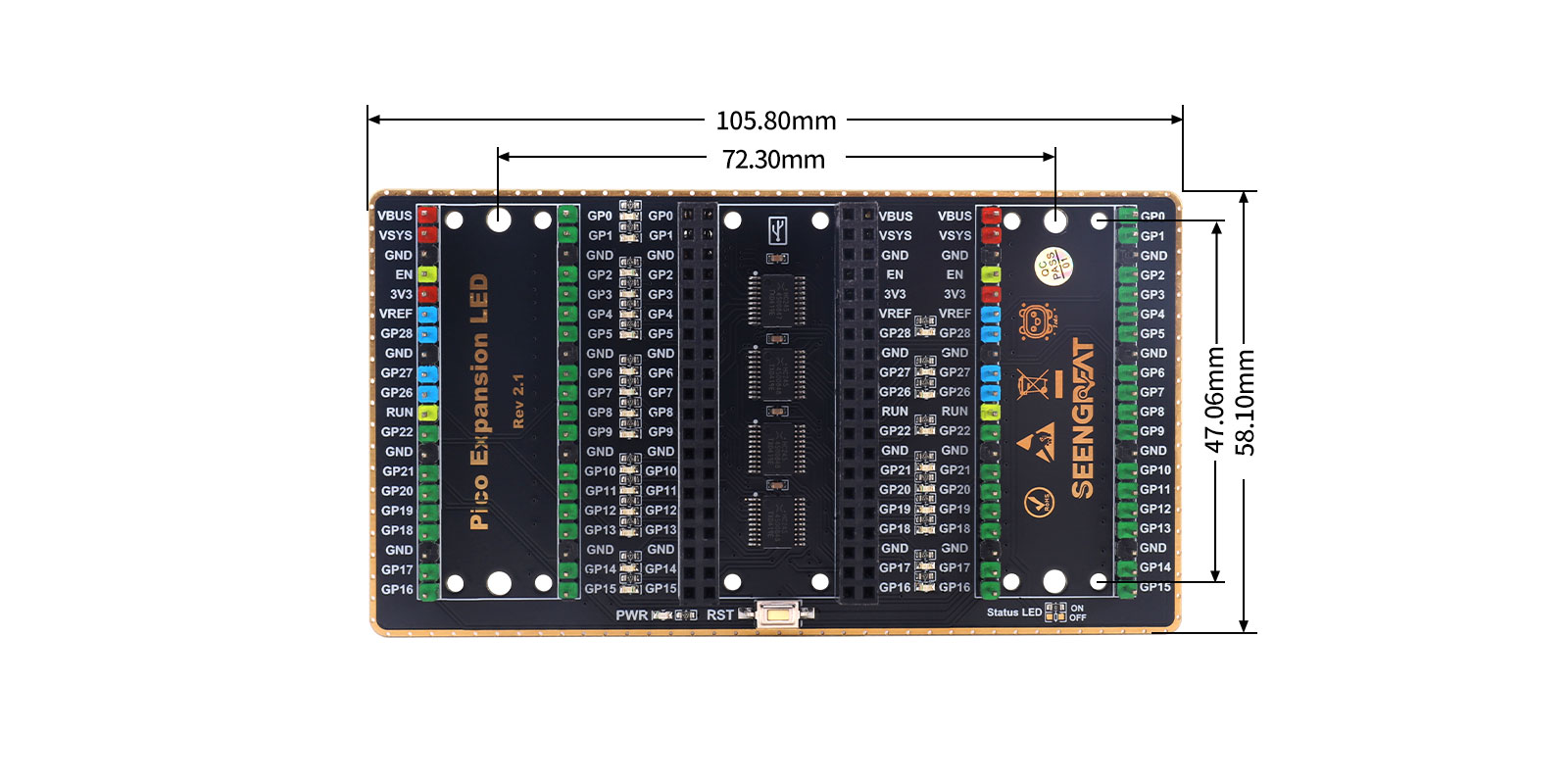

Dimensions | 105.8 mm (L) × 58.1 mm (W) |
Mounting Holes | M2.5 |
Measurement Tolerance | ±1 mm |

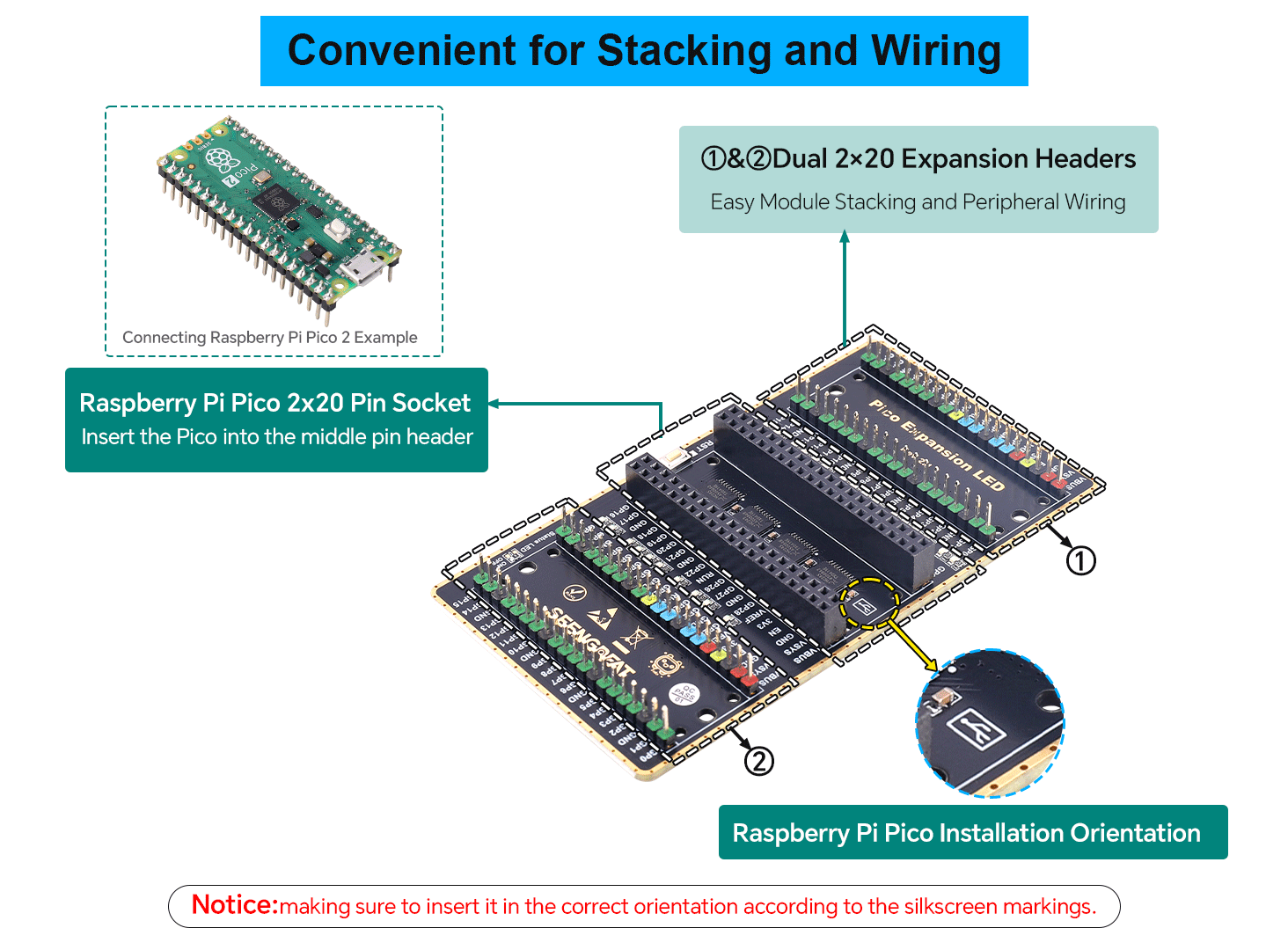

Dual 2×20 Header
Two sets of 2×20 headers while keeping full access to Pico pins.Stack additional Pico expansion boards or connect peripherals via Dupont wires.Suitable for breadboard experiments, module integration, and rapid prototyping.

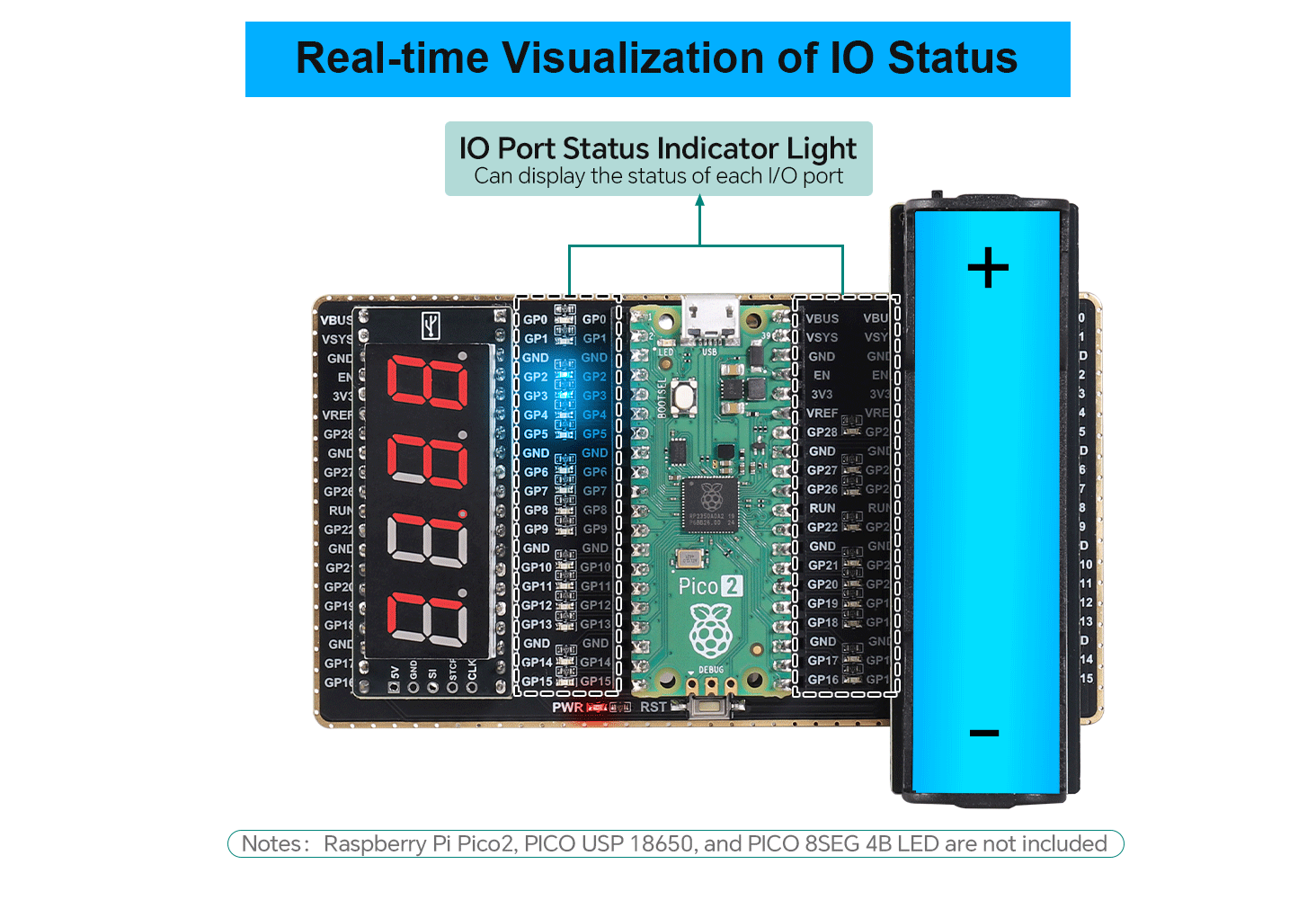

GPIO Status Indicator
Individual status LED for each GPIO channel.Logic high/low levels are clearly indicated in real time.Ideal for beginners learning digital IO and for engineers locating issues quickly.

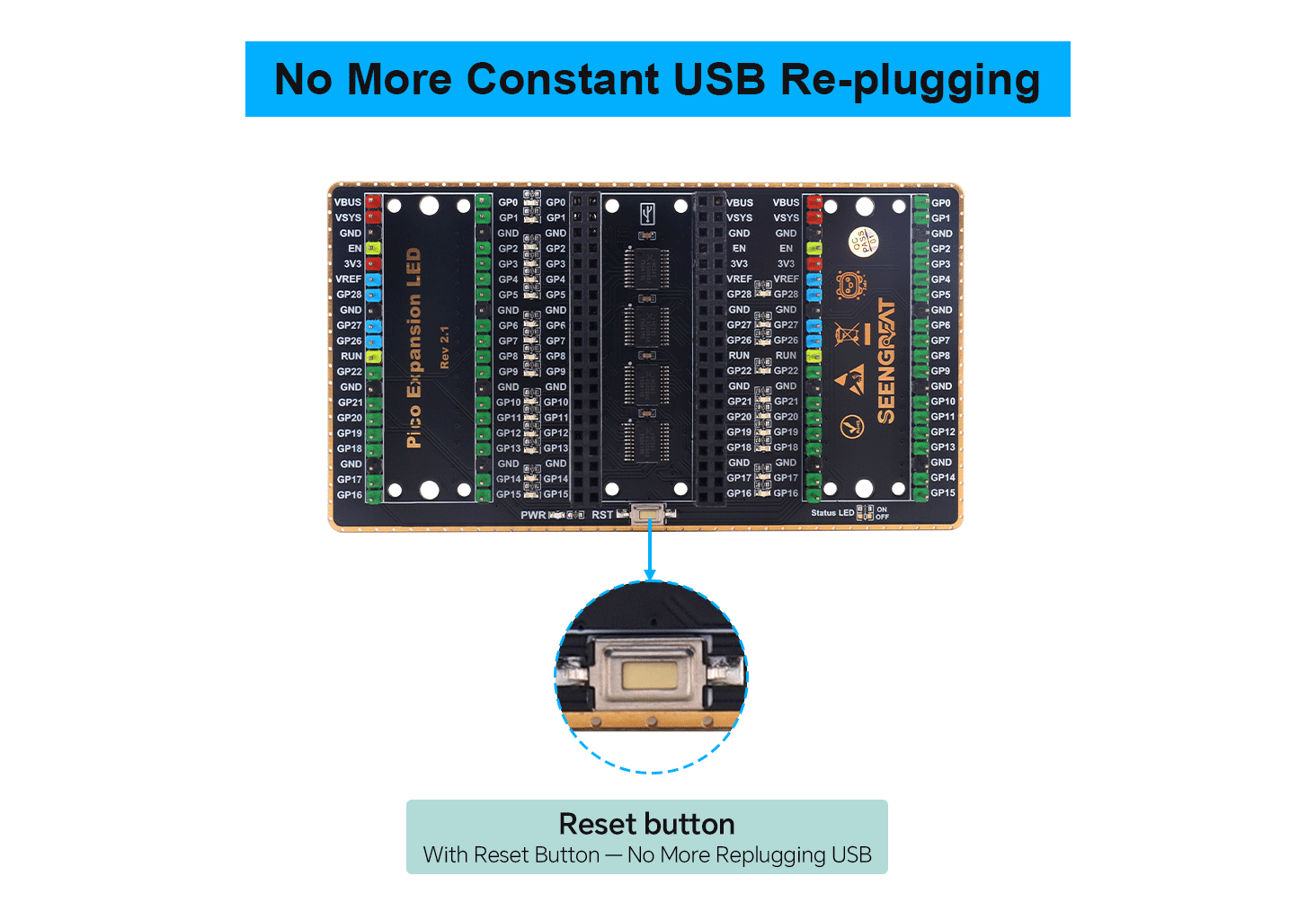

On-board Reset Button
Raspberry Pi Pico does not include a native reset button.The expansion board provides a dedicated reset key for convenient restarts.Streamlines firmware testing and program debugging, saving time and effort.

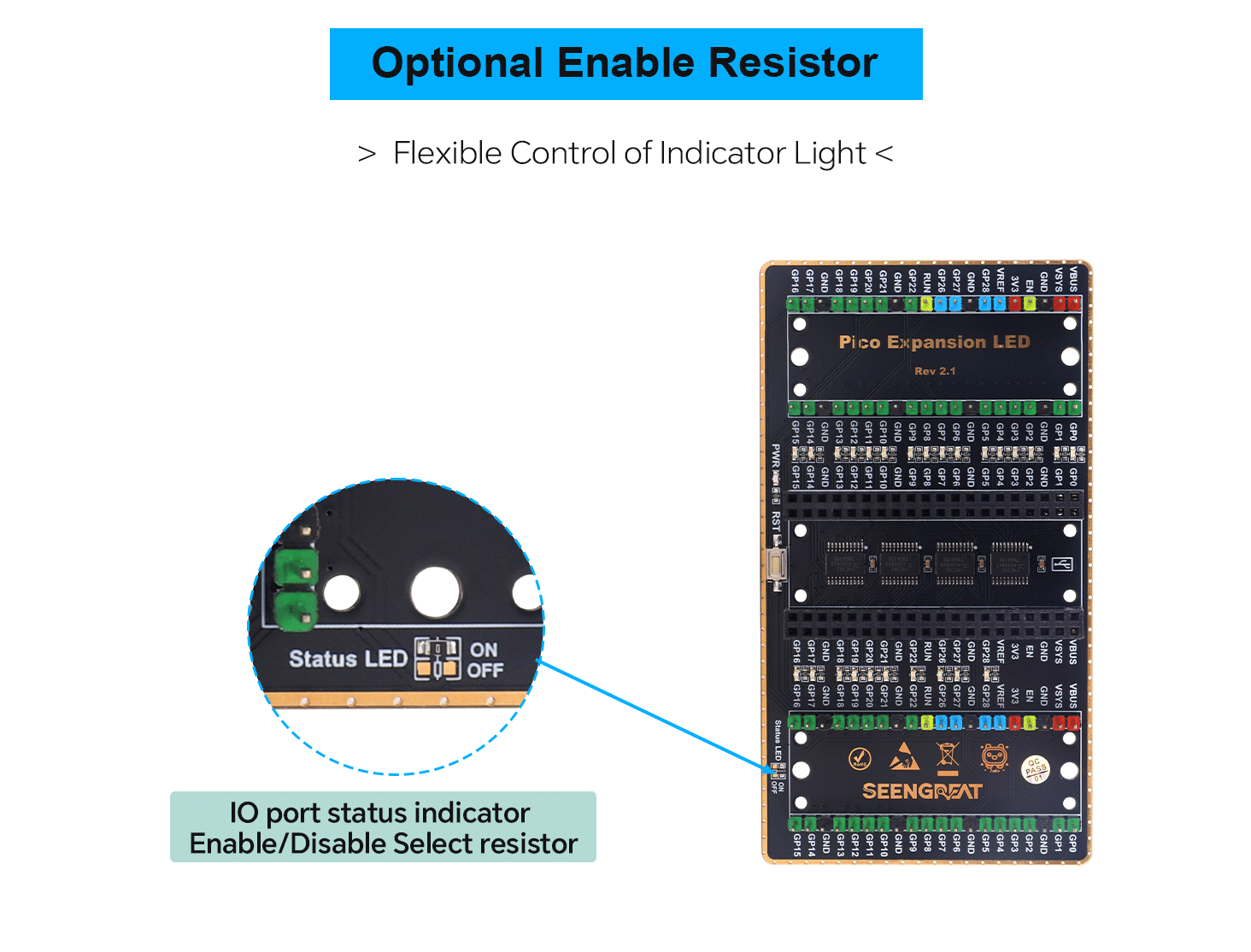

Configurable IO LED Enable Resistors
Enable or Disable Status LEDs as Needed
On-board selection resistors allow IO status LEDs to be enabled or disabled.Balances visual debugging with power consumption and signal integrity.Suitable for low-power or noise-sensitive application scenarios.
Module Resources

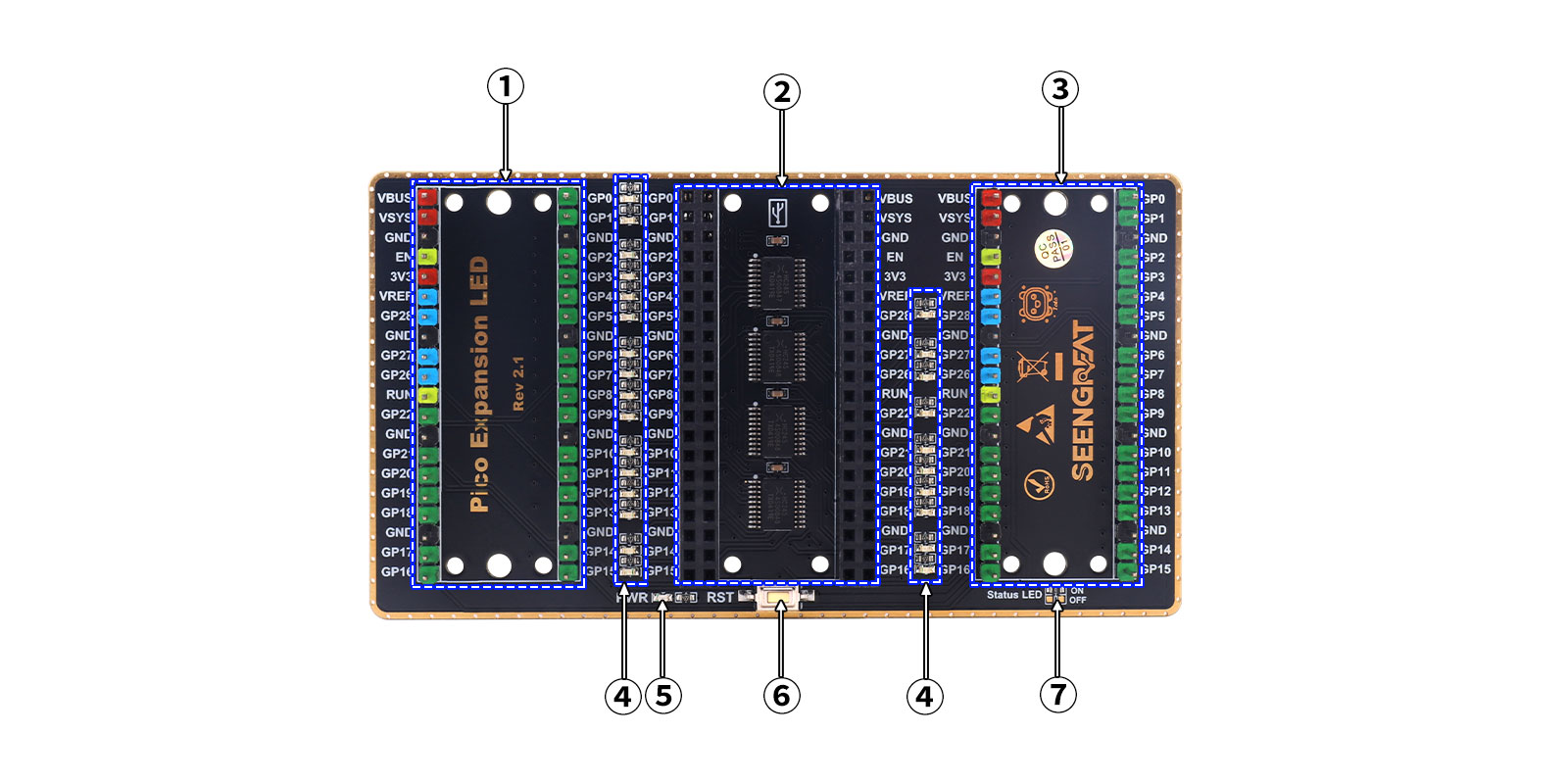

①&③ Pico expansion header pins
② Raspberry Pi Pico 2x20Pin socket
④ IO port status indicator
⑤ Power indicator
⑥ Reset button
⑦ IO port status indicator Enable/disable selection resistor
Product Parameters
Typical Applications
From Learning to Engineering Development
- GPIO fundamentals and classroom lab experiments.
- Pico-based project prototyping and debugging.
- Multi-module integration and IO status monitoring.
- Suitable for students, makers, hardware engineers, and training providers.
Wiki
https://seengreat.com/wiki/194/
Package Contents
1.Pico Expansion LED Module x1
2.Silicone Patch x1
