Pi USB 3.2 Gen 1 HUB HAT+
USB Expansion Board, 4-Port USB 3.0, Onboard EEPROM Chip
1. Product Introduction
This USB 3.0 expansion board is specifically designed for Raspberry Pi. It allows you to easily connect more devices to your Raspberry Pi, enhancing your project capabilities. It features an onboard EEPROM chip and provides four USB 3.0 interfaces, enabling the connection of multiple peripherals and improving the connectivity and expandability of the Raspberry Pi. Moreover, it supports the high-speed transfer of USB 3.0, ensuring more stable and faster data transmission, perfectly solving the problem of insufficient USB ports on the Raspberry Pi itself. Whether you are using the Raspberry Pi for home entertainment, IoT projects, or personal development experiments, this expansion board provides additional USB ports, solves device connection problems, and enhances your Raspberry Pi experience. Simple installation, plug-and-play, powerful functionality, suitable for various needs, it is an essential expansion tool for every Raspberry Pi enthusiast.2. Product Features
- Transparent Status LEDs: Onboard 1 power indicator and 4 USB expansion port indicators.
- Onboard 4 USB 3.2 Gen1 expansion ports, compatible with USB 3.0 / 2.0 / 1.1 transmission.
- Plug and play, no additional drivers required, compatible with Windows, macOS, Linux, and other systems.
- Onboard external power Type-C interface, supports 5V external power input to ensure a more stable power supply for external devices.
3. Product Parameters
Model | Pi USB 3.2 Gen 1 HUB HAT |
Supply Voltage | 5V |
USB Interface | USB 3.2 Gen 1 |
Speed | 5 Gbps |
Mounting Hole Diameter | 3mm |

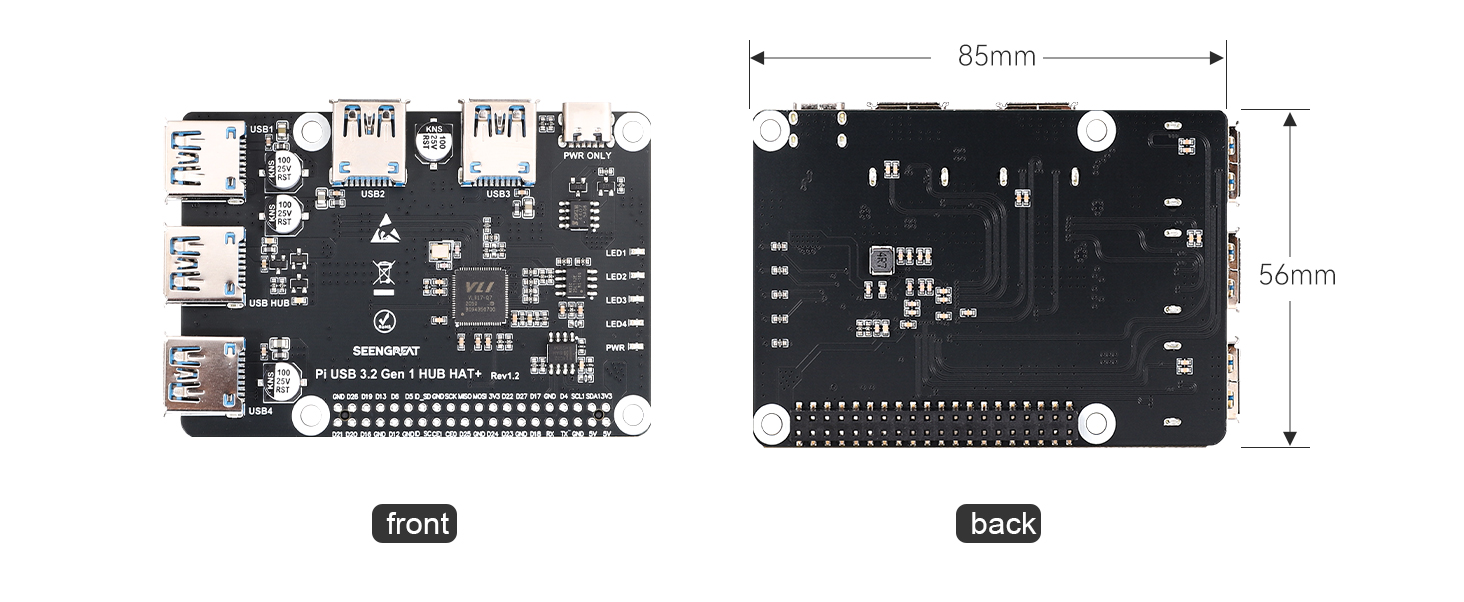

Dimensions | 85mm（L）×56mm（W） |

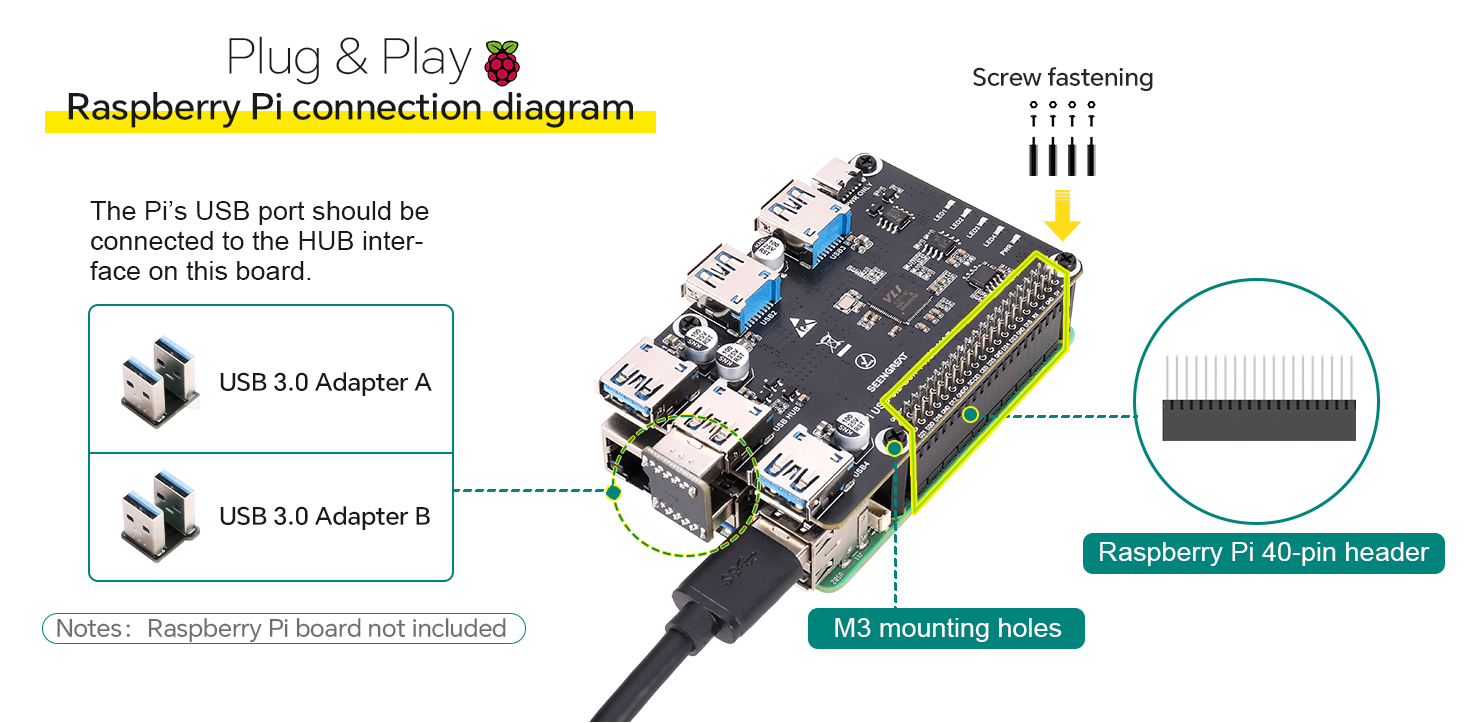

Easy Expansion
Directly mounts on Raspberry Pi GPIO, no extra wiring needed

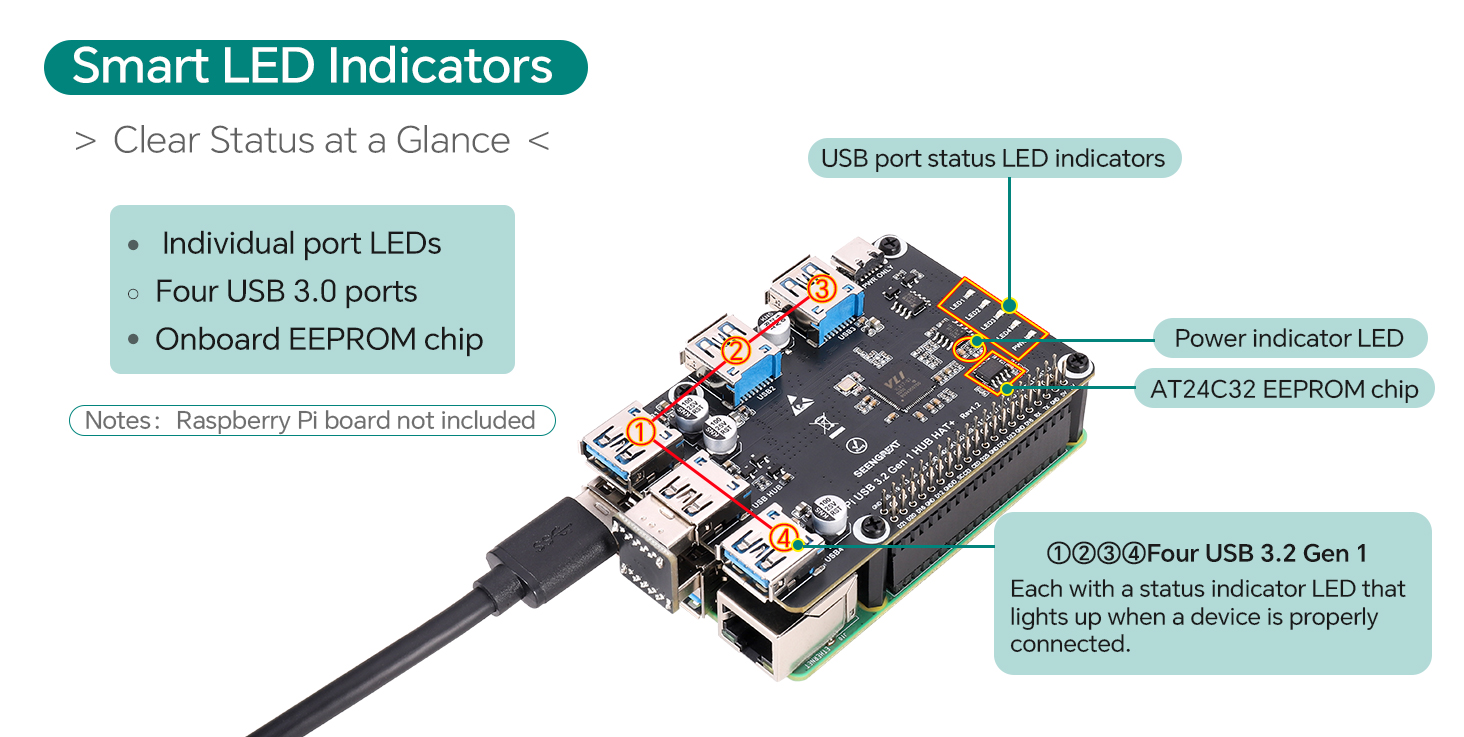

Transparent Status LEDs
Power & Connection Status at a Glance
EEPROM chip (AT24C32) onboard, communicating with the Raspberry Pi through the I²C interface.
Ystem Compatibility
Plug and Play, no driver installation required. Compatible with Windows, macOS, and Linux systems.

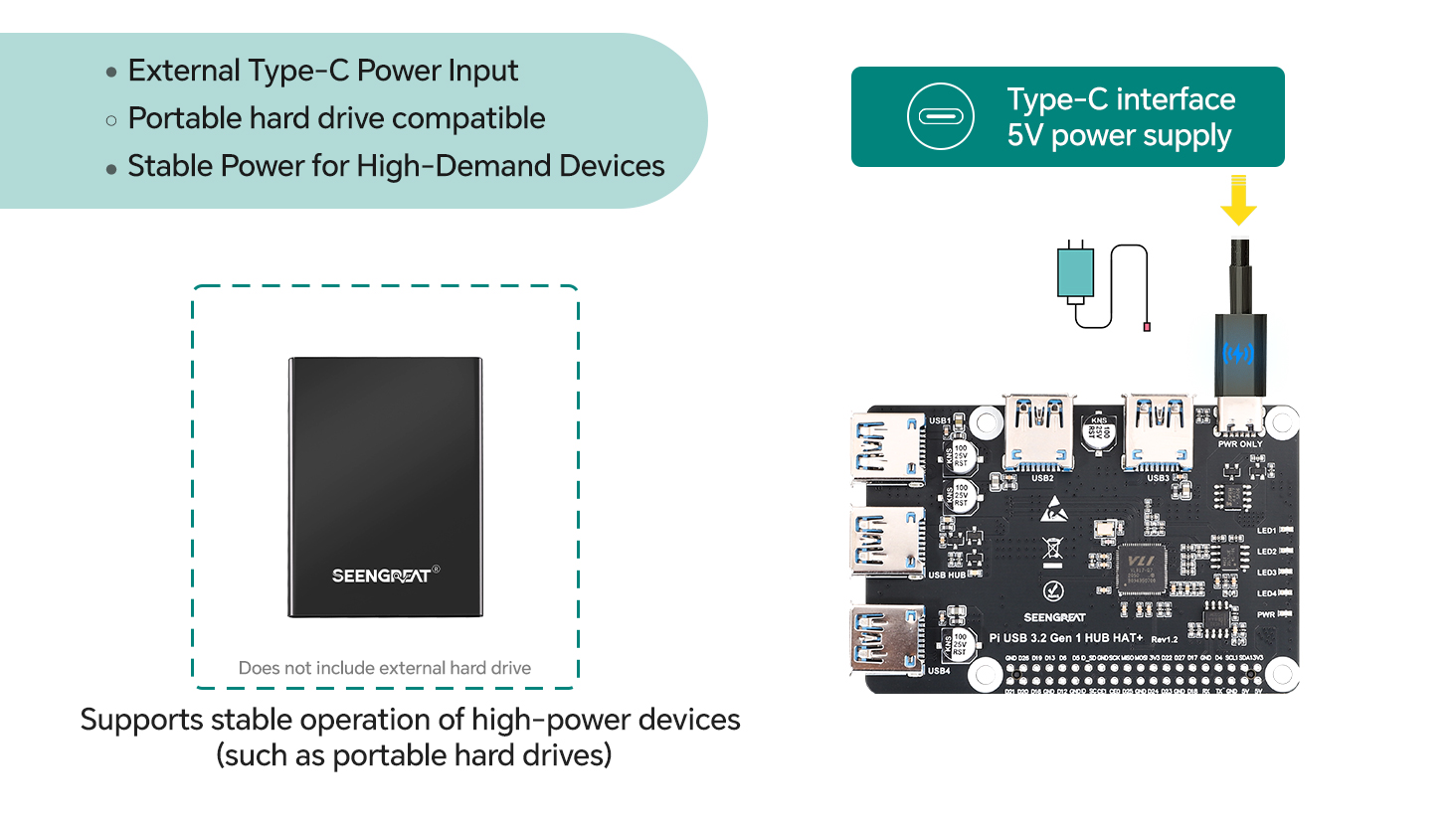

External Power Supply
Onboard Type-C external power input (5 V DC) to ensure stable power supply when multiple high-current devices are connected.

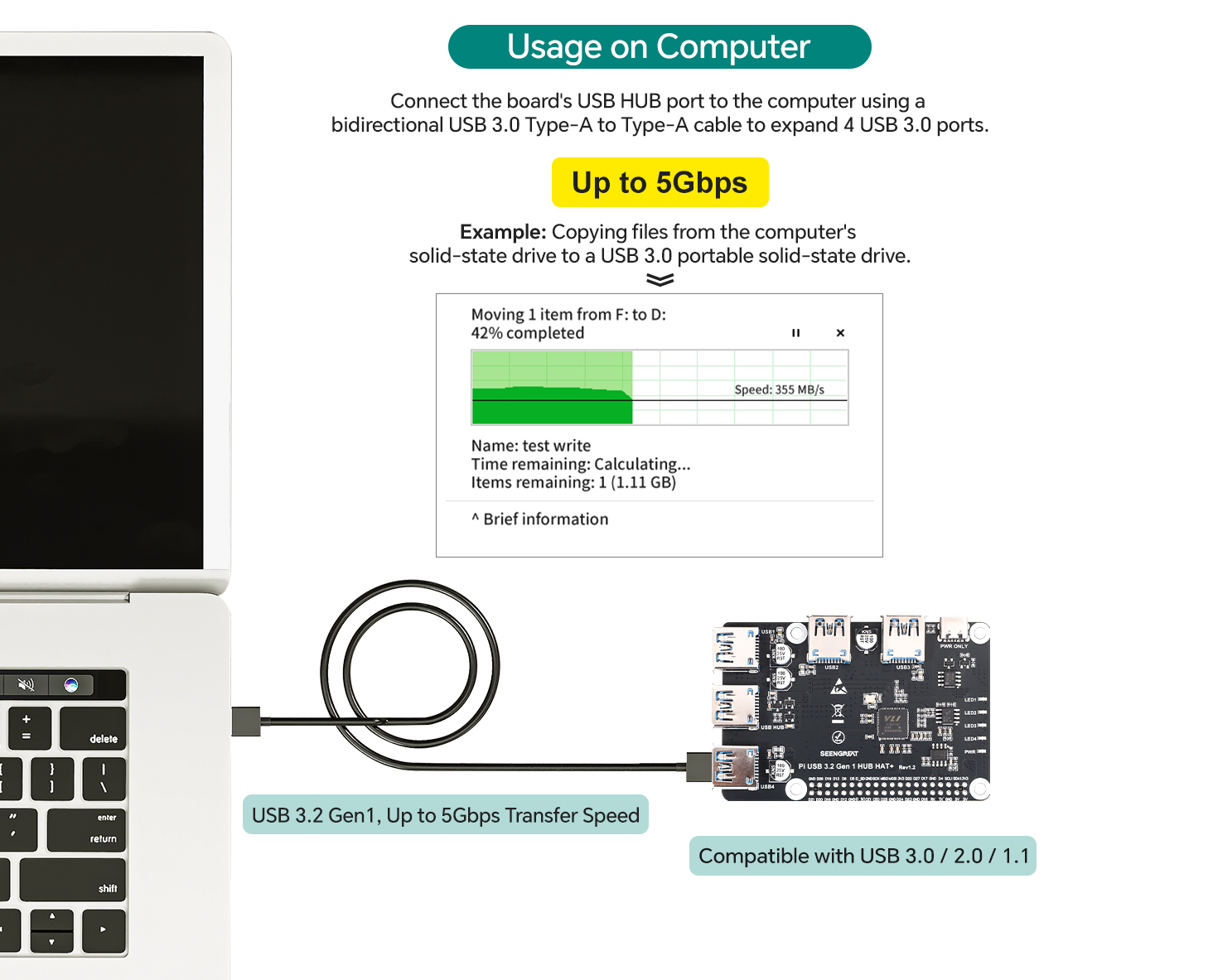

High-speed transmission
It supports USB 3.0 high-speed transmission, ensuring faster and more stable data transfer, and effectively resolves the limitation of the Pi's limited built-in USB ports.

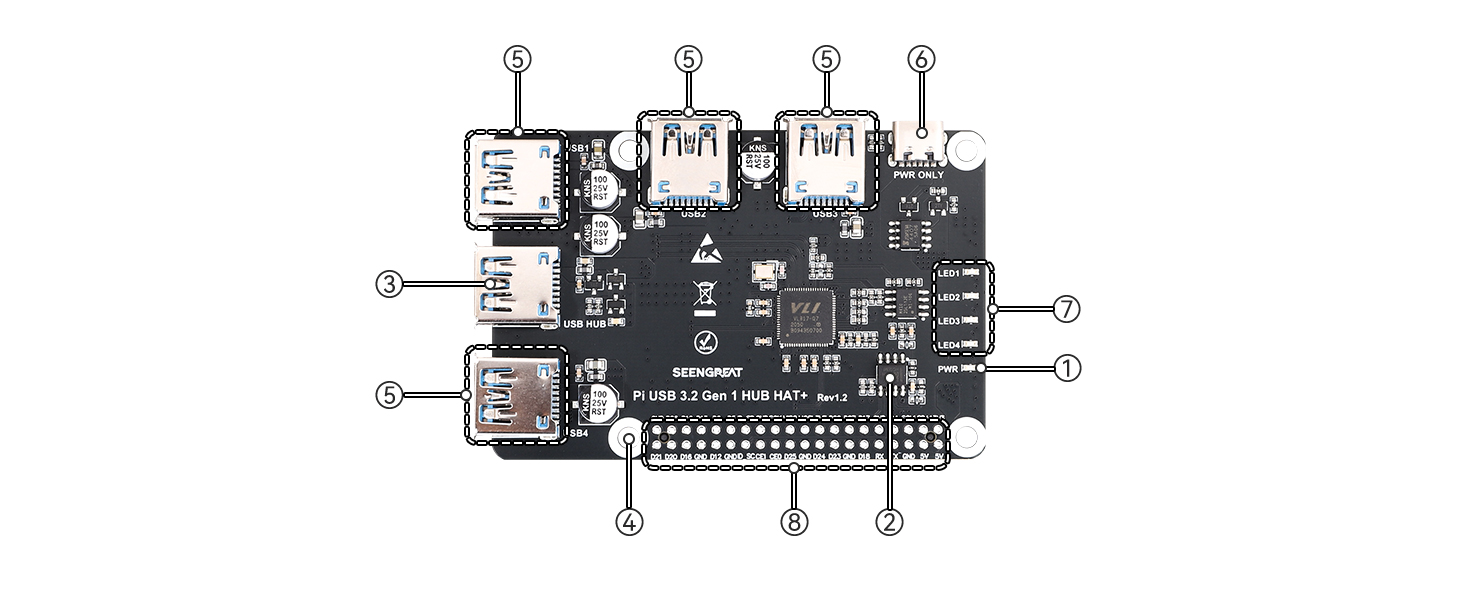

Module Resources
①Power Indicator
②AT24C32 Chip
③USB 3.2 Gen1 HUB Interface
④M3 Mounting Hole
⑤USB 3.2 Gen1 Expansion Port * 4
⑥PWR ONLY power connector
⑦USB Port Status Indicator
⑧Raspberry Pi 40-Pin Header
Product Parameters
Product Parameters
Wiki
https://seengreat.com/wiki/190
Package Contents
1.Pi USB 3.2 Gen 1 HUB HAT+ x1
2.USB 3.0 Adapter A x1
3.USB 3.0 Adapter B x1
4.USB 3.0 male-to-male dual-head data cable x1
5.40pin header receptacle x1
6.Accessory pack x1
