Pi USB 3.2 Gen 1 HUB HAT+ for Raspberry Pi - 4-Port USB 3.0 Expansion Board

Pi USB 3.2 Gen 1 HUB HAT+

USB Expansion Board, 4-Port USB 3.0, Onboard EEPROM Chip

1. Product Introduction

This USB 3.0 expansion board is specifically designed for Raspberry Pi. It allows you to easily connect more devices to your Raspberry Pi, enhancing your project capabilities. It features an onboard EEPROM chip and provides four USB 3.0 interfaces, enabling the connection of multiple peripherals and improving the connectivity and expandability of the Raspberry Pi. Moreover, it supports the high-speed transfer of USB 3.0, ensuring more stable and faster data transmission, perfectly solving the problem of insufficient USB ports on the Raspberry Pi itself. Whether you are using the Raspberry Pi for home entertainment, IoT projects, or personal development experiments, this expansion board provides additional USB ports, solves device connection problems, and enhances your Raspberry Pi experience. Simple installation, plug-and-play, powerful functionality, suitable for various needs, it is an essential expansion tool for every Raspberry Pi enthusiast.

2. Product Features

• Transparent Status LEDs: Onboard 1 power indicator and 4 USB expansion port indicators.
• Onboard 4 USB 3.2 Gen1 expansion ports, compatible with USB 3.0 / 2.0 / 1.1 transmission.
• Plug and play, no additional drivers required, compatible with Windows, macOS, Linux, and other systems.
• Onboard external power Type-C interface, supports 5V external power input to ensure a more stable power supply for external devices.

3. Product Parameters

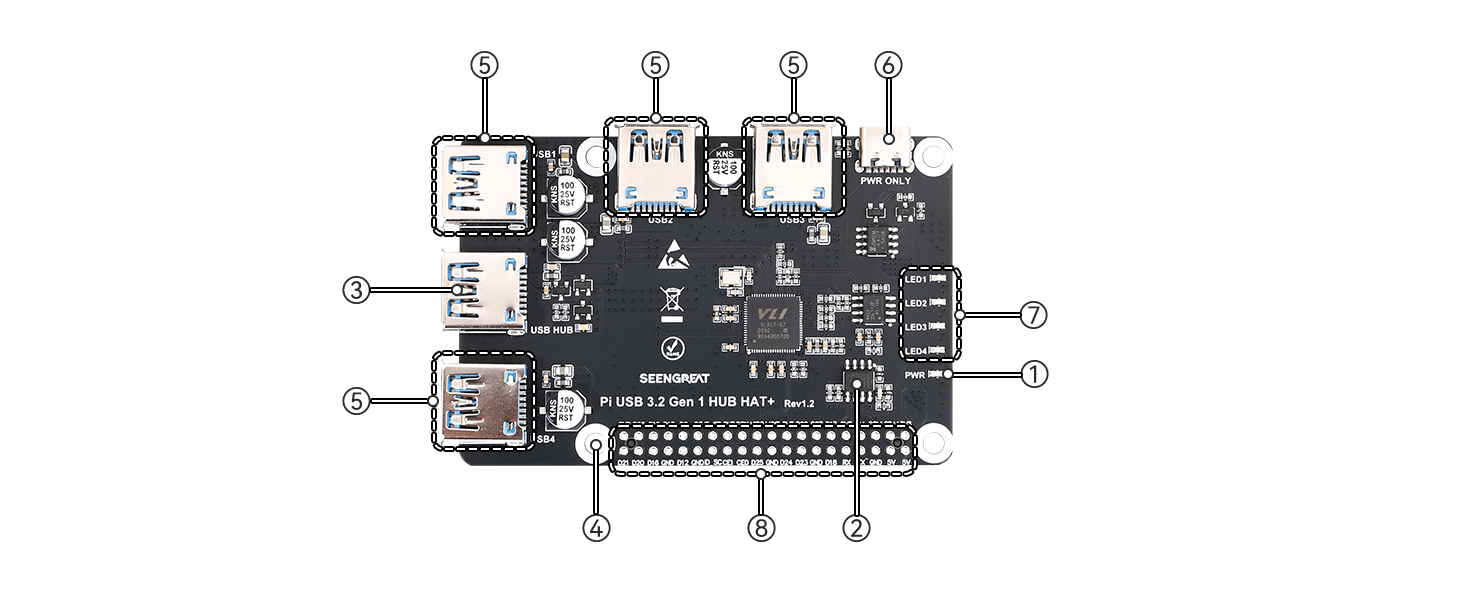

4. Module Resources

①Power Indicator

②AT24C32 Chip

③USB 3.2 Gen1 HUB Interface

④M3 Mounting Hole

⑤USB 3.2 Gen1 Expansion Port * 4

⑥PWR ONLY power connector

⑦USB Port Status Indicator

⑧Raspberry Pi 40-Pin Header

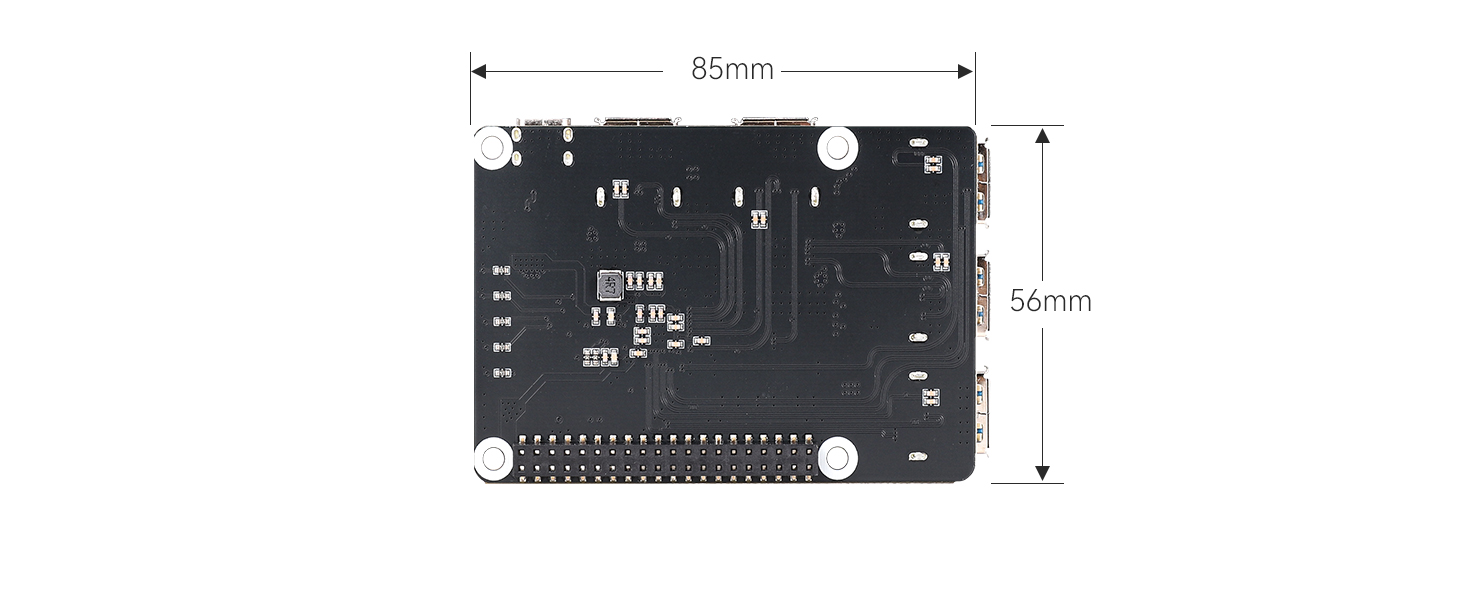

4. Product Size

Wiki

https://seengreat.com/wiki/190

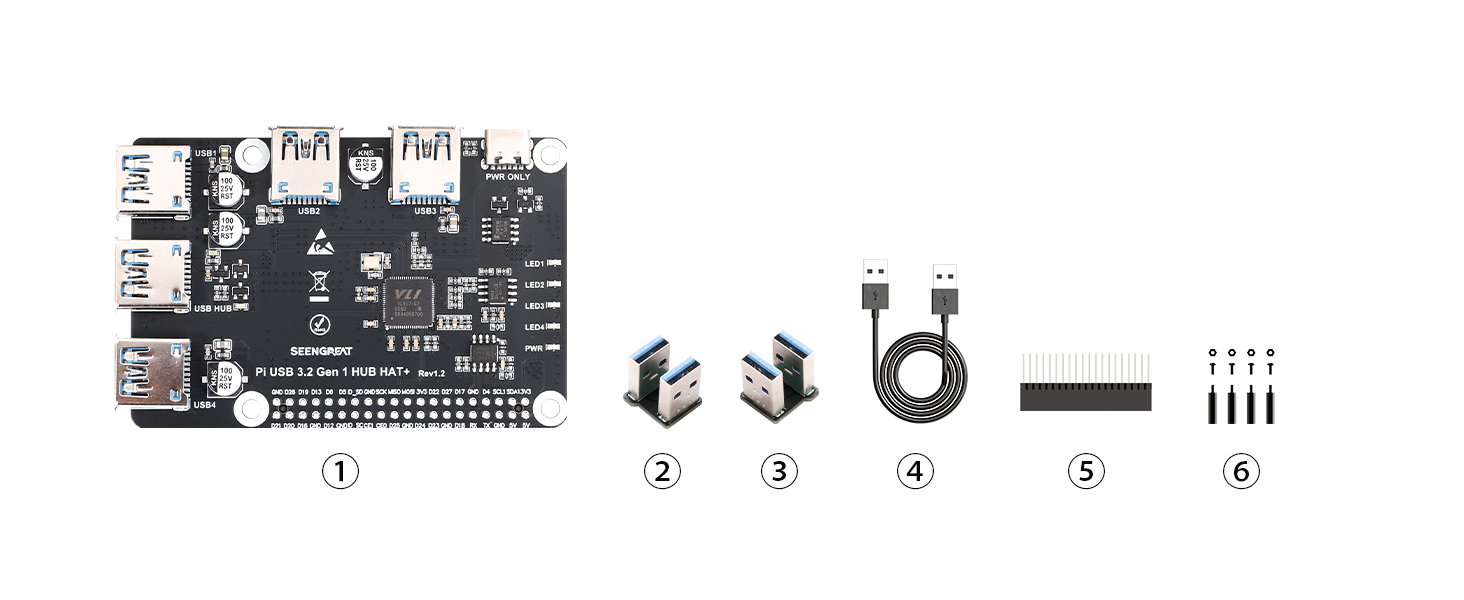

Package Contents

1.Pi USB 3.2 Gen 1 HUB HAT+ x1

2、USB 3.0 Adapter A x13、USB

3.0 Adapter B x1

4.USB 3.0 male-to-male dual-head data cable x1

5.40pin header receptacle x1

6.Accessory pack x1
