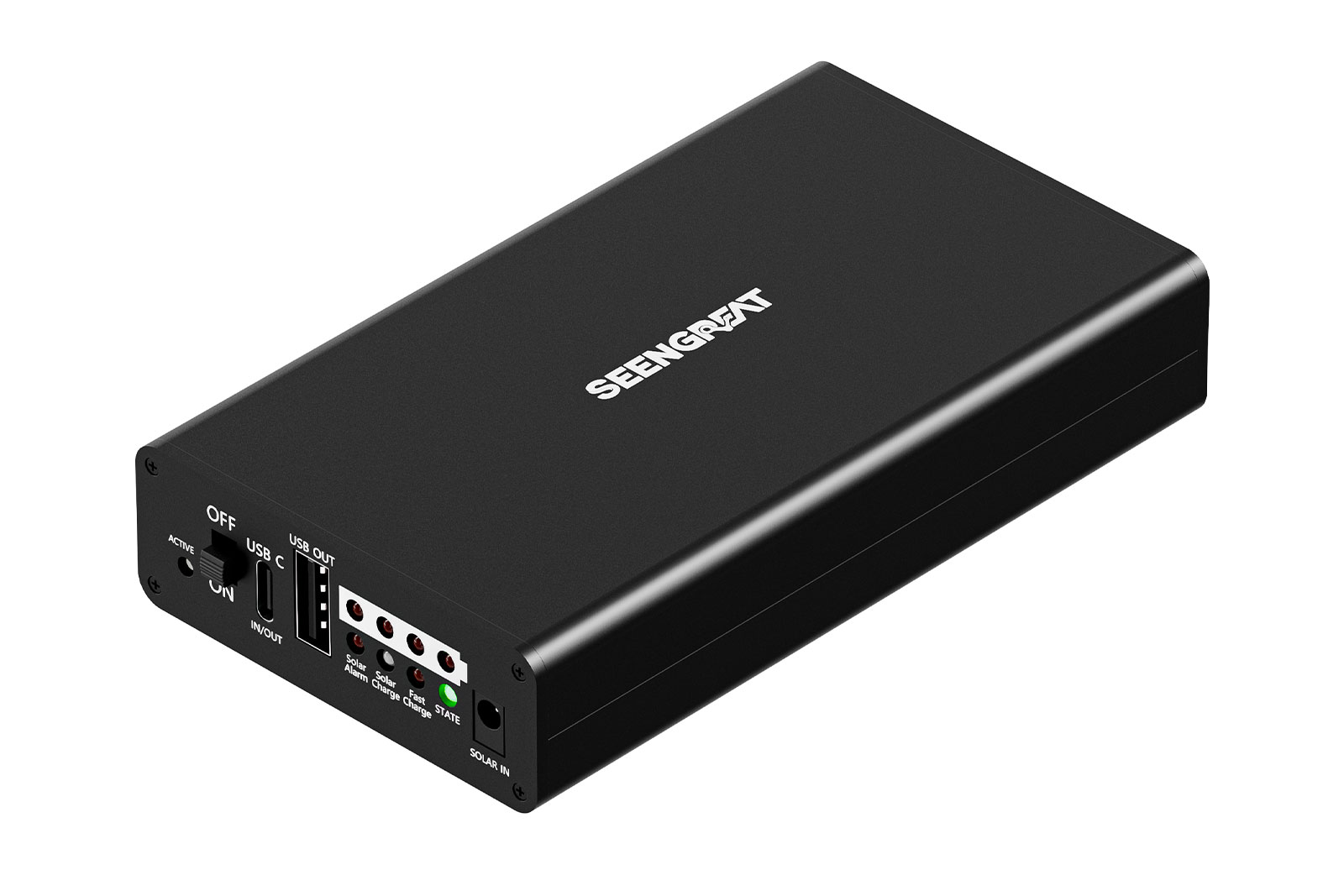

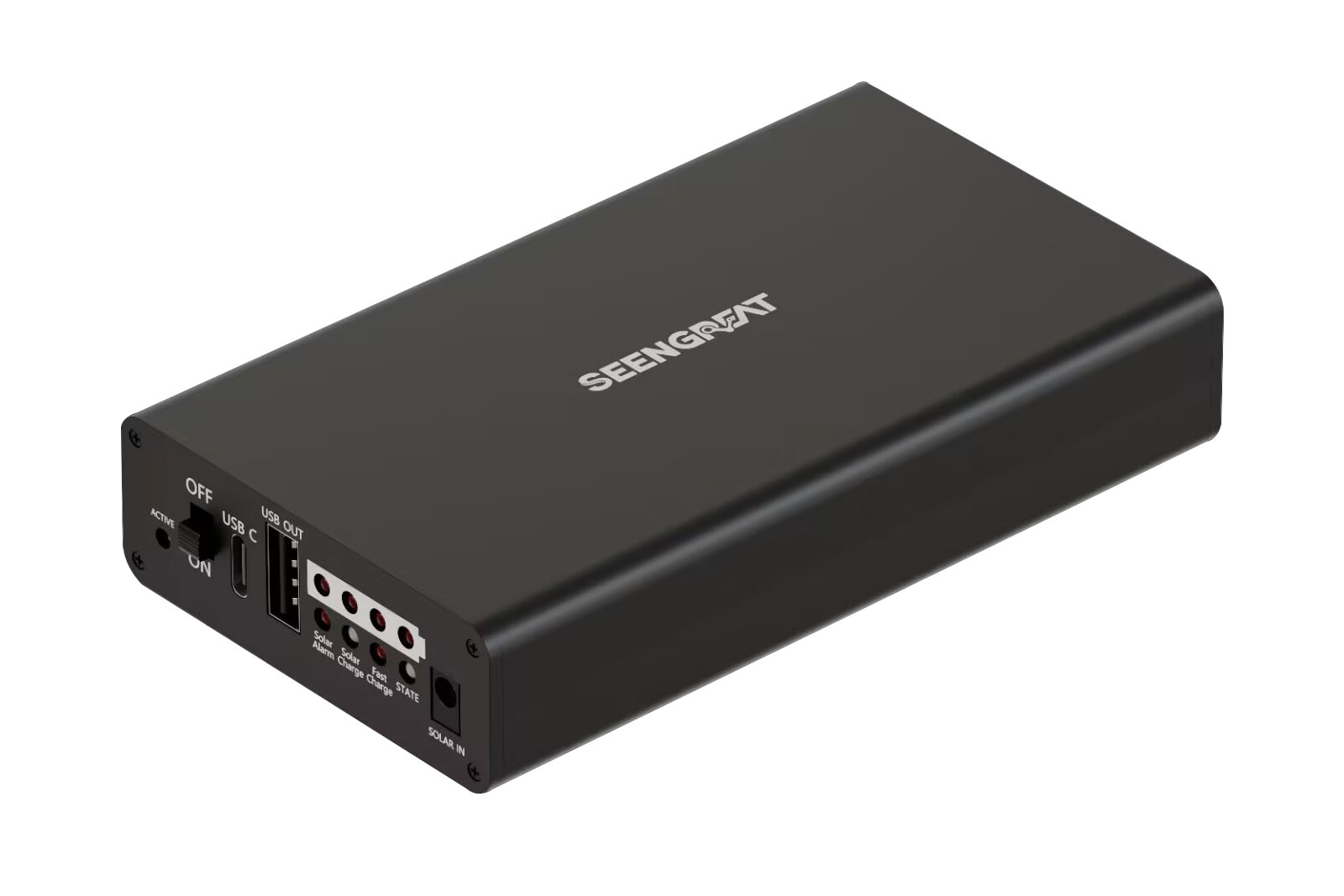

Solar Energy Manager B
5V-24V Solar Power Management Module, with MPPT, Type C Power Adapter, 5V/3.1A Regulated Output

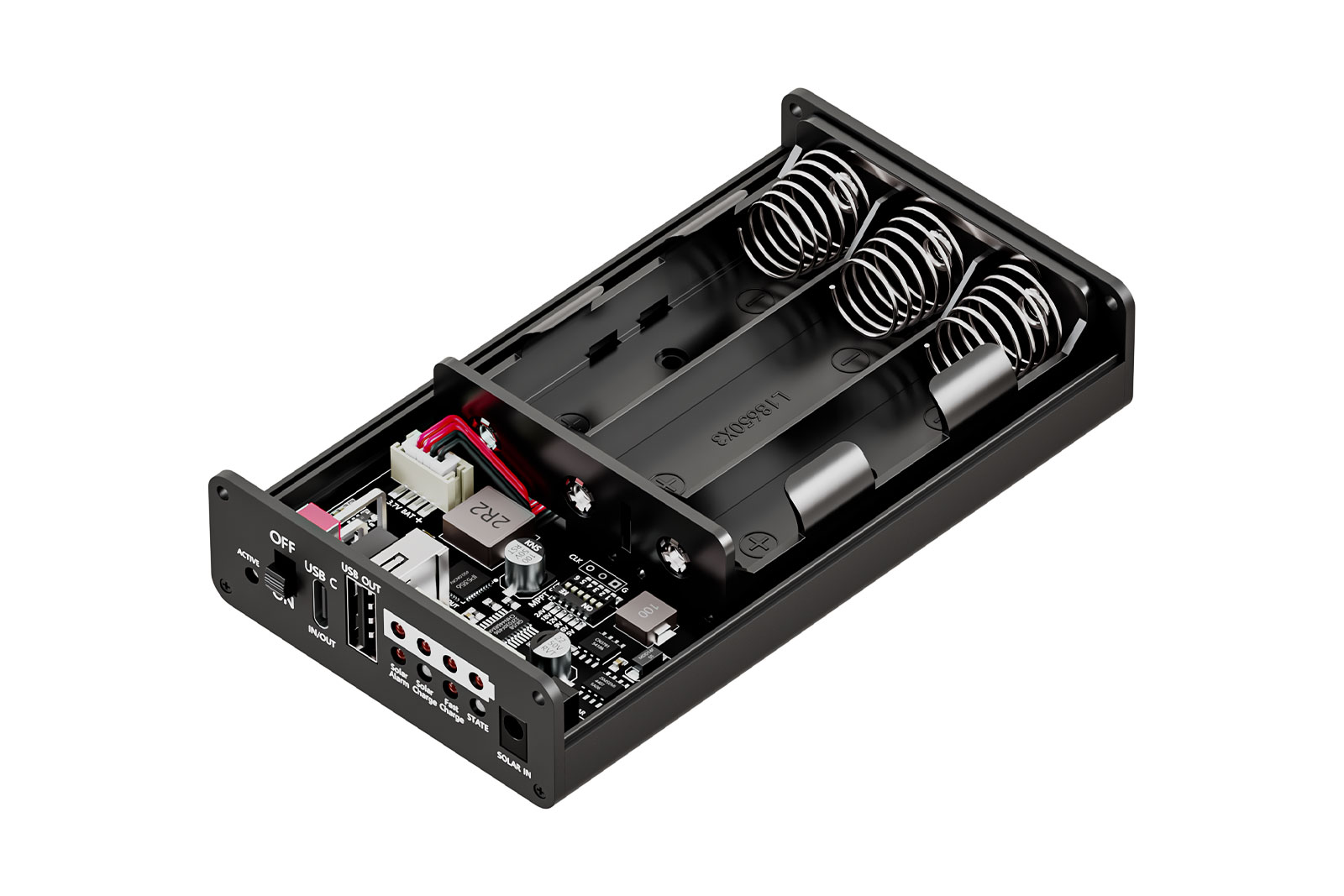

Product Overview

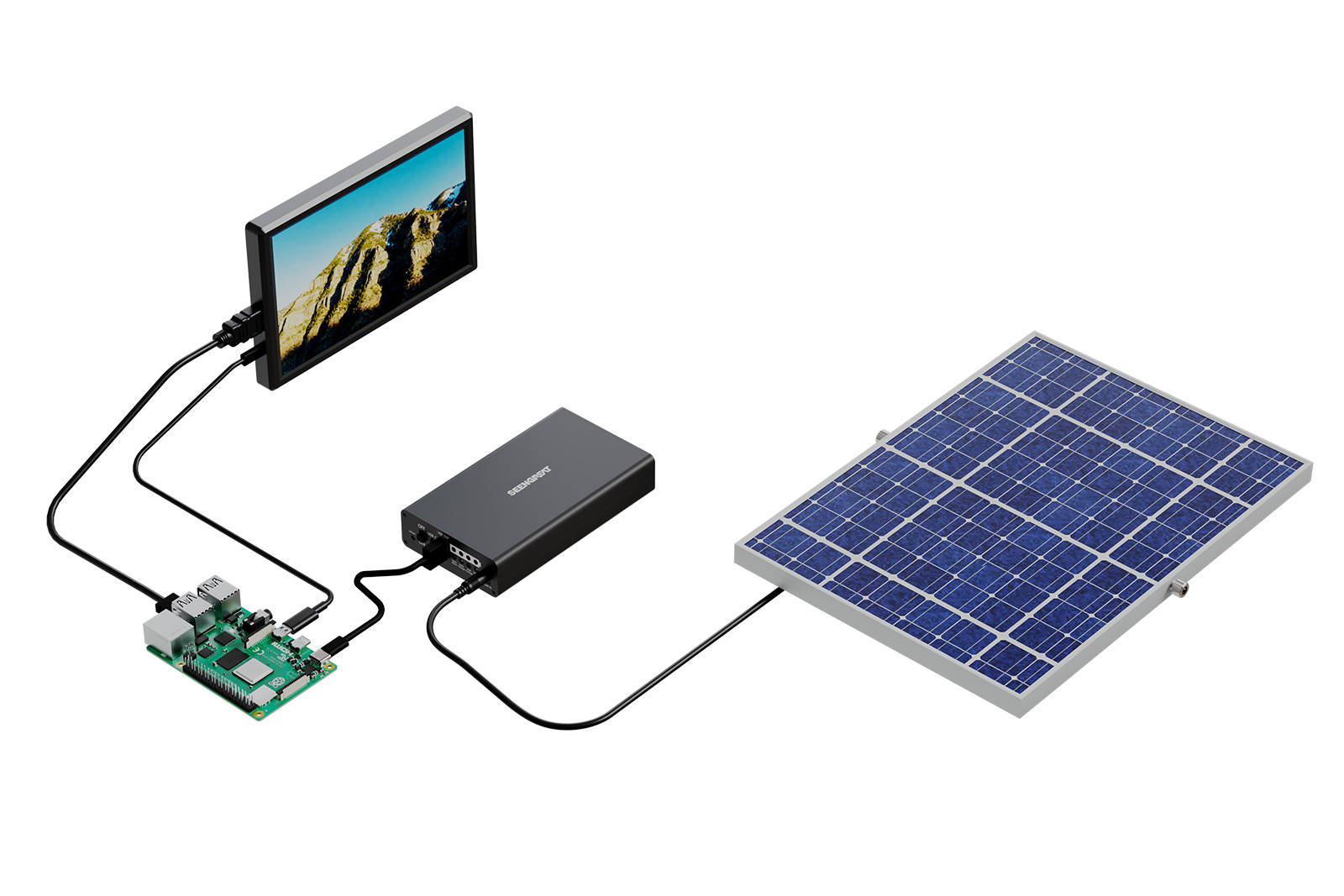

The Solar Energy Manager B is a solar power management module with fast charging functionality. It supports charging 3.7V 18650 lithium batteries via solar panel and USB interface, and provides 5V/3.1A regulated output (the Type-C port also supports output with various protocols like PD/QC/FCP/PE/SFCP). The module features MPPT (Maximum Power Point Tracking) and battery charge/discharge protection. MPPT automatically adjusts charging power based on input voltage for more efficient solar energy utilization. The protection circuit monitors battery voltage in real-time to prevent overcharging and over-discharging, protecting the battery and extending its lifespan. Due to its excellent stability and efficient charge/discharge management, it can be used in solar power generation, low-power IoT, environmental monitoring, power banks, and other green projects.

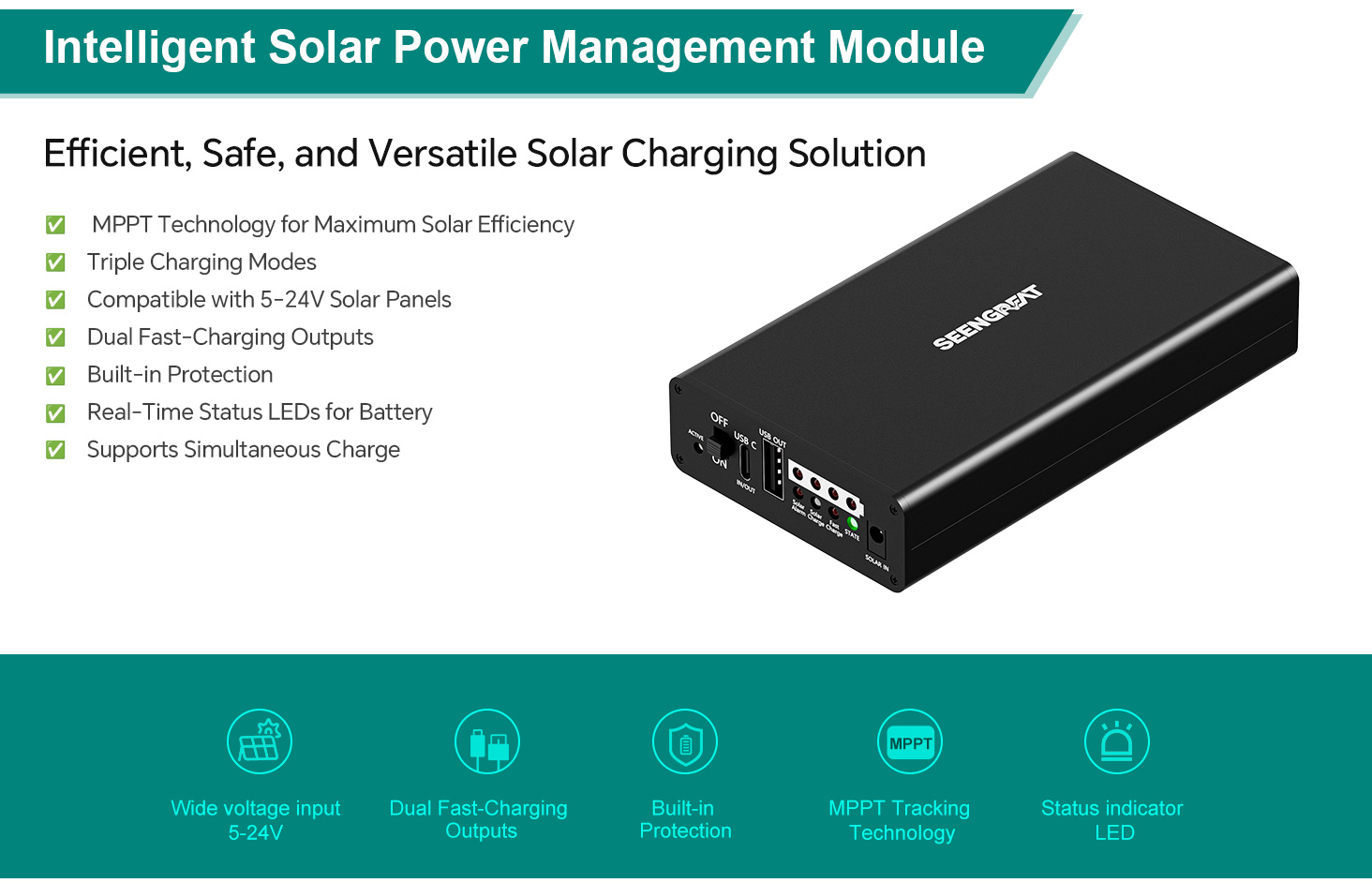

Product Features
- Supports MPPT tracking for enhanced solar conversion efficiency.
- Supports charging through solar panels, power adapters, and USB.
- Compatible with 5V-24V solar panels, connectable via DC-002 power jack.
- Onboard MPPT SET switch to adjust to a voltage near the input voltage, improving charging efficiency.
- Provides multiple output interfaces: USB A, and USB C (Both support fast charging).
- LED indicators for monitoring battery charge/discharge status.
- Supports simultaneous charging and discharging.
- Overcharge, over-discharge, reverse polarity, and overcurrent protection circuits ensure safe and stable operation.
Specifications
Parameter | Value |
Solar Panel Input Voltage | 5-24V |
USB-A output or USB-C input/output voltage | 5V/9V/12V (9V and 12V require support for PD fast charging protocol) |
Maximum load current | 3.1A (5V), 2A (9V), 1.5A (12V) (9V and 12V loads require support for PD and QC protocols) |
Charge Cut-Off Protection Voltage | 4.2V ±1% |
Discharge Protection Voltage | 3.0V ±1% |
Solar Charging Efficiency | Approx. 77% |
USB Charging Efficiency | Up to 94% |
Boost Conversion Efficiency | Approx. 92% |
Max Standby Current (No Charge) | <20mA |
Product Dimensions | 121mm x 71mm x 25mm |

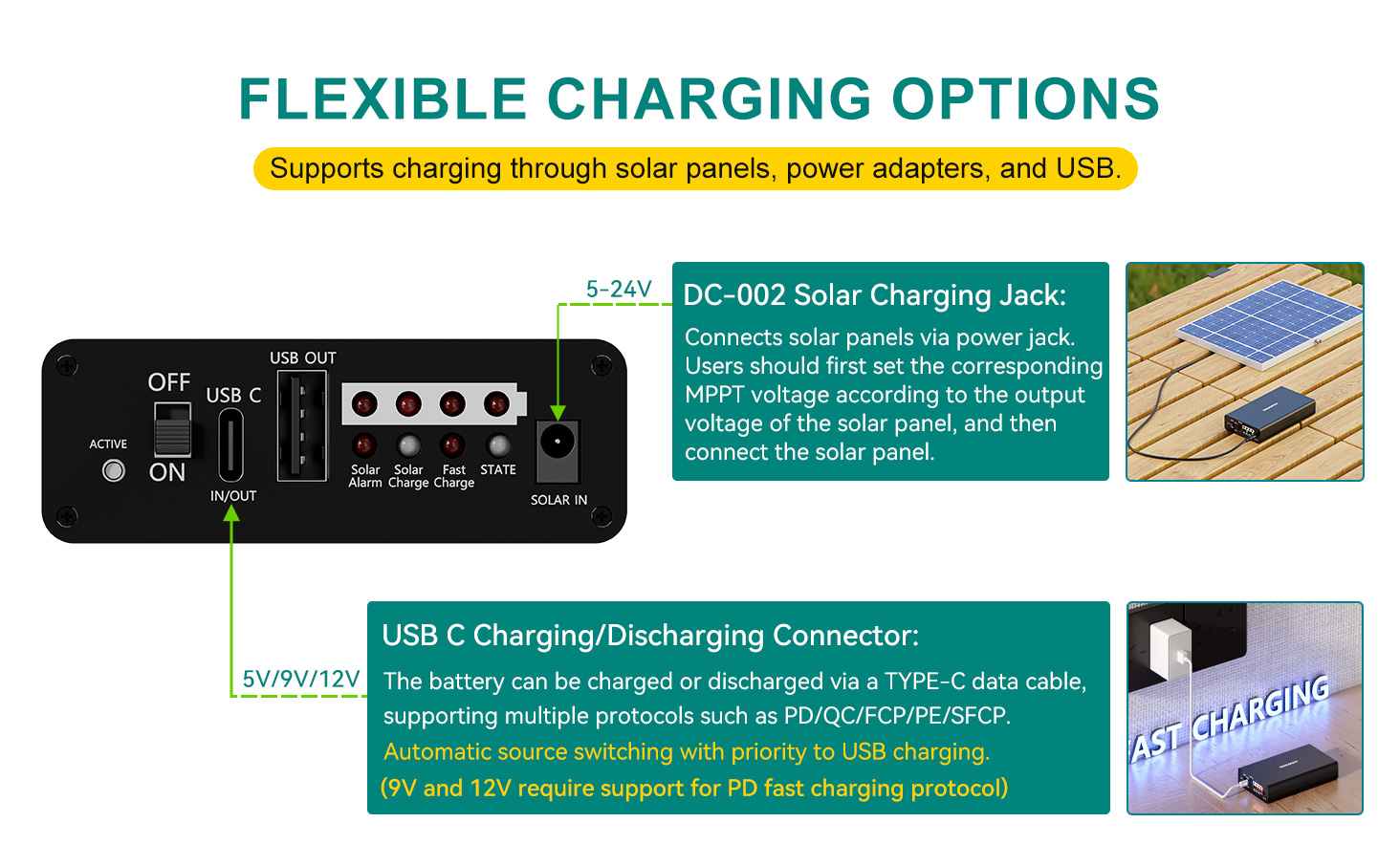

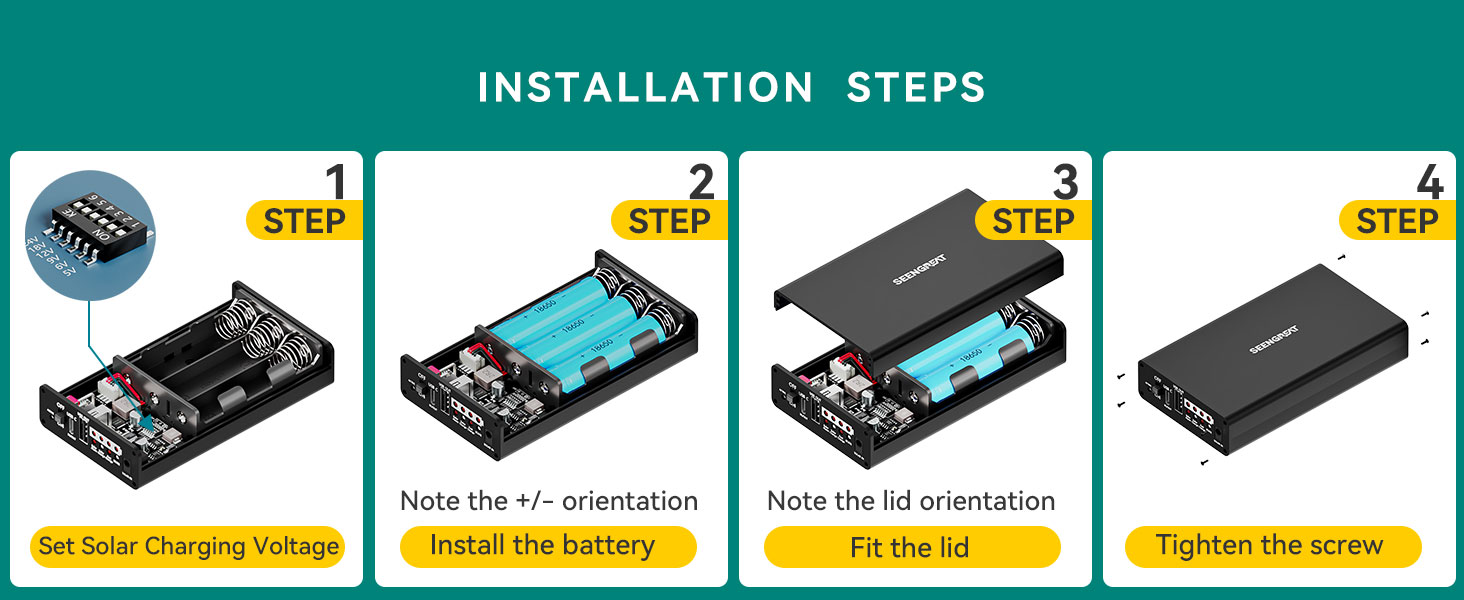

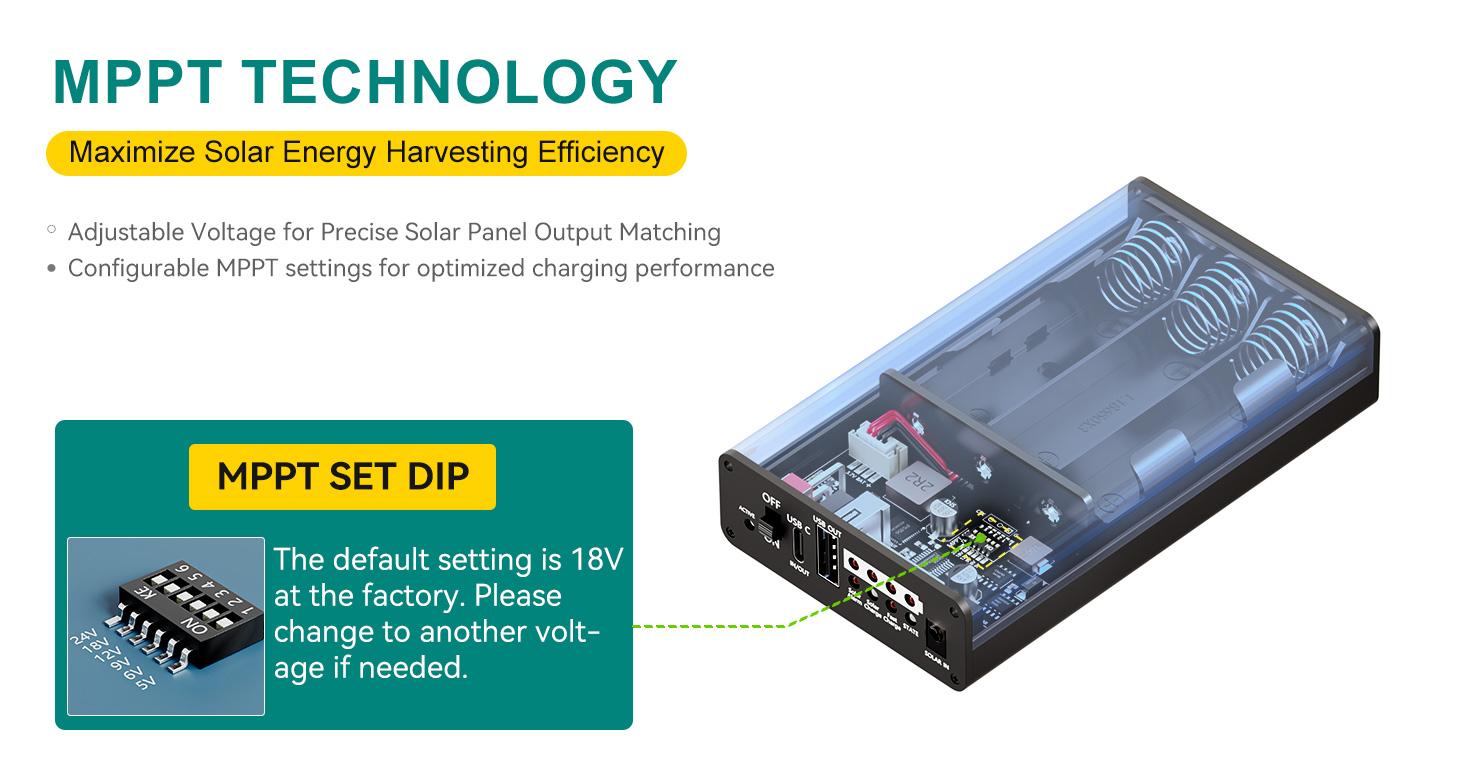

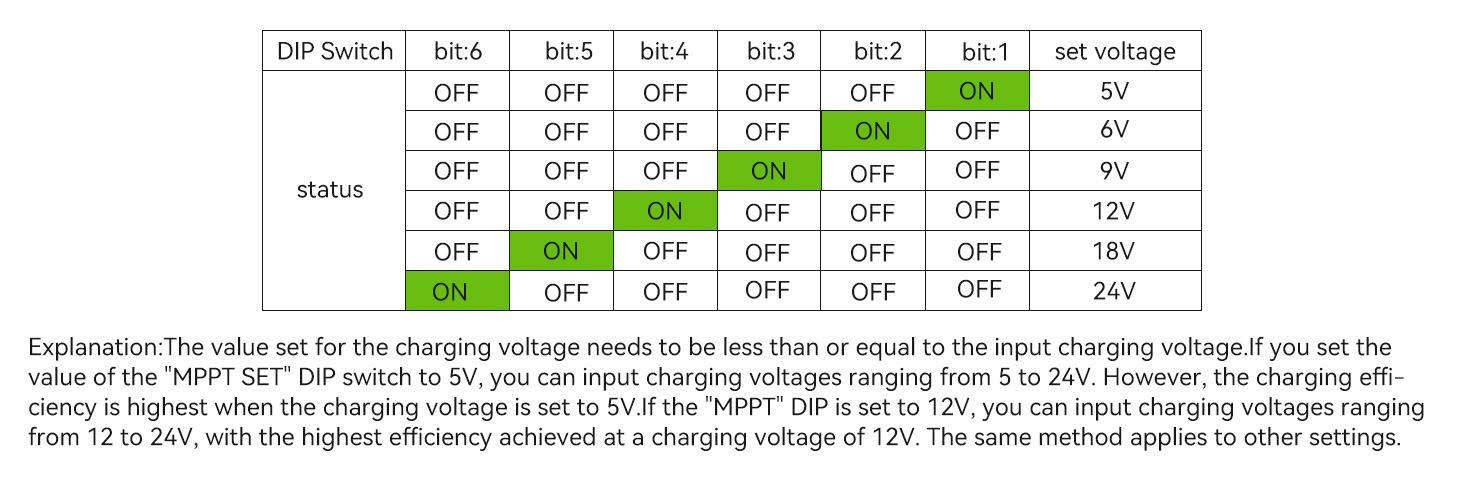

"MPPT SET" DIP Switch Settings:
When using the solar panel to charge the battery, ensure the "MPPT SET" DIP switch is correctly configured. Only one position of the DIP switch should be set to "ON," and all other positions should be set to "OFF."
The voltage set by the "MPPT SET" DIP switch should be based on the specifications of the solar panel. The closer the open-circuit output voltage of the solar panel is to the MPPT-set voltage, the higher the charging efficiency. However, the output voltage of the solar panel must be greater than or equal to the MPPT-set voltage.

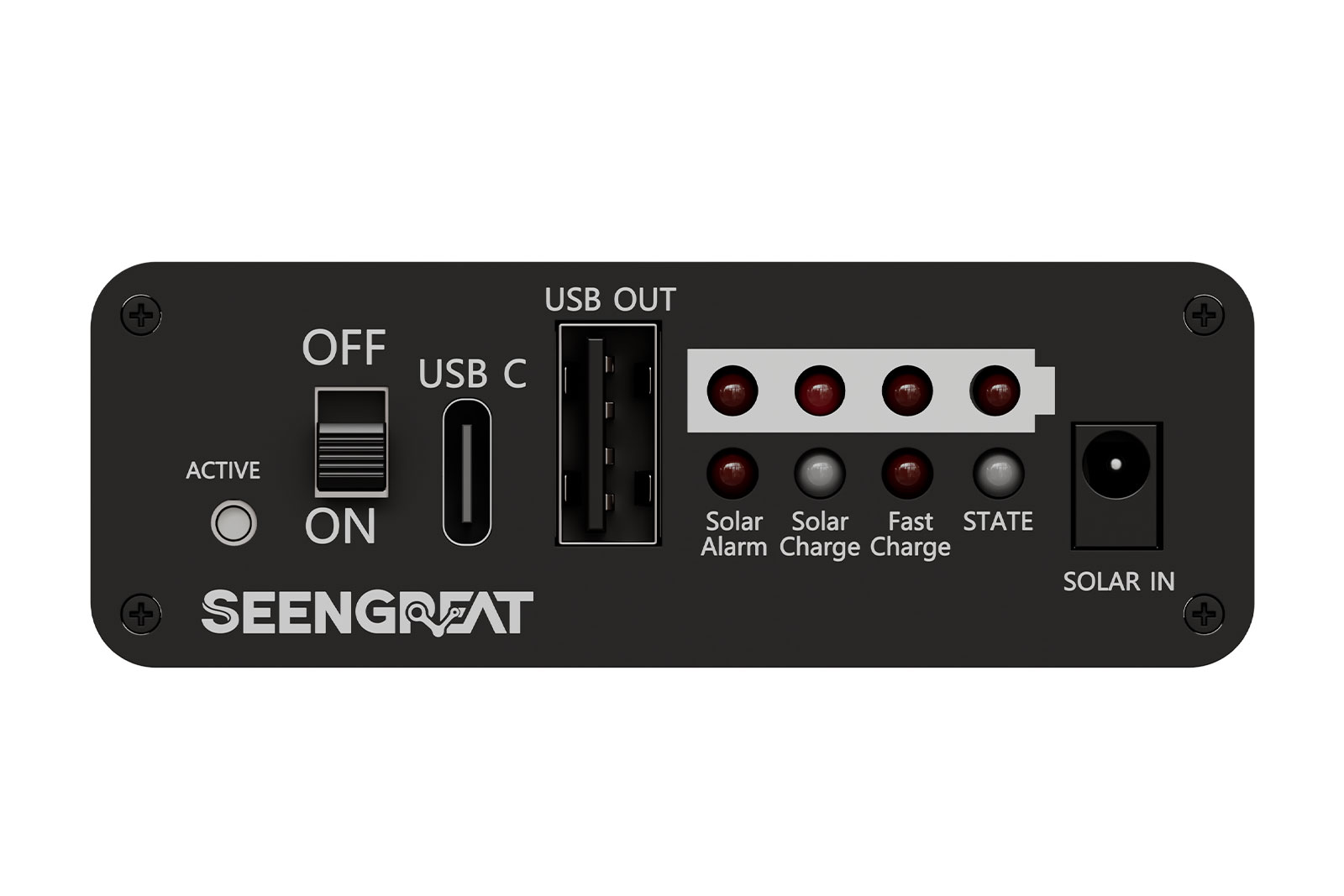

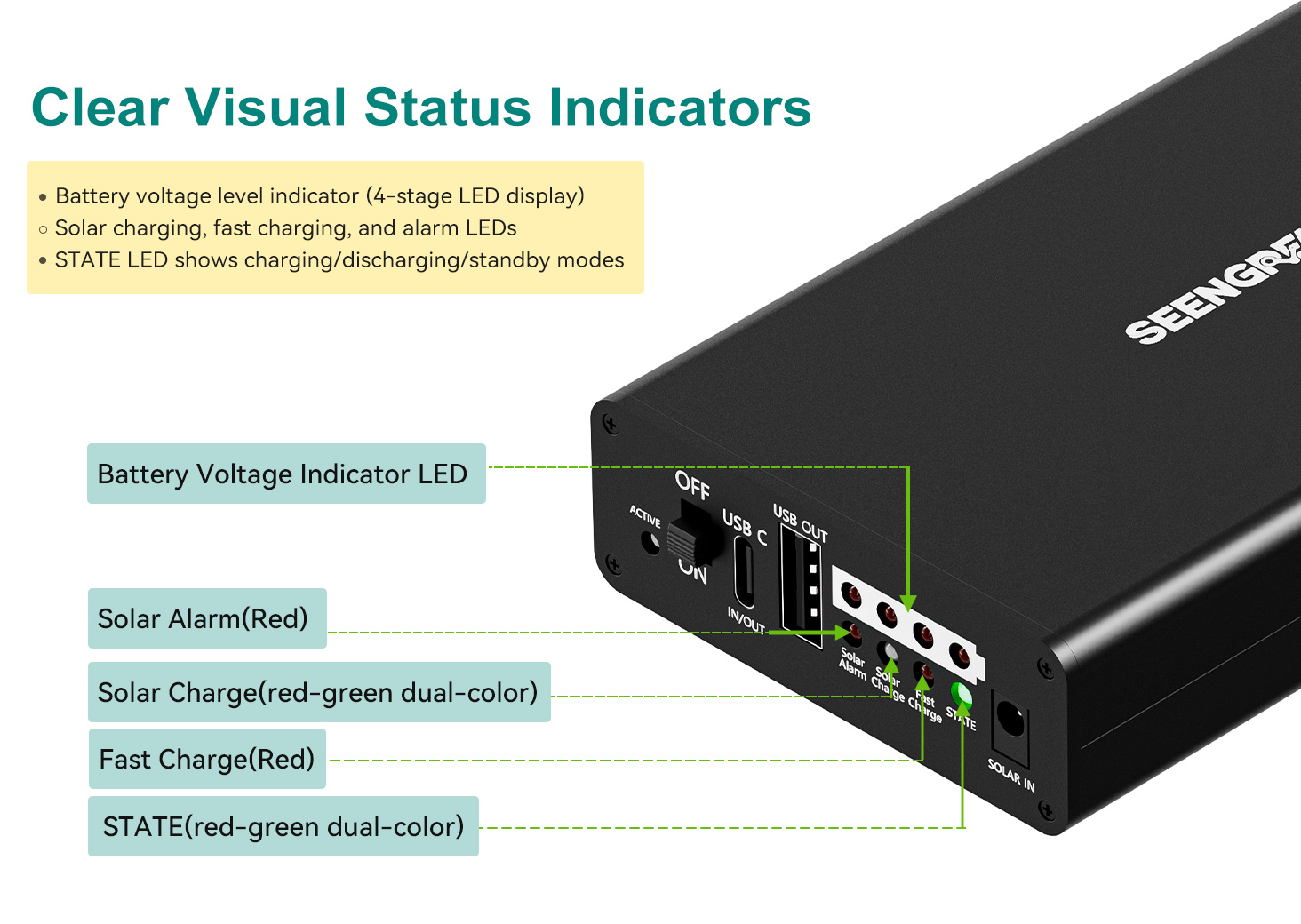

Onboard LED Indicators: The definitions of the onboard LED indicators are shown in Table below:
LED Indicators Description
| Description of LED Indicators | Indicator Name | Description |
|---|---|---|
| LED Indicators | Solar Alarm (Red) | This LED will turn on when the polarity of the Solar charging power supply is reversed. |
| Solar Charge (red-green dual-color) | This LED will turn red when Solar is charging. This LED will turn green when Solar is fully charged. | |
| Fast Charge (Red) | This LED will turn on during fast charging. | |
| STATE (red-green dual-color) | The LED on the board will flash red at a frequency of 1Hz only when the board is being charged via USB. The LED will stay red when the board is only discharging. The LED will flash green at a frequency of 1Hz during simultaneous charging and discharging (including discharging when the USB is fully charged). The LED will stay green when the board is fully charged and has no load connected. | |
| Battery voltage indicator | Battery voltage indicator: the more LEDs that are lit from left to right, the higher the battery voltage; conversely, the fewer the LEDs, the lower the voltage. |

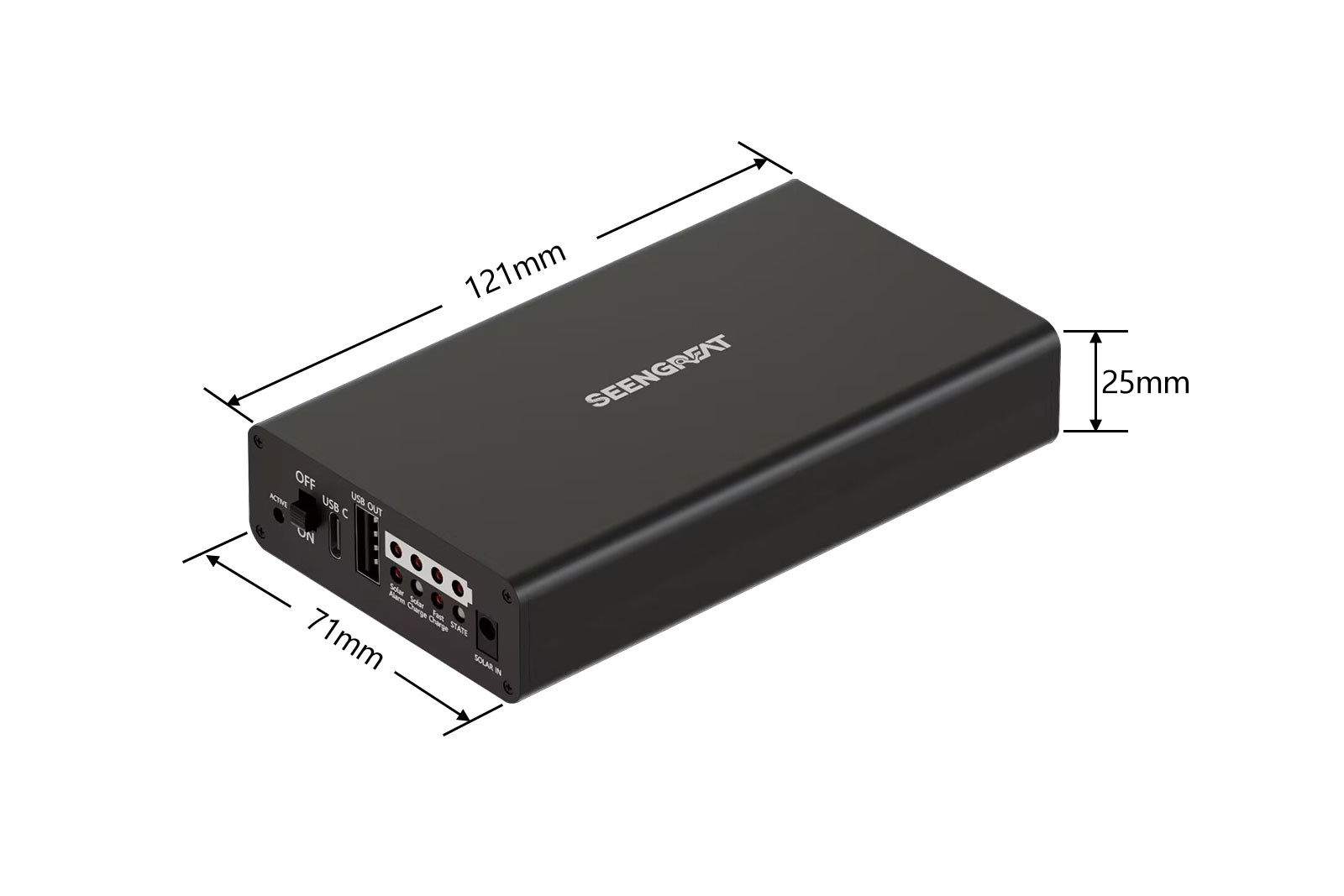

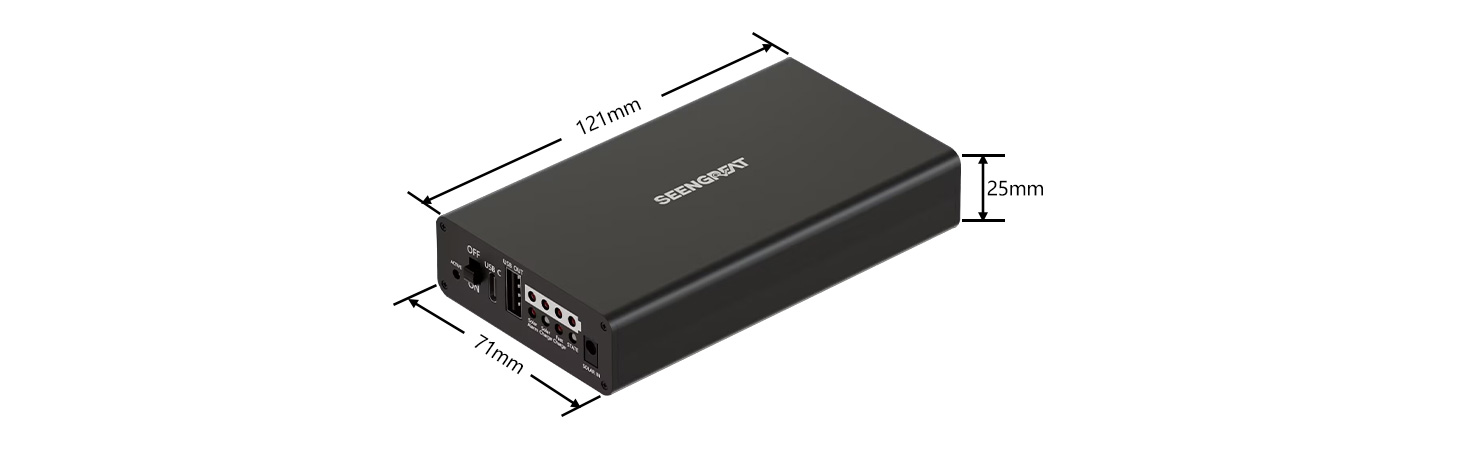

Product size

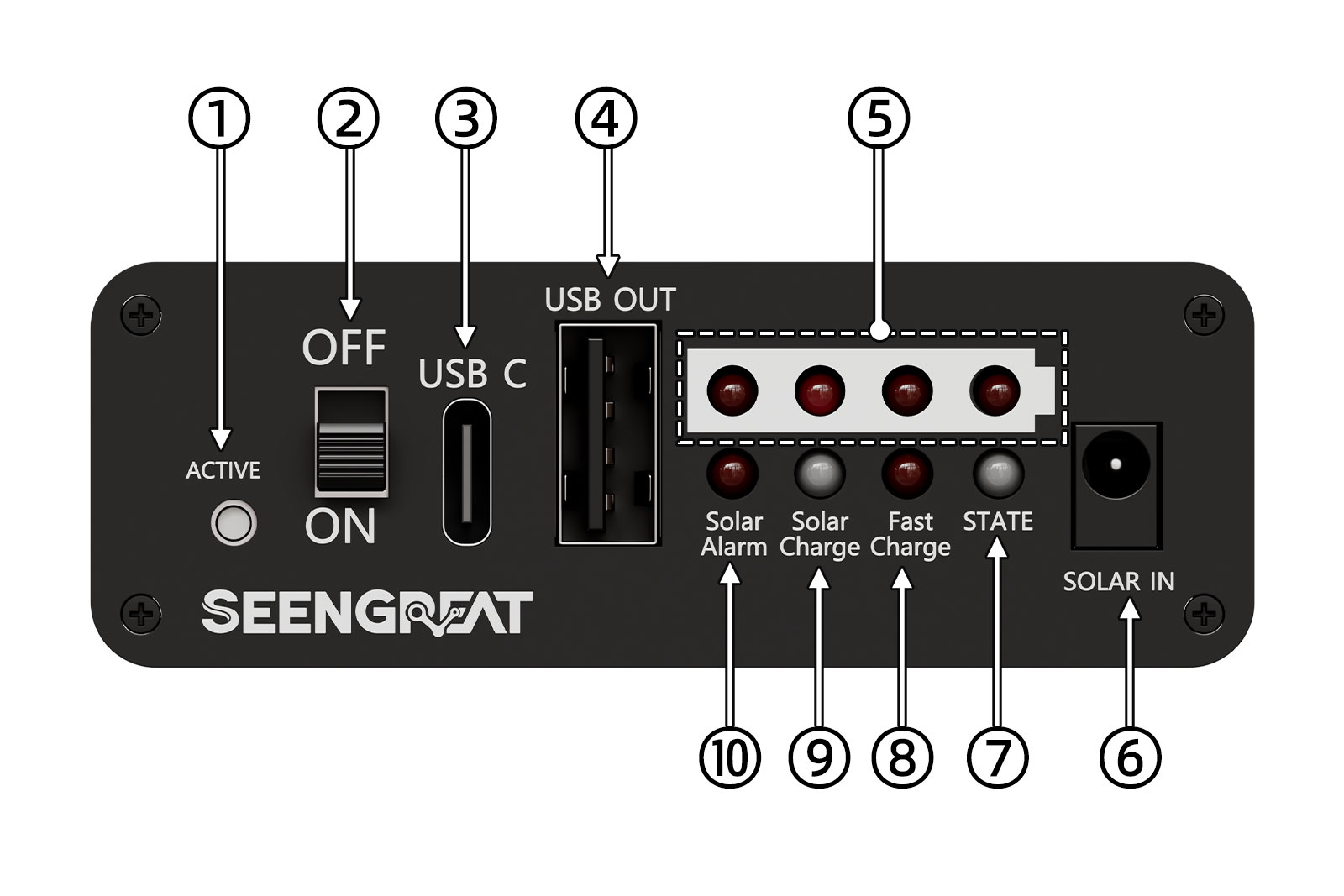

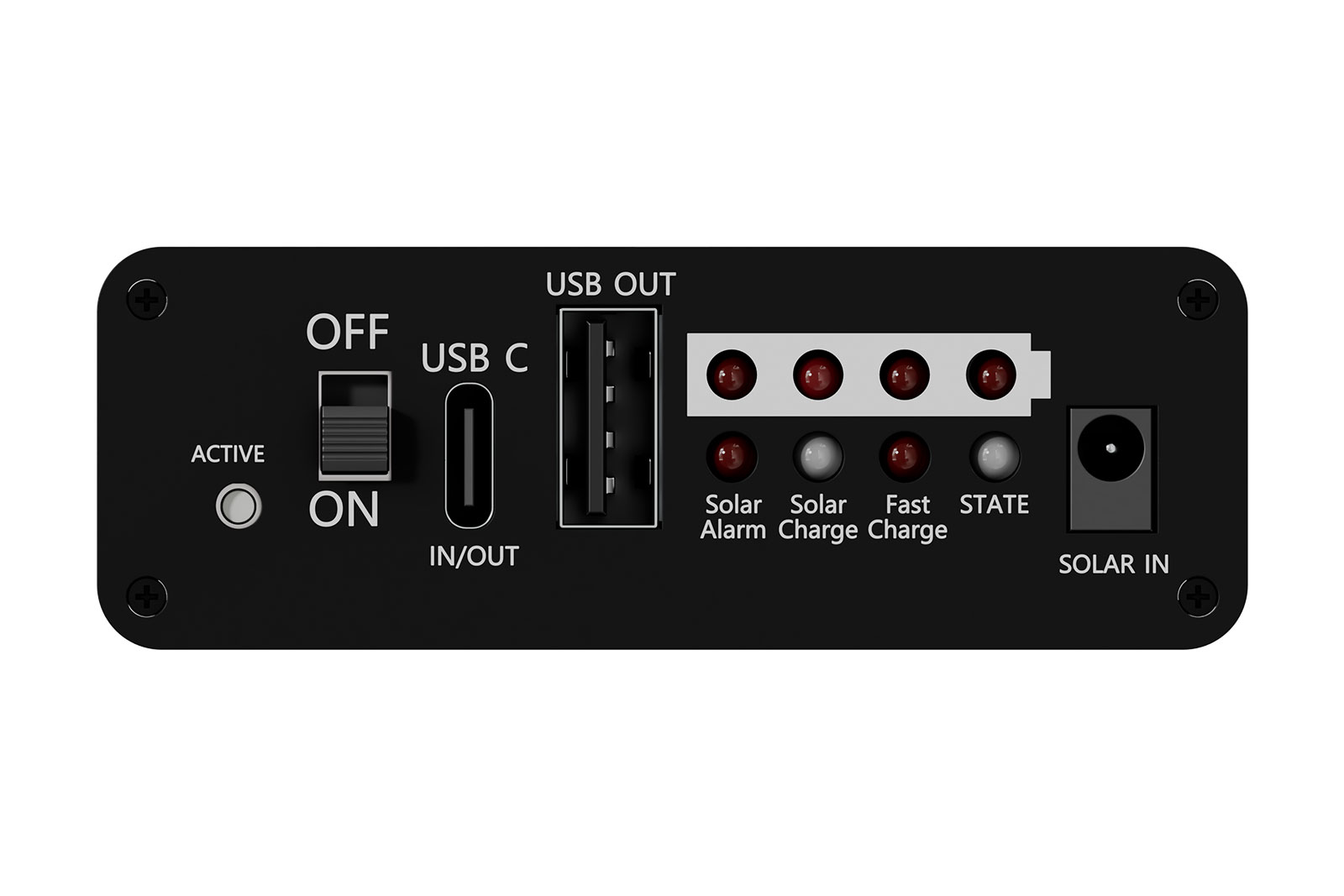

Resource Overview
- Output Activation Button: Activates output when the board enters lock state due to low battery voltage.
- Power Switch.

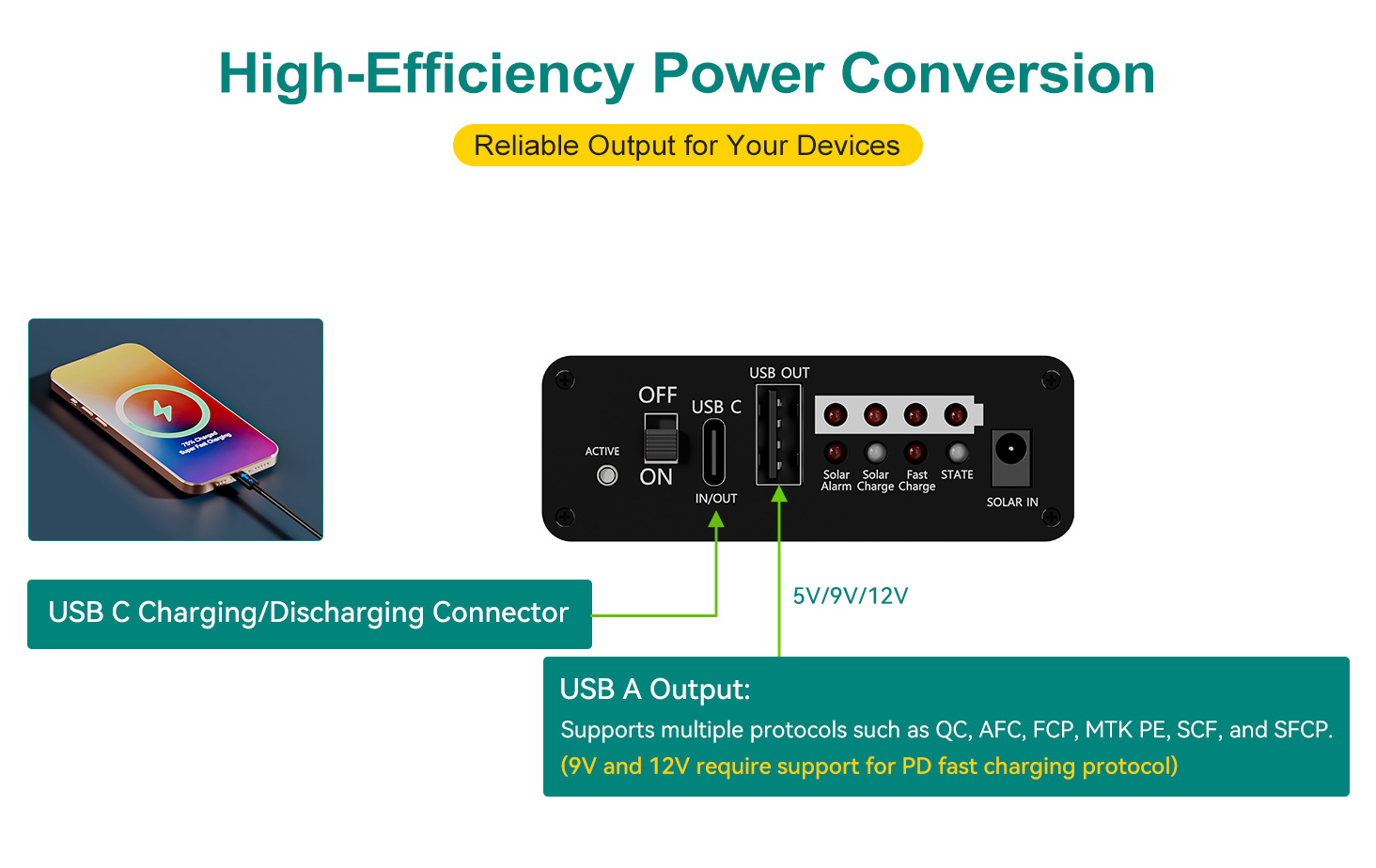

- USB C Charge/Discharge Connector: Charges the battery or discharges via TYPE-C cable, supports PD/QC/FCP/PE/SFCP (and other protocols).
- USB A Output Port: Supports QC/AFC/FCP/MTK PE/SCP/SFCP (and other protocols). (Note: Corrected presumed typo SCF to SCP)
- Battery Voltage Indicator LEDs (Red).
- DC-002 Solar Charging Jack: For connecting solar panels.
- STATE: IP5356M Chip Status LED; Red blinking during USB charging only, Red constant on during USB discharge only (including USB-A and USB-C), Green blinking at 1Hz during simultaneous charge & discharge (including discharge when USB input is fully charged), Green constant on when fully charged and no load connected.
- Fast Charge: Fast charge function indicator, lights red during charge/discharge with fast charge protocol.
- Solar Charge: Solar charging status indicator, Red indicates solar charging, Green indicates solar charging complete.
- Solar Alarm: Solar panel reverse polarity indicator (Red).

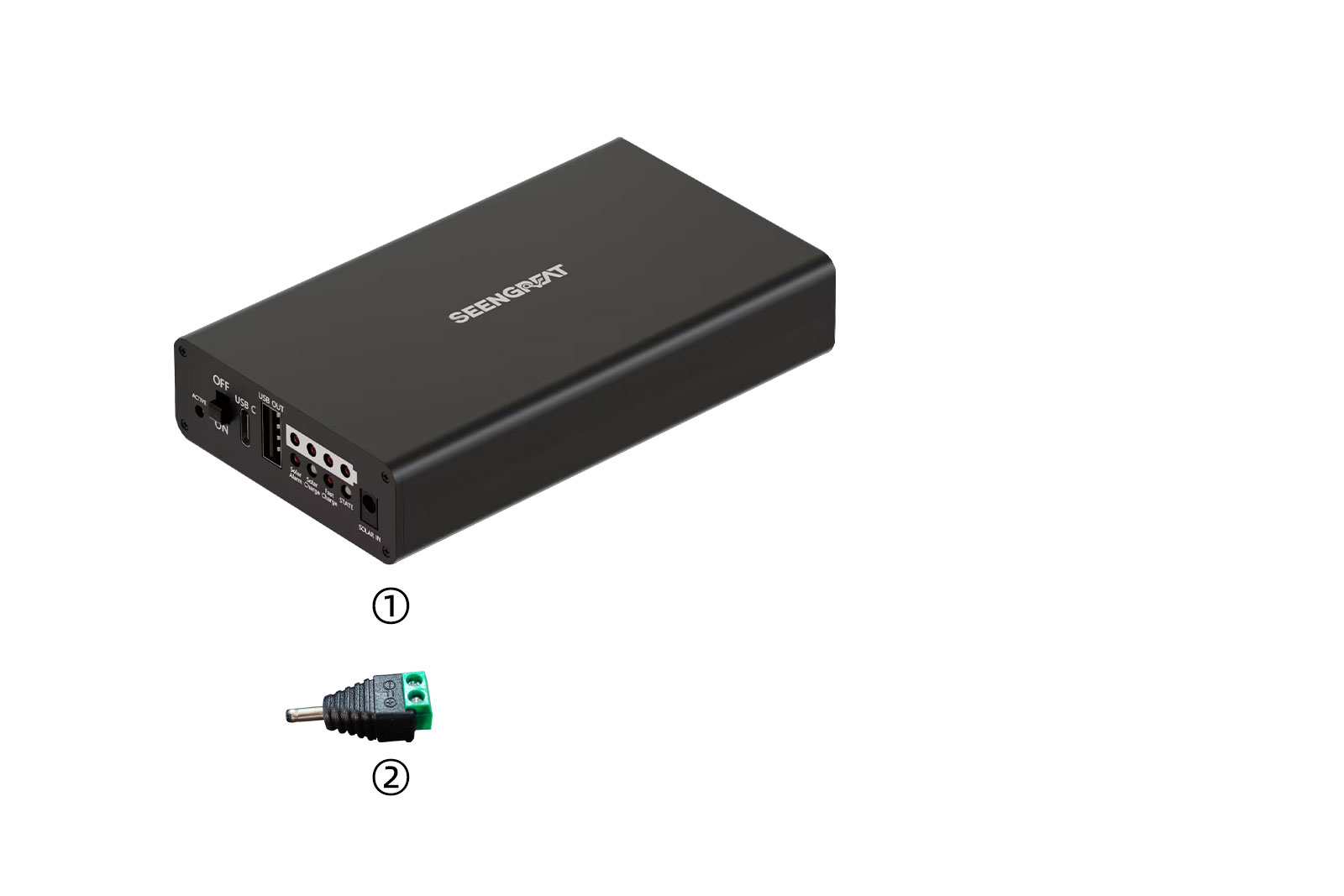

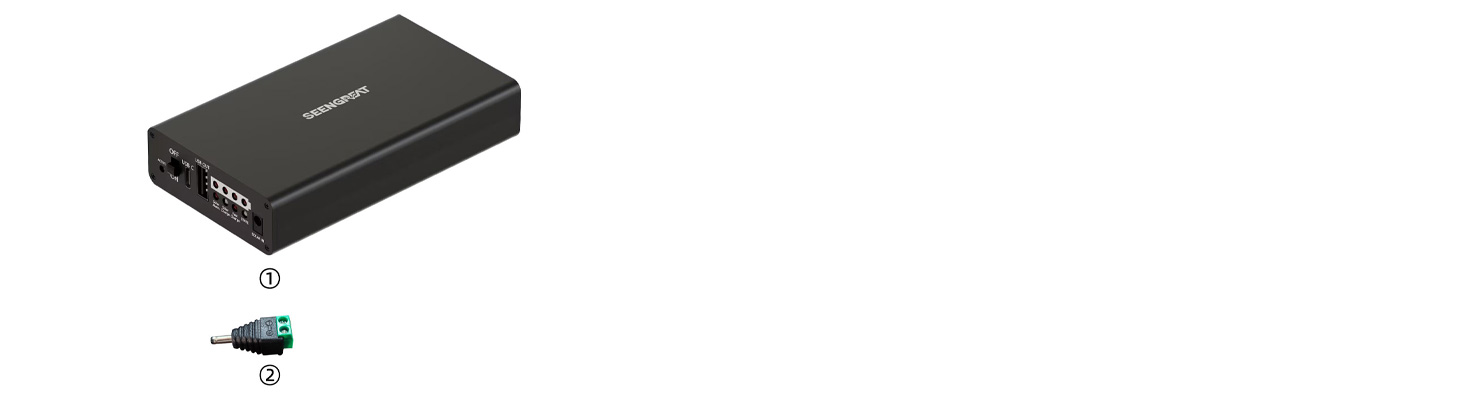

Package Contents
