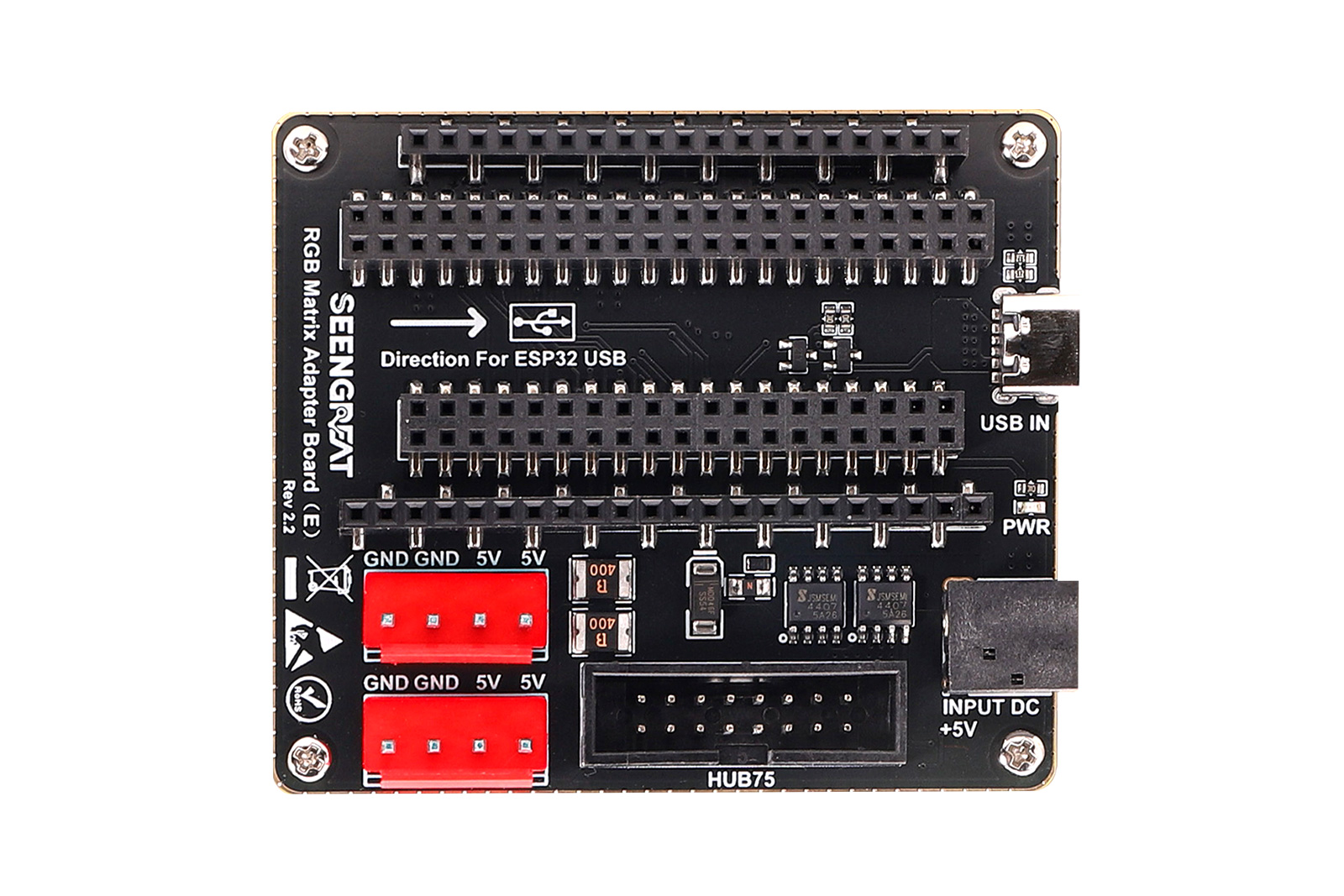

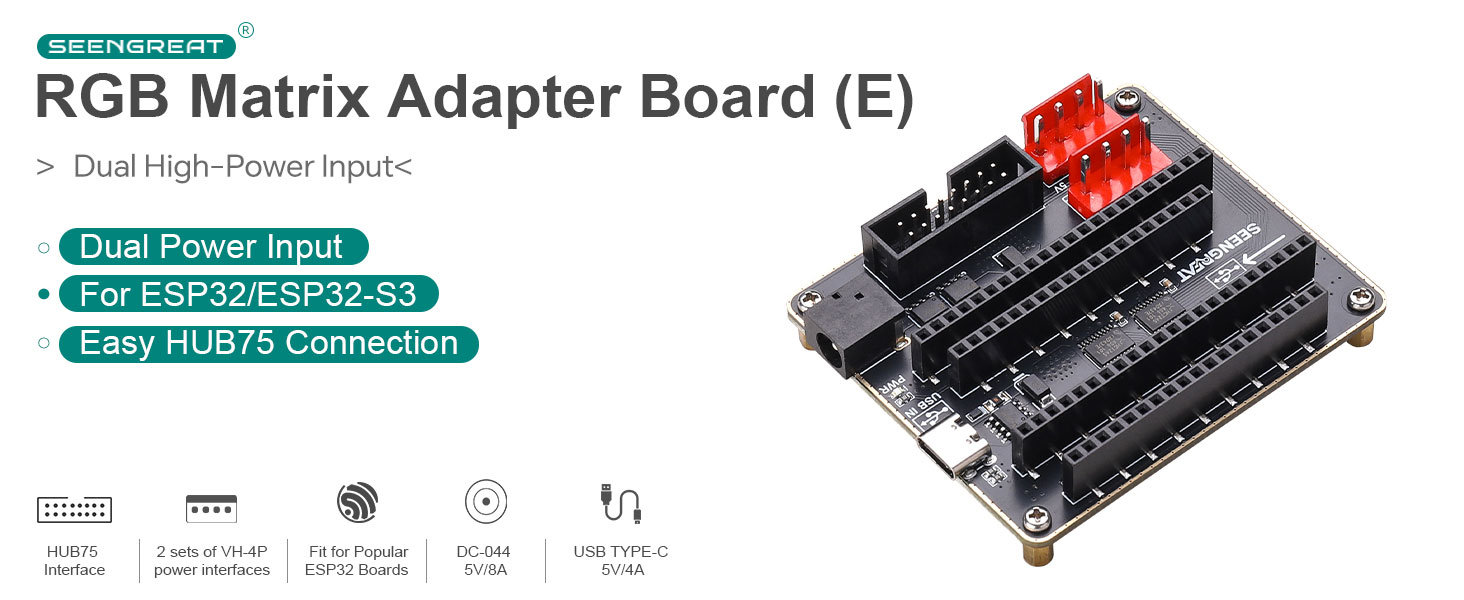

I. Product Overview

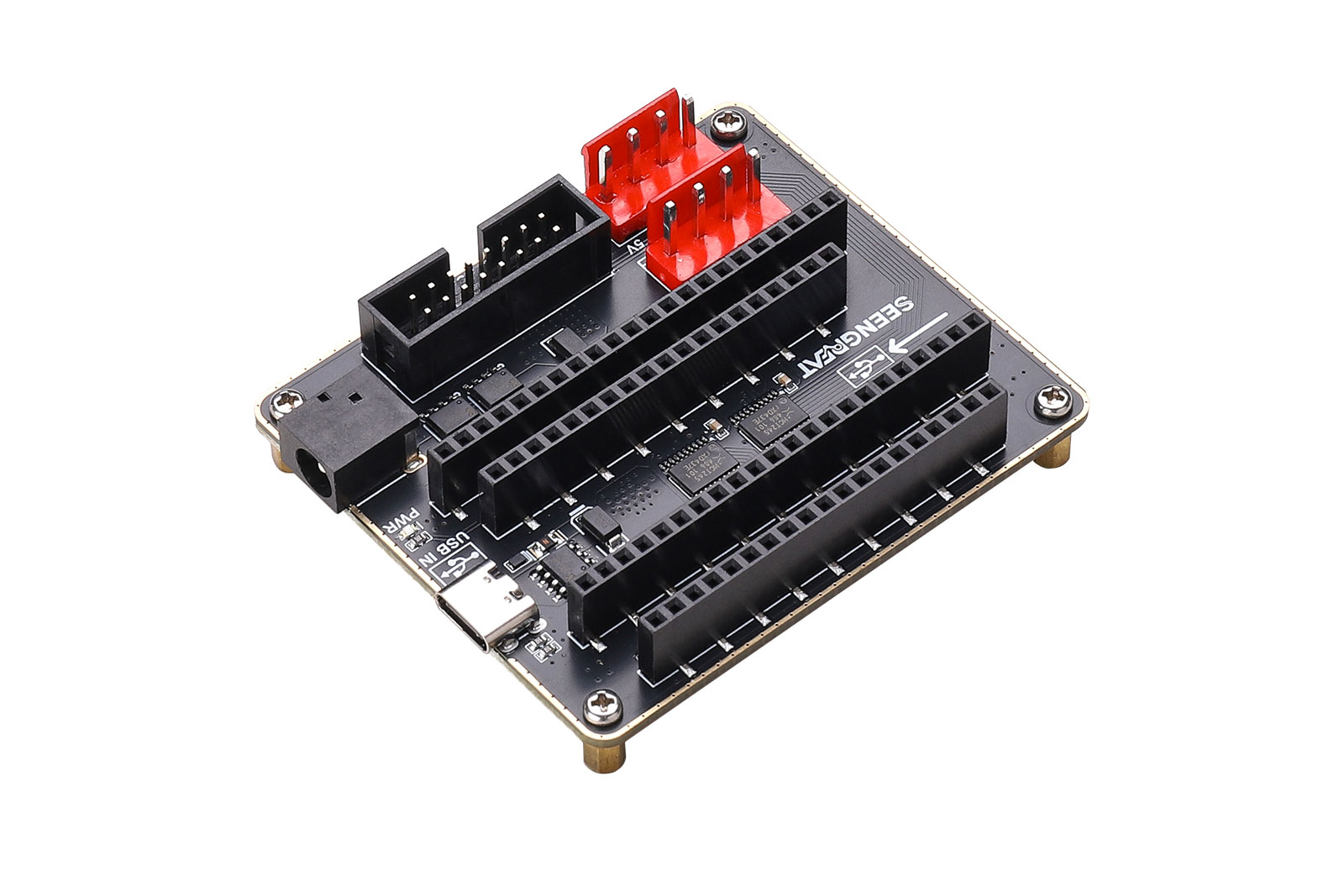

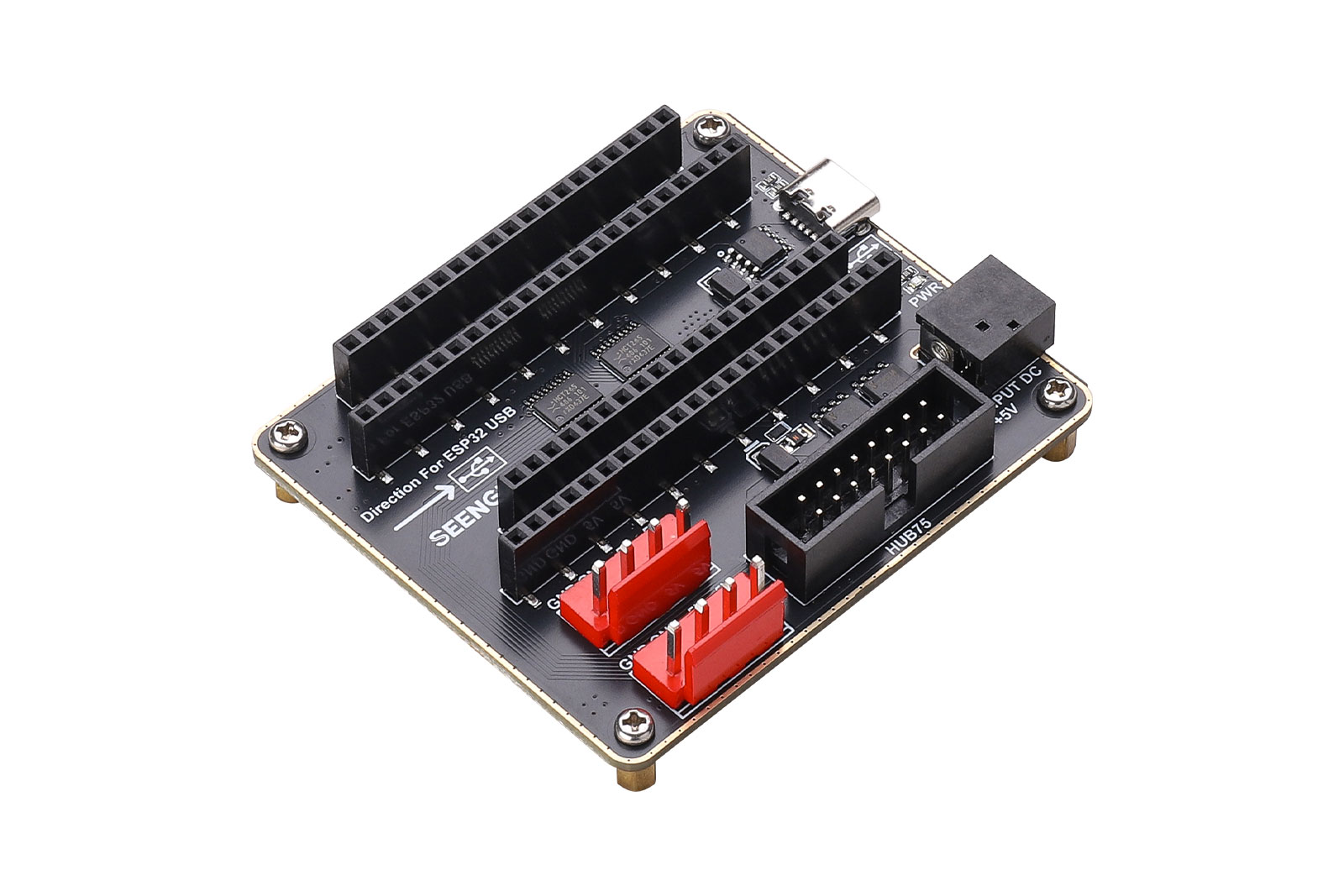

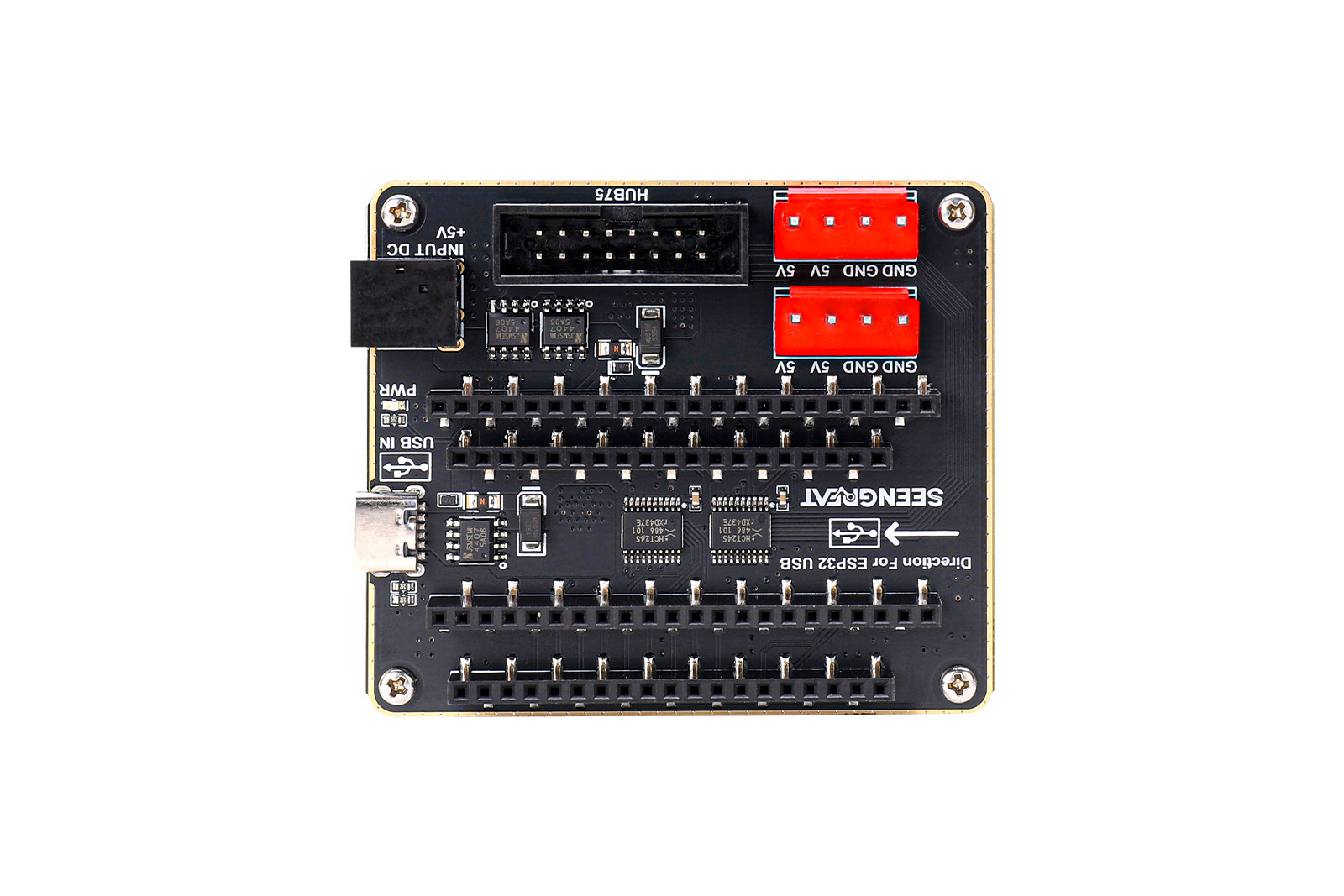

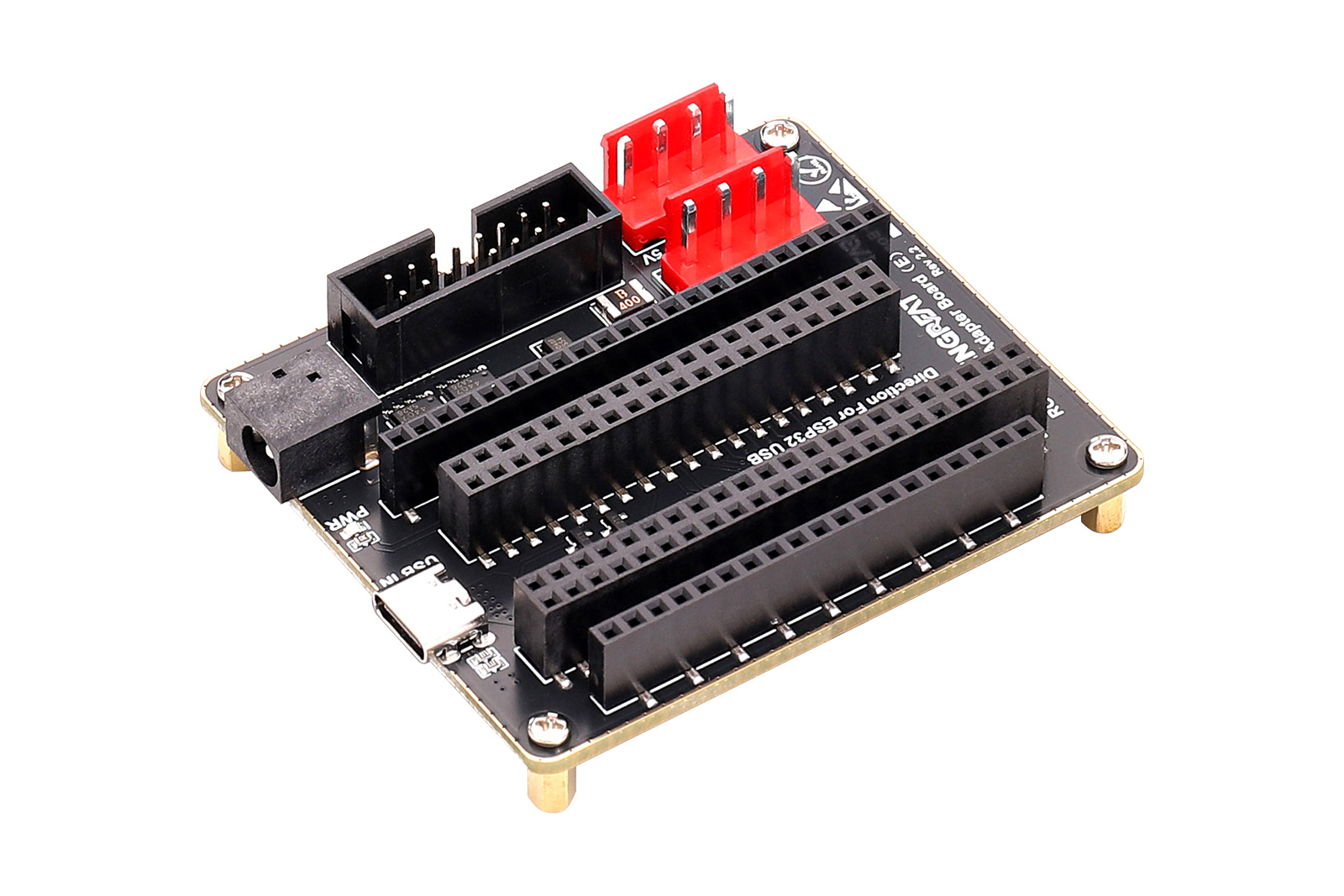

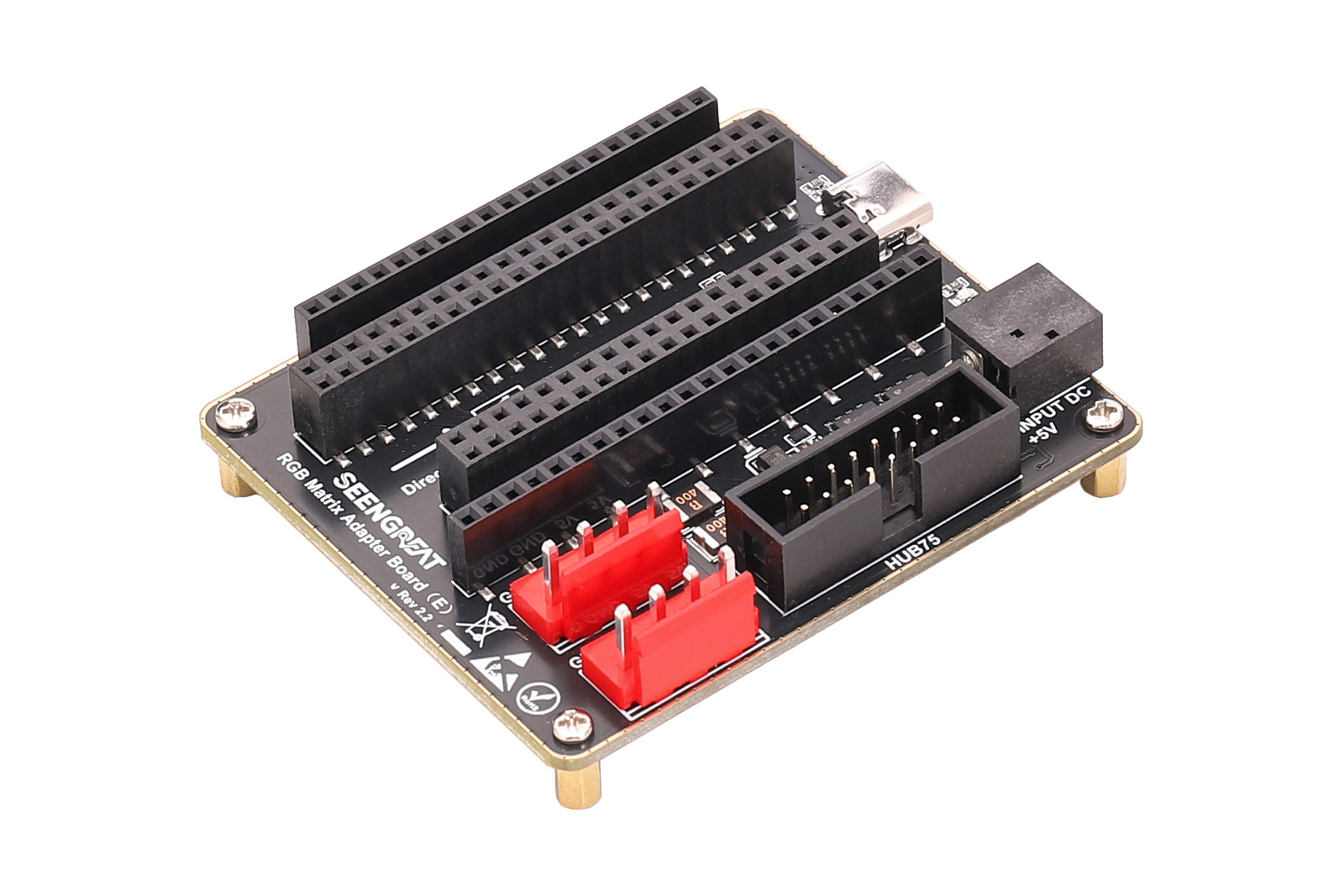

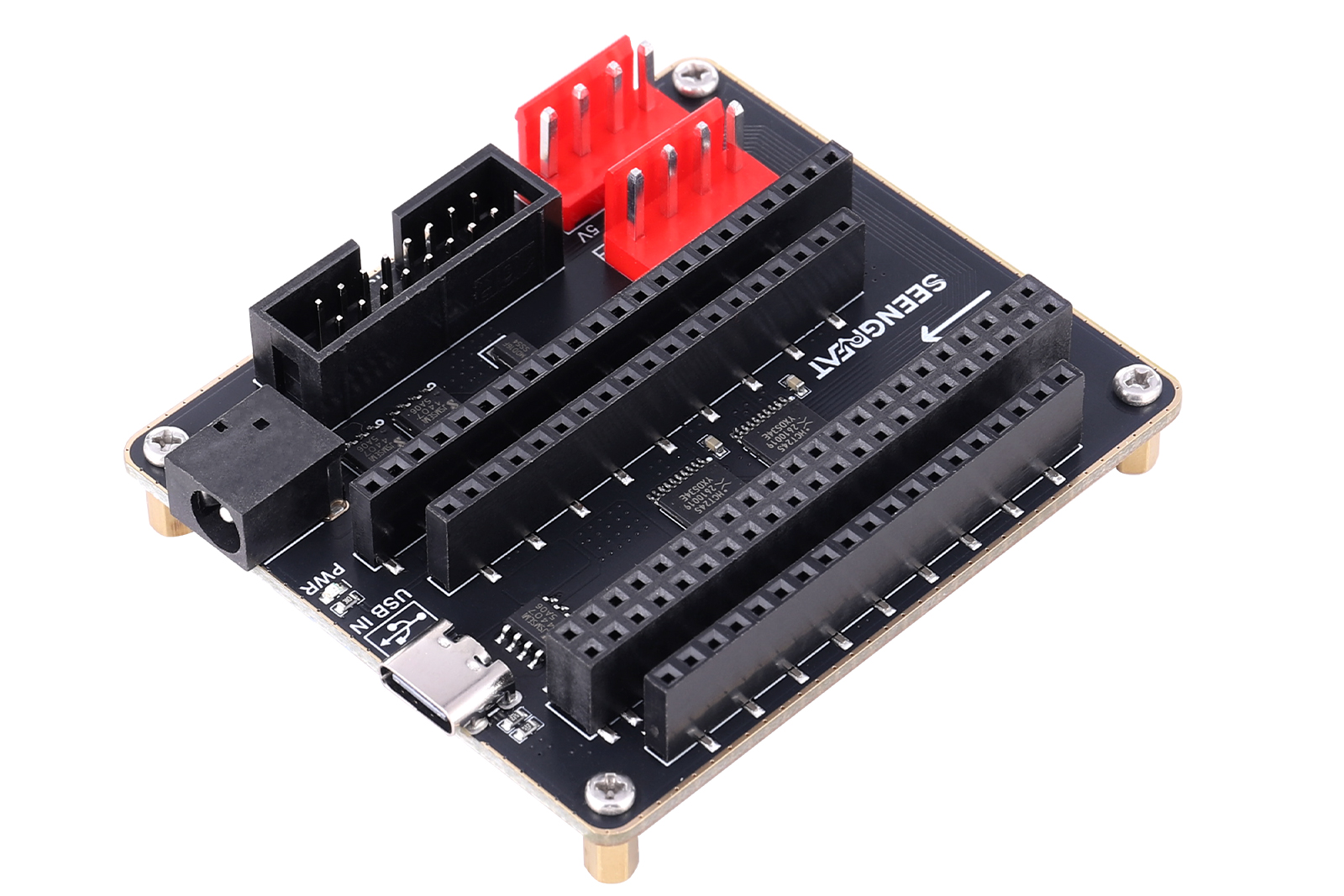

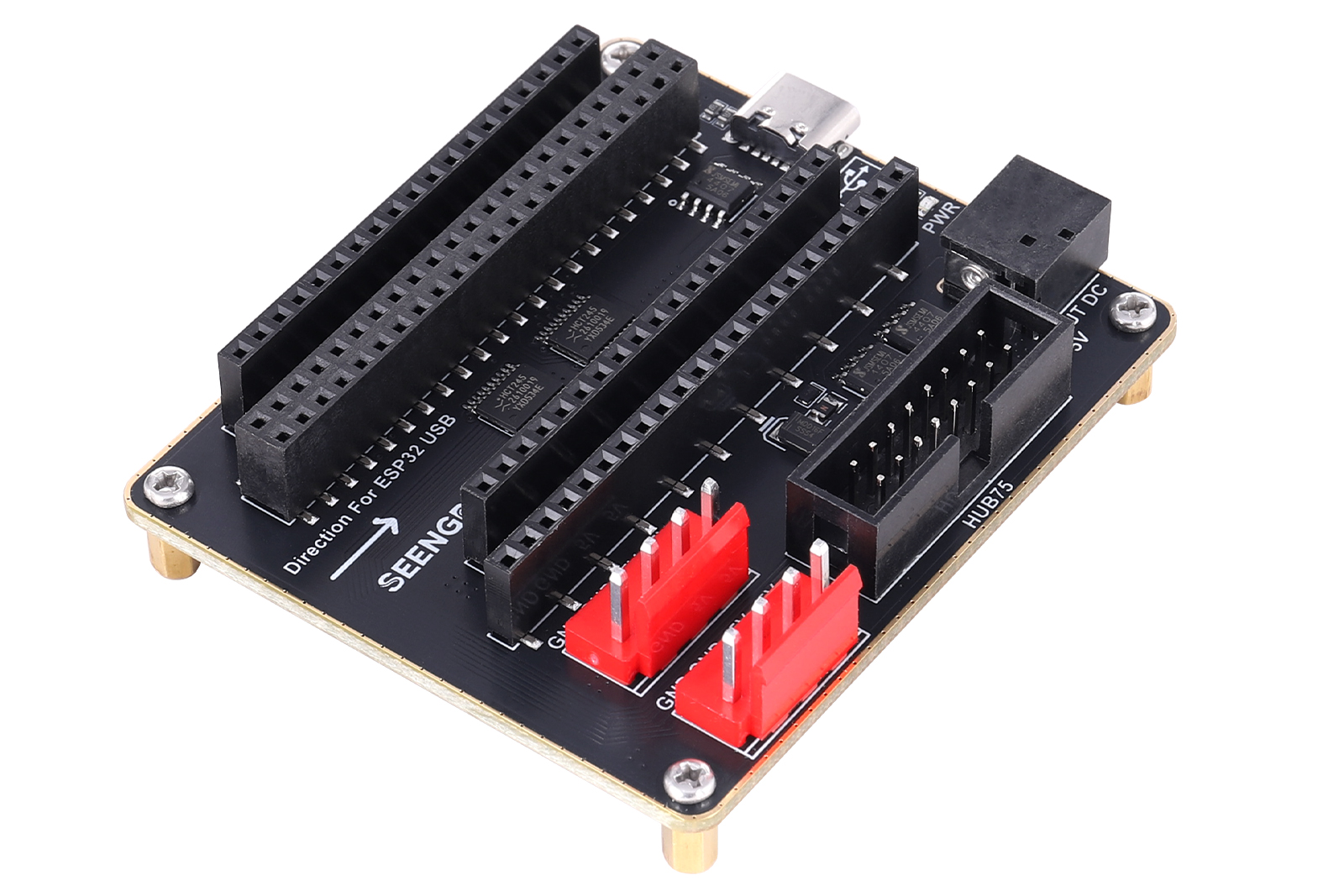

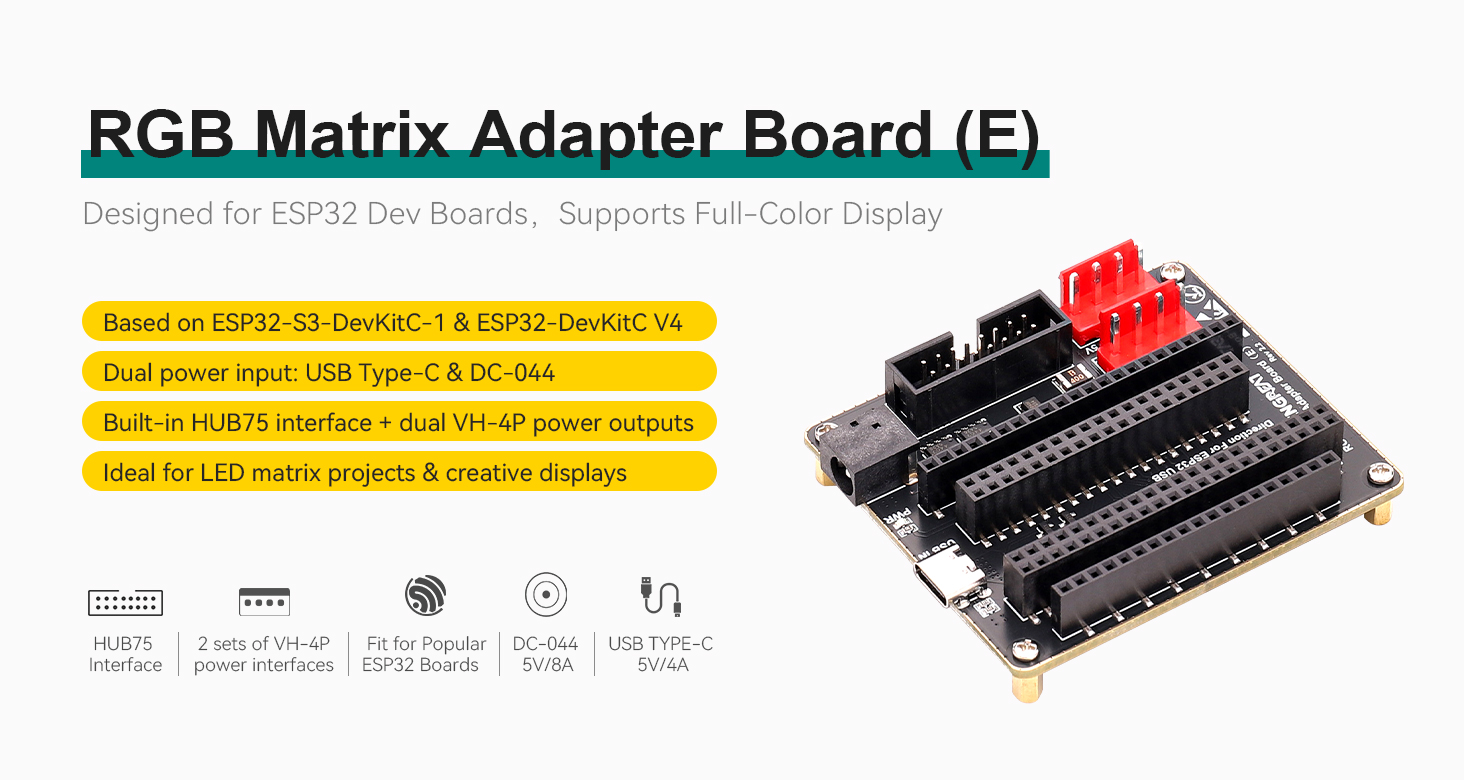

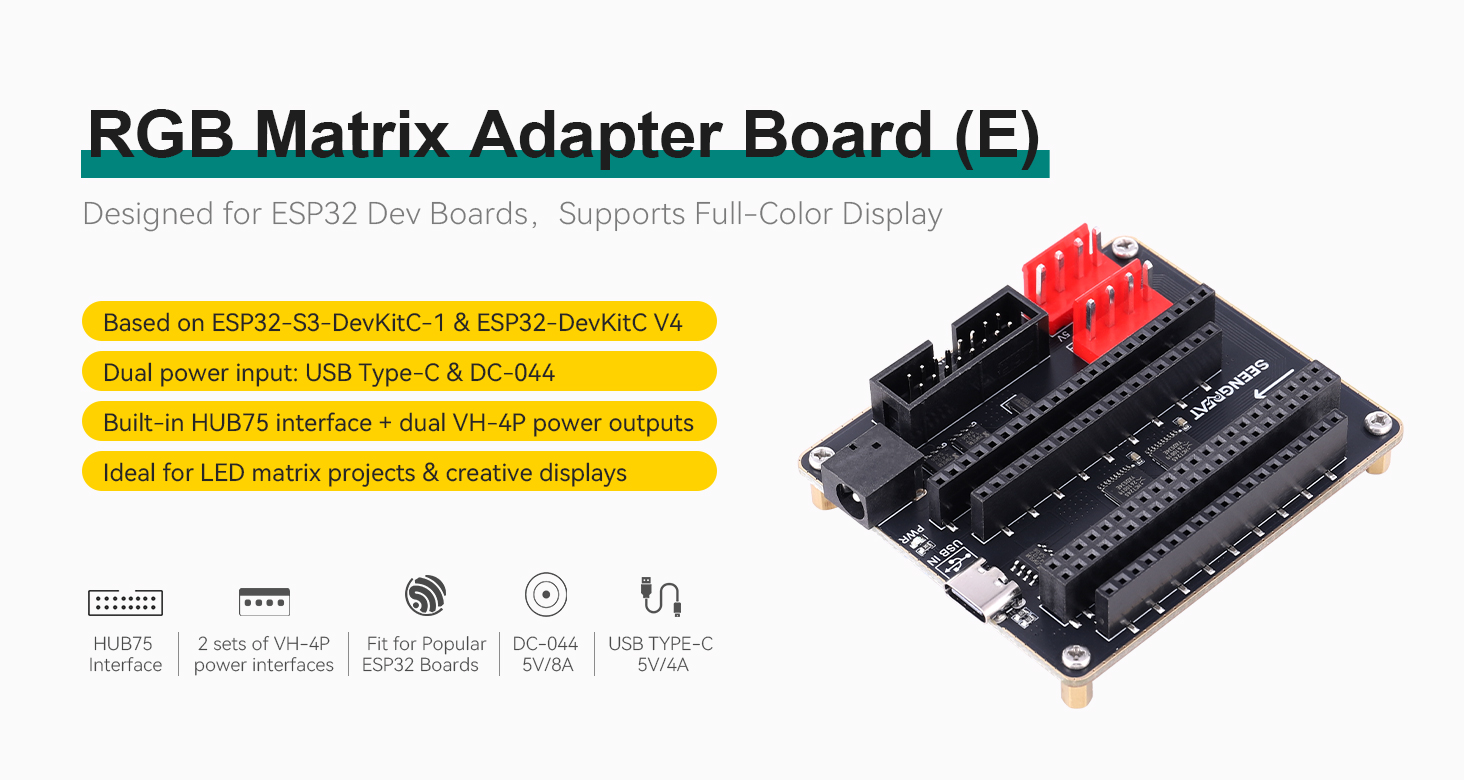

The RGB Matrix Adapter Board (E) is designed based on the ESP32-S3-DevKitC-1 and ESP32-DevKitC V4 development boards. It is specifically built for efficient data transmission and stable power management. This board is suitable for displaying text, graphics, animations, and more, helping users quickly bring various creative designs to life.
The adapter board integrates multiple key interfaces, providing both reliable power supply and stable data transmission.
II. Product Features

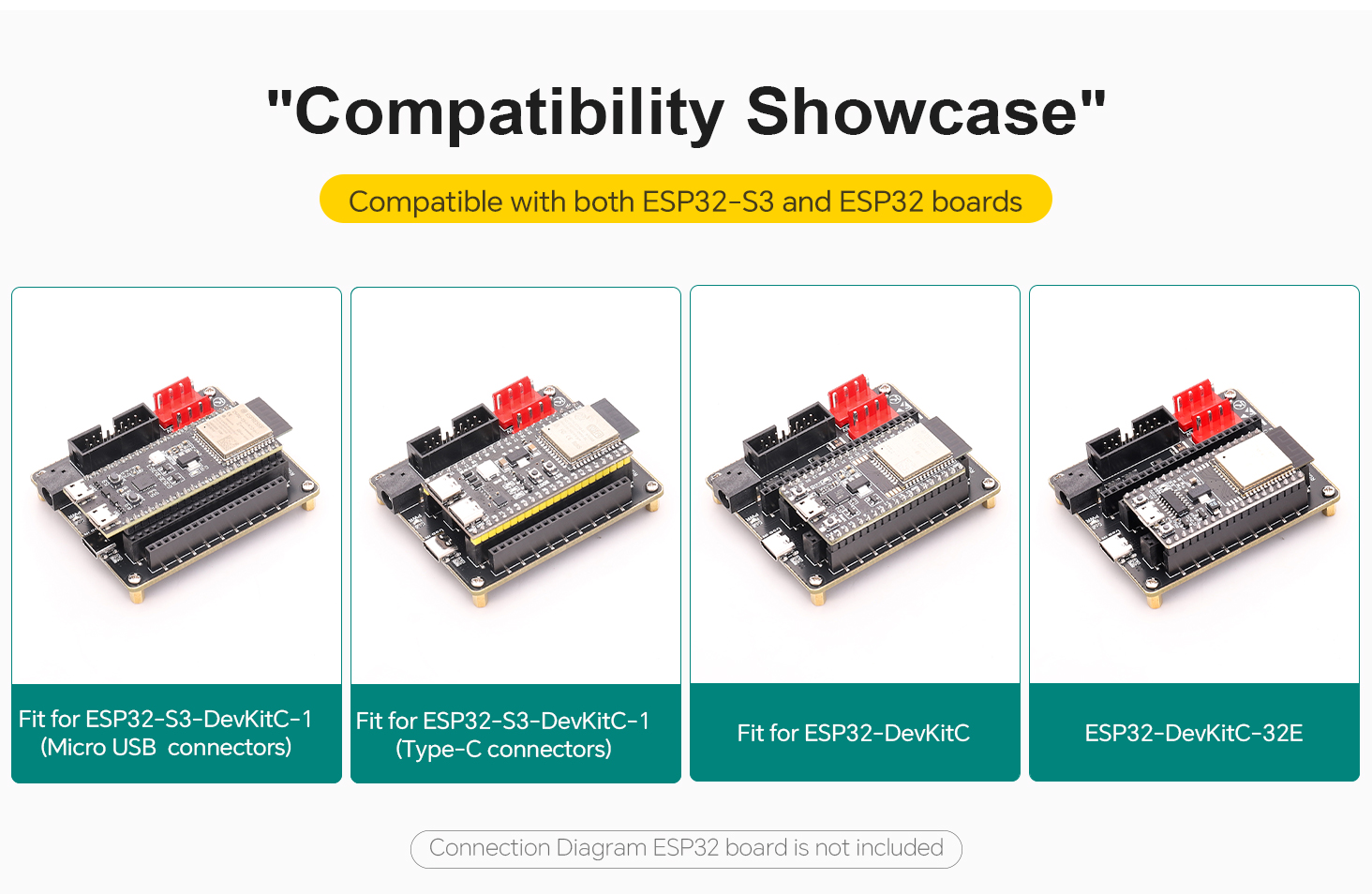

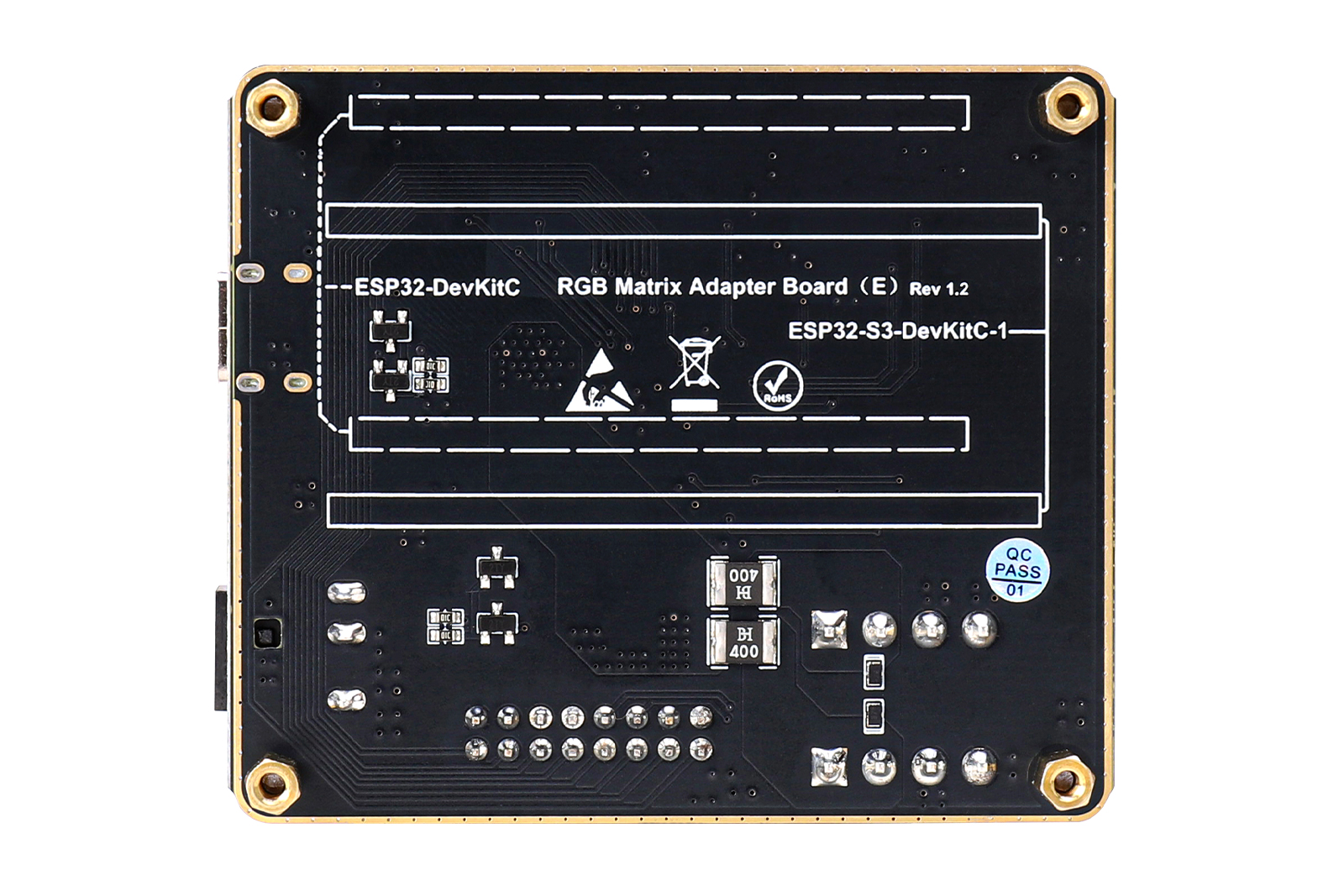

· Compatible with ESP32-DevKitC V4 and ESP32-S3-DevKitC-1

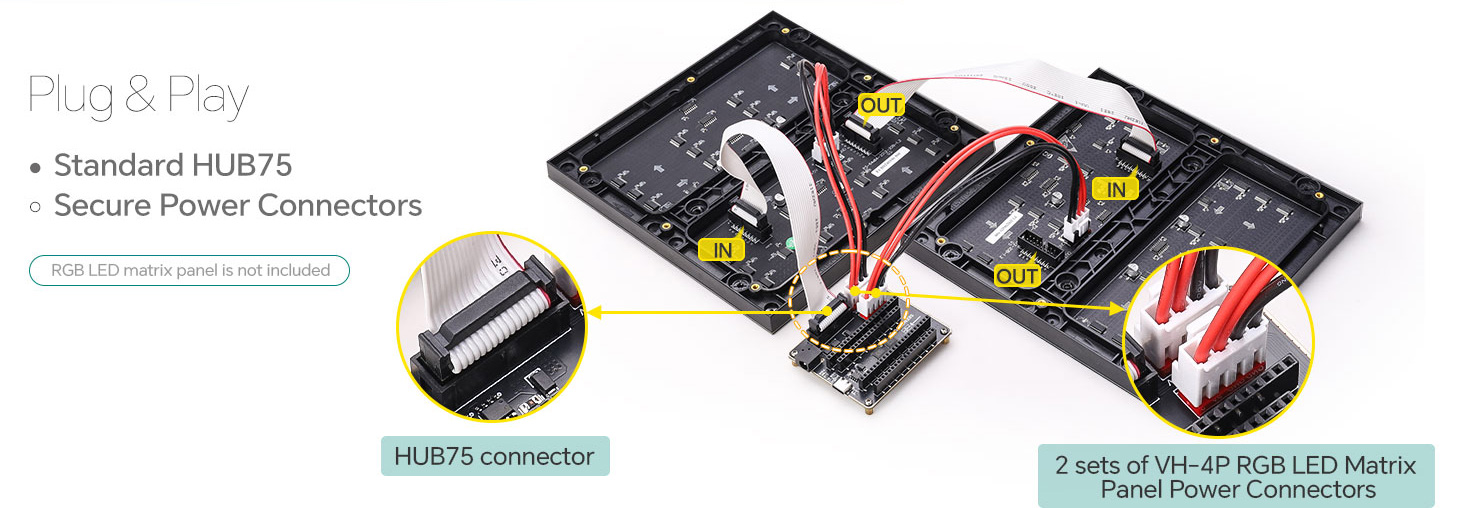

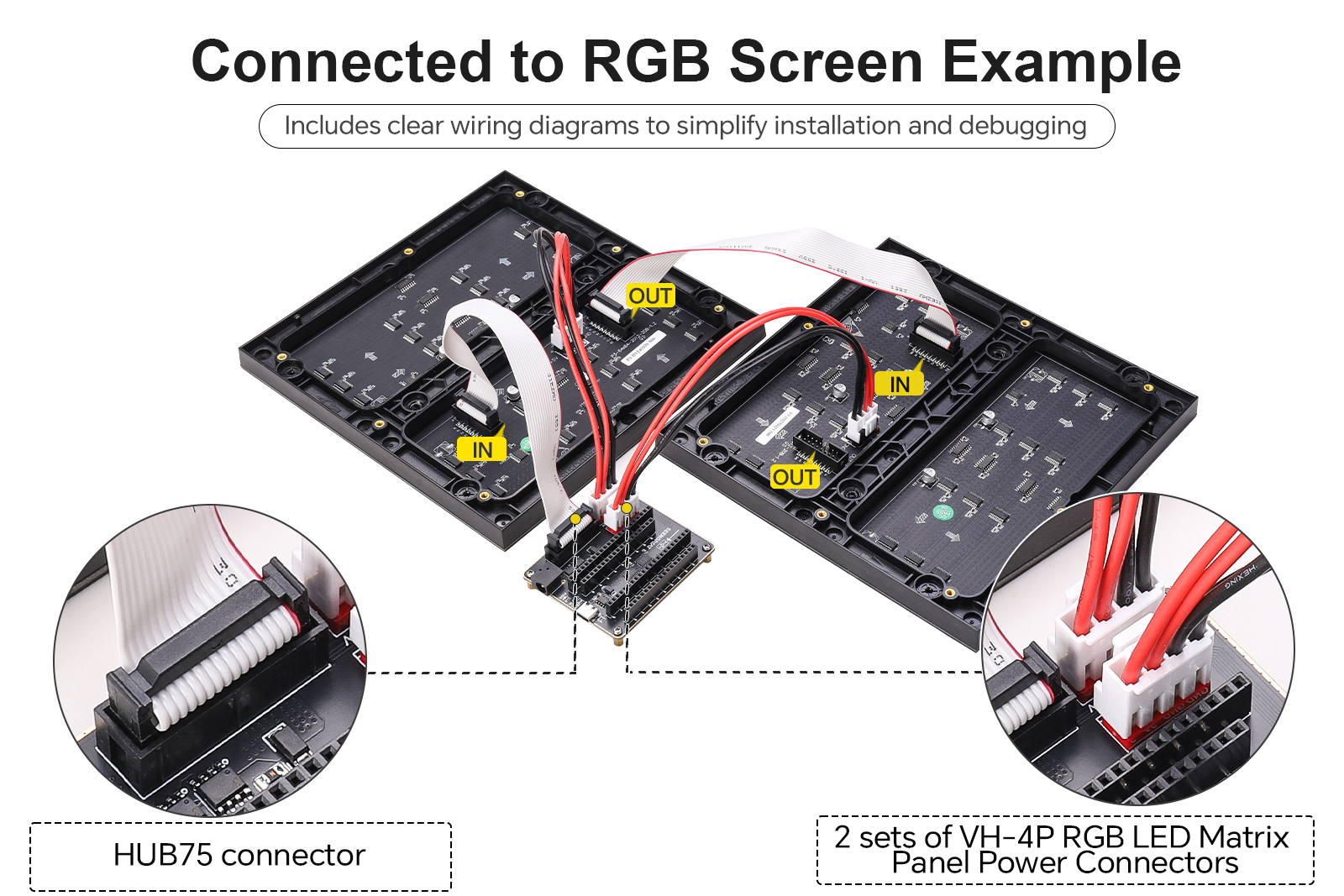

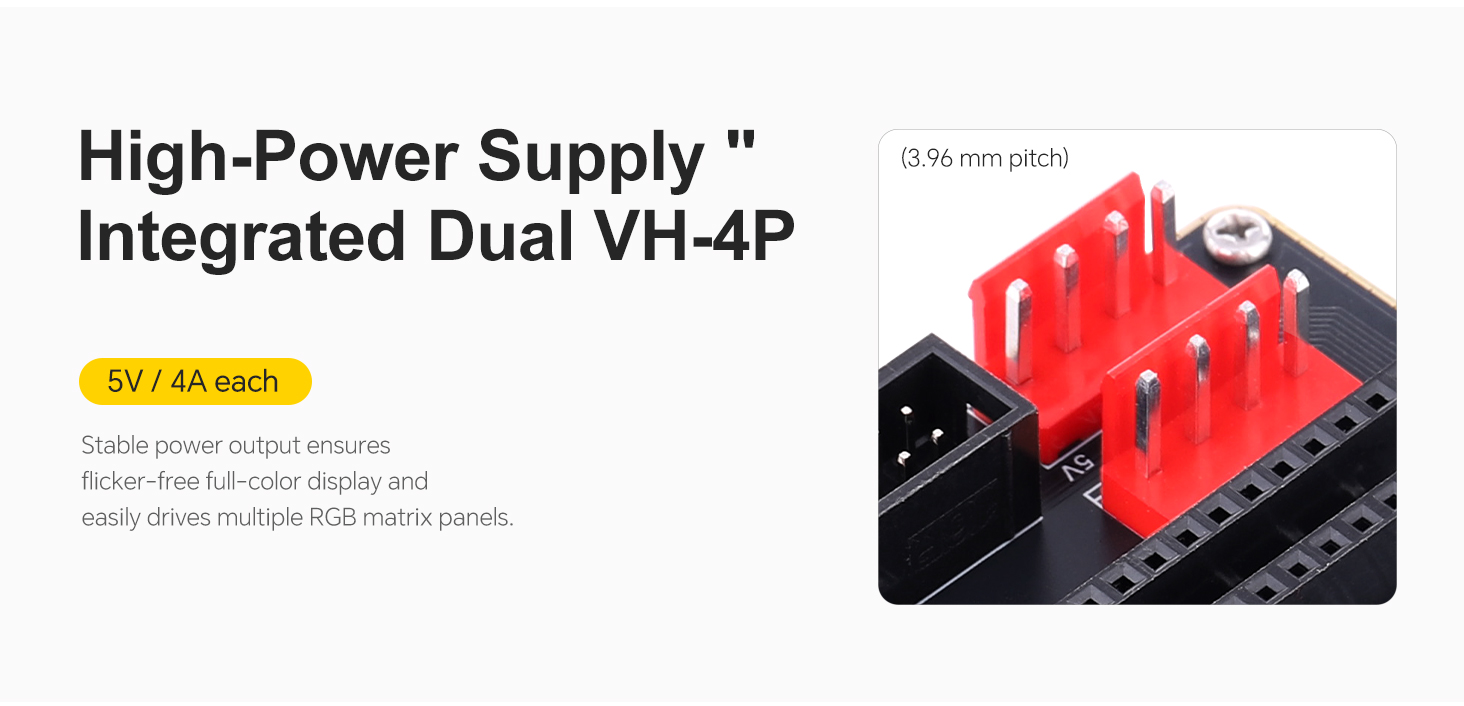

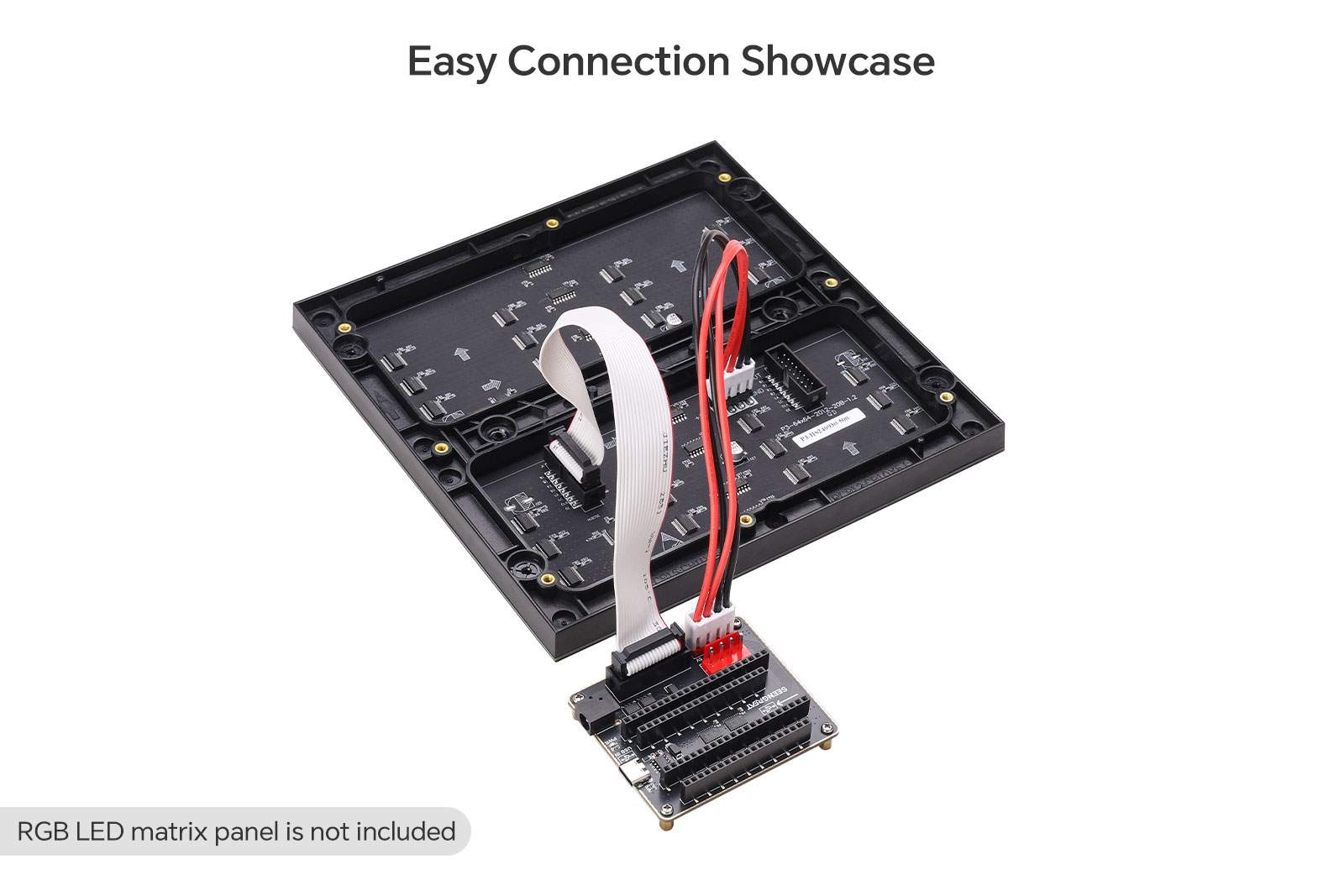

· Onboard two VH-4P (3.96 mm pitch) power connectors and HUB75 interface for RGB LED matrix panels

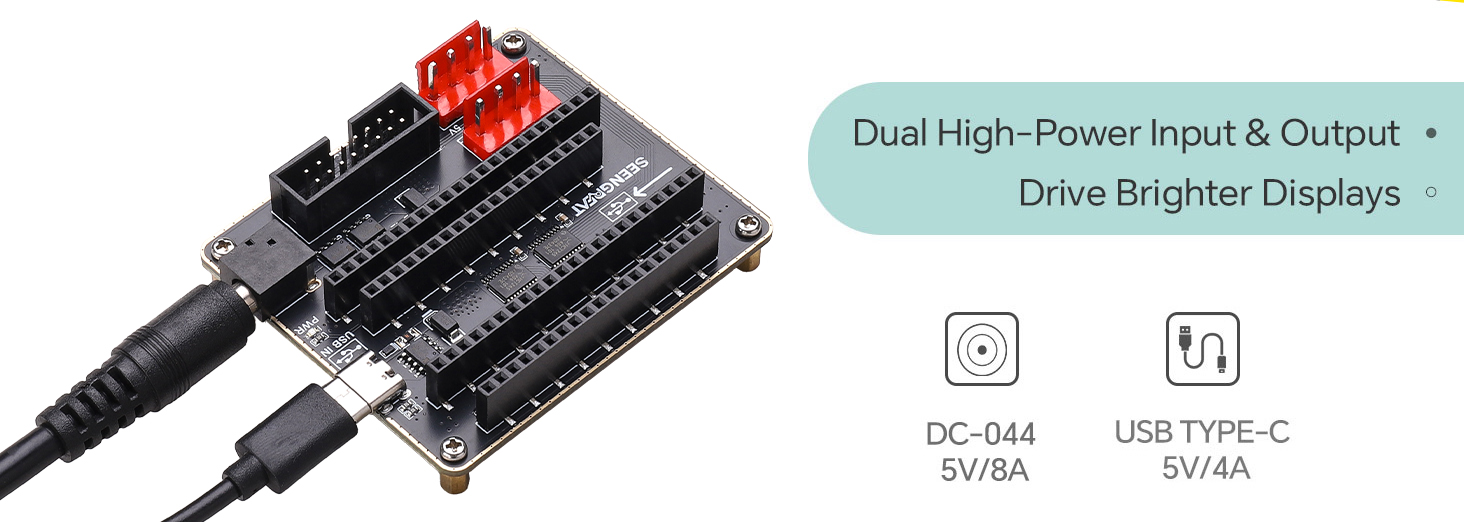

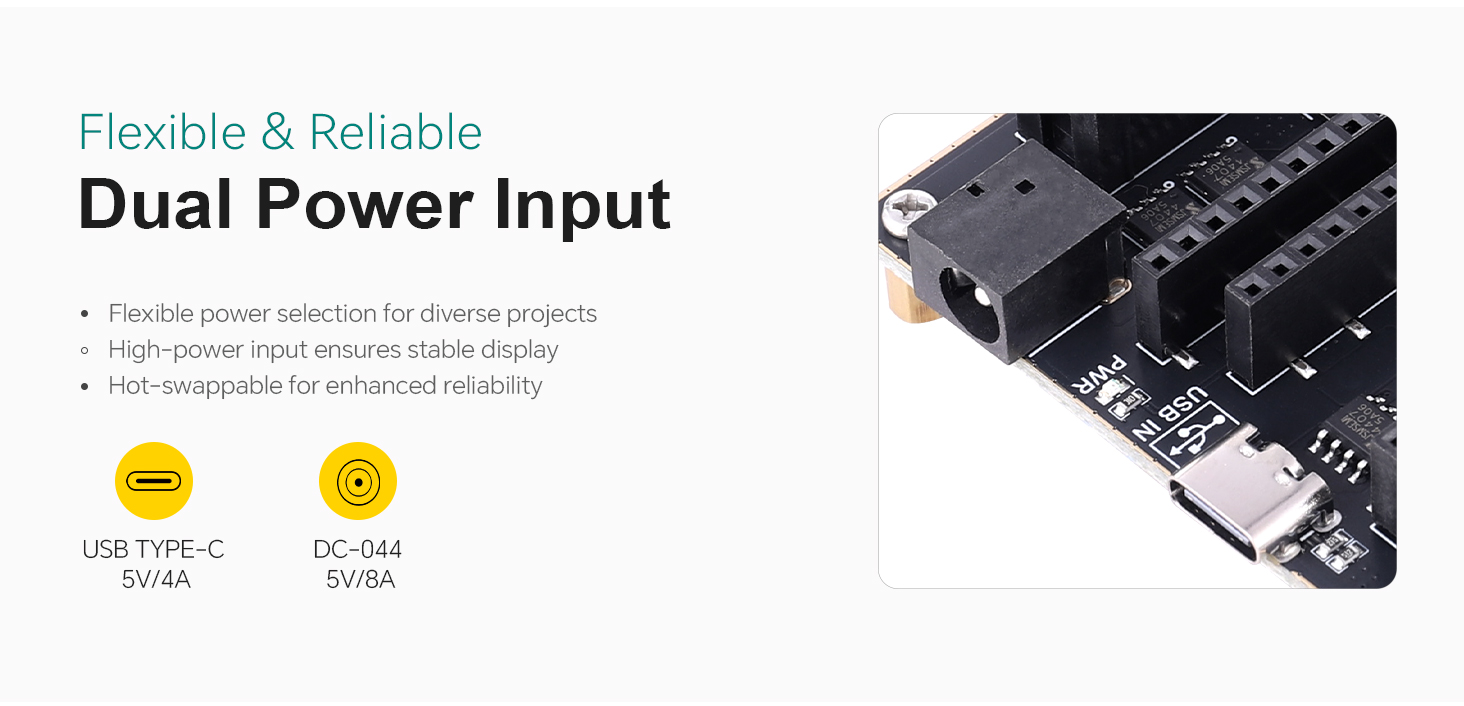

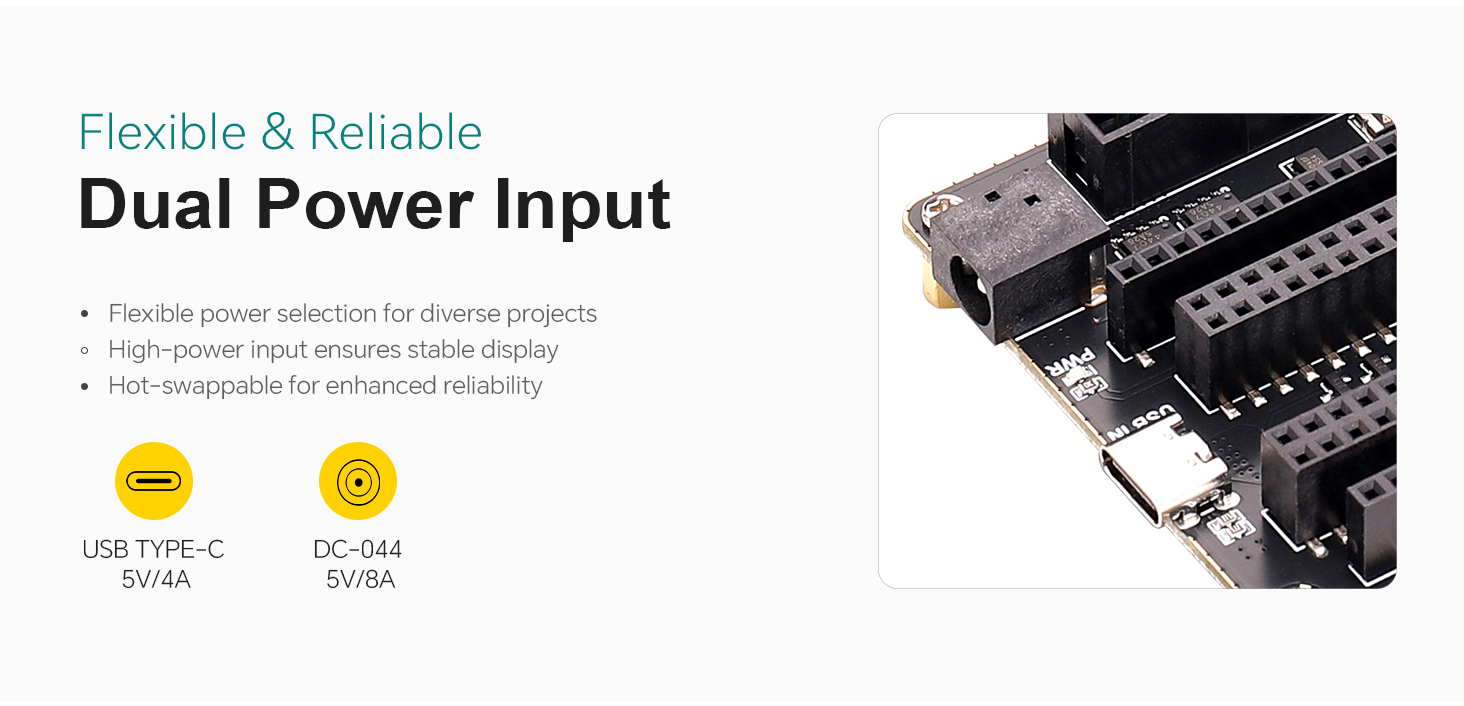

· Dual power input ports: USB Type-C 5V/4A or DC-044 5V/8A
· Gold-plated edge design for enhanced durability and aesthetics
III. Product Specifications
Item | Specification |

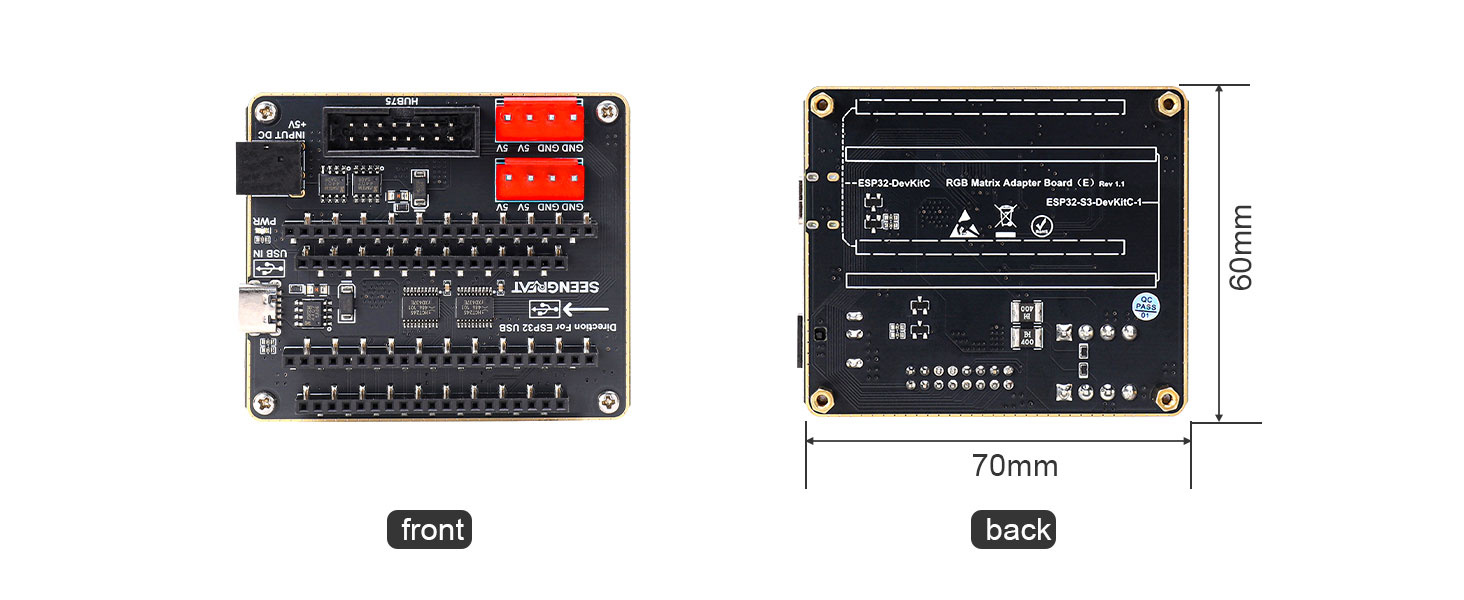

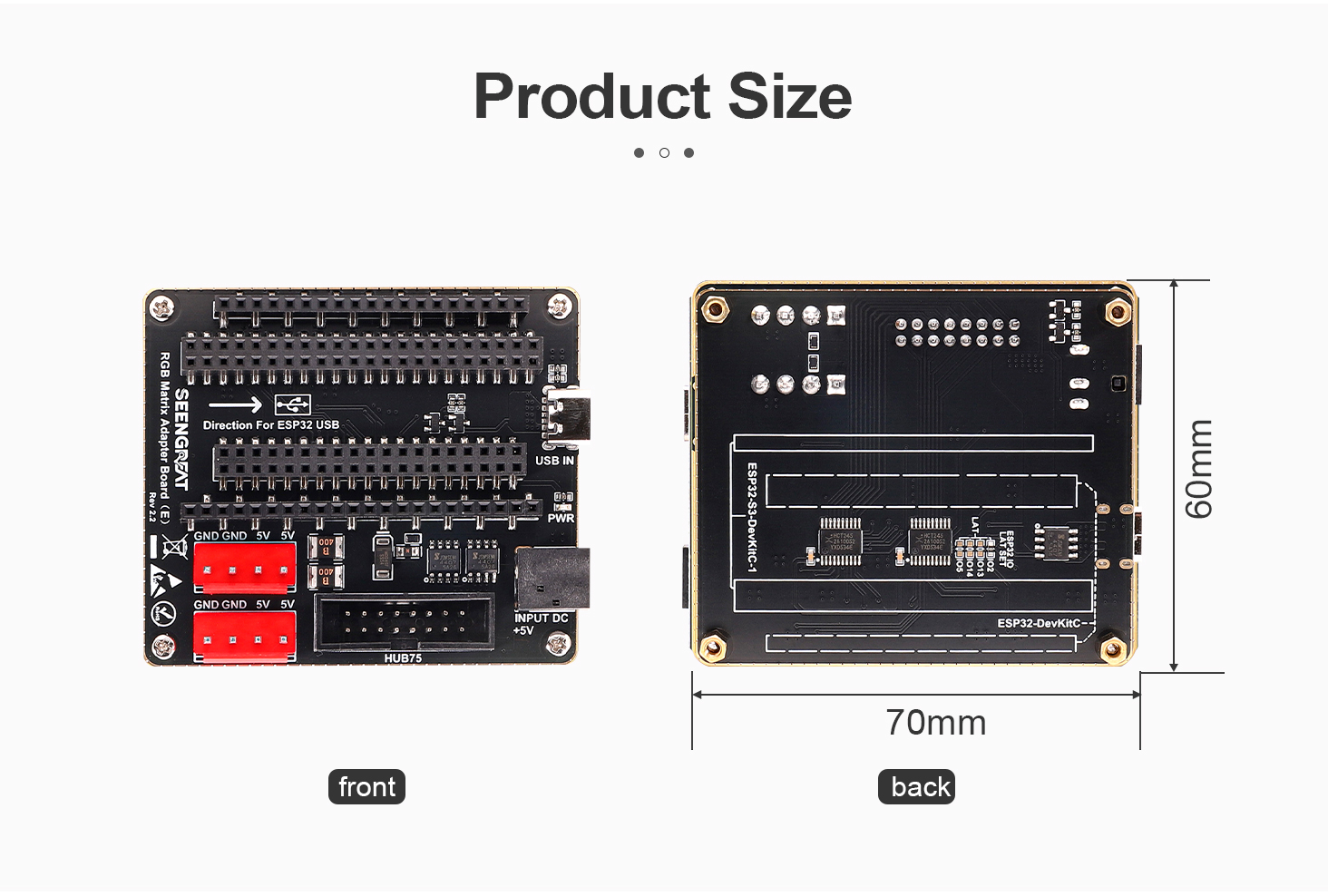

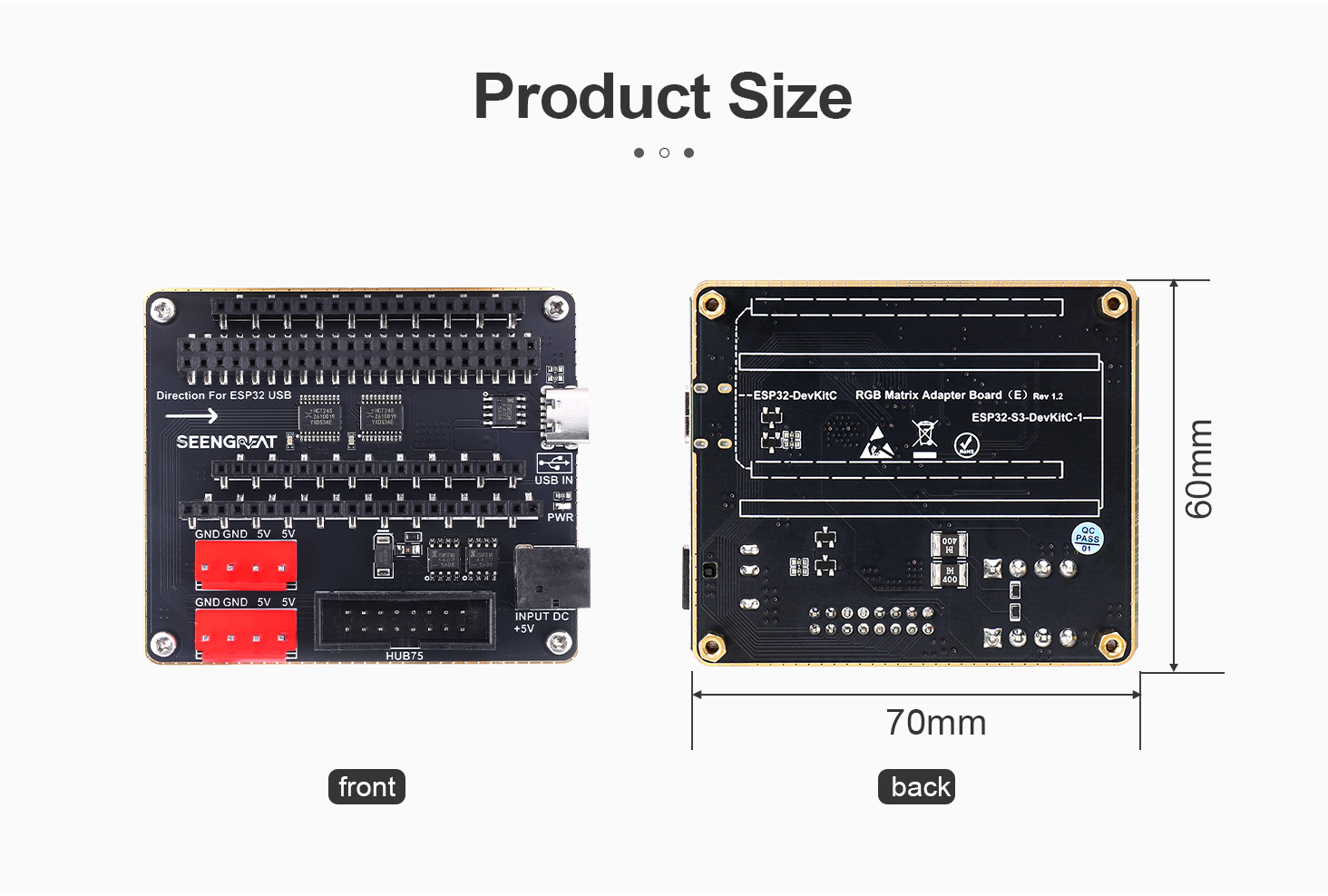

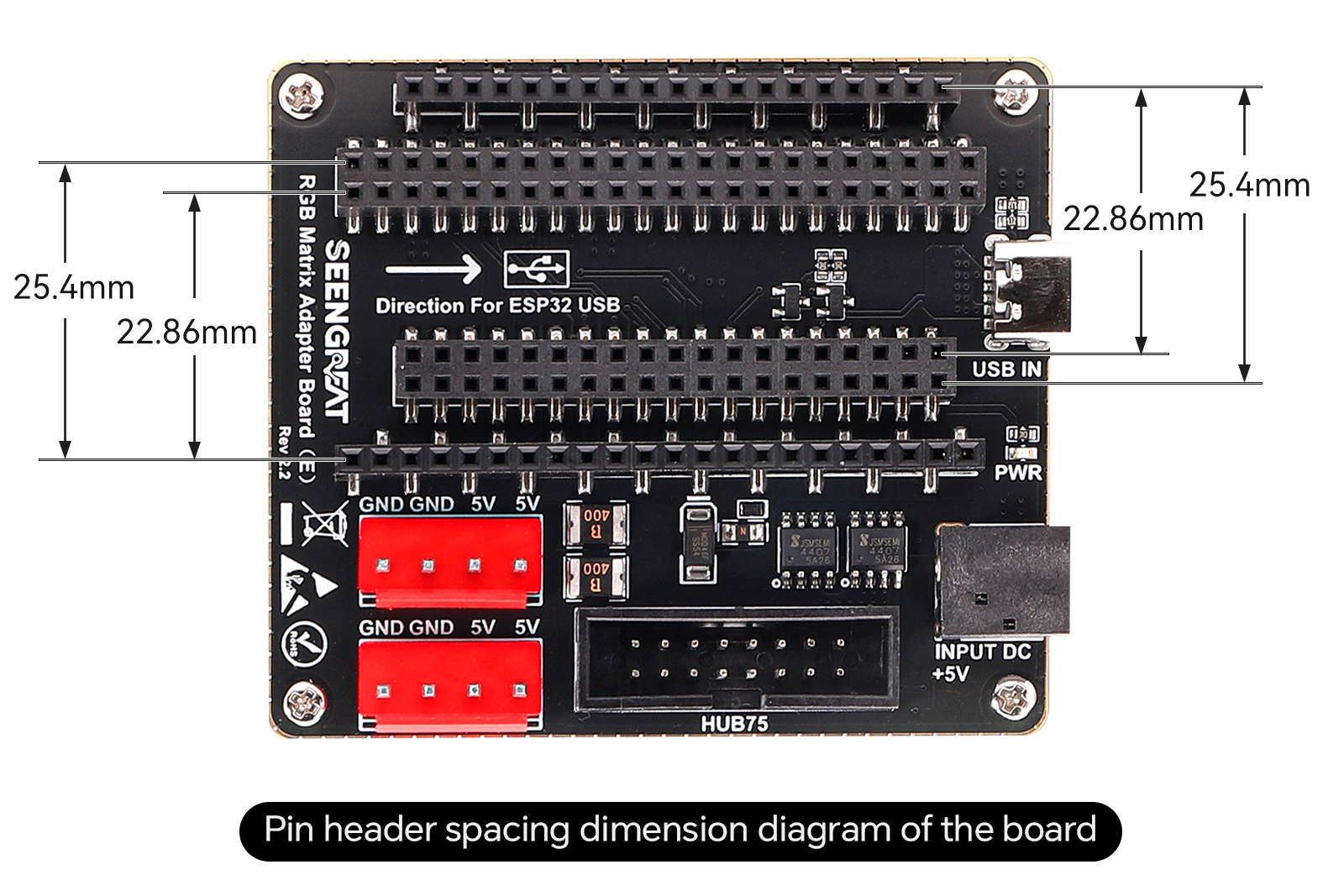

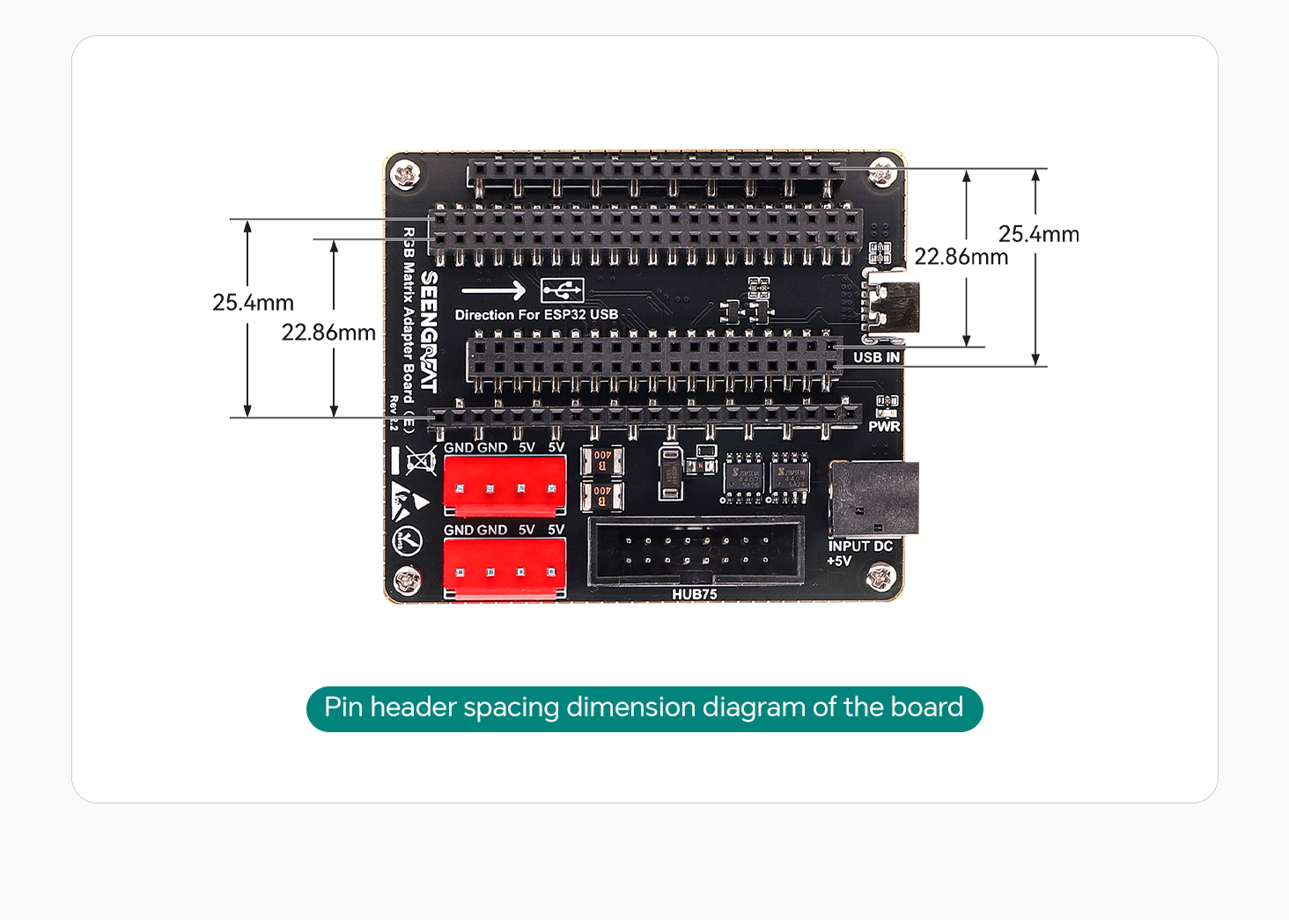

Dimensions | 70 mm (Length) × 60 mm (Width) |
Power Input Connectors | USB Type-C: 5V / 4A; DC-044: 5V / 8A |
Power Output Connectors | Two VH-4P (3.96 mm pitch) connectors, 5V / 4A each |

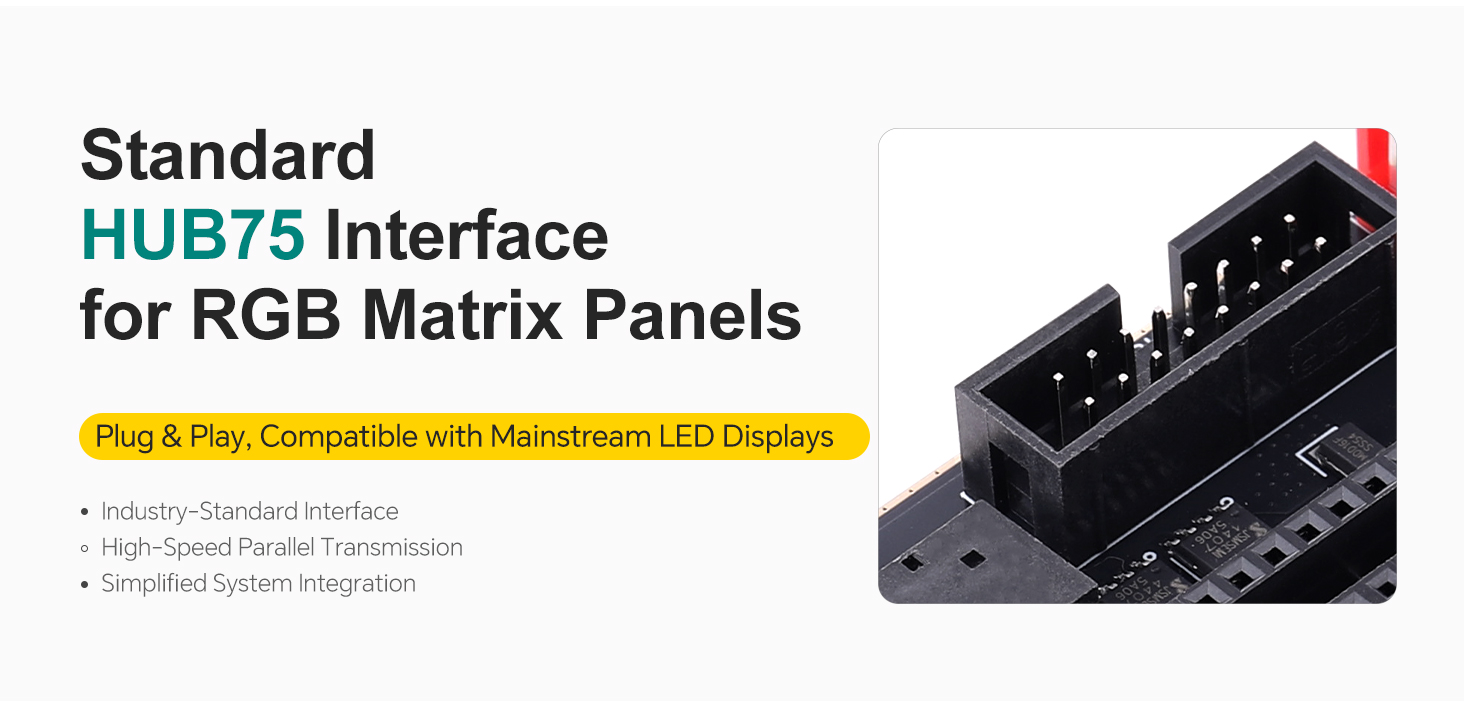

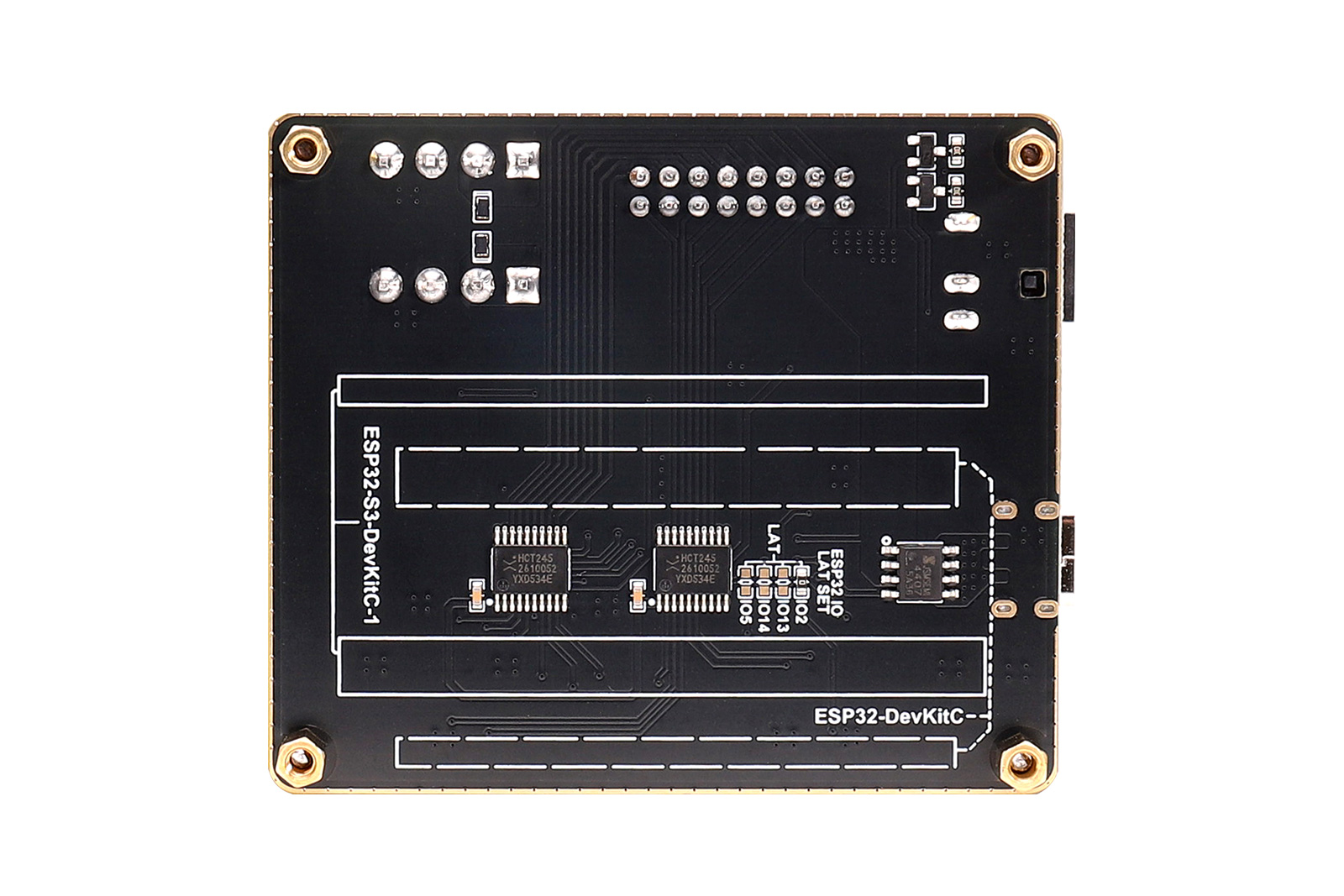

RGB LED Matrix Panel Interface | HUB75 |
Data Interfaces | ESP32-S3-DevKitC-1 connectors, ESP32-DevKitC connectors |

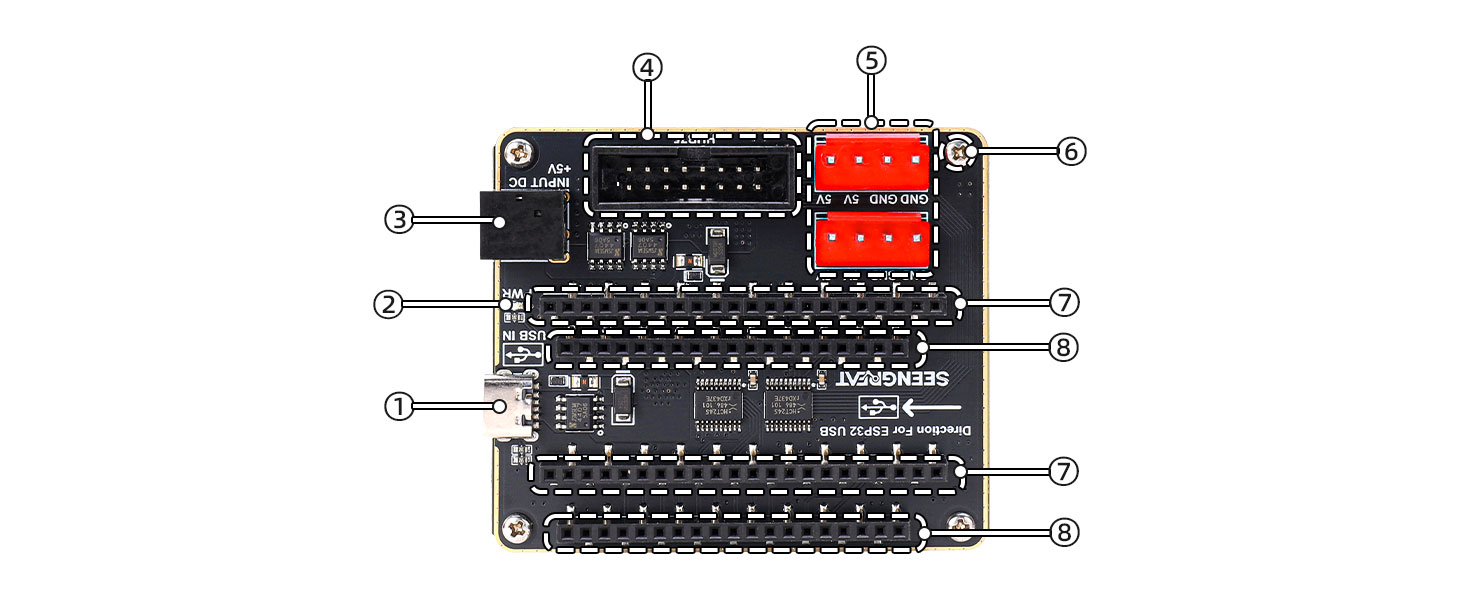

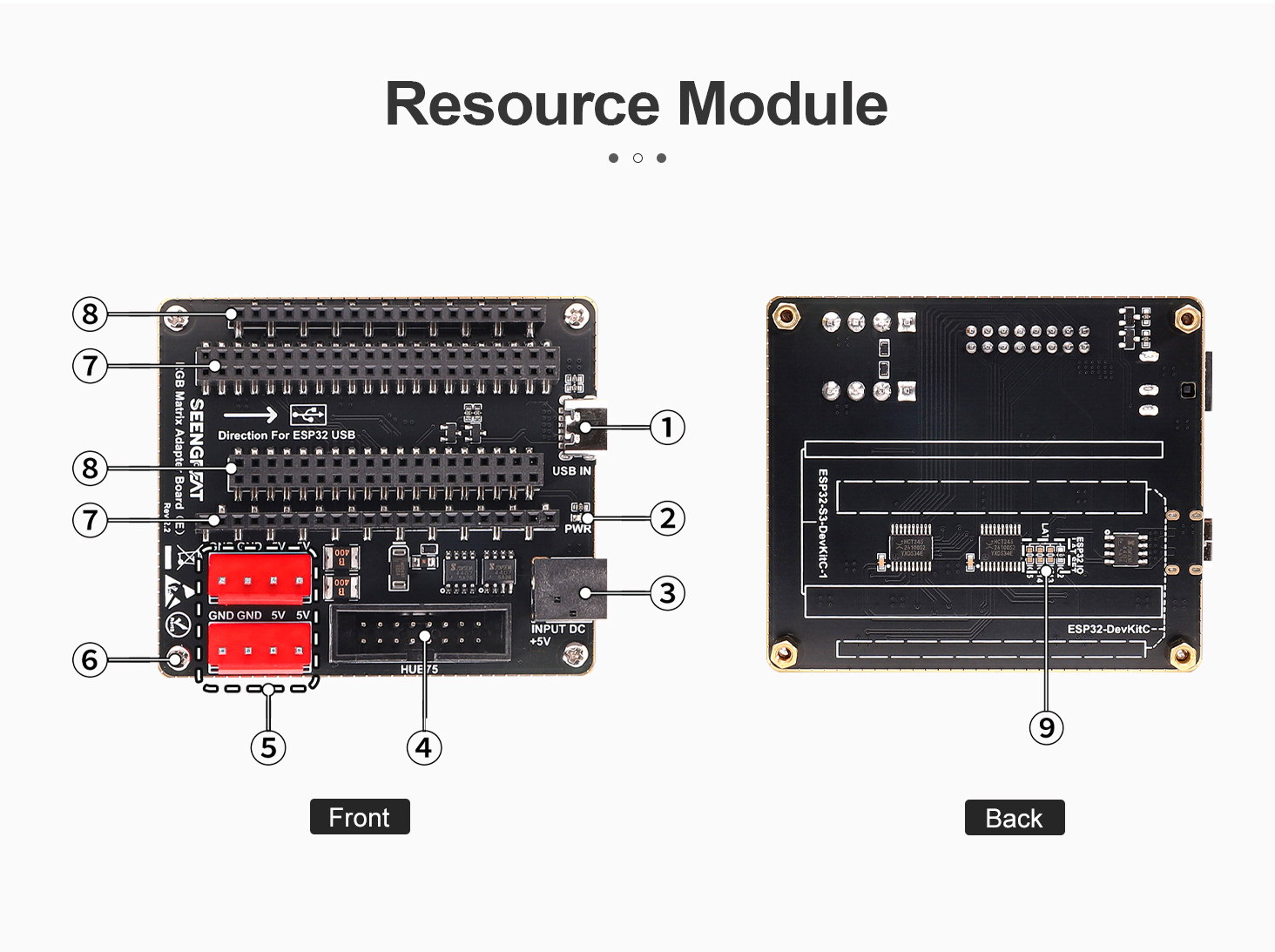

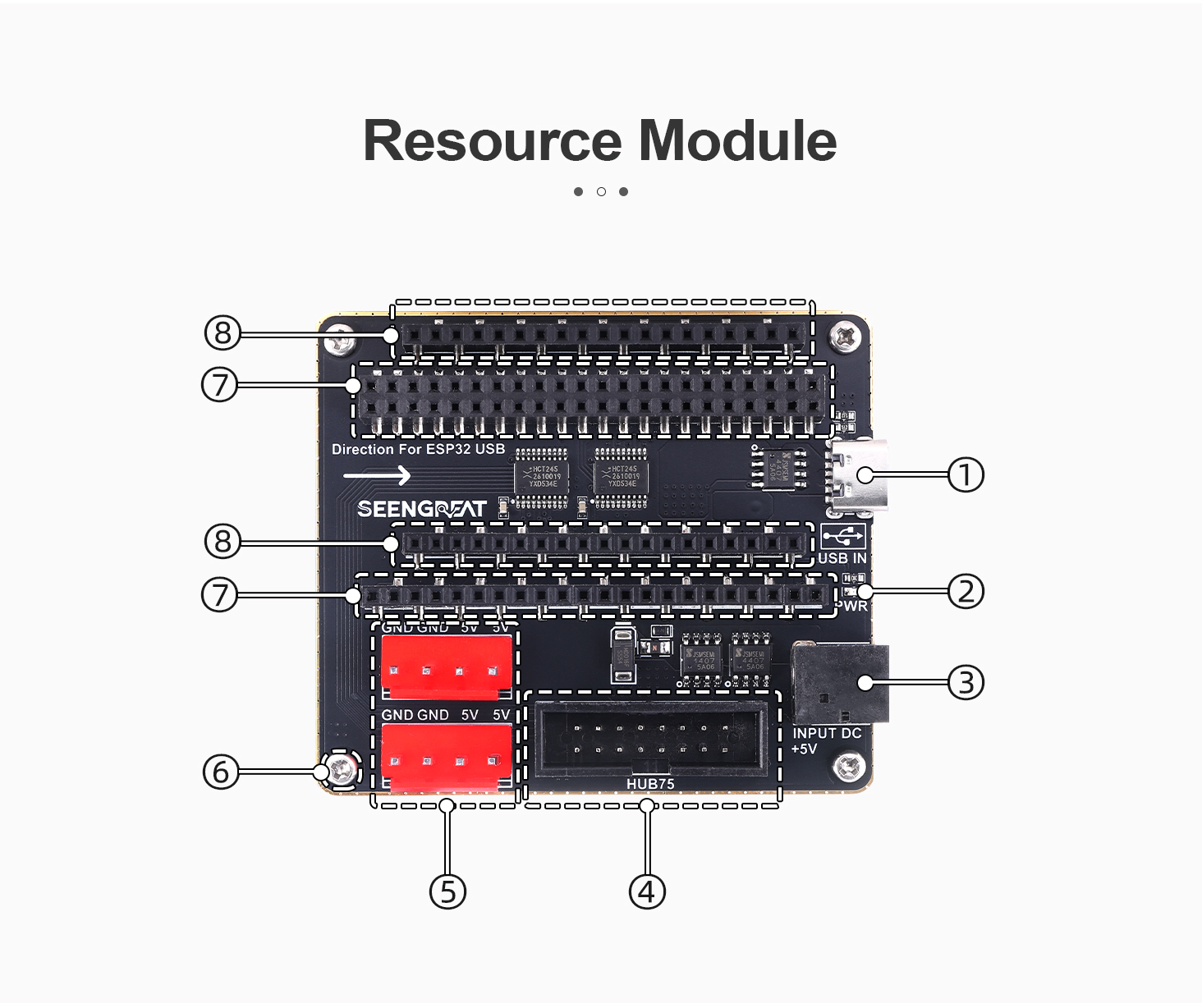

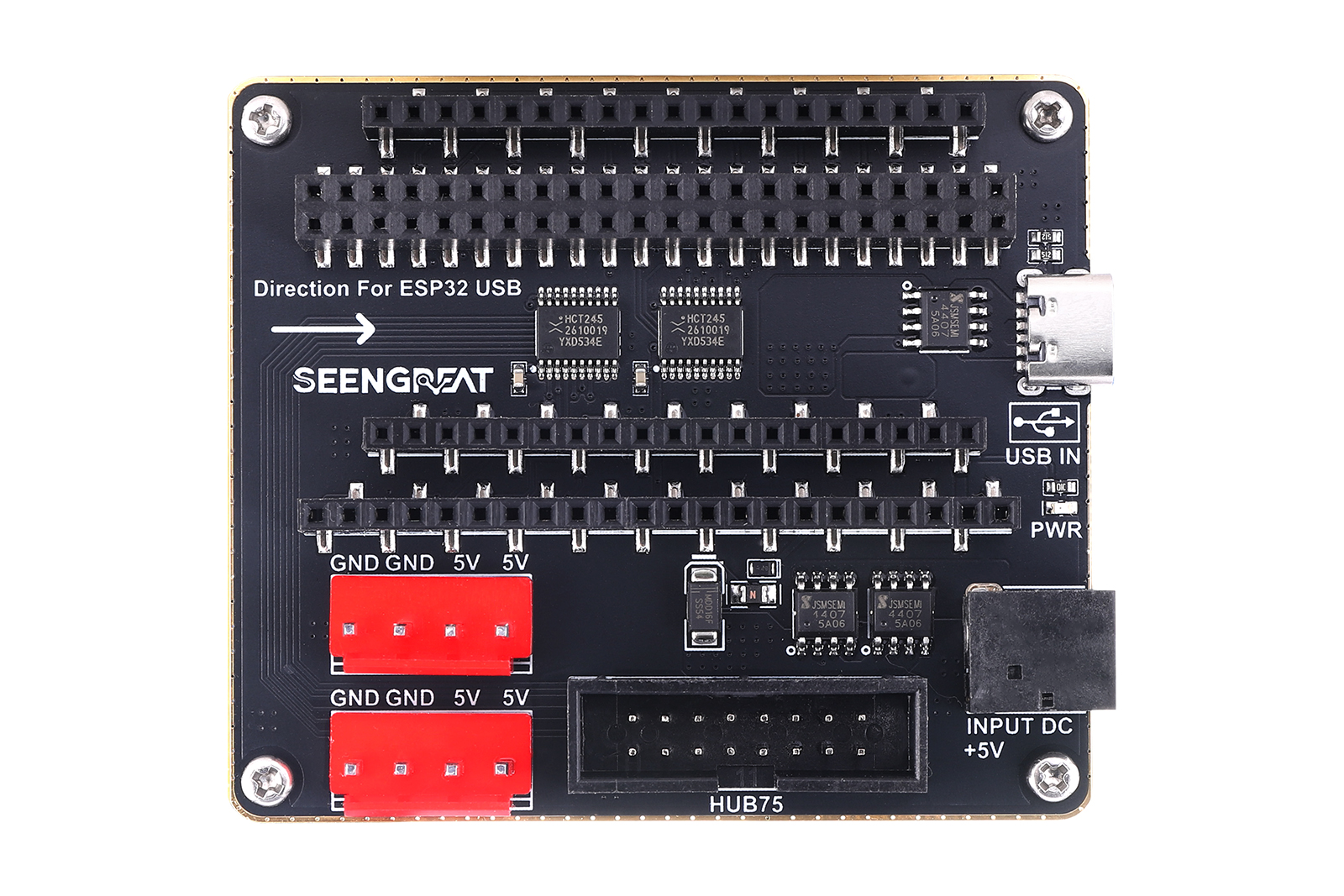

① USB connector (5V power input only)
② Power indicator LED
③ DC-044 5V power input connector

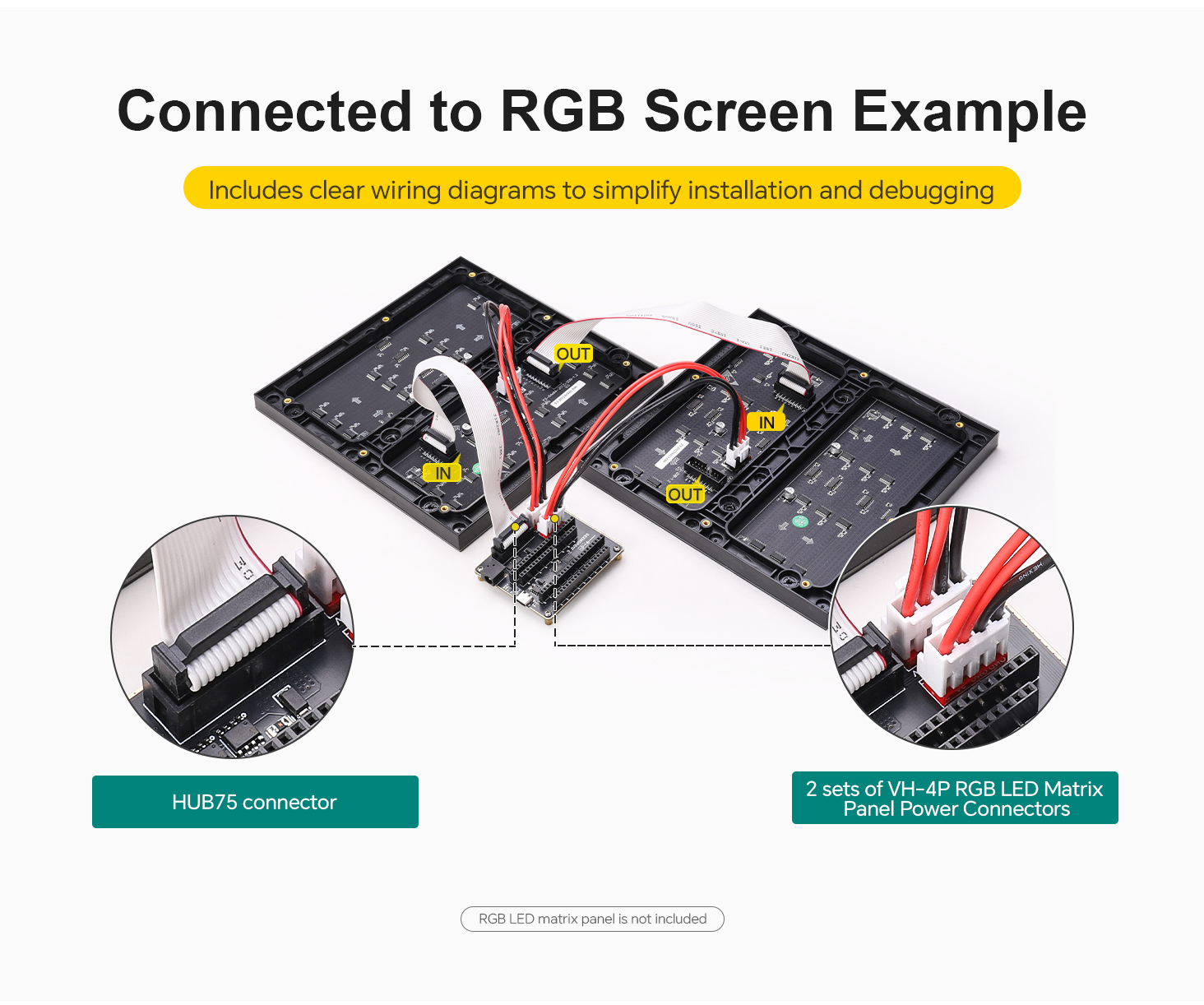

④ HUB75 connector
⑤ Two VH-4P connectors for RGB LED matrix panel power supply
⑥ M2.5 mounting holes
⑦ ESP32-S3-DevKitC-1 connector
⑧ ESP32-DevKitC connector
Wiki：RGB Matrix Adapter Board (E) - Wiki

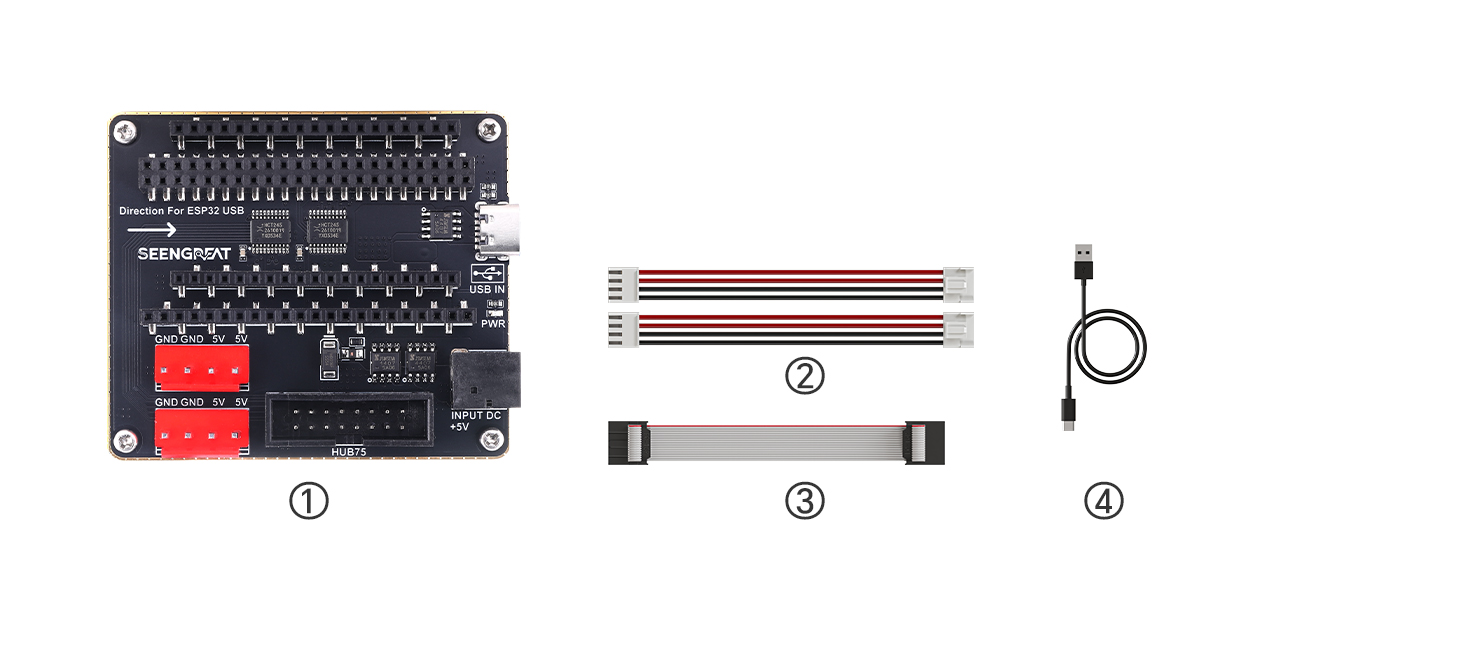

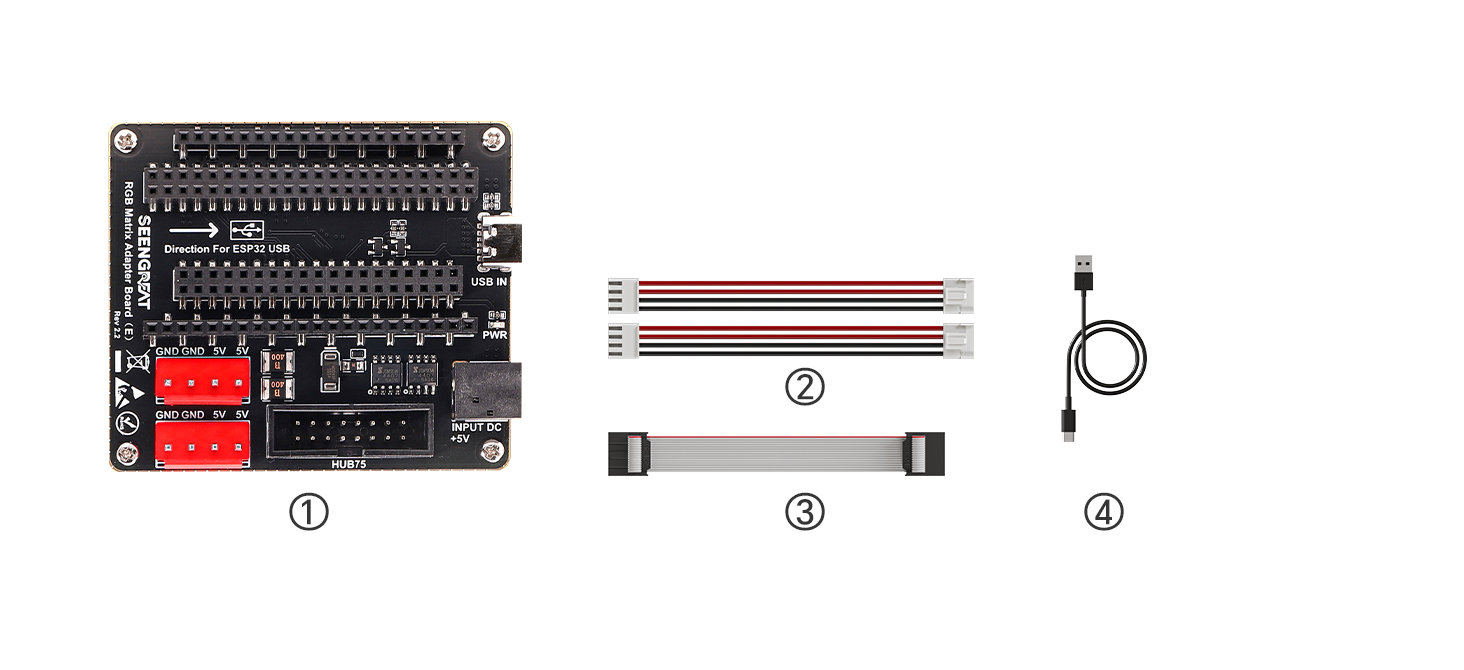

Package Contents
①. RGB Matrix Adapter Board (E) x1
②. Power supply wire x2
③. Accessory pack x1
④.Type-C cable x15. Signal wire x1
