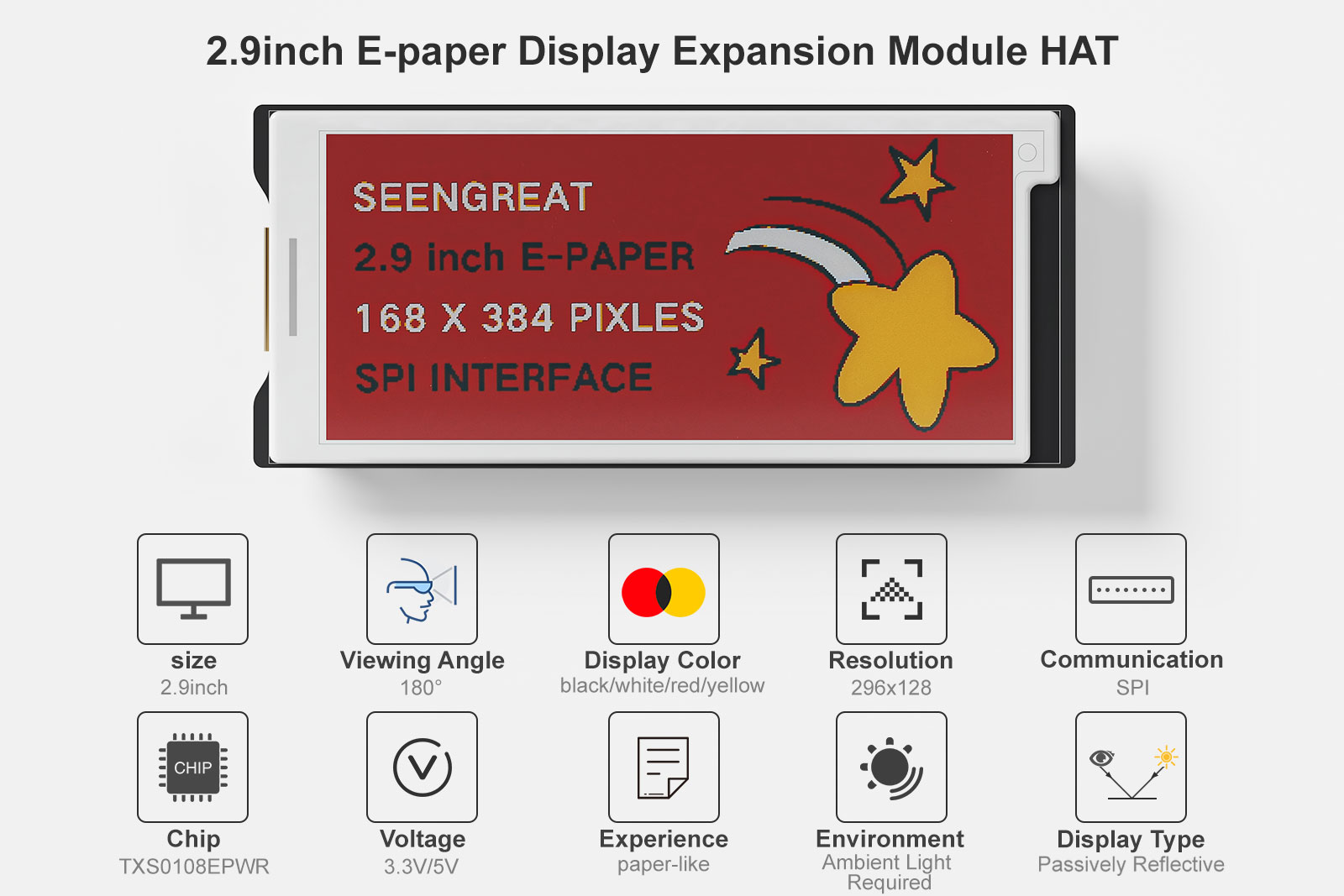

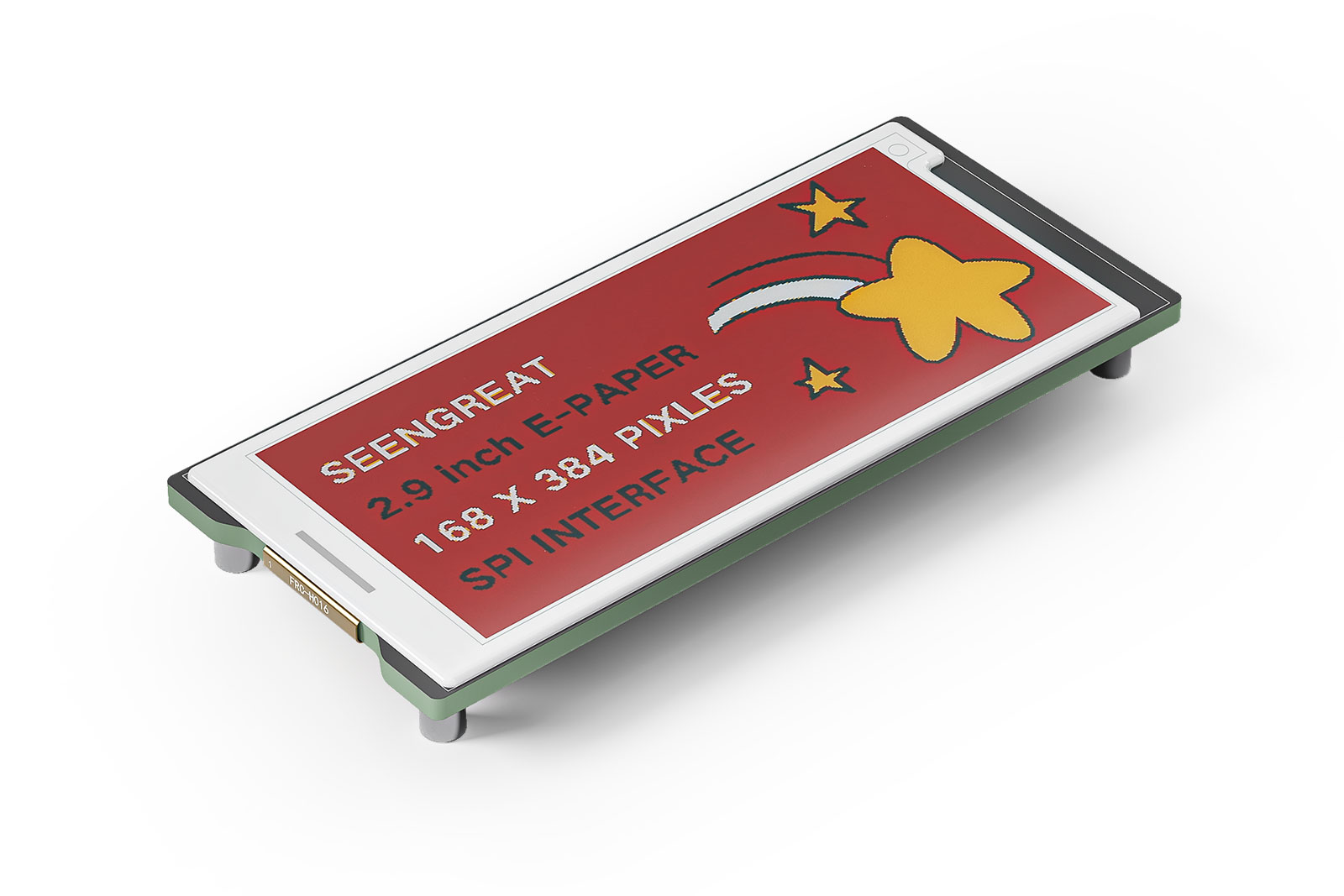

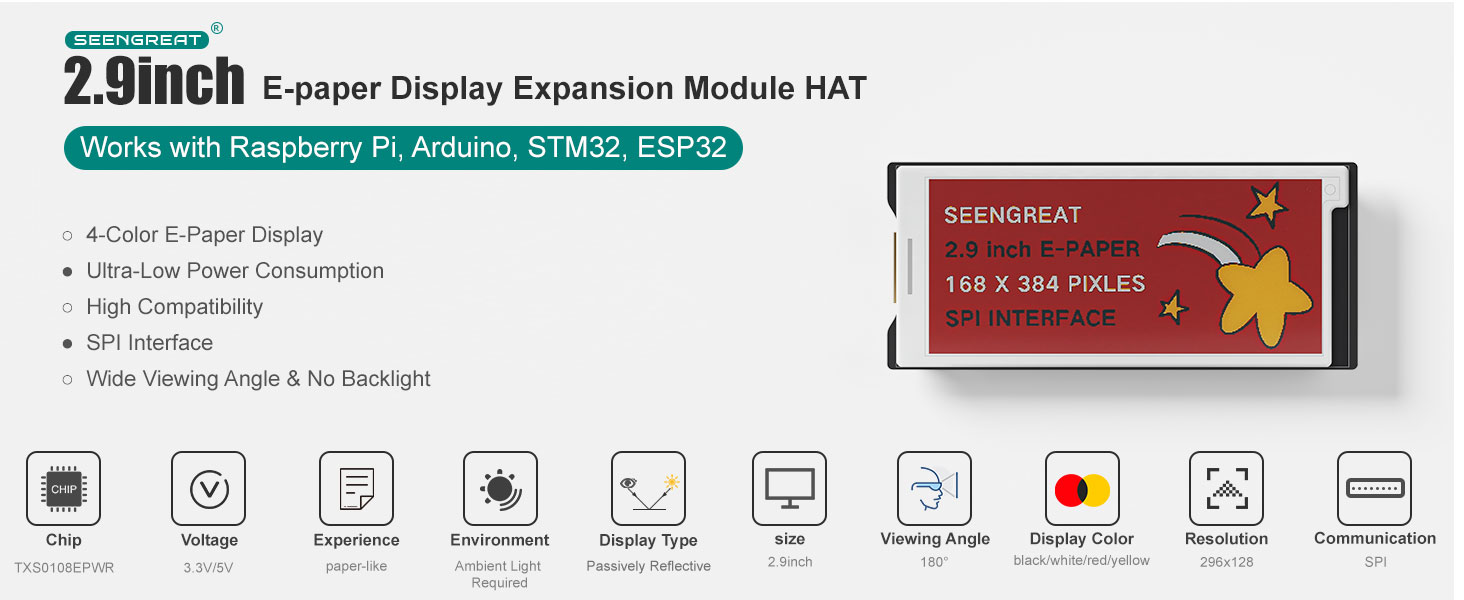

2.9inch E-paper Display Expansion Module HAT

Works with Raspberry Pi, Arduino, STM32, ESP32

I Product Overview

This product is a 2.9-inch 4-color ink screen, supporting black, white, yellow and red 4 color display.Its resolution is 384x168, using SPI communication mode, and supporting full refresh mode.Suitable for e-book readers, electronic price tags, industrial and logistics labels, digital signage, billboards, conference nameplates, electronic memos, etc.We provide example programs in C and Python for Raspberry Pi. A reserved SPI control interface allows easy integration with main control boards such as Arduino, STM32, and ESP32. We also offer example code for Arduino, STM32, and ESP32, which supports displaying images, English and numerical characters, and drawing points, lines, rectangles, and circles.

II Product Features

  • 2.9inch ink screen
  • Support black, white, yellow, red 4 colors display, resolution: 384x168
  • SPI interface, requiring fewer pins

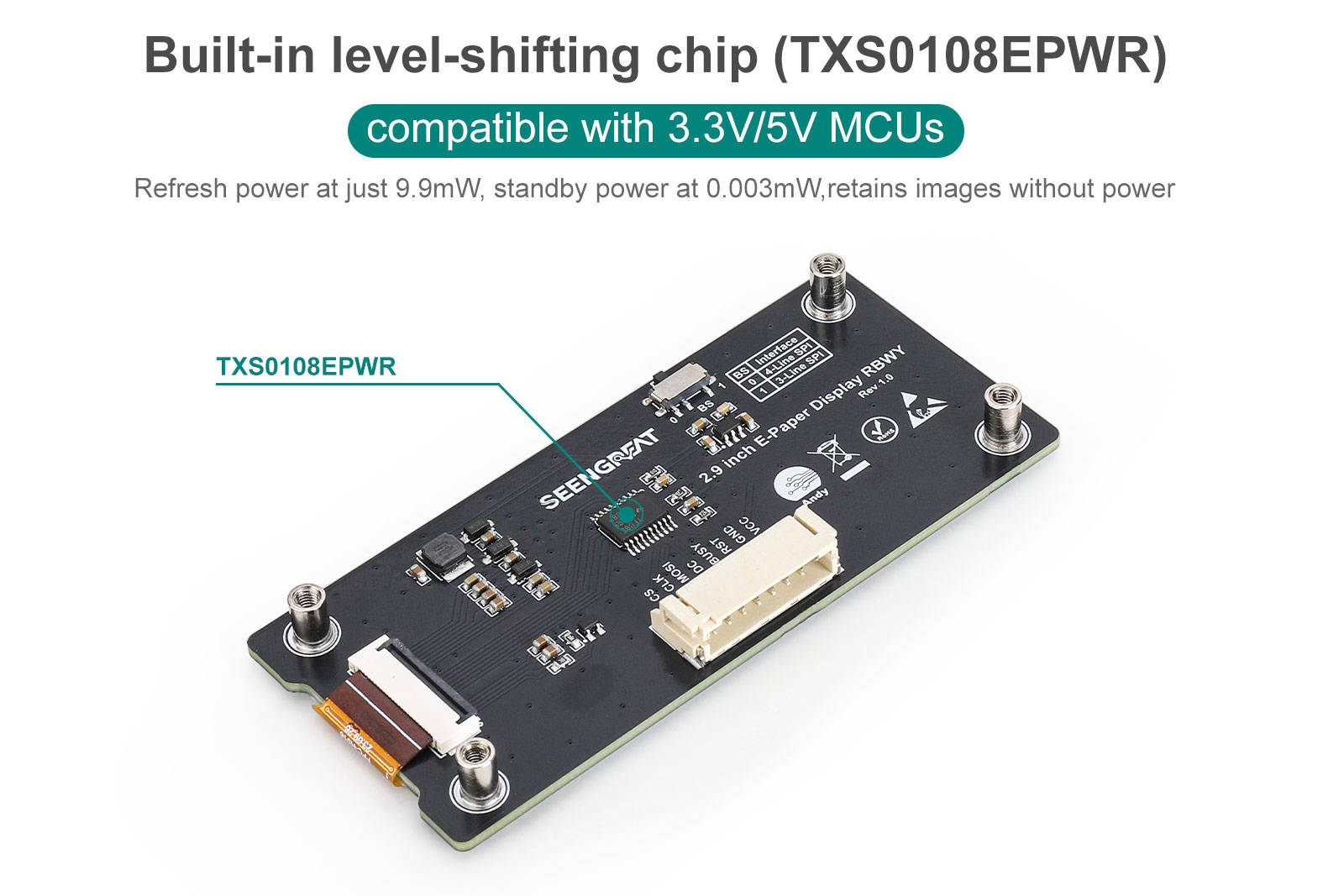

  • Onboard level-shifting chip, compatible with 3.3V and 5V microcontroller interfaces
  • Reserved SPI communication interface for easy integration with main control boards such as Arduino, STM32, and ESP32
  • Provides open-source example programs for Raspberry Pi, Arduino, STM32, and ESP32 development boards

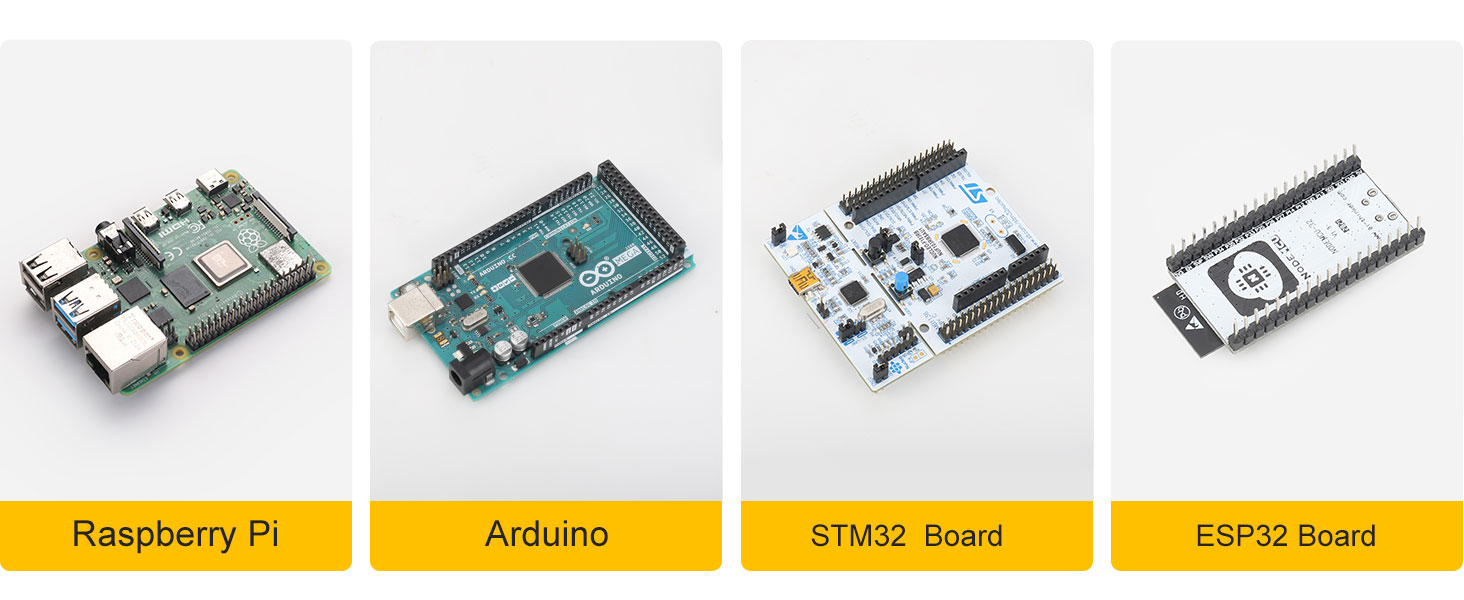

Compatibility with Raspberry Pi, Arduino, STM32, ESP32

SPI Interface/Wide Viewing Angle & No Backlight

Product Specifications

Size

2.9 inch

Pixels

384 x 168

Display Colors

4 colors: black, white, yellow, red

Level-Shifting Chip

TXS0108EPWR

Signal Interface

SPI

Power Supply Voltage

3.3V/5V

Pixel Spacing

0.176mm x 0.176mm

Full Refresh

20s

Display Direction

Horizontal and Vertical

Operating Temperature

0℃-40℃

FPC Interface

0.5mm pitch 24 Pin

Refresh Power Consumption

9.9mW

Standby Power Consumption

0.003mW

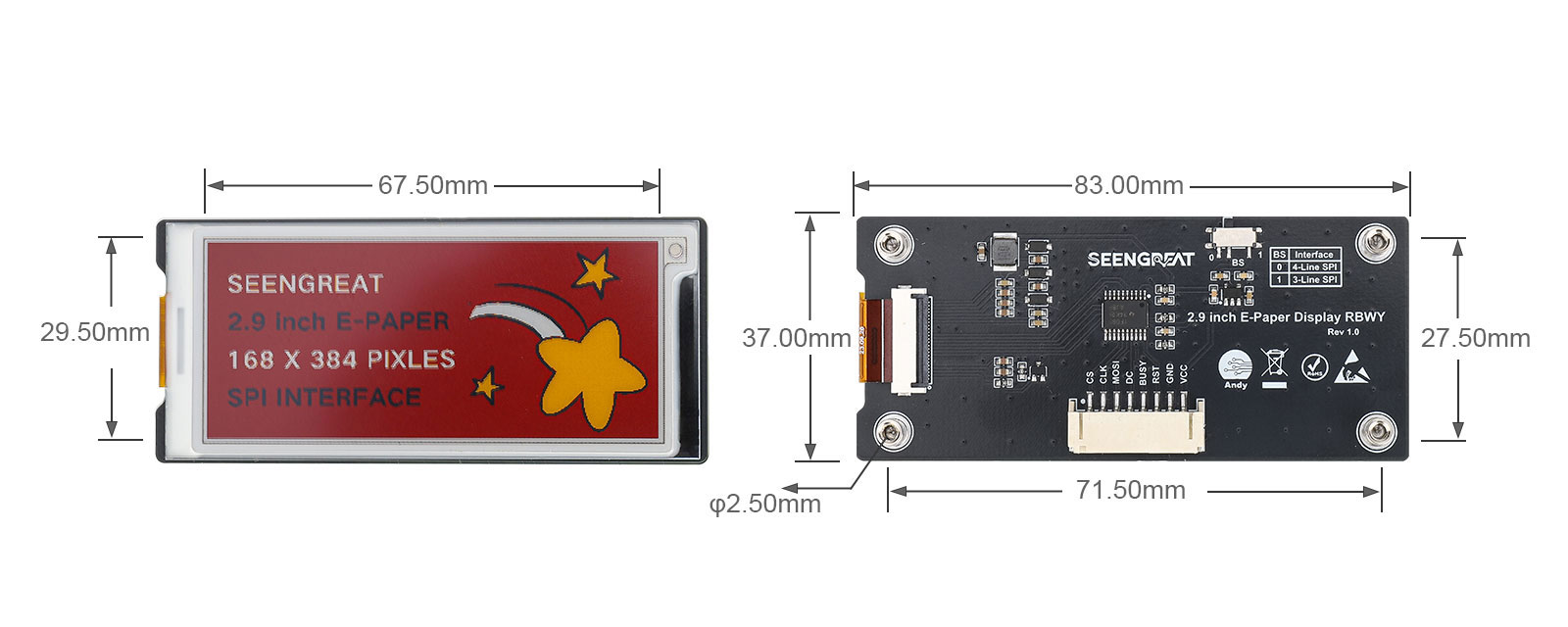

Exterior Dimensions

83mm x 36.9mm

Display Area

67.58mm x29.57mm

Explanation of the refresh process (refresh time: the entire process from the beginning of the screen action to the stabilization of the screen):

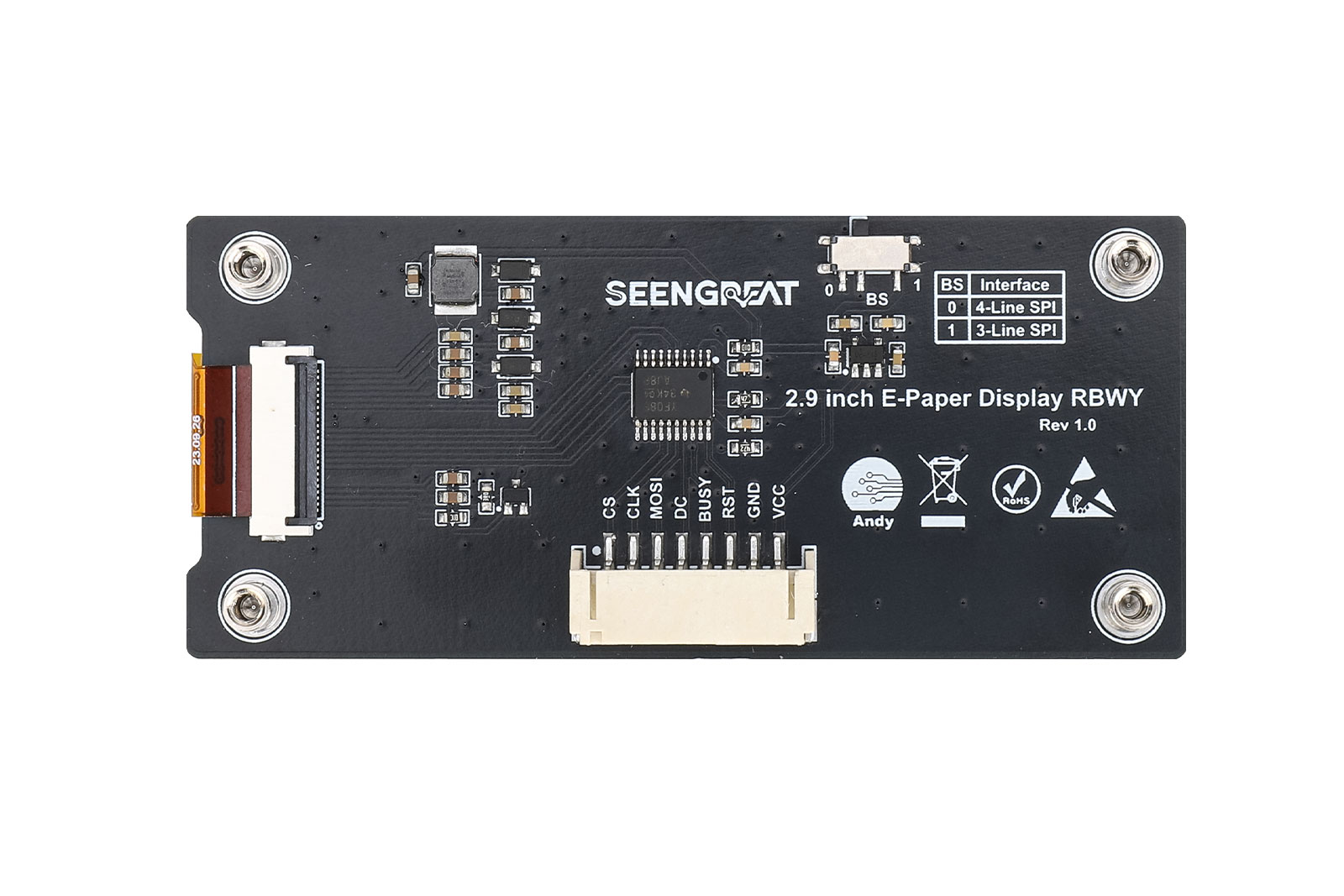

Interface Configuration

E-paper Interface

SPI

VCC

3.3V/5V

GND

Power ground

RST

External reset pin (low level reset)

BUSY

Busy status output pin

D/C

Data/Command control pin (high level for data, low level for command)

MOSI

SPI communication MOSI pin

CS

SPI chip select pin (active low)

CLK

SPI communication SCK pin

"4-color display I Low power consumption"

> Refresh power at just 9.9mW, standby power at 0.003mW,retains images without power <

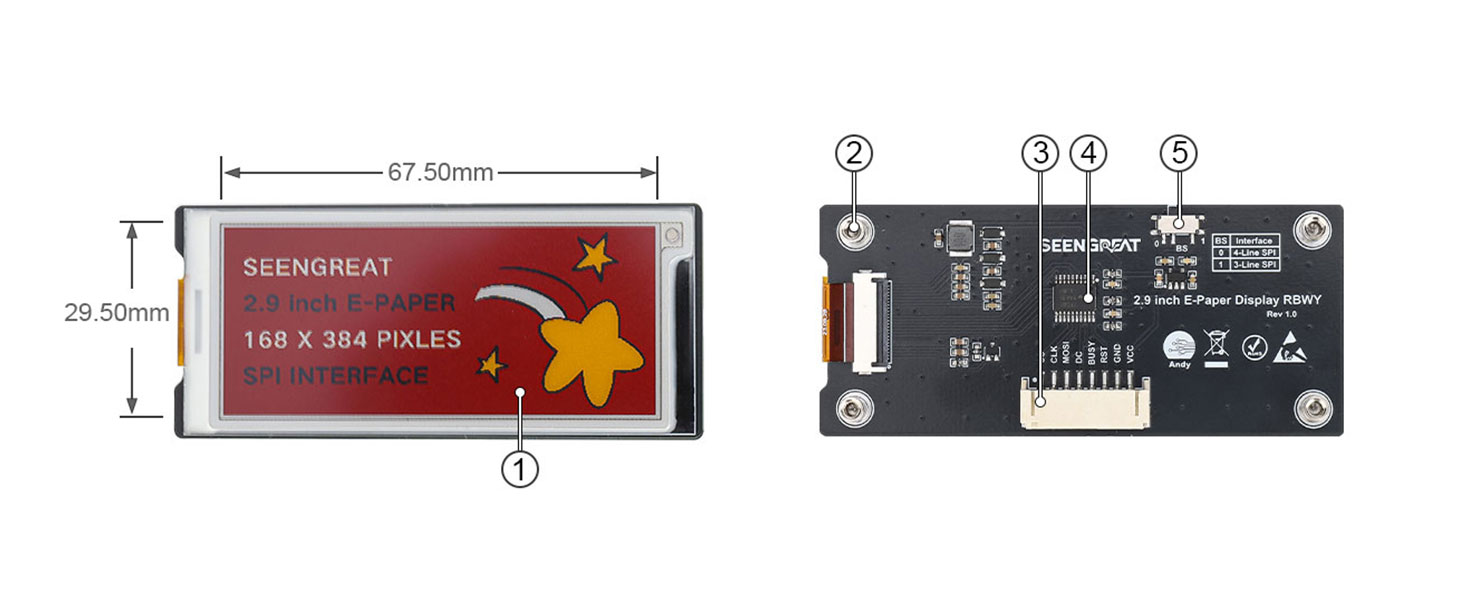

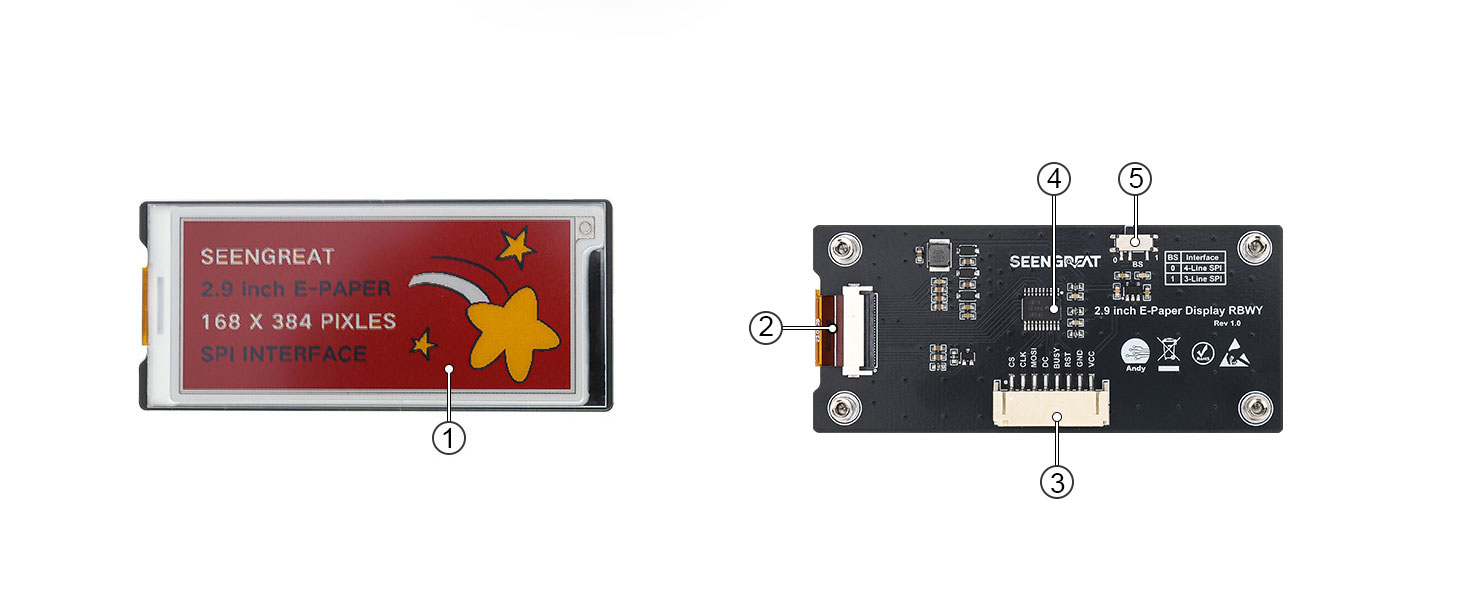

Resource Overview

① 2.9-inch black-white-yellow-red 4-color ink screen

② E-paper screen connector

③ SPI control interface connector

④ Level-shifting chip TXS0108EPWR

⑤ SPI lines count selection switch(default is "0" position)

Application Examples

E-book readers, electronic price tags, industrial labels, digital signage,

conference nameplates, electronic memos, etc.

WIKI

https://seengreat.com/wiki/181/2-9-inch-4-color-ink-screen-supporting-black-white-yellow-and-red-4-co

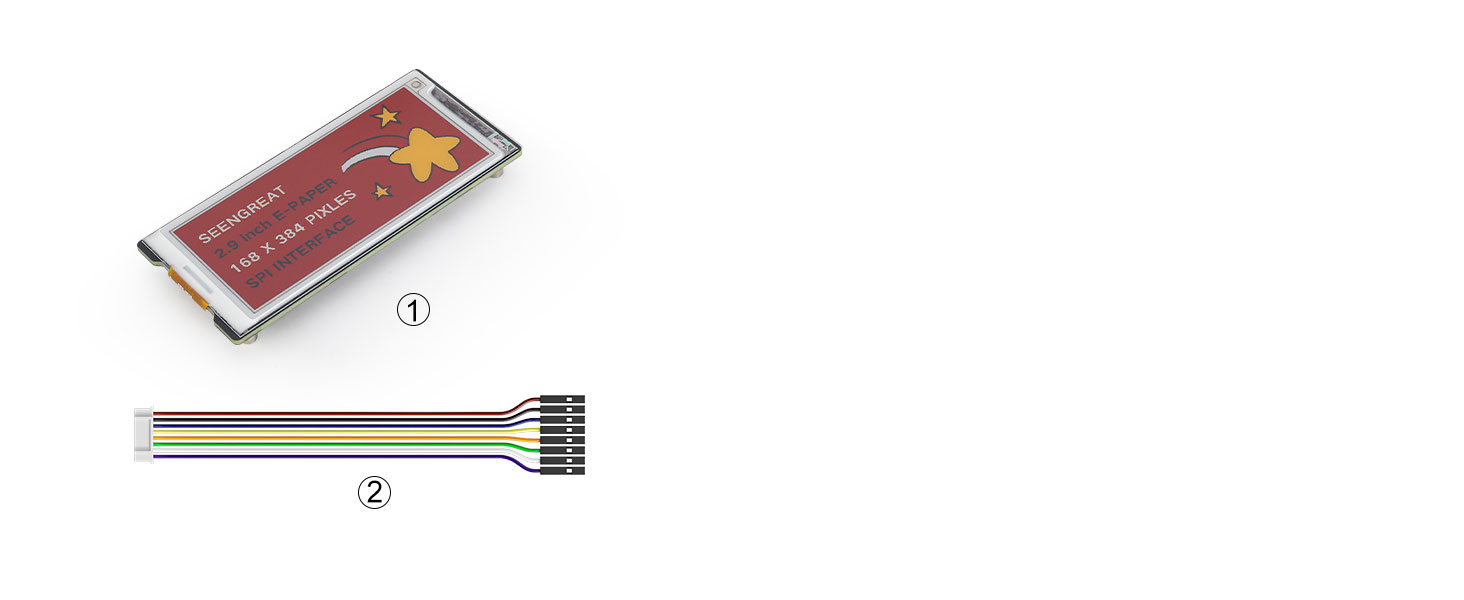

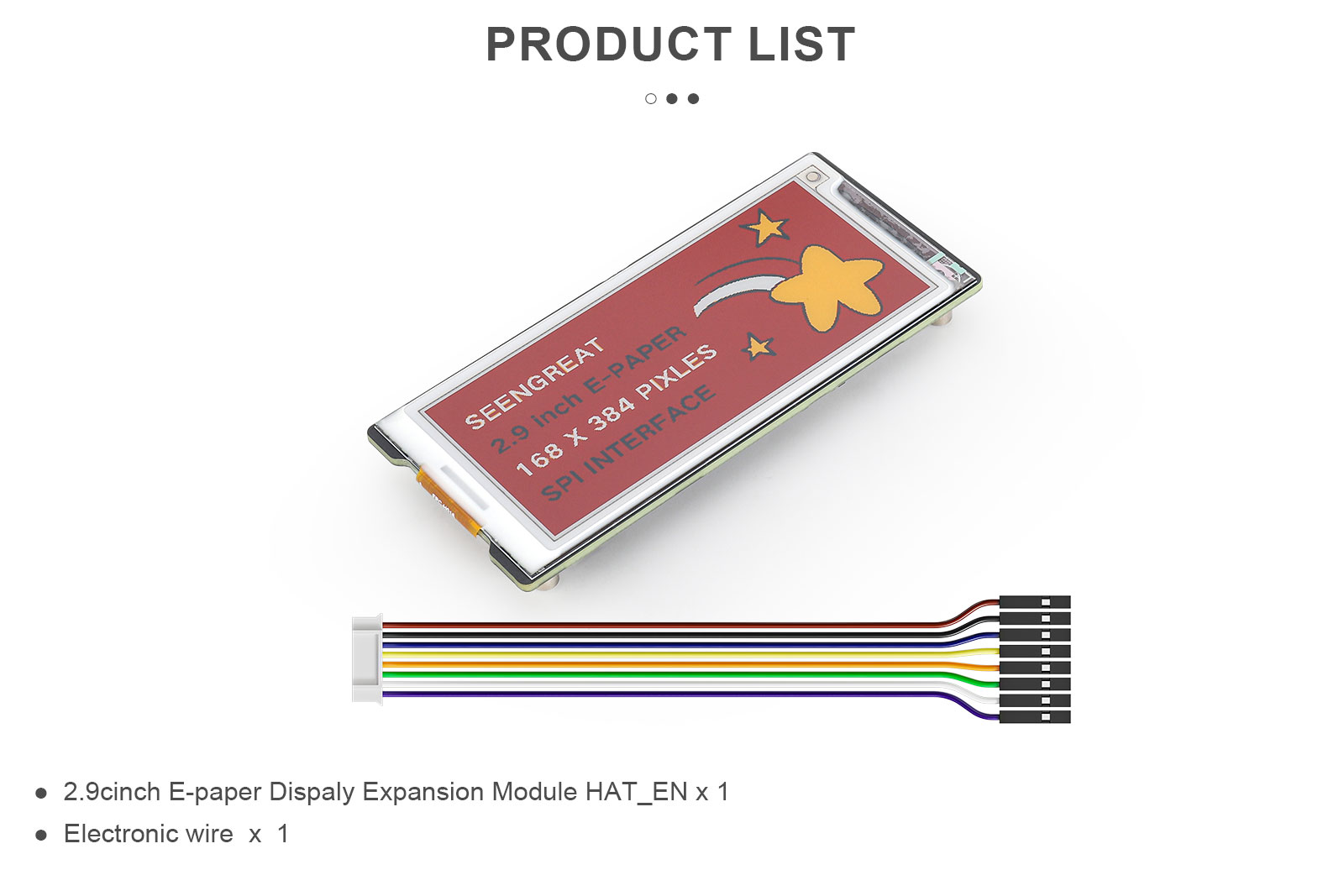

Accessories List

2.9-inch black-white-yellow-red 4-color ink screen(with driver board) x1

PH2.0 8PIN connector cable 20cm x1
