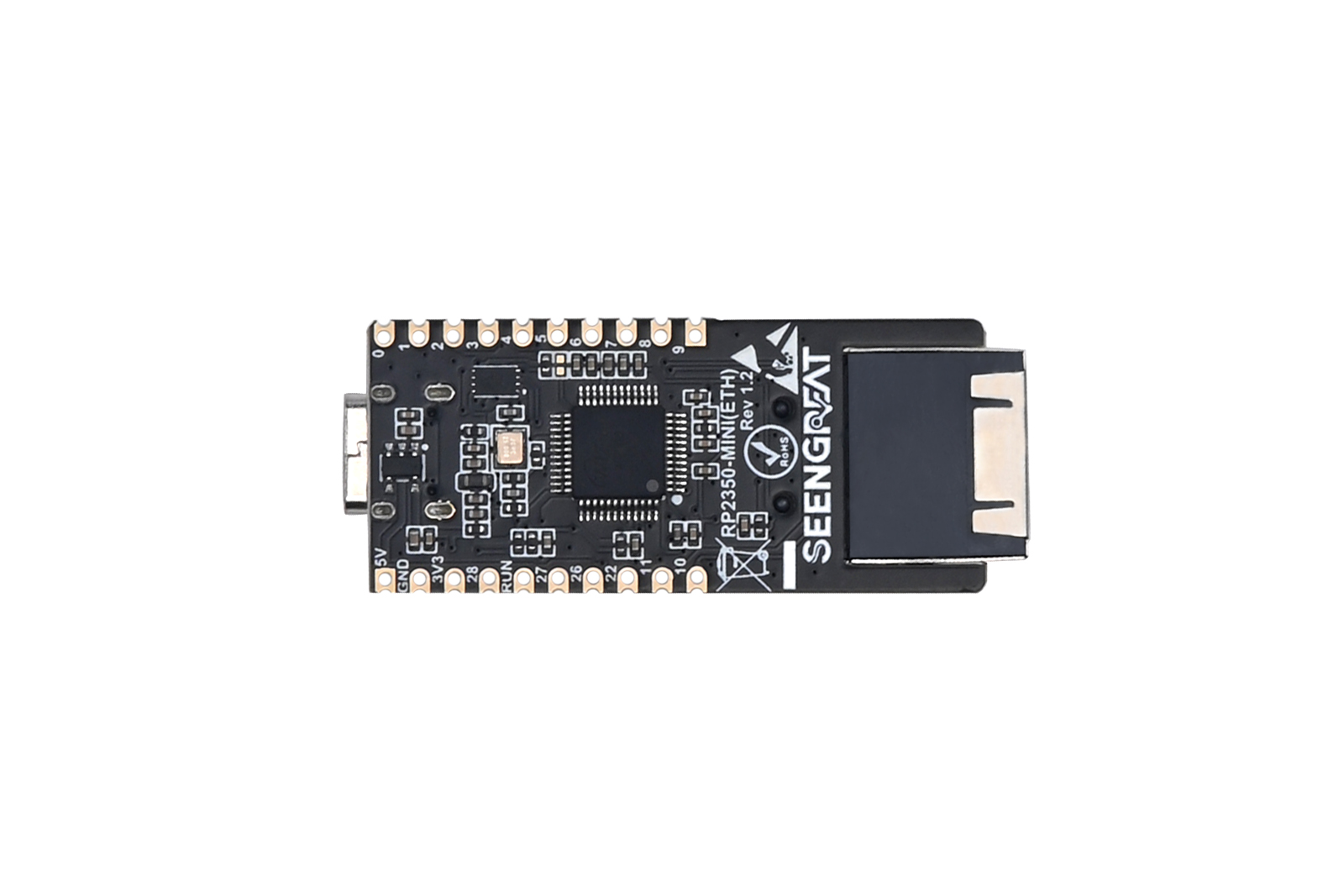

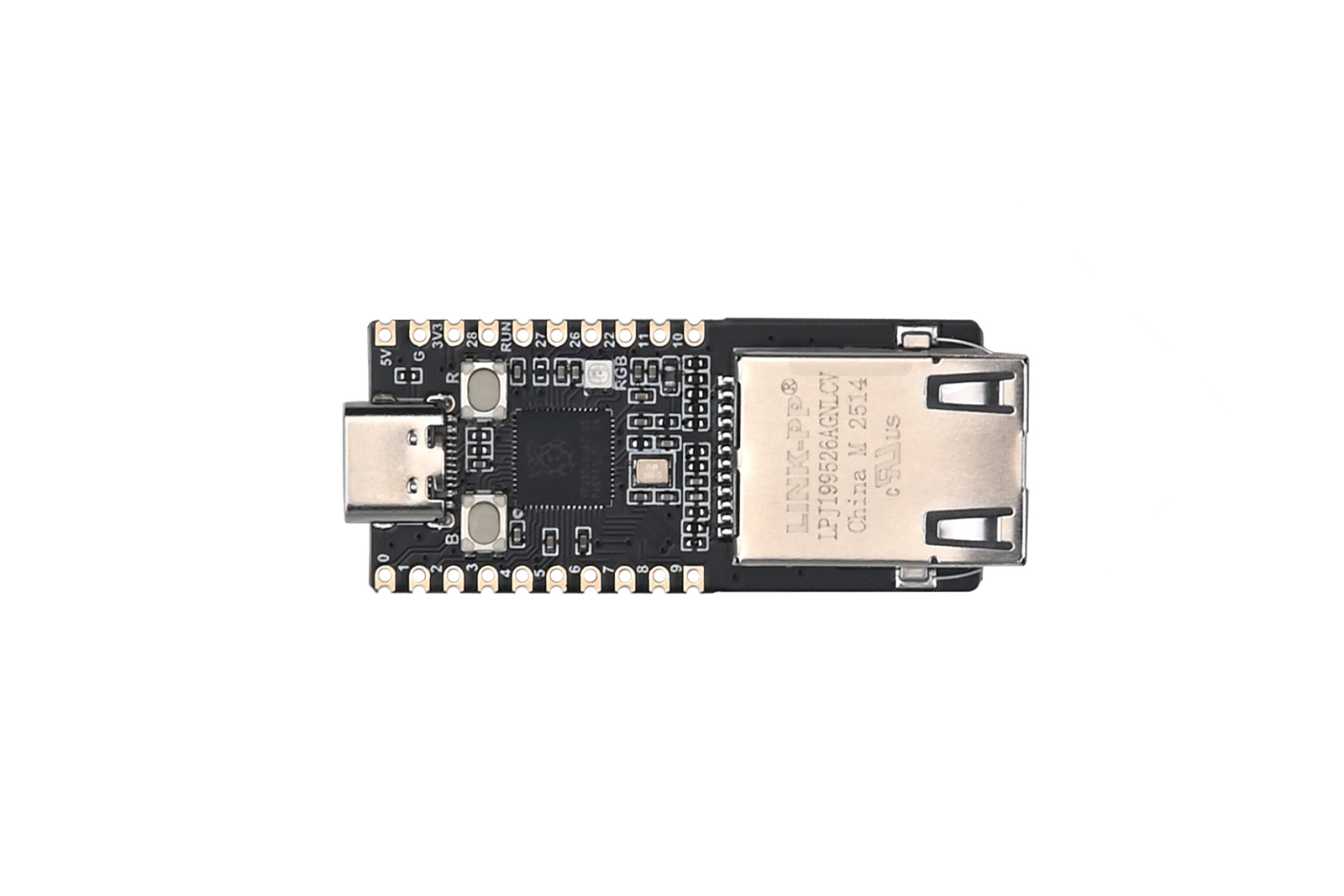

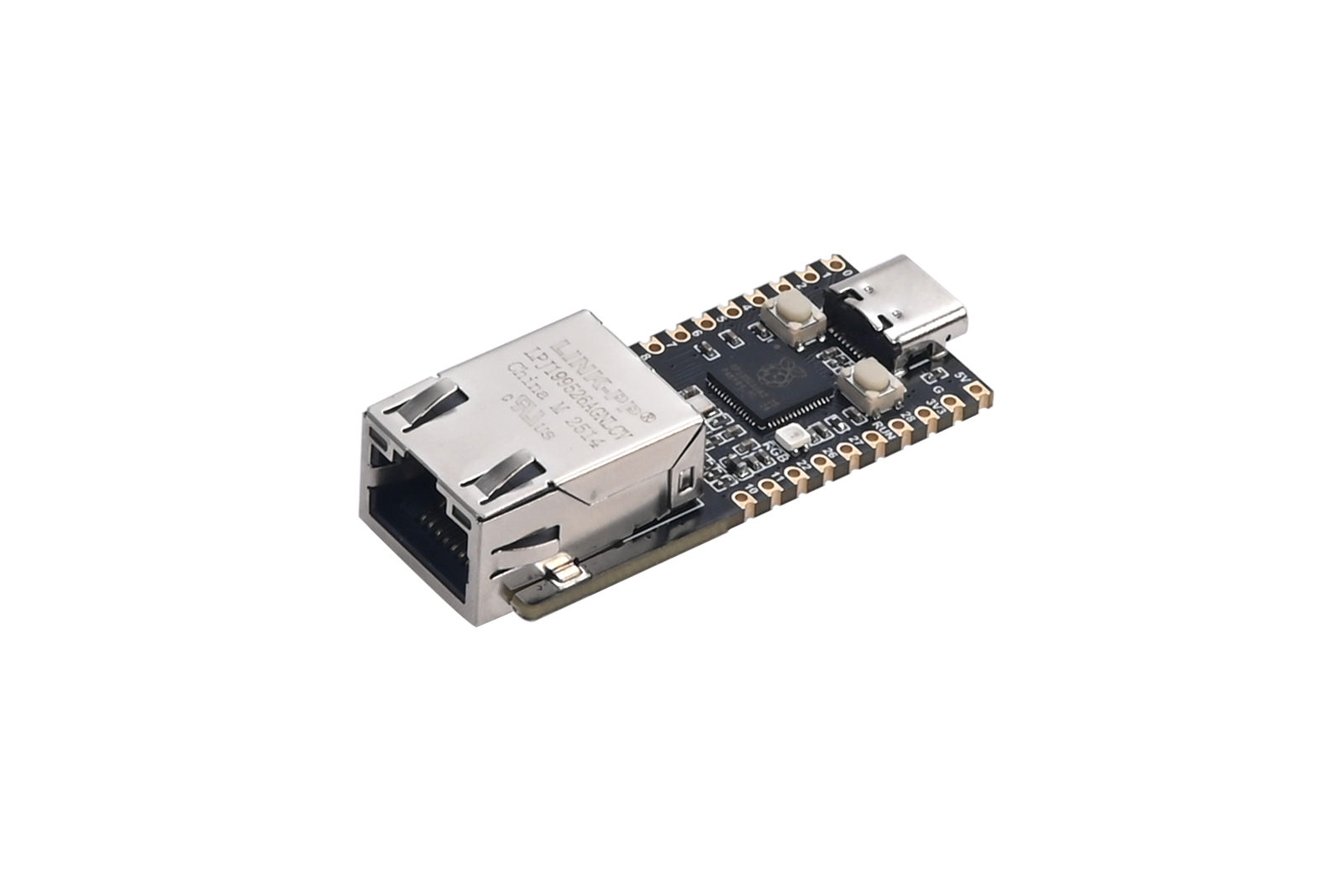

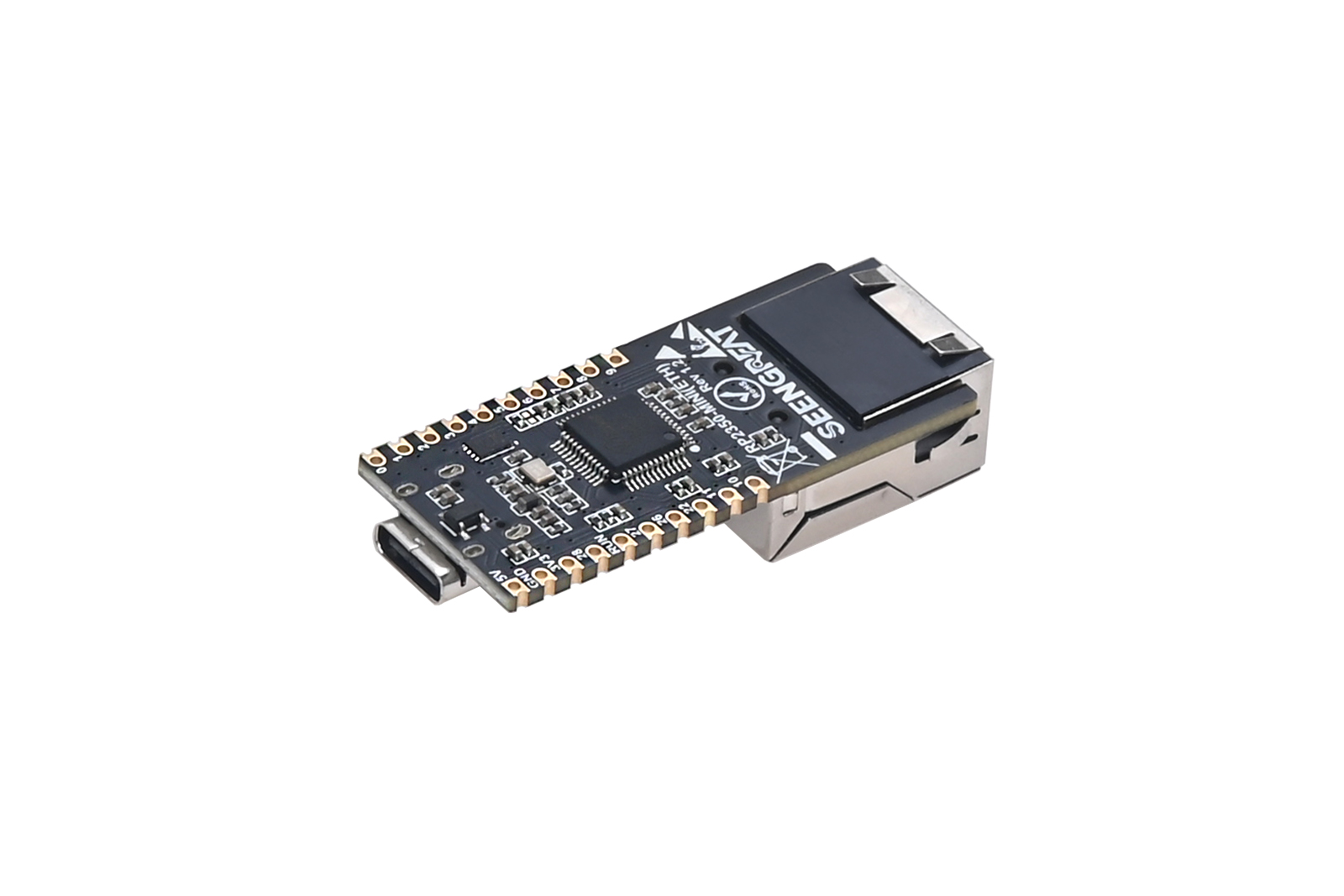

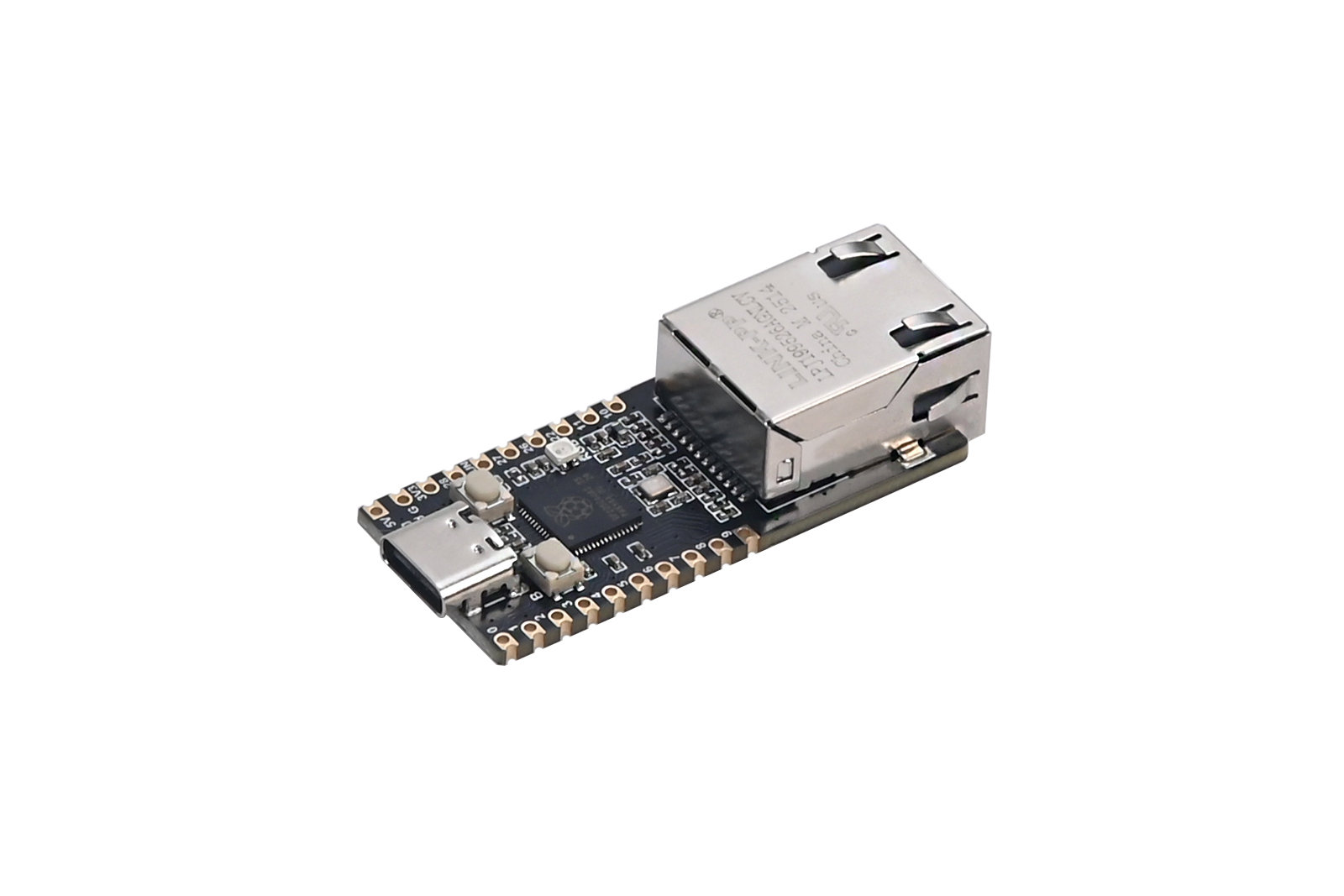

RP2350-MINI(ETH)

Dual-core RP2350A processor with integrated W5500 TCP/IP Ethernet for Raspberry Pi microcontroller projects

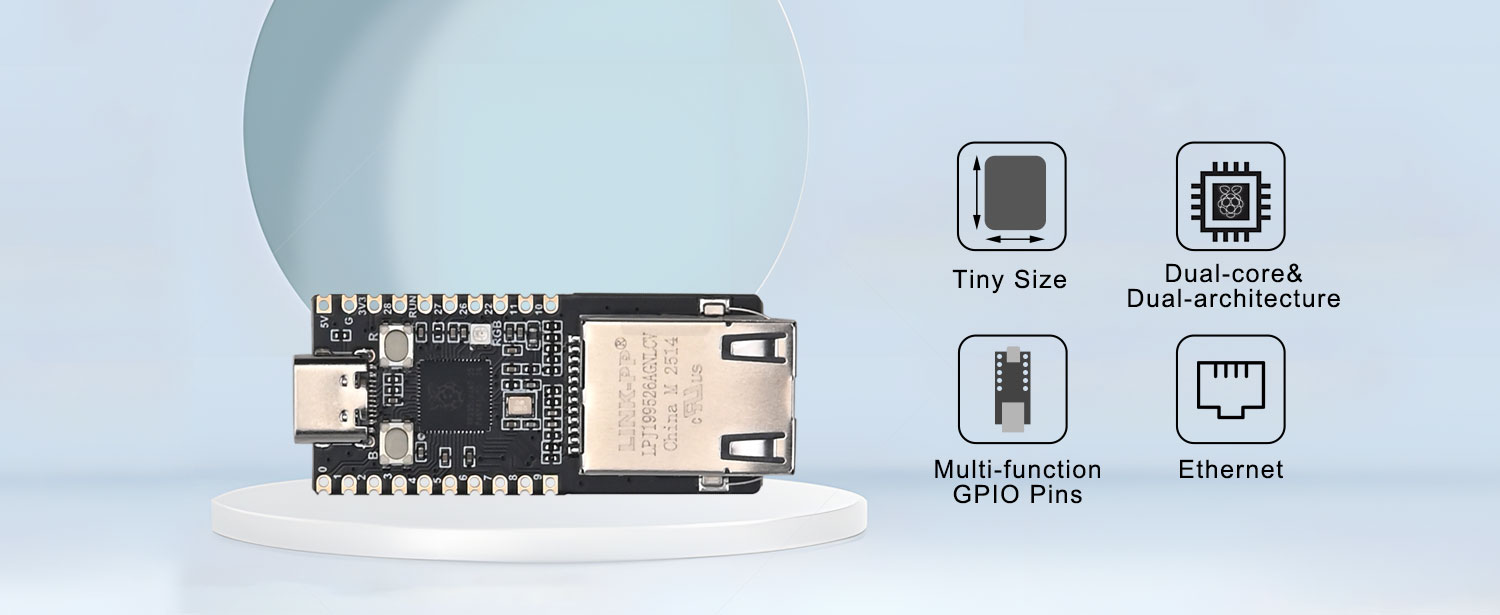

The RP2350-MINI(ETH) development board is developed using the Raspberry Pi dual-core dual-architecture microcontroller RP2350A and the W5500 Ethernet control chip. With a pin header design, it also has an extremely small PCB area, making it very convenient for users to directly weld and integrate it onto the self-designed baseboard. Meanwhile, they can also weld the pins with a pitch of 2.54mm and directly insert them onto the self-designed baseboard. The board also exposes a Type C port, RGB LEDs, a reset button, a BOOT button, and an RJ45 connector, which is convenient for users to develop and debug. This development board is highly suitable for maker projects, building automation control systems, small network devices, embedded system development, and DIY electronic products

Product Features

Product Specifications

Parameter

Specification

Supply Voltage

5V (via Type-C or 5V pads on the through-hole)

Dimensions

50mm (L) x 20.32mm (W)

Weight

8.2g

Dual-core Microcontroller

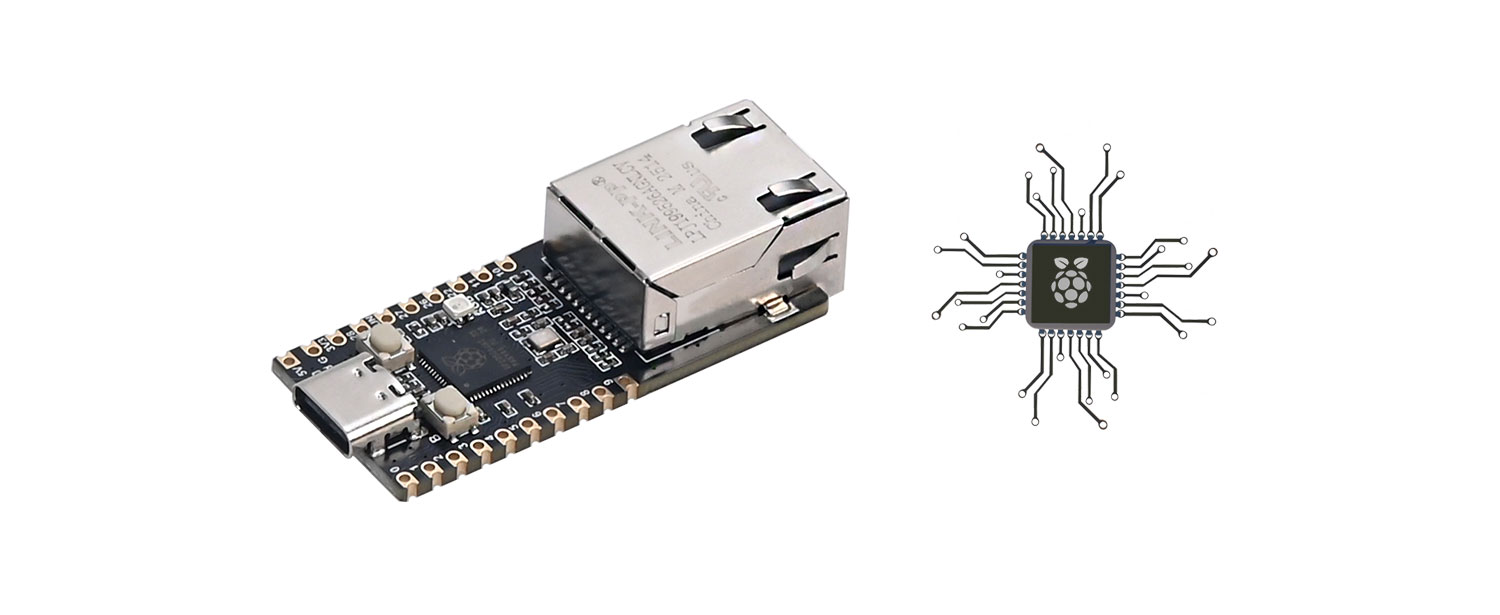

Powered by the RP2350A Raspberry Pi dual-core microcontroller, featuring either a dual-core Arm Cortex-M33

or dual-core Hazard3 RISC-V processor, both operating at 150MHz

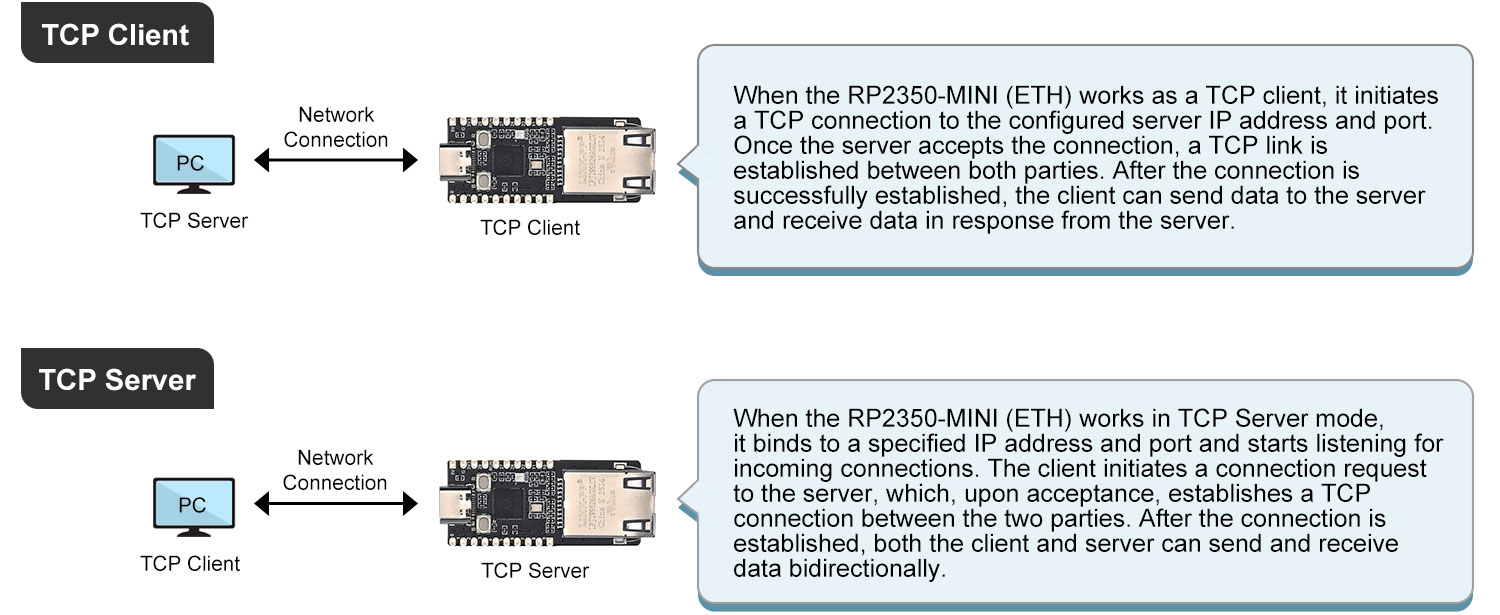

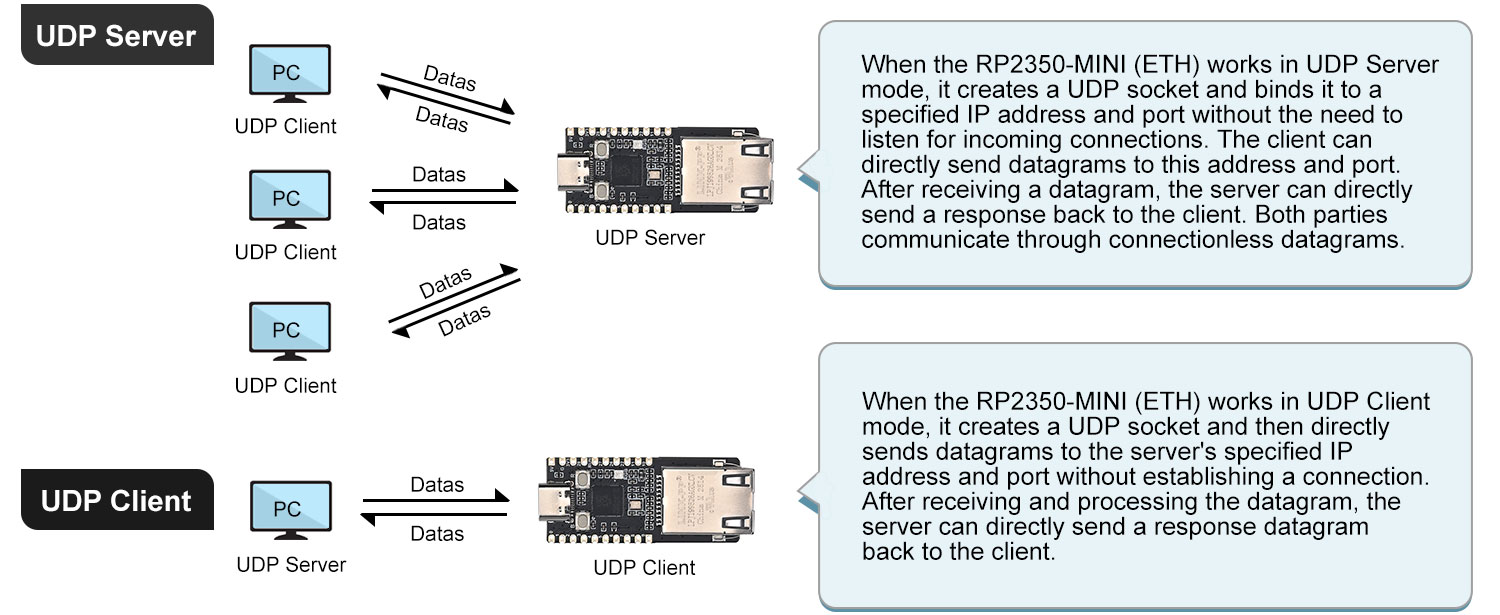

Integrated with a hardwired TCP/IP stack, the W5500 chip offers direct hardware support for key protocols: TCP, UDP, ICMP, IPv4, ARP, IGMP, and PPPoE

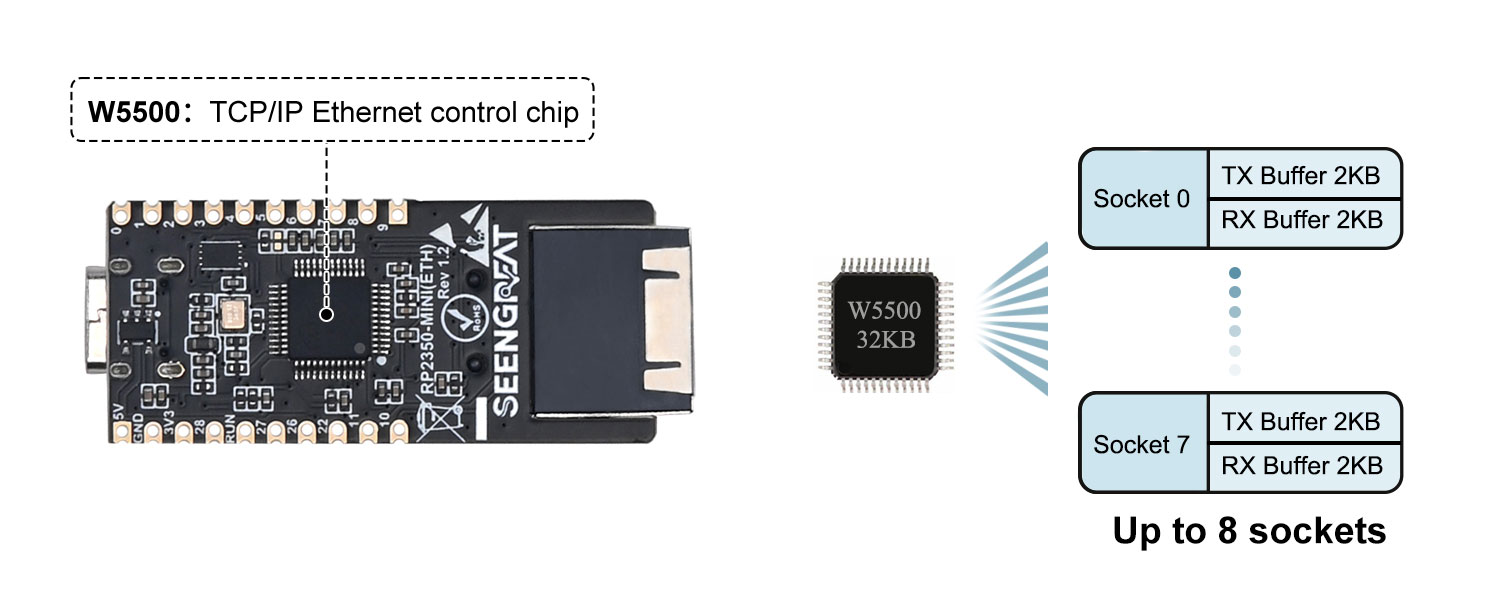

32KB internal buffer and 8 independent sockets for simultaneous communication

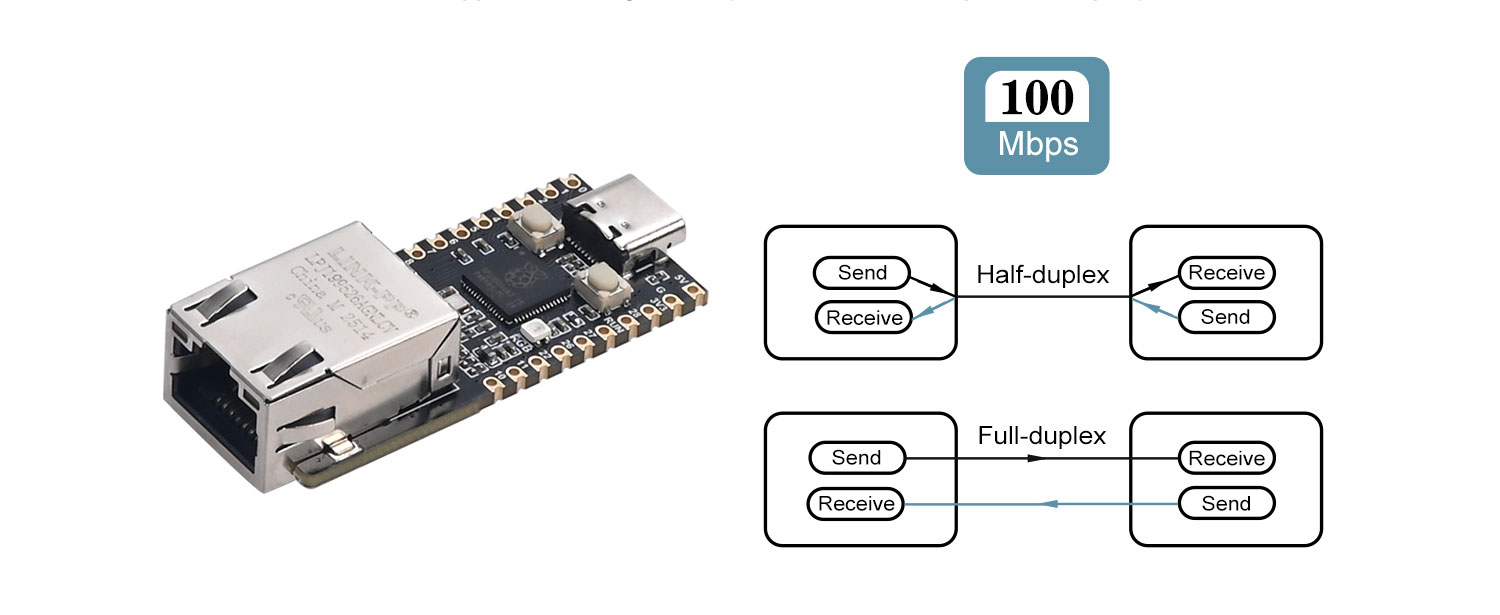

Featuring Auto-negotiation capabilities, the W5500 automatically adapts to 10Mbps or 100Mbps Ethernet speeds, supporting both full and half-duplex operation

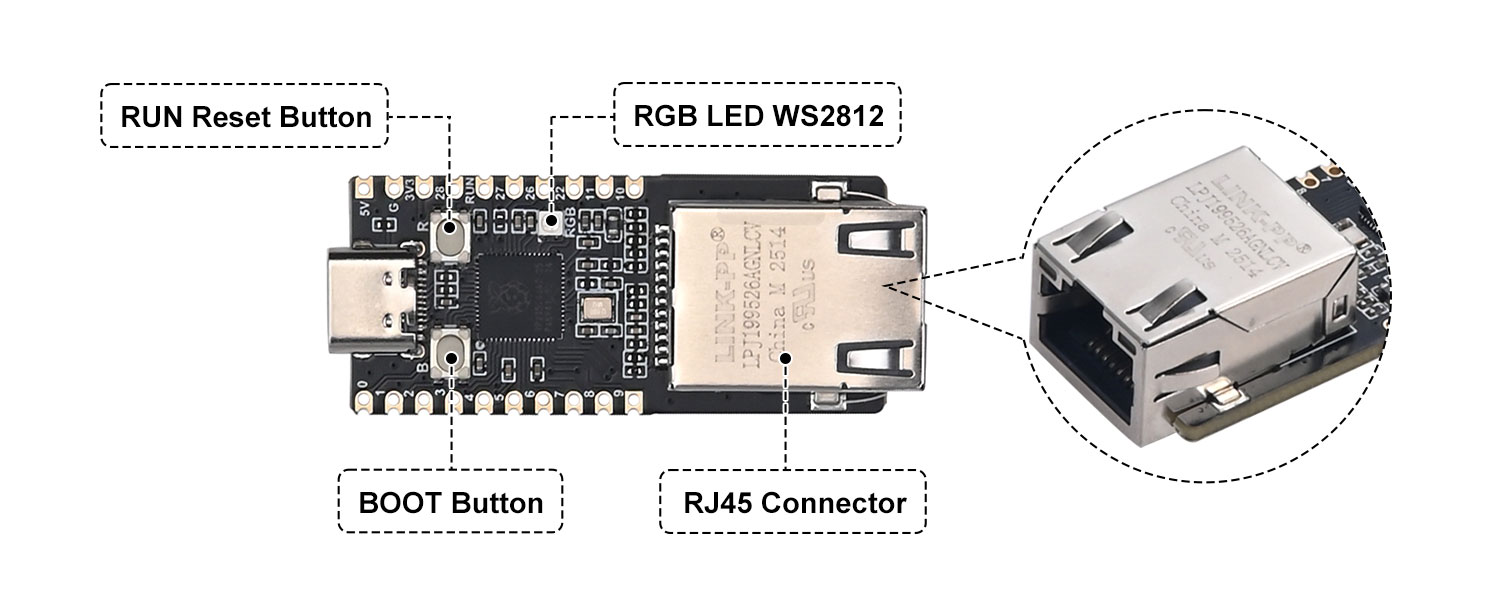

Onboard Features: Includes a RUN reset button, BOOT button, RGB LED (WS2812), and an RJ45 Ethernet connector

Resources Overview

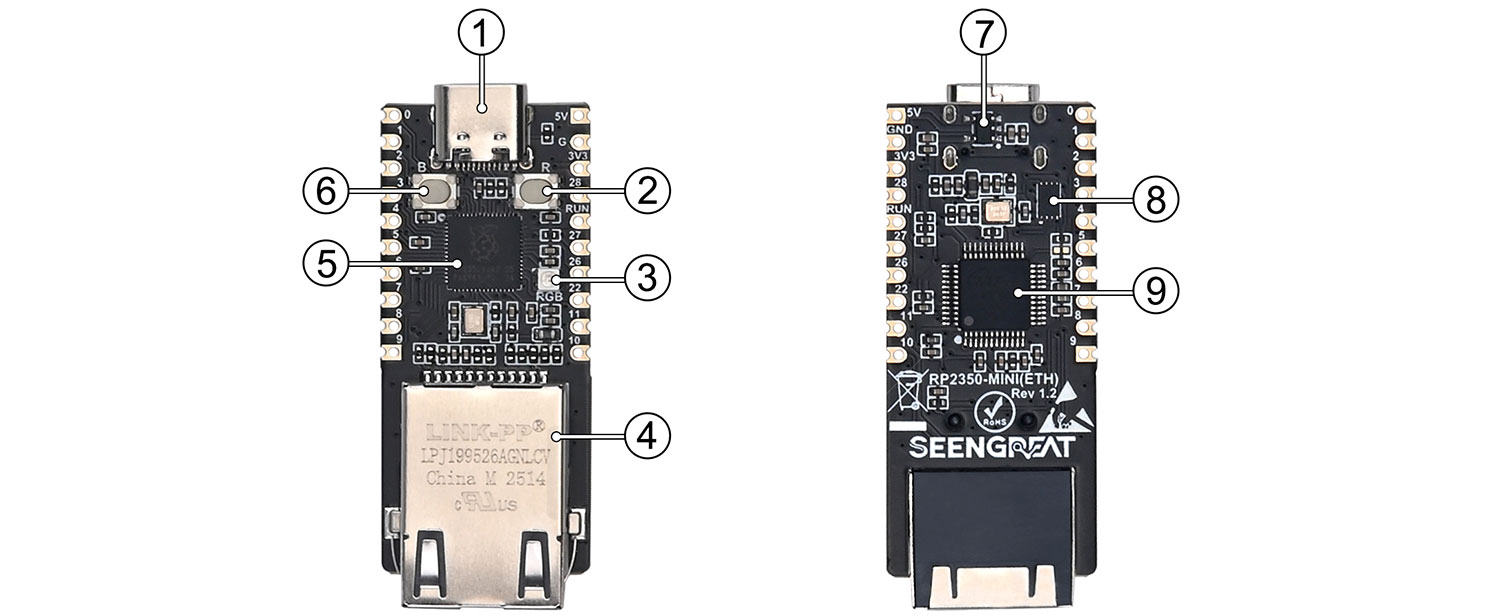

① Type-C Connector: Supports USB 1.1 host and device, can be used for program downloading.

② RUN Reset Button: Used to reset the board.

③ WS2812: Full-color RGB LED for visual indication.

④ RJ45 connector(with indicator LEDs):support 10/100-Based full-duplex/half-duplex.

⑤ RP2350A: Dual-core Arm Cortex-M33 or dual-core Hazard3 RISC-V processor running at 150MHz.

⑥ BOOT Button: Press and hold this button while powering on to enter download mode.

⑦ Linear Regulator ME6211C33M5G: Provides a 3.3V output with a maximum current output of 500mA.

⑧ W25Q32RVXHJQ: 4MB Nor-Flash for storage.

⑨ W5500TCP/IP Ethernet control chip.

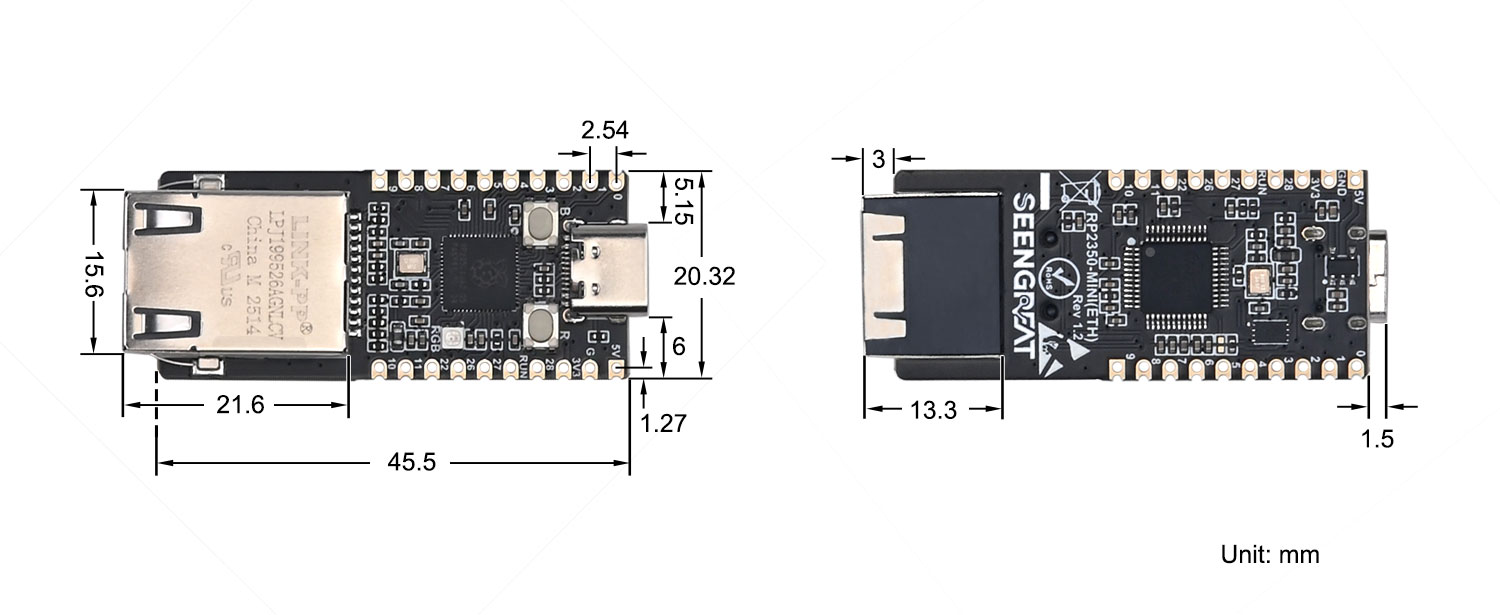

Dimensions

WIKI

seengreat.com/wiki/173/

Package Content

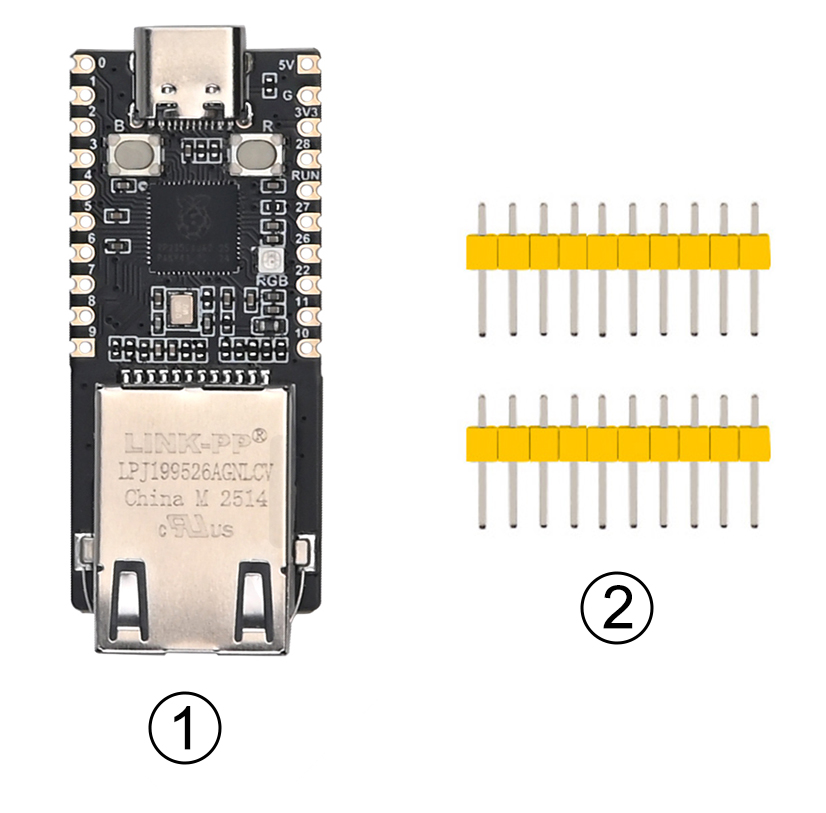

RP2350-MINI(ETH) x 1

Pin Header x 1
