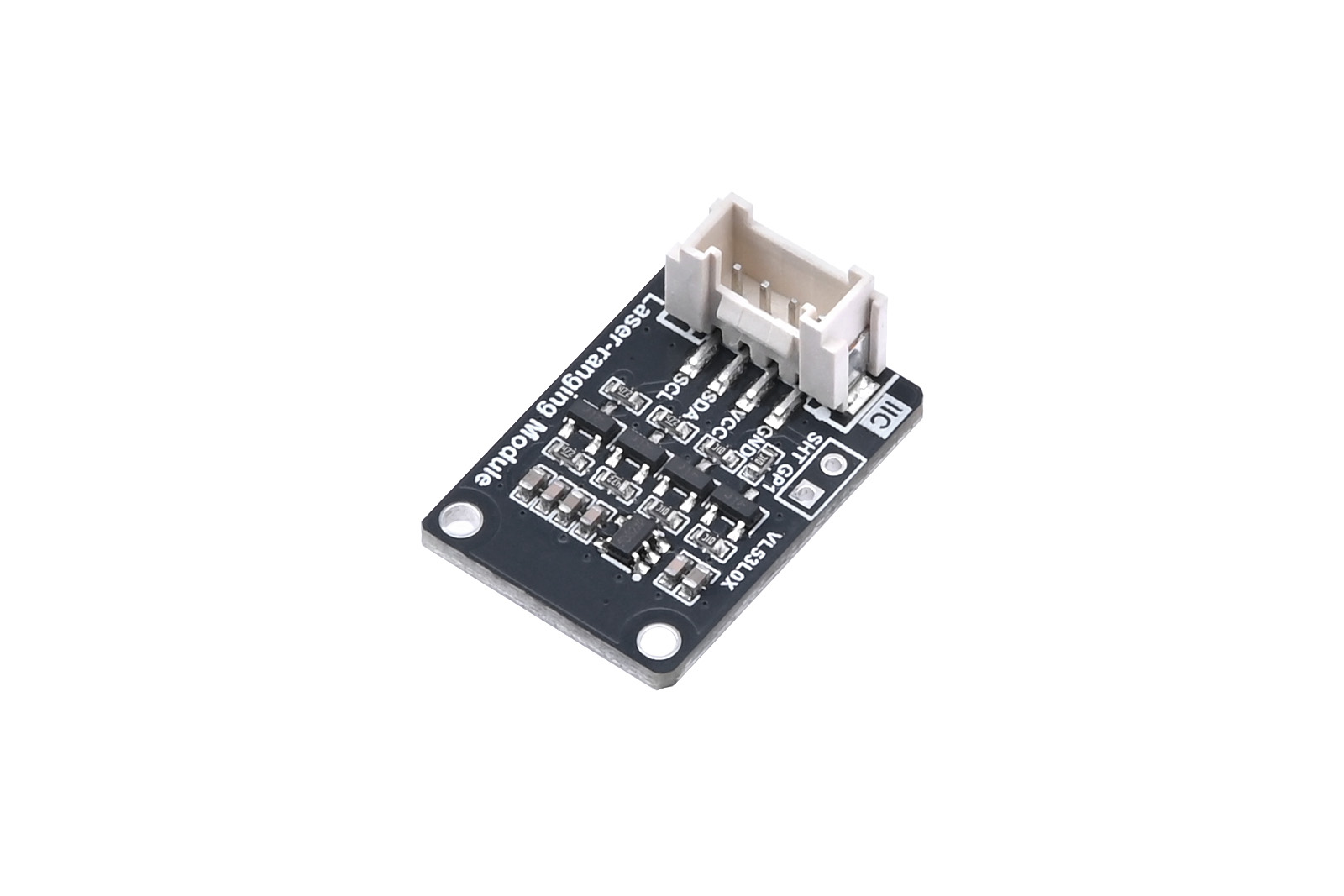

This product uses I2C interface to achieve distance measurement, with a measurement distance of up to 2 meters; Supports Raspberry Pi models, as well as Arduino and STM32; we provide C and Python versions of Raspberry Pi demo codes, as well as Arduino and STM32 versions of demo codes. The demo codes can achieve three ranging working modes: single ranging, continuous ranging, and timed ranging, as well as four ranging configuration modes: default mode, high speed, high accuracy, and long range.
Applications
- Distance Measurement / 1D gesture recognition
- User detection to power on/off and lock/unlock devices like personal computers/laptops/tablets
- Robotic Sensors (fast distance ranging, obstacle detecting, wall tracking)
- Unmanned Aerial Vehicles (UAV) / Drones
- Camera (autofocus enhancement in low light, video focus tracking assistance)
Features
- I2C interface, less pin occupation
- Compatible with 3.3V/5V working level
- PH2.0 interface and reserved pads for GPIO1 and SHUT pins
- Provide open-source demo codes for Raspberry Pi, Arduino, and STM32 development boards
Specifications

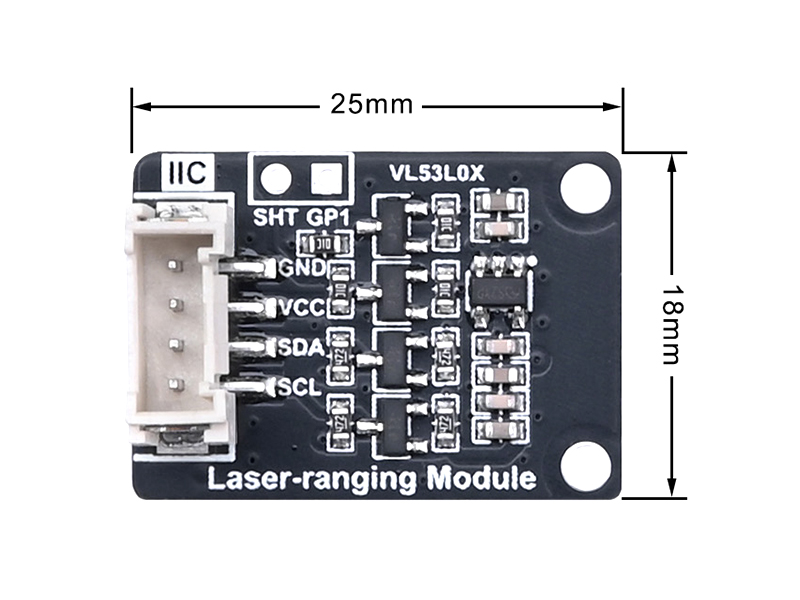

| Dimensions | 25mm(Length) x 18mm(Width) |
| Supply voltage | 3.3V/5V |
| Ranging distance | 30~2000mm |
| Ranging accuracy | ±5%( high speed mode)， ±3%(high accuracy mode) |
| Ranging time (min) | 20ms(short distance mode)， 200ms (medium/long distance mode) |
| Field of view | 25° |
| Laser wavelength | 940nm |
| Control Chip | VL53L0X |
| Signal interface | I2C |

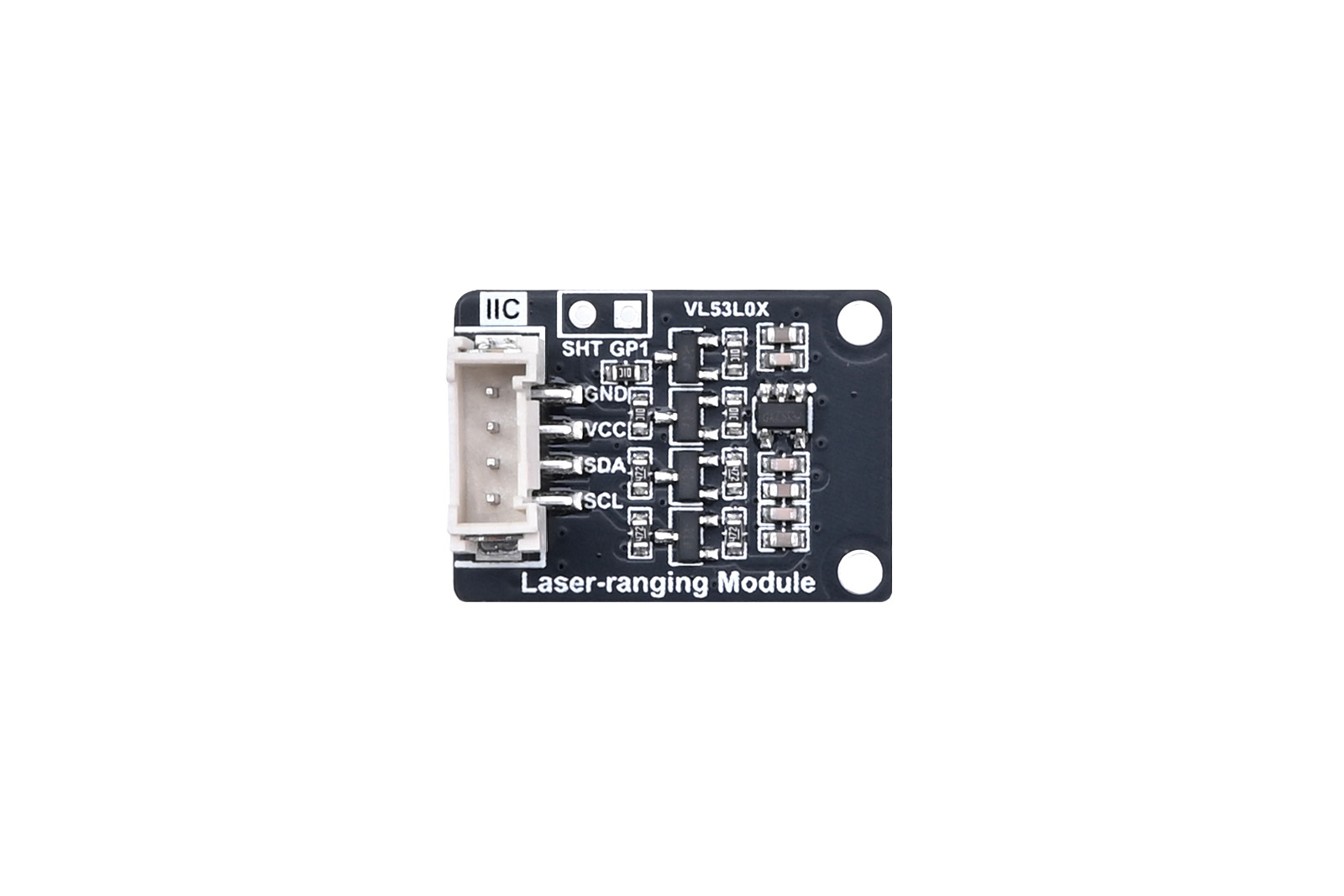

Interface definition
| VCC | Power supply positive(3.3V/5V) |
| GND | Power supply ground |
| SDA | I2C data line |
| SCL | I2C clock line |
| SHT | shutdown control, can connects to IO pin |
| GP1 | Interrupt output, can connects to IO pin |
Resource profile

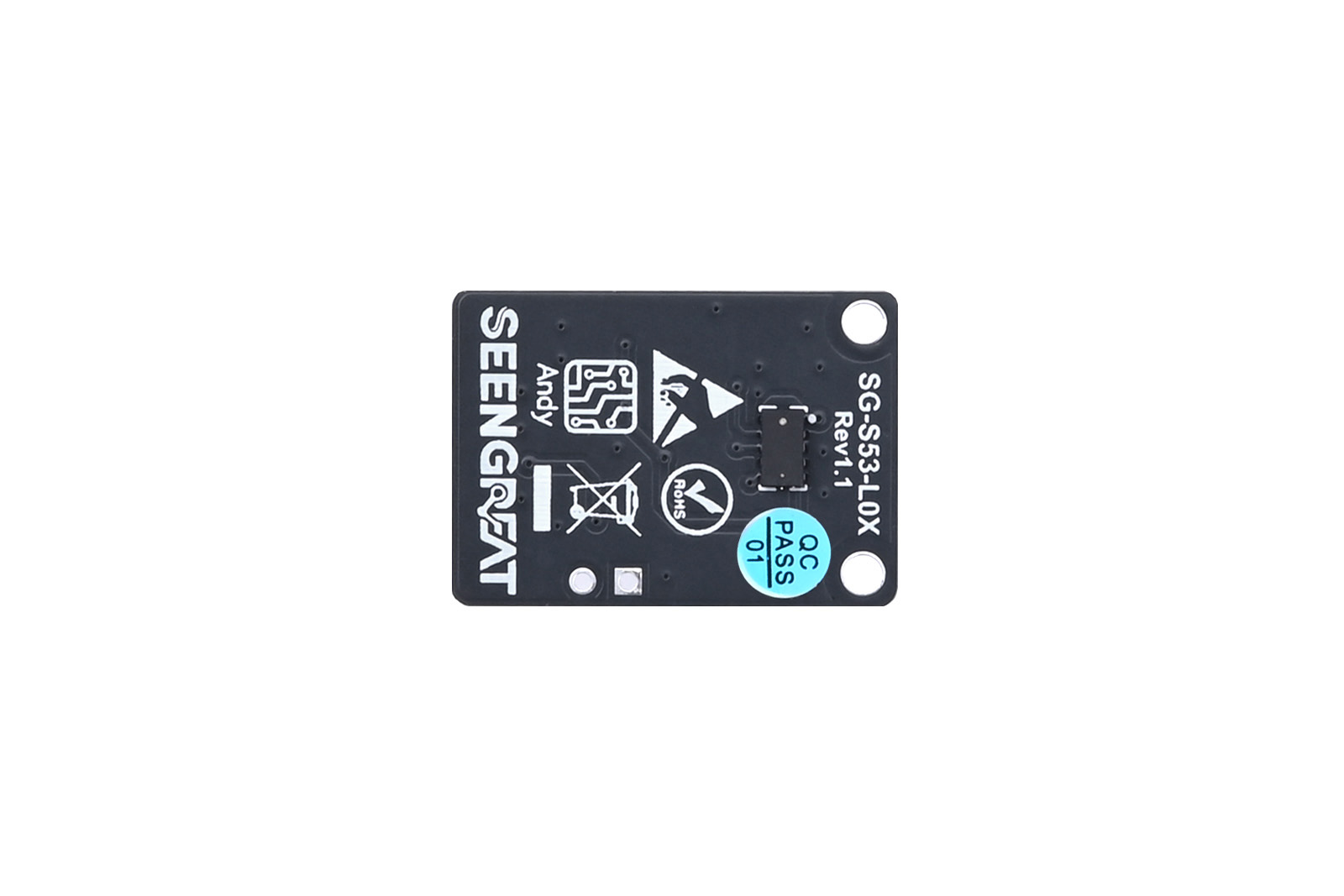

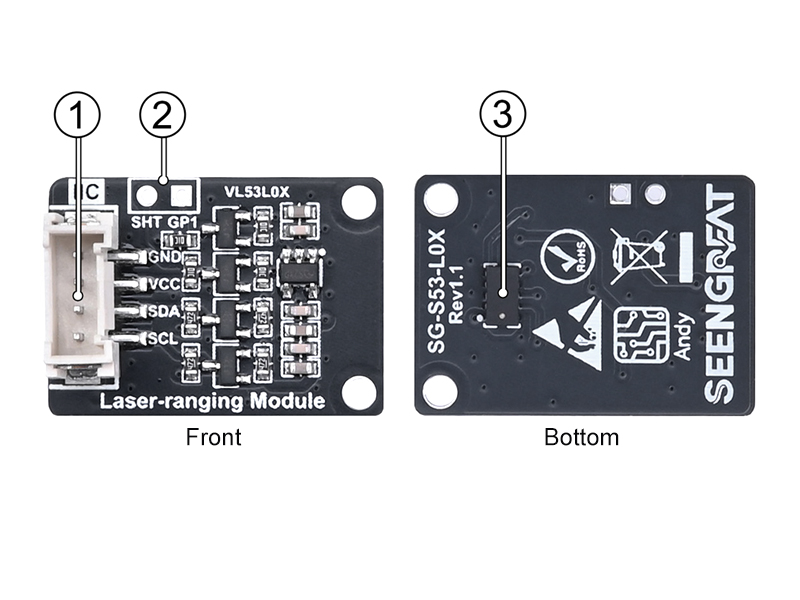

① PH2.0 terminal leads out control pin
② Lead out GPIO1 and SHUT pins
③ VL53L0X ranging chip
WIKI
Package Contents

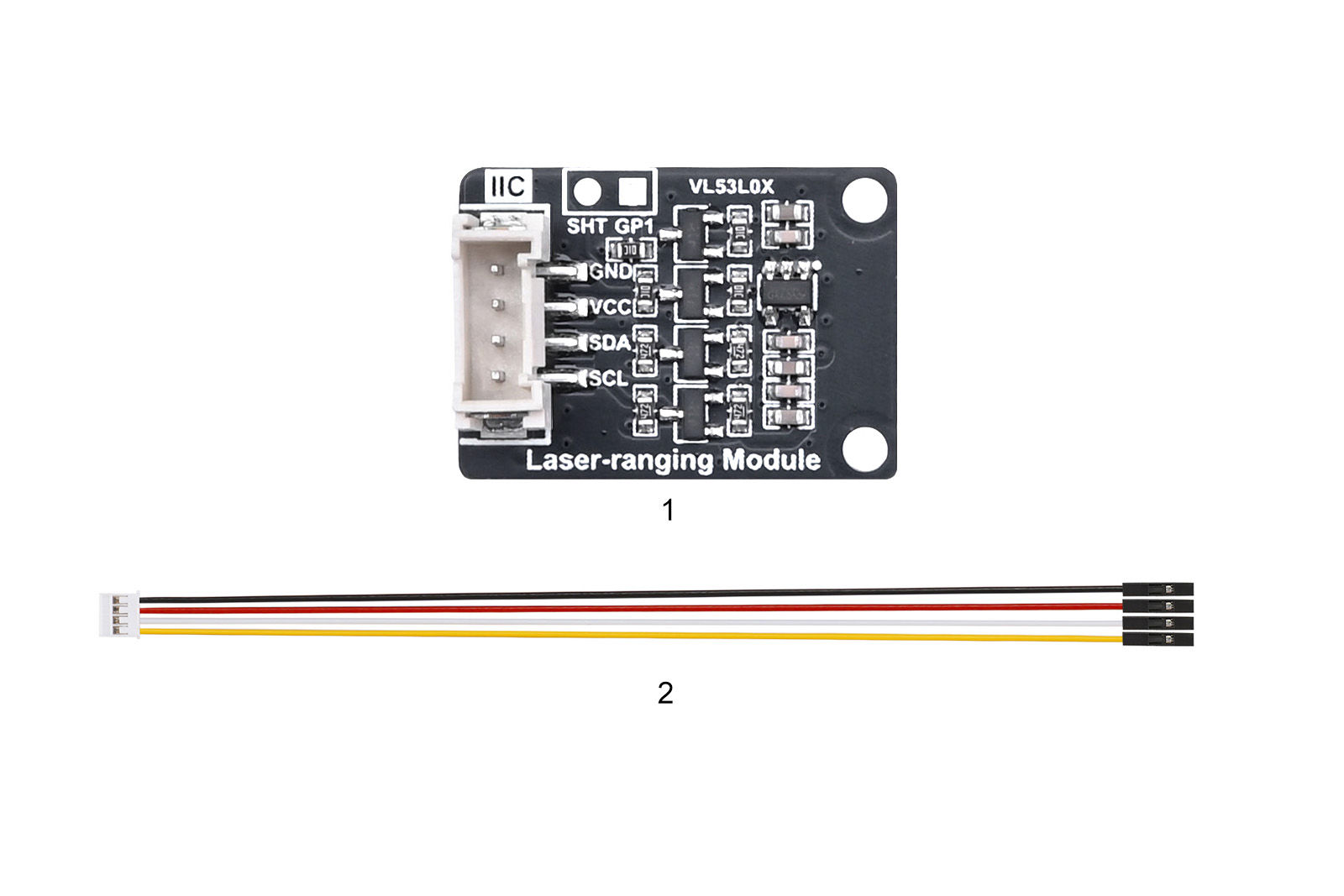

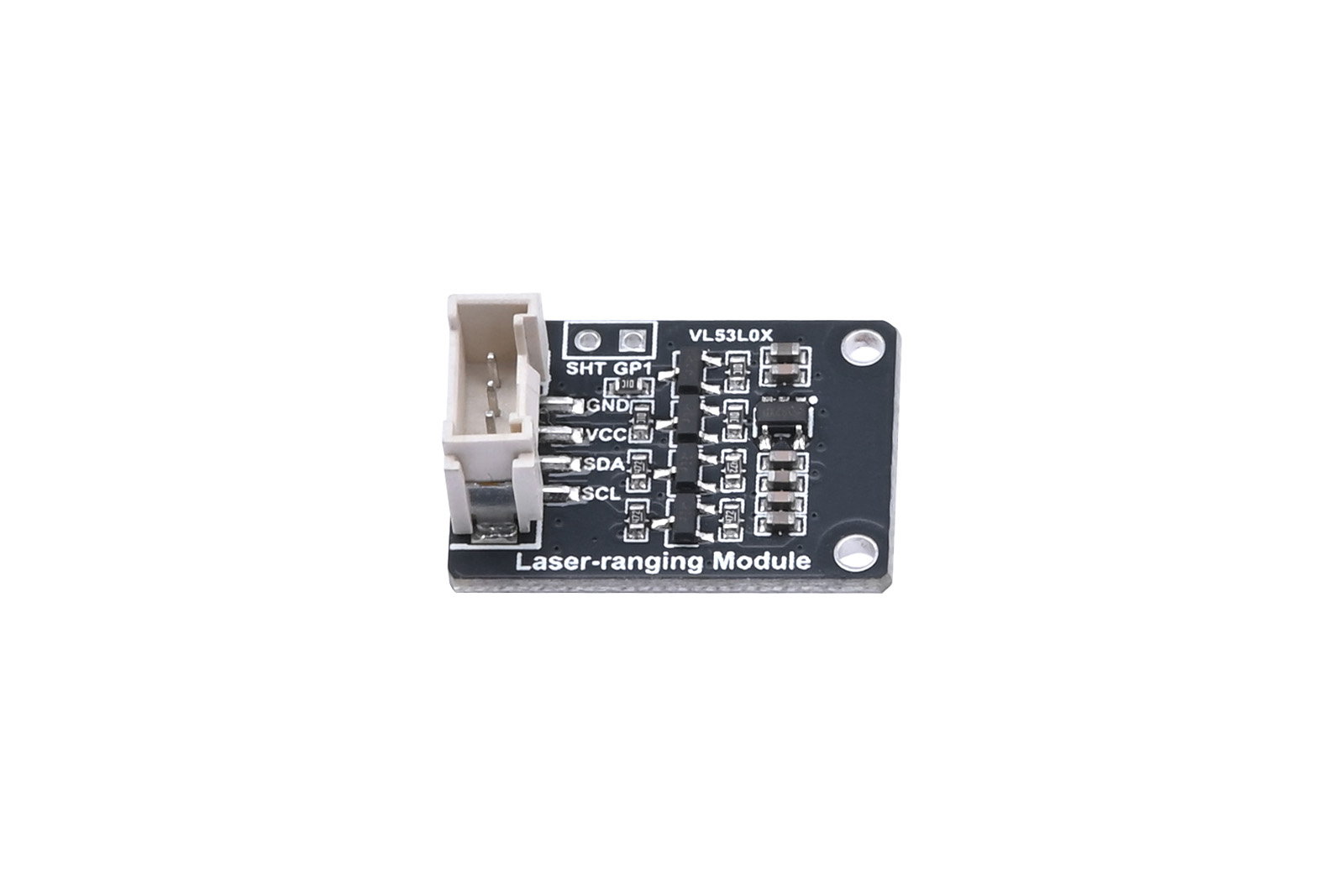

1. SG-S53-L0X x 1
2. PH2.0 4PIN connecting cable x 1
