The LCD display features a resolution of 128x128, an internal ST7735S controller, and an SPI control interface. It comes bundled with demo codes in both C and Python specifically tailored for Raspberry Pi Pico. This versatile display can effortlessly render dots, lines, rectangles, and circles, while also capable of displaying English alphanumeric characters.
Features
- 128 x 128 resolution
- SPI interface, less pin occupation
- The ST7735S controller is built into the screen
- Onboard 1 joystick(Five direction) and 4 buttons
- Provides open source demo codes that can be used with the Raspberry Pi Pico development board
Product Parameters

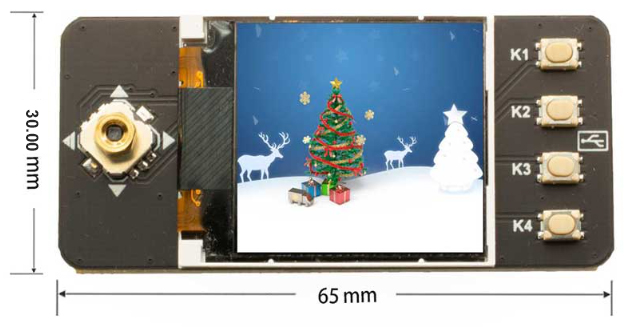

| Dimensions | 65mm (L) x 30mm (W) |
| Resolution | 128 x 128 |
| Display Color | RGB, 65K colors |
| Control Chip | ST7735S |
| Backlight | LED |
| Communication Interfaces | SPI |
| Supply Voltage | 3.3V |

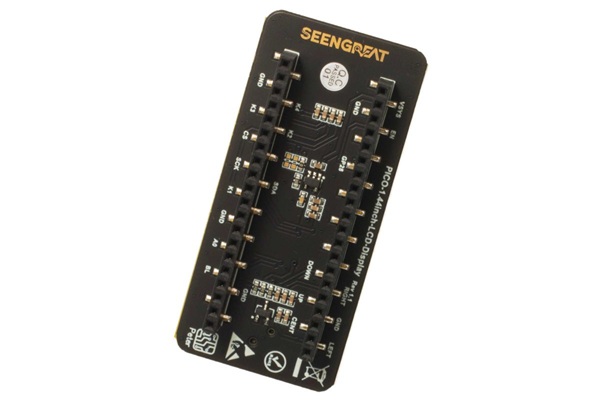

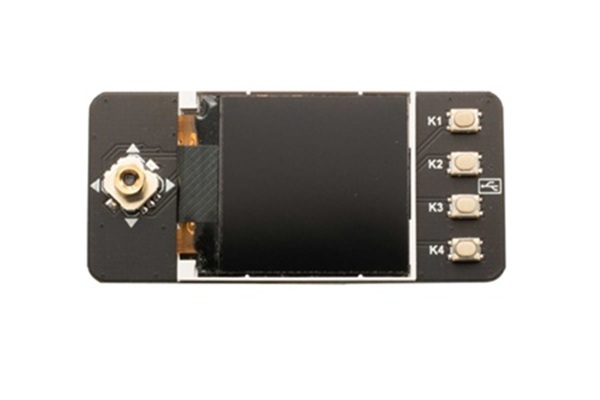

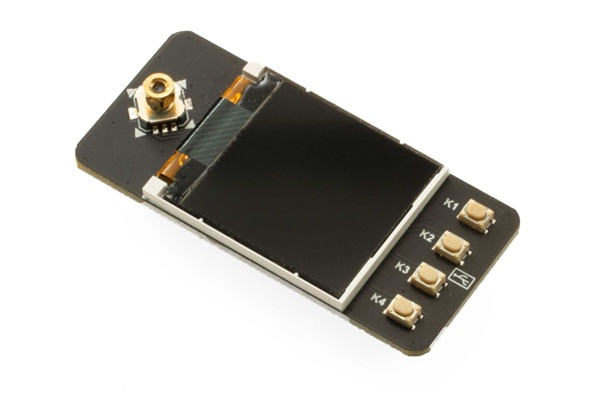

Appearance Overview
WIKI
Pico 1.44inch LCD Display - Wiki
Package Contents
Pico 1.44inch LCD Display * 1
